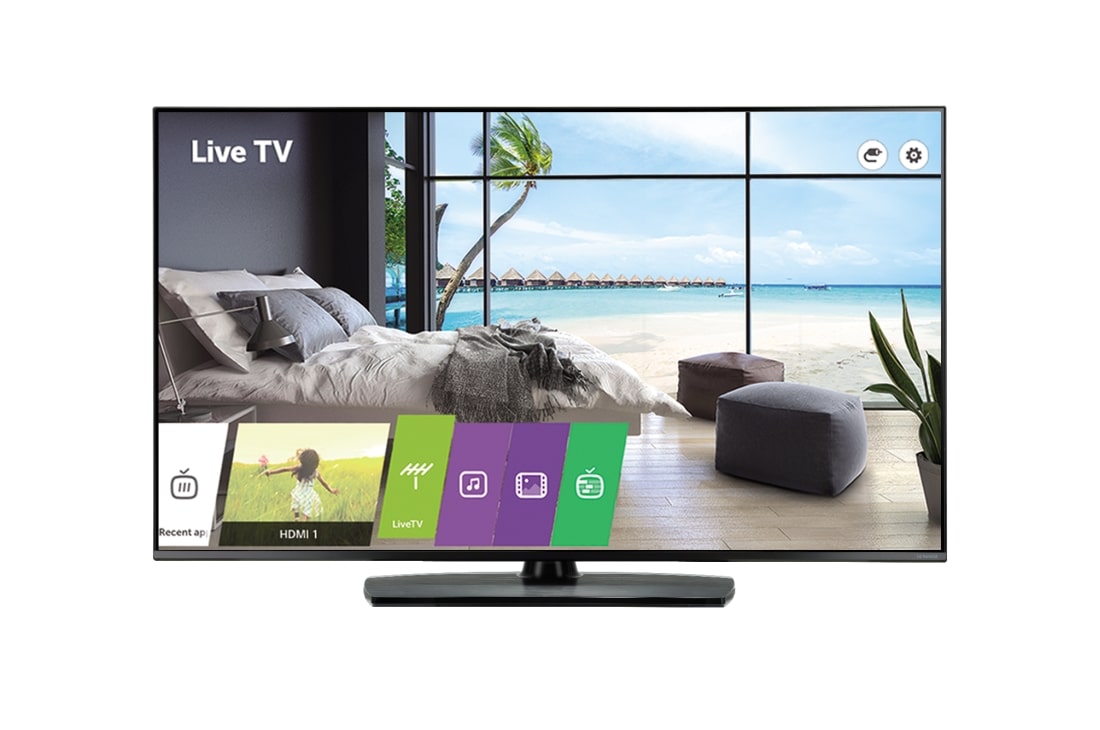

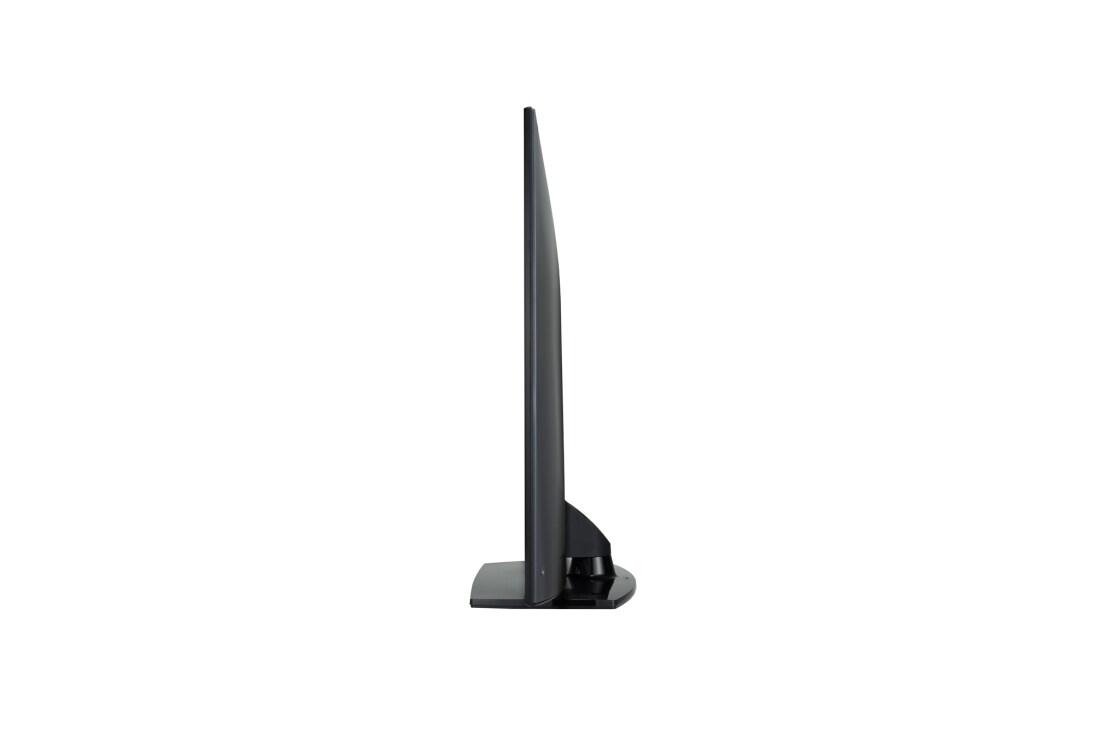

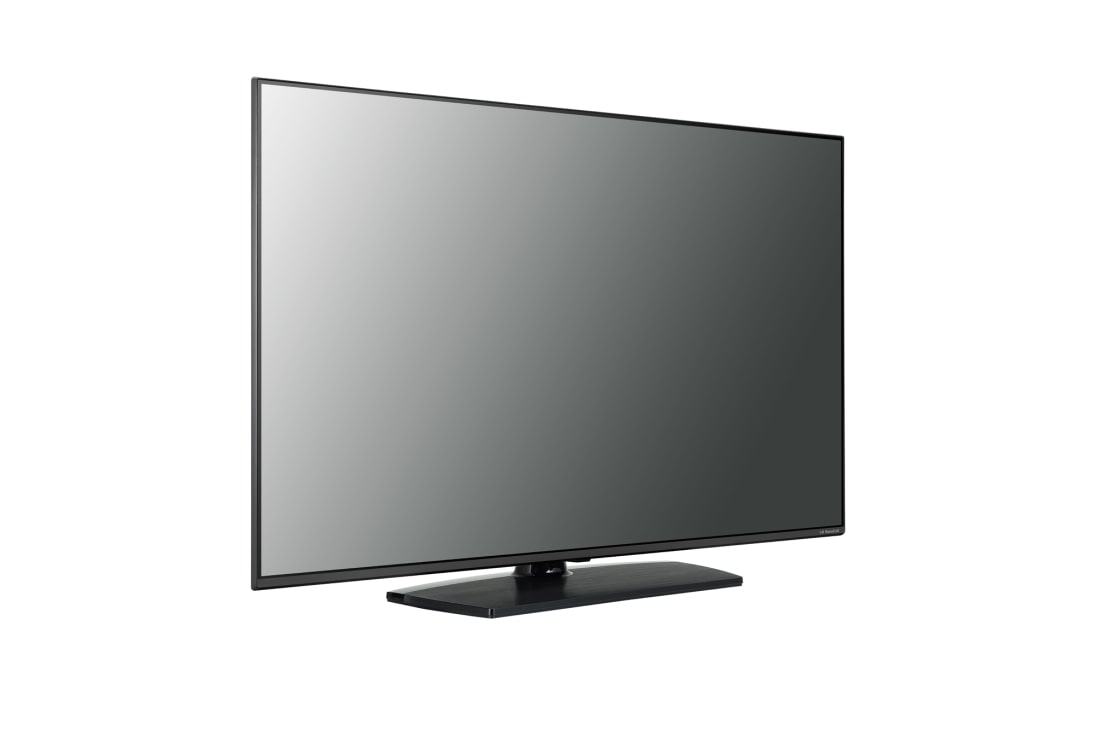

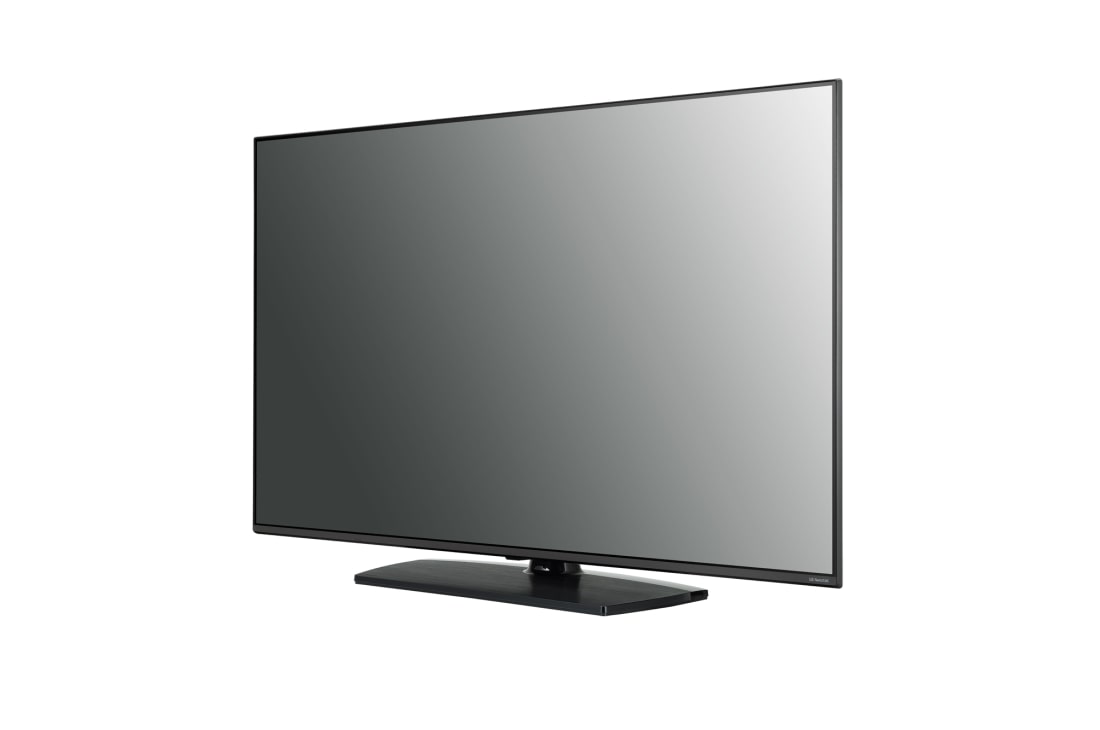

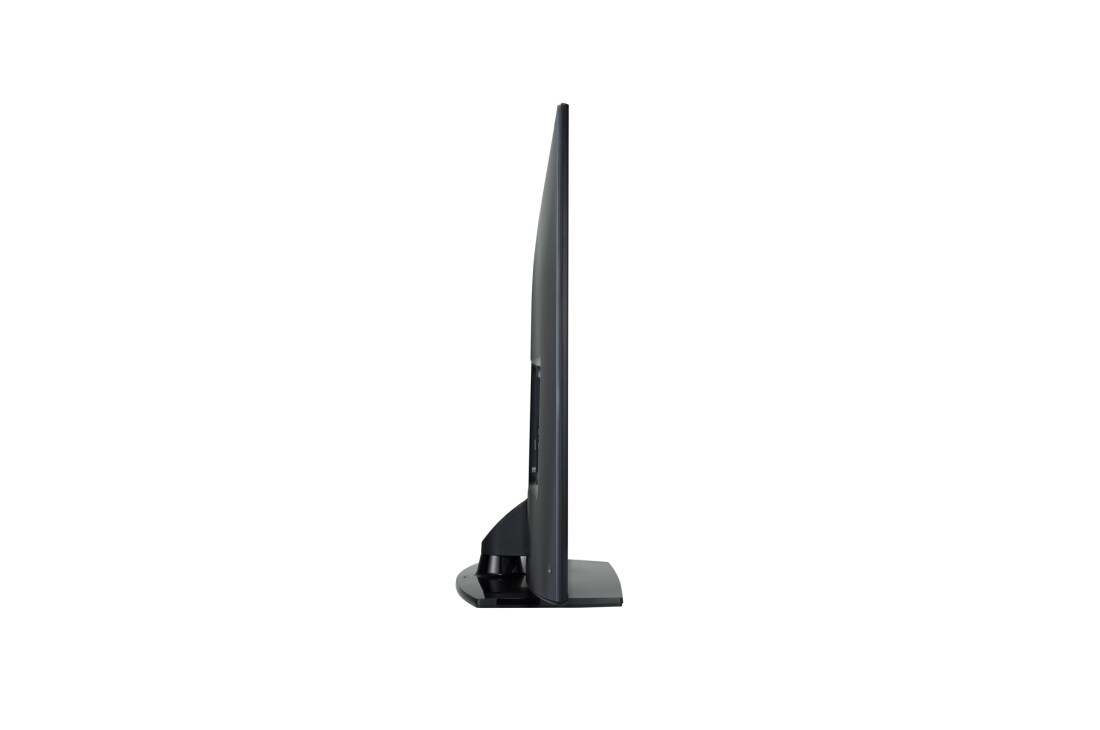

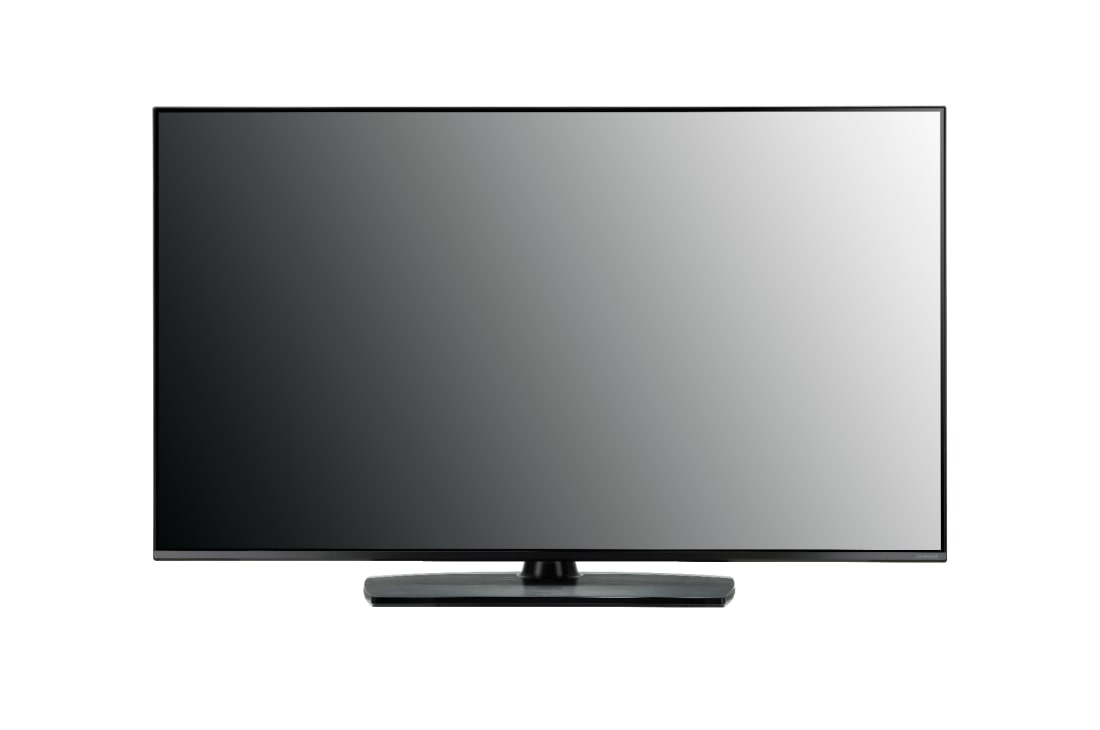

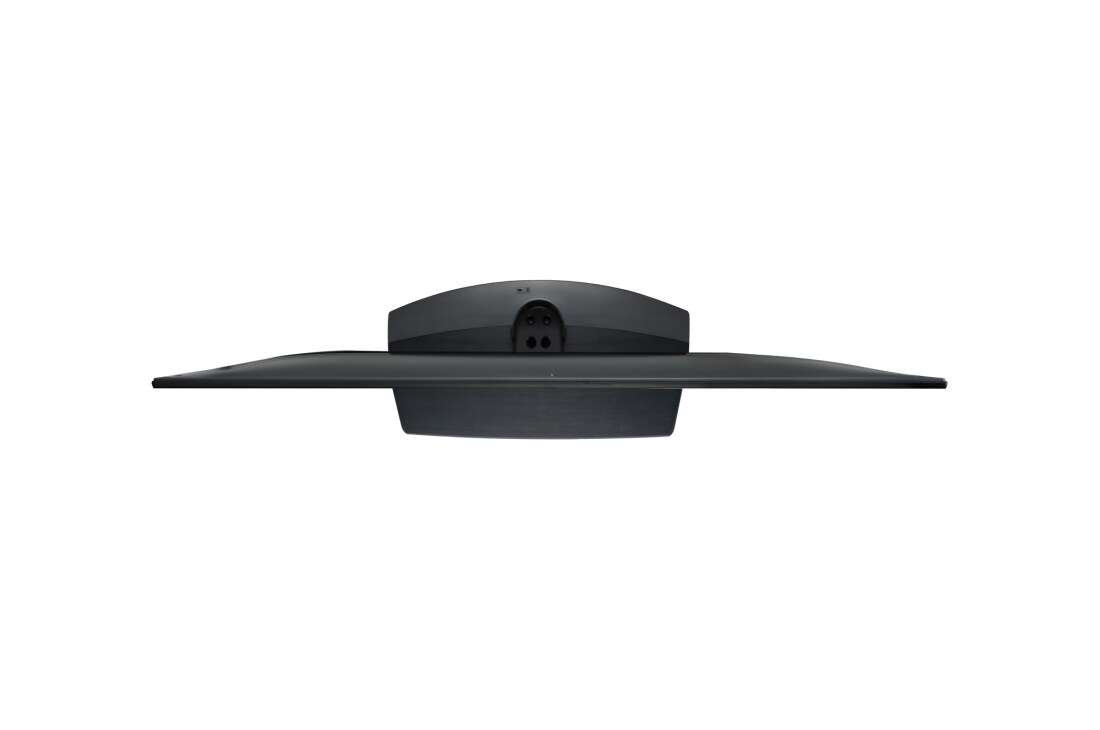

55UT761H0GA
UT761H Series
  • Pro:Centric Hotel Management Solution
  • Voice Recognition
  • Quick Menu
UT761H Series
MSRP AED
* Customized Ul may be little different.
* Actual UIl may be litter different
* SoftAP should be set in installation menu after TV is on.
* Smart Mirroring may not be operated at the same time.
* We provide two protocol for SI solution (HTNG-CEC and TVLink)
 * Only available for LG TV models

DISPLAY

  • Inch
    55
    Resolution
    3,840 x 2,160 (UHD)
  • Backlight Unit Type
    Edge
    Brightness (cd/m²)
    400

BROADCASTING SYSTEM

  • Digital
    Yes (DVB-T2/C/S2)

VIDEO

  • HDR (Dolby Vision / 10 Pro / HLG)
    - / • / •

AUDIO

  • Audio Output
    10W + 10W
    Speaker System
    2.0 ch
  • DOLBY ATMOS
    Deep Learning AI Sound
  • LG Sound Sync
    • (Required Bluetooth)

HOSPITALITY SOLUTION

  • Solution Type
    Pro:Centric (Smart, V, Direct), Quick Menu 3.0
    Data Streaming (IP & RF)
  • HCAP (GEM/FLASH/HTML)
    ※ Service Carousel (TLL/XML)
    GEM / HTML5
    IP Return path
  • Multicast / Unicast ready
    webRTC (Real Time Communication)
  • Pro:Centric Application (version)
    • (PCA3.8)
    Pro:Centric Server
    PCS400R
  • DRM
    Pro:Idiom (S/W Type), Pro:Idiom (Mobile, Lite)

FEATURES

  • Hospitality
    Hotel Mode, Lock mode (Limited), Welcome Video / Screen, Insert Image, One Channel Map, IP Chanenel Manager, External Speaker Out (Int / Ext Variable / Fixed), Instant ON, External Power Out, V-Lan Tag, RJP (Remote Jack Pack) Compatibility, LG / Teleadapt (RS232C), Teleadapt / Guestlink (HDMI CEC), External Clock Compatibility (LEC-005), Auto Off / Sleep Timer, Smart Energy Saving, Motion Eye Care, BEACON, RTC (Real Time Clock), NTP sync timer

JACK INTERFACE

  • Set Side
    HDMI In 2.0, USB 2.0 (2), CI Slot
    Set Rear
    HDMI In (HDCP) 2.0 (2), Digital Audio Out (Optical), RS-232C (Control & Service), Clock Interface (RJ12), RJ45 (Usage Purpose : 2 (Ethernet, Aux)), External Speaker Out (3.5mm Phone Jack) : 2 (Spk-out 1, 4W (Stereo, R : 2.0W, L : 2.0W, 8Ω) - Vol. Control1)

DIMENSION (UNIT: MM / KG)

  • Vesa
    300 x 300
    W x H x D / Weight (with stand)
    1,232 x 773 x 303 / 20.4
  • W x H x D / Weight (without stand)
    1,232 x 716 x 63.6 / 17.2
    W x H x D / Weight (Shipping)
    1,360 x 860 x 207 / 25.6

POWER (UNIT : WATTS)

  • Voltage, Hz
    100 ~ 240, 50 / 60
    Typical
    138W
  • Stand-by
    0.5

GENERAL

  • Region
    Middle East & Africa

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
