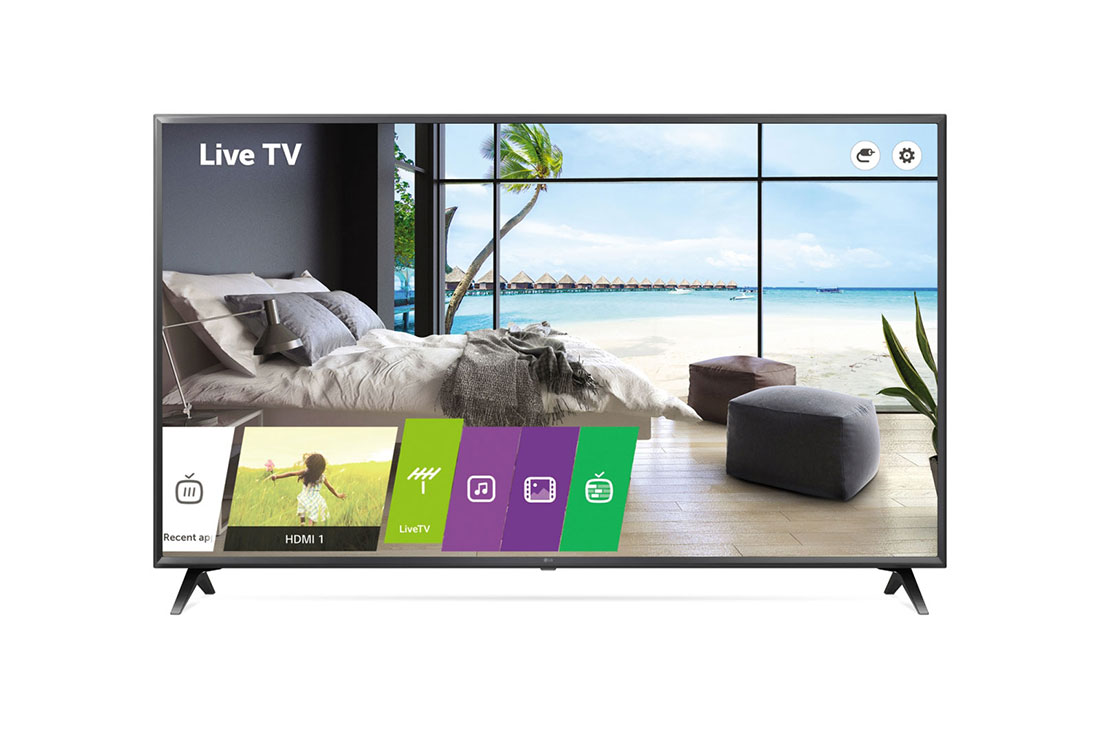

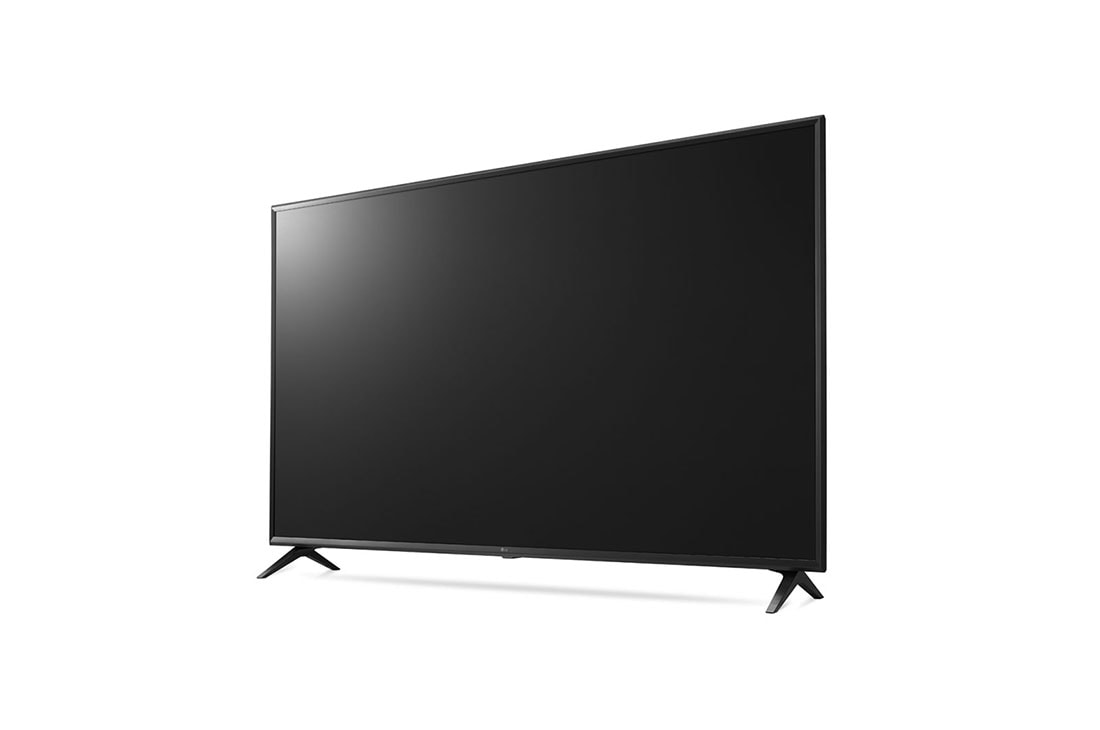

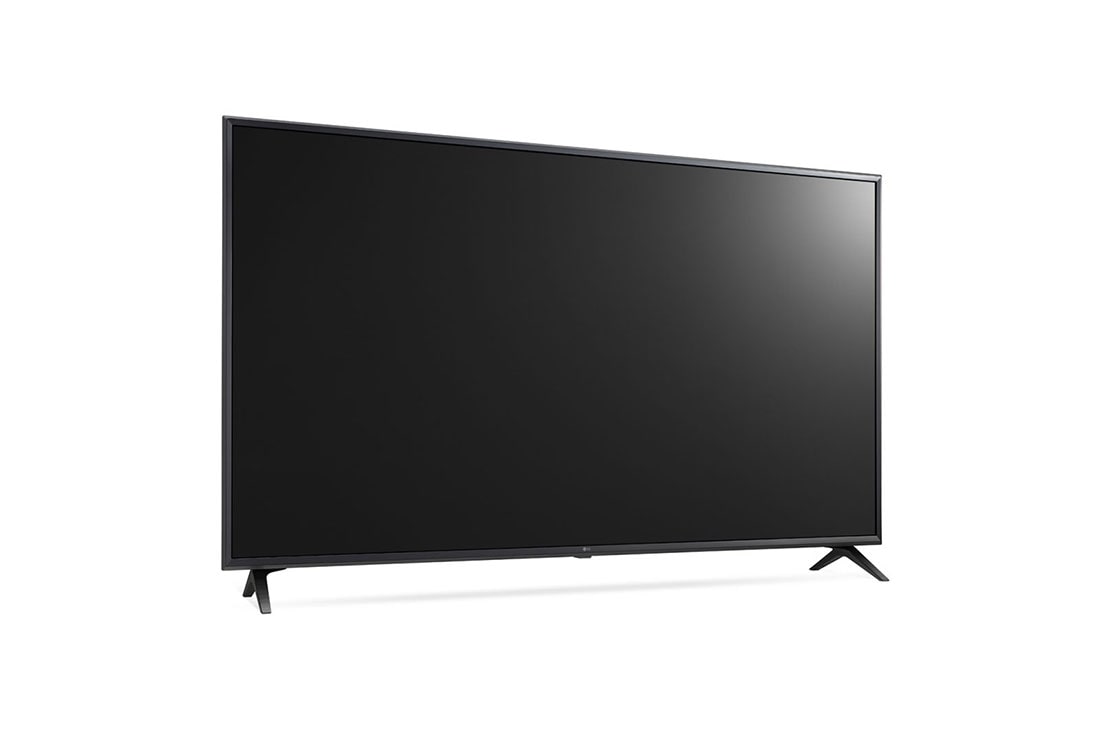

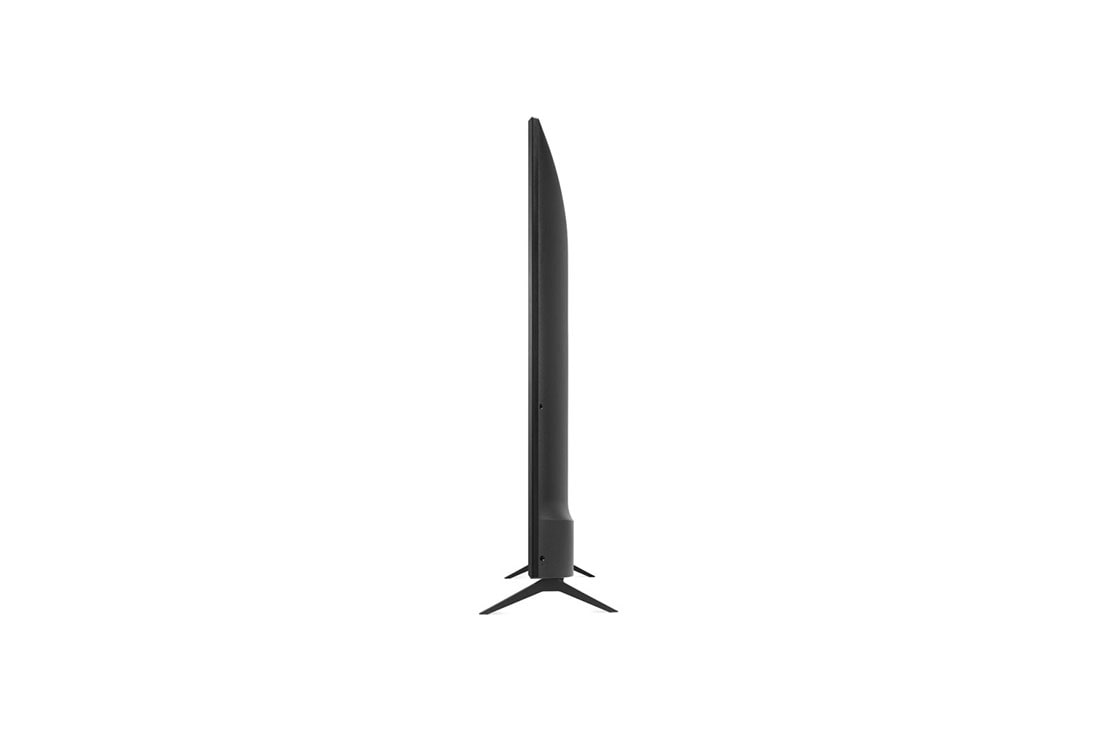

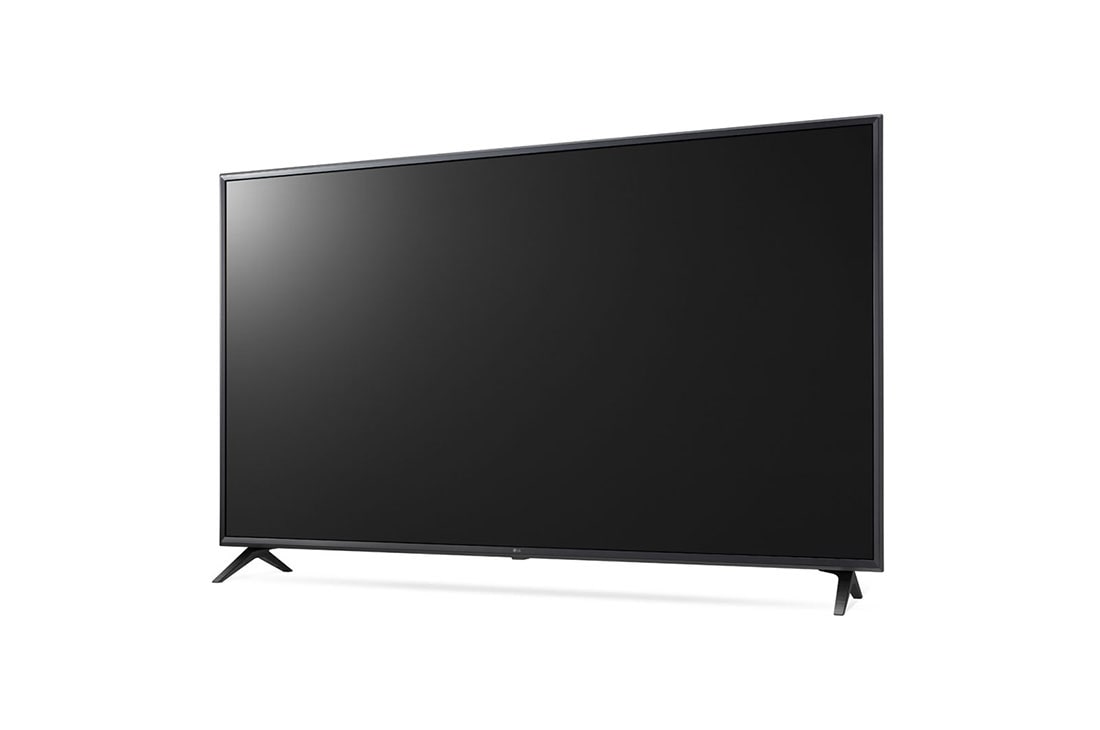

55UU660H
55UU660H

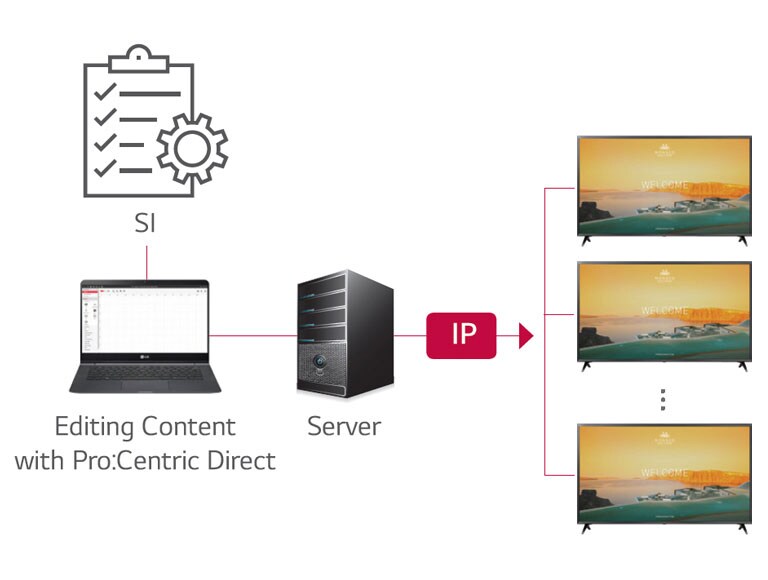

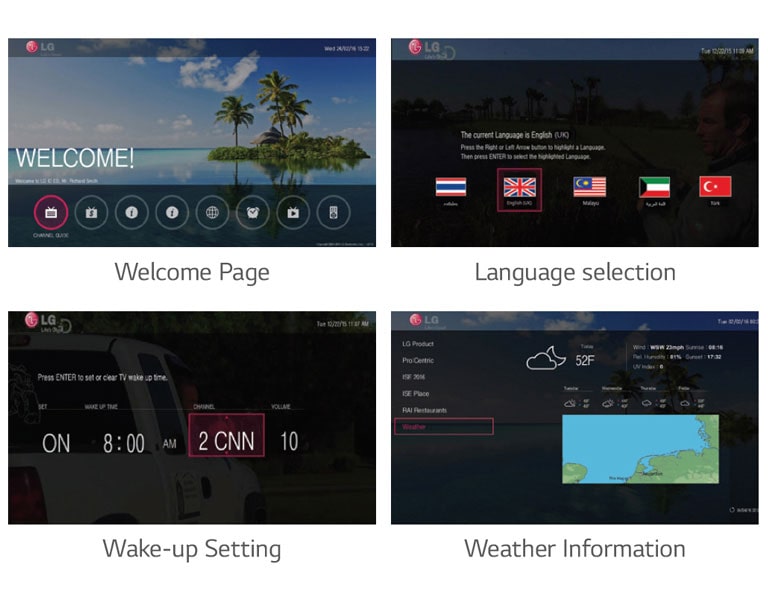

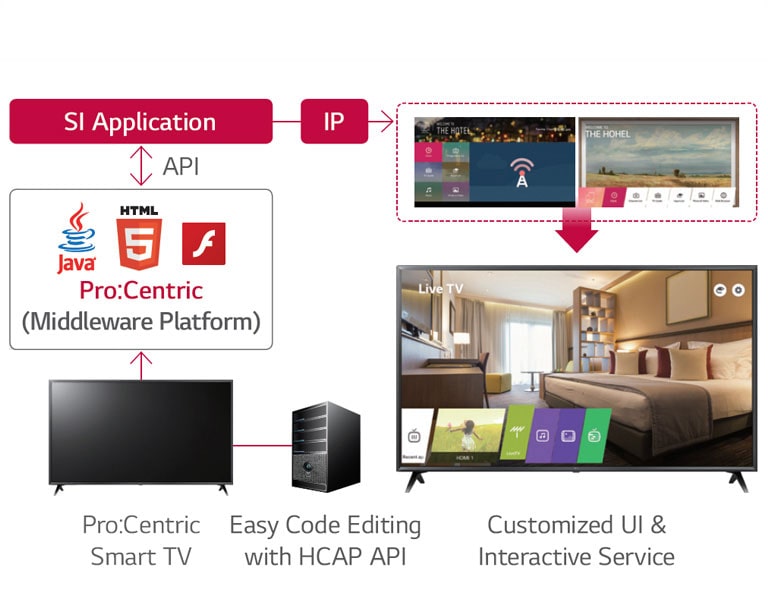

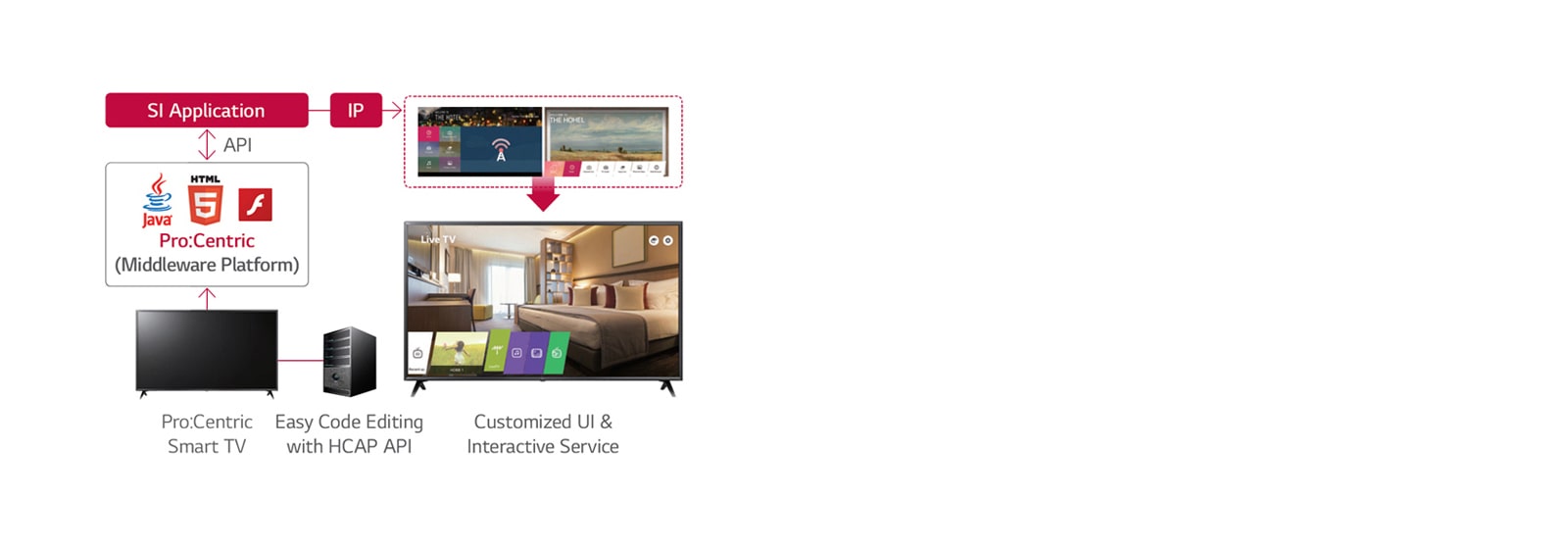

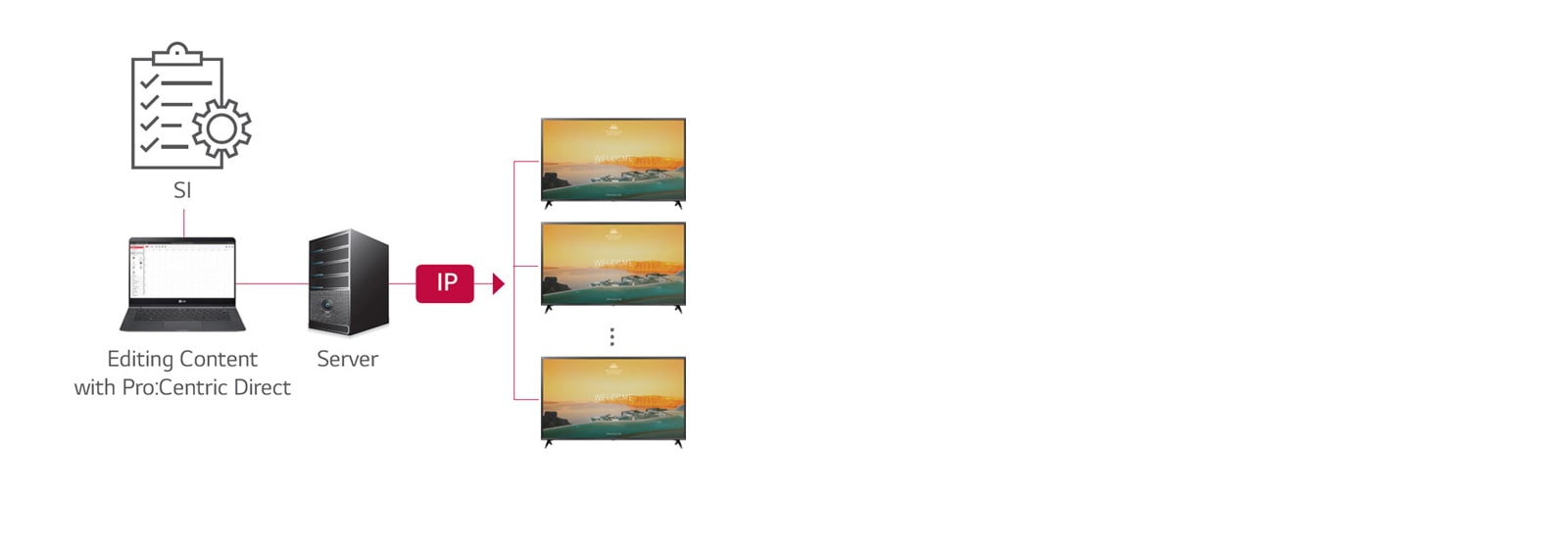

  • Pro:Centric Hotel Management Solution

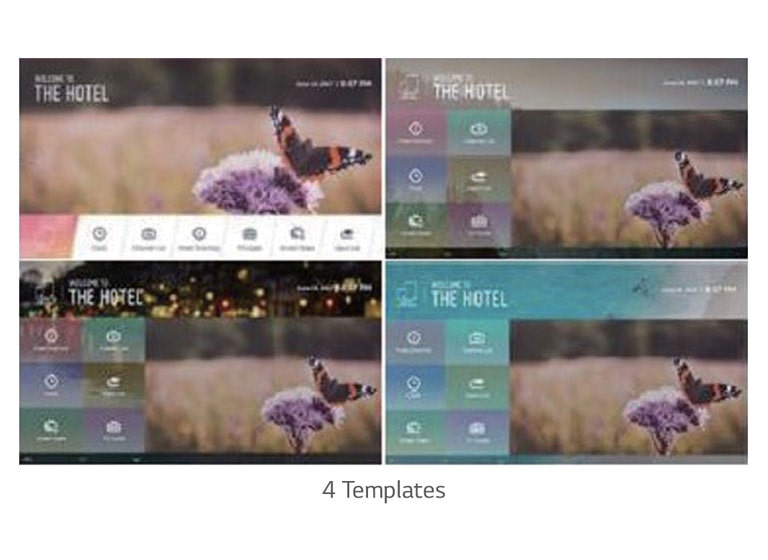

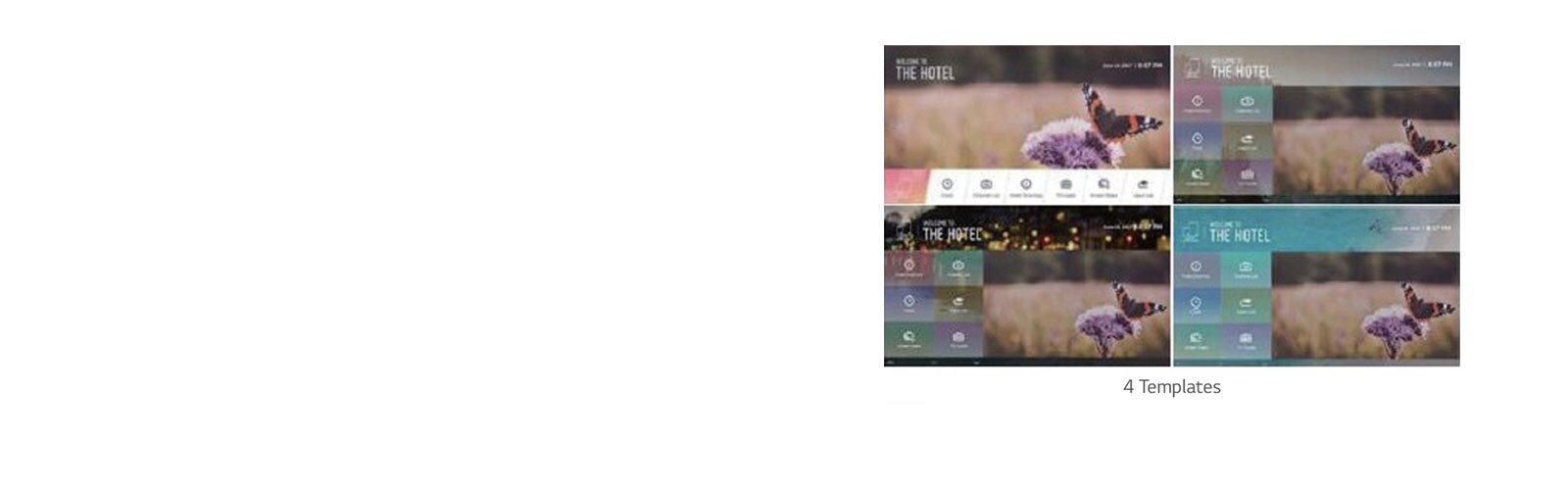

  • New Quick Menu(2.0)
  • Voice Recognition
  • LAN out with VLAN(Virtual LAN) ID
55UU660H
MSRP AED

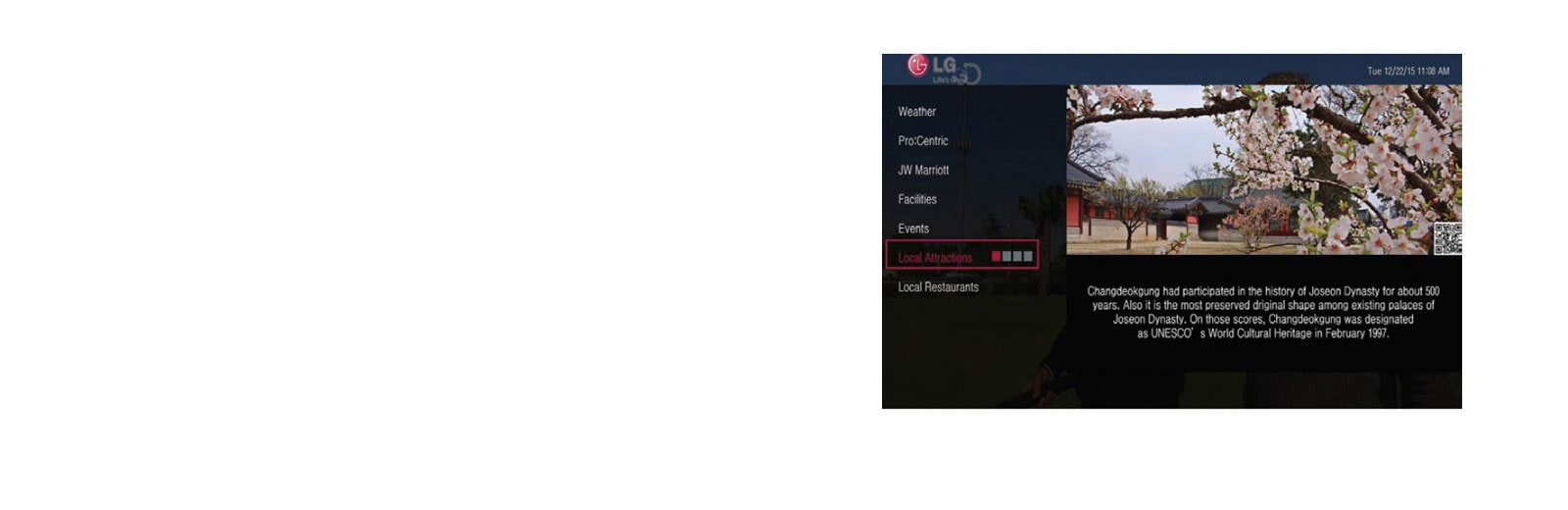

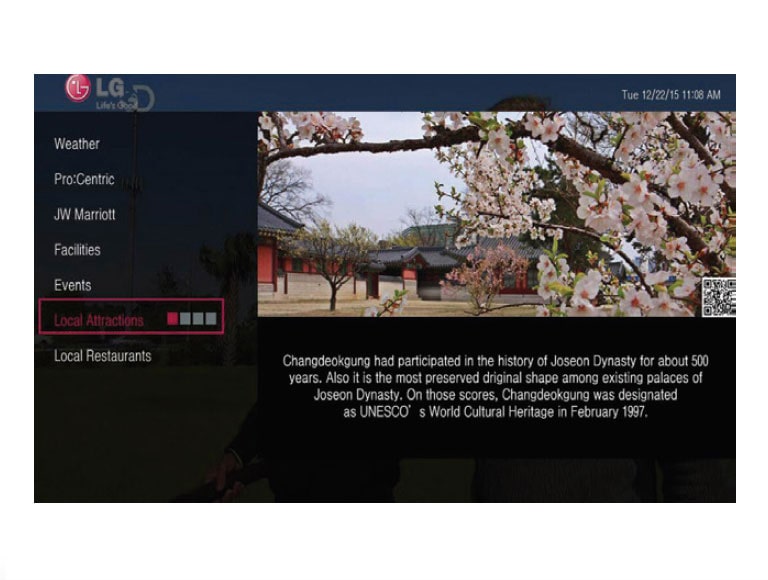

*Customized UI may be little different.
*Actual UI may be litter different
*Actual In-screen image may be little different.
*Actual In-screen image may be little different.
*All pictures shown below are for illustration purpose only (for a better understanding).
Actual device and screen may differ.
*Contents have to be uploaded by Hotel

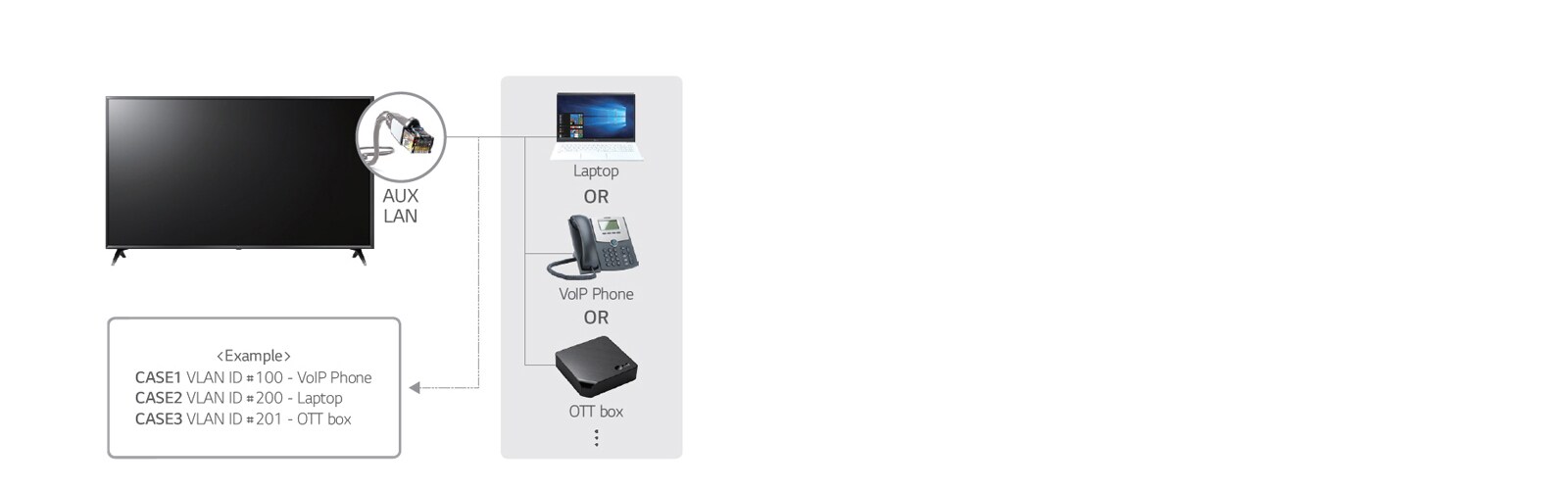

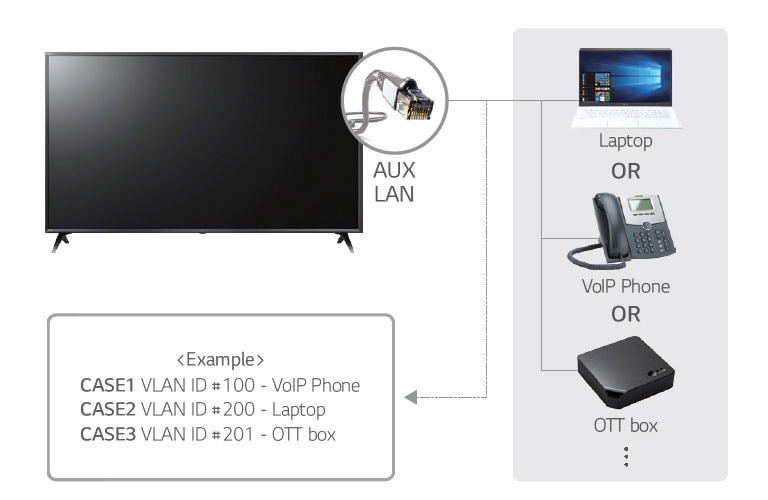

*AUX LAN(LAN out) ID: Set a VLAN ID to be assigned to external devices connected to the LAN out oprt. (a AUX LAN is used for assigning a VLAN ID)
*VLAN ID : Created separate Virtual LAN group with ID (tagging).
*TV native Control.
*Server Based control.
*Magic Motion Remote is required(sold separately).

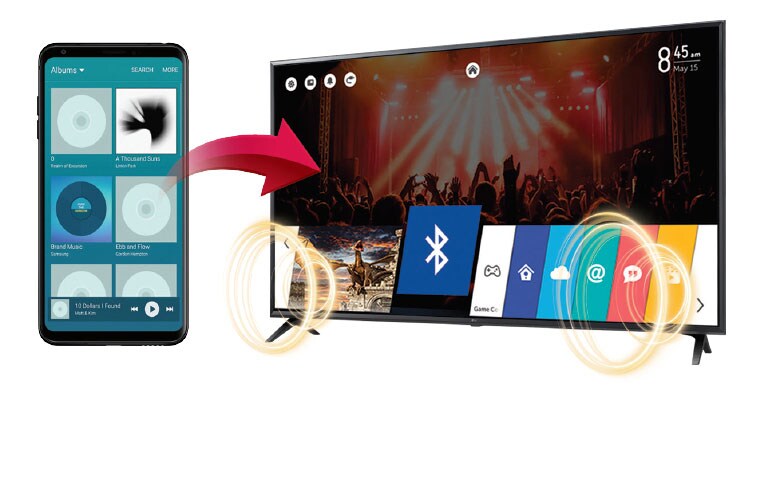

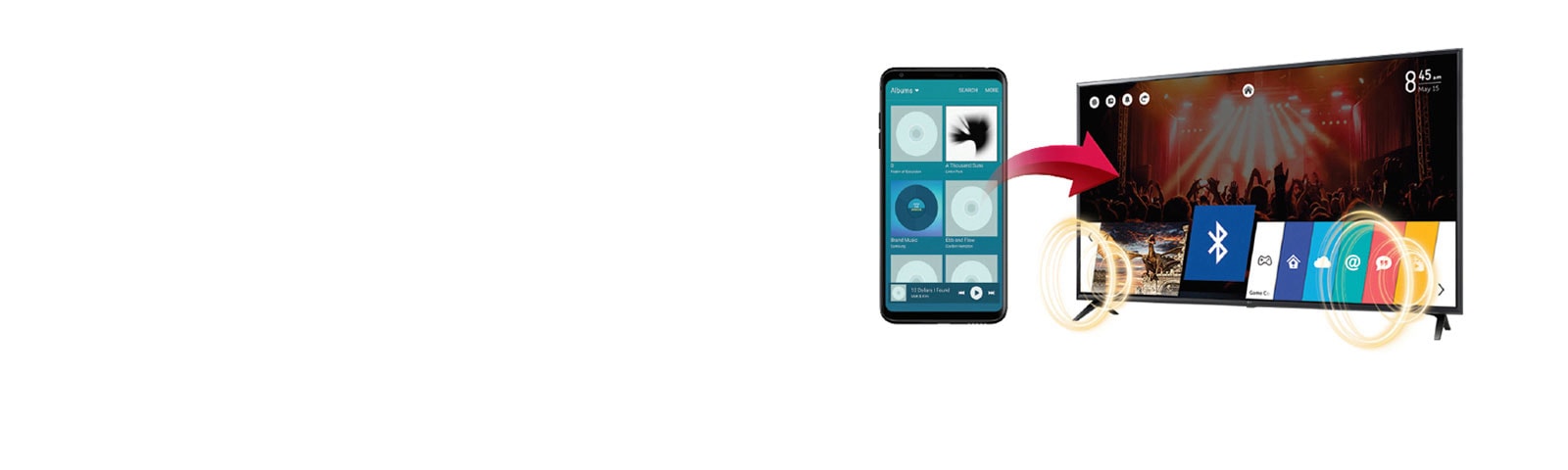

*Support devices for Bluetooth Sound Sync : Android (above v4.4 KitKat) / iOS based Mobile Device.

PANEL

  • Screen Size
    55"
    Backlight Type
    LED (Direct)
  • Resolution
    3,840 x 2,160 (4K UHD)
    Brightness (cd/m²)
    500

BROADCASTING SYSTEM

  • Analog
    Yes (PAL/SECAM)
    Digital
    Yes (varied by countries)

VIDEO

  • XD Engine
    Yes
    Aspect Ratio
    Yes 5 modes
    (16:9, Original, 4:3, Vertical Zoom, All-Direction Zoom)
  • HDR 10 / HDR Dolby Vision
    Yes

AUDIO

  • Audio Output
    10W + 10W
    Speaker System
    2.0ch
  • Sound Mode
    Yes 6 modes (Standard, Cinema, Clear Voice III, Sports, Music, Game)
    Yes 6 modes (Only for India, Sri Lanka) (Standard, Cinema, Clear Voice III, Cricket, Music, Game)
    Clear Voice
    Yes (Clear VoiceⅢ)

HOSPITALITY SOLUTION

  • Solution Type
    Pro: Centric (Smart, V, Direct)
    Data Streaming (IP & RF)
    Yes
  • RF
    Yes (1 Tuner)
    HCAP (GEM/FLASH/HTML)
    ※ Service Carousel (TLL/XML)
    GEM/Flash/HTML5

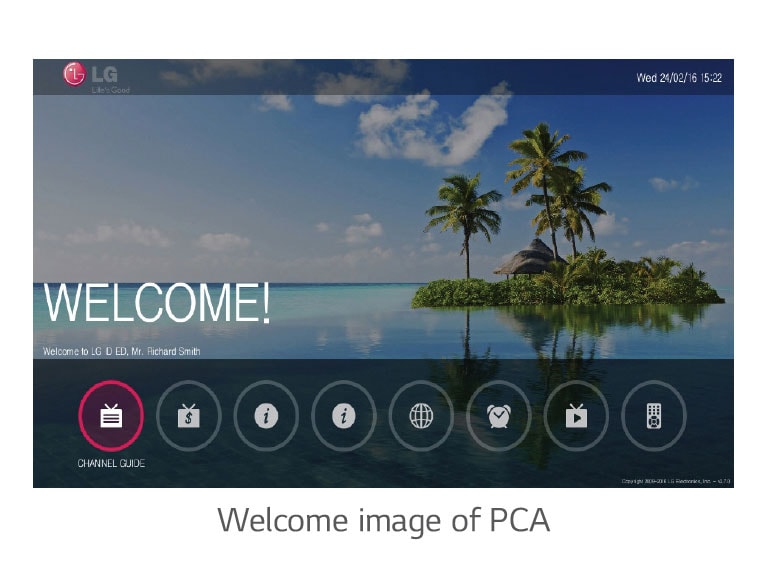

  • Pro:Centric Application
    PCA 3.8
    DRM
    Pro: Idiom (S/W Type)

JACK INTERFACE

  • Set Side
    HDMI In, USB 2.0 (2), CI Slot

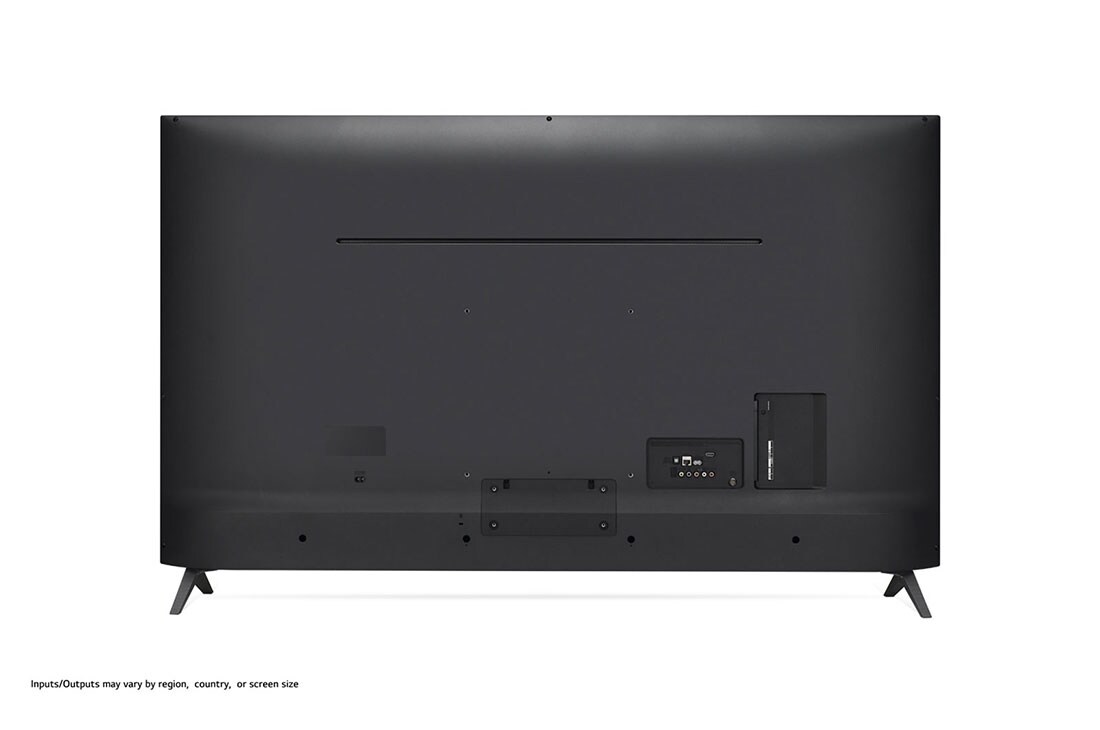

    Set Rear
    RF In, AV In, Component in (Y,Pb,Pr-Video), Digital Audio Out (Optical), HDMI / HDCP Input (2.0), RS-232C (Control & Service), Headphone Out, Clock Interface (RJ12), RJ45 (2), External Speaker Out

MECHANIC

  • Vesa
    300 x 300 mm
    W x H x D / Weight (with stand)
    1,247 x 785 x 231 mm/13.8kg
  • W x H x D / Weight (without stand)
    1,247 x 729 x 78 mm (SPK: 88.6)/13.7kg
    W x H x D / Weight (Packing)
    1,360 x 835 x 175 mm/18.4kg

POWER (UNIT : WATTS)

  • Voltage, Hz
    100 ~ 240V, 50/60Hz
    Max
    152.2W
  • Typical
    126.9W
    Energy saving (Min / Med / Max)
    38.07W/69.79W/101.52W
  • Stand-by
    0.5W

GENERAL

  • Region
    Middle East & Africa
