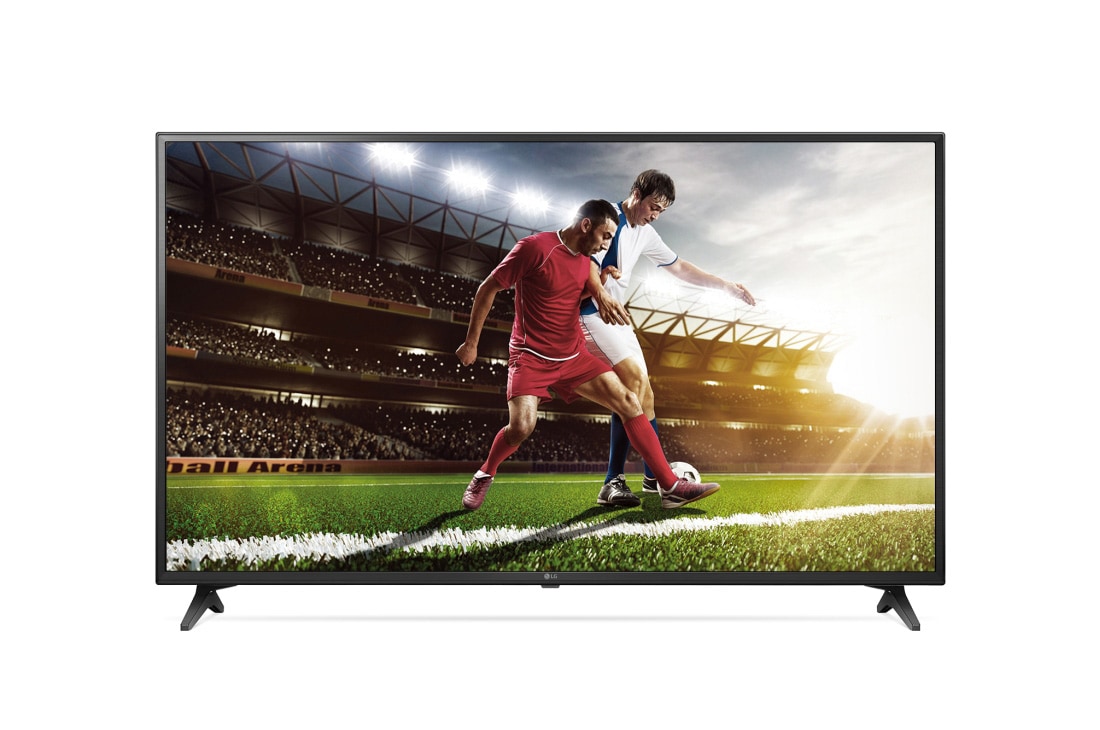

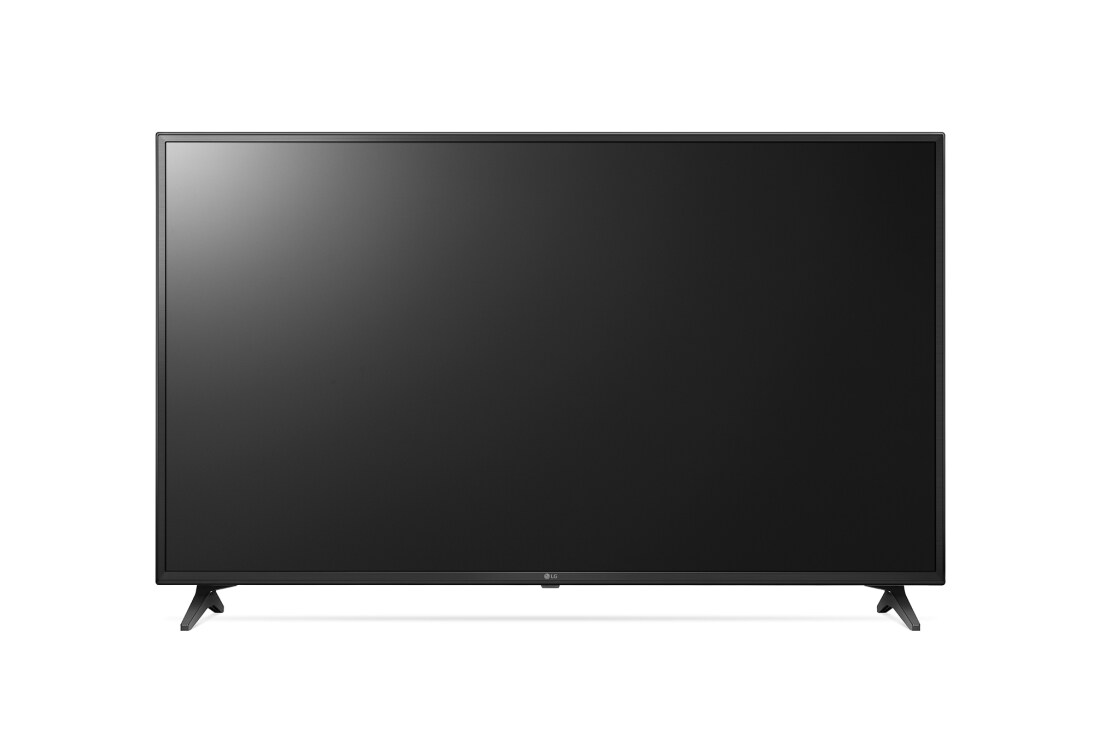

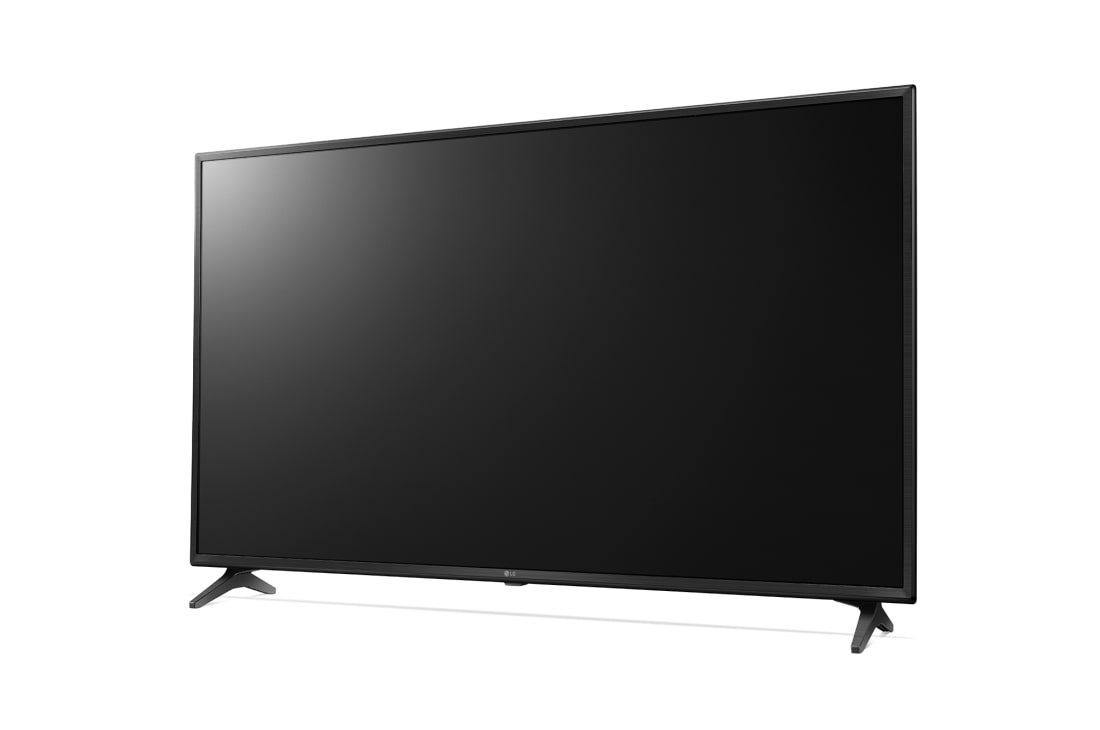

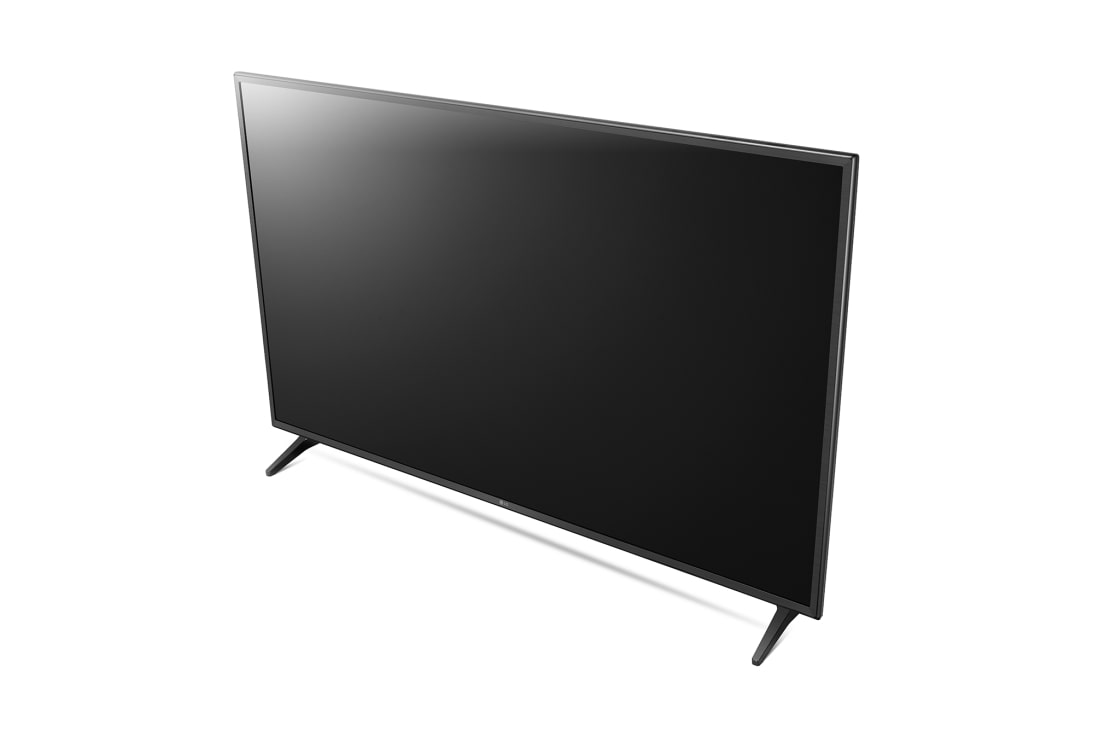

60UU640C
UU640C Series

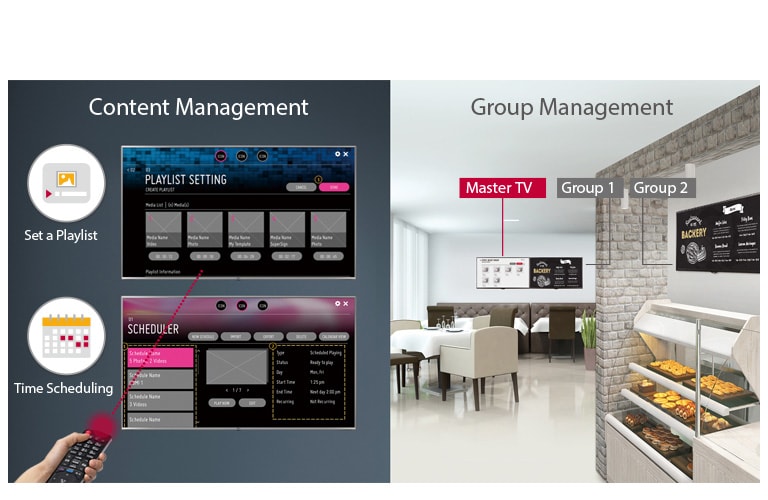

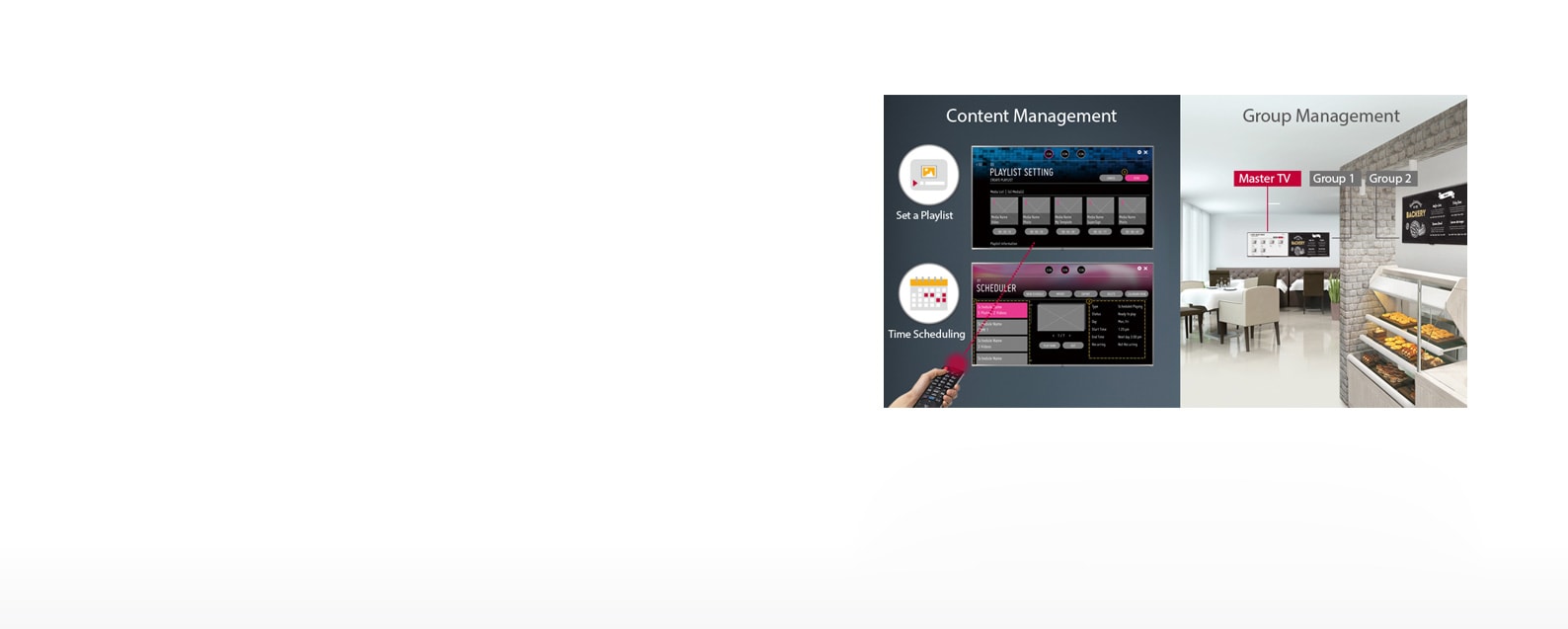

  • Content Management/Group Management
  • SuperSign Control
  • SNMP
  • Wake-up On Lan
  • Crestron Connected® (Network Based Control)
UU640C Series
MSRP AED
*The scenes are simulated for illustrative purposes. Actual GUI may differ from the accompanying images.
**All displays must be connected to the same network.
*SuperSign Control: Free version (Good at - Operating small and medium-sized signage displays).
*SuperSign Control+: Advanced and Paid version (Good at - Operating large-scale signage displays).
*See more for SuperSign Control+ at LG.com/B2B.
  • Easier Maintenance

    Easier Maintenance1 Easier Maintenance2
  • Real-Time Remote Monitoring

    In case of malfunctions or errors, real-timeremote care is available. When an error occurs, a notification can be sent through the SNMP(Simple Network Management Protocol)protocol.

  • Power & Network in One Line

    WOL(Wake-on-LAN) enables users to send a message through network to turn on displays. This greatly simplifies the installation and maintenance processes as only a single wire is required for power and network connection.

*It is a network based control system.
*Available AV control systems may differ by regions.

PANEL

  • Screen Size
    60"
    Backlight Type
    Trident
  • Resolution
    3,840 x 2,160 (4K UHD)
    Brightness(Typ.,cd/m²)
    350
  • Viewing Angle Degree
    178

BROADCASTING SYSTEM

  • Analog
    • (PAL/SECAM)
    Digital

VIDEO

  • XD Engine
    Aspect Ratio
    • 5 modes (16:9, Original, 4:3, Vertical Zoom, All-Direction Zoom)
  • HDR 10 / HDR Dolby Vision
    • / -

AUDIO

  • Audio Output
    10W + 10W
    Speaker System
    2.0 ch
  • Sound mode
    • 6 modes (Standard, Cinema, Clear Voice III, Sports, Music, Game)
    Clear Voice
    • (Clear VoiceⅢ)

FEATURE

  • Smart
    webOS 4.0, Commercial Smart Home, Gallery Mode, Web Browser, Pre-loaded App (YouTube Only), Soft AP, Wi-Fi (ac), Screen Share (Miracast), DIAL, Bluetooth Audio Playback, LG Sound Sync/bluetooth, Mobile Connection Overlay, Music Player
    Hospitality
    Hotel Mode / PDM / Installer Menu, Lock mode (Limited), Welcome Screen, Insert Image, One Channel Map, RJP Interface, RJP Compatibility, DPM, Time Scheduler, RTC, NTP Sync Timer, BEACON

FUNCTION

  • Function
    USB Cloning, WOL (Magic packet only), SNMP, Diagnostics, HTNG-CEC (1.4), HDMI-CEC (1.4), IR Out, Multi IR Code, Auto Off / Sleep Timer, Smart Energy Saving, Motion Eye Care, USB Auto Playback / USB Auto Playback+, Crestron Connected® (Network Based Control), DPM, Time Scheduler, RTC, NTP Sync Timer, BEACON, Embedded CM & GM

JACK INTERFACE

  • Set Side
    HDMI In 2.0 (2), USB 2.0, CI Slot

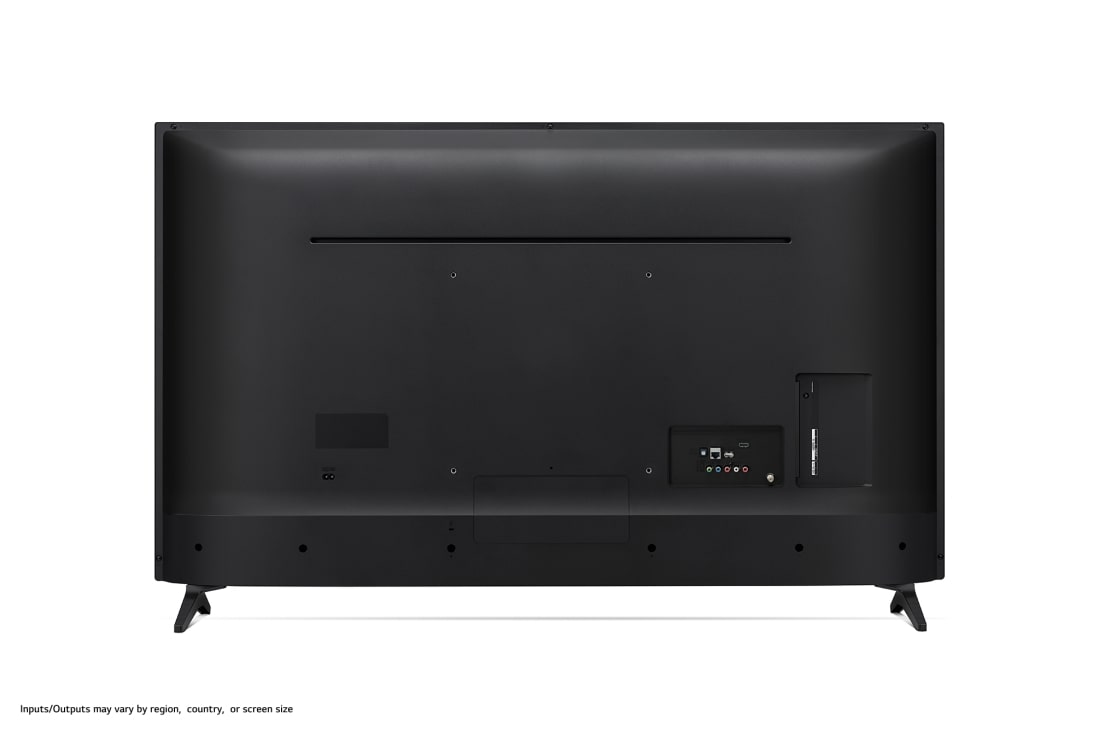

    Set Rear
    RF In (2), Digital Audio Out (Optical), HDMI/HDCP Input 2.0, RS-232C (Control & Service), Headphone Out, RJ45, Debug (Phone Jack Type)

DIMENSION (UNIT: MM)

  • Vesa
    300 x 300
    W x H x D / Weight (with stand)
    1,368 x 857 x 255 / 19.6 kg
  • W x H x D / Weight (without stand)
    1,368 x 796 x 78.5 (SPK 89.1) / 21.0 kg
    W x H x D / Weight (Packing)
    1,492 x 880 x 190 / 25.3 kg

POWER (UNIT : WATTS)

  • Voltage, Hz
    100 ~ 240V, 50/60Hz
    Max
    211
  • Typical
    186
    Energy saving (Min/Med/Max)
    121 / 80 / 35
  • Stand-by
    0.5↓

GENERAL

  • Region
    Middle East & Africa
