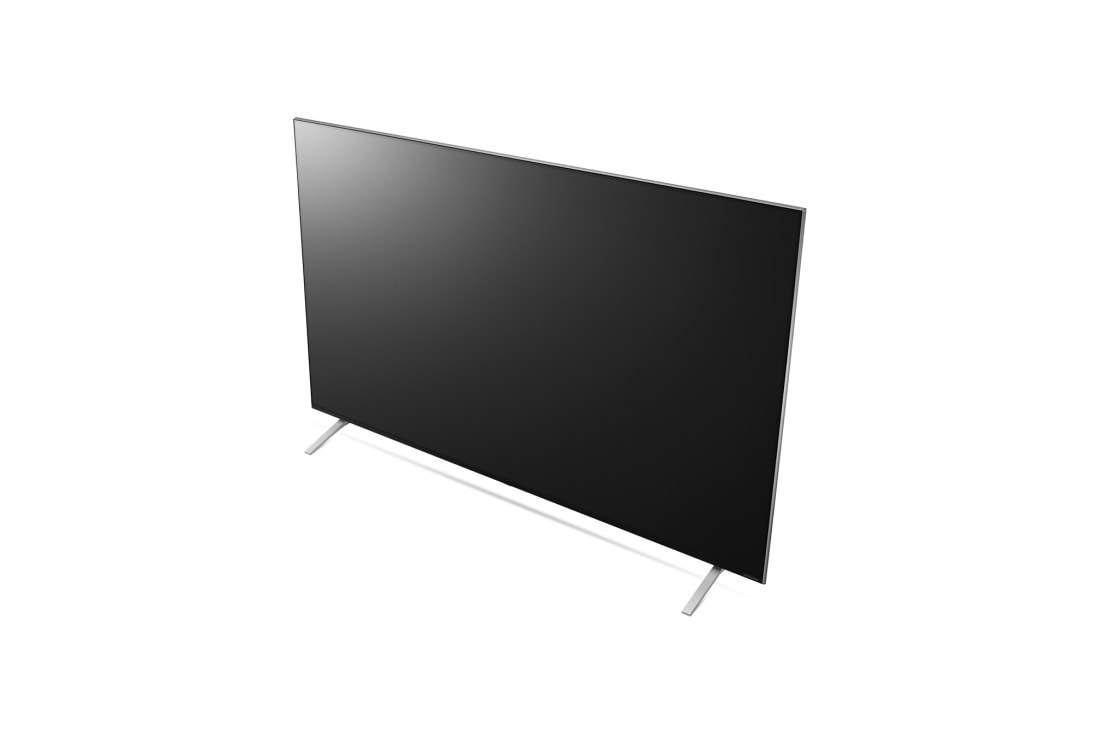

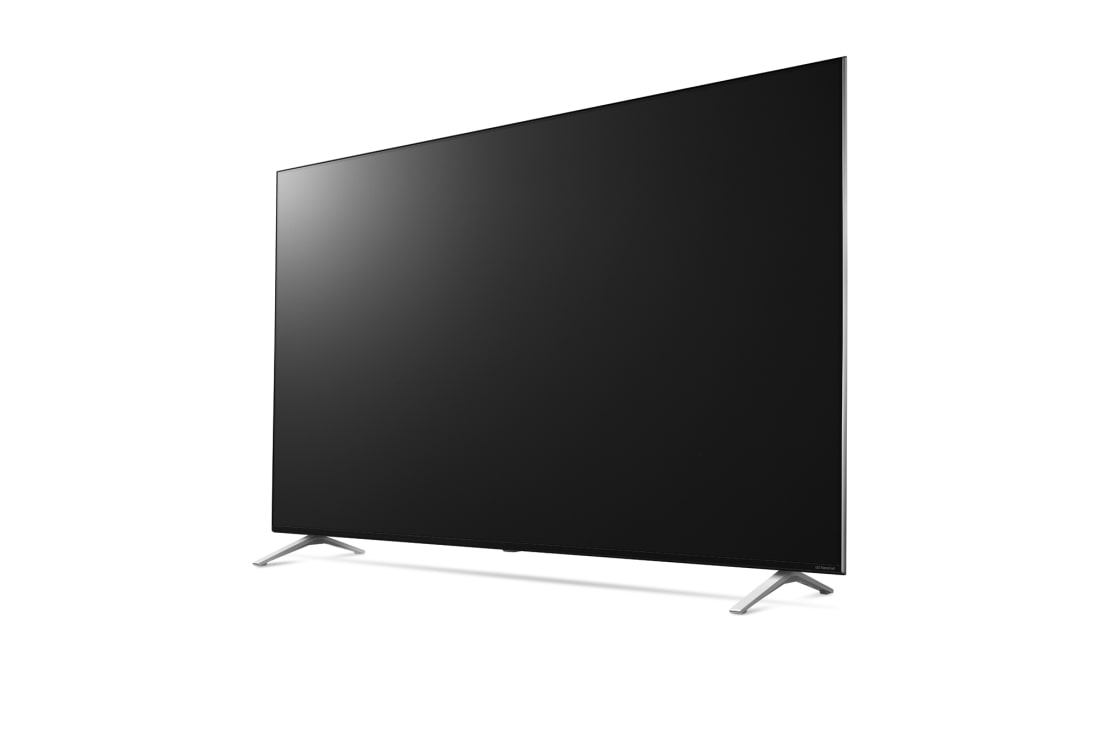

75US760H0GD
US760H Series

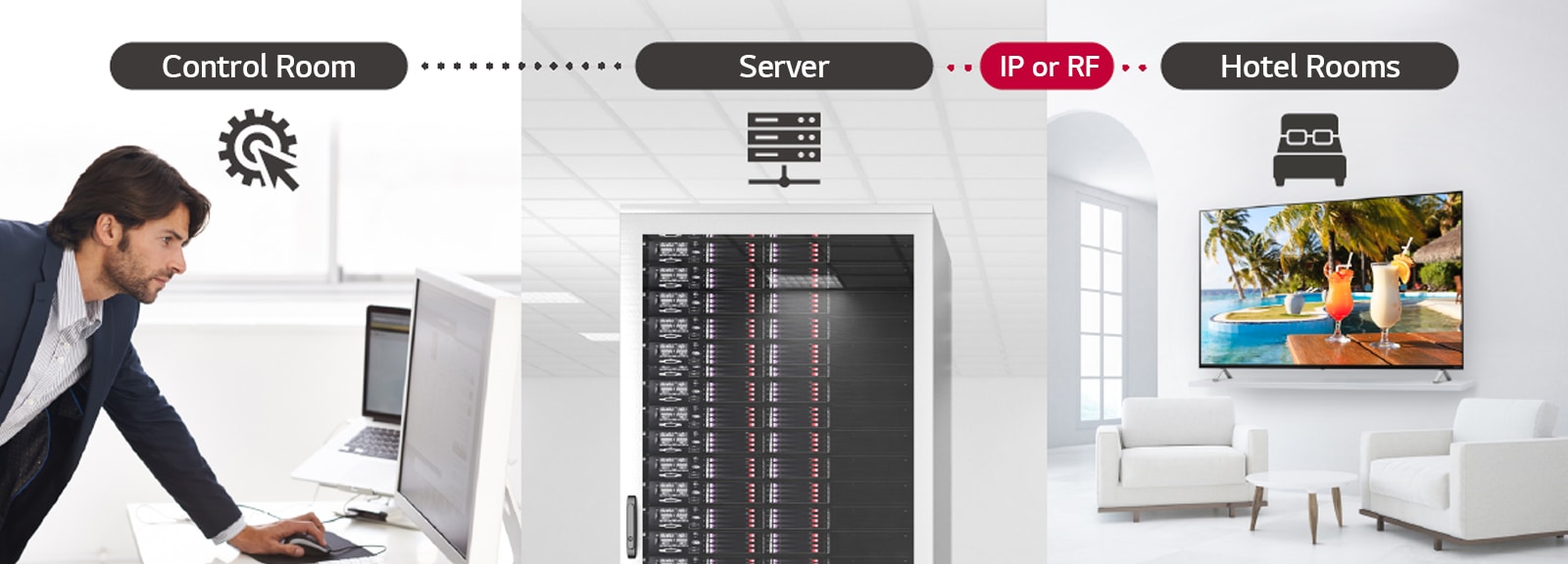

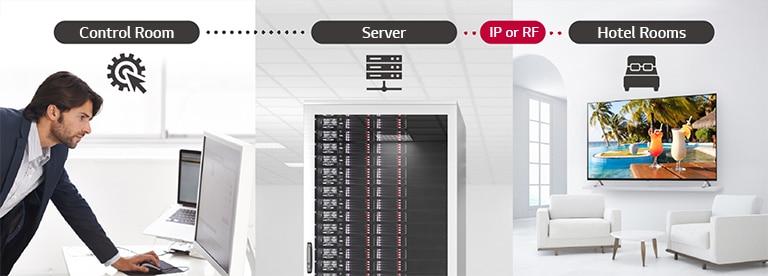

  • Pro:Centric Hotel Management Solution
  • NanoCell Display
  • Gallery Mode
  • Soft AP with Bridge Mode

component-OBScountrySelectDesc

US760H Series

DESIGN

  • Tool Name
    NANO85

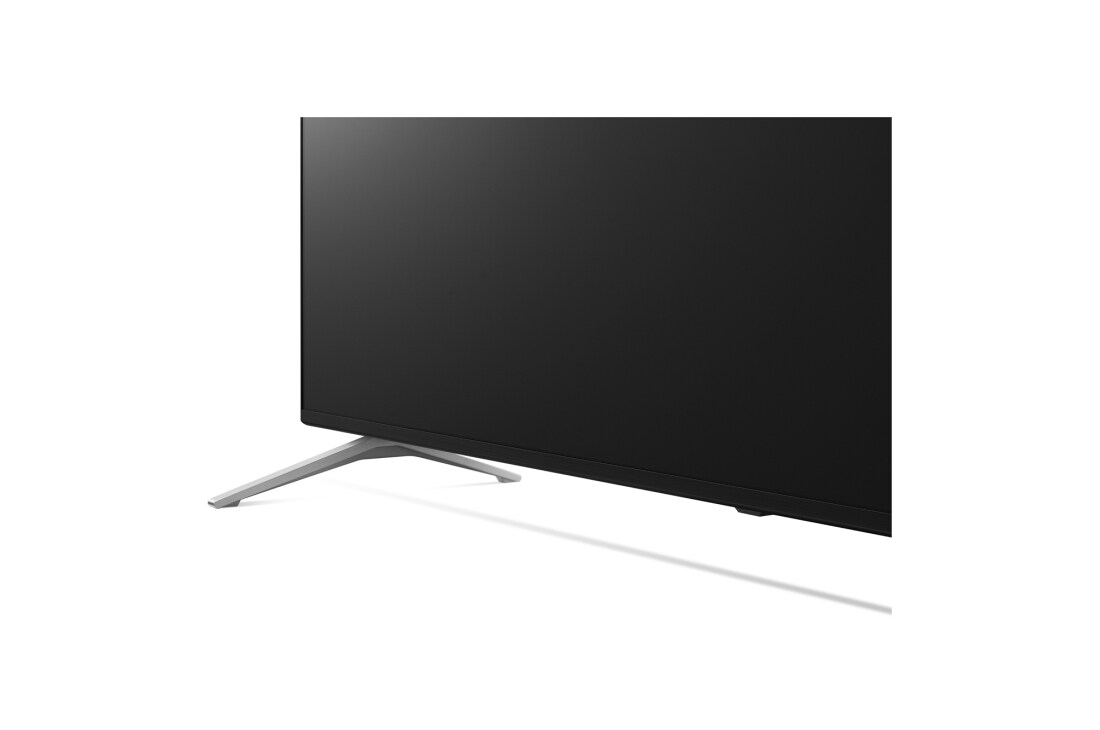

    Stand Type
    2 pole
  • front color
    Ceramic BK (Cinema Screen)

DISPLAY

  • Inch
    75"
    Resolution
    3840 x 2160 (UHD)
  • Backlight Unit Type
    Edge
    Nano
    Yes
  • Brightness
    400nit
    Dynamic Contrast Ratio (Dynamic MCI (Hz))
    1,000,000:1
  • Response Time(G to G, ms)
    8
    Refresh Rate
    120Hz
  • Life span (hrs)
    30,000

VIDEO

  • SoC
    K6Hp
    SoC (Marketing Name)
    Quad
  • HDR_HDR 10 Pro
    Yes
    HDR_HLG
    Yes

AUDIO

  • Speaker (sound output)
    20W + 20W
    Speaker System
    2.2 ch
  • AI Sound
    Yes
    One Touch Sound Tuning
    Yes (Ready)
  • LG Sound Sync
    Yes (Required Bluetooth)

BROADCASTING SYSTEM

  • Digital (Terrestrial,Cable,Satellite)
    DVB-T2/C/S2
    Analog (NTSC / SECAM / PAL)
    PAL / SECAM
  • Teletext / Auto Teletext
    Yes / Yes

HOSPITALITY SOLUTION

  • Pro:Centric Smart
    Yes (Smart)
    Data Streaming ( IP & RF)
    Yes
  • HCAP (GEM/FLASH/HTML)
    ※ Service Carousel (TLL/XML)
    GEM / HTML5
    IP Return path
    Yes
  • Multicast / Unicast ready
    Yes / Yes
    webRTC (Real Time Communication)
    Yes
  • Pro:Centric Direct (version)
    Yes (4.0)
    Pro:Centric Application (version)
    Yes (PCA3.8)
  • PCS400R
    Yes
    Standalone-Quick Menu (Version)
    Yes (4.0)
  • DRM-Pro:Idiom (S/W Type)
    Yes
    DRM-Pro:Idiom (Mobile, Lite)
    Yes

SMART FUNCTION

  • Commercial Smart UX-webOS version
    Yes (webOS 5.0)
    Commercial Smart UX-Gallery Mode
    Yes
  • Commercial Smart UX-Quick Access
    Yes
    Commercial Smart UX-Web Browser
    Yes
  • Commercial Smart UX-CP App
    Yes
    Commercial Smart UX-Magic Remote Compatibility
    Yes (Ready, MR18HA)
  • Commercial Smart UX-SW Clock (World Clock / Alarm)
    Yes
    Commercial Smart UX-Mood Display
    Yes

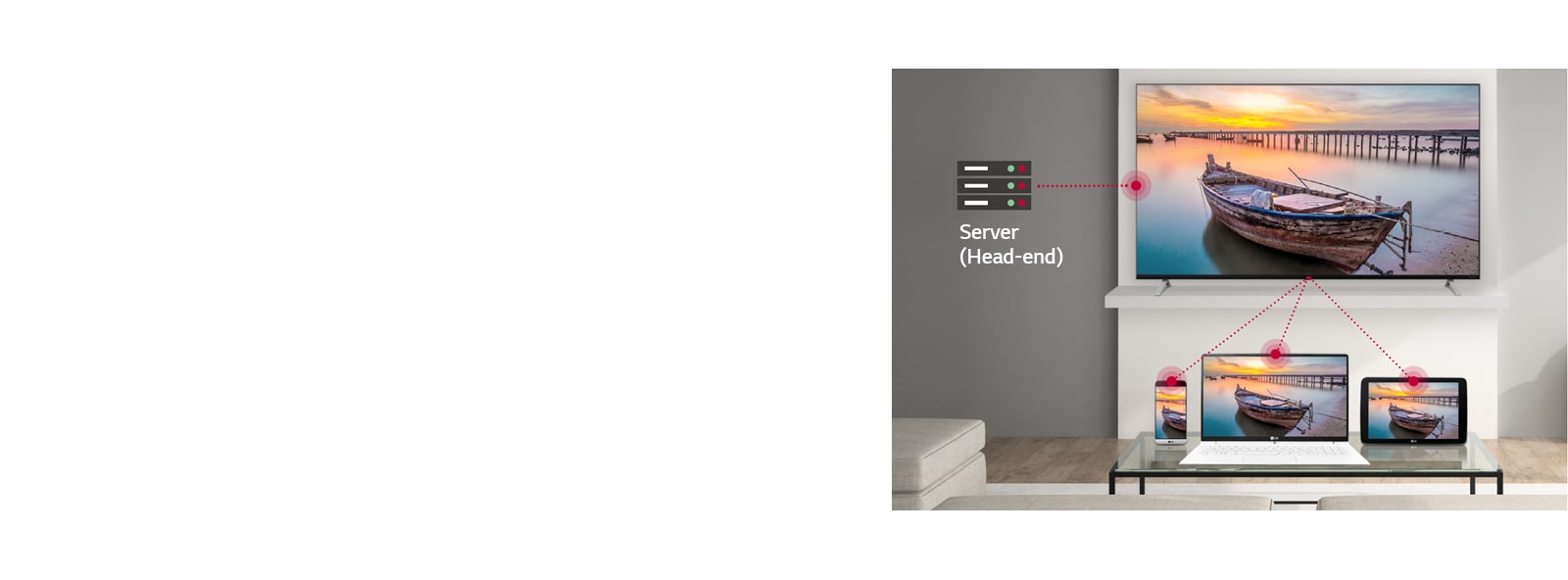

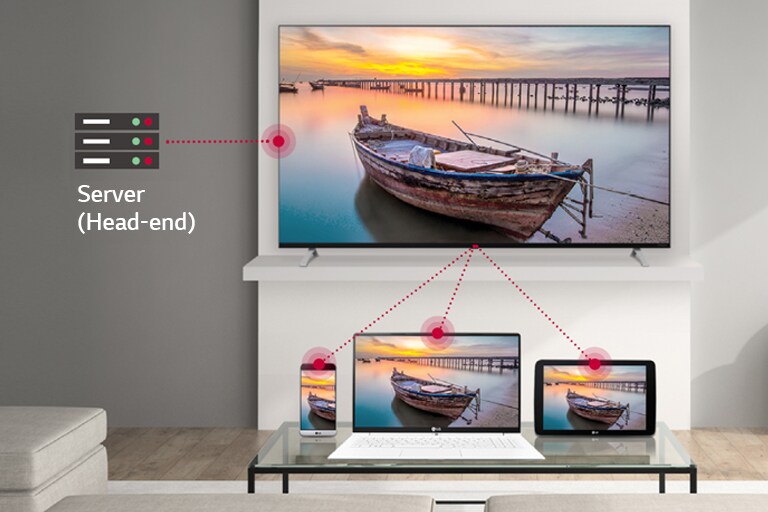

  • Connectivity-Soft AP
    Yes
    Connectivity-WiFi (version)
    Yes (802.11ac)
  • Connectivity-Screen Share (Miracast)
    Yes
    Connectivity-Smart Share (DLNA)
    Yes
  • Connectivity-LG TV Plus App
    Yes
    Connectivity-DIAL
    Yes
  • Connectivity-Bluetooth Audio Playback
    Yes
    Connectivity-LG Sound Sync/bluetooth
    Yes
  • Connectivity-Mobile Connection Overlay
    Yes
    Artificial Intelligence-Voice Recogion (Standalone/Solution)
    Yes
  • Artificial Intelligence-IoT
    Yes

OTHER FEATURE

  • Ease Installation-EzManager
    Yes

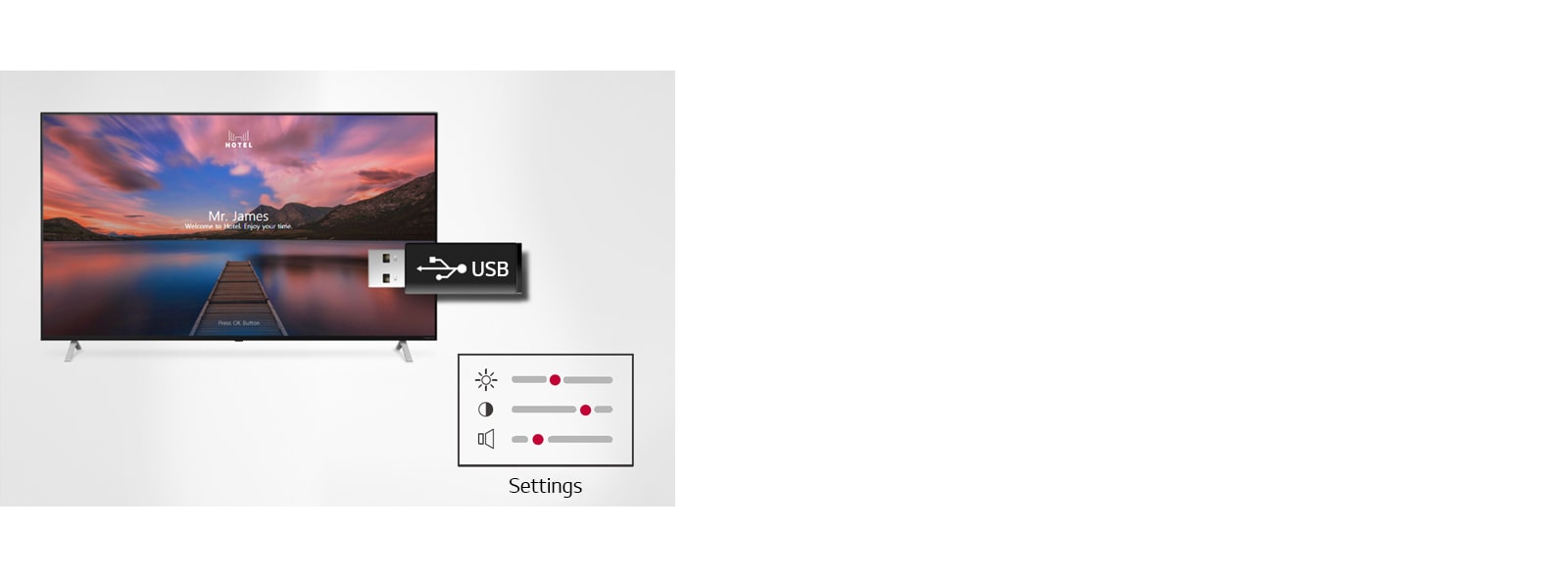

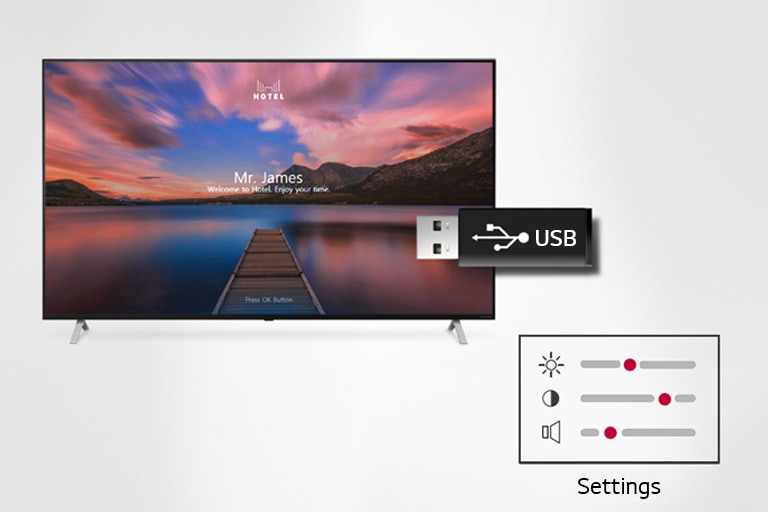

    Ease Installation-USB Cloning
    Yes
  • Management-Wake on RF
    Yes
    Management-WOL / WOWL
    Yes / No
  • Management-SNMP
    Yes
    Management-Diagnostics
    Yes (IP Remote)
  • Management-SI Compatible
    Yes(TV Link Tuner, RS232C)
    Management-HTNG-CEC
    Yes(1.4)
  • Management-Simplink(HDMI-CEC)
    Yes(1.4)

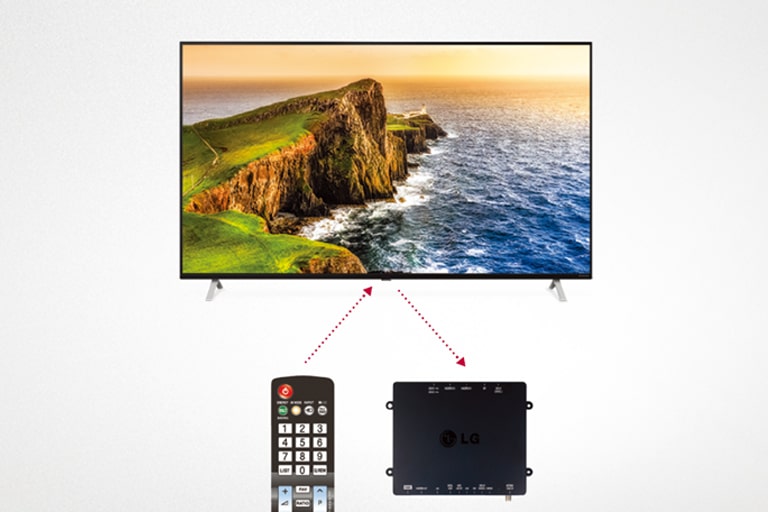

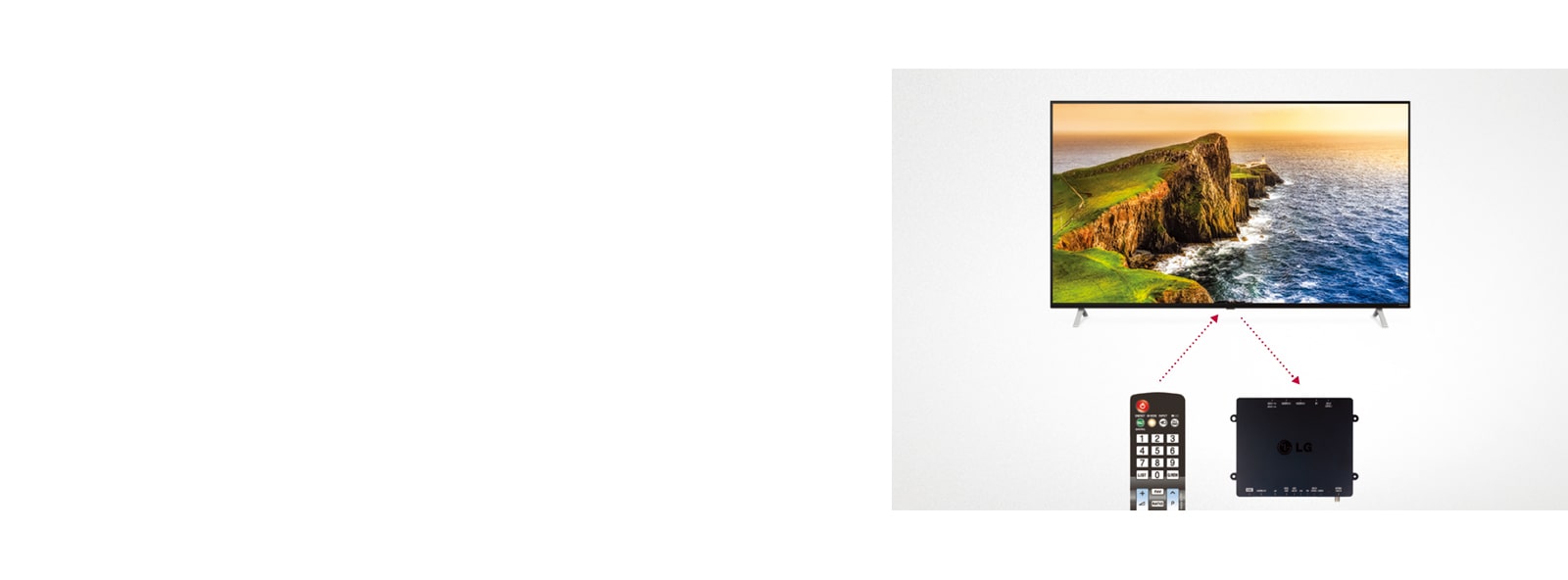

    Management-IR Out
    Yes (HDMI, RS232C)
  • Management-Multi IR Code
    Yes

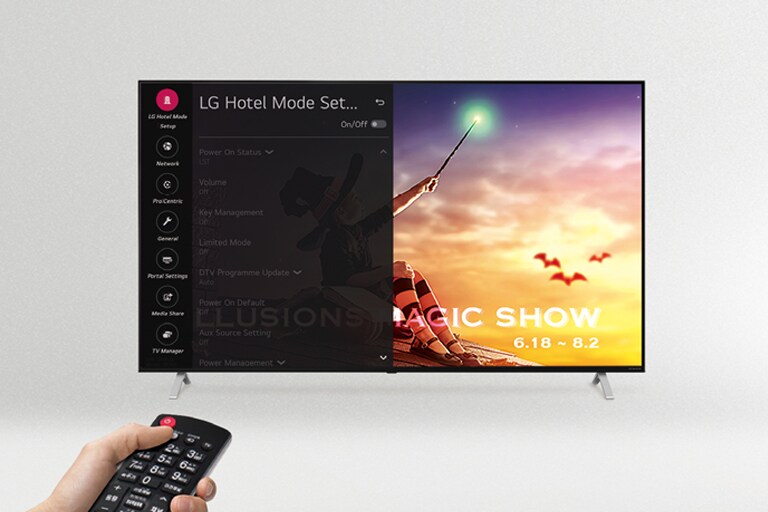

    Hospitality Feature-Hotel Mode / PDM / Installer Menu
    Yes (Hotel Mode)
  • Hospitality Feature-Lock mode
    Yes (Limited)
    Hospitality Feature-Port Block
    Yes
  • Hospitality Feature-Welcome Video
    Yes
    Hospitality Feature-Welcome Screen (Splash Image)
    Yes
  • Hospitality Feature-Insert Image
    Yes
    Hospitality Feature-One Channel Map
    Yes
  • Hospitality Feature-IP Chanenel Manager
    Yes
    Hospitality Feature-External Speaker Out
    Yes (Int / Ext Variable/Fixed, 3.5mm, Stereo, Single ended Type(GND,L+,R+), 2W with 8Ω)
  • Hospitality Feature-Instant ON
    Yes
    Hospitality Feature-External Power Out
    Yes
  • Hospitality Feature-V-Lan Tag
    Yes
    Hospitality Feature-RJP (remote jack pack) Compatibility
    Yes
    LG/Teleadapt (RS232C), Teleadapt/Guestlink (HDMI CEC)
  • Hospitality Feature-External Clock Compatibility
    Yes (LEC-005)
    Setting Option-Auto Off / Sleep Timer
    Yes / Yes
  • Setting Option-Energy Saving mode
    Yes

VERTICAL FUNCTION

  • Hospital-Healthcare Headphone Mode
    Yes
    Cruise-Hybrid Caption (Closed Caption Digital Only)
    Yes
  • Signage (Corporate/Retail)-RTC (Real Time Clock)
    Yes
    Signage (Corporate/Retail)-NTP sync timer
    Yes (Available with NTP of Clock Setup)
  • Signage (Corporate/Retail)-BEACON
    Yes
    Signage (Corporate/Retail)-Video Tag
    Yes (2 Supported) (MR)

JACK INTERFACE

  • Set Side-Headphone Out
    1
    Set Side-HDMI In
    3 (2.0)
  • Set Side-USB
    2 (2.0)
    Set Side-CI Slot
    1
  • Set Rear-RF In
    2
    Set Rear-Digital Audio Out (Optical)
    1
  • Set Rear-RS-232C(D-Sub 9pin / Phone jack)
    1 (Phone Jack)
    Set Rear-Clock Interface (RJ12)
    1
  • Set Rear-RJ45 (Usage Purpose)
    2 (Ethernet, Aux)
    Set Rear-External Speaker Out(3.5mm phone jack)
    2 (Spk-out 1, 4W (Stereo, R: 2.0W, L: 2.0W, 8Ω Vol. Control 1)

ETC

  • VESA Compatible
    Yes
    600x400
    Anti-theft System-Kensington Lock
    Yes

MECHANIC

  • Product Weight-Weight without Stand
    37.7
    Product Weight-Weight with Stand
    38.4
  • Product Weight-Weight in Shipping
    48.1
    Product Size-Size without Stand
    1674 x 64.6 x 966
  • Product Size-Size with Stand
    1674 x 362 x 1031
    Product Size-Size in Shipping
    1823 x 228 x 1126

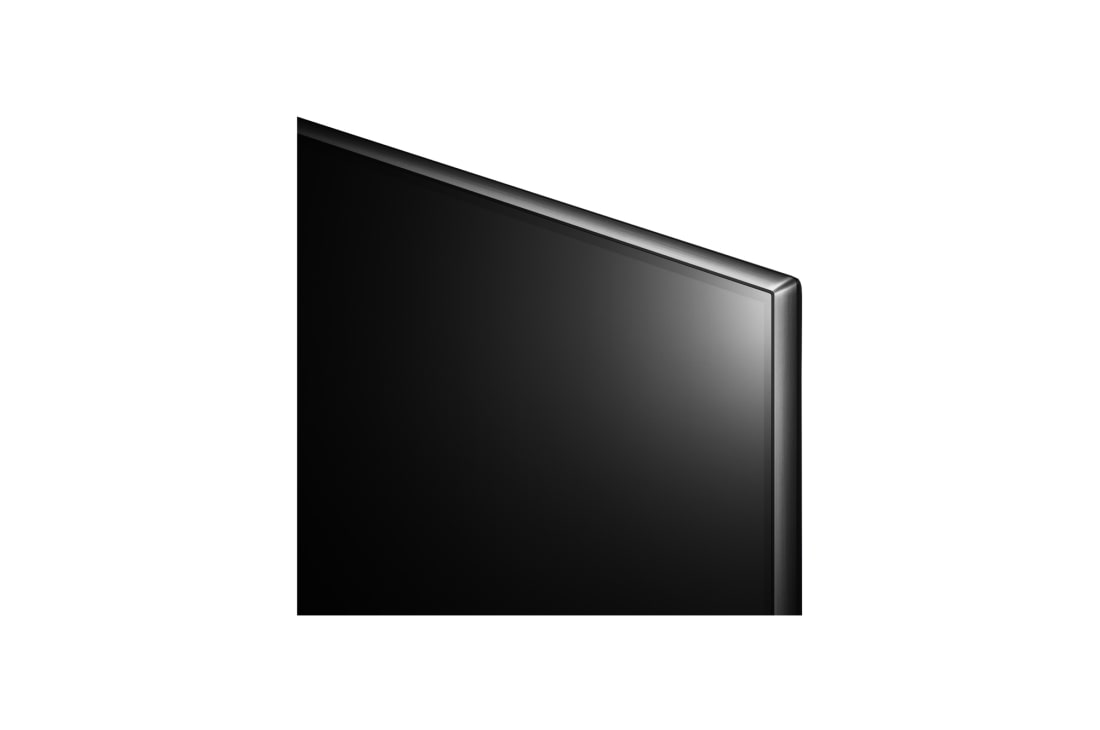

  • Product Size-Bezel Width (L/R/U/B) : On Bezel
    12.1/12.1/12.1/21.2
    Product Size-Bezel Width (L/R/U/B) : Off Bezel
    6.1/6.1/6.1/18.7

POWER

  • Power Supply (Voltage, Hz)
    AC 100~240V, 50/60Hz
    Power Consumption(Max)
    307W
  • Power Consumption(Typ)
    252W
    Standby Power Consumption
    0.5W Under

REQUIRED LISTING(CERTIFICATION)

  • Safety
    CB
    EMC
    CE

ACCESSORY

  • Remote type
    S-Con / MMR (Option)
    Power Cable
    Yes(1.5M,Attached Type)
