Stretch Signage

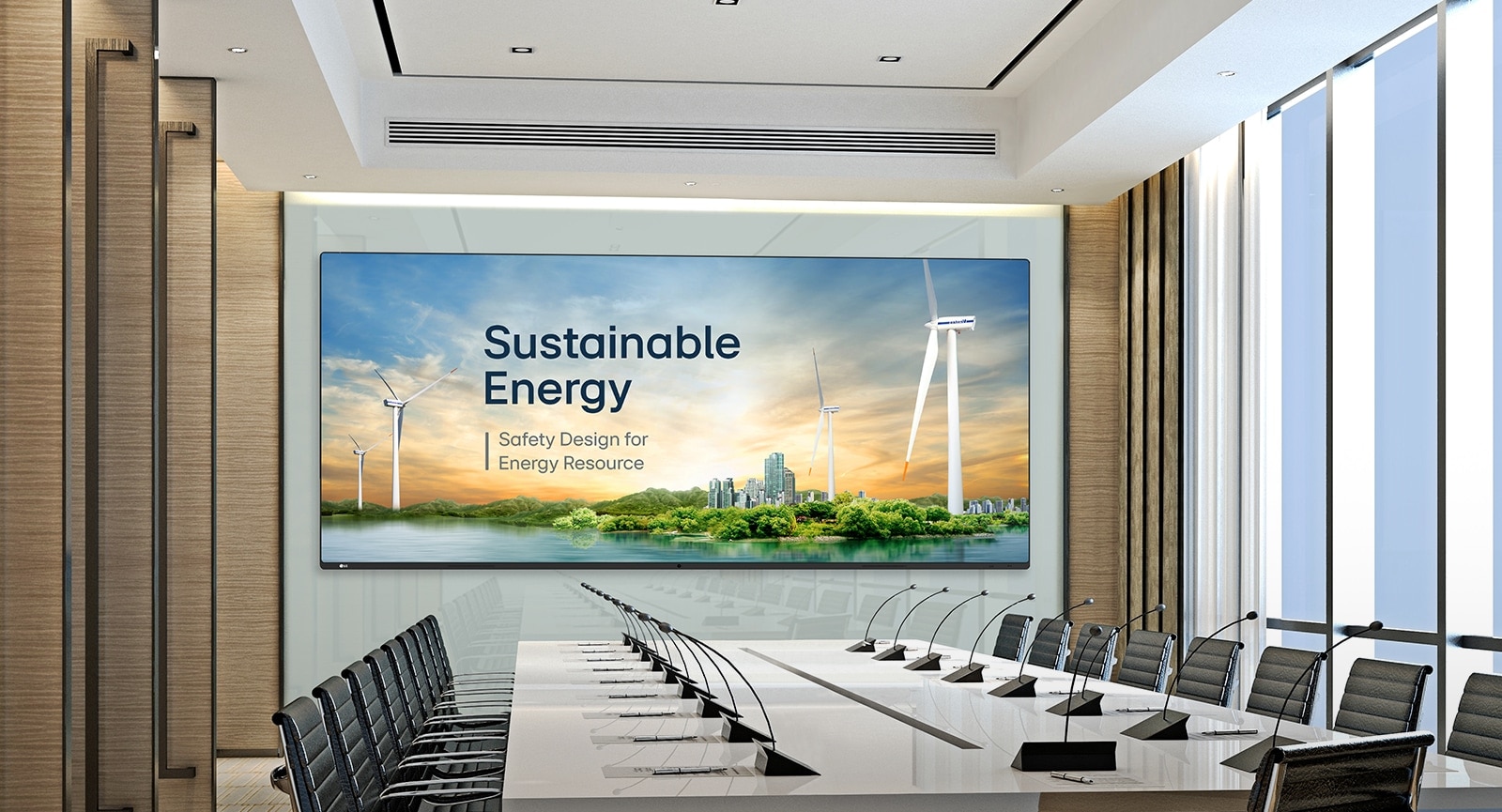

21:9 Widescreen Display Optimized for Business Environments

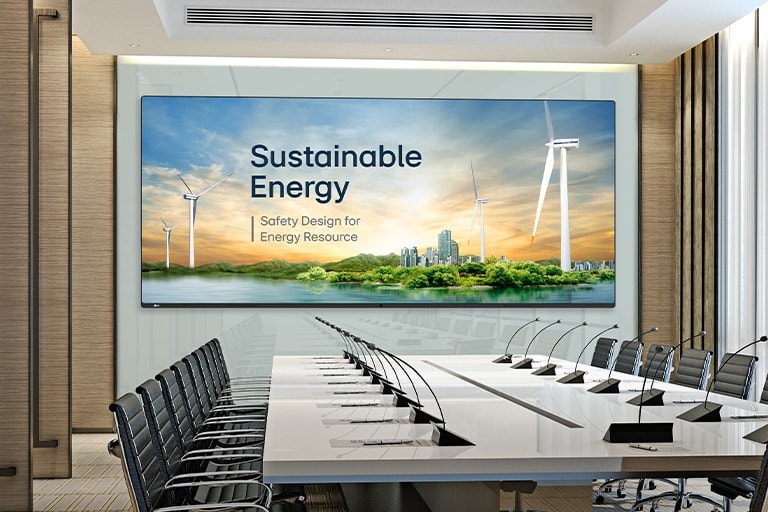

A wide display is installed on the wall of the spacious conference hall, and presentation is prominently and clearly displayed on the large screen. A wide display is installed on the wall of the spacious conference hall, and presentation is prominently and clearly displayed on the large screen.
* All images in this page are for illustrative purposes only.

21:9 Extended Wide Format

With support for a 21:9 widescreen aspect ratio, 105BM5N provides an immersive viewing experience with the wider screen than 16:9 display. Its screen specialization helps display 21:9 content including widescreen videoconferencing platforms with the natural details.
The 105BM5N screen with a 21:9 ratio is installed in a meeting room, providing more information than a 16:9 screen. The 105BM5N screen with a 21:9 ratio is installed in a meeting room, providing more information than a 16:9 screen.
* Proximity Sensor operates smoothly within a range of 3 meters in an obstacle-free environment.

Proximity Sensor

The 105BM5N features a Proximity Sensor positioned in the middle of its base. This sensor monitors for human activity, and when no movement is observed, it transitions the power to a standby mode.

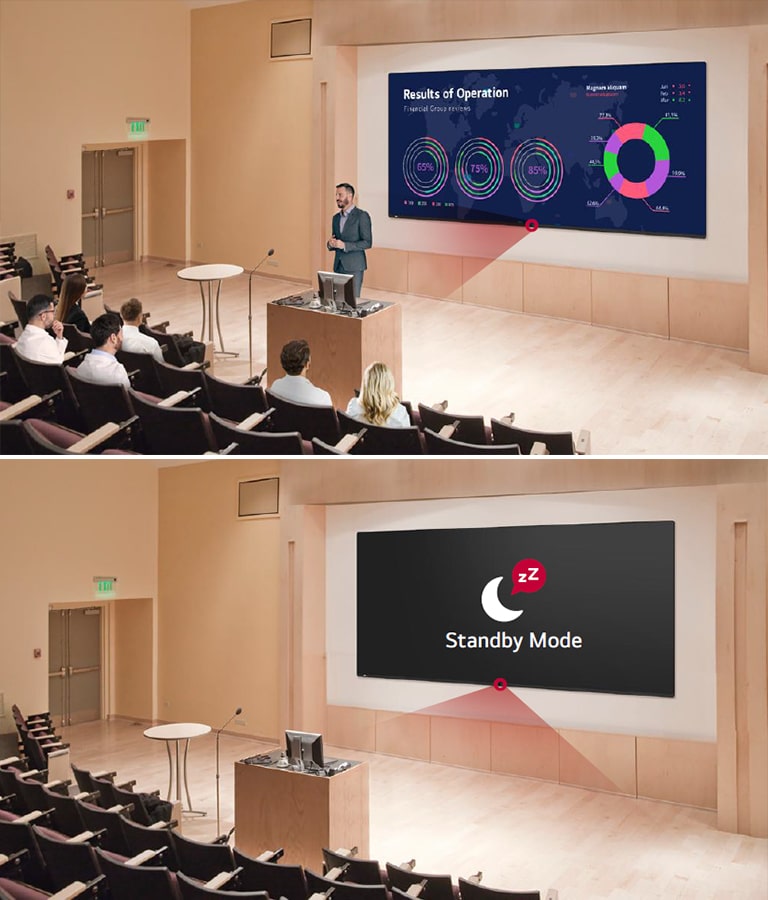

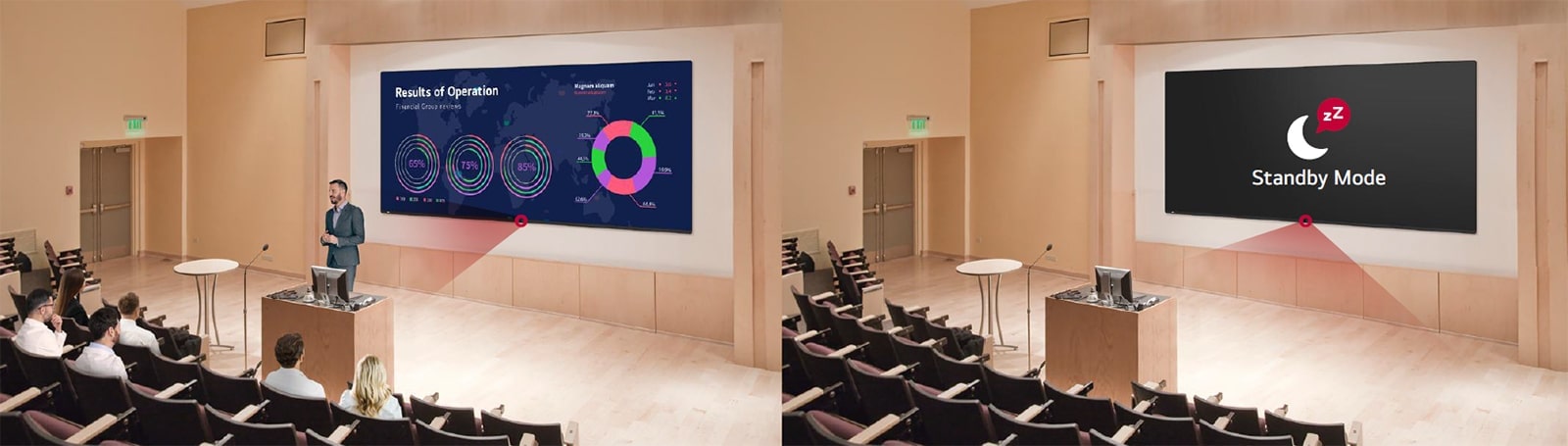

A man is giving a speech in an auditorium where the 105BM5N is installed. 105BM5N's Proximity Sensor monitors for human activity, and when there is no one present, 105BM5N's power switches to Standby Mode. A man is giving a speech in an auditorium where the 105BM5N is installed. 105BM5N's Proximity Sensor monitors for human activity, and when there is no one present, 105BM5N's power switches to Standby Mode.
* Proximity Sensor operates smoothly within a range of 3 meters in an obstacle-free environment.

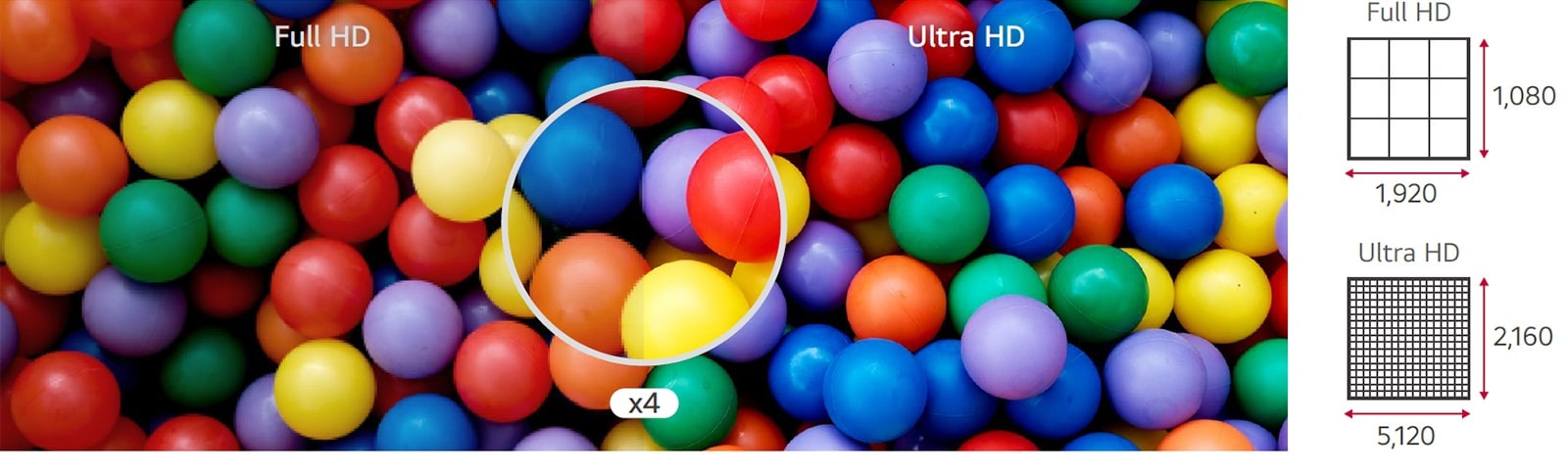

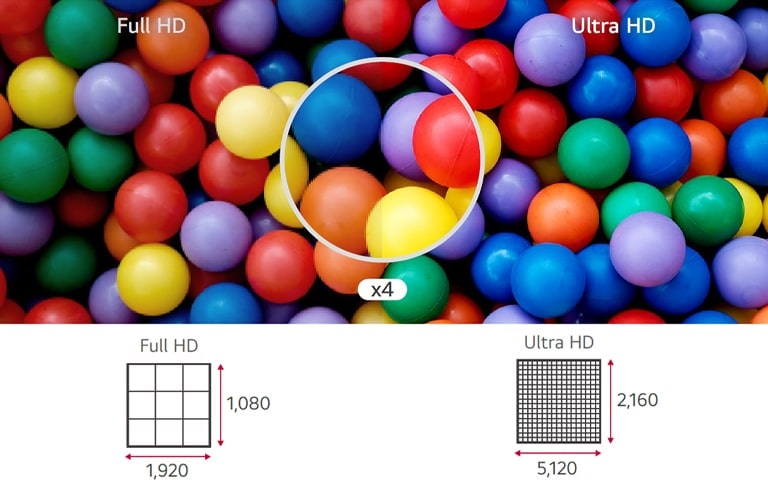

High Resolution Display

It provides a resolution that's more than 4 times higher than FHD, making the viewer satisfied visually. With a resolution of 5,120 × 2,160 and a high pixel density, every single detail of the display screen is conveyed accurately and vividly.
The difference comparing at a glance is shown in Ultra HD quality, which is more than four times higher than Full HD. The difference comparing at a glance is shown in Ultra HD quality, which is more than four times higher than Full HD.

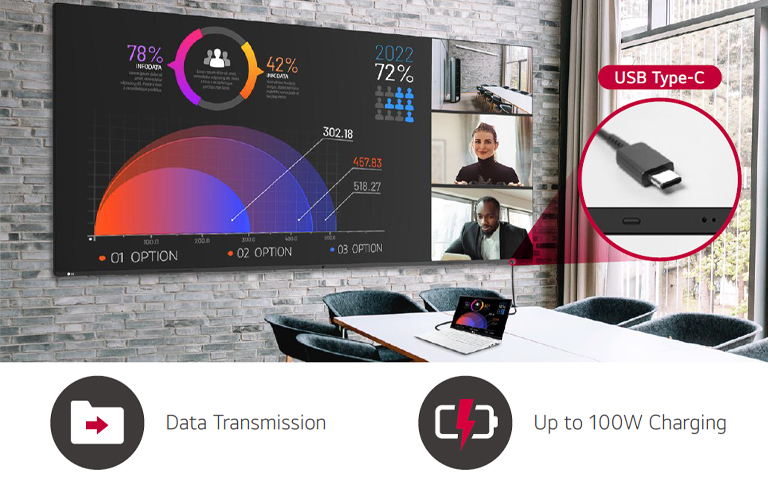

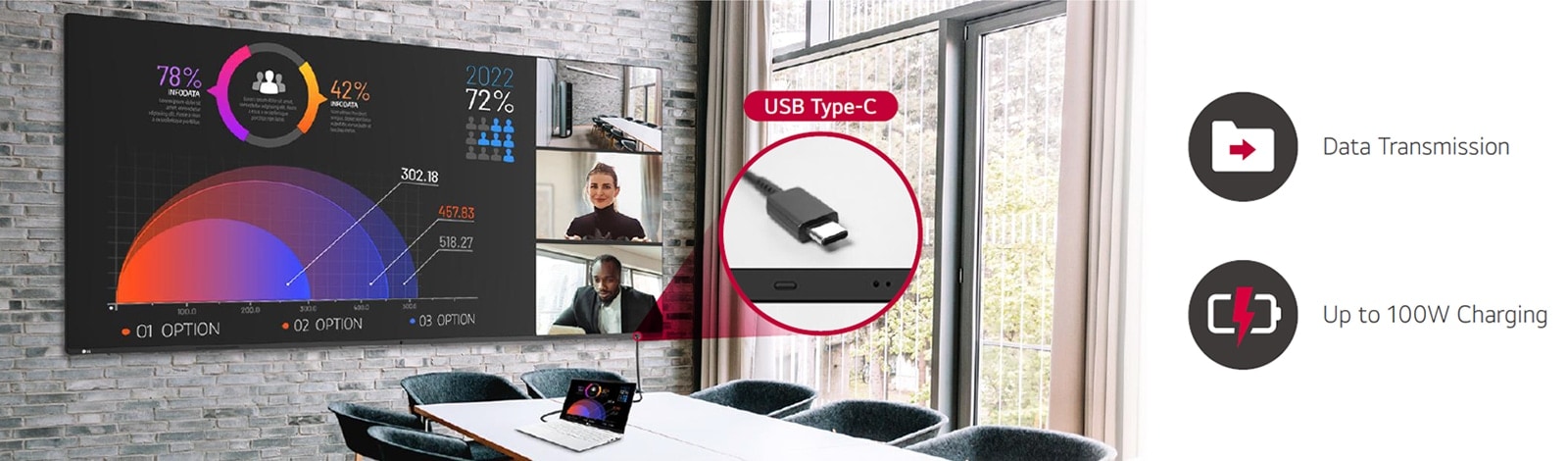

Easily Connect & Charge with USB Type-C

USB Type-C connectivity simplifies connections which enables charging and sending data simultaneously over just one single cable.
A laptop is connected to the 105BM5N in a meeting room. The 105BM5N supports USB Type-C, allowing simultaneous data transfer and charging through a single cable, promoting a seamless meeting environment. A laptop is connected to the 105BM5N in a meeting room. The 105BM5N supports USB Type-C, allowing simultaneous data transfer and charging through a single cable, promoting a seamless meeting environment.
* USB Type-C cables are sold separately.

Wireless ScreenShare

Using the LG CreateBoard Share allows for the seamless wireless screensharing of presentation materials, eliminating the clutter of wires and leading to a more streamlined meeting space. This enables users to show up to 9 shared screens or a file on a screen in real-time when the LG CreateBoard Share app is installed on the device. Also, files from the host can be easily sent to any devices connected to the app.

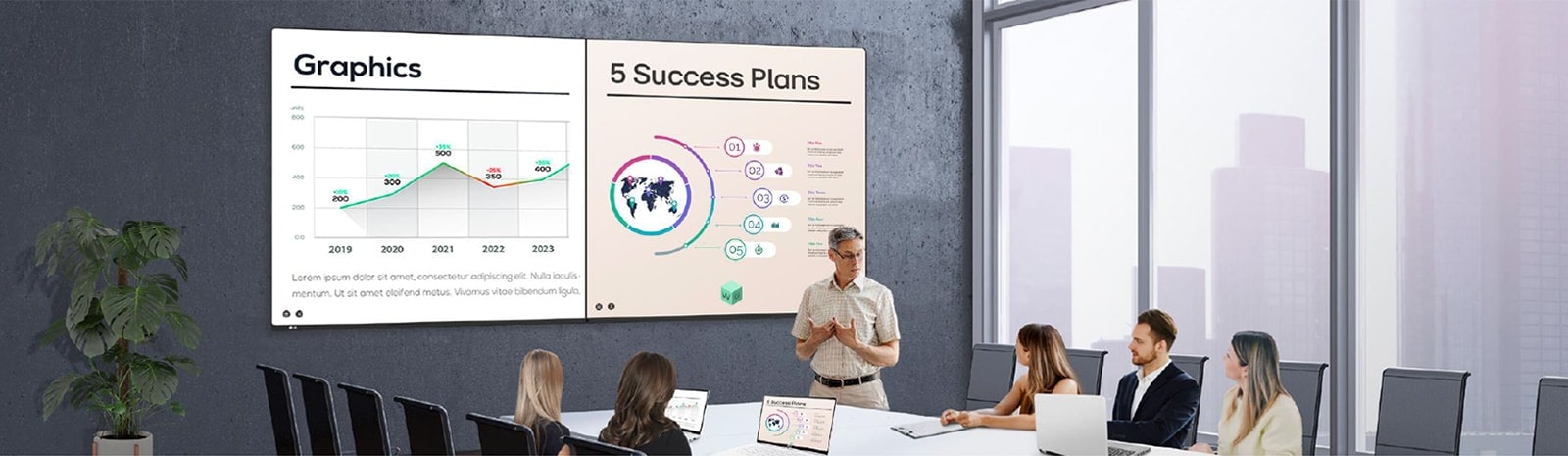

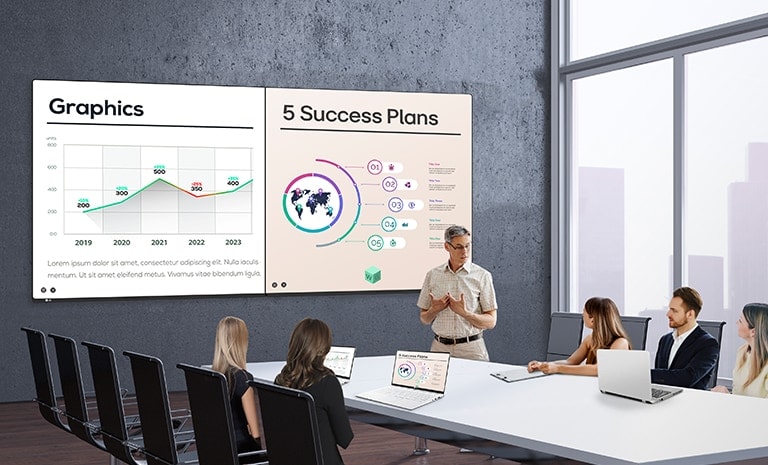

The screens of meeting participants are wirelessly shared on the 105BM5N widescreen, allowing multiple people to share their materials simultaneously on a single screen without any cable interference. The screens of meeting participants are wirelessly shared on the 105BM5N widescreen, allowing multiple people to share their materials simultaneously on a single screen without any cable interference.
* LG CreateBoard also supports app-less sharing for PC (via website) and mobile devices within the same network.
* For a more stable connection, we recommend the installation of a dedicated app (LG CreateBoard Share).

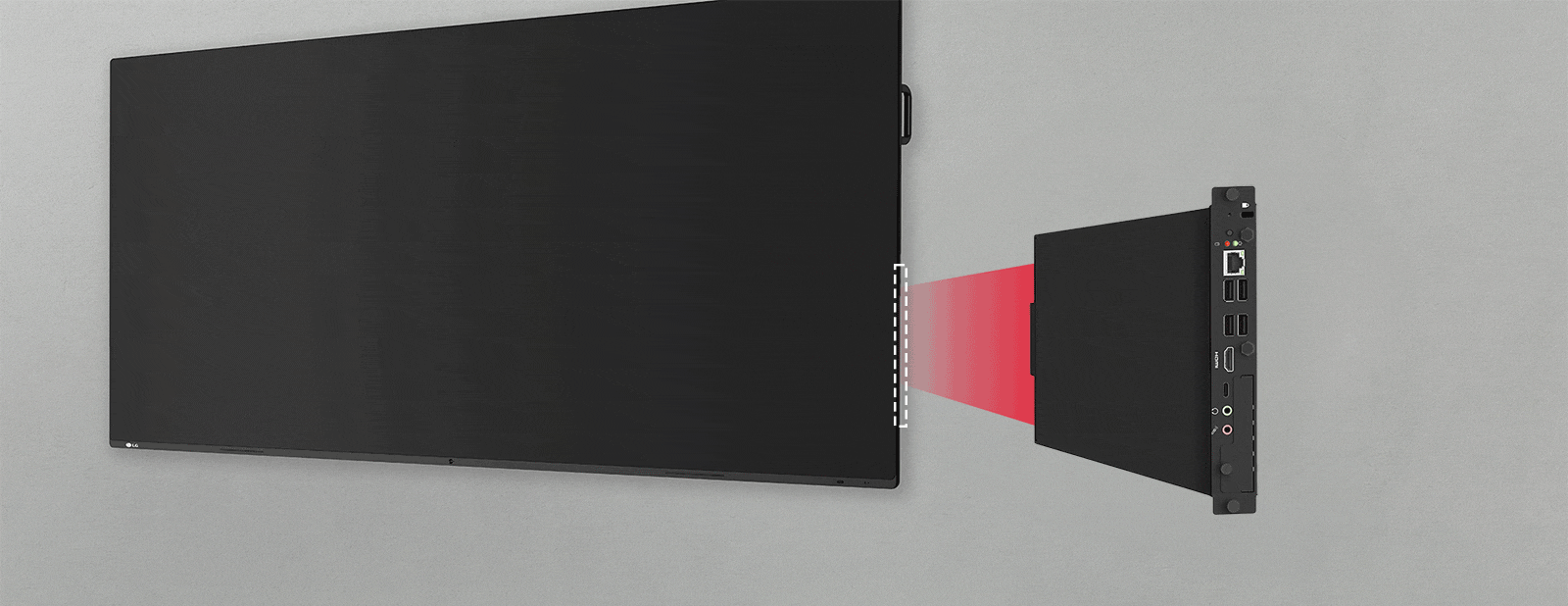

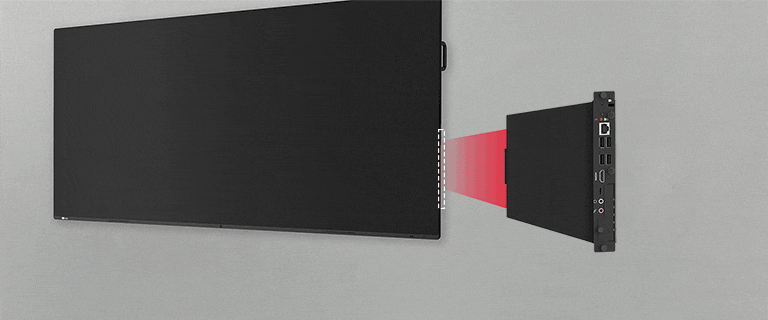

OPS Slot

105BM5N supports OPS slots, allowing you to conveniently mount OPS Module at the back of the screen without the hassle of connecting to an external desktop, enabling various PC functions and Windows software even on the 105BM5N.
Through the OPS slots, users can conveniently mount the OPS Module on the 105BM5N, enabling various PC functions and Windows software on the 105BM5N. Through the OPS slots, users can conveniently mount the OPS Module on the 105BM5N, enabling various PC functions and Windows software on the 105BM5N.
* OPS : Open Pluggable Specification
* OPS Player for 105BM5N supports 4K output and is sold separately.

LG ConnectedCare DMS

LG ConnectedCare DMS is a cloud solution for remotely monitoring, controlling, and managing the status of devices. This feature enables IT managers to manage important resources on operating devices without physically visiting sites.
* LG ConnectedCare DMS needs to be purchased separately.
* The availability of the LG ConnectedCare DMS service differs by region, so please contact the LG sales representative in your region for more details.
* LG ConnectedCare DMS supports TV Signage (UM340E, UR640S), LG CreateBoard (TR3DK, TR3DJ, TR3PJ) and Stretch Signage (105BM5N) as of now (plus more to come)
under a cloud environment.

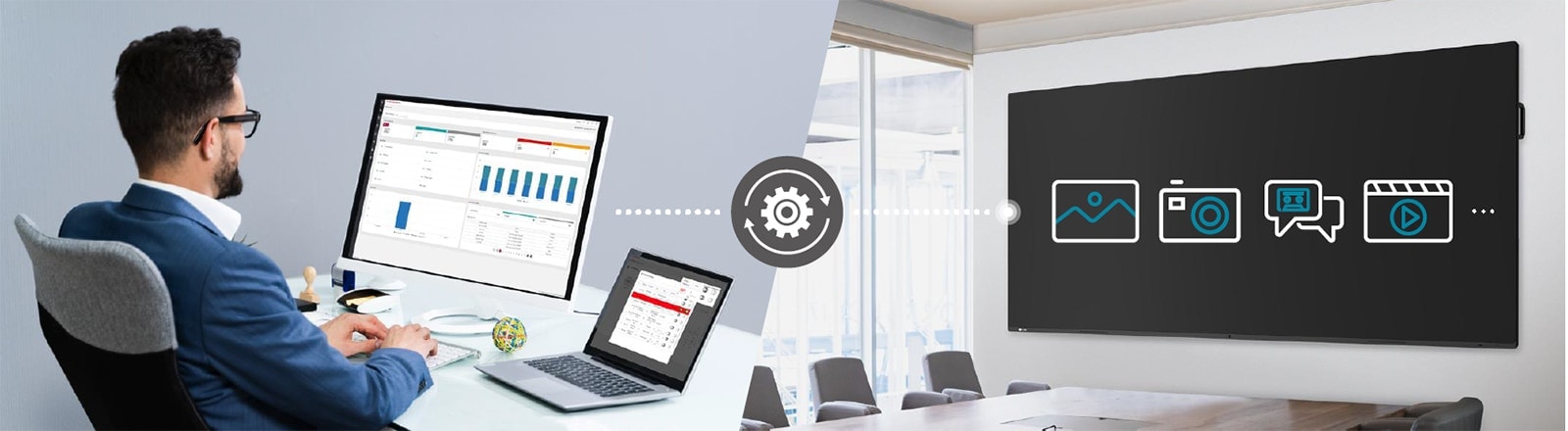

The IT administrator can remotely control and set up devices within the meeting room via LG ConnectedCare DMS. The IT administrator can remotely control and set up devices within the meeting room via LG ConnectedCare DMS.

Remote Control

Thanks to LG ConnectedCare DMS, IT manager can select specific devices to be controlled remotely and update their settings all at once. General settings, power settings, application management, and multimedia can all be effectively managed and controlled simultaneously, enabling the stable operation of clients' businesses.

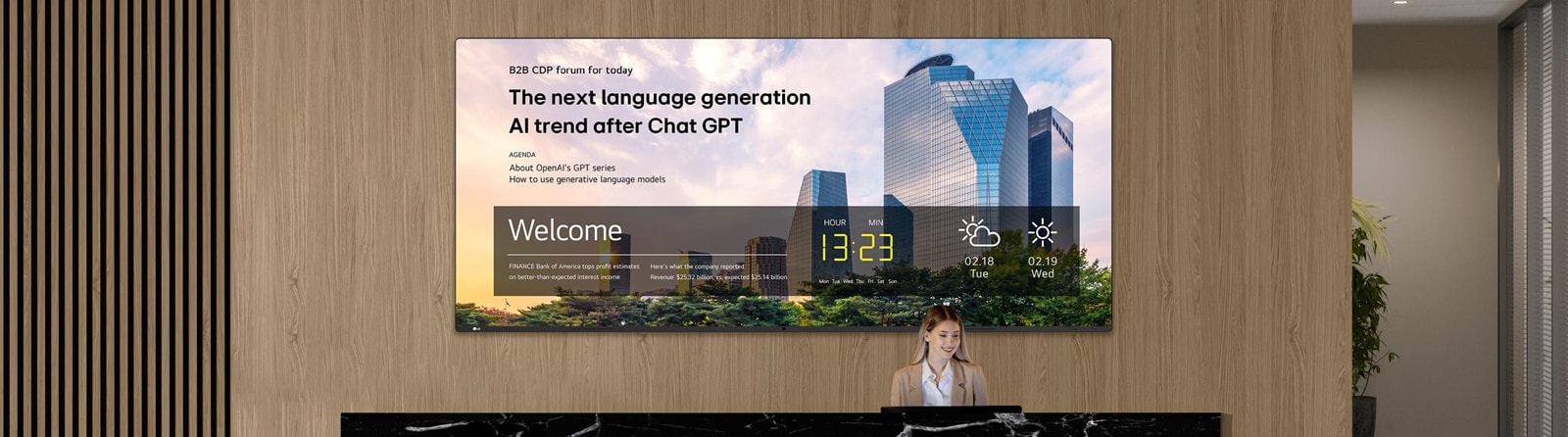

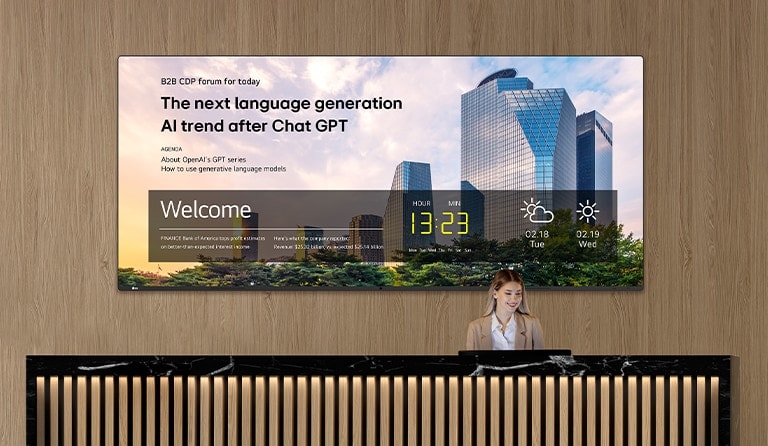

Company announcements and schedules are being displayed on the wide screen in the company's lobby. With LG ConnectedCare DMS, IT manager can remotely broadcast the content to specific devices. Company announcements and schedules are being displayed on the wide screen in the company's lobby. With LG ConnectedCare DMS, IT manager can remotely broadcast the content to specific devices.

Broadcast / Alert Message

Messages and a range of other content can be sent from the main system's hub to individual devices connected to LG ConnectedCare DMS and you can easily display important company notices or schedules right on your device. In case of urgent occasions such as a fire or a natural disaster, alert messages can be distributed manually across the system, which helps people promptly take a safety action.
Close
PANEL
  • Screen Size
    105"
    Panel Technology
    VA, Direct
  • Aspect Ratio
    21:9
    Native Resolution
    5120 X 2160 (5K)
  • Refresh Rate
    60Hz
    Brightness
    400nit (Typ.) 350nit (Min.)
  • Contrast Ratio
    4000:1
    Dynamic CR
    5000:1
  • Color Gamut
    NTSC 72%
    Viewing Angle(H x V)
    178x178
  • Color Depth
    10bit(8bit + FRC)
    Response Time
    6.5ms
  • Surface Treatment(Haze)
    25%
    Life time
    30,000 Hours (Min)
  • Operation Hours (Hours/Day)
    16/7
    Portrait / Landscape
    No / Yes
CONNECTIVITY(JACK INTERFACE)
  • Input
    HDMI((4) HDCP 2.3 ※ O(1, HDMI2.1), O(3, HDMI2.0)), DP((1) HDCP 2.3), Audio In, RS232C IN, RJ45(LAN), USB(USB Type C(1)(100W PD, DP-Alt), USB3.0 Type A(4), USB2.0 Type A(3), USB2.0 Type B out (3))
    Output
    Audio Out(1, Optical 1(SPDIF)), RJ45(LAN)
MECHANICAL SPECIFICATION
  • Bezel Color
    Black
    Bezel Width
    T/R/L/B : 3.5/3.5/3.5/23mm
  • Weight(Head)
    90.1Kg
    Packed Weight
    122.9Kg
  • Monitor Dimension(W x H x D)
    2510.6 X 1123.1 X 93.6mm
    Carton Dimensions(W x H x D) (Box outer size)
    2668 × 280 × 1305 mm
  • Handle
    Yes
    VESA™ Standard Mount Interface
    1000 X 400mm
  • Protection Glass-Depth
    4mm
    Protection Glass-Degree of Protection
    Full Toughening
  • Protection Glass-Tempered / Chemical strengthening
    Thermal Tempering
    Protection Glass-Anti-Reflective
    5%
  • Protection Glass-Shatter-Proof
    Yes
KEY FEATURE
  • HW
    Internal Memory(64GB), Built-in(Slot type), Auto Brightness sensor, Proximity Sensor, Power Indicator, Local Key Operation(Power Key)
    SW
    webOS ver.(Android 13.0 (AOSP)), USB Plug & Play, Screen Share(LG CreatBoard Share), Wake on LAN, Network Ready, HDMI-CEC
ENVIRONMENT CONDITIONS
  • Operation Temperature
    0 °C to 40 °C
    Operation Humidity
    10 % to 90 %
POWER
  • Power Supply
    AC 100-240V~, 50/60Hz
    Power Type
    Built-In Power
POWER CONSUMPTION
  • Typ.
    350W
    Max.
    850W
  • BTU (British Thermal Unit)
    1194 BTU/Hr(Typ.), 2900 BTU/Hr(Max)
    DPM
    ≤0.5W
  • Power off
    ≤0.5W
SOUND
  • Speaker
    16W x 2 + 15W
CERTIFICATION
  • Safety
    CB / NRTL (cULus)
    EMC
    FCC Class "A" / CE
  • ErP / Energy Star
    Yes / Yes
OPS Compatibility
  • OPS type compatible
    Yes (Slot)
    OPS Power built in
    Yes
SOFTWARE COMPATIBILITY
  • LG ConnectedCare DMS
    Yes
Language
  • OSD
    English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil) Russian, Portugues(Europe), Dutch, Czech, Greek, Türkiye
ACCESSORY
  • Basic
    Power cord, HDMI Cable, Remote Controller
    Remote battery, SI07B, Wall Mount
    Optional
    OPSJ-5LDJA(4K)
Android System
  • SoC
    A76x4 + A55x4
    GPU
    Mali-G610 MP4
  • Internal Memory - Storage
    64GB
    Internal Memory - RAM
    8GB
  • Wi-Fi
    802.11a/b/g/n/ac/ax (WiFi 6)
    LAN
    Gigabit LAN
  • Bluetooth
    Bluetooth 5.2
PRODUCT DEDICATED FEATURE
  • DPM
    Yes
    Power On/Off Schedule
    Yes
  • Power On Default (Power On)
    Yes
    Customized Background
    Yes
  • Input Auto Switching
    Yes
    LG RS232C Command
    Yes
  • Power on Status
    Yes
    No Signal Power Off
    Yes
  • No IR Power Off
    Yes
    100W PD (w/USB-C)
    Yes
