10SM3TB
SM3TB Series
  • Brightness : 400cd/m²
  • Bezel : 14mm (Even Bezel)
  • Depth : 29.7mm

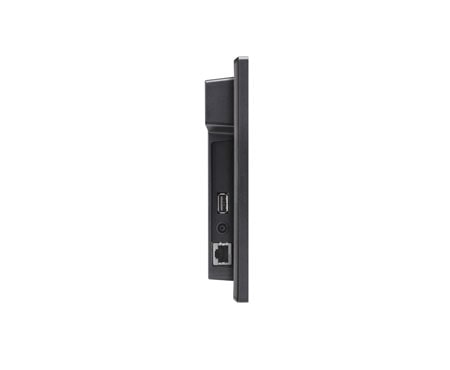

  • Interface : USB, SD Card, RJ45

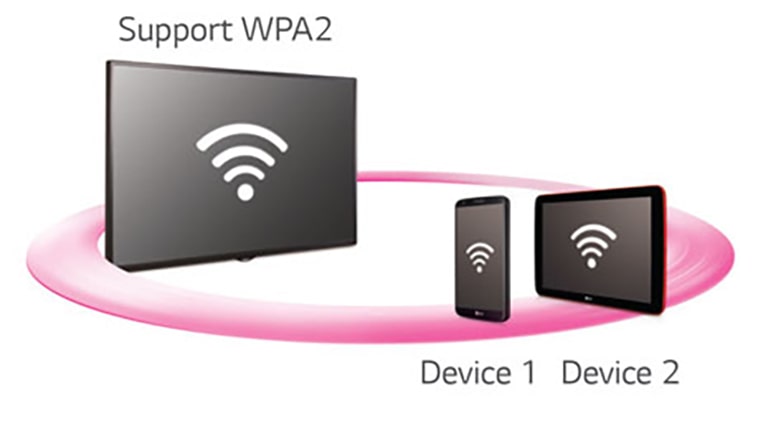

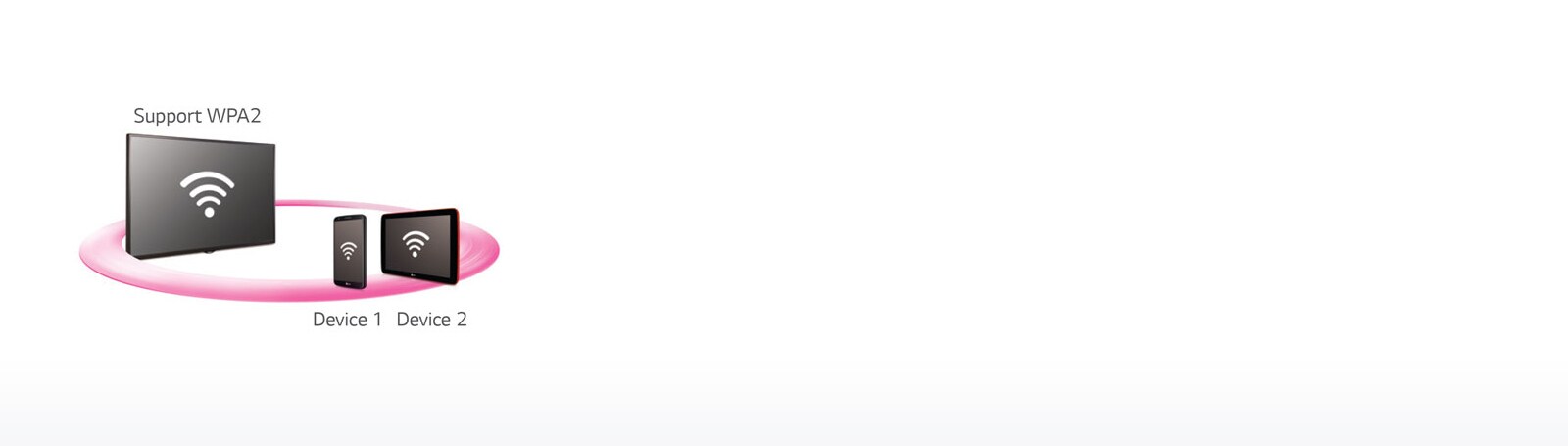

  • Special Features : Wi-Fi Built-in, K-Slot
  • 16/7 Operation
SM3TB Series
MSRP AED

PANEL

  • Screen Size
    10" (10.1")
    Resolution
    1,280 x 800 (HD)
  • Brightness
    Module : 450cd/m², SET : 400cd/m² [ W/Touch ]

CONNECTIVITY - INTPUT

  • HDMI
    No
    DVI-D
    No
  • DP
    No
    Analog (RGB)
    No
  • Audio In
    No
    External Control (RS232C IN)
    No
  • External Control (RJ45)
    Yes (1)
    External Control (IR receiver)
    No
  • External Control (Pixel Sensor)
    No
    USB (USB2.0)
    Yes (1)
  • SD Card (SDHC/Full Size)
    Yes (micro SD)

CONNECTIVITY - OUTPUT

  • Audio Out
    No
    Externel Speaker Out
    No
  • External Control (RS232C OUT)
    No

PHYSICAL SPECIFICATION

  • Bezel Width
    14mm (T,R/L,B)
    Monitor Dimension (W x H x D)
    245.6mm X 164.2mm X 29.7mm
  • Weight (Head)
    0.63kg
    VESA™ Standard Mount Interface
    50mm x 50mm

MEDIA PLAYER COMPATIBILITY

  • OPS Type Compatible
    No
    External Media Player Attatchable
    No

SOFTWARE COMPATIBILITY

  • SuperSign-w lite
    No
    SuperSign-c
    No

ACCESSORY

  • Basic
    Adaptor, Manual (Web), ESG
    Optional
    SP-2000, ST-200T, LSW430

GENERAL

  • Region
    Global
