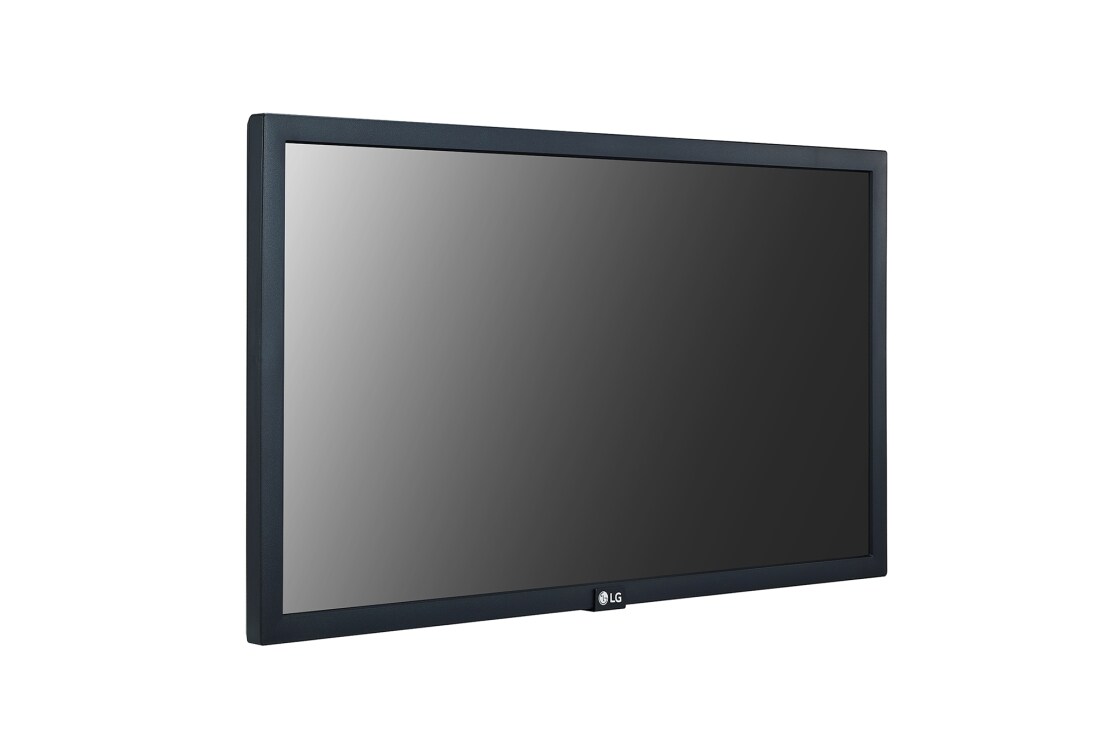

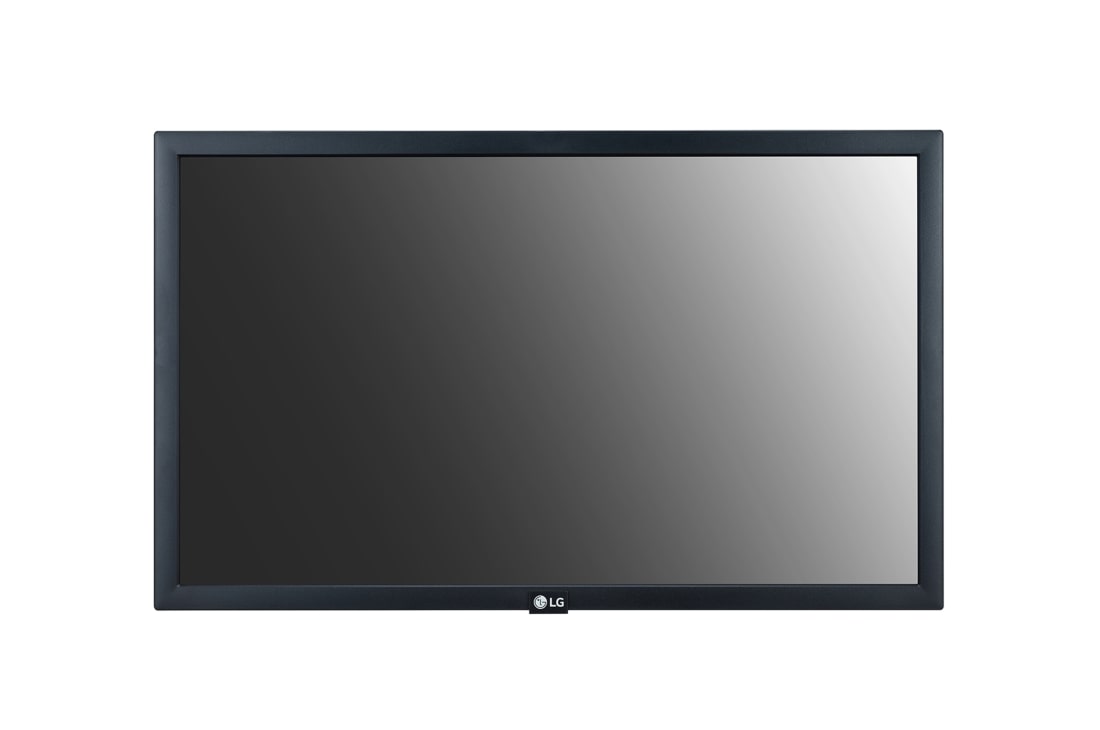

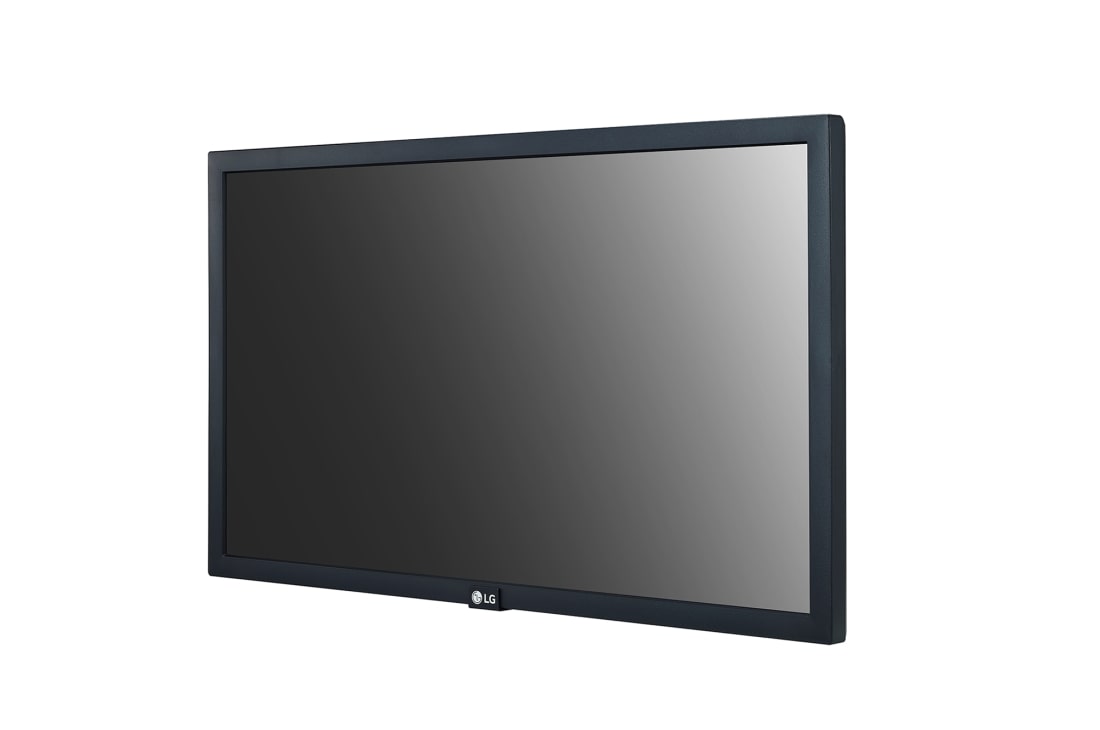

22SM3G-B
22'' Standard Signage
  • Brightness(Typ.) : 250 cd/m²
  • Bezel : 16.3mm

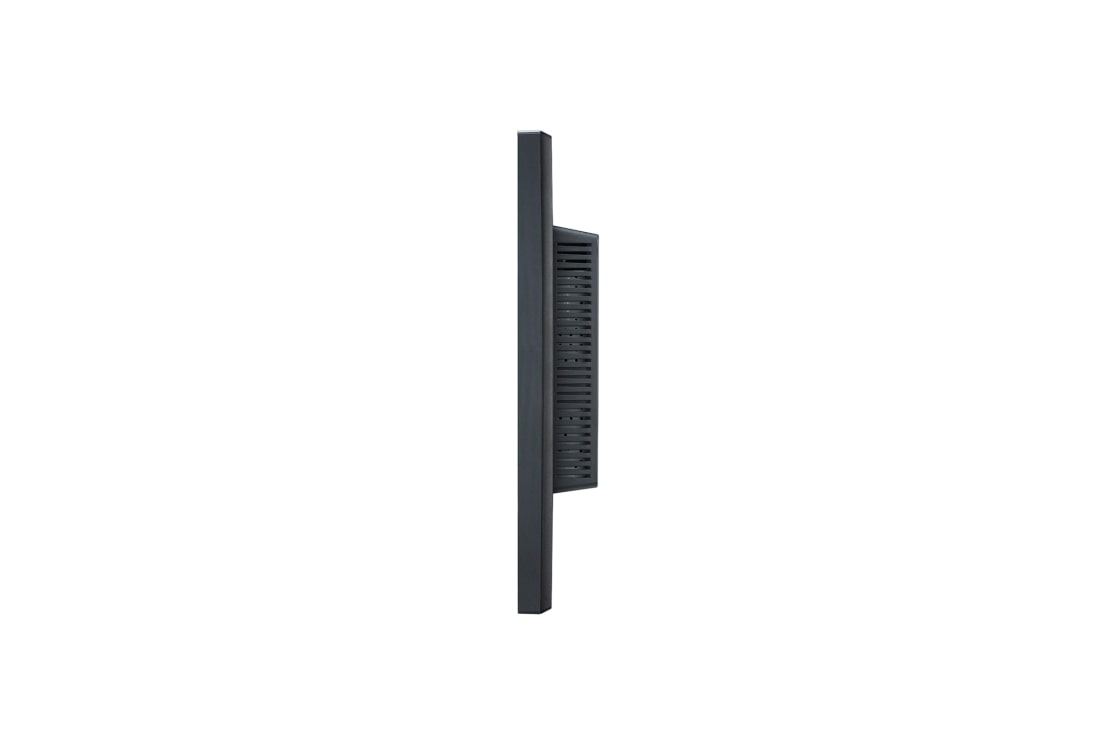

  • Depth : 53.8mm

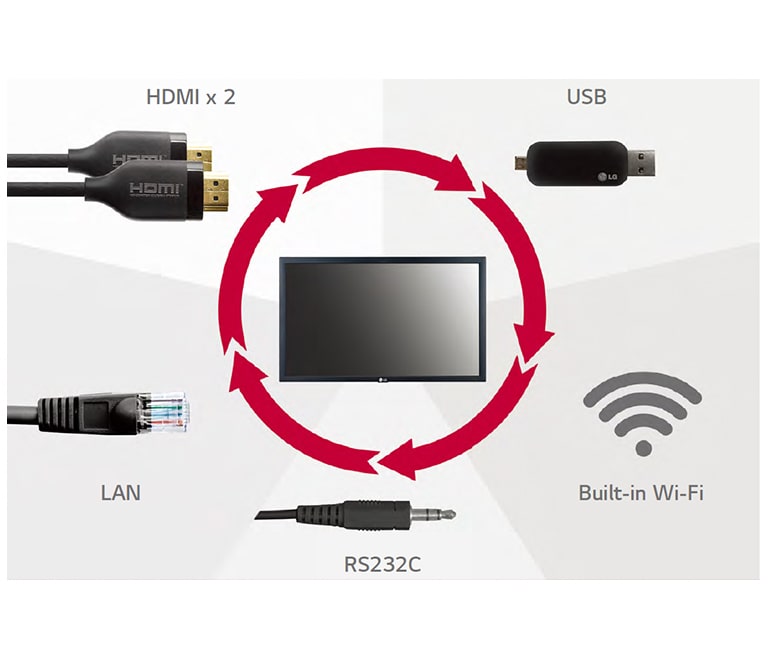

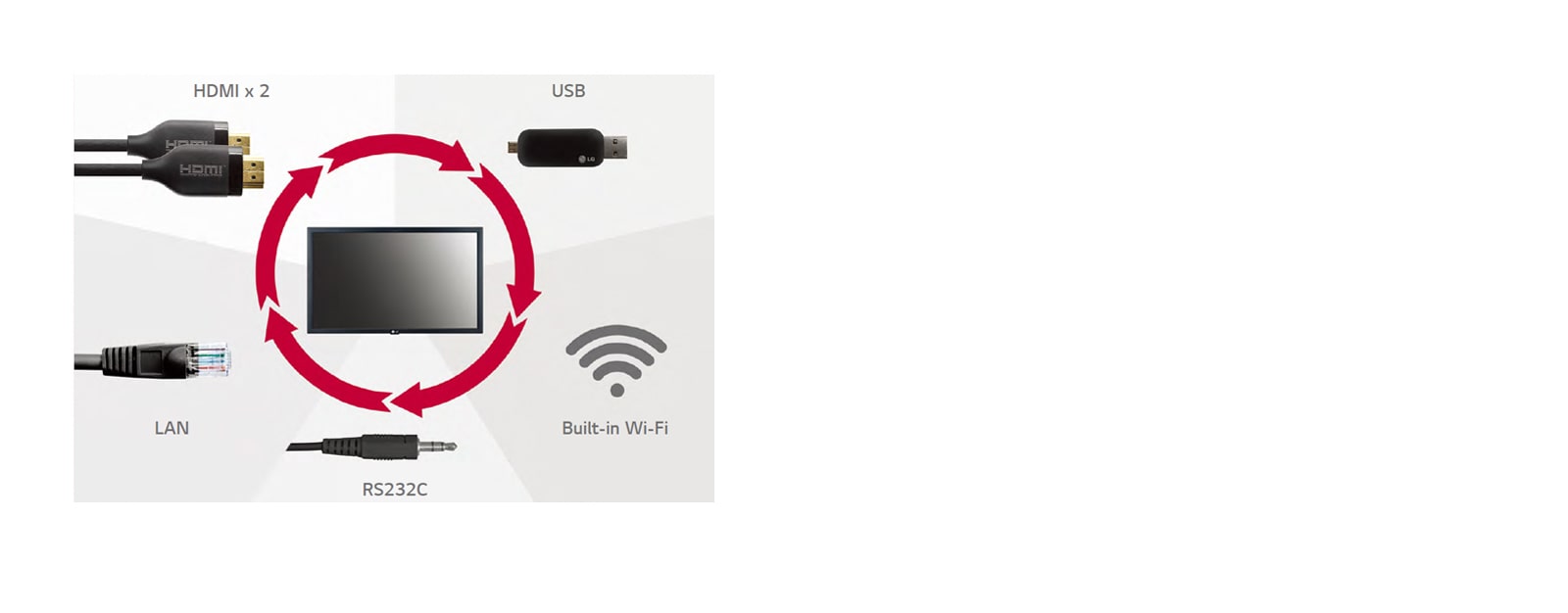

  • Interface : HDMI(2) / USB 2.0 / RS232C / RJ45 / IR / Audio

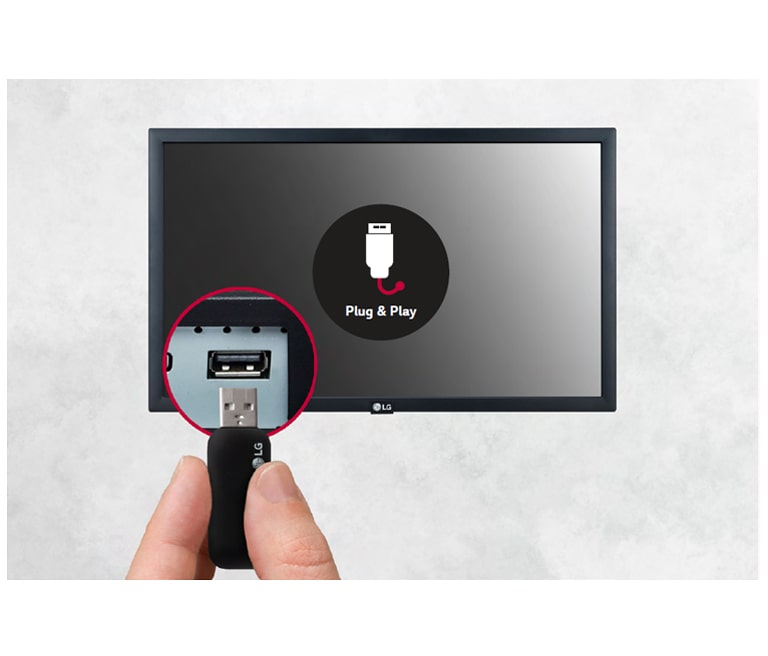

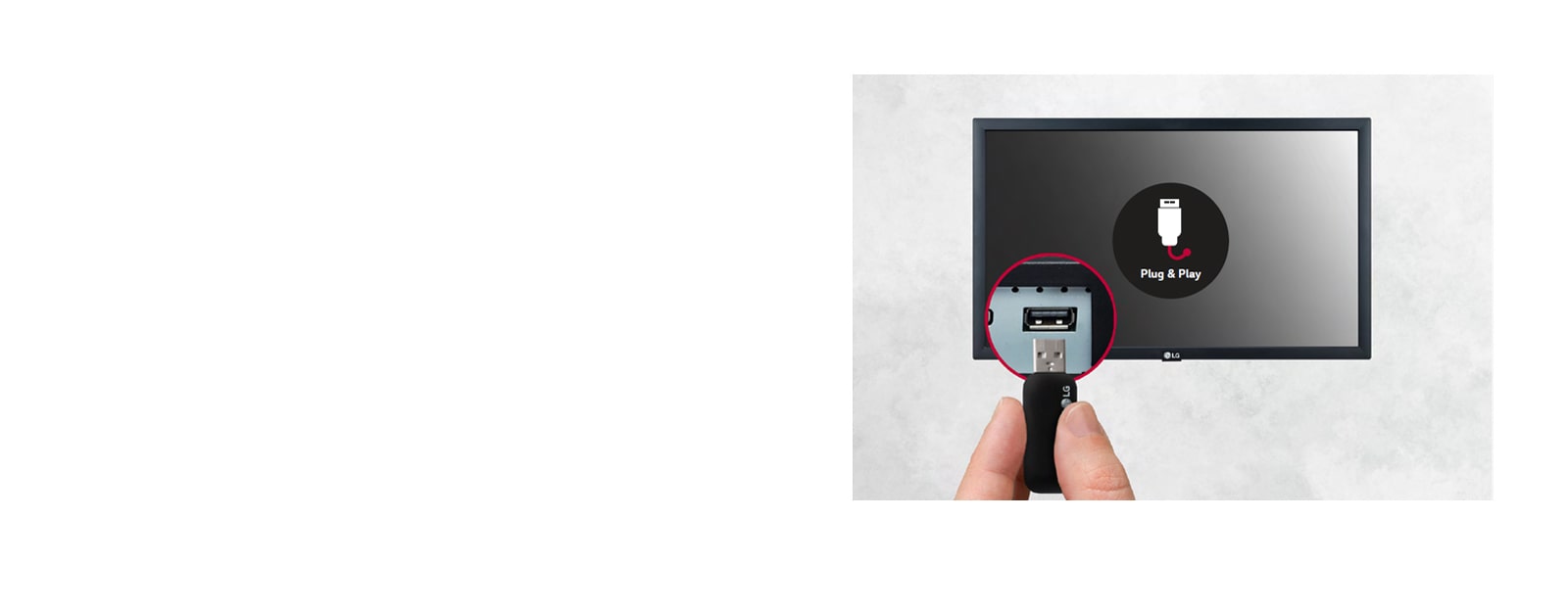

  • USB Plug & Play, Built-in Wi-Fi

component-OBScountrySelectDesc

22" Standard Signage
  • SMART SIGNAGE PLATFORM

    SMART SIGNAGE PLATFORM1 SMART SIGNAGE PLATFORM2
  • Content Sharing

    Content Mirroring among devices is more convenient on a Wi-Fi network.

  • Real-time Promotion

    With Beacon and BLE (Bluetooth Low Energy), shop managers can provide coupons and information in real-time.

  • Wireless Solution

    22SM3G operates as a virtual router which can be a wireless access point for mobile devices.

* The availability of “Signage365Care” service can differ by region, so please contact the LG sales representative in your region for further details.

PANEL

  • Screen Size
    21.5"
    Panel Technology
    IPS
  • Native Resolution
    1,920 x 1,080 (FHD)
    Brightness
    250 nit (Typ.)
  • Contrast Ratio
    1,000:1
    Dynamic CR
    400,000:1
  • Color Gamut
    BT.709 95%
    Viewing Angle(H x V)
    178 x 178
  • Color Depth
    6bit, 16.7Million Colors
    Response Time
    14ms (G to G)
  • Surface Treatment(Haze)
    25%
    Operation Hours (Hours/Day)
    16/7
  • Landscape
    Yes

CONNECTIVITY

  • Input - Digital - HDMI
    Yes(2), HDCP2.2
    Input - Audio In
    Yes(1)
  • Input - External Control - RS232C IN
    Yes(1), Phone-jack
    Input - External Control - RJ45(LAN)
    Yes(1)
  • Input - External Control - IR IN
    Yes(1), Phone-jack
    Input - USB
    USB2.0 Type A(1)

MECHANICAL SPECIFICATION

  • Bezel Color
    Black
    Bezel Width
    Even Bezel 16.3mm
  • Weight(Head)
    3.34 kg
    Monitor Dimension(W x H x D)
    510.3 x 302.1 x 53.8mm

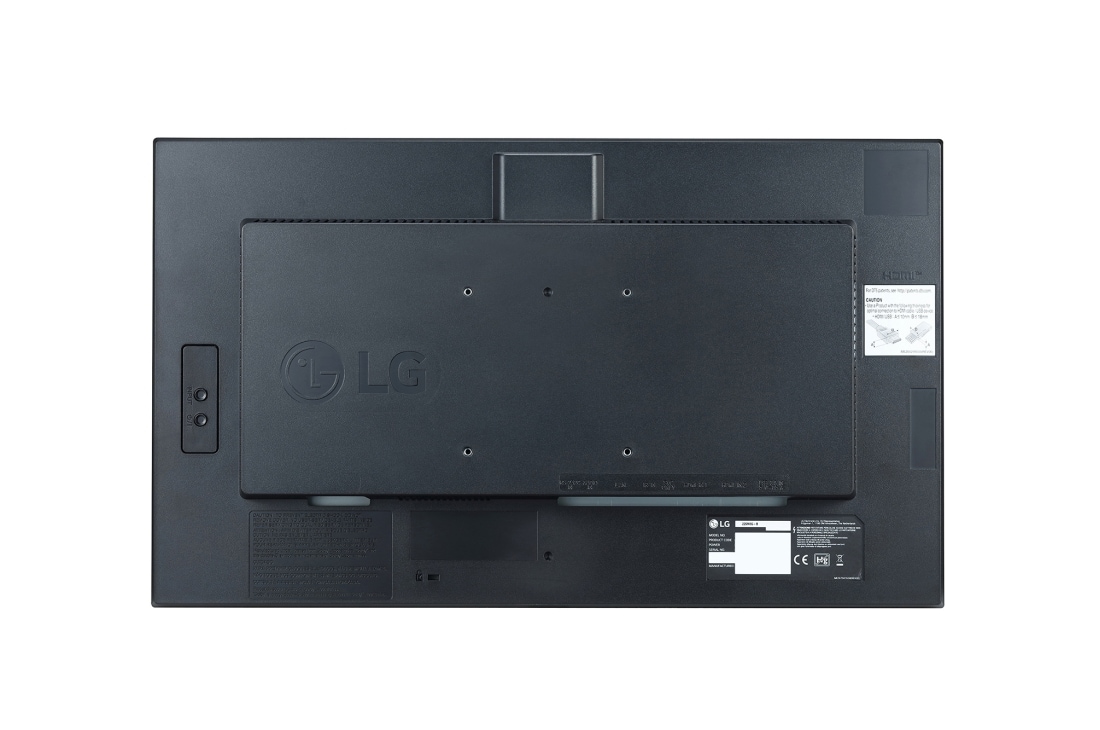

  • VESA™ Standard Mount Interface
    100 x 100

KEY FEATURE

  • HW - Internal Memory
    8GB
    HW - Wi-Fi - Built-in
    Yes
  • HW - Sensor - Temperature Sensor
    Yes
    HW - Local Key Operation
    Yes
  • SW - webOS ver.
    webOS 4.1
    SW - Embedded CMS - Local Contents Scheduling
    Yes
  • SW - Embedded CMS - Group Manager
    Yes
    SW - USB Plug & Play
    Yes
  • SW - Fail over
    Yes
    SW - Background Image - Booting Logo Image
    Yes
  • SW - Background Image - No Signal Image
    Yes
    SW - Multi-screen - PIP
    Yes
  • SW - Multi-screen - PBP
    Yes(2)
    SW - Screen Share
    Yes
  • SW - Video Tag
    Yes(2)
    SW - Play via URL
    Yes
  • SW - Gapless Playback
    Yes
    SW - Setting Data Cloning
    Yes
  • SW - SNMP
    Yes
    SW - ISM Method
    Yes
  • SW - Status Mailing
    Yes
    SW - Control Manager
    Yes
  • SW - 3rd Party Compatibility - Crestron Connected®
    Yes (Network Based Control)
    SW - Smart Energy Saving
    Yes
  • SW - PM mode
    Yes
    SW - Wake on LAN
    Yes
  • SW - Beacon
    Yes
    SW - HDMI-CEC
    Yes (Compatibility may differ by equipment.)
  • SW - SI Server Setting
    Yes
    SW - webRTC
    Yes
  • SW - Pro:Idiom
    Yes

ENVIRONMENT CONDITIONS

  • Operation Temperature
    0 °C to 40 °C
    Operation Humidity
    10 % to 80 %

POWER

  • Power Supply
    AC 100-240V~, 50/60Hz
    Power Type
    Built-In Power

POWER CONSUMPTION

  • Typ.
    30W
    Max.
    33W
  • BTU (British Thermal Unit)
    7.17(Typ), 7.89(Max)

SOUND

  • Speaker
    Yes(1W x 2EA)

CERTIFICATION

  • Safety
    CB / NRTL
    EMC
    FCC Class "A" / CE
  • ErP
    Yes (EU Only)

SOFTWARE COMPATIBILITY

  • SuperSign CMS
    Yes
    SuperSign Control / Control+
    Yes / Yes
  • SuperSign WB
    Yes
    SuperSign Media Editor
    Yes
  • Signage 365 Care
    Yes (The availability can differ by region.)

ACCESSORY

  • Basic
    Remote Controller, Power Cord, QSG, HDMI Cable, Phone to RS232C Gender, External IR, IR Sheet
