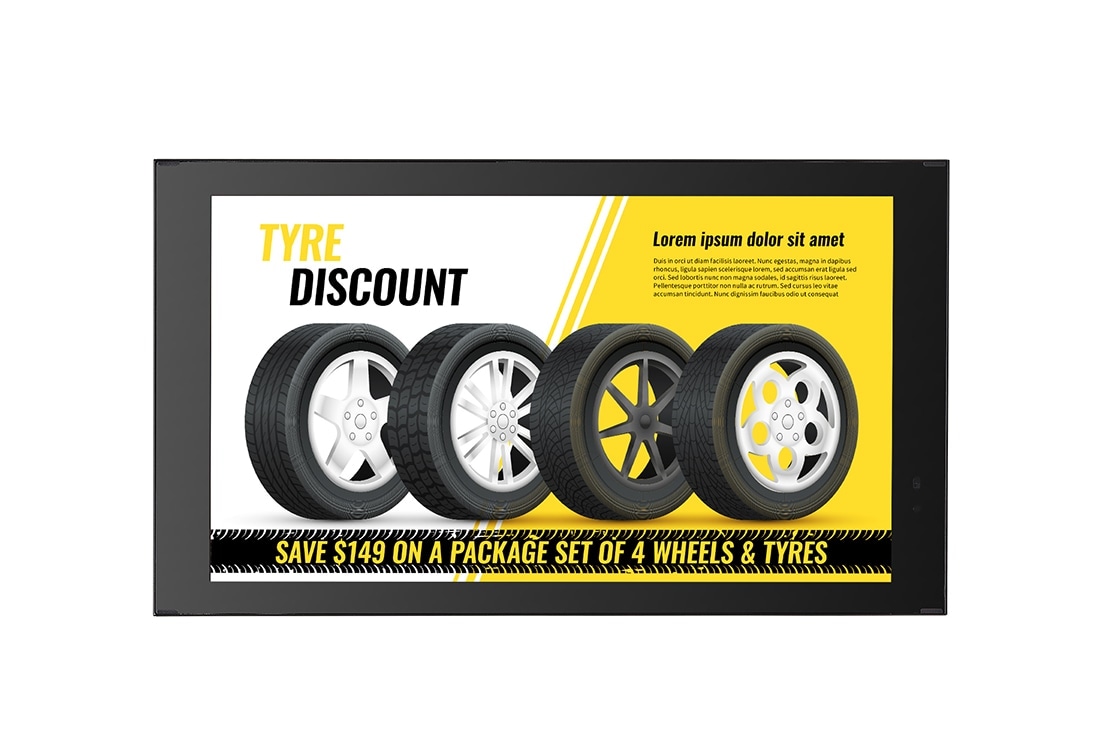

LG 22'' Outdoor Display for High Visibility, Front view with infill image, 22XE1J-B, thumbnail 1

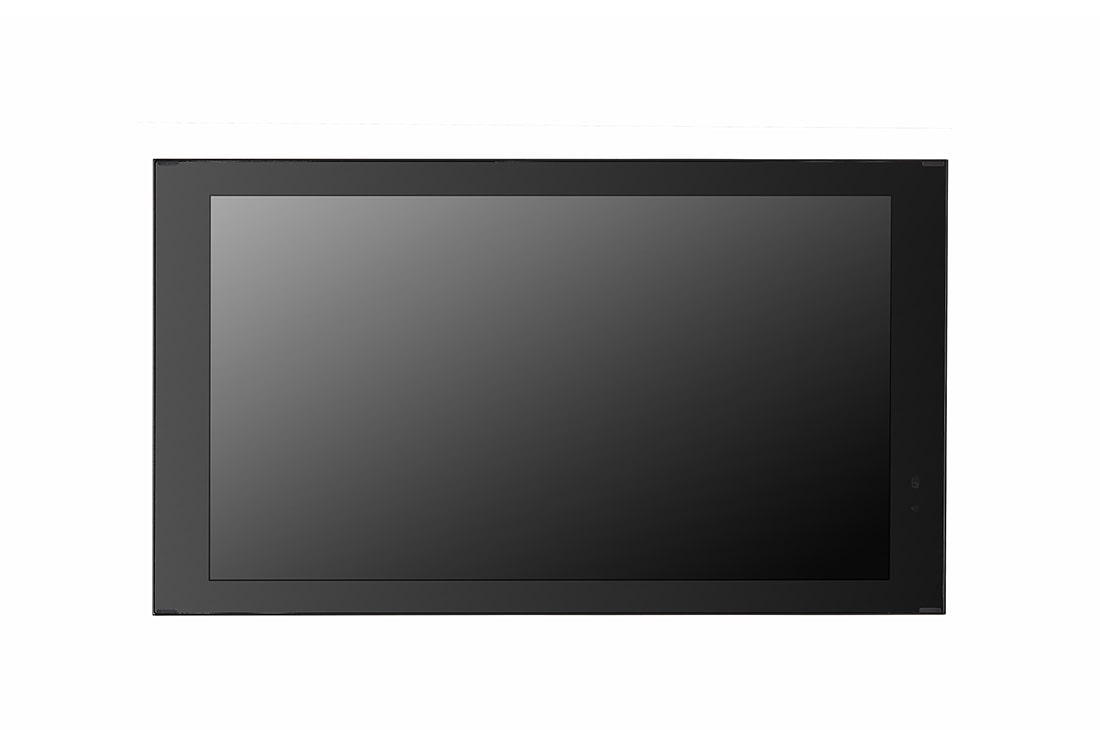

LG 22'' Outdoor Display for High Visibility, Front view, 22XE1J-B, thumbnail 2

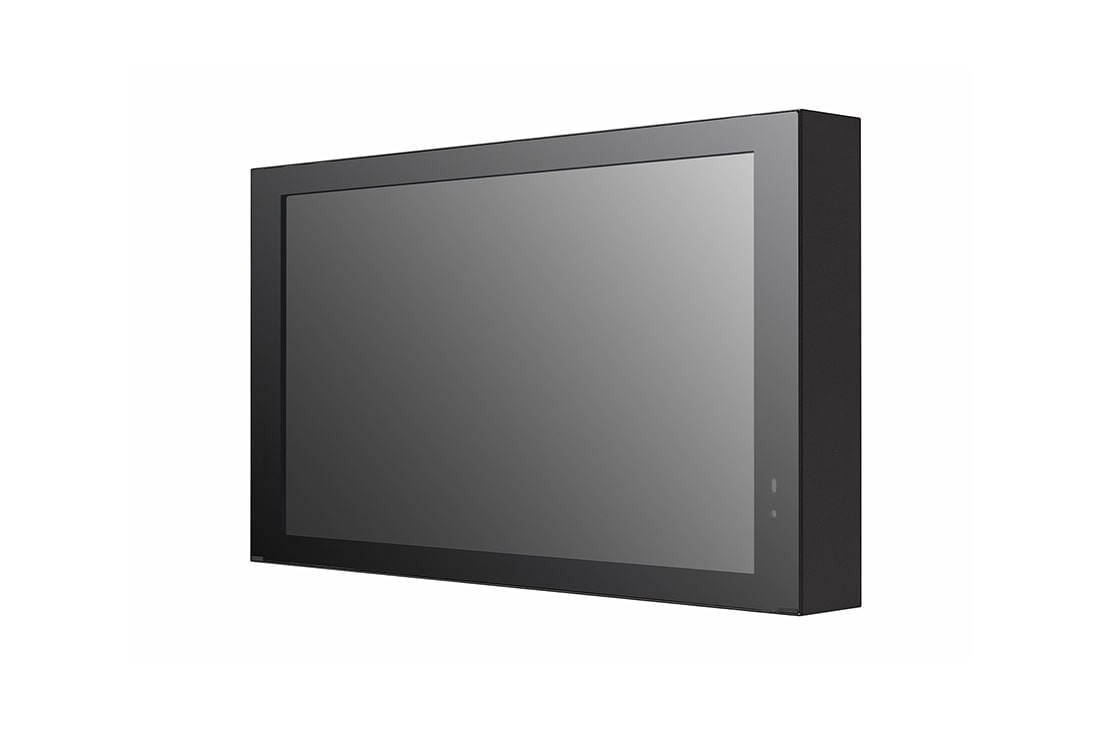

LG 22'' Outdoor Display for High Visibility, -45 degree side view, 22XE1J-B, thumbnail 3

LG 22'' Outdoor Display for High Visibility, -90 degree side view, 22XE1J-B, thumbnail 4

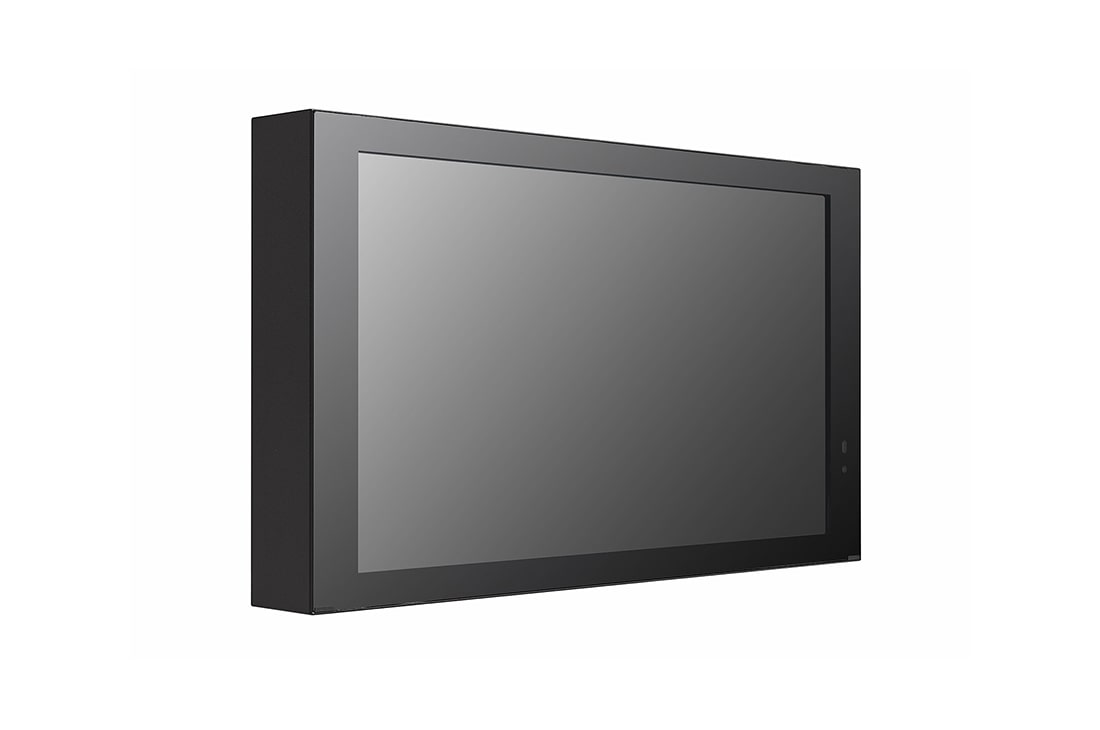

LG 22'' Outdoor Display for High Visibility, +45 degree side view, 22XE1J-B, thumbnail 5

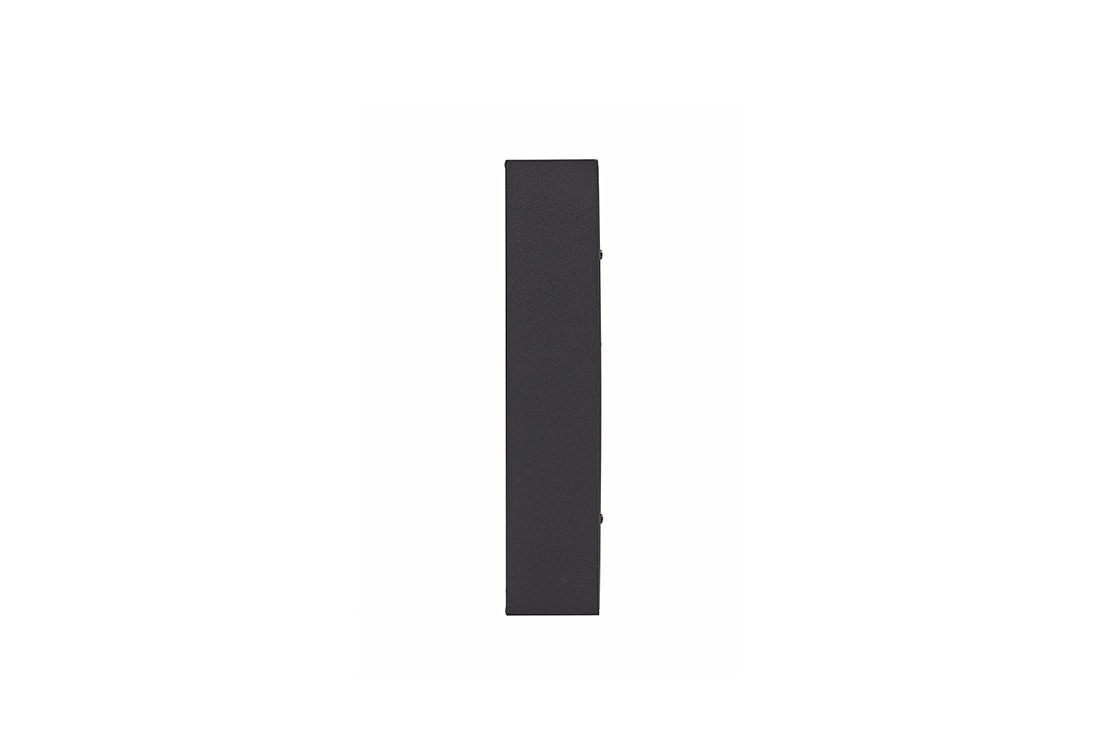

LG 22'' Outdoor Display for High Visibility, +90 degree side view, 22XE1J-B, thumbnail 6

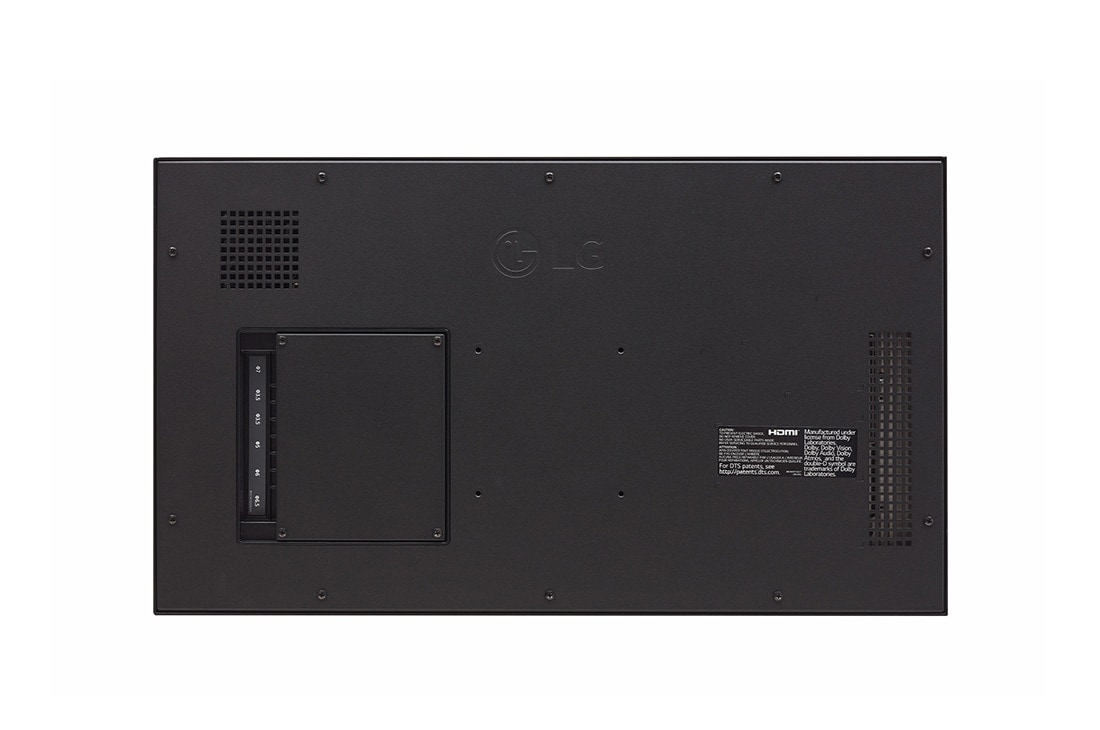

LG 22'' Outdoor Display for High Visibility, Rear view, 22XE1J-B, thumbnail 7

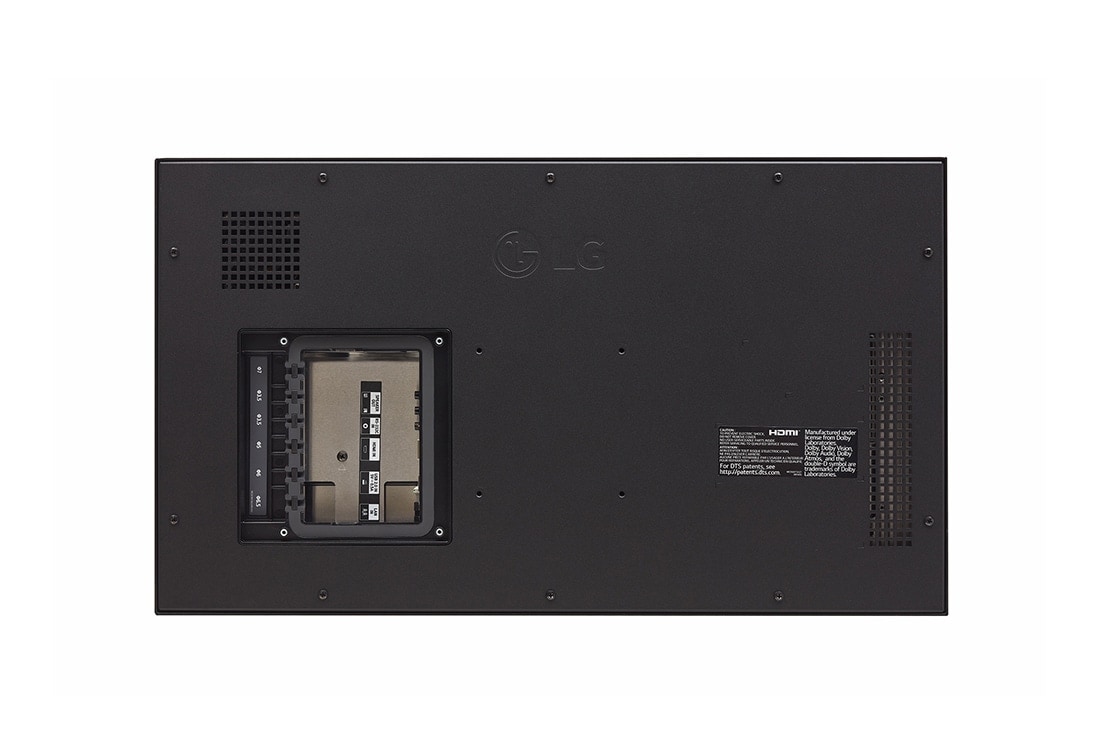

LG 22'' Outdoor Display for High Visibility, Rear view2, 22XE1J-B, thumbnail 8

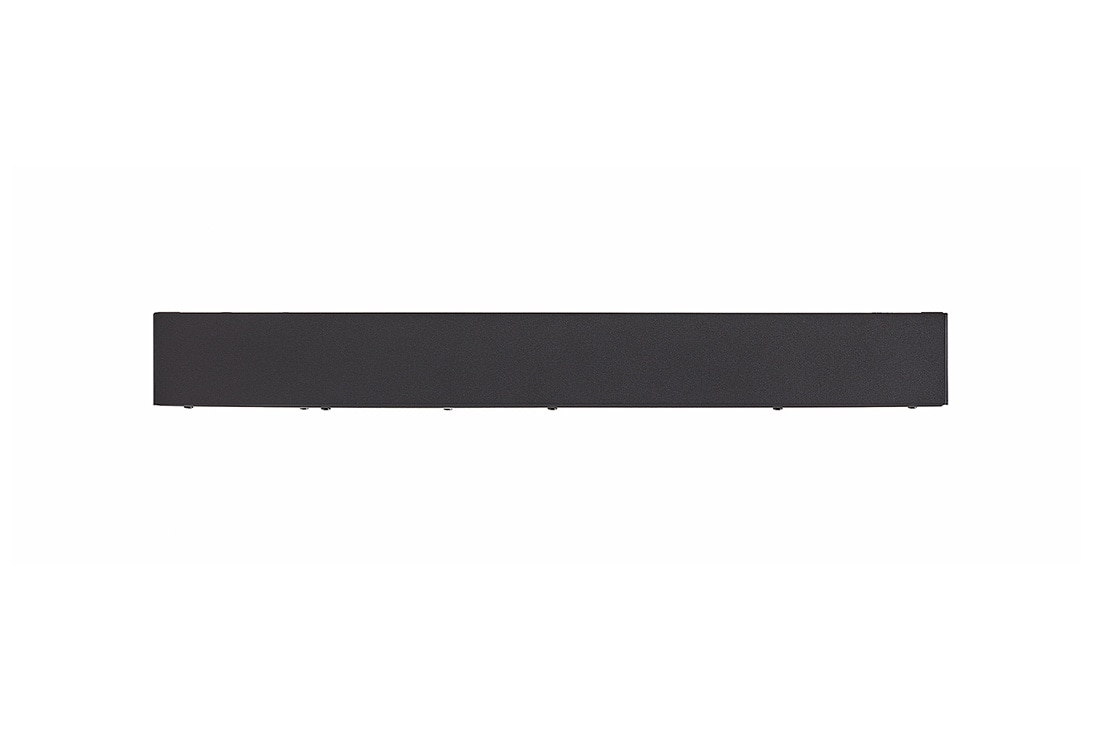

LG 22'' Outdoor Display for High Visibility, Top view, 22XE1J-B, thumbnail 9

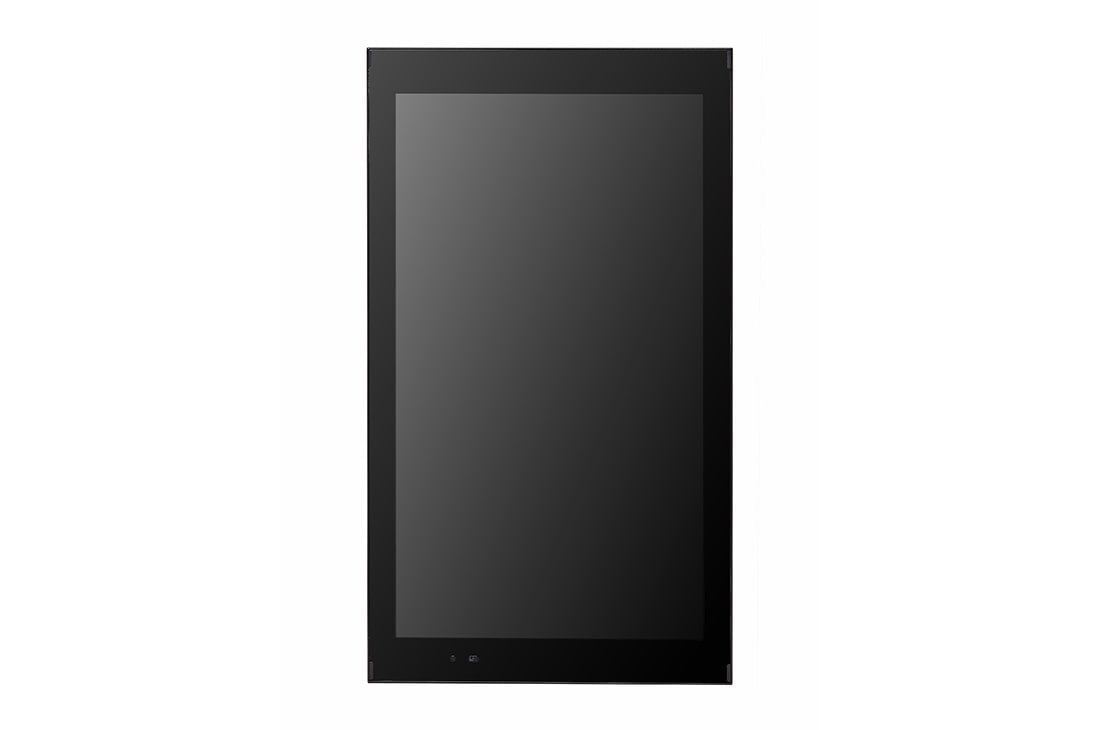

LG 22'' Outdoor Display for High Visibility, Portrait front view, 22XE1J-B, thumbnail 10

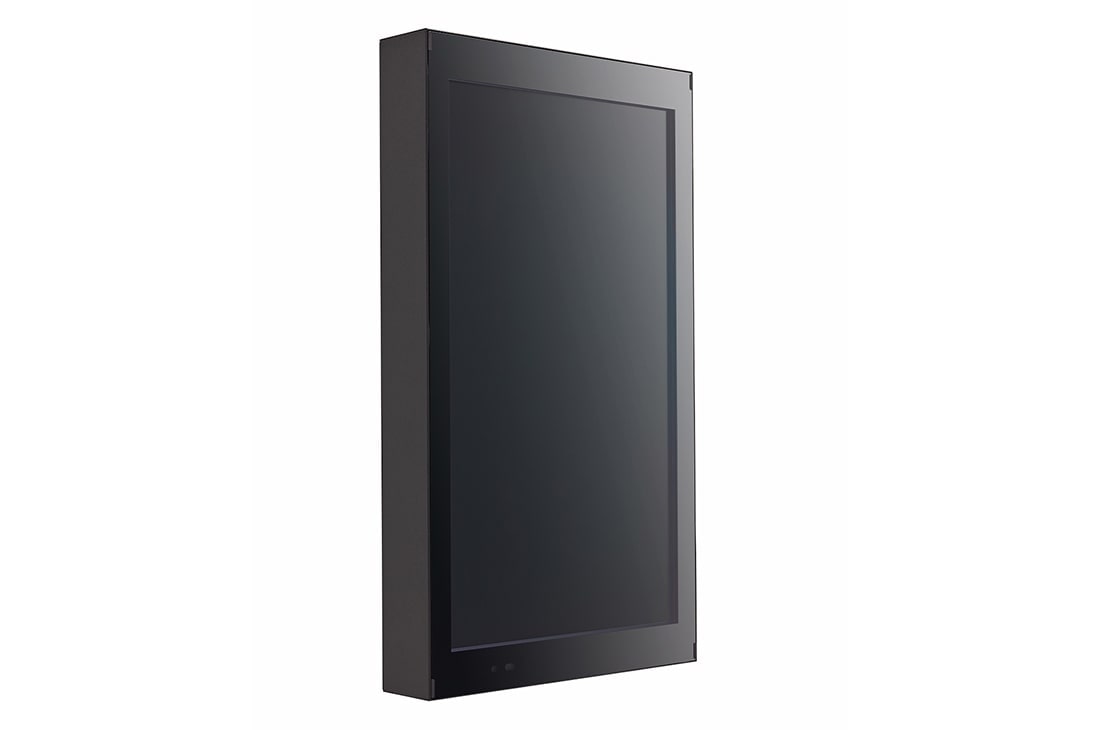

LG 22'' Outdoor Display for High Visibility, Portrait -45 degree side view, 22XE1J-B, thumbnail 11

ADD TO WISHLIST

Discontinued

22XE1J-B component-copyModelName

LG 22'' Outdoor Display for High Visibility

Name: LG 22'' Outdoor Display for High Visibility
Brand: LG UAE
SKU: 22XE1J-B
Rating: 0 (0 reviews)

Key Features

Brightness (Typ, w/ Glass) : 1,500 nits
IP56 Rated Dust / Water Proof
21.5" of Versatile Display Size
Wide Operating Temperature Range
webOS Smart Platform
Web-based Monitoring Solution

Choose your Size

21.5"

Find a Dealer

Add to Compare

component-OBScountrySelectDesc

Key Features

Brightness (Typ, w/ Glass) : 1,500 nits
IP56 Rated Dust / Water Proof
21.5" of Versatile Display Size
Wide Operating Temperature Range
webOS Smart Platform
Web-based Monitoring Solution

Choose your Size

21.5"

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

LG 22'' Outdoor Display for High Visibility

Versatile Outdoor Display Fit for Your Business

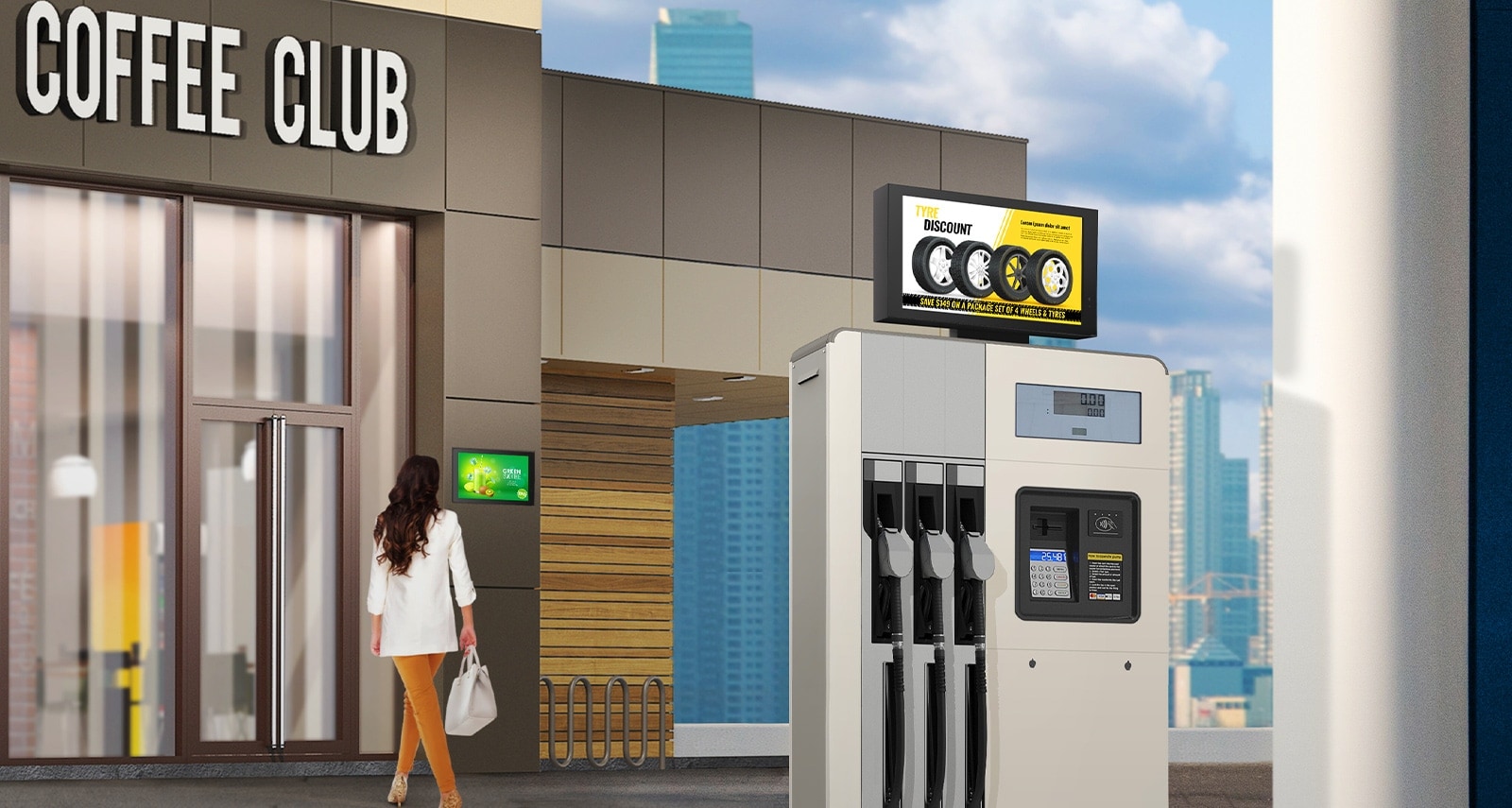

Ads for tires are displayed on a 22XE1J installed on the upper part of the gas lubricator. A lady entering a café looks at the advertisement on the 22XE1J which is installed on the wall of the building.

* All images in this web page are for illustrative purposes only.

A 22XE1J is installed on the wall at the entrance of the building with another 22XE1J stand below for reservation purposes. The lady with sunglasses is using the 22XE1J screen with a touch overlay to make a reservation. The screen remains visible even when under direct sunlight.

High Visibility Under Bright Environments

With a brightness of 1,500 nits, 22XE1J boasts high visibility in bright environments. In addition, its clear visibility can deliver a variety of information even to those wearing polarized sunglasses.

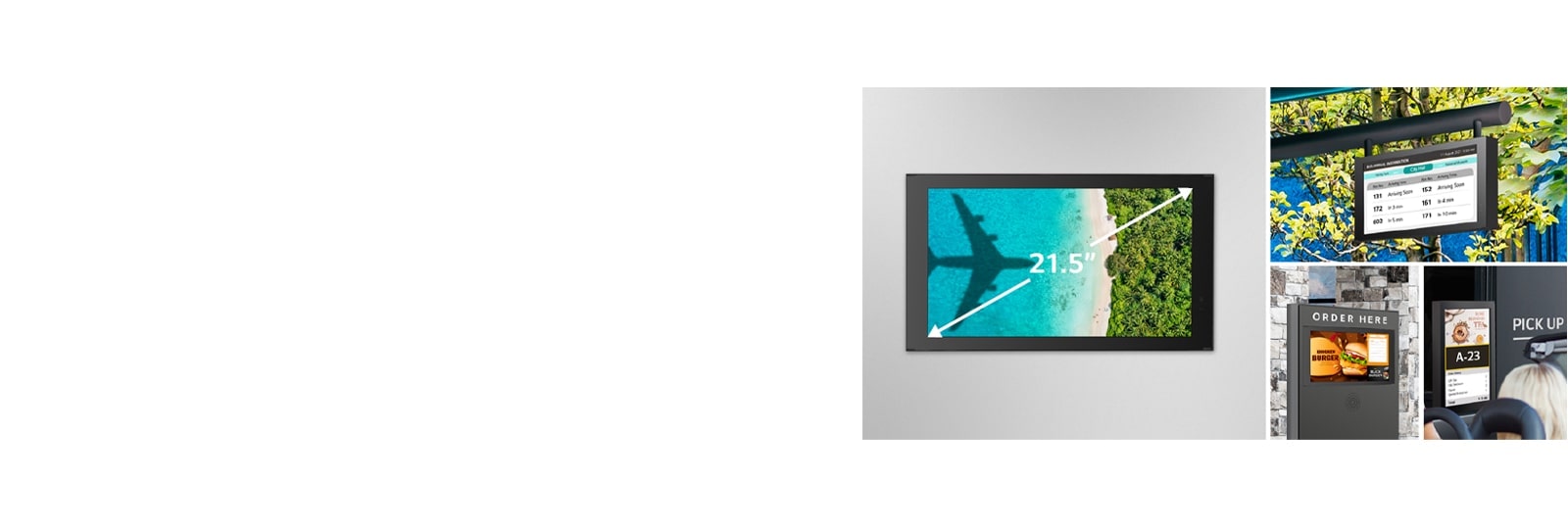

The left one shows a 22XE1J installed on the wall showing its 21.5" in size. On the right, there are various screen types: A hanging type, kiosk type, and stand-alone installation type.

21.5 inches of Versatile Screen Size

The small and light size of 21.5 inches allows for flexible use in various spaces. In particular, you can install the display in various way allowing for high utilization for small-medium businesses (SMB) to large businesses.

The 22XE1J is protected against dust, direct sunlight, rain, and snow.

Secured Protection with IP56 Design

The display is sealed with IP56 design for reliable operation. It’s designed to be not only waterproof but also weatherproof against the damaging effects of the sun, rain, snow, dust and wind, which is an essential feature for outdoor application.

A display is working well in an environment of -30~50°C.

Wide Operating Temperature Range

22XE1J can be used under a wide range of operating temperatures which results in fewer constraints for outdoor installation.

Conformal Coating

Conformal Coating* improves reliability of the circuit board, power board by protecting it against dust, iron powder, humidity, etc.

* Conformal Coating : Thin protective films/breathing membranes that filter water vapor and solid debris

The 22XE1J screen can adjust its brightness automatically according to the ambient light.

Smart Brightness Control

The screen brightness is automatically adjusted depending on the ambient light. The brightness is increased in light for better visibility, while it is decreased in darkness for efficient power management.

High Performance with webOS

Quad Core SoC* can execute several tasks at the same time without a separate media player. In addition, webOS 4.1 platform enhances user convenience with intuitive UI and simple app development tools.

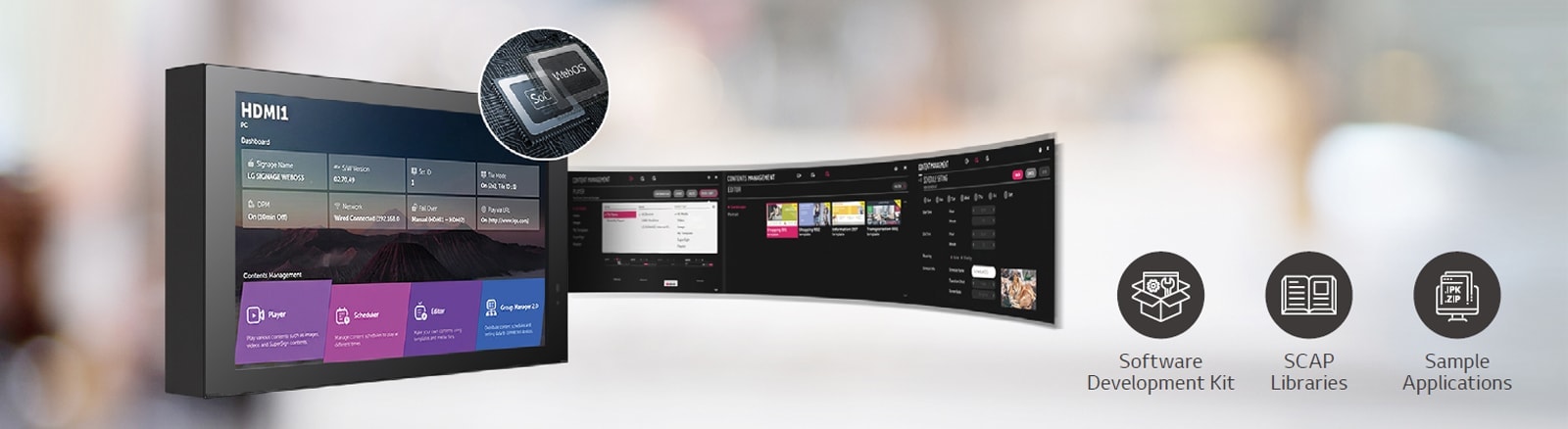

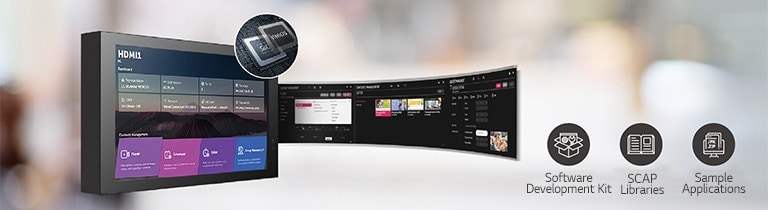

A number of tasks that can be done simultaneously are easily arranged through the web OS platform.

* System-on-Chip

Easy Content Distribution
& SW Update

22XE1J features embedded Wi-Fi*, Bluetooth, Beacon making it easy to distribute content wirelessly and update Firmware. In particular, using Beacon and BLE (Bluetooth Low Energy), shop manager can do various promotional activities, such as providing promotional coupons or product information to visitor in real time.

The store owner can easily distribute content and update firmware using a wireless connection such as Wi-Fi or Bluetooth.

* Wi-Fi performance may vary depending on your router and circumstance.

Web Monitoring
(Control Manager)

This is a web-based monitoring solution, which provides a ease of control for the user. It enables users to have full access anywhere, anytime from their mobile phone & PC as long as they’re connected to a network while having access to both current and past data. It allows users to monitor the unit, make any adjustments and control it remotely in real-time.

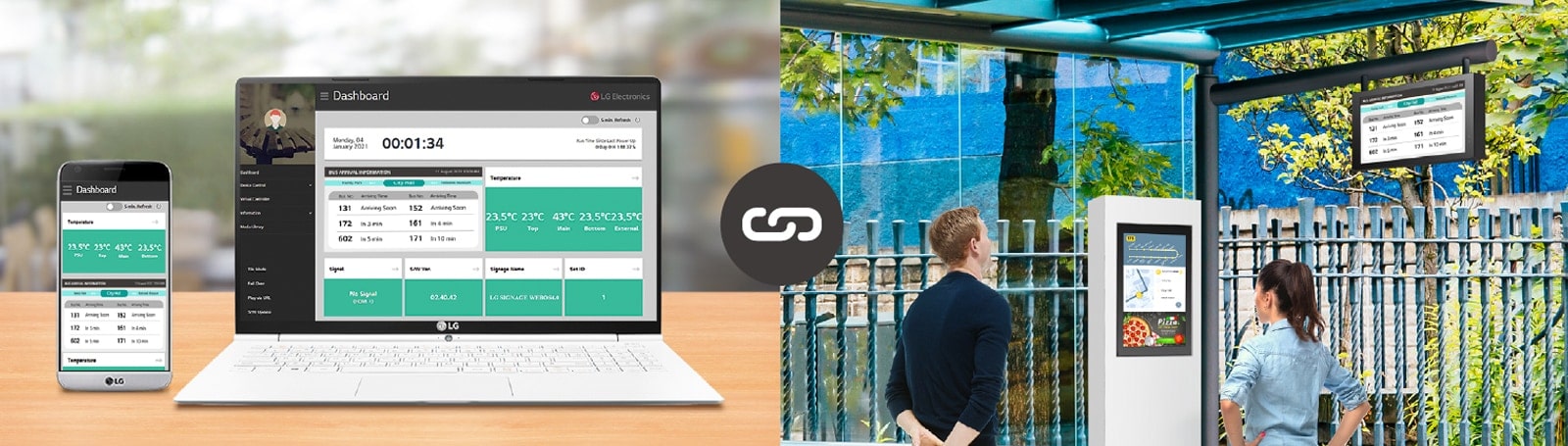

User can monitor and control their displays through mobile phone and laptop.

Real-time LG ConnectedCare Service

Maintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, supporting the stable operation of clients' businesses.

The LG employee is remotely monitoring the 22XE1J series installed in a different place by using cloud-based LG monitoring solution.

* The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details.

PANEL

Screen Size

21.5"

Panel Technology

AHVA (IPS)
Back Light Type

Edge

Aspect Ratio

16 : 9
Native Resolution

1920 x 1080 (FHD)

Refresh Rate

60Hz
Brightness

1500nit (Typ, w/ Glass)

Contrast Ratio

1000:1 (Typ)
Dynamic CR

800,000:1

Color Gamut

NTSC 72%
Viewing Angle (H x V)

178 x 178

Color Depth

8bit, 16.7Million colors
Response Time

25ms (G to G)

Surface Treatment (Haze)

Anti glare, 3H (Haze 25%)
Life time

70,000 Hrs (Typ)

Operation Hours (Hours/Day)

24/7
Portrait / Landscape

Yes / Yes

QWP (Quarter Wave Plate)

Yes (Apply on glass)

CONNECTIVITY(JACK INTERFACE)

Input

HDMI (1, HDCP1.4), RS232C IN, RJ45 (LAN), USB2.0 Type A (1)

Output

Externel Speaker Out (1, L/R, 10W+10W)

MECHANICAL SPECIFICATION

Bezel Color

Black

Bezel Width

38.3mm (R/L), 24.0mm (T/B)
Weight (Head)

8.3kg

Packed Weight

10kg
Monitor Dimension (W x H x D)

557.3 x 319.8 x 65 mm

Carton Dimensions (W x H x D) (Box outer size)

632 x 394 x 187 mm
VESA™ Standard Mount Interface

100 x 100

Protection Glass

Depth 2mm, Tempered / Chemical strengthening (Chemical strengthening), Anti-Reflective, Infrared - Resistance (IR), Shatter-Proof

KEY FEATURE

HW

Internal Memory 16GB, Built-in Wi-Fi, Temperature Sensor, Auto Brightness sensor, Humidity Sensor, Acceleration (Gyro) Sensor, Power Indicator, FAN

SW

webOS ver. (webOS4.1), Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail over, Background Image (Booting Logo Image, No Signal Image), Sync Mode (Local Network Sync), Video Tag (4, Max One HDMI input), Play via URL, Rotation (Screen Rotation, External Input Rotation), Gapless Playback, Setting Data Cloning, SNMP, ISM Method, Status Mailing, Control Manager, Power (Smart Energy Saving, PM mode, Wake on LAN, Network Ready), Beacon, HDMI-CEC, SI Server Setting , webRTC, Pro:Idiom

ENVIRONMENT CONDITIONS

Operation Temperature

-30°C to 50 °C

Operation Humidity

5 % to 100 %

POWER

Power Supply

AC 100-240V~, 50/60Hz

Power Type

Built-In Power

POWER CONSUMPTION

Typ.

85W (Full White)
36W (IEC 62087)

Max

115W
BTU (British Thermal Unit)

290 (Typ), 393 (Max)

DPM

0.5W↓
Power off

0.5W↓

CERTIFICATION

Safety

CB/ NRTL

EMC

FCC Class "A" / CE / KC / VCCI
ErP

Yes

SOFTWARE COMPATIBILITY

SuperSign CMS

Yes

SuperSign Control / Control+

Yes / Yes
LG ConnectedCare

Yes

Language

OSD

English, French, German, Spanish, Italian, Korean , Chinese (Simplified), Chinese (Original), Portugues (Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues (Europe), Dutch, Czech, Greek, Arab, Turkish

ACCESSORY

Basic

Remote Controller (including battery 2ea), Power Cord, Manual (EIG, IG), RS-232C Gender

SPECIAL FEATURE

Tilt (Facedown)

Yes (Max -15º degree, Face Down) PP

IP Rating

IP56
Direct Sunlight

Yes
