22XF1TJ-B component-copyModelName
2023 LG 1,300nits FHD Outdoor Touch Screen

Key Features

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (22XF1TJ-B)
    AED
    AED
    LG Members Price
Total
Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (22XF1TJ-B)
    AED
    AED
    LG Members Price
Total
2023 LG 1,300nits FHD Outdoor Touch Screen

Versatile Touch Display Fit for Your Business

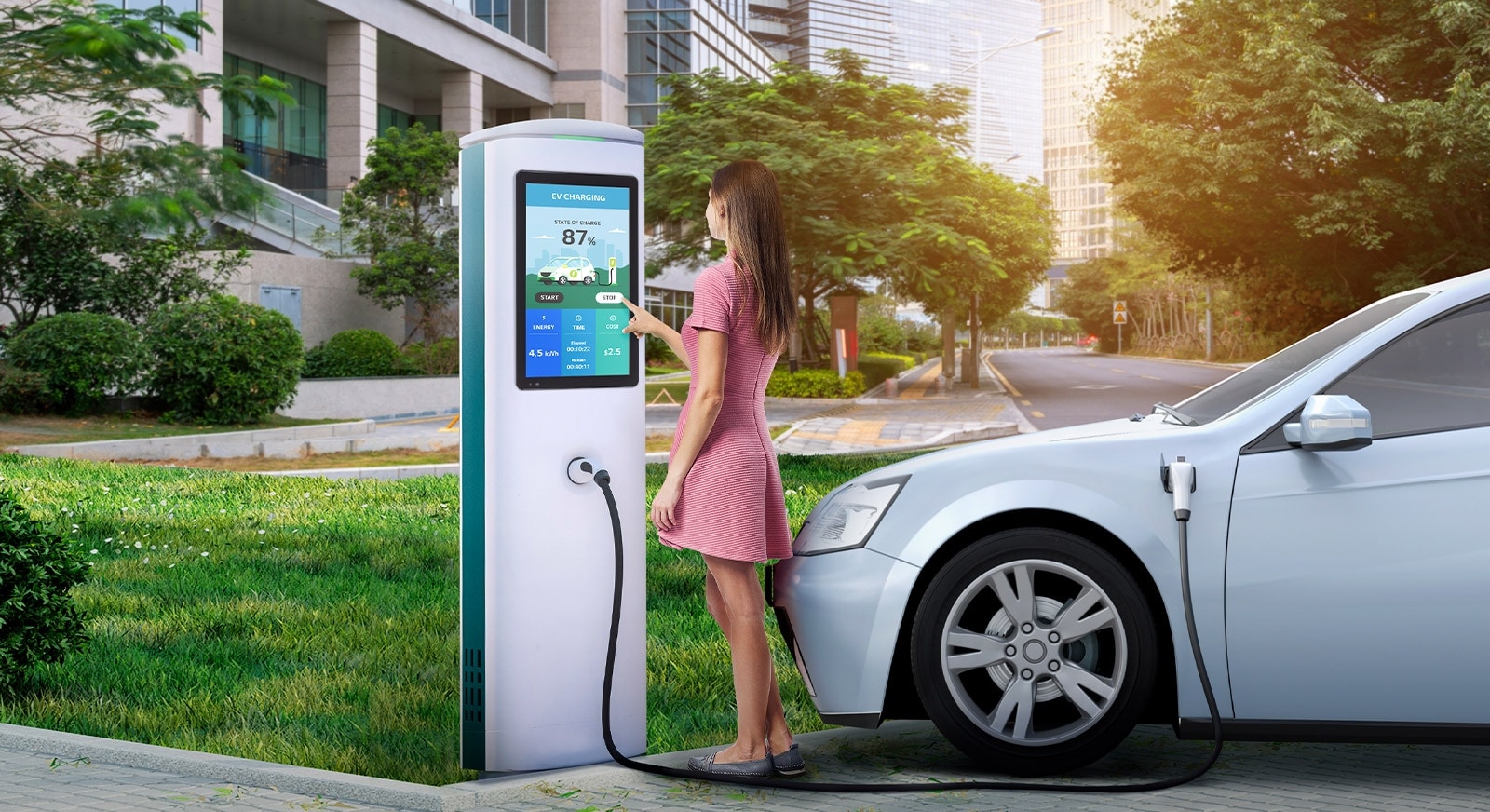

A woman is charging a car by touching the touchscreen installed on an electric car charger. A woman is charging a car by touching the touchscreen installed on an electric car charger.
* All images in this web page are for illustrative purposes only.

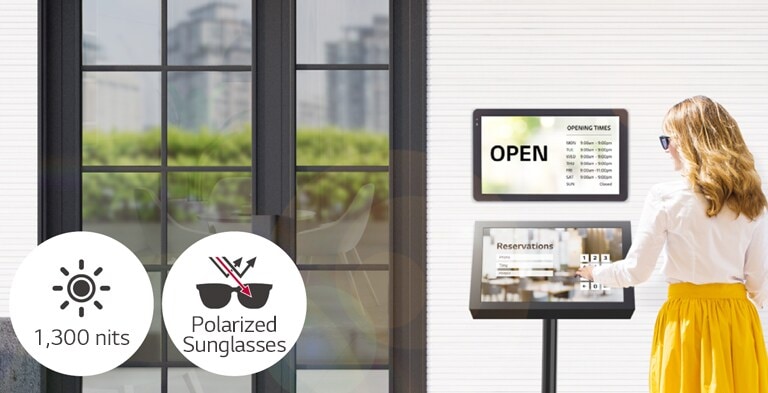

A 22XF1TJ is installed on the wall at the entrance of the building with another 22XF1TJ stand below for reservation purposes. The lady with sunglasses is using the touchscreen to make a reservation. The screen remains visible even when under direct sunlight. A 22XF1TJ is installed on the wall at the entrance of the building with another 22XF1TJ stand below for reservation purposes. The lady with sunglasses is using the touchscreen to make a reservation. The screen remains visible even when under direct sunlight.

High Visibility Under Bright Environments

With a brightness of 1,300 nits, 22XF1TJ boasts high visibility in bright environments. In addition, its clear visibility can deliver a variety of information even to those wearing polarized sunglasses.

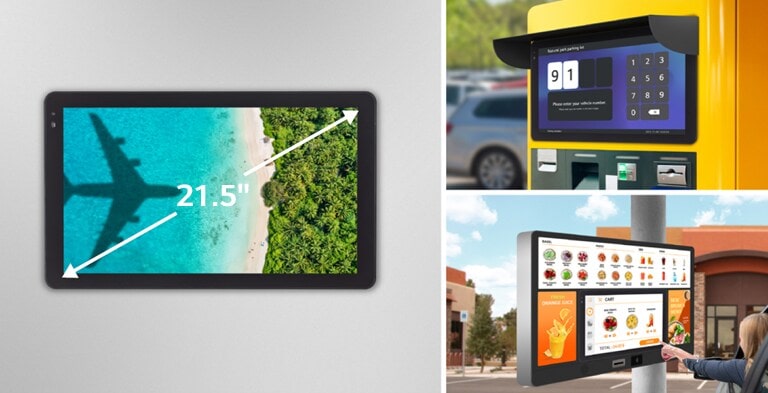

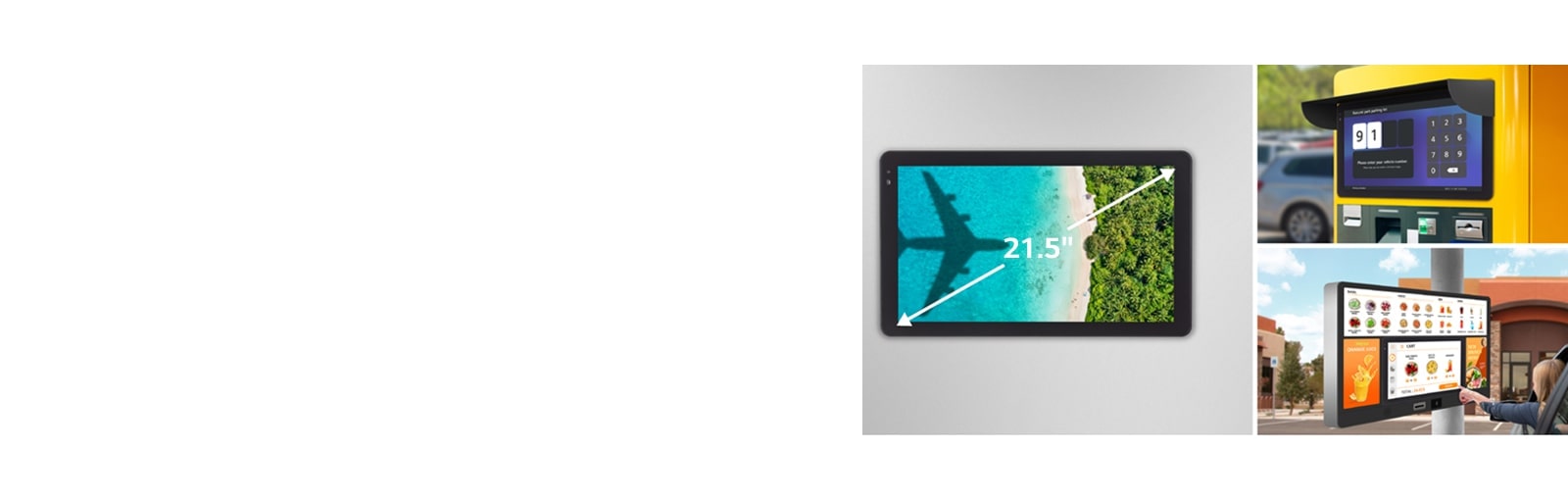

The left one shows a 22XF1TJ installed on the wall showing its 21.5" in size. On the right, there are various screen types: A wall-mount type, hanging type, kiosk type. The left one shows a 22XF1TJ installed on the wall showing its 21.5" in size. On the right, there are various screen types: A wall-mount type, hanging type, kiosk type.

21.5 inches of Versatile Screen Size

The small and light size of 21.5 inches allows for flexible use in various spaces. In particular, you can install the display in various way allowing for high utilization for small-medium businesses (SMB) to large businesses.

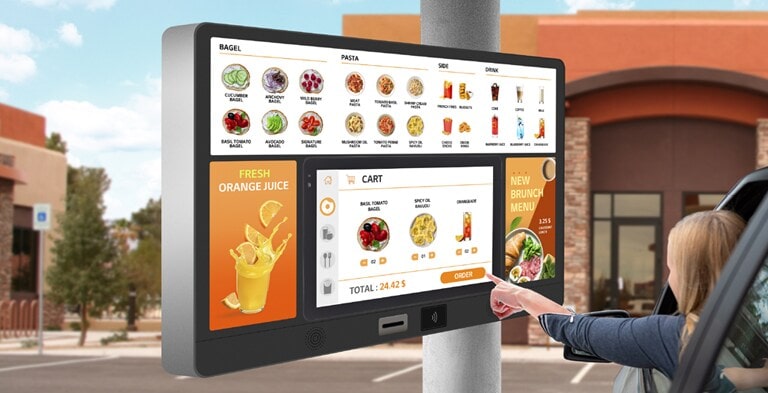

22XF1TJ is installed as a touch kiosk for drive-in ordering. A woman is touching a kiosk to select a food from the menu. 22XF1TJ is installed as a touch kiosk for drive-in ordering. A woman is touching a kiosk to select a food from the menu.

Built-in Touch Display

The 22XF1TJ has a P-cap Touch function, and the display accurately detects touch points even on the corners or edges of the display. The user is able to get the information they need by simply touching the screen.
The 22XF1TJ screen can adjust its brightness automatically according to the ambient light. The 22XF1TJ screen can adjust its brightness automatically according to the ambient light.

Smart Brightness Control

The screen brightness is automatically adjusted depending on the ambient light. The brightness is increased in light for better visibility, while it is decreased in darkness for efficient power management.

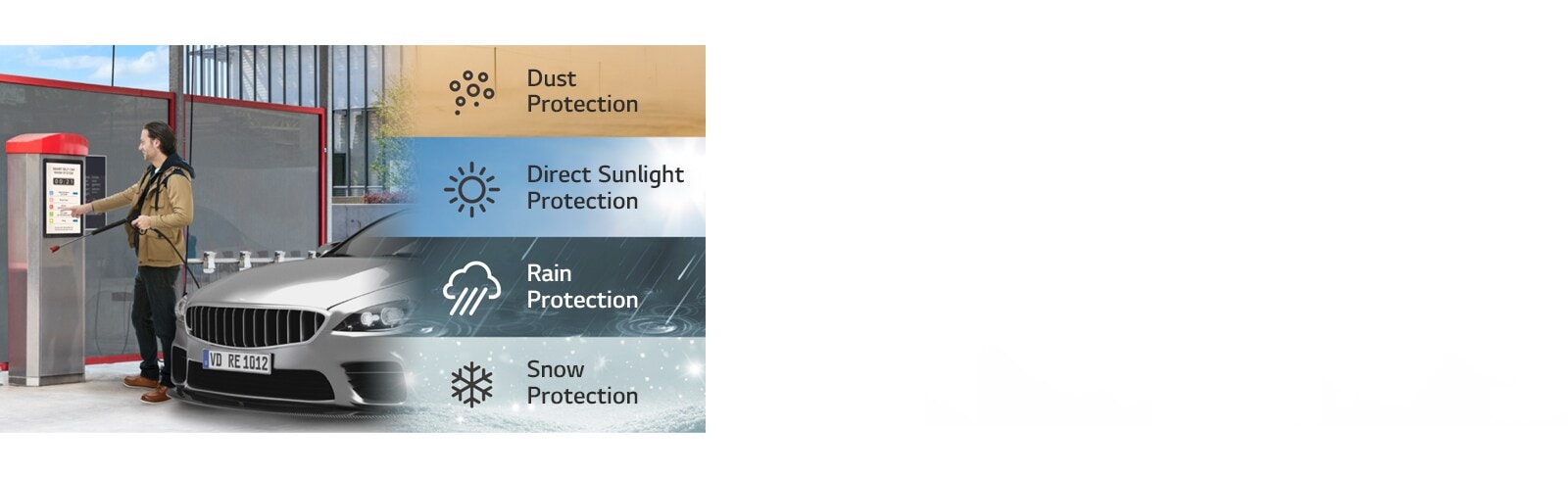

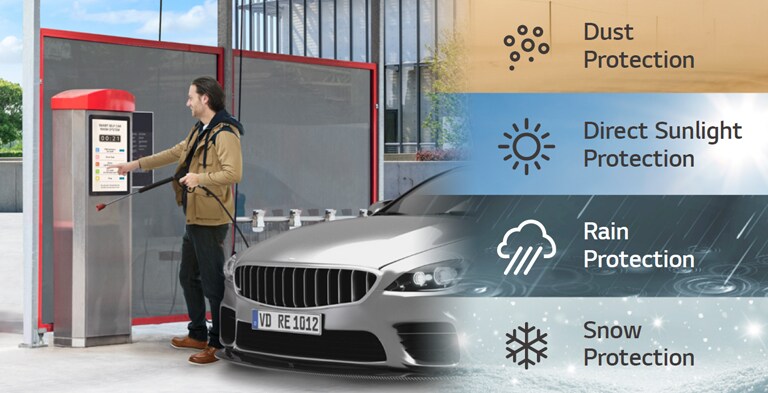

The 22XF1TJ is used as an touch kiosk display in a self-service car wash. The 22XF1TJ is protected against dust, direct sunlight, rain, and snow. The 22XF1TJ is used as an touch kiosk display in a self-service car wash. The 22XF1TJ is protected against dust, direct sunlight, rain, and snow.

Secured Protection with IP65 Design

The front part of the display is sealed with IP65 design for reliable operation. It’s designed to be not only waterproof but also waterproof against the damaging effects of the sun, rain, snow, dust and wind, which is an essential feature for outdoor application.
* IP Code or Ingress Protection Code classifies the degree of protection provided by
mechanical casings and electrical enclosures against intrusion, dust, accidental contact, and water.
** IP65 means the product is protected from total dust ingress and resists highpressure, heavy sprays of water.
*** 22XF1TJ is certified as IP65 by CTK in November 2021.

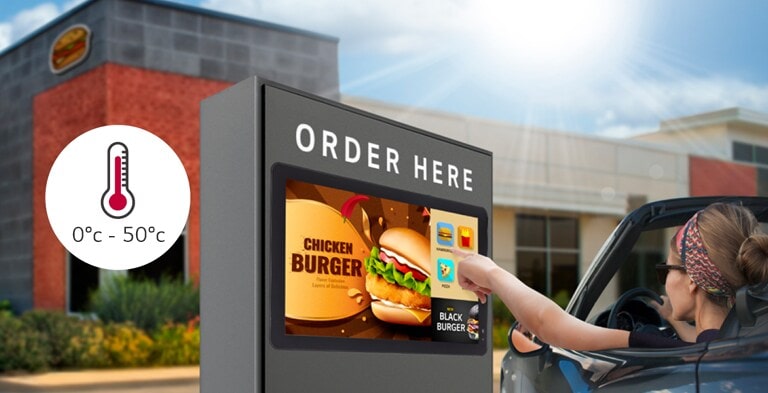

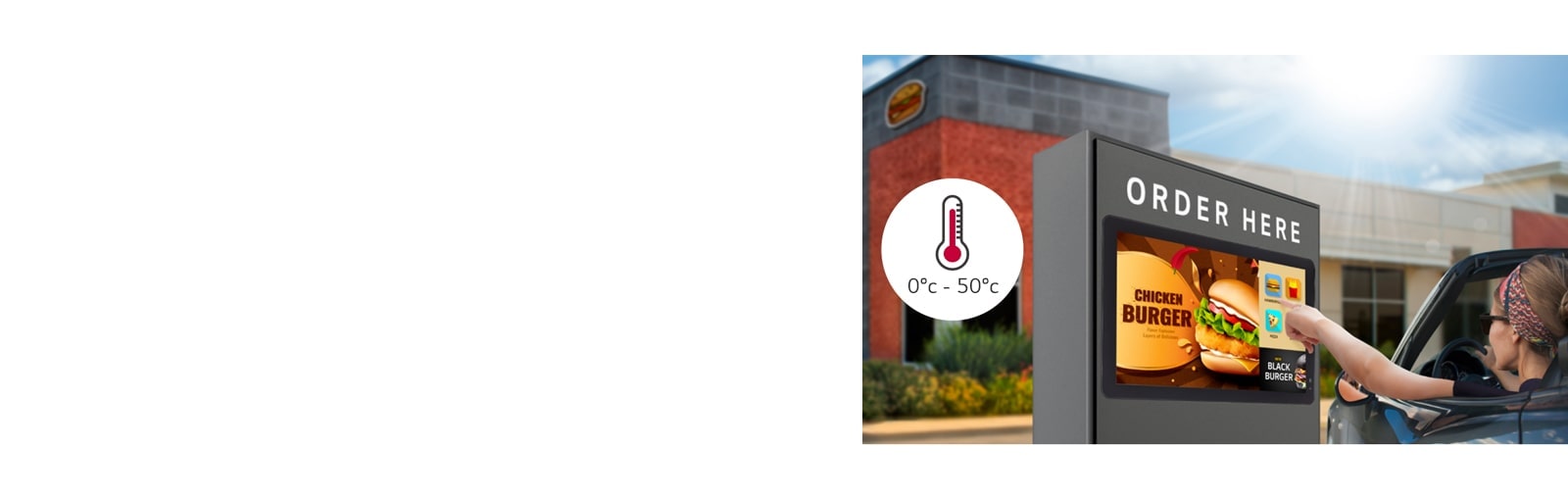

The 22XF1TJ is used as a drive-thru ordering touch kiosk. The display is working well in an environment of 0~50°C. The 22XF1TJ is used as a drive-thru ordering touch kiosk. The display is working well in an environment of 0~50°C.

Wide Operating Temperature Range

22XF1TJ can be used under a wide range of operating temperatures from 0°C to 50°C* which results in fewer constraints for outdoor installation.
* 22XF1TJ is LG-internally tested under humidity of 30% (55°C ) and 99% (40°C).

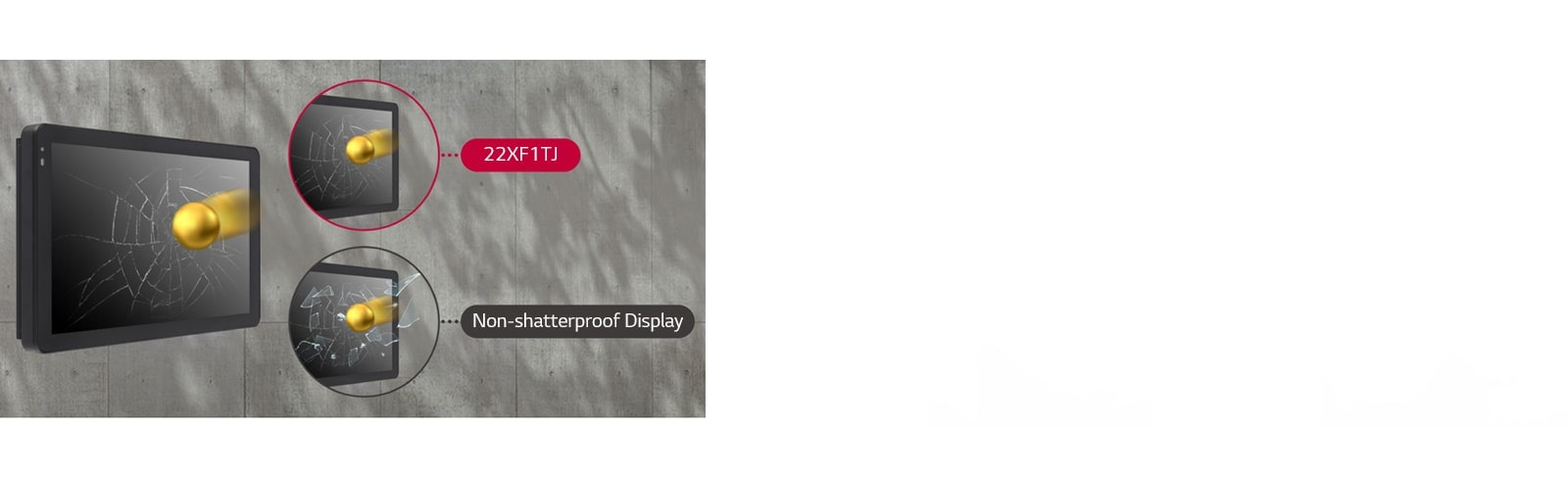

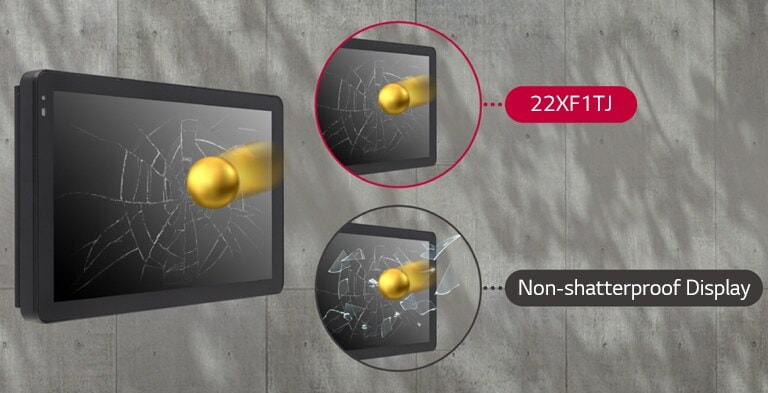

When an external impact is applied to the display, the glass screen of non-shatterproof displays breaks and shatters, but the screen of 22XF1TJ only cracks and doesn't shatter. When an external impact is applied to the display, the glass screen of non-shatterproof displays breaks and shatters, but the screen of 22XF1TJ only cracks and doesn't shatter.

Shatterproof Design with Boosted Safety

The 22XF1TJ applies a shatterproof film to the back of the front glass, preventing the risk of scattering debris even if the glass is damaged by a forceful impact.

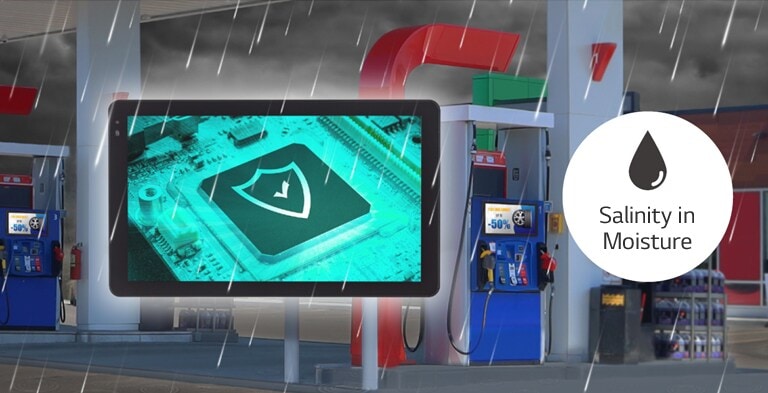

The 22XF1TJ has a conformal coating making it resistant to salinity in moisture. The 22XF1TJ has a conformal coating making it resistant to salinity in moisture.

Conformal Coating

Conformal Coating* improves reliability of the circuit board, power board by protecting it against humidity.
* Conformal Coating : Thin protective films/breathing membranes that filter water vapor and solid debris

Antibacterial Coating for
More Hygienic Touch Usage

The 22XF1TJ, equipped with a touch screen covered by Antimicrobial Coating glass, prevents microbial growth and allows users to confidently touch the screen. This coating is also effective in preventing contamination which can be caused by bacteria transmitted through touching the screen, reducing stains and screen discoloration.
A user is touching the 22XF1TJ screen with an antibacterial coating. A user is touching the 22XF1TJ screen with an antibacterial coating.
* Antimicrobial coating glass is on surface of screen only and the effect may vary depending on kind of bacteria or conditions of use.
** The antimicrobial coating glass is treated with the antibiotic substance AEM 5700.
*** The antibiotic substance AEM 5700 has the antibacterial effectiveness of more than 99% against Escherichia coli and Staphylococcus aureus. (The test (Test method : ISO 22196:2011) is conducted on a glass surface covered with AEM 5700.)
**** The antibiotic substance AEM 5700 has the antibacterial effectiveness of more than 99% against SARS-CoV-2. (The test (Test method : ISO 18184:2019) is conducted on fabric covered with AEM 5700.)
***** The antibiotic substance AEM 5700 is certified by U.S. Environment Protection Agency (EPA) and the Biocidal Products Regulation (BPR, Regulation (EU)).

Web Monitoring
(Control Manager)

This is a web-based monitoring solution, which provides a ease of control for the user. It enables users to have full access anywhere, anytime from their mobile phone & PC as long as they’re connected to a network while having access to both current and past data. It allows users to monitor the unit, make any adjustments and control it remotely in real-time.

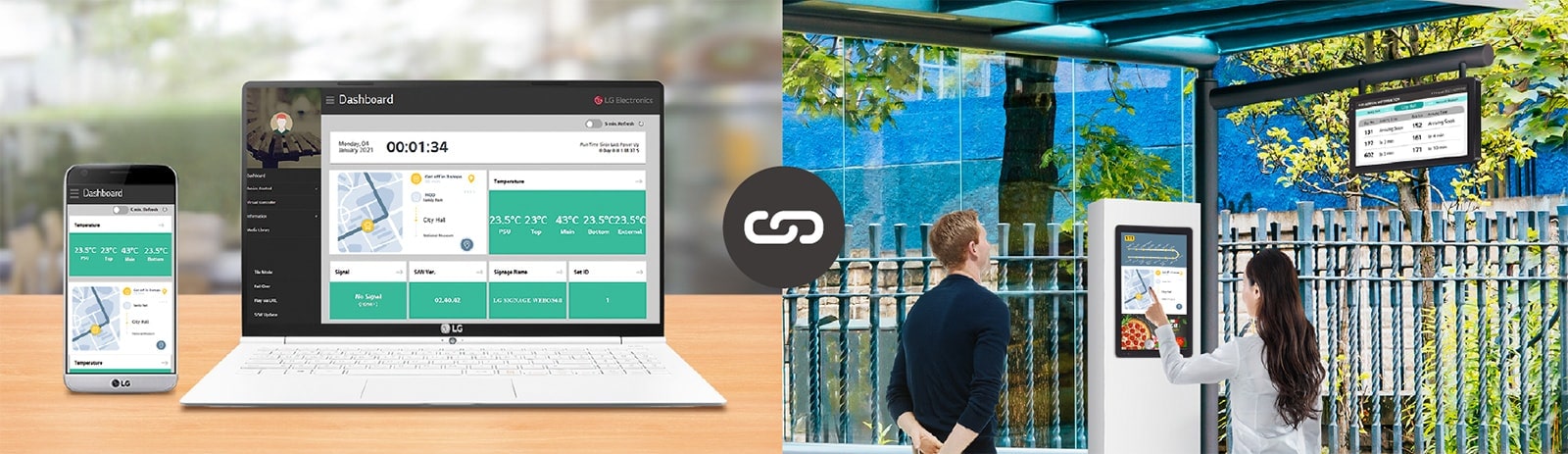

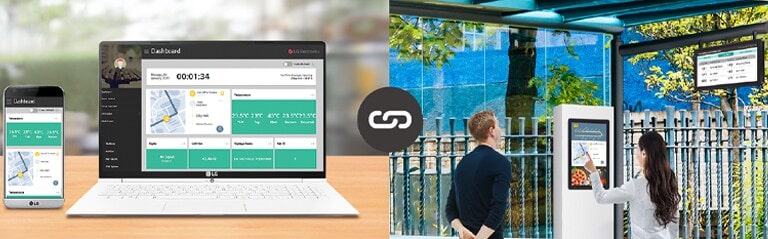

User can monitor and control their displays through mobile phone and laptop. User can monitor and control their displays through mobile phone and laptop.

Real-time LG ConnectedCare Service

Maintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, supporting the stable operation of clients' businesses.

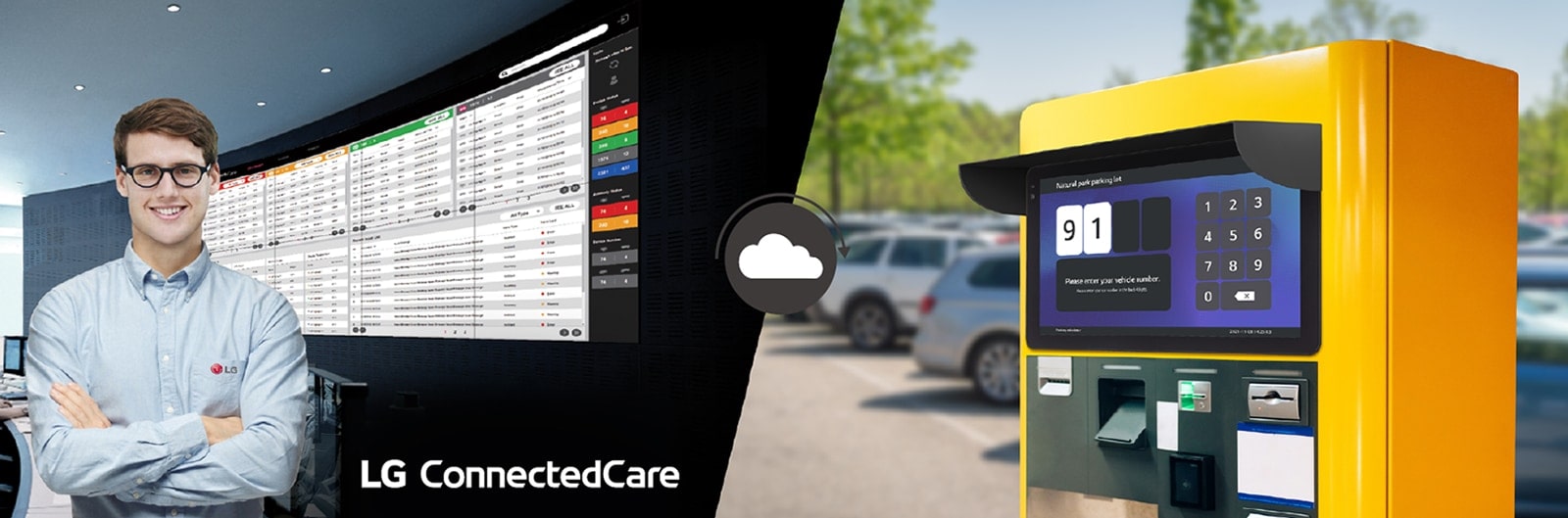

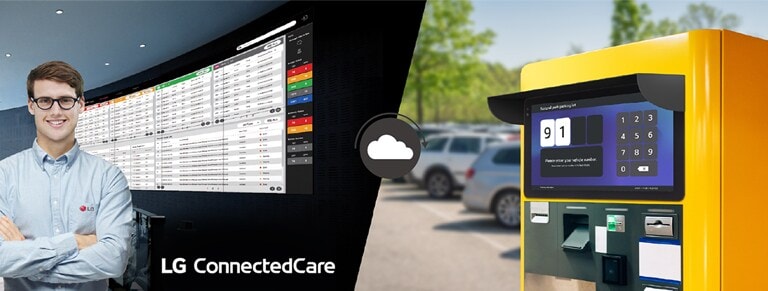

The LG employee is remotely monitoring the 22XF1TJ series installed in a different place by using cloud-based LG monitoring solution. The LG employee is remotely monitoring the 22XF1TJ series installed in a different place by using cloud-based LG monitoring solution.
* The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details.
Close
PANEL
  • Screen Size
    21.5"
    Panel Technology
    AHVA (IPS)
  • Back Light Type
    Edge
    Aspect Ratio
    16:9
  • Native Resolution
    1920 x 1080 (FHD)
    Refresh Rate
    60Hz
  • Brightness
    1300nit (Typ, w/ Glass)
    Contrast Ratio
    1000:1 (Typ)
  • Dynamic CR
    800,000:1
    Color gamut
    NTSC 72%
  • Viewing Angle(H x V)
    178x178
    Color Depth
    8bit, 16.7Million colors
  • Response Time
    25ms (G to G)
    Surface Treatment(Haze)
    Anti glare, 3H(Haze 25%)
  • Life time
    70,000 Hrs (Typ)
    Operation Hours (Hours/Day)
    24/7
  • Portrait / Landscape
    Yes / Yes
    QWP(Quarter Wave Plate)
    Yes (Apply on glass)
Connectivity
(Jack Interface)
  • Input - Digital - HDMI
    Yes (1), HDCP1.4
    Input - Digital - DP
    No
  • Input - Digital - DVI-D
    No
    Input - Analog - RGB
    No
  • Input - Audio In
    No
    Input - RS232C IN
    Yes (1)
  • Input - RJ45(LAN)
    Yes (1)
    Input - IR IN
    No
  • Input - USB
    USB2.0 Type A (1)
    Output - DP Out
    No
  • Output - Audio Out
    No
    Output - Touch USB
    Yes (1)
  • Output - Externel Speaker Out
    Yes (1, L/R, 10W+10W)
    Output - RS232C OUT
    Yes (1)
  • Output - RJ45(LAN)
    No
MECHANICAL SPECIFICATION
  • Bezel Color
    Black
    Bezel Width
    30.5mm(R/L), 25.5mm(T/B)
  • Weight (Head)
    8.1kg
    Weight (Head+Stand)
    No
  • Packed Weight
    10.4kg
    Monitor Dimension(W x H x D)
    541.7 x 322.8 x 60mm
  • Monitor Dimensions with Stand(W x H x D)
    No
    Carton Dimensions(W x H x D) (Box outer size)
    644 x 406 x 207 mm
  • Handle
    No
    VESA™ Standard Mount Interface
    100x100
  • Protection Glass-Depth
    3mm
    Protection Glass-Tempered / Chemical strengthening
    Thermal-strengthening
  • Protection Glass-Anti-Reflective
    No
    Protection Glass-Infrared - Resistance (IR)
    No
  • Protection Glass-Shatter-Proof
    Yes
KEY FEATURE
  • HW - Internal Memory
    16GB
    HW - Wi-Fi - Built-in
    No
  • HW - Sensor - Temperature Sensor
    Yes
    HW - Sensor - Auto Brightness sensor
    Yes
  • HW - Sensor - Pixel sensor
    No
    HW - Sensor - Proximity Sensor
    No
  • HW - Sensor - Current Sensor
    No
    HW - Sensor - BLU Sensor
    No
  • HW - Sensor - Humidity Sensor
    Yes
    HW - Sensor - Acceleration(Gyro) Sensor
    Yes
  • HW - Power Indicator
    Yes
    HW - Local Key Operation
    No
  • HW - FAN
    Yes
    SW - webOS ver.
    webOS4.1
  • SW - Embedded CMS - Local Contents Scheduling
    Yes
    SW - Embedded CMS - Group Manager
    Yes
  • SW - USB Plug & Play
    Yes
    SW - Fail over
    Yes
  • SW - Background Image - Booting Logo Image
    Yes
    SW - Background Image - No Signal Image
    Yes
  • SW - Sync Mode - RS-232C Sync
    No
    SW - Sync Mode - Local Network Sync
    Yes
  • SW - Sync Mode - Backlight Sync
    No
    SW - Multi-screen - PIP
    No
  • SW - Multi-screen - PBP
    No
    SW - Screen Share
    No
  • SW - Video Tag
    Yes(4, Max One HDMI input)
    SW - Play via URL
    Yes
  • SW - Rotation - Screen Rotation
    Yes
    SW - Rotation - External Input Rotation
    Yes
  • SW - Gapless Playback
    Yes
    SW - Tile Mode Setting
    No
  • SW - Setting Data Cloning
    Yes
    SW - SNMP
    Yes
  • SW - ISM Method
    Yes
    SW - Auto Set ID
    No
  • SW - Status Mailing
    Yes
    SW - Control Manager
    Yes
  • SW - 3rd Party Compatibility - Crestron Inside
    No
    SW - Power - Smart Energy Saving
    Yes
  • SW - Power - PM mode
    Yes
    SW - Power - Wake on LAN
    Yes
  • SW - Power - Network Ready
    Yes
    SW - Beacon
    No
  • SW - HDMI-CEC
    Yes
    SW - SI Server Setting
    Yes
  • SW - webRTC
    Yes
    SW - Pro:Idiom
    Yes
ENVIRONMENT CONDITIONS
  • Operation Temperature
    0℃ to 50℃
    Operation Humidity
    10 % to 80 %
POWER
  • Power Supply
    AC 100-240V~, 50/60Hz
    Power Type
    Built-In Power
POWER CONSUMPTION
  • Typ.
    85W
    Max.
    115W
  • BTU (British Thermal Unit)
    290 (Typ), 393 (Max)
    Smart Enegy Saving
    40W
  • DPM
    0.5W↓
    Power off
    0.5W↓
SOUND
  • Speaker
    No
CERTIFICATION
  • Safety
    CB / NRTL
    EMC
    FCC Class "A" / CE / KC / VCCI
  • ErP / Energy Star
    Yes / No
    ePEAT(US only)
    No
OPS Compatibility
  • OPS type compatible
    No
    OPS Power built in
    No
SOFTWARE COMPATIBILITY
  • SuperSign CMS
    Yes
    SuperSign Control / Control+
    Yes / Yes
  • SuperSign WB
    No
    SuperSign Media Editor
    No
  • Signage 365 Care
    Yes
Language
  • OSD
    English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Arab, Turkish
ACCESSORY
  • Basic
    Remote Controller(including battery 2ea), Power Cord, Manual (EIG, IG), RS-232C Gender
    Optional
    No
SPECIAL FEATURE
  • Overlay Touch Compatibility
    No
    Tilt(Facedown)
    No
  • IP Rating
    IP65( Front Only )
    Direct Sunlight
    Yes

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
