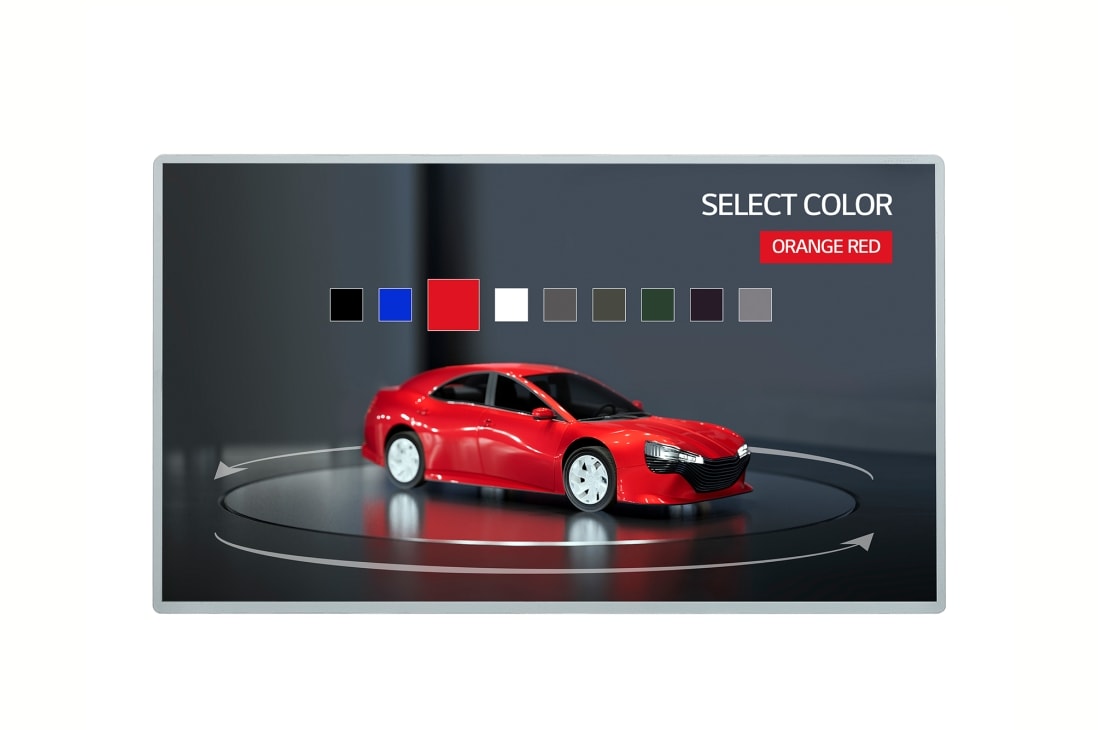

LG 2023 LG Touch Open Frame Display, Front view with infill image, 27TNF3K-S, thumbnail 1

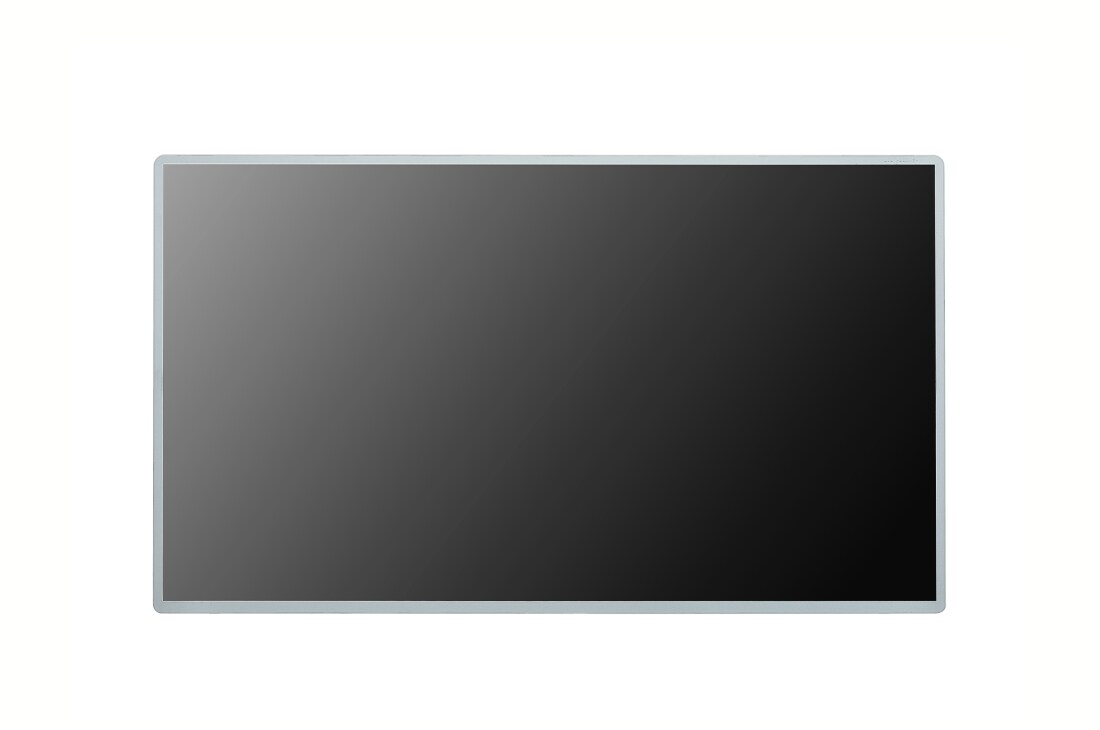

LG 2023 LG Touch Open Frame Display, Front view, 27TNF3K-S, thumbnail 2

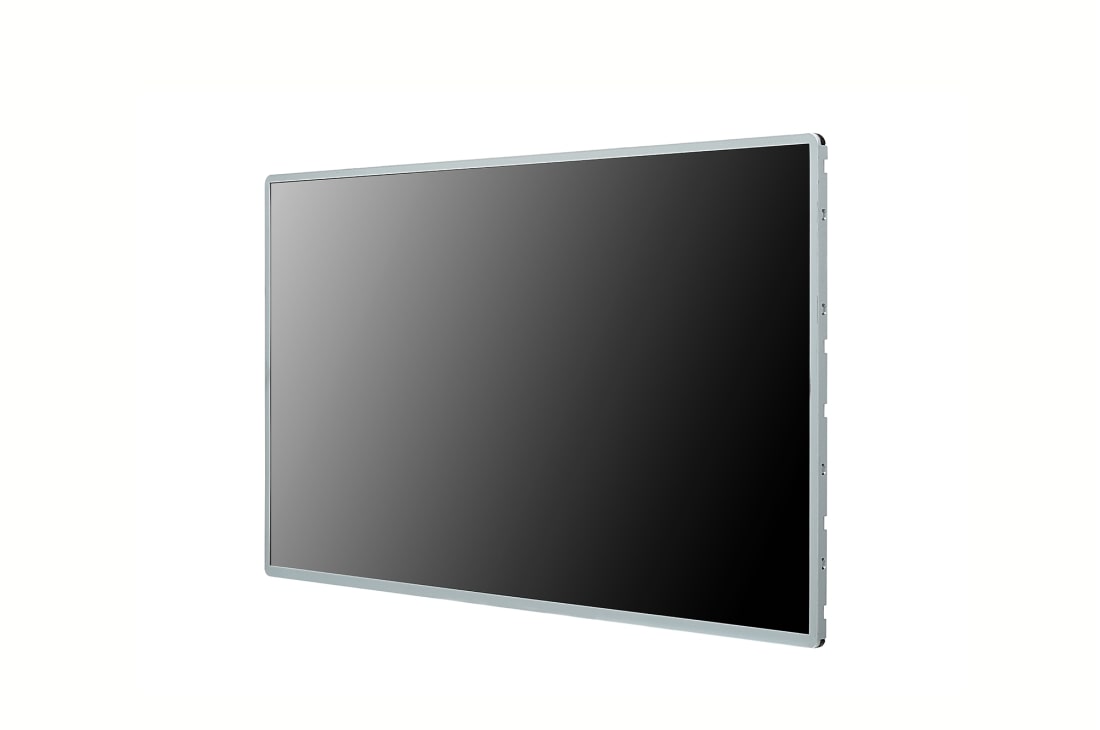

LG 2023 LG Touch Open Frame Display, -45 degree side view, 27TNF3K-S, thumbnail 3

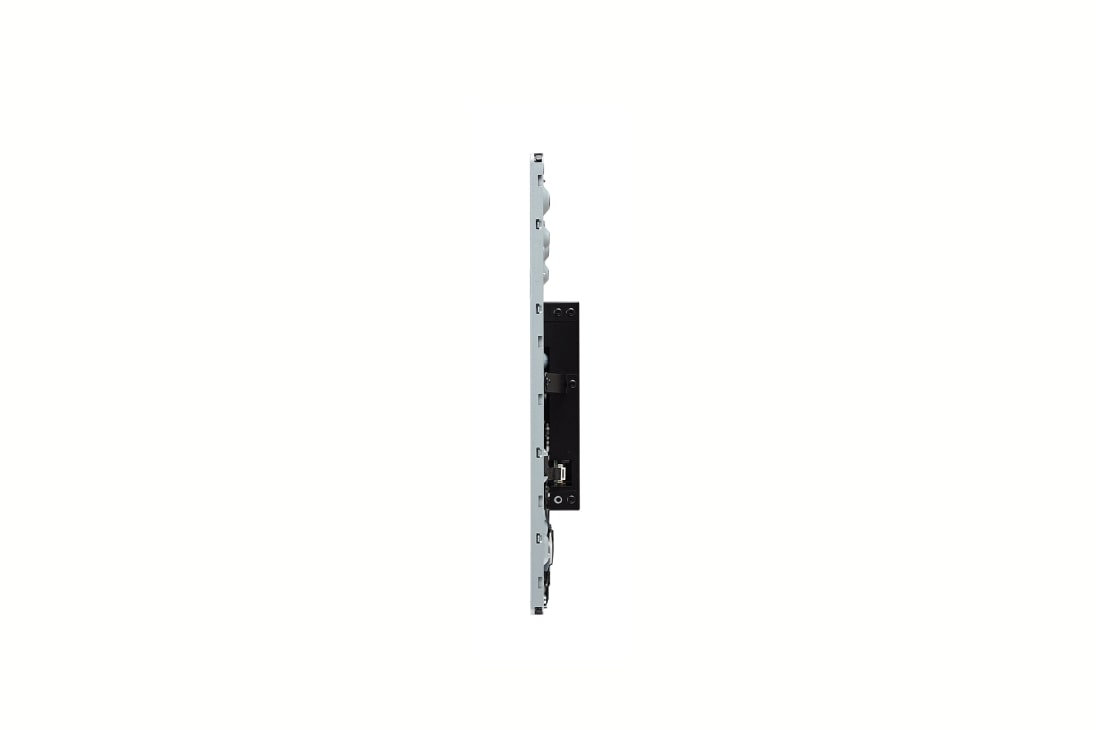

LG 2023 LG Touch Open Frame Display, -90 degree side view, 27TNF3K-S, thumbnail 4

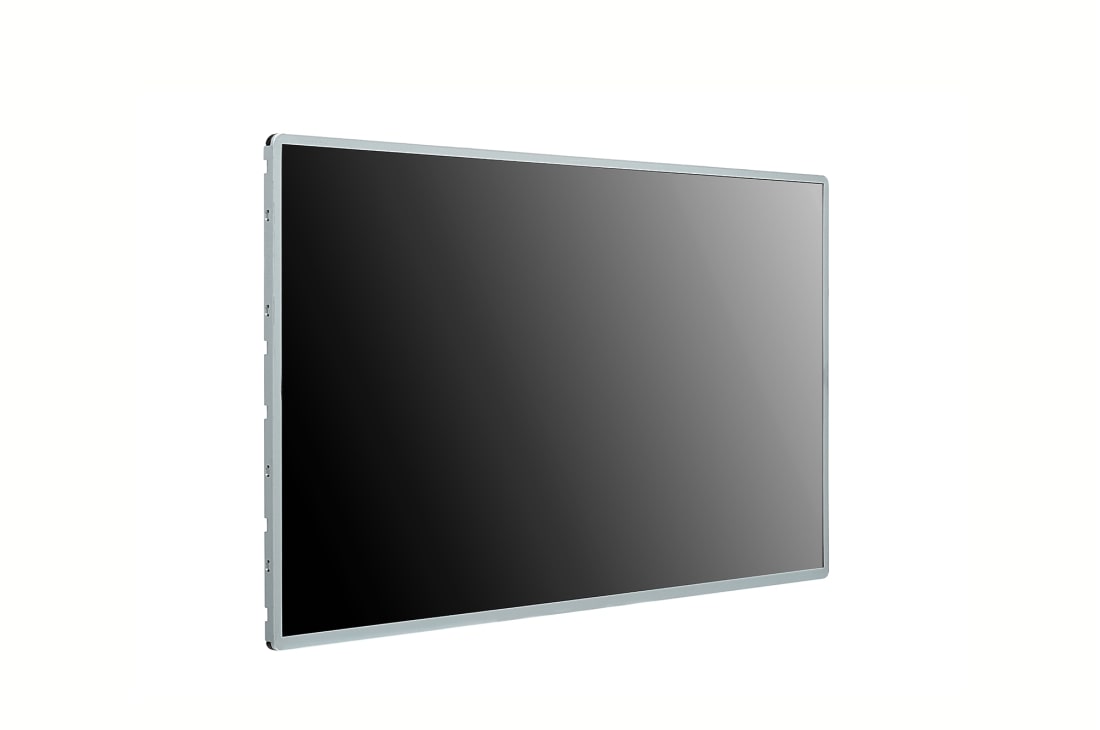

LG 2023 LG Touch Open Frame Display, +45 degree side view, 27TNF3K-S, thumbnail 5

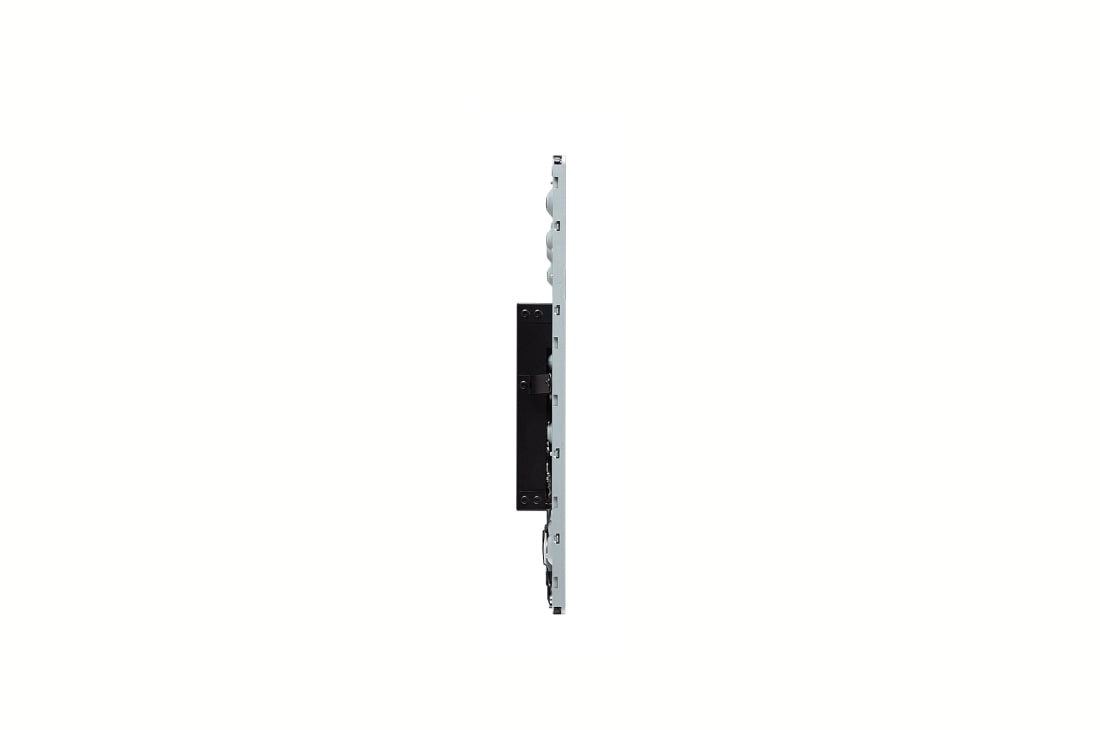

LG 2023 LG Touch Open Frame Display, +90 degree side view, 27TNF3K-S, thumbnail 6

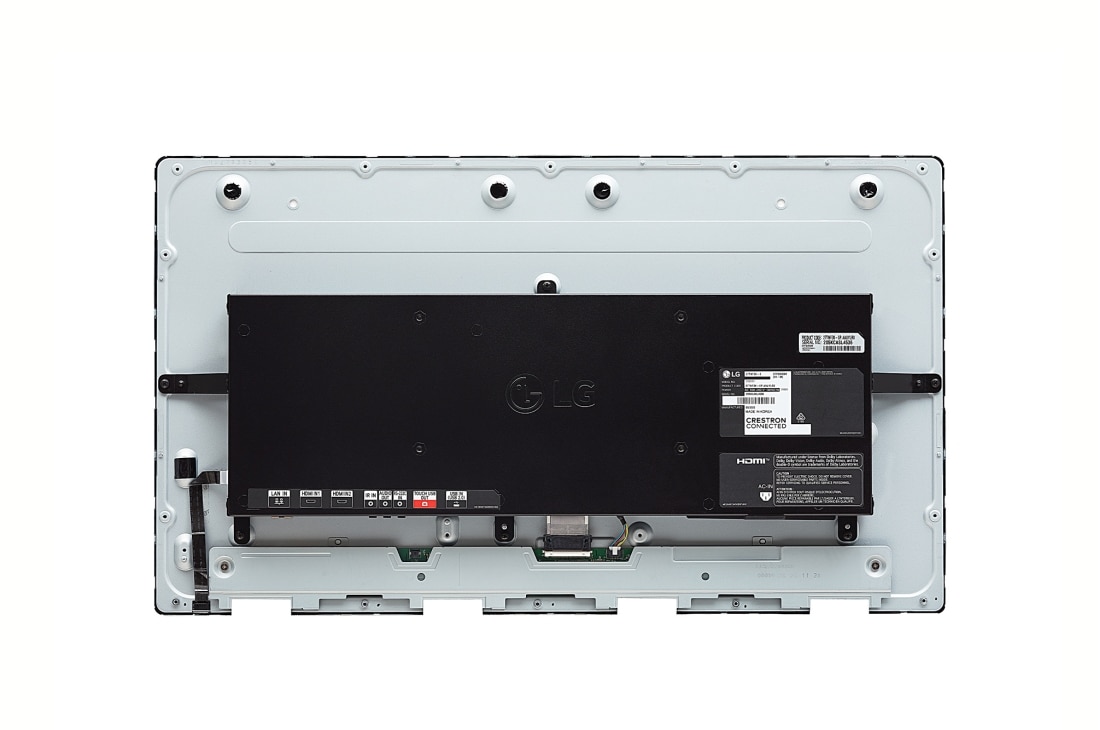

LG 2023 LG Touch Open Frame Display, Rear view, 27TNF3K-S, thumbnail 7

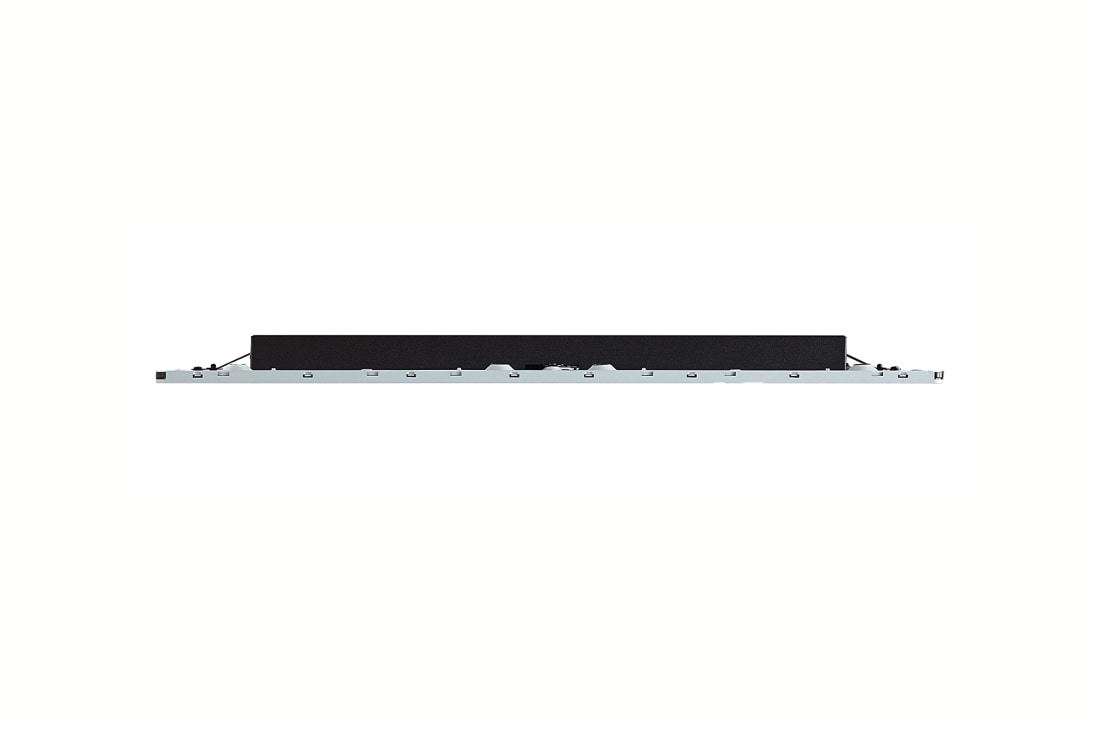

LG 2023 LG Touch Open Frame Display, Top view, 27TNF3K-S, thumbnail 8

ADD TO WISHLIST

Discontinued

27TNF3K-S component-copyModelName

2023 LG Touch Open Frame Display

Name: 2023 LG Touch Open Frame Display
Brand: LG UAE
SKU: 27TNF3K-S
Rating: 0 (0 reviews)

Key Features

27" Full HD Touch Display
Brightness : 300 nit
Multi-Touch Point : Max. 10 Points
Interface : HDMI (2) / RS-232C / RJ45 / IR / USB 2.0 Type A / Audio / Touch USB (USB 2.0 Type B)

Find a Dealer

Add to Compare

component-OBScountrySelectDesc

Key Features

27" Full HD Touch Display
Brightness : 300 nit
Multi-Touch Point : Max. 10 Points
Interface : HDMI (2) / RS-232C / RJ45 / IR / USB 2.0 Type A / Audio / Touch USB (USB 2.0 Type B)

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

2023 LG Touch Open Frame Display

New In-Cell Touch Open Frame for Optimal Customization

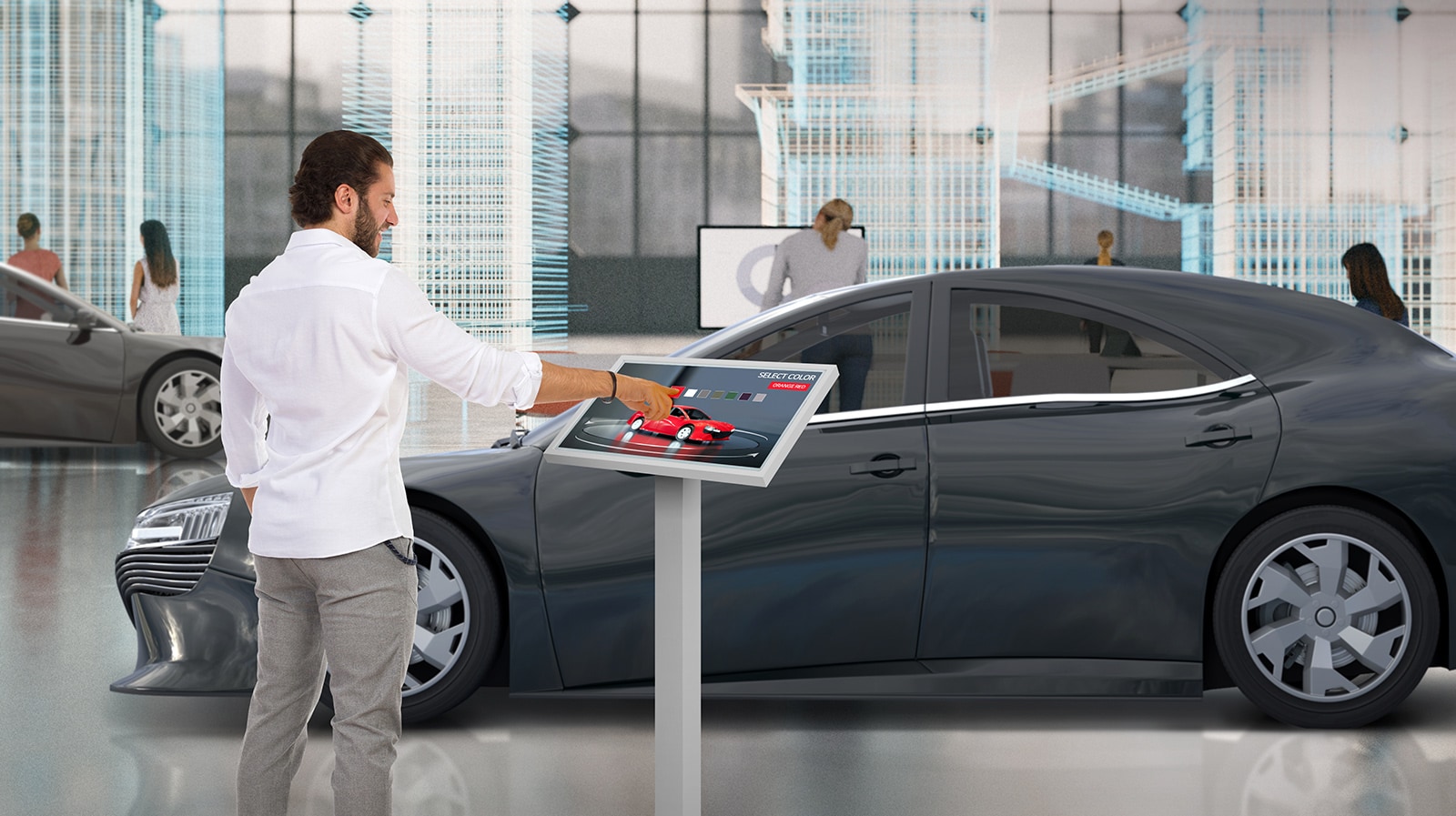

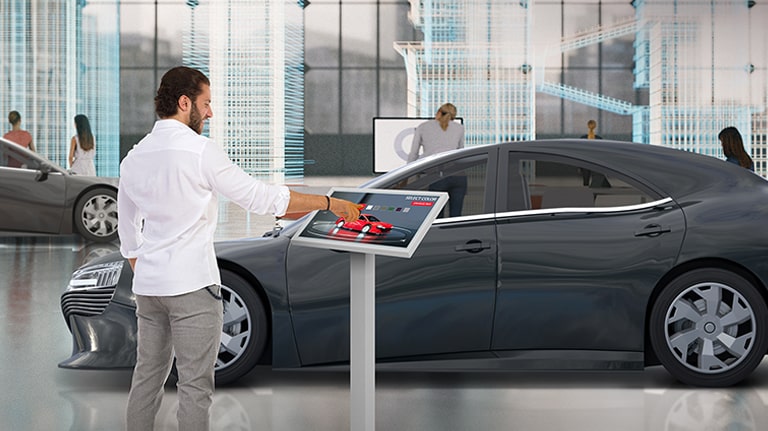

In a car dealership, a man is touching TNF3K to change the color of a car on the display.

* All images in this page are for illustrative purposes only.

Slim & Light

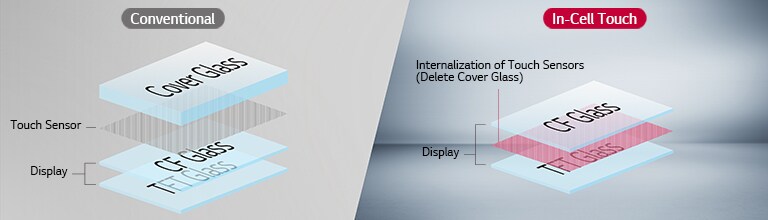

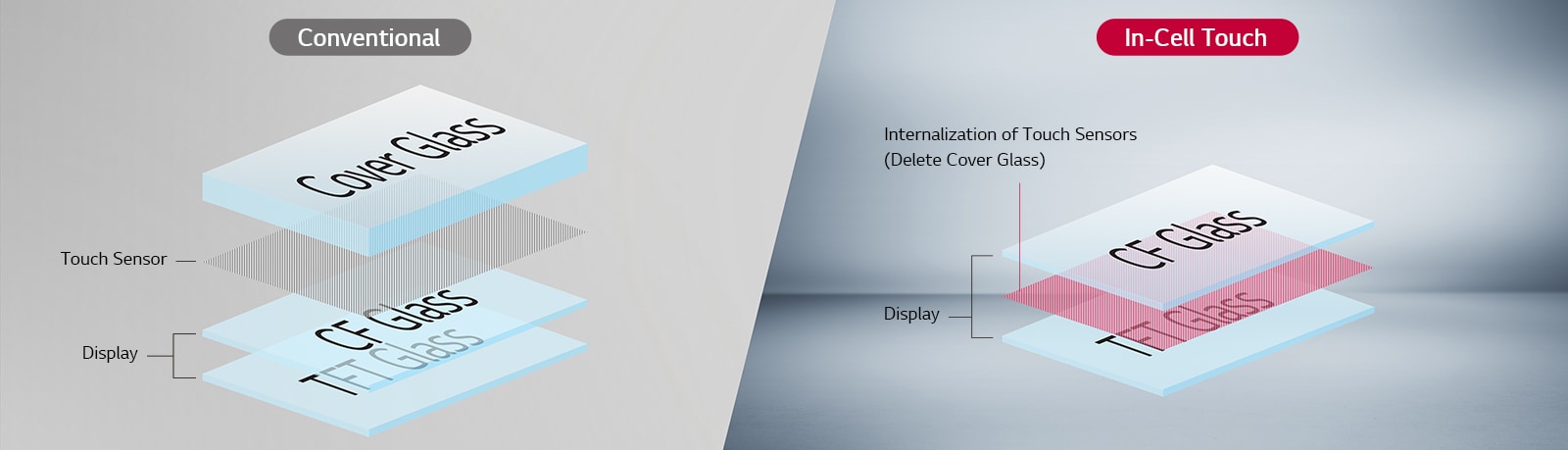

The In-Cell Touch Open Frame has a touch function built into the display, allowing for the implementation of a slim design and a narrow bezel compared to general touch products that require additional touch parts (Film).

The conventional display has a touch sensor between the cover glass layer and the CF glass and TFT glass layers, whereas In-cell Touch has a touch sensor between the CF glass layer and the TFT glass layer without a cover glass layer.

Clear Picture Quality

Compared to general touch products, 27TNF3K implements clear picture quality without milk effects caused by additional touch sensor film parts.

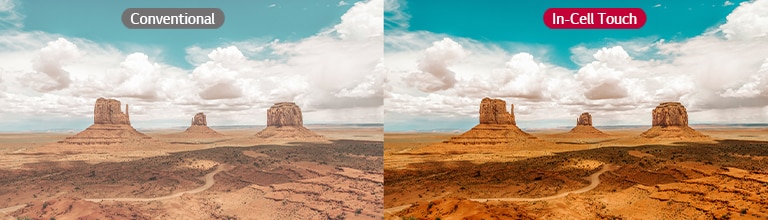

While scenery on the conventional display looks blurry, the image on the In-cell Touch is clear.

Design Flexibility

By providing integrated parts such as touchscreen, display, and webOS, users can realize free design for their own needs.

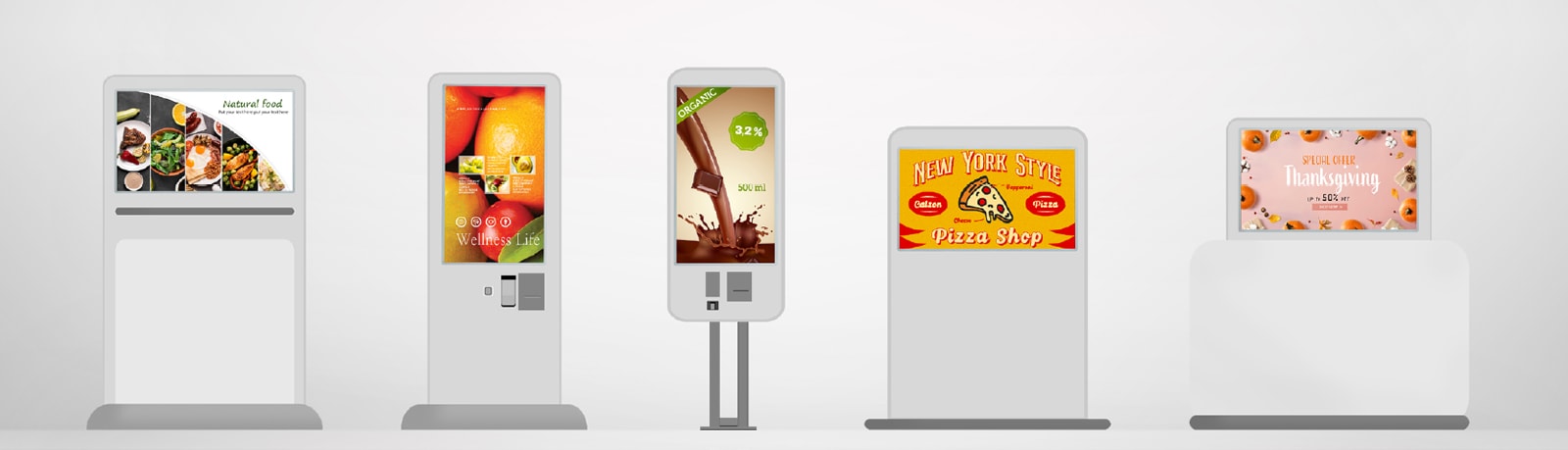

Various types of displays using TNF3K such as kiosk displays and publicity displays are placed.

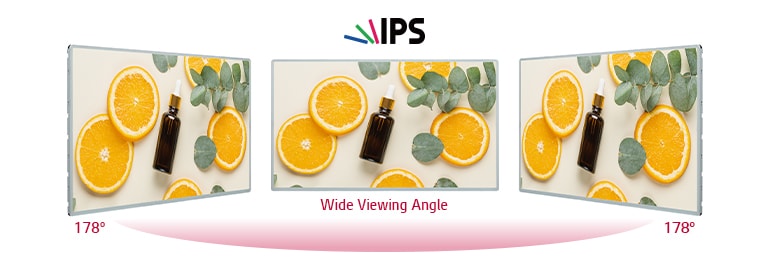

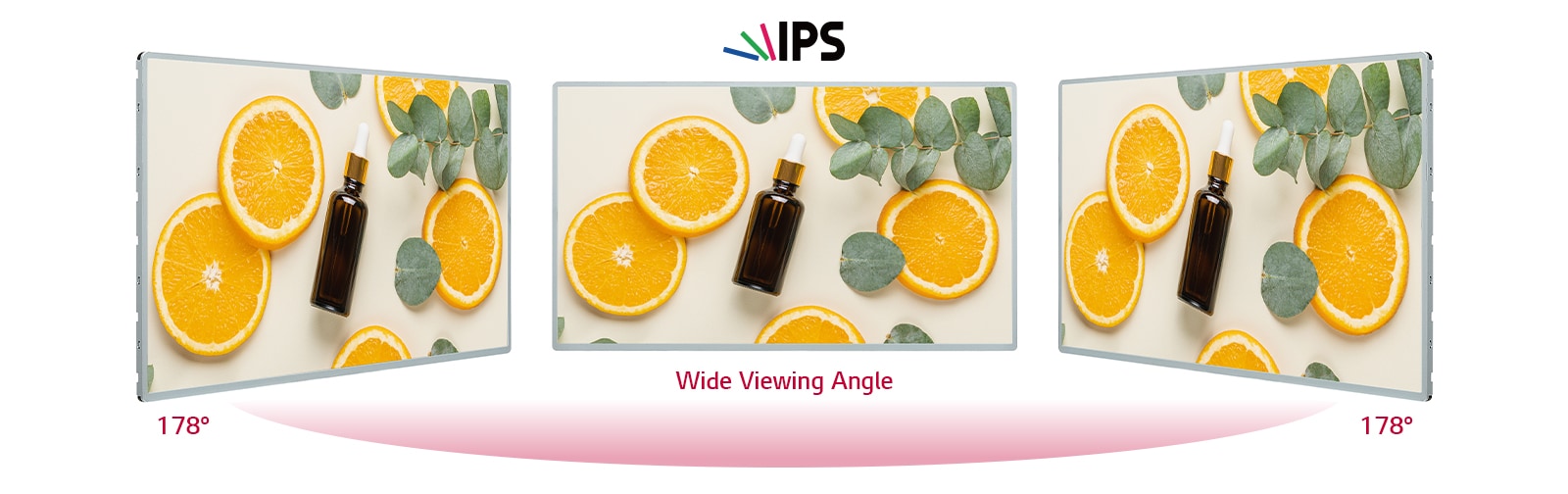

Wide Viewing Angle

IPS panel technology provides better control of the liquid crystals, which in turn allows the screen to be viewed at virtually any angle.

A woman is touching a lower installed TNF3K. The TNF3K is installed tilted toward the woman so she can see the display content well.

45-degree Tilt (Face up) Installation Possible

When a display is installed at low places, it is usually tilted for the user’s viewing comfort. Considering this, the installation with a max tilt of 45 degrees is supported.

The user places all ten fingers on the display to touch it.

10 Points of Multi-Touch

The 27TNF3K provides a more realistic touch sensation since it can recognize up to 10 points of multi-touch at once, and various touchbased user services can be provided through the screen.

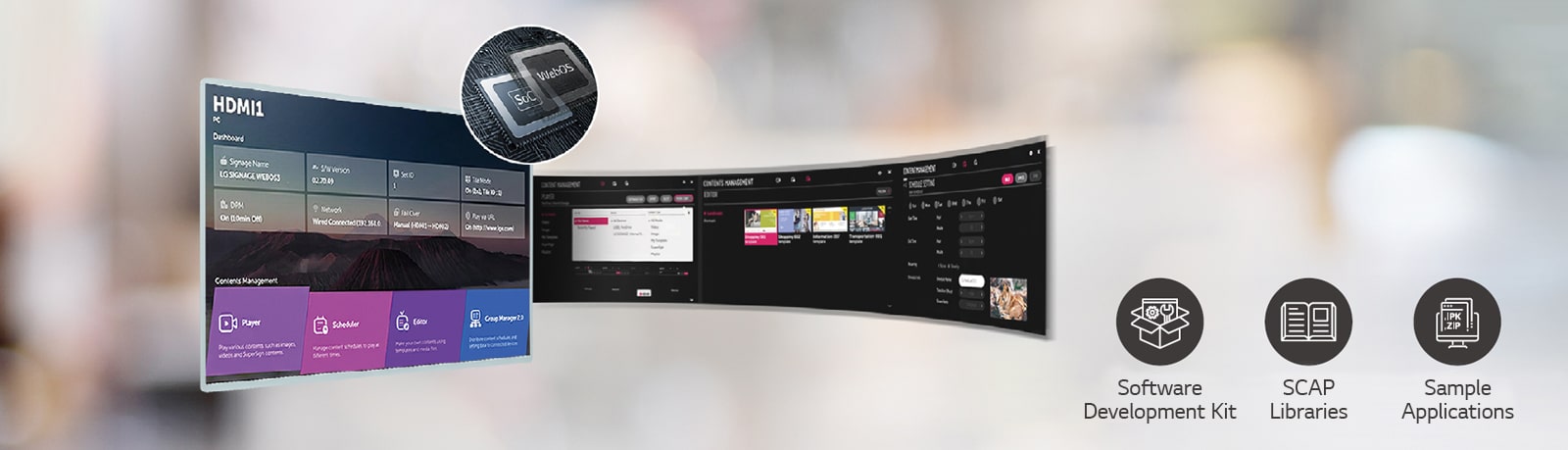

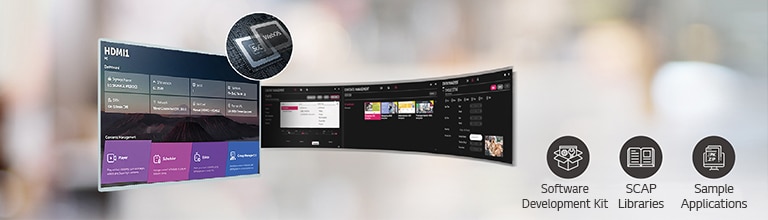

High-Performance with webOS 6.0

webOS 6.0, upgraded in SoC* and web engine, is available on 27TNF3K for a smooth execution of several tasks. LG webOS smart signage platform enhances user convenience with intuitive GUI** and provides to SI or/and developers simple app development tools such as SDK (Software Development Kit), SCAP, sample applications.

A number of tasks that can be done simultaneously are easily arranged through the webOS platform.

* SoC : System On Chip
** GUI : Graphical User Interface

PANEL

Screen Size

27"

Panel Technology

IPS
Back Light Type

Edge

Aspect Ratio

16:9
Native Resolution

1920x1080 (FHD)

Refresh Rate

60Hz
Brightness

300nit

Contrast Ratio

1,000:1
Color gamut

NTSC 72%

Viewing Angle(H x V)

178 x 178
Color Depth

8bit, 16.7Million colors

Response Time

9ms(G to G)
Surface Treatment(Haze)

Anti glare, 3H(Haze 25%)

Life time

31,000 Hrs (min)
Operation Hours (Hours/Day)

16/7

Portrait / Landscape

Yes / Yes

Connectivity
(Jack Interface)

Input - Digital - HDMI

Yes(2), HDCP1.4

Input - RS232C IN

Yes (1)
Input - RJ45(LAN)

Yes (1)

Input - IR IN

Yes (1)
Input - USB

USB2.0 Type A(1)

Output - Audio Out

Yes (1)
Output - Touch USB

USB2.0 Type B(1)

MECHANICAL SPECIFICATION

Bezel Color

Silver

Bezel Width

7.7/7.7/7.7/9.7mm
Weight (Head)

4.2Kg

Packed Weight

6.2Kg
Monitor Dimension(W x H x D)

614.9 x 355.3 x 15.1mm

Carton Dimensions(W x H x D) (Box outer size)

707 x 171 x 451mm
VESA™ Standard Mount Interface

200x100

KEY FEATURE

HW - Internal Memory

8GB (System 5GB + Available 2.48GB)

HW - Sensor - Temperature Sensor

Yes
HW - Sensor - Acceleration(Gyro) Sensor

Yes

SW - webOS ver.

webOS6.0
SW - Embedded CMS - Local Contents Scheduling

Yes

SW - Embedded CMS - Group Manager

Yes
SW - USB Plug & Play

Yes

SW - Fail over

Yes
SW - Background Image - Booting Logo Image

Yes

SW - Background Image - No Signal Image

Yes
SW - Video Tag

Yes

SW - Play via URL

Yes
SW - Gapless Playback

Yes

SW - Setting Data Cloning

Yes
SW - SNMP

Yes

SW - ISM Method

Yes
SW - Status Mailing

Yes

SW - Control Manager

Yes
SW - 3rd Party Compatibility - Crestron Inside

Yes

SW - Power - Smart Energy Saving

Yes
SW - Power - PM mode

Yes

SW - Power - Wake on LAN

Yes
SW - Power - Network Ready

Yes

SW - Beacon

No
SW - HDMI-CEC

Yes

SW - SI Server Setting

Yes
SW - webRTC

Yes

SW - Pro:Idiom

Yes

ENVIRONMENT CONDITIONS

Operation Temperature

0°C to 40°C

Operation Humidity

10 % to 80 %

POWER

Power Supply

AC 100-240V~, 50/60Hz

Power Type

Built-In Power

POWER CONSUMPTION

DPM

0.5W↓

Power off

0.5W↓

SOUND

Speaker

No

CERTIFICATION

Safety

CB/NTRL

EMC

FCC Class "A"/ CE / KC
ErP / Energy Star

Yes / No

SOFTWARE COMPATIBILITY

SuperSign CMS

Yes

SuperSign Control / Control+

Yes
Signage 365 Care

Yes

Language

OSD

English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Arabic, Turkish, Polski

ACCESSORY

Basic

Power Cord 1.55 M*1, USB Cable (Type A-Type B) 1.8 M*1, User Manual, QSG, Remote Controller(include battery 2ea), RS232C Gender, IR Receiver

SPECIAL FEATURE

Touch - Available object size for touch

Ø6mm ↑

Touch - Reponse Time(PC Win10 Paintbrush)

90ms ↓
Touch - Accuracy

3.5mm±0.5mm

Touch - Interface

USB2.0
Touch - Operating System Support

Win 10

Touch - Multi touch point

Max 10 Points
