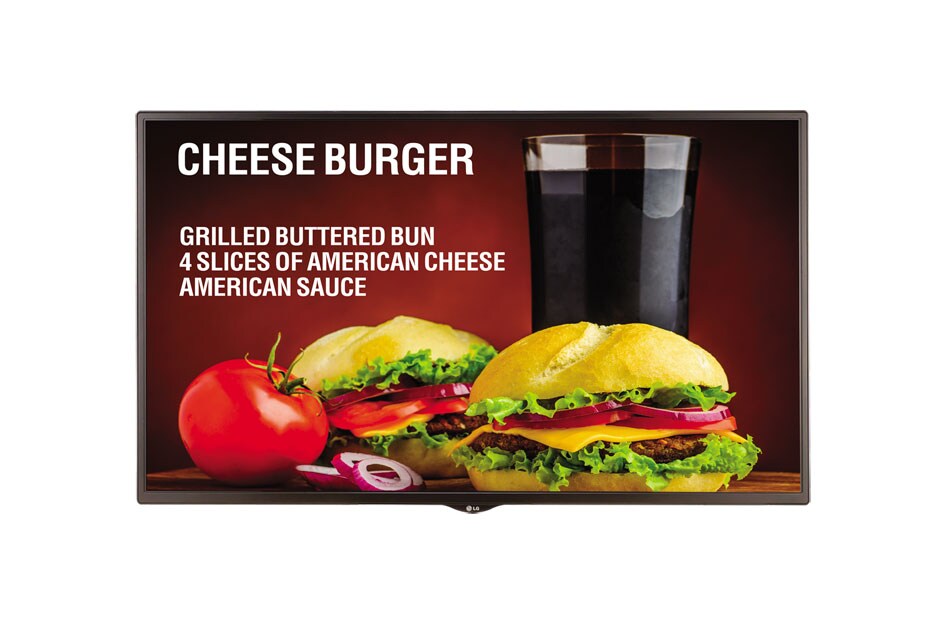

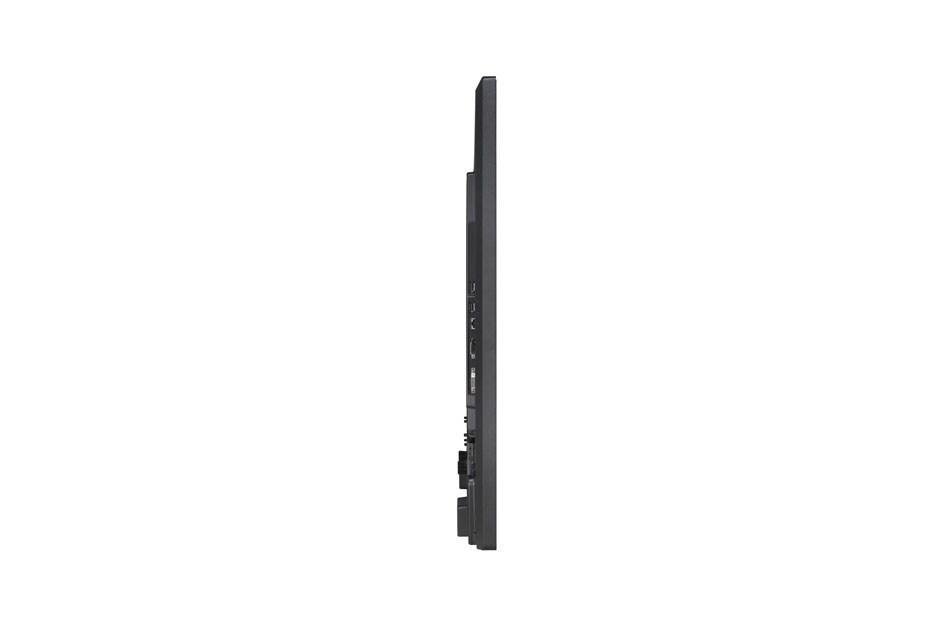

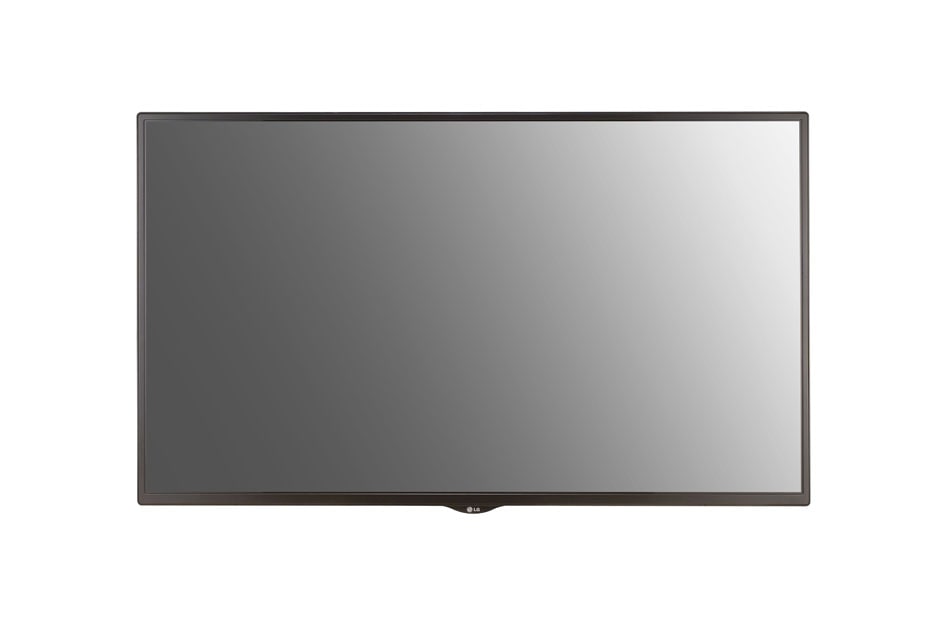

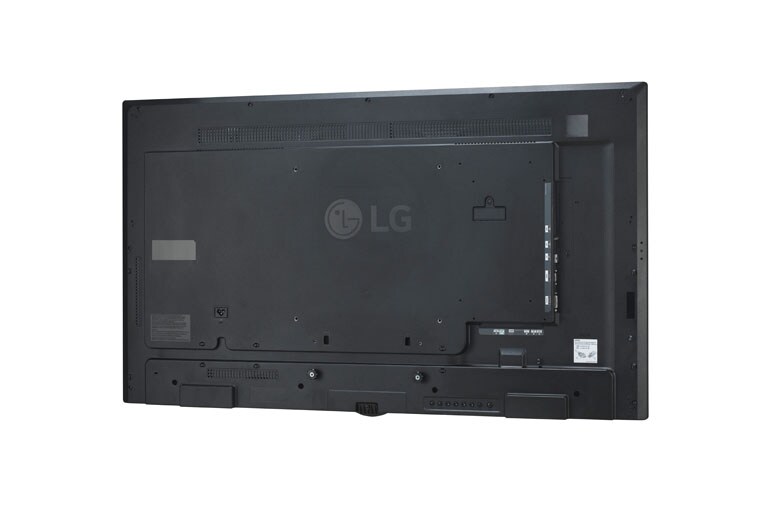

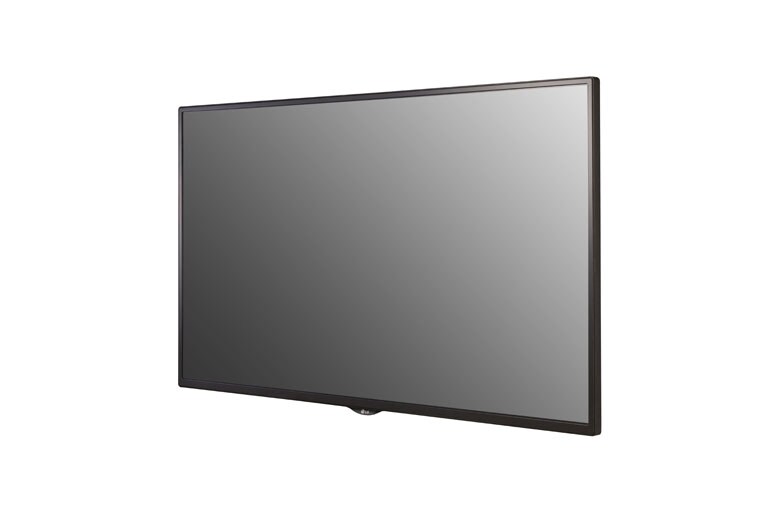

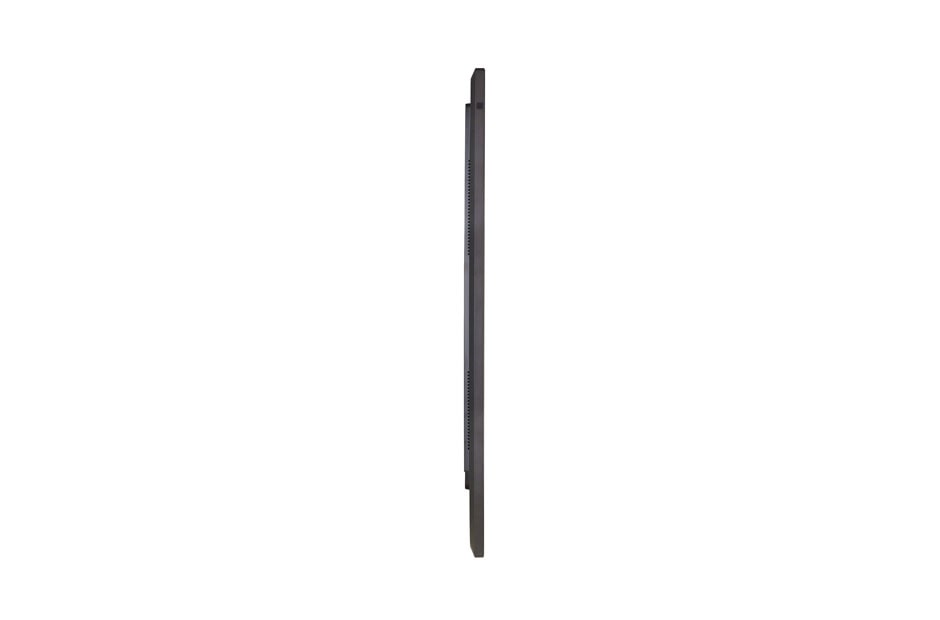

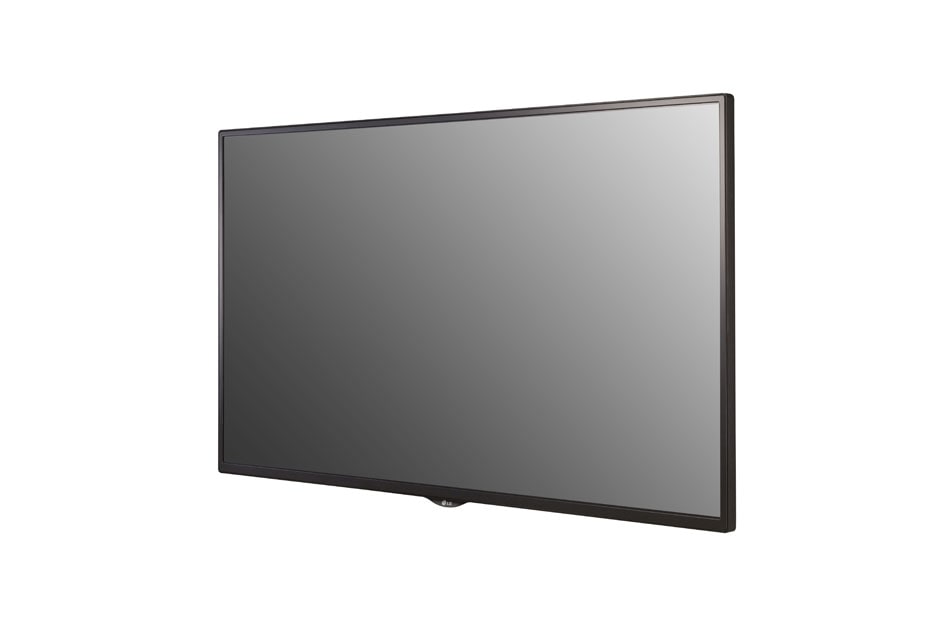

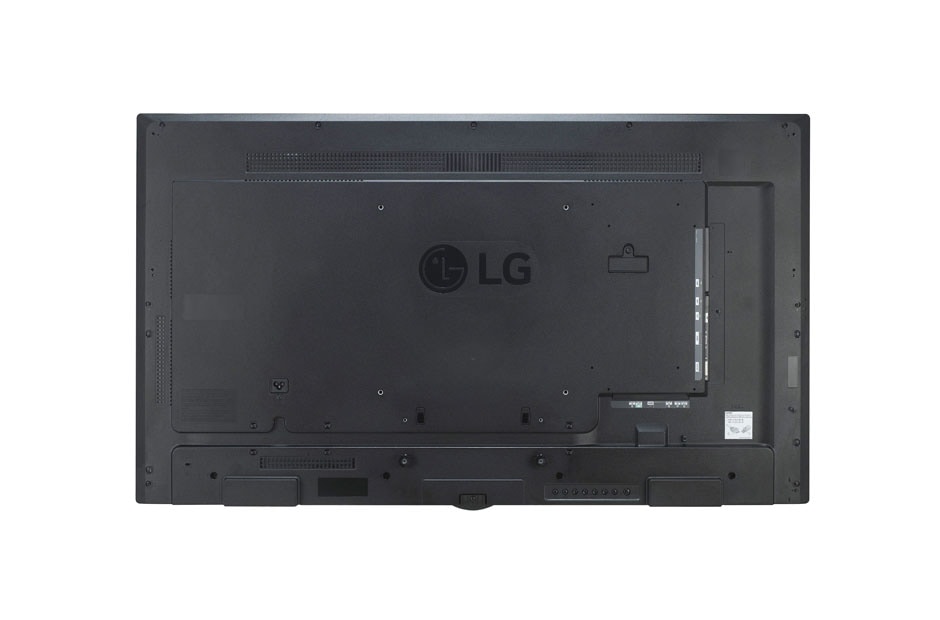

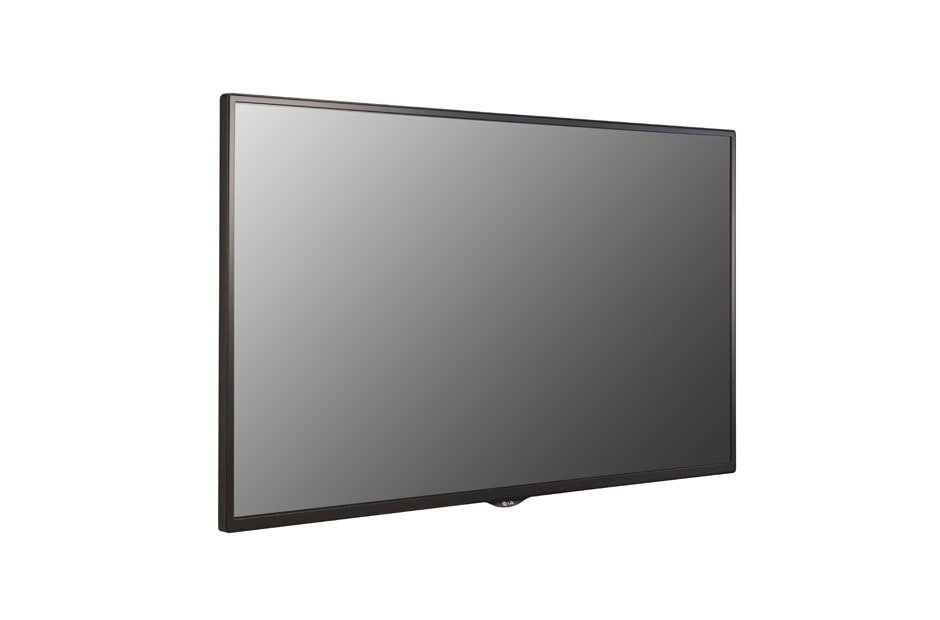

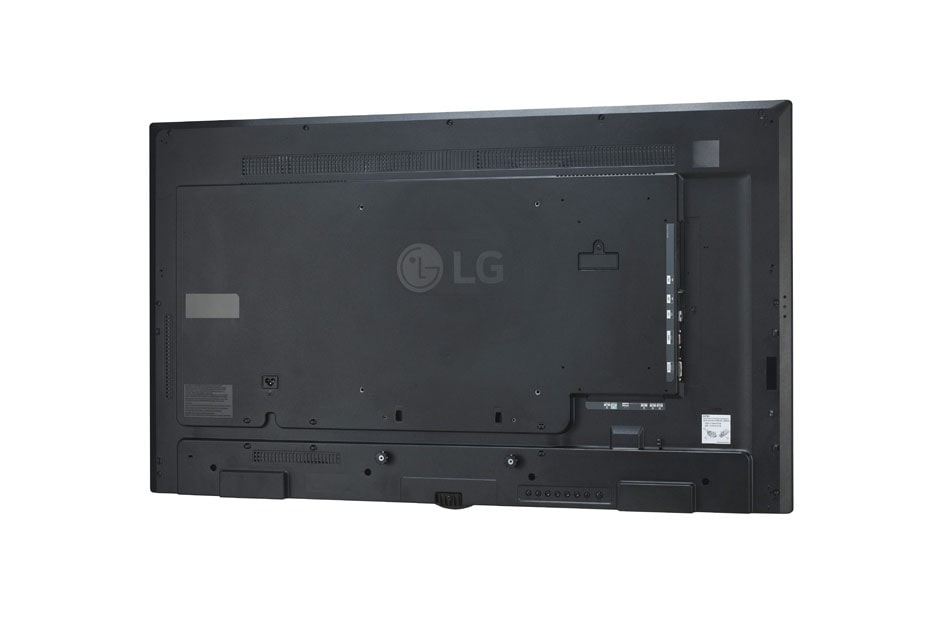

32SM5KC
32'' 400 nits FHD Standard Signage
  • Brightness : 400 cd/m2
  • Bezel : Top/Left/Right 11.9 mm (Bottom 18.0 mm)
  • Depth : 38.6 mm
  • Interface : HDMI, DVI, DP, RGB, RJ45, IR, RS232C, SD Card, USB
  • Built-in Speaker : 10W + 10W

component-OBScountrySelectDesc

32" 400 nits FHD Standard Signage
PANEL
  • Screen Size
    32"
    Resolution
    1,920 x 1,080 (FHD)
  • Brightness
    400

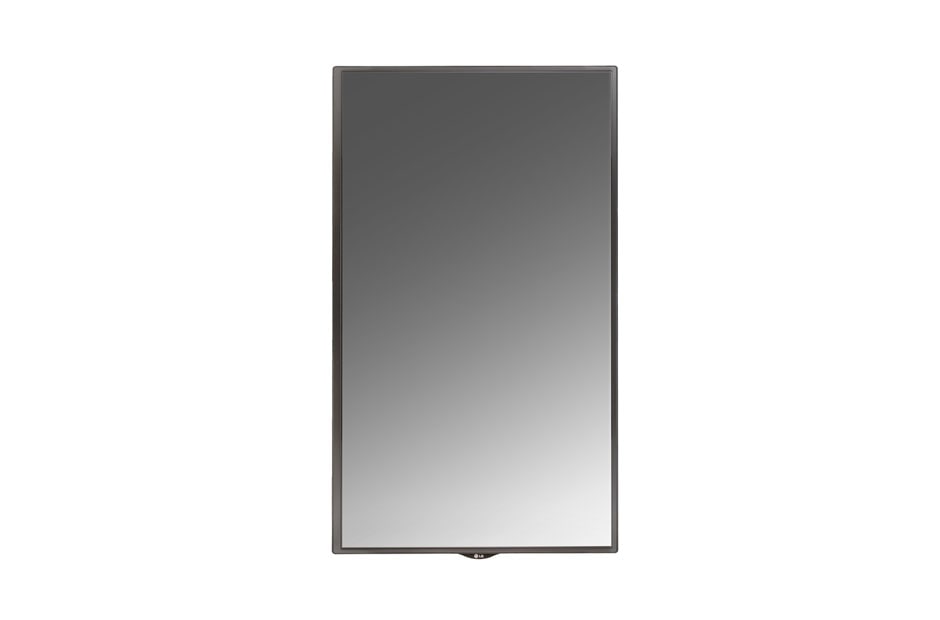

    Orientation
    Portrait & Landscape
CONNECTIVITY
  • Input
    HDMI, DP, DVI-D, RGB, Audio, SD card
    Output
    DP, Audio
  • External Control
    RS232C in/out, RJ in, IR Receiver, Pixel Sensor, USB 3.0, SD Card
PHYSICAL SPECIFICATION
  • Bezel Width
    13 mm (T/R/L), 18 mm (B)
    Monitor Dimension (W x H x D)
    729.4 x 428.9 x 55.5 mm
  • Weight (Head)
    5.2kg

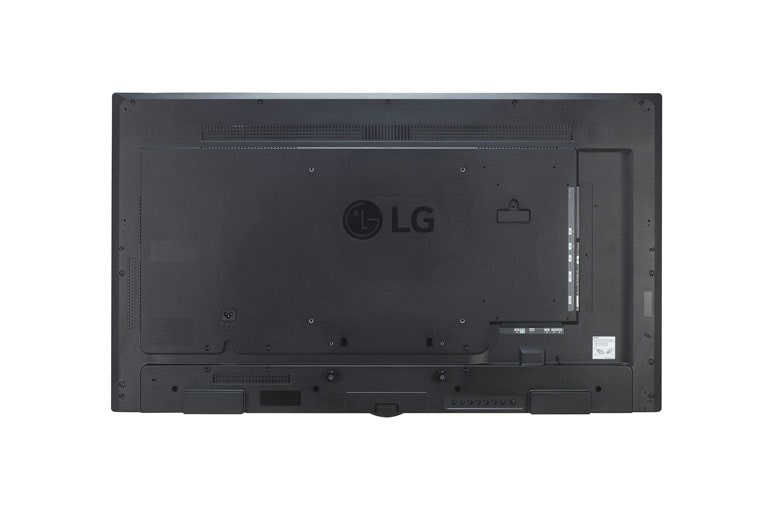

    VESA™ Standard Mount Interface
    200 x 200 mm
ENVIRONMENT CONDITIONS
  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10 % to 80 %
POWER
  • Power Supply
    100-240V~, 50/60Hz
    Power Type
    Built-In Power
  • Power Switch
    No
POWER CONSUMPTION
  • Typ.
    60 W
    Smart Energy Saving
    45 W
STANDARD(CERTIFICATION)
  • Safety
    UL / cUL / CB / TUV / KC
    EMC
    FCC Class "A" / CE / KCC
  • ErP / Energy Star
    N/A / Yes (Energy Star 6.0)
    Audio Power
    20 W (10 W x 2) for Internal Speaker (6 ohm)
MEDIA PLAYER COMPATIBILITY
  • OPS Type Compatible
    Yes
    External Media player Attatchable
    No
SOFTWARE COMPATIBILITY
  • SuperSign-w lite
    Yes
    SuperSign-c
    Yes
ACCESSORY
  • Basic
    Remote Controller (included 2ea batteries), Power Cord, QSG, RGB Cable, Regulation Book, Phone to RS232C Gender, Memory cover
    Optional
    Speaker (SP-5000), Stand (ST-322T), Pixel sensor (KT-SP0), Wall bracket (LSW230B), OPS Kit (KT-OPSA), HDBaseT (EB-B100)
