Full HD Standard Signage

LG webOS Standard Signage

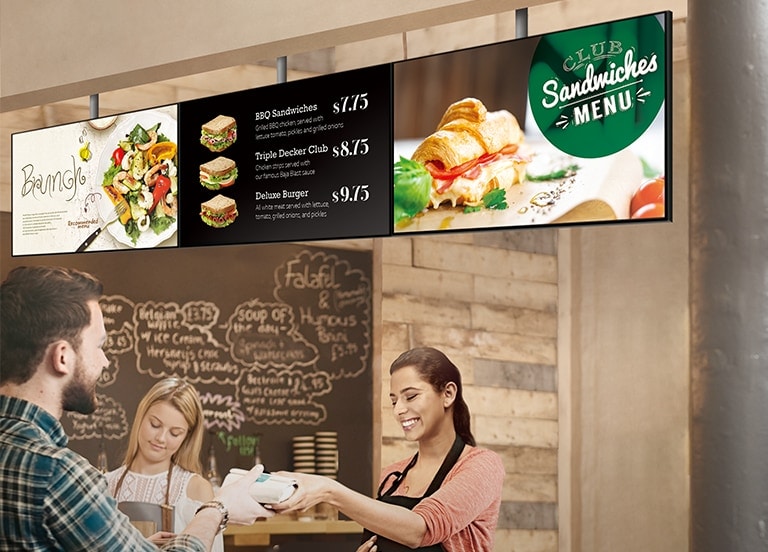

The staff in a sandwich store is handing a sandwich to a customer. The SM5J series showing a menu board is installed above them, displaying sandwich menus with brunch promotions. The staff in a sandwich store is handing a sandwich to a customer. The SM5J series showing a menu board is installed above them, displaying sandwich menus with brunch promotions.
* All images in this web page are for illustrative purposes only and may differ from the actual product.

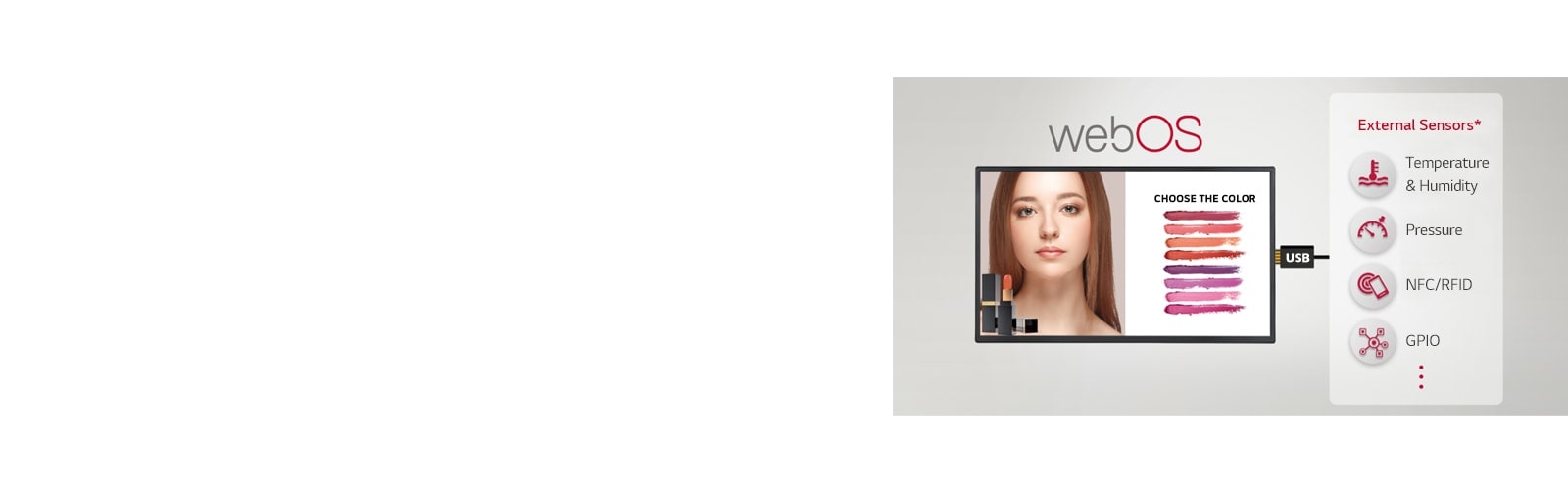

* External sensors need to be purchased separately and tested for compatibility with webOS platform.
* The mobile devices need be connected with the Signage IP address and can control one Signage at a time.
** Control Manager is optimized for Google Chrome 56 version and above.
* Network based control

Real-Time LG ConnectedCare Service

Maintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, supporting the stable operation of clients' businesses.
The LG employee is remotely monitoring the SM5J series installed in a different place. The LG employee is remotely monitoring the SM5J series installed in a different place.
* The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately.

Smart Signage Platform

Coupons or sales promotions can be offered via Bluetooth. Also, the content of the Signage, installed on the wall of the store, has the same one of the mobile device, a person is holding, by the Content Mirroring function via the WiFi network. The SM5J series is on the wall and a woman is using a personal PC and mobile phone. This image shows that the signage can be connected wirelessly to the PC and mobile phone which she is holding. Coupons or sales promotions can be offered via Bluetooth. Also, the content of the Signage, installed on the wall of the store, has the same one of the mobile device, a person is holding, by the Content Mirroring function via the WiFi network. The SM5J series is on the wall and a woman is using a personal PC and mobile phone. This image shows that the signage can be connected wirelessly to the PC and mobile phone which she is holding.
  • Real-Time Promotion

    With Beacon and Bluetooth® Low Energy (BLE), shop managers can provide coupons and information in real-time.

  • Content Sharing

    Content Mirroring among devices is available on a Wi-Fi network.

  • Wireless Access Point

    The SM5J series operates as a virtual router which can be an wireless access point for mobile devices.

TYPE
  • Type
    Standard
PANEL
  • Screen Size
    32"
    Panel Technology
    IPS
  • Native Resolution
    1,920 × 1.080 (FHD)
    Brightness
    400nit (Typ.)
  • Contrast Ratio
    1,100:1
    Dynamic CR
    1,000,000:1
  • Viewing Angle (H × V)
    178 × 178
    Response Time
    10 ms (G to G)
  • Surface Treatment (Haze)
    1%
    Operation Hours (Hours/Day)
    24/7
  • Orientation
    Portrait / Landscape
CONNECTIVITY
  • Input
    HDMI (3, HDCP 2.2), USB 2.0 ( Type A)
    Output
    Audio Out (Off / Fixed / Variable)
  • External Control
    RS-232C In/Out (Phone-jack Type), RJ45 In (LAN), IR In (Phone-jack Type)
MECHANICAL SPECIFICATION
  • Bezel Color
    Black
    Bezel Width
    13 mm (T/R/L), 18 mm (B)
  • Monitor Dimension (W × H × D)
    729.4 mm × 428.9 mm × 55.5 mm
    Weight (Head)
    5.7 kg
  • Monitor Dimension with Stand (W × H × D)
    729.4 mm × 481 mm × 154.2 mm
    Weight (Head + Stand)
    6.5 kg
  • VESA™ Standard Mount Interface
    200 x 200 mm
KEY FEATURE
  • Key Feature
    Internal Memory 8 GB, Built-in Wi-Fi, Temperature Sensor, Auto Brightness Sensor, Local Key Operation, webOS 6.0, Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail Over, Background Image (Booting Logo Image, No Signal Image), Screen Share, Play via URL, Setting Data Cloning, SNMP, ISM (Image Sticking Minimization) Method, Control Manager, Smart Energy Saving, PM Mode, Wake on LAN, Beacon, HDMI-CEC (Compatibility may differ by equipment), SI Sever Setting, webRTC, Pro:Idiom
ENVIRONMENT CONDITIONS
  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10% to 80%
POWER
  • Power Supply
    AC 100-240V~, 50/60Hz
    Power Type
    Built-In Power
POWER CONSUMPTION
  • Typ. / Max.
    55 W / 75 W
    BTU (British Thermal Unit)
    187.67 BTU/Hr (Typ.), 255.911 BTU/Hr (Max.)
SOUND
  • Speaker
    Yes (10 W × 2 EA)
CERTIFICATION
  • Safety
    CB / NRTL
    EMC
    FCC Class "A" / CE
  • ErP / Energy Star
    No / Yes
SOFTWARE COMPATIBILITY
  • Software Compatibility
    SuperSign CMS, SuperSign Control / Control+, SuperSign WB, SuperSign Media Editor, LG ConnectedCare
ACCESSORY
  • Basic
    Remote Controller, Power Cord, QSG, HDMI Cable, Phone to RS-232C Gender
    Optional
    Stand (ST-322T), Wall Bracket (LSW230B), VESA Adapter (AM-B220S)
