43SH7DD-B component-copyModelName

43'' 700 nits FHD Standard Signage

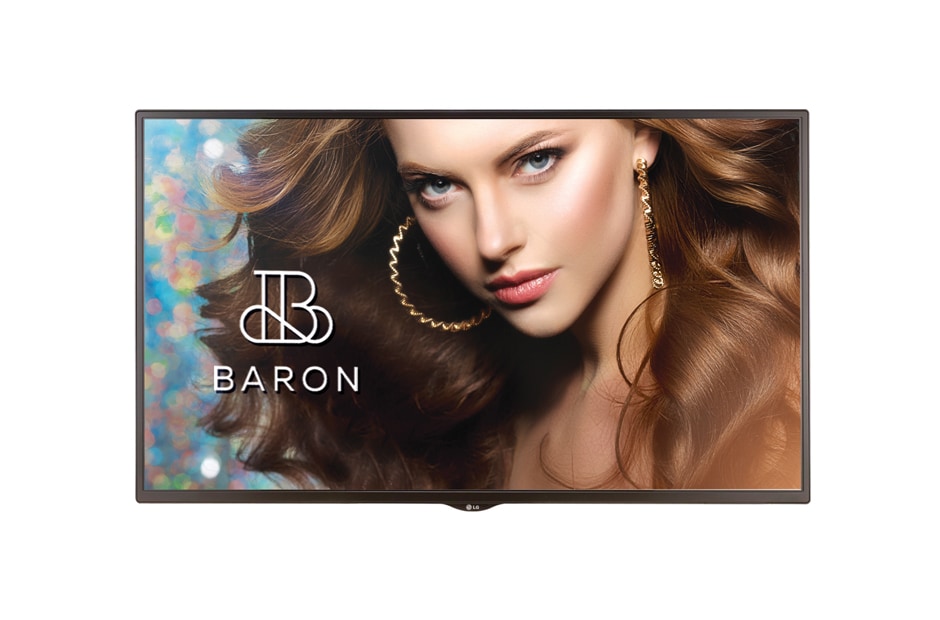

LG 43'' 700 nits FHD Standard Signage, 43SH7DD-B, thumbnail 1

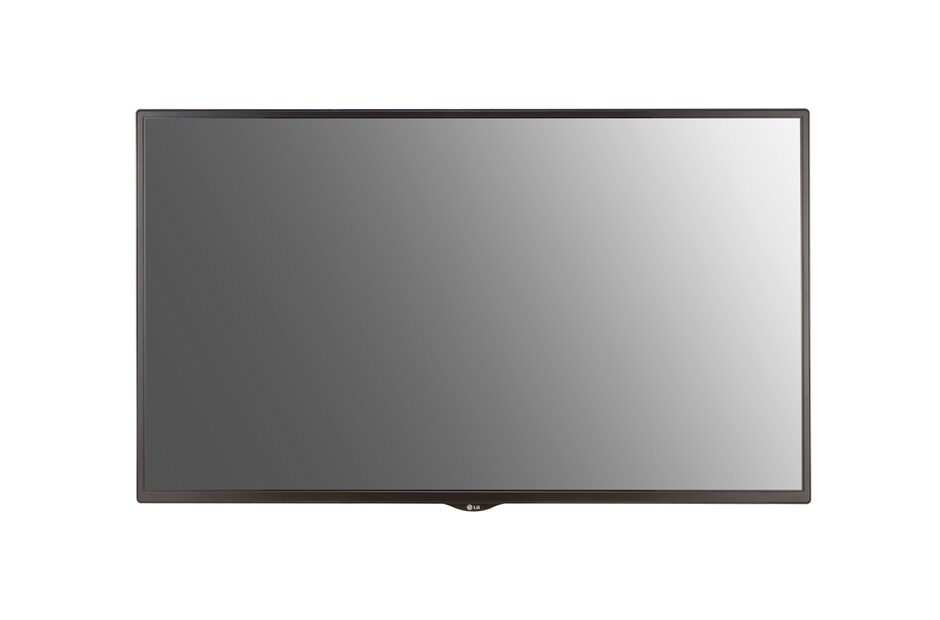

LG 43'' 700 nits FHD Standard Signage, 43SH7DD-B, thumbnail 2

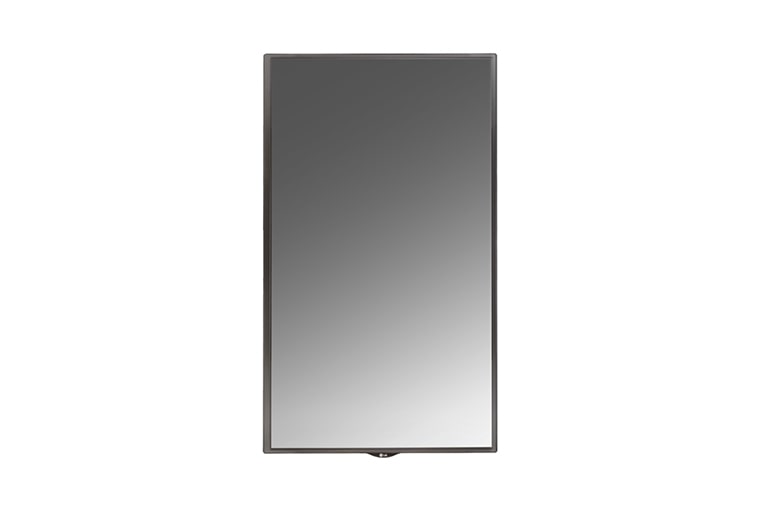

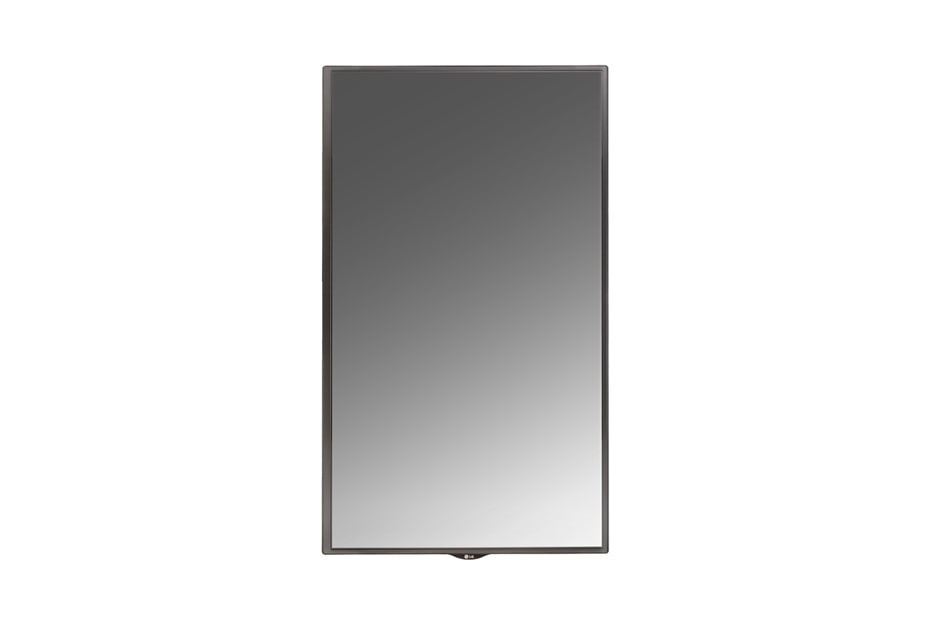

LG 43'' 700 nits FHD Standard Signage, 43SH7DD-B, thumbnail 3

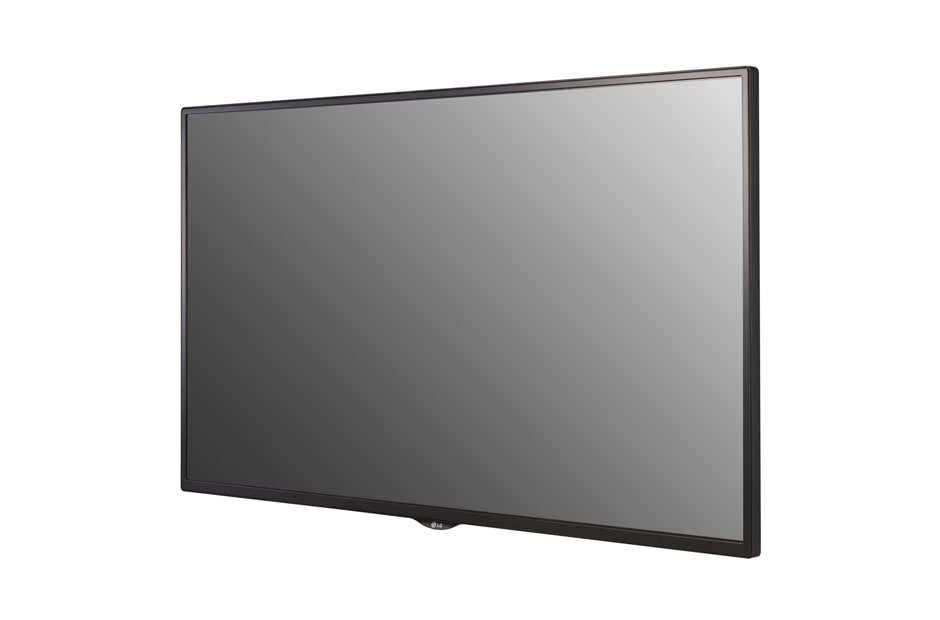

LG 43'' 700 nits FHD Standard Signage, 43SH7DD-B, thumbnail 4

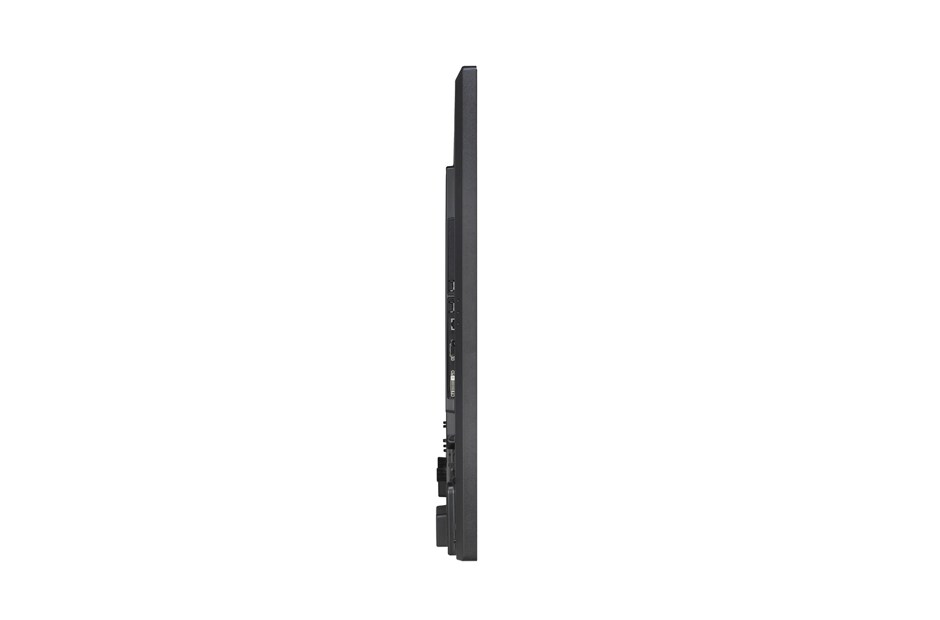

LG 43'' 700 nits FHD Standard Signage, 43SH7DD-B, thumbnail 5

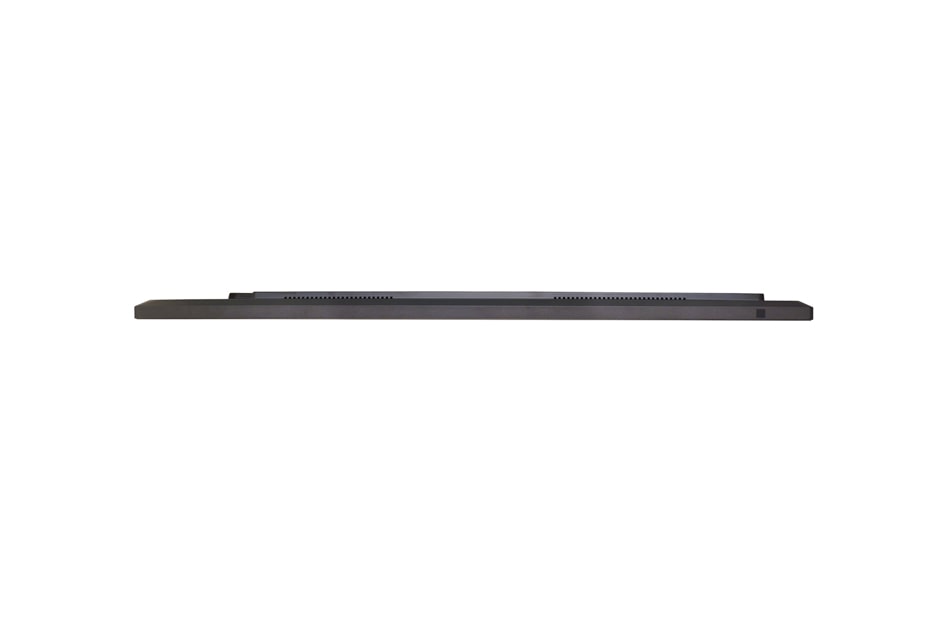

LG 43'' 700 nits FHD Standard Signage, 43SH7DD-B, thumbnail 6

ADD TO WISHLIST

Discontinued

43SH7DD-B component-copyModelName

43'' 700 nits FHD Standard Signage

Name: 43'' 700 nits FHD Standard Signage
Brand: LG UAE
SKU: 43SH7DD-B
Rating: 0 (0 reviews)

Key Features

Brightness(Typ.) : 700 cd/m²
Bezel : T/L/R 11.9 mm, B 18.0 mm
Depth : 54 mm(38.6mm:Thinnest Part)
Interface : HDMI(2), DVI, RGB, RJ45, IR, RS232C, USB
Built-in Speaker
USB Content Scheduling, PM Mode, Local Time Auto Setting, No Signal Image

Choose your Size

Find a Dealer

Add to Compare

component-OBScountrySelectDesc

Key Features

Brightness(Typ.) : 700 cd/m²
Bezel : T/L/R 11.9 mm, B 18.0 mm
Depth : 54 mm(38.6mm:Thinnest Part)
Interface : HDMI(2), DVI, RGB, RJ45, IR, RS232C, USB
Built-in Speaker
USB Content Scheduling, PM Mode, Local Time Auto Setting, No Signal Image

Choose your Size

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

43" 700 nits FHD Standard Signage

Outstanding Visibility

Outstanding Brightness

The 700 cd/m² brightness is enough to stand out against the surrounding background, so signage can attract passerby and delivers content vividly and effectively.

Outstanding Visibility

Wide Viewing Angle

Thanks to IPS technology, SH7DD series provides a clear, vibrant picture with no washed out tones at any angle.

Cost Effective

Low Power Consumption

SH7DD offers excellent energy efficiency and cost savings by decreasing power consumpton by approx. 32％ compared to the conventional model with equal luminance.

*Based on 49'' model

Cost Effective

Power Management Mode

Even without signal from the media player, the network does not turn off completely, so remote control is possible, which prevents unnecessary power usage and enables efficient management.

Convenient Managment

USB Content Scheduling

There is no need for additional server or media player connections because SH7DD supports USB playback and scheduling. Users can set a playlist and timing for playing content using a USB.

*Supported Content Type : Video(MPEG 1/2/4, H.264),,Audio (MP3, AC3, MPEG, AAC, HEAAC, LPCM), Image (JPEG, PNG, BMP)

Convenient Managment

Wi-Fi Support

SH7DD series supports Wi-Fi dongle connection for easier content distribution and installation. And SNMP* support ensures convenient network management.

*SNMP: Simple Network Management Protocal

Convenient Managment

No Signal Image Setting

In case there is no signal input, it is possible to play back images preset by the user using a USB, instead of displaying the conventional no signal image.

Convenient Managment

Local Time Setting

A time zone can be configured at initial installament, so that the signage display accesses the local NTP* server and automatically sets the local time. In addition, the local time can be adjusted manually by grouping multiple signages using RS232C without a network connection.

*NTP: Network Time Protocol

Industrial Design

Detachable Logo & Built-in Speaker

The detachable logo allows for installation in the desired orientation in landscape or portrait mode, making it easy for the user to arrange the signage. Also, sounds can be played from built-in speakers, giving advertisements greater impact.

PANEL

Screen Size

43"

Resolution

1,920 x 1,080 (FHD)
Brightness(Typ.,cd/m²)

700

CONNECTIVITY

Input

HDMI (2), DVI, RGB, Audio, USB 2.0

Output

Audio
External Control

RS232C In/out, RJ45 In, IR Receiver In

PHYSICAL SPECIFICATION

Bezel Width

11.9 mm (T/R/L), 18 mm (B)

Monitor Dimension (W x H x D)

969.6 x 563.9 x 54 mm
Weight (Head)

10.0 kg

VESA™ Standard Mount Interface

200 x 200 mm

ENVIRONMENT CONDITIONS

Operation Temperature

0°C to 40°C

Operation Humidity

10 % to 80 %

POWER

Power Supply

100-240V~, 50/60Hz

Power Type

Built-In Power

POWER CONSUMPTION

Typ.

75 W

Smart Energy Saving

55 W

STANDARD(CERTIFICATION)

Safety

UL / cUL / CB / TUV / KC

EMC

FCC Class "A" / CE / KCC
ErP / Energy Star

Yes(N/A for EU ErP) / Yes(Energy Star 8.0)

MEDIA PLAYER COMPATIBILITY

OPS Type Compatible

No

External Media Player Attatchable

Yes (MP500/MP700)

SOFTWARE COMPATIBILITY

Content Management Software

SuperSign Premium

Control and Monitoring Software

SuperSign C

ACCESSORY

Basic

Remote Controller (include battery 2ea), Power Cord, QSG, RGB Cable, Regulation Book, Phone to RS232C Gender, IR Receiver

Optional

Stand (ST-432T), Media player, Wall bracket (LSW230B), VESA Adapter (AM-B220S), Wi-Fi Dongle (AN-WF500), Touch Overlay (KT-T430)
