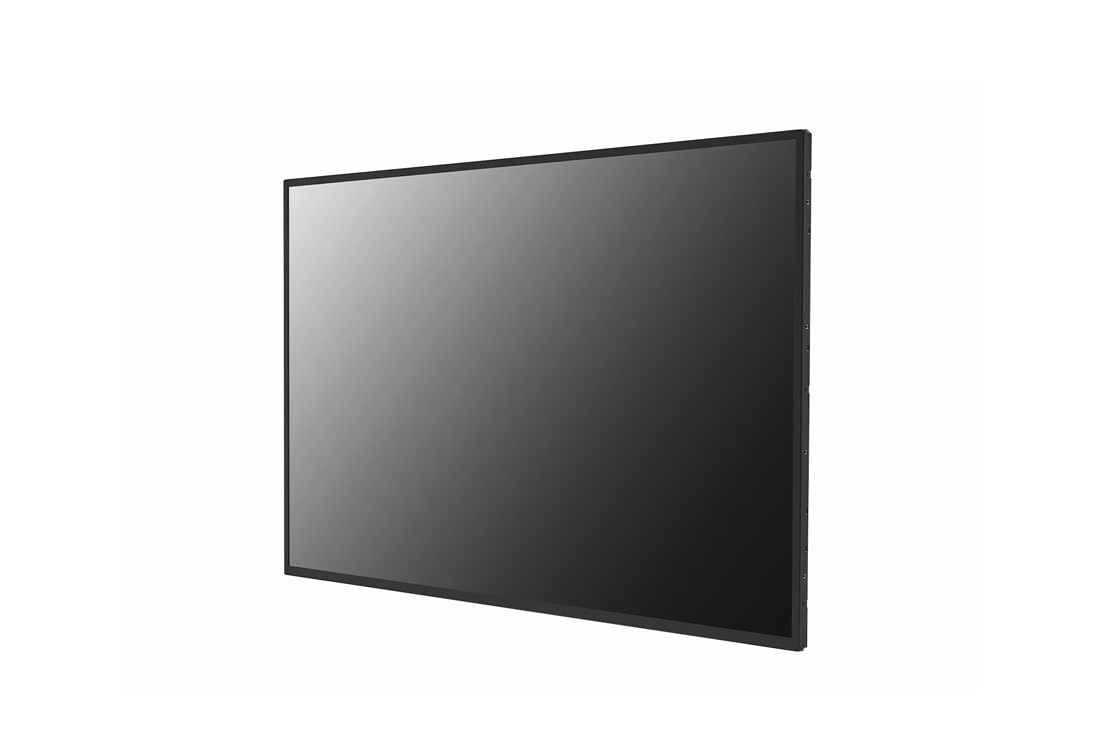

Touch Open Frame

Key Features

Choose your Size

component-OBScountrySelectDesc

Touch Open Frame
PANEL
  • Screen Size
    55"
    Panel Technology
    IPS
  • Native Resolution
    3,840 x 2,160 (UHD)
    Brightness (nit)
    450
  • Contrast Ratio
    1,000:1
    Color gamut
    NTSC 72%
  • Viewing Angle (H x V)
    178 x 178
    Color Depth
    10 bit (D), 1.07 Billion Colors
  • Response Time
    9ms(G to G)
    Surface Treatment (Haze)
    Haze 12%
  • Life time
    50,000Hrs (Min.)
    Operation Hours (Hours / Day)
    24 / 7
  • Portrait / Landscape
    Yes / Yes
CONNECTIVITY
  • Input
    Digital (HDMI(2), HDCP 2.2/1.4), RS232C IN, RJ45(LAN), IR IN, USB2.0 Type A(1)
    Output
    Audio Out, USB2.0 Type B(1)
MECHANICAL SPECIFICATION
  • Bezel Color
    Black
    Bezel Width
    9.1/9.1/9.1/16.1mm
  • Weight(Head)
    16.8Kg
    Packed Weight
    21.6 kg
  • Monitor Dimensions (W × H × D)
    1,231.8 x 709.6 x 39.2 mm
    Carton Dimensions (W × H × D)
    1,360 x 835 x 175mm
  • VESA™ Standard Mount Interface
    300 x 300
KEY FEATURE(HARDWARE)
  • Internal Memory
    8GB (System 5GB + Available 2.48GB)
    Temperature Sensor
    Yes
  • Acceleration(Gyro) Sensor
    Yes
KEY FEATURE(SOFTWARE)
  • webOS ver.
    webOS 6.0
    Embedded CMS
    Local Contents Scheduling, Group Manager
  • USB Plug & Play
    Yes
    Fail over
    Yes
  • Background Image
    Booting Logo Image, No Signal Image
    Video Tag
    Yes
  • Play via URL
    Yes
    Screen Rotation
    Yes
  • Gapless Playback
    Yes
    Setting Data Cloning
    Yes
  • SNMP
    Yes
    ISM Method
    Yes
  • Status Mailing
    Yes
    Control Manager
    Yes
  • Cisco Certification
    Yes
    Crestron Connected
    Yes
  • Power
    Smart Energy Saving, PM mode, Wake on LAN, Network Ready
    HDMI-CEC
    Yes
  • SI Server Setting
    Yes
    webRTC
    Yes
  • Pro:Idiom
    Yes
ENVIRONMENT CONDITIONS
  • Operation Temperature
    0 °C to 40 °C
    Operation Humidity
    10% to 80%
POWER
  • Power Supply
    AC 100-240V~, 50/60Hz
    Power Type
    Built-In Power
POWER CONSUMPTION
  • Typ.
    122 W
    Max.
    170W
  • BTU (British Thermal Unit)
    416 BTU/Hr(Typ.), 580 BTU/Hr(Max.)
    Smart Enegy Saving
    85 W
  • DPM
    0.5 W↓
    Power off
    0.5 W↓
CERTIFICATION
  • Safety
    CB / NRTL
    EMC
    FCC Class "A"/ CE / KC
  • ErP / Energy Star
    Yes / Yes
SOFTWARE COMPATIBILITY
  • SuperSign CMS
    Yes
    SuperSign Control+
    Yes
  • SuperSign Cloud
    Yes
    Mobile CMS
    Yes
  • Connected Care
    Yes
ACCESSORY
  • Basic
    Power Cord 1.55 M*1, USB Cable (Type A-Type B) 1.8 M*1, User Manual, QSG, Remote Controller(include battery 2ea), RS232C Gender, IR Receiver
TOUCH
  • Available object size for touch
    Ø6mm ↑
    Response Time (Based on 'Paint' app on Windows 10 PC)
    90ms ↓
  • Accuracy
    3.5 mm
    Interface
    USB 2.0
  • Operating System Support
    Win 10 / 11, Android
    Multi touch point
    Max. 10 Points
COMPLIANCE INFORMATION
  • The safety information for accessories is included with the safety information for the product and is not provided separately.
