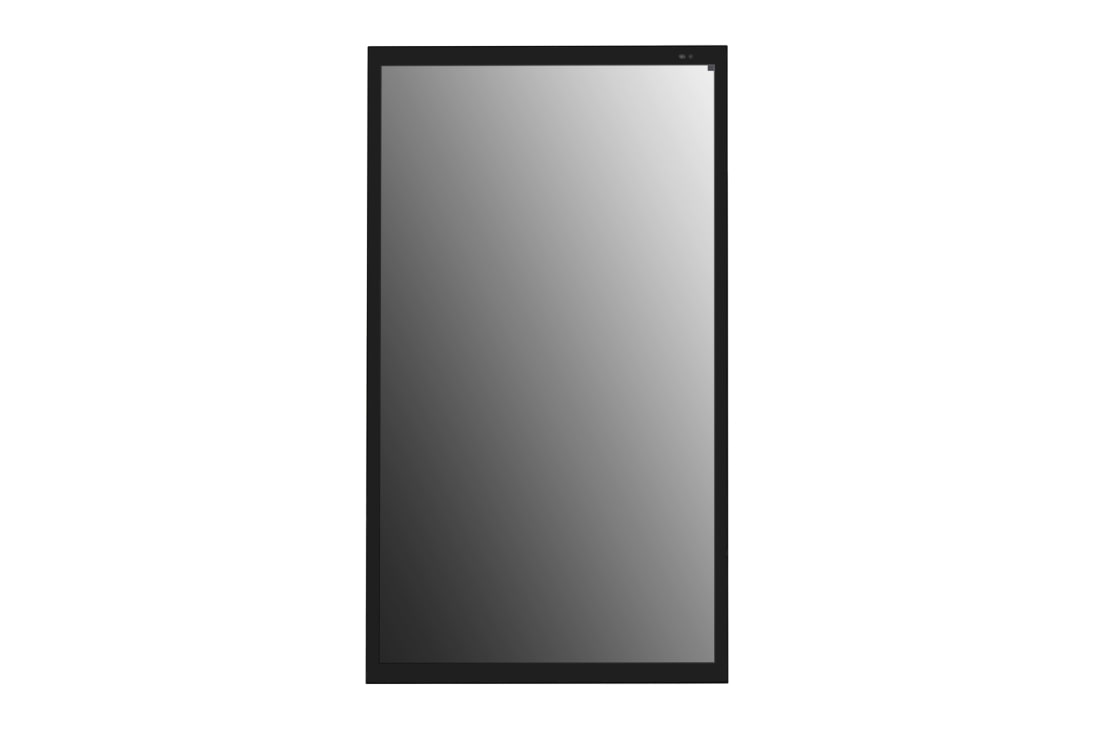

LG IP Rated High Brightness Outdoor Display, 49XE4F-B, thumbnail 2

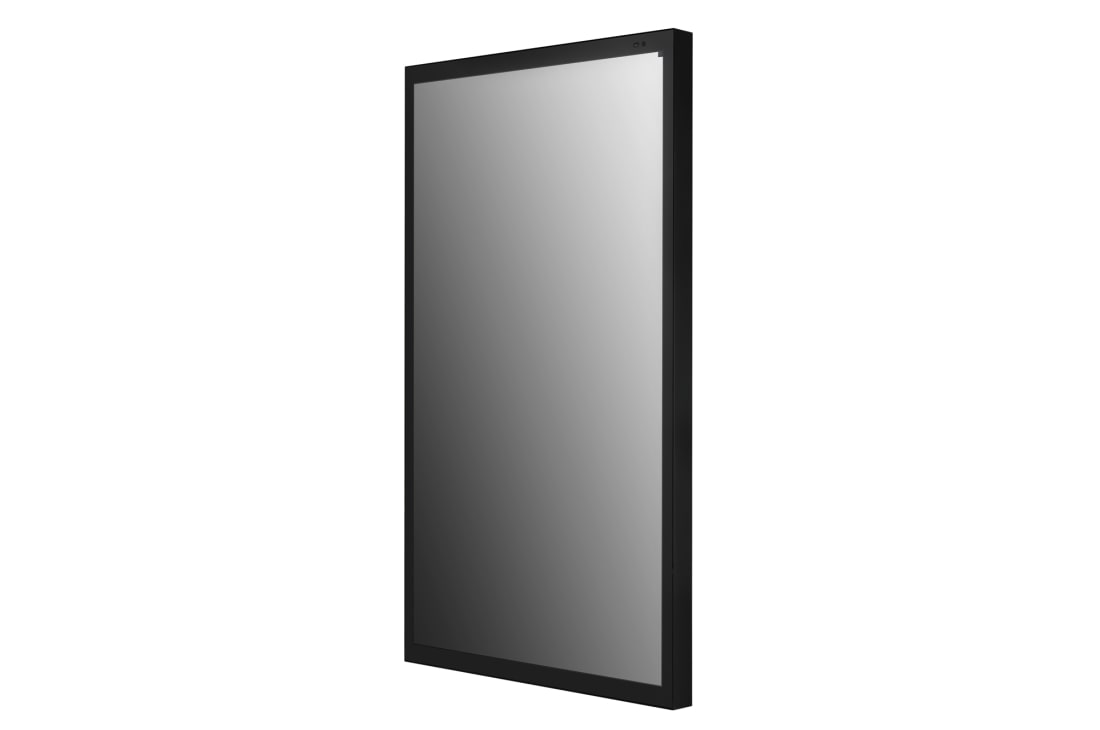

LG IP Rated High Brightness Outdoor Display, 49XE4F-B, thumbnail 3

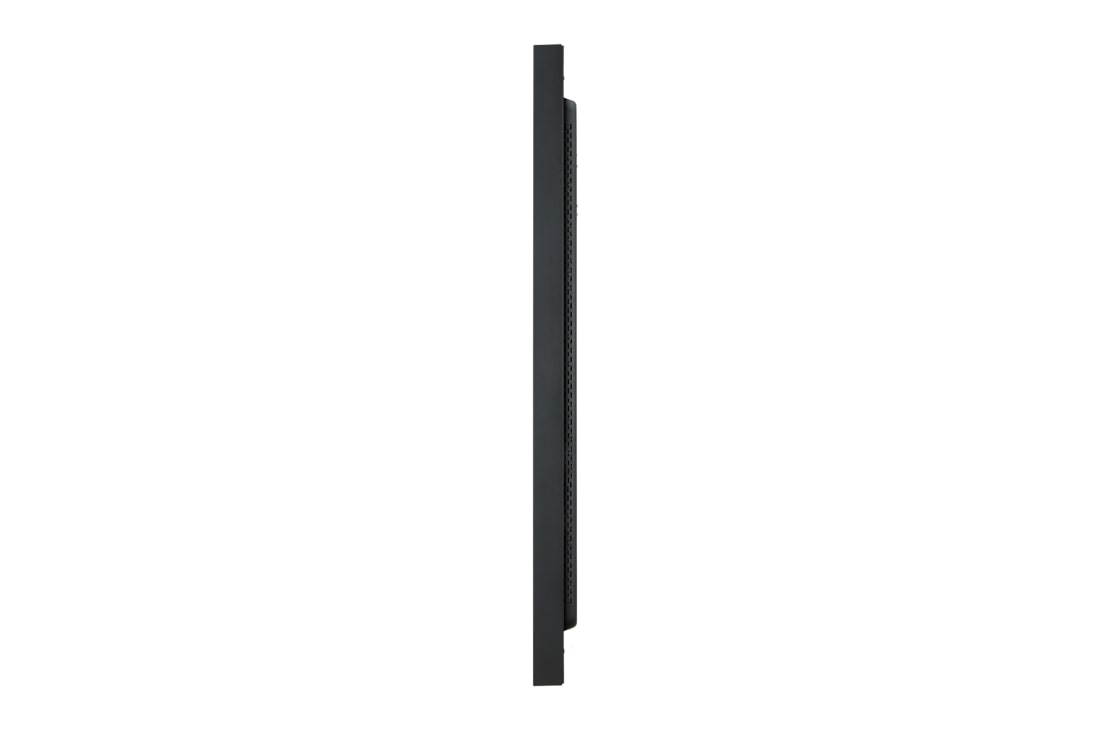

LG IP Rated High Brightness Outdoor Display, 49XE4F-B, thumbnail 4

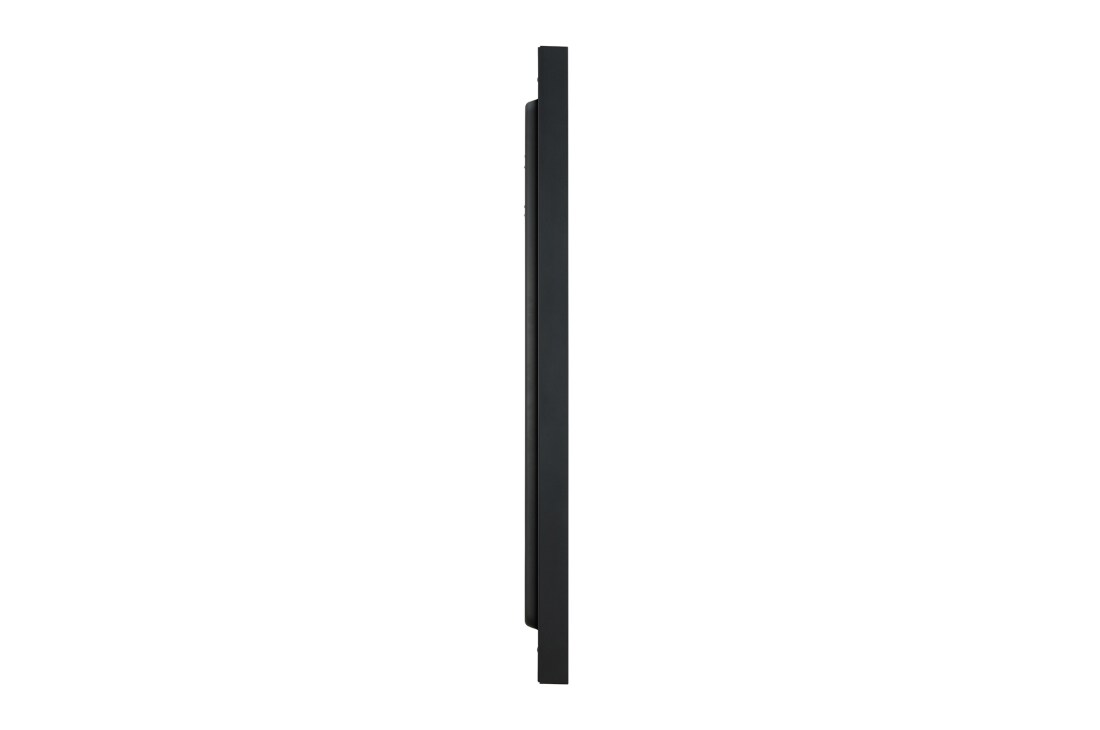

LG IP Rated High Brightness Outdoor Display, 49XE4F-B, thumbnail 5

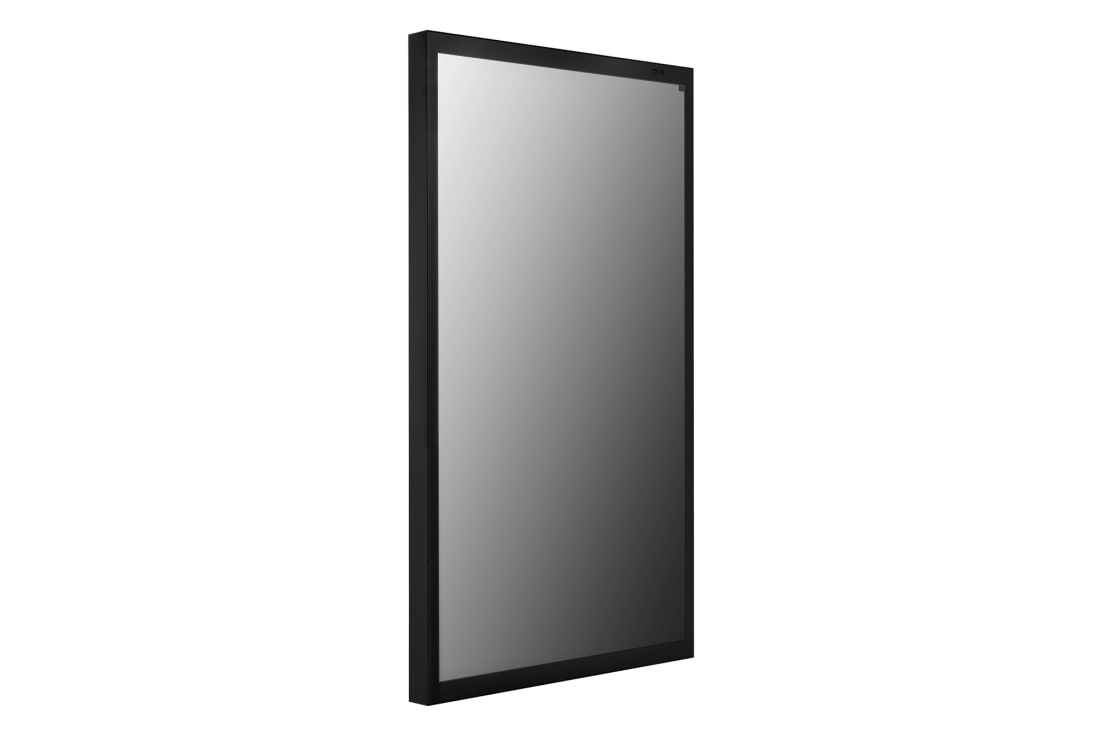

LG IP Rated High Brightness Outdoor Display, 49XE4F-B, thumbnail 6

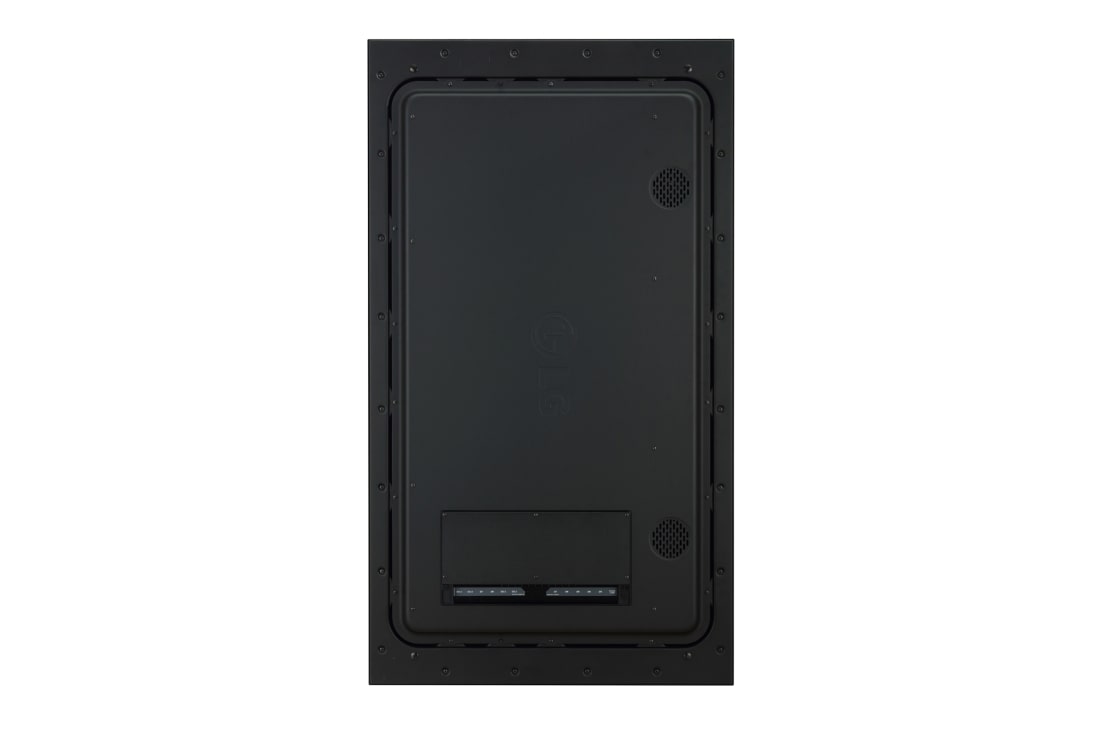

LG IP Rated High Brightness Outdoor Display, 49XE4F-B, thumbnail 7

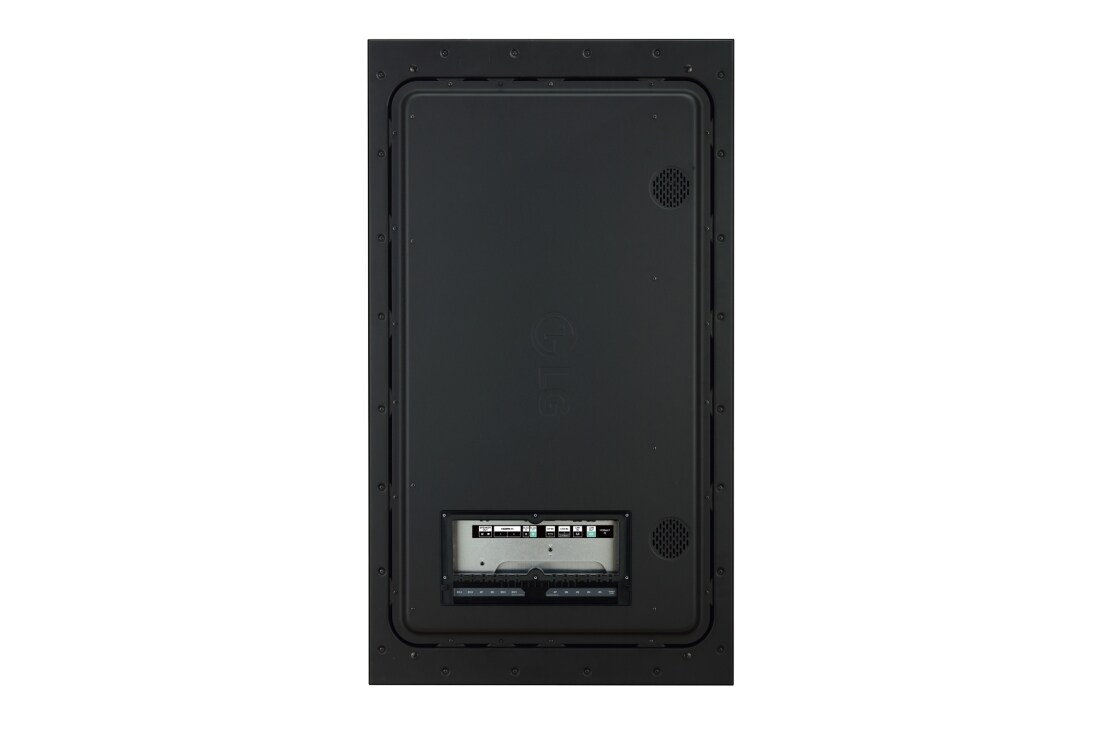

LG IP Rated High Brightness Outdoor Display, 49XE4F-B, thumbnail 8

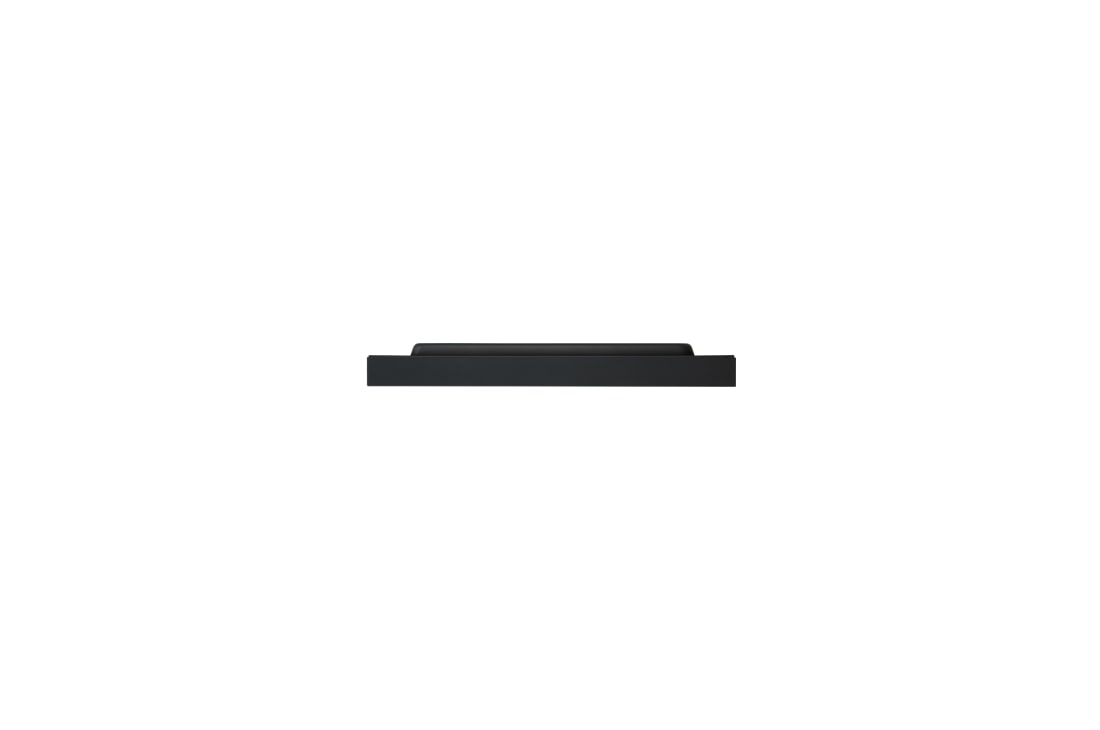

LG IP Rated High Brightness Outdoor Display, 49XE4F-B, thumbnail 9

ADD TO WISHLIST

Discontinued

49XE4F-B component-copyModelName

IP Rated High Brightness Outdoor Display

Name: IP Rated High Brightness Outdoor Display
Brand: LG UAE
SKU: 49XE4F-B
Rating: 0 (0 reviews)

Key Features

Brightness(Typ.) : 4,000 cd/m²
Bezel : 38.4 mm (T/B), 26.0 mm (L/R)
Interface : HDMI/ DP/HDBaseT/USB/ Audio/ RS232C/ RJ45
Anti-Reflection Coating
IP56 Design, IK10 Protective Glass

Choose your Size

Find a Dealer

Add to Compare

component-OBScountrySelectDesc

Key Features

Brightness(Typ.) : 4,000 cd/m²
Bezel : 38.4 mm (T/B), 26.0 mm (L/R)
Interface : HDMI/ DP/HDBaseT/USB/ Audio/ RS232C/ RJ45
Anti-Reflection Coating
IP56 Design, IK10 Protective Glass

Choose your Size

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

IP Rated High Brightness Outdoor Display

Slim & Robust Design with Outstanding Visibility

With a slim & robust design, XE4F series can be easily installed to meet the customer's needs under in external environments that require complex installation conditions. And upgraded brightness captures the customer's attention even under strong and direct sunlight.

SLIM & ROBUST DESIGN

Slim & Light Design

XE4F series composed of single display with a light and slim design and it can be easily customized to suit various external environments with no need for separate casing.

Easy integration for partner's customized design1

SLIM & ROBUST DESIGN

Easy integration for partner's customized design

The XE4F series are lighter and ready to be customized for various customer needs and settings. From outdoor menu boards to kiosks, the XE4F series are also mount ready and optimized for customers, based on the industry destination and use.

OUTSTANDING VISIBILITY

Bright & Brilliant

The XE4F series possess powerful brightness of 4,000nits, providing clear and vivid picture quality even under direct sunlight.

OUTSTANDING VISIBILITY

Wide Viewing Angle

IPS technology provides better control of the liquid crystals, which in turn allows the screen to be viewed at virtually any angle.

OUTSTANDING VISIBILITY

Long Lasting Brightness

By adding more LED units, XE4F operates brighter at a lower temperature, thereby lasting longer than conventional products.

OUTSTANDING VISIBILITY

Visible with Polarized Sunglasses

QWP* enables clear visibility even when the viewer is wearing polarized sunglasses.

* Quarter Wave Plate

RELIABILITY FOR OUTDOOR USAGE

Secured Protection with IP56 Design

The display is sealed with IP56 design for reliable operation. It's designed to be not only waterproof but also weatherproof against the damaging effects of the sun, rain, snow, dust and wind, an essential feature for outdoor application.

RELIABILITY FOR OUTDOOR USAGE

Protective Glass (IK10 Certified)

The tempered and laminated front glass ensures optimum protection from outdoor extremities, resulting in minimal to no damage from external impacts.

* The image is for illustrative purposes only
* IK rating refers to the deqree of resistance against external impacts on a scale of 0 to 10. (10 indicates the highest level of protection.).

EASY MAINTENANCE

Support HDBaseT ™

XE4F Series support HDBaseT ™, the global standard for the transmission of ultra-high definition video & audio, Ethernet, controls, USB and IR over a single, long-distance cable, for easier control of the display and saving installaiton and maintenance costs.

* XE4F Series don't support the power supply

EASY MAINTENANCE

Web Monitoring

This web-based monitoring solution is user-friendly and allows the user to be at ease. It enables the user to have full access anywhere at anytime from their mobile phone while having access to both current and past data. It allows the user to monitor the unit, make adjustments, and control the unit remotely in real time.

* The image is for illustative purposes only

USER SCENE

PANEL

Screen Size

49

Panel Technology

IPS, M+(WRGB)
Backlight Type

Direct

Aspect Ratio

16 : 9
Native Resolution

1,920 x 1,080 (FHD, WRGB)

Brightness (Typ., cd/m²)

4000
Brightness (Min., cd/m²)

3200

Contrast Ratio

1,300:1
Dynamic CR

500,000:1

Viewing Angle (H x V)

178 x 178
Response Time

Typ. 8ms (G to G BW)

Surface Treatment (Haze, Quarter Wave Plate)

Haze 3%, QWP
Local dimming

48 Blocks

Life Time (Typ.)

50,000 Hrs
Operation Hours

24 Hrs

Orientation

Portrait & Landscape

CONNECTIVITY

Input

HDMI(2), DP, HDBaseT, USB(2)

Output

External Speaker Out(L/R)
External Control

RS232C In/Out, RJ45(LAN) In/Out

PHYSICAL SPECIFICATION

Protection Glass

5mm(IK 10, Degree of Protection, Tempered,Anti-Reflective)

Bezel Color

Black
Bezel Width

38.4mm(T/B), 26.0mm(L/R)

Monitor Dimension (W x H x D)

656.2 x 1153x 88.0mm
Weight (Head)

32Kg (TBD)

Packing Dimensions (W x H x D)

1,286 x 797 x 207mm
Packed Weight

37Kg (TBD)

Handle

X

ENVIRONMENT CONDITIONS

Operation Temperature

-30°C to 50 °C

Operation Humidity

5 % to 100 %

POWER

Power Supply

100-240V~, 50/60Hz

Power Type

Built-In Power

POWER CONSUMPTION

Typ.

300W (Full White)
144W (IEC 62087)

Max

370W

STANDARD(CERTIFICATION)

Safety

IEC 60950-1 / EN 60950-1 / UL 60950-1

EMC

FCC Class "A" / CE / KCC
ErP / Energy Star

No / NA

SOFTWARE COMPATIBILITY

SuperSign

Yes(CMS, Control)

Signage365Care

Yes

ACCESSORY

Basic

Remote Controller, Manual(EIG, IG , OM), Regulation Book, Phone to RS232C Gender, HDMI Cable , POWER CABLE

COMPLIANCE INFORMATION

More Compliance Information

The safety information for accessories is included with the safety information for the product and is not provided separately.
