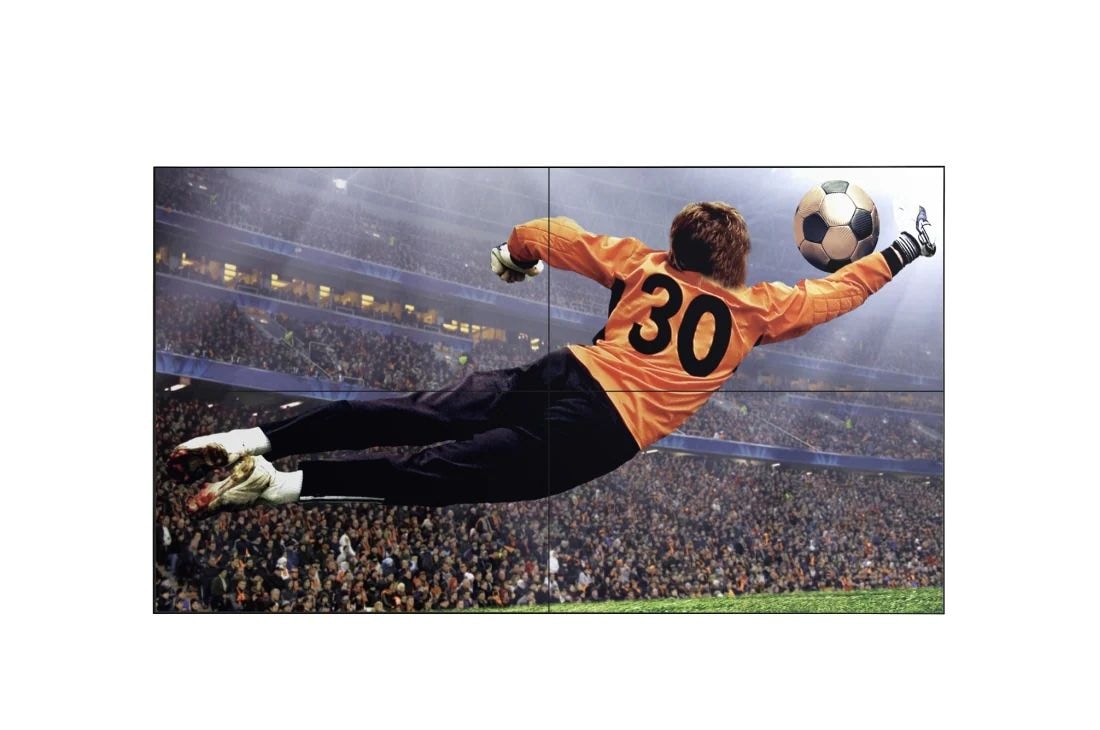

49'' 500 nits FHD Slim Bezel Video Wall

Key Features

component-OBScountrySelectDesc

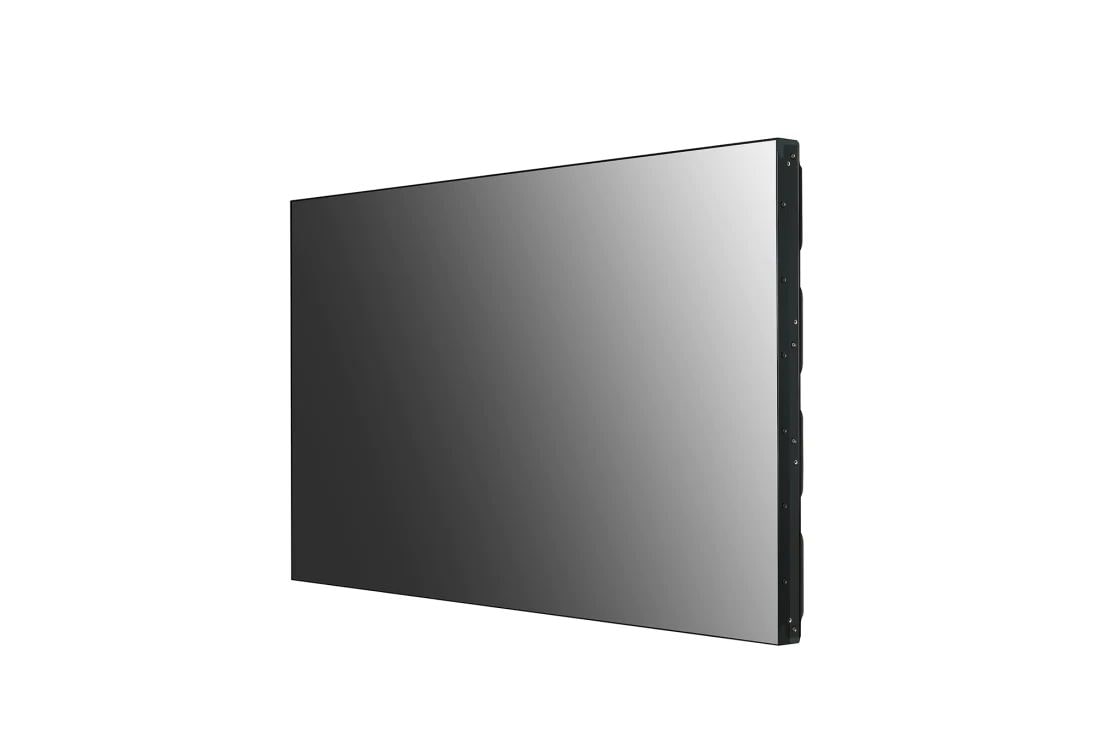

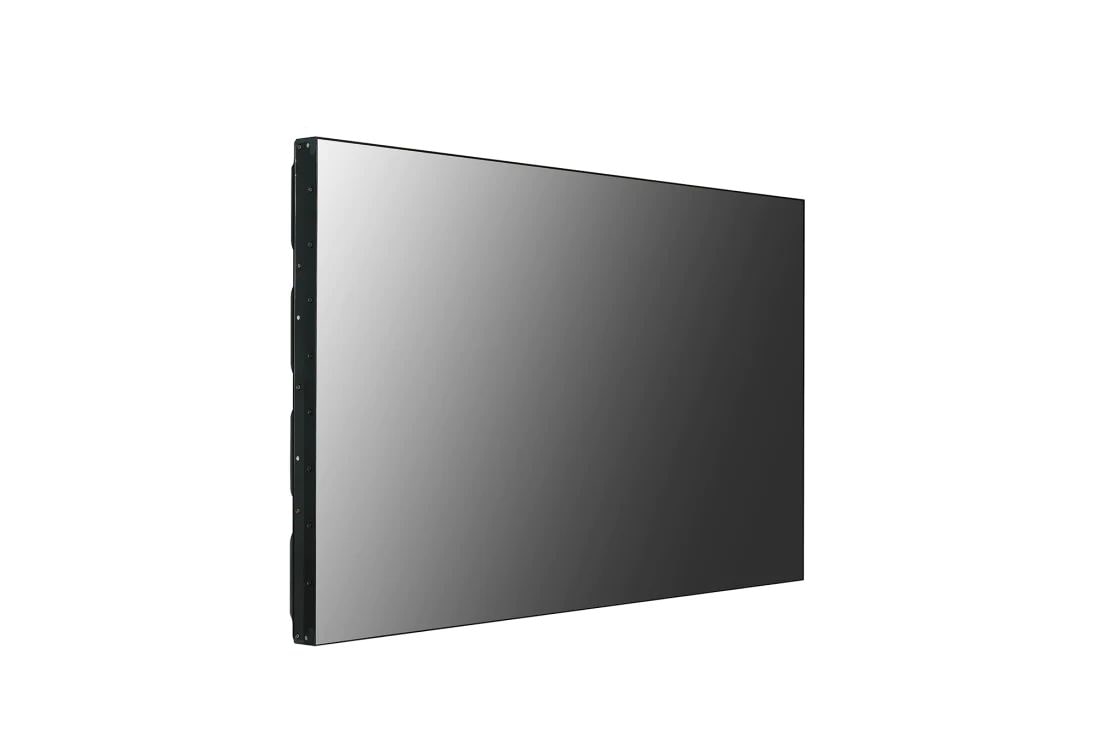

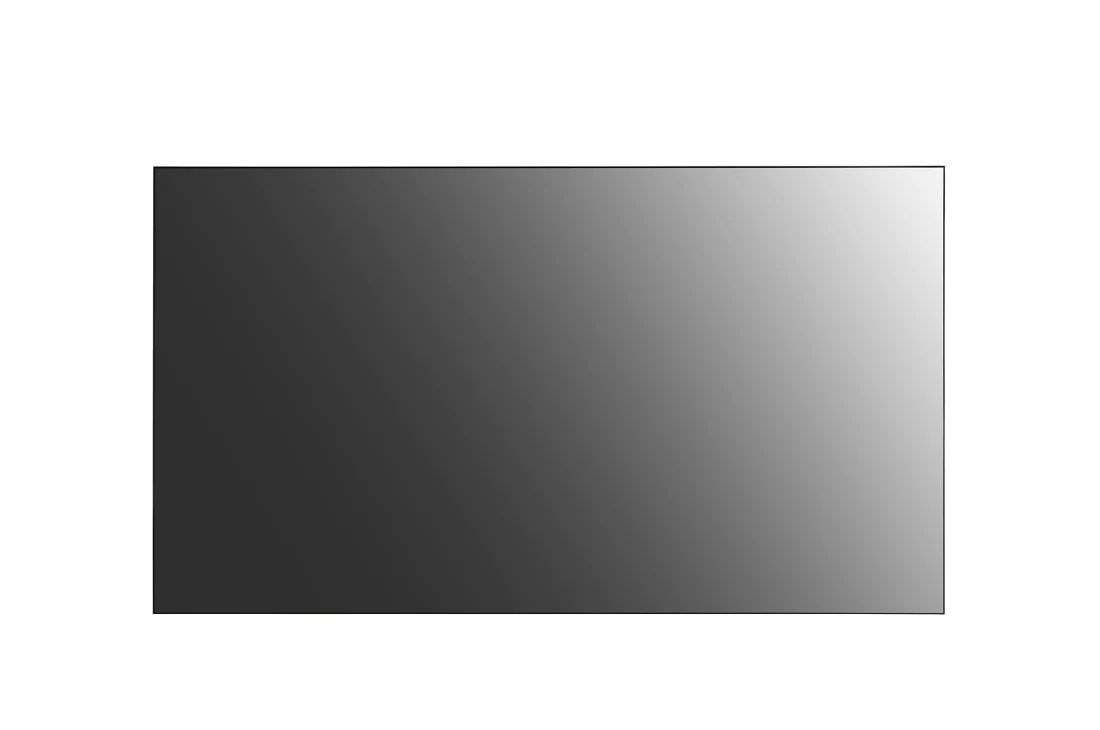

49'' 500 nits FHD Slim Bezel Video Wall
PANEL
  • Screen Size
    49"
    Panel Technology
    IPS
  • Back Light Type
    Direct
    Aspect Ratio
    16 : 9
  • Native Resolution
    1,920 x 1,080 (FHD)
    Refresh Rate
    60Hz
  • Brightness
    500nit (Typ.)
    Contrast Ratio
    1,000:1
  • Dynamic CR
    500,000:1
    Color Gamut
    NTSC 72%

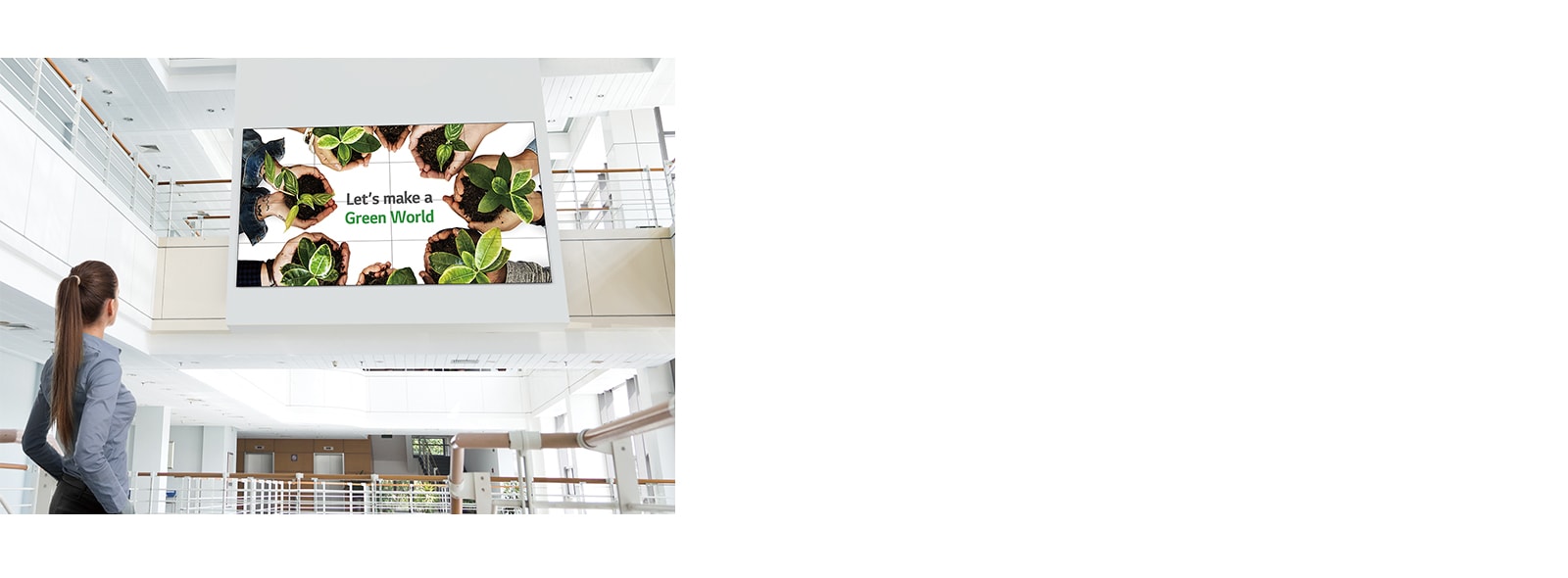

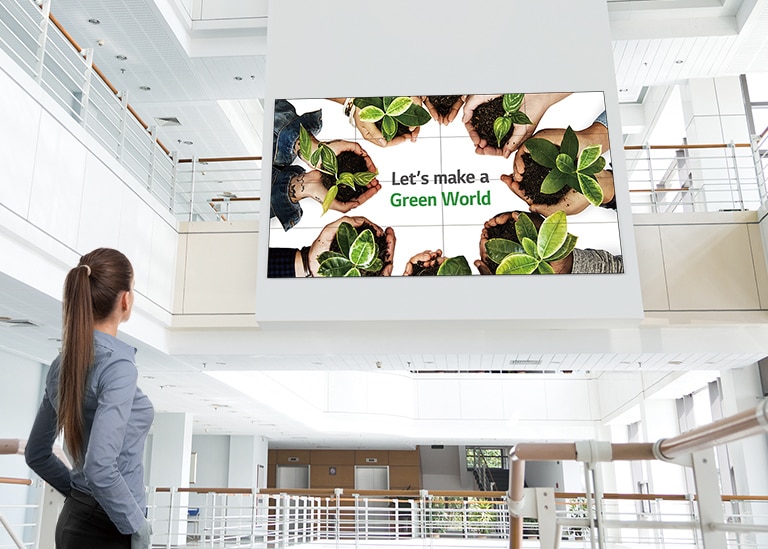

  • Viewing Angle(H x V)
    178 x 178
    Color Depth
    10bit, 1.07Billion colors
  • Response Time
    8ms (G to G)
    Surface Treatment(Haze)
    3%
  • Life time
    60,000Hrs (Typ.) / 50,000Hrs (Min.)
    Operation Hours (Hours/Day)
    24/7
  • Portrait / Landscape
    Yes / Yes
CONNECTIVITY
  • Input
    HDMI (2, HDCP 1.4), DP (1, HDCP 1.3),DVI-D (1, HDCP 1.4) Audio In, RS232C IN, RJ45(LAN), IR IN, USB2.0 Type A (1)
    Output
    DP Out, Audio Out, RS232C OUT
MECHANICAL SPECIFICATION
  • Bezel Color
    Black

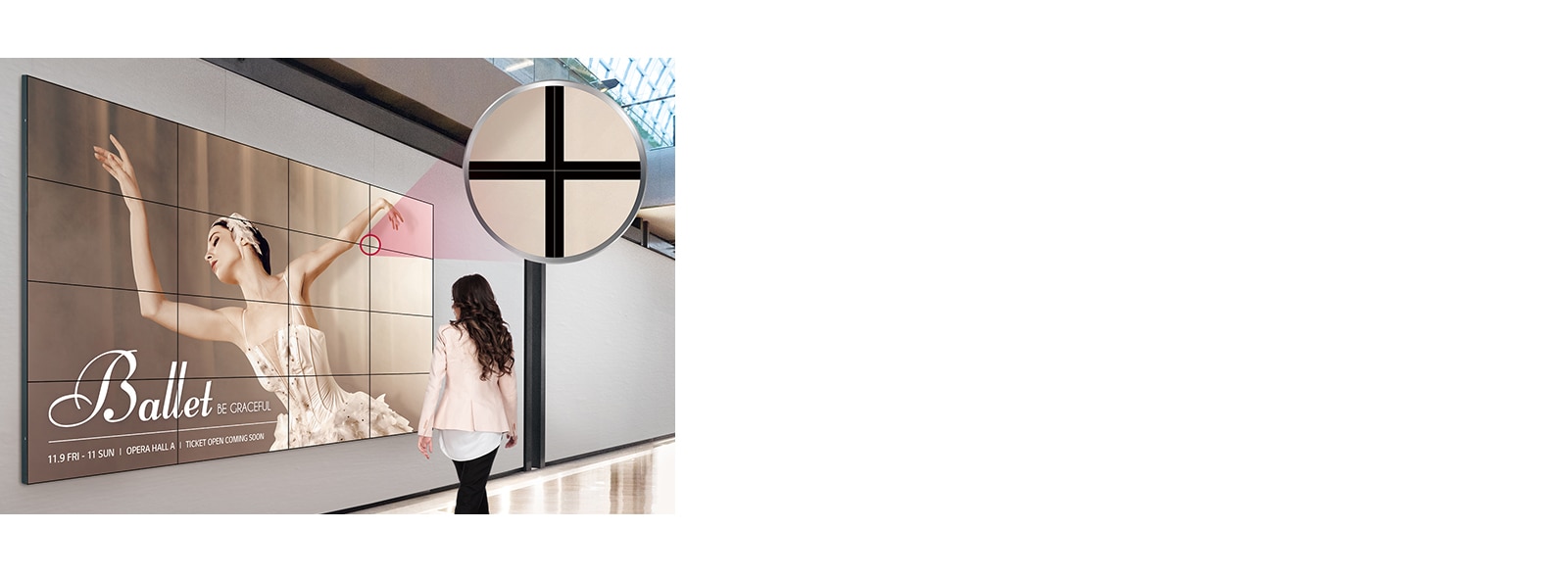

    Bezel Width

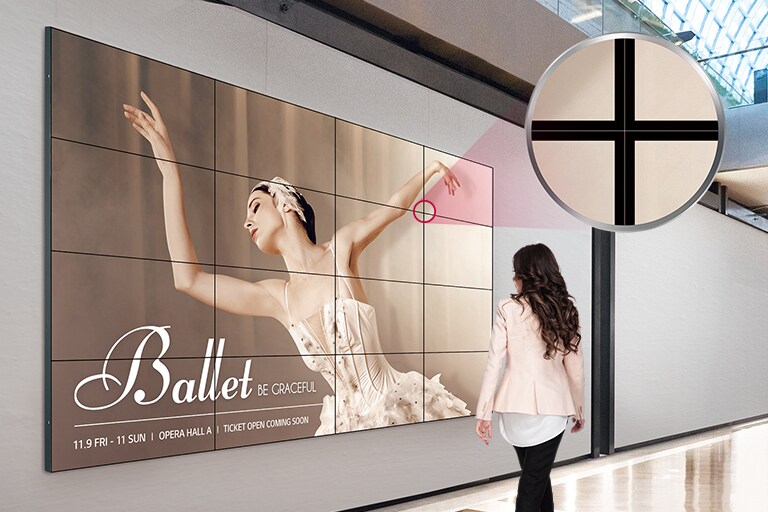

    T/R/L/B : 2.25/1.25/2.25/1.25mm
  • Weight(Head)
    16.9Kg
    Packed Weight
    29.3kg

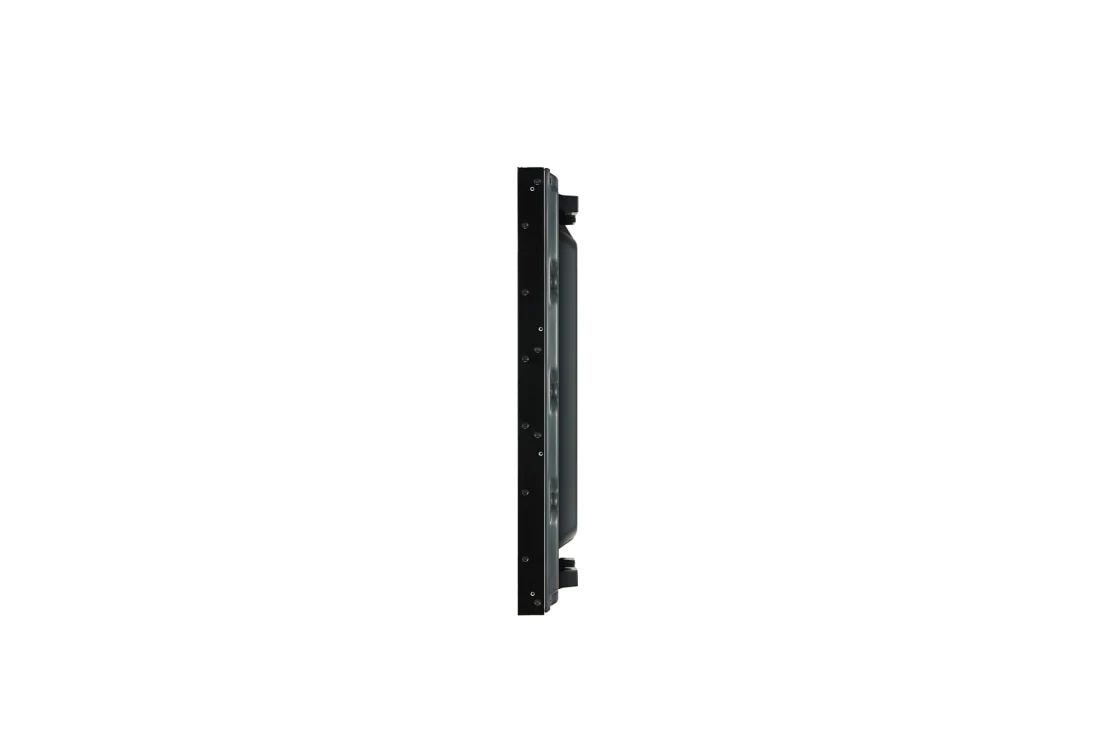

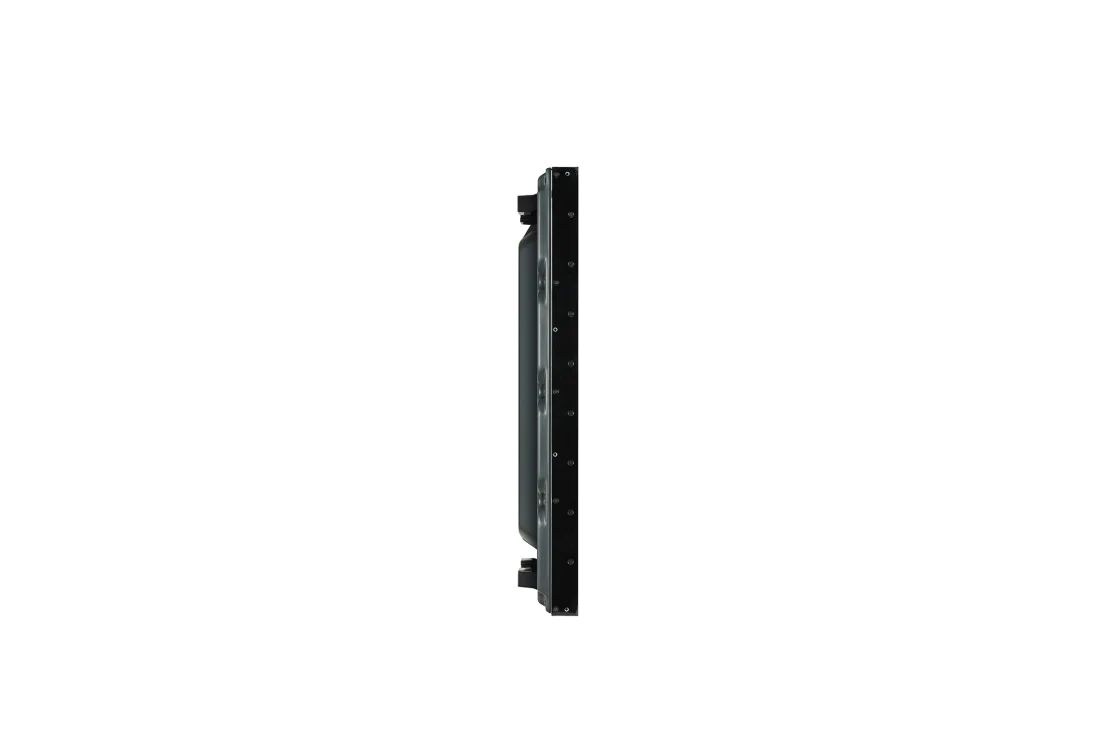

  • Monitor Dimension(W x H x D)
    1077.6 x 607.8 x 89.7mm
    Carton Dimensions(W x H x D) (Box outer size)
    1214 x 778 x 263mm
  • Handle
    Yes

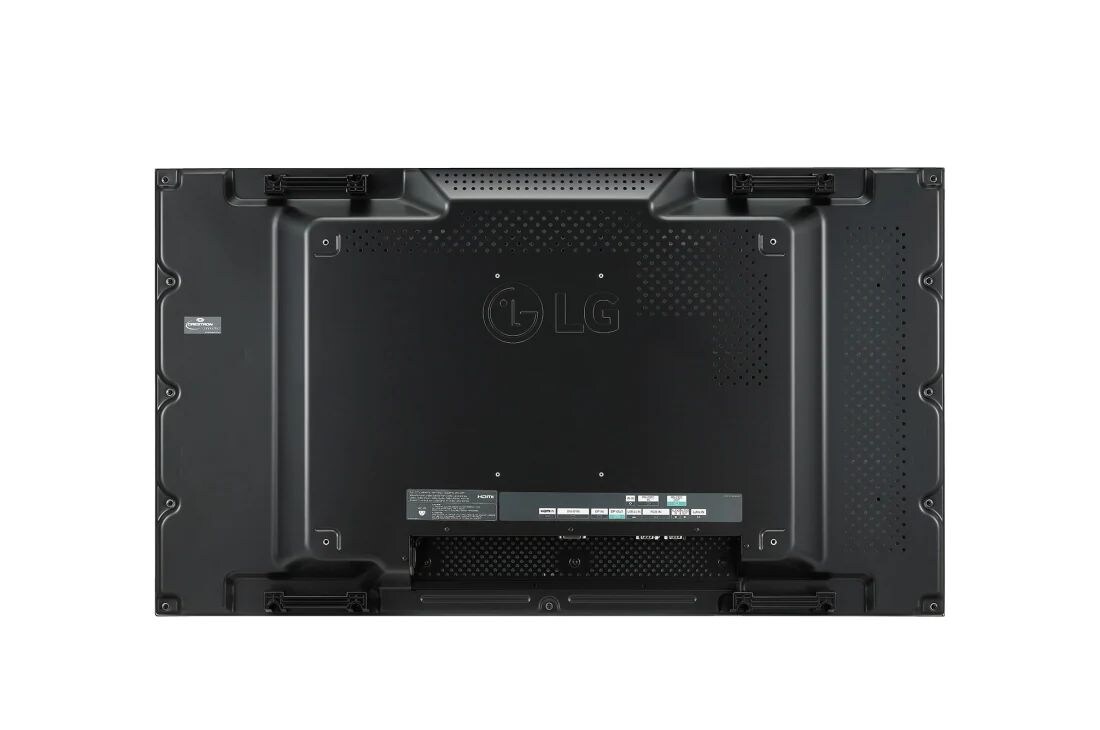

    VESA™ Standard Mount Interface
    600 x 400
KEY FEATURE
  • HW - Sensor - Temperature Sensor
    Yes
    SW - Embedded CMS - Local Contents Scheduling
    Yes
  • SW - USB Plug & Play
    Yes
    SW - Fail over
    Yes
  • SW - Background Image - Booting Logo Image
    Yes
    SW - Background Image - No Signal Image
    Yes
  • SW - Sync Mode - RS-232C Sync
    Yes
    SW - Rotation - Screen Rotation
    Yes
  • SW - Tile Mode Setting
    Yes(Max. 15x15)
    SW - Setting Data Cloning
    Yes
  • SW - SNMP
    Yes
    SW - ISM Method
    Yes
  • SW - Auto Set ID
    Yes
    SW - 3rd Party Compatibility - Crestron Inside
    Yes
  • SW - Smart Energy Saving
    Yes
    SW - PM mode
    Yes
  • SW - Wake on LAN
    Yes
    SW - HDMI-CEC
    Yes
  • SW - SI Server Setting
    Yes

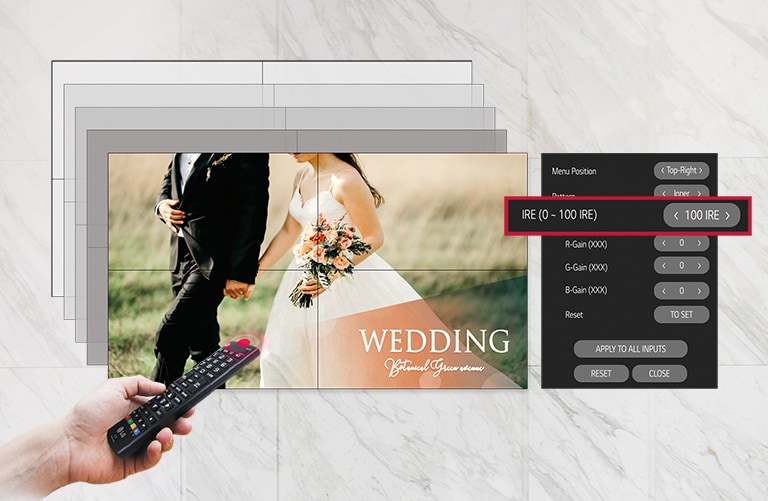

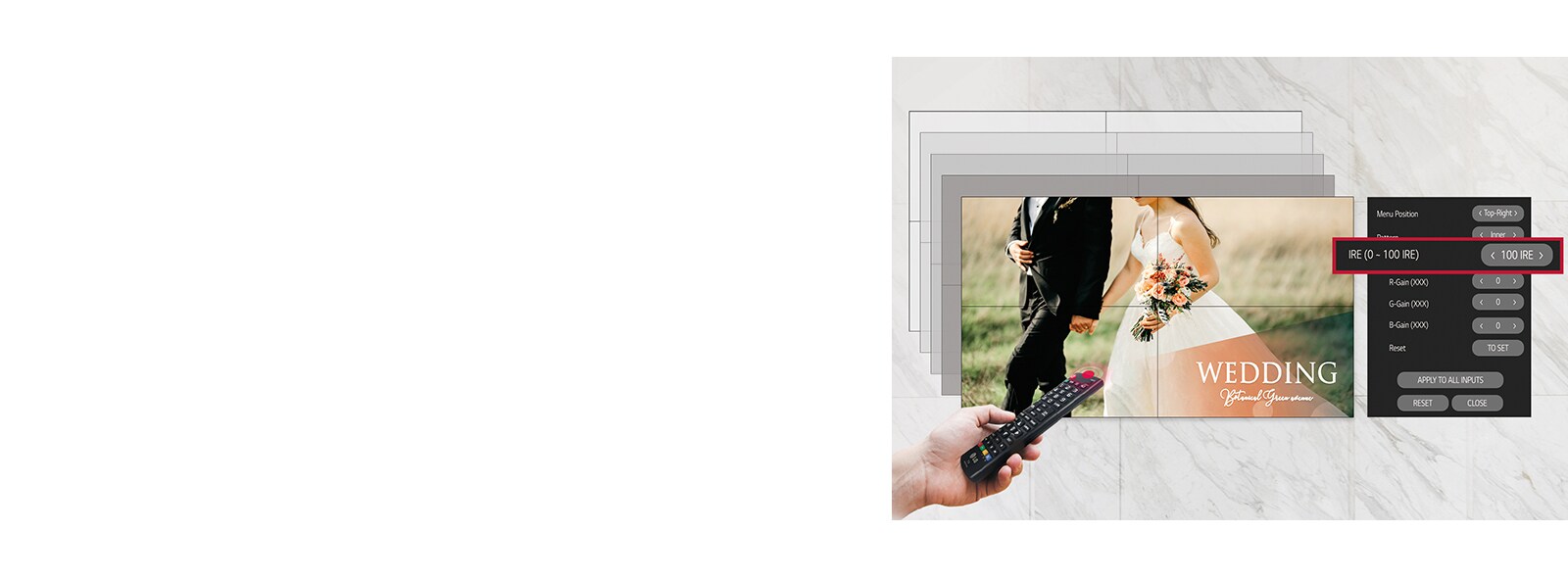

    SW - W/B Setting by Grey scale
    Yes
  • SW - Scan Inversion
    Yes
ENVIRONMENT CONDITIONS
  • Operation Temperature
    0 °C to 40 °C
    Operation Humidity
    10 % to 80 %
POWER
  • Power Supply
    AC 100-240V~, 50/60Hz
    Power Type
    Built-In Power
POWER CONSUMPTION
  • Typ.
    100W
    Max.
    120W
  • BTU (British Thermal Unit)
    341 BTU/Hr(Typ.), 409 BTU/Hr(Max)
    Smart Enegy Saving
    60W
  • DPM
    0.5W
    Power off
    0.5W
CERTIFICATION
  • Safety
    CB / NRTL
    EMC
    FCC Class "A" / CE / KC
  • ErP
    Yes
SOFTWARE COMPATIBILITY
  • SuperSign CMS
    Yes
    SuperSign Control / Control+
    Yes / Yes
  • SuperSign WB
    Yes
    SuperSign Media Editor
    Yes
  • Connected Care
    Yes
Language
  • OSD
    English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Japanese, Russian, Portugues(Europe), Dutch, Czech, Greek, Arabic
ACCESSORY
  • Basic
    Remote Controller(include battery 2ea), Power Cord, RS232C cable, DP cable, IR Receiver, Guide Bracket, Screws, Manual
    Optional
    Wall Mount ( Landscape : WM-L640V, Portrait : WM-P640V)
COMPLIANCE INFORMATION
  • The safety information for accessories is included with the safety information for the product and is not provided separately.
