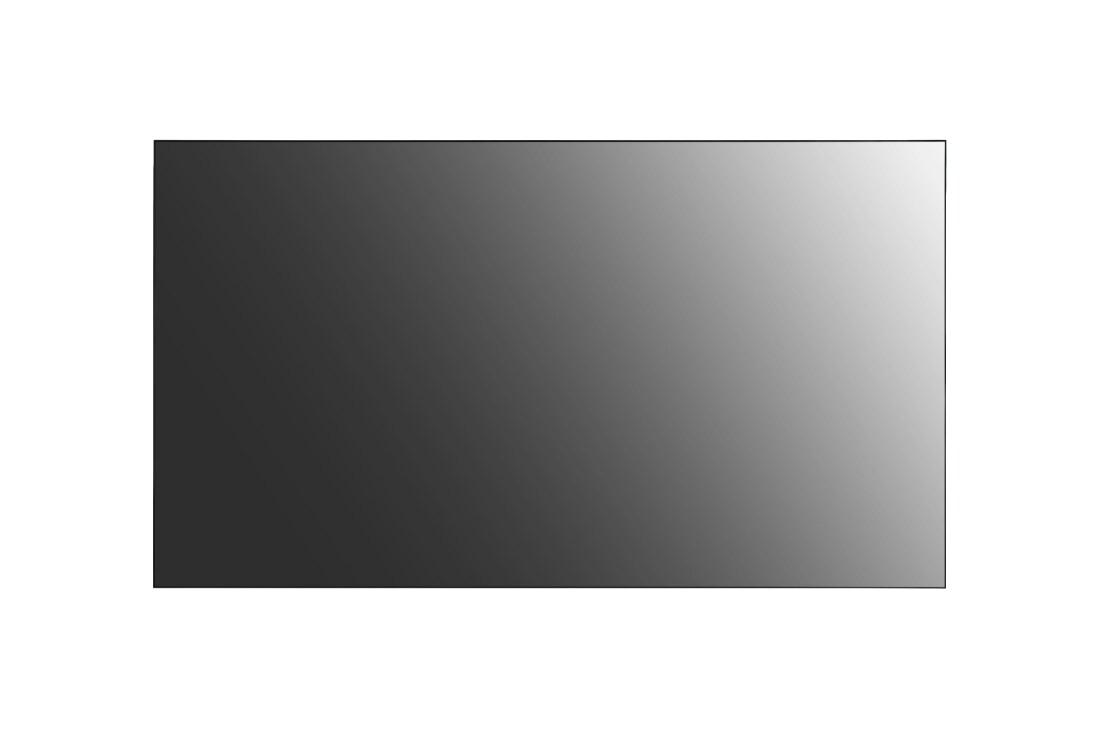

LG 2023 LG 49inch Digital Signage, VL7F Series, VL7F Series, 49VL7F-A, thumbnail 1

LG 2023 LG 49inch Digital Signage, VL7F Series, VL7F Series, 49VL7F-A, thumbnail 2

LG 2023 LG 49inch Digital Signage, VL7F Series, VL7F Series, 49VL7F-A, thumbnail 3

LG 2023 LG 49inch Digital Signage, VL7F Series, VL7F Series, 49VL7F-A, thumbnail 4

LG 2023 LG 49inch Digital Signage, VL7F Series, VL7F Series, 49VL7F-A, thumbnail 5

LG 2023 LG 49inch Digital Signage, VL7F Series, VL7F Series, 49VL7F-A, thumbnail 6

LG 2023 LG 49inch Digital Signage, VL7F Series, VL7F Series, 49VL7F-A, thumbnail 7

LG 2023 LG 49inch Digital Signage, VL7F Series, VL7F Series, 49VL7F-A, thumbnail 8

ADD TO WISHLIST

Discontinued

49VL7F-A component-copyModelName

2023 LG 49inch Digital Signage, VL7F Series

Name: 2023 LG 49inch Digital Signage, VL7F Series
Brand: LG UAE
SKU: 49VL7F-A
Rating: 0 (0 reviews)

Key Features

Brightness(Typ.) : 700 cd/m²
Bezel : 2.3 mm (T/L), 1.2 mm (B/R)
Depth : 89.7 mm
Interface : HDMI/ DP/ DVI-D/ RGB/ USB/ RS232C/ RJ45/ Audio/ IR

Find a Dealer

Add to Compare

component-OBScountrySelectDesc

Key Features

Brightness(Typ.) : 700 cd/m²
Bezel : 2.3 mm (T/L), 1.2 mm (B/R)
Depth : 89.7 mm
Interface : HDMI/ DP/ DVI-D/ RGB/ USB/ RS232C/ RJ45/ Audio/ IR

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

2023 LG 49inch Digital Signage, VL7F Series

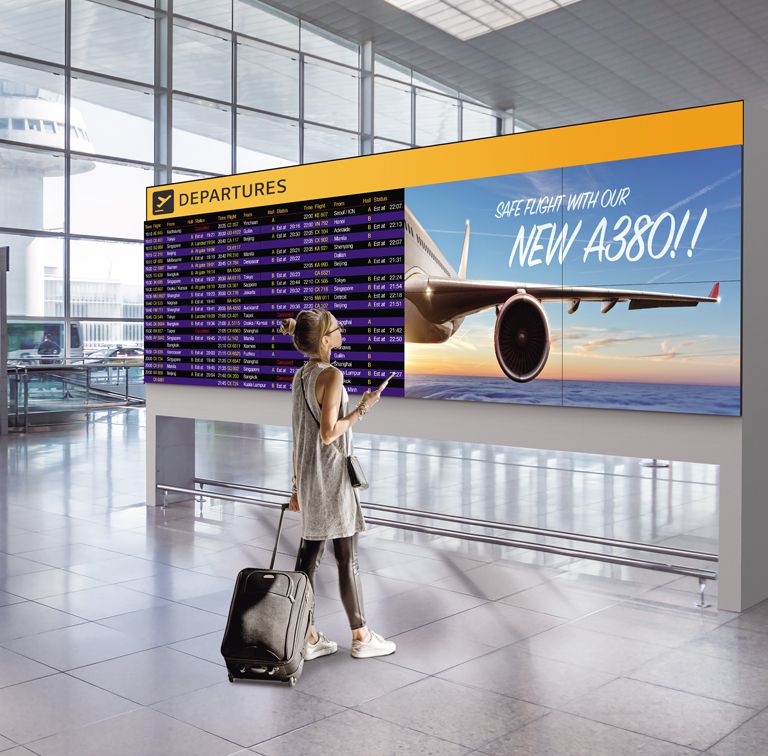

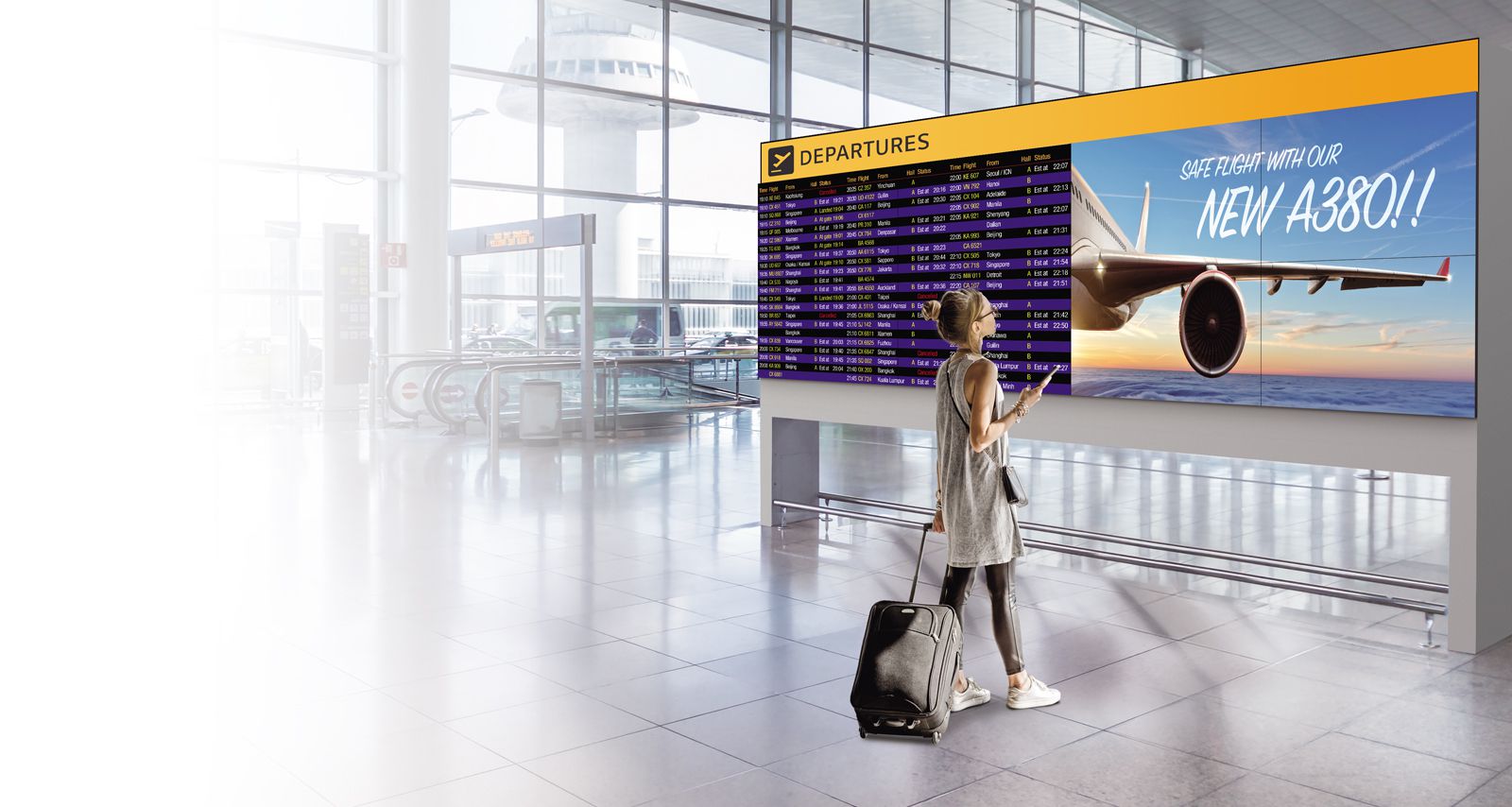

Incredible Immersion with Ultra-Narrow Bezel

The 49VL7F provides all-encompassing screen immersion thanks to its ultra-narrow 3.5mm bezel-to-bezel, while its high brightness delivers clear and vivid content even under bright lightihg.

Seamless Large Screens with Ultra-Narrow Bezel

Achieving Incredible Immersion

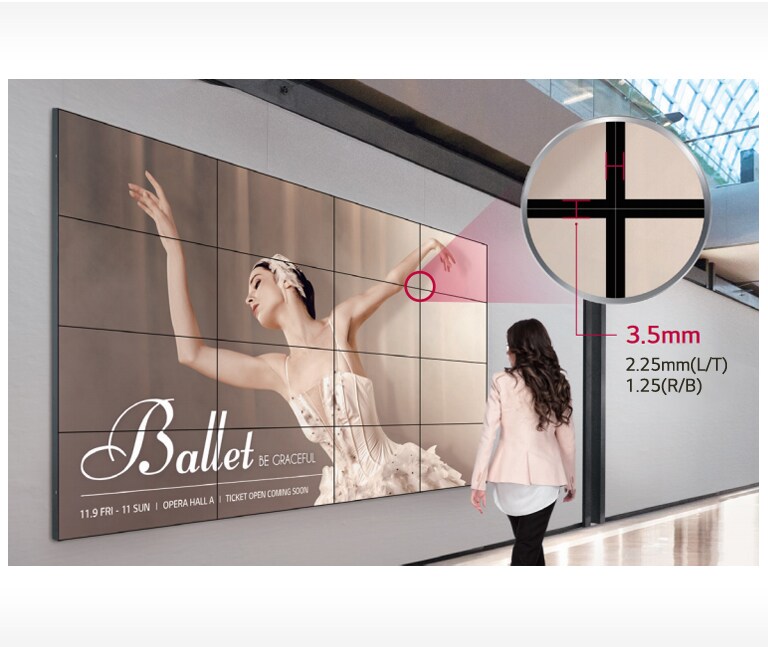

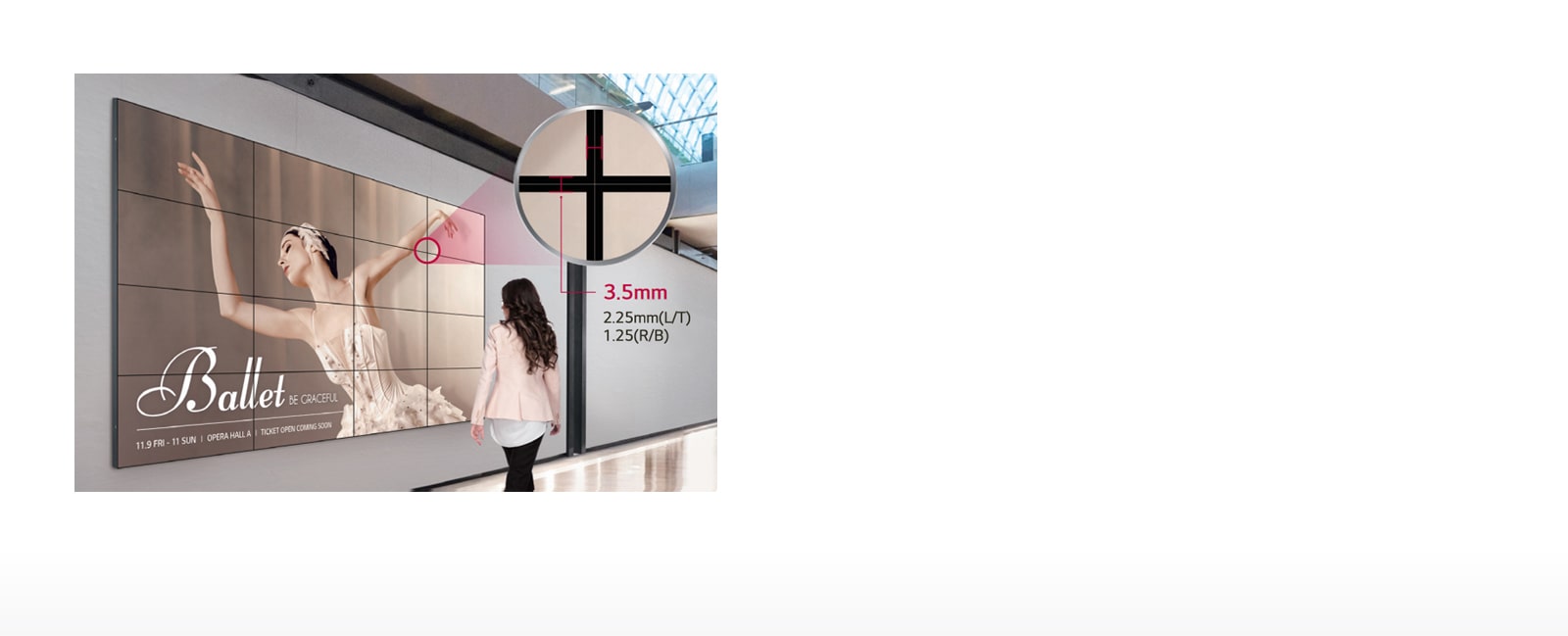

Seamless Large Screens with Ultra-Narrow Bezel

The ultra-narrow bezel creates a visually stunning digital wall to effectively deliver dynamic content and immerse the viewers. The large screen it generates is enough to captivate the attention of passersby.

Achieving Incredible Immersion

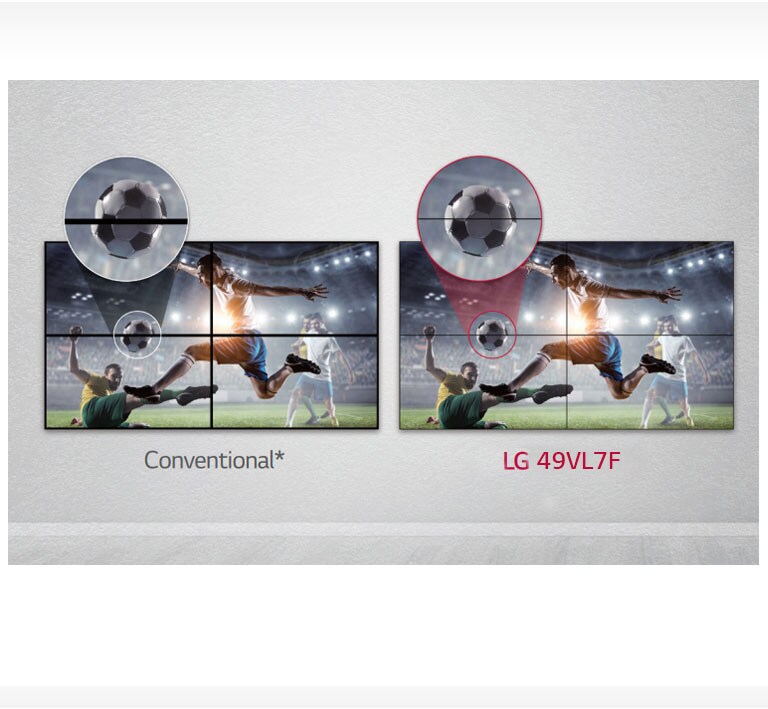

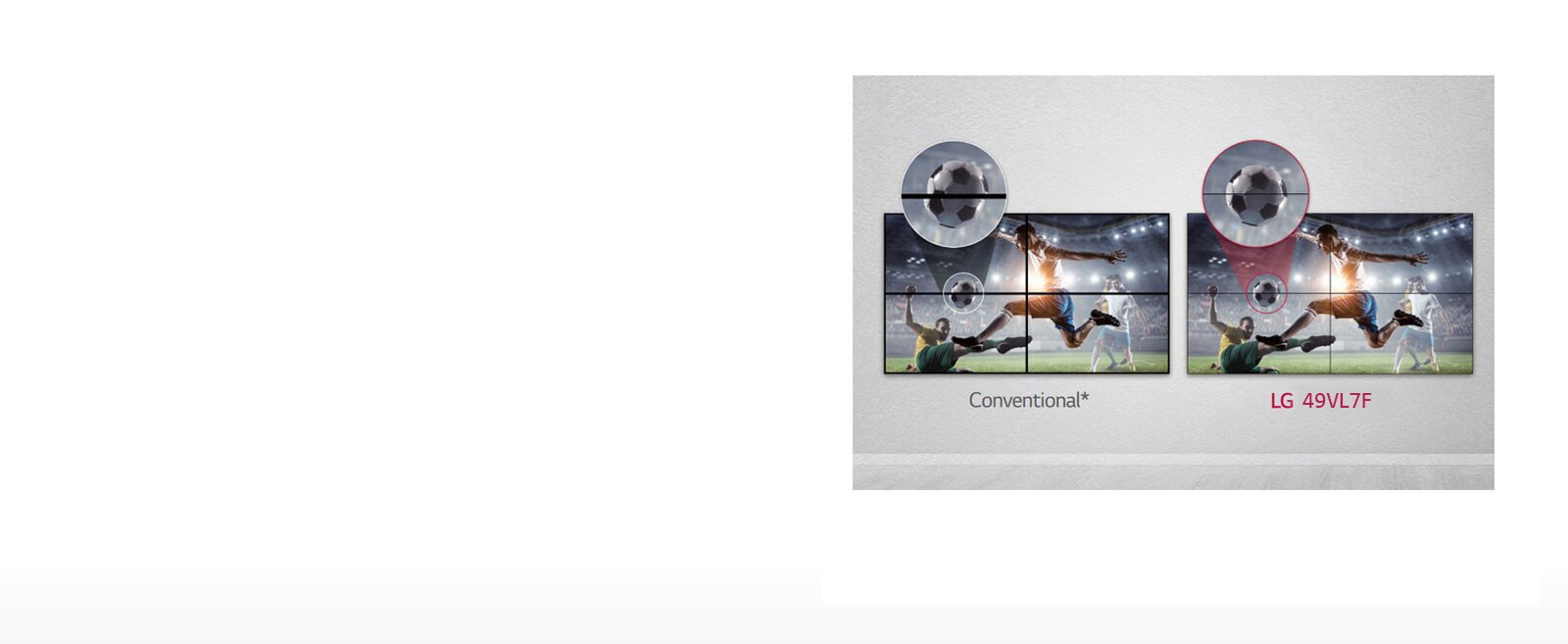

Image Gap Reduction

The 49VL7F includes an image improvement algorithm that can reduce image gaps among tiled displays when playing back videos. Objects located on the bezel boundaries are adjusted for a seamless viewing experience.

Vivid and Dynamic Picture Quality

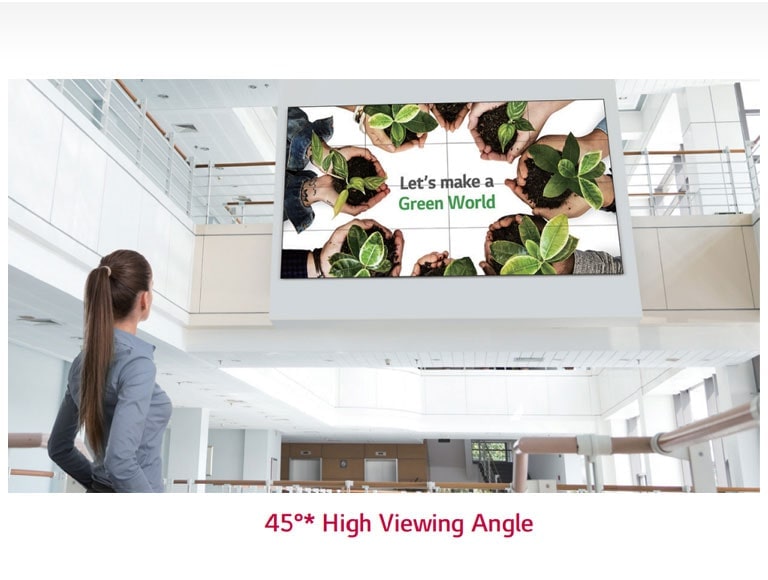

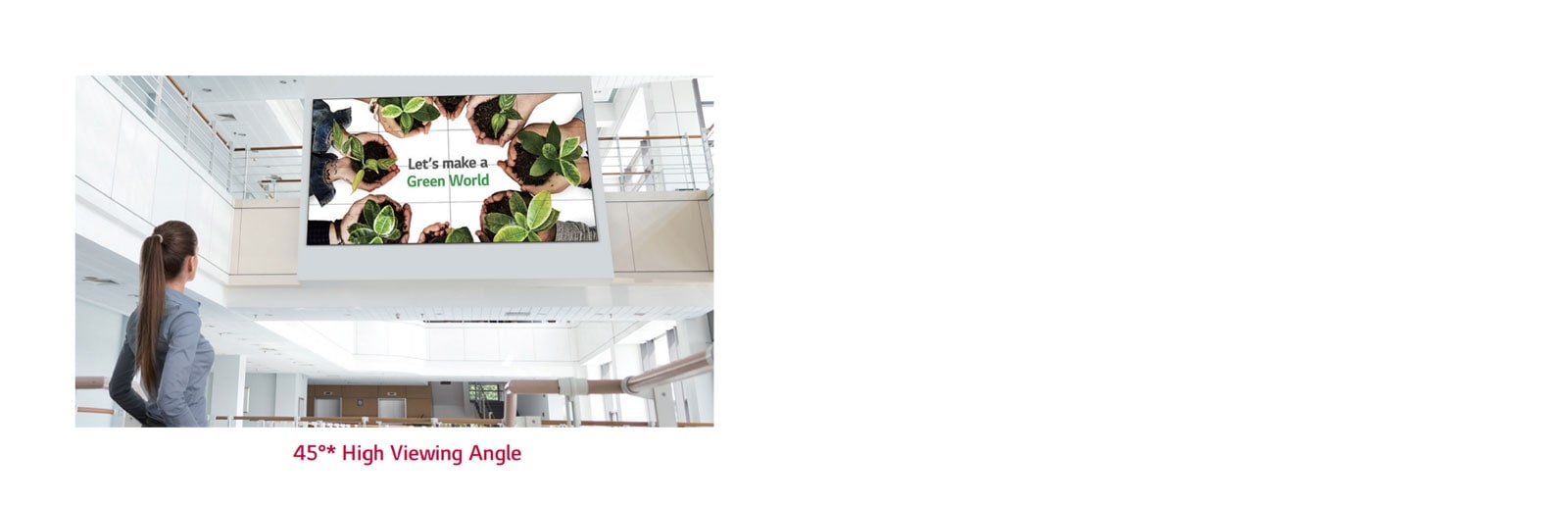

Higher Viewing Angle

Large screens are usually positioned higher than human-eye level, making uniform picture quality essential for video walls. The viewing angle of the 49VL7F is high enough to display vivid colors throughout the screen with no distortion.

Vivid and Dynamic Picture Quality

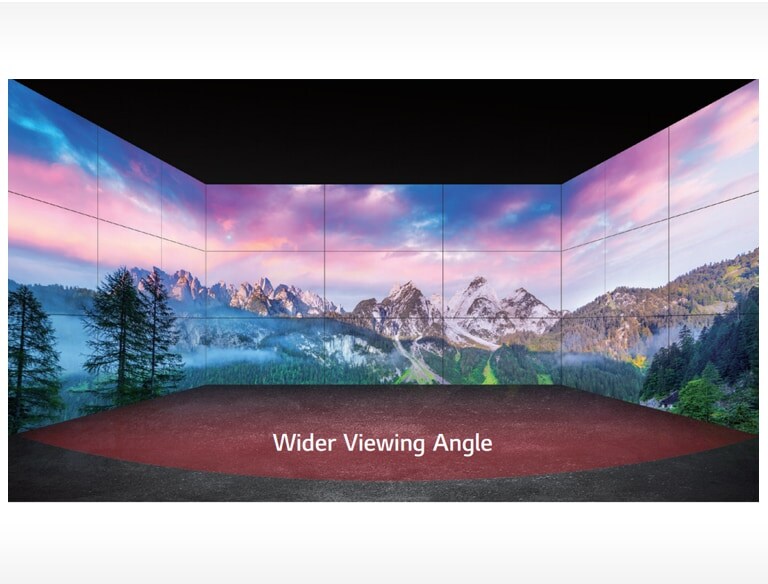

Wider Viewing Angle

It is well known that LG IPS panel technology enables better control of liquid crystals, which in turn allows the screen to be viewed from virtually any angle. Because of this, the 49VL7F captures the attention of and captivates more viewers with lifelike colors, regardless of their viewing position.

User Convenience

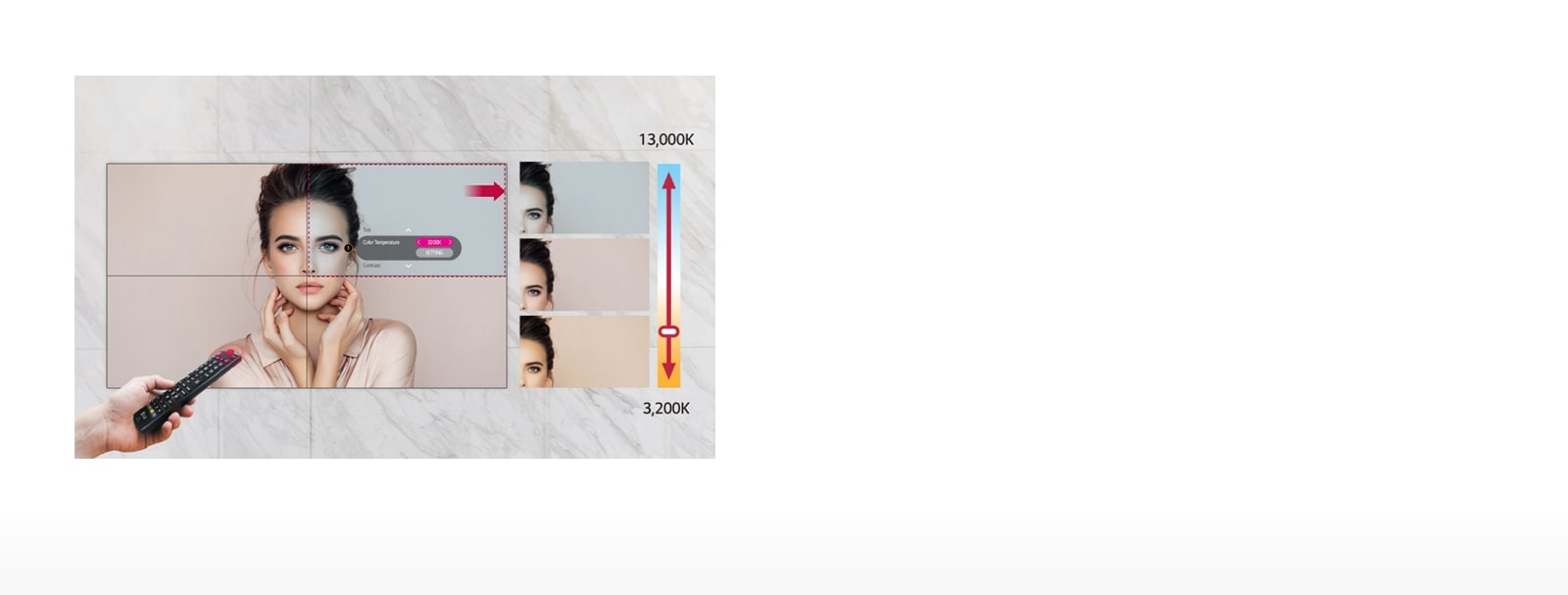

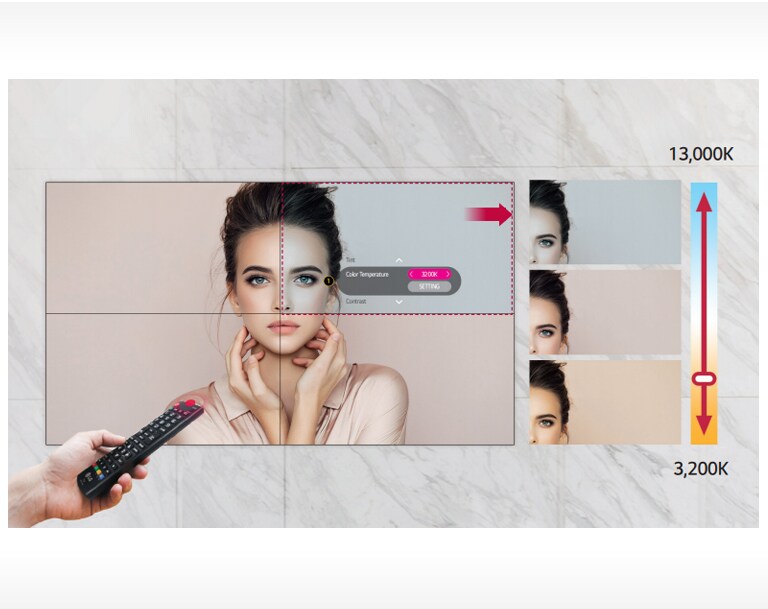

Easy Color Adjustment

Depending on the content, the color temperature of the display can be easily adjusted in increments of 100K using a remote control.

User Convenience

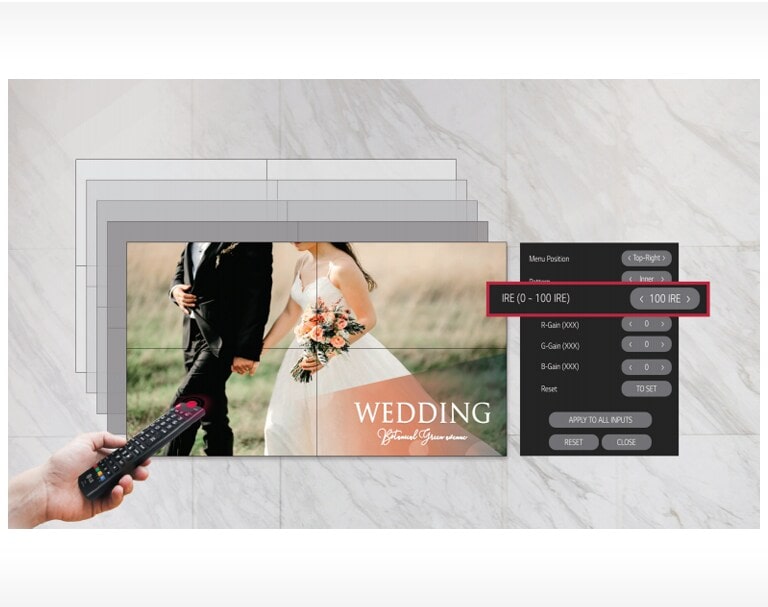

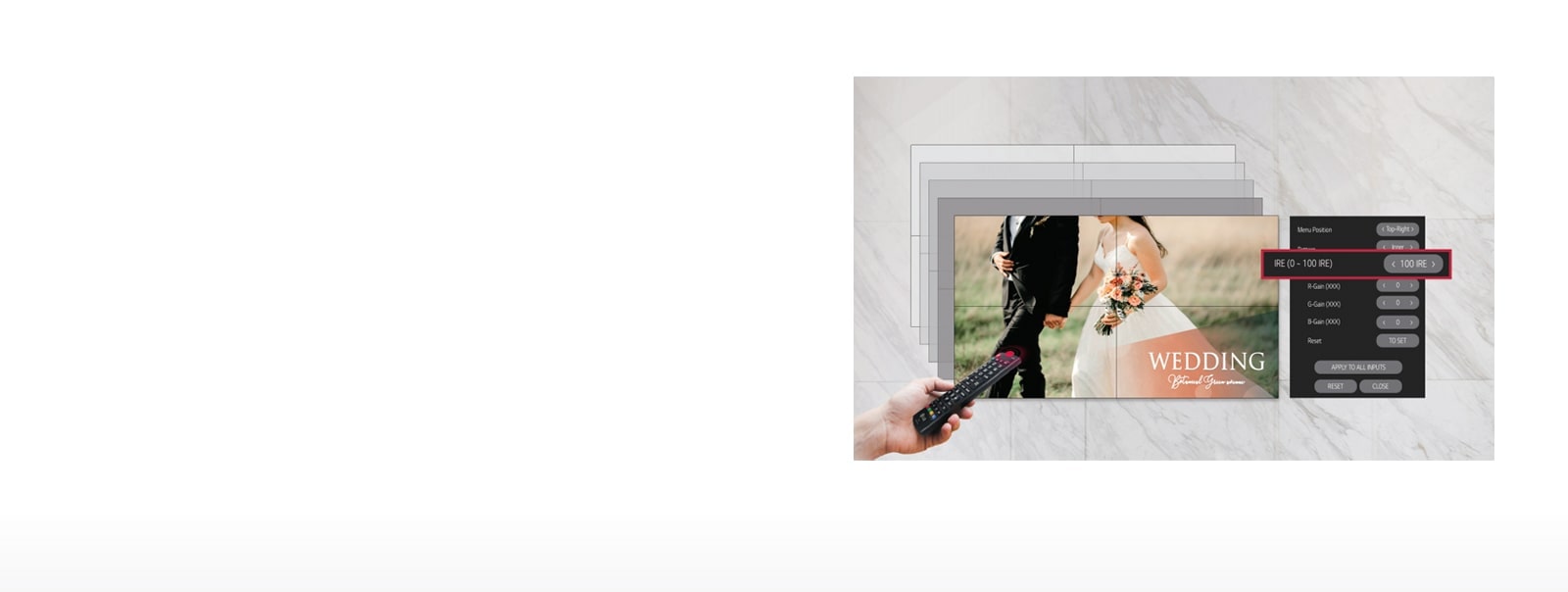

Simple White Balance Adjustment

In conventional video walls, white balance was adjustable only in “full-white” mode, but the 49VL7F allows you to modify each value of grey scale to achieve more detailed and precise white balance adjustment.

User Convenience

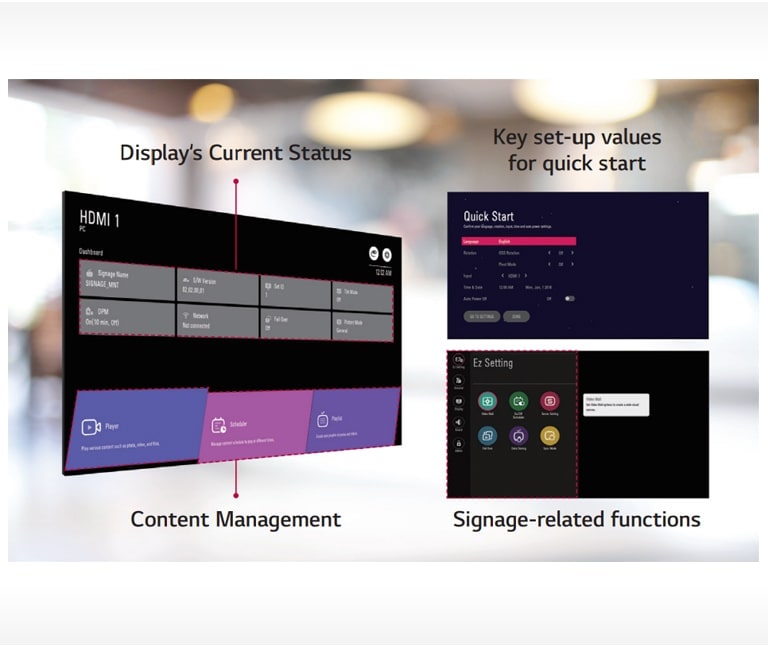

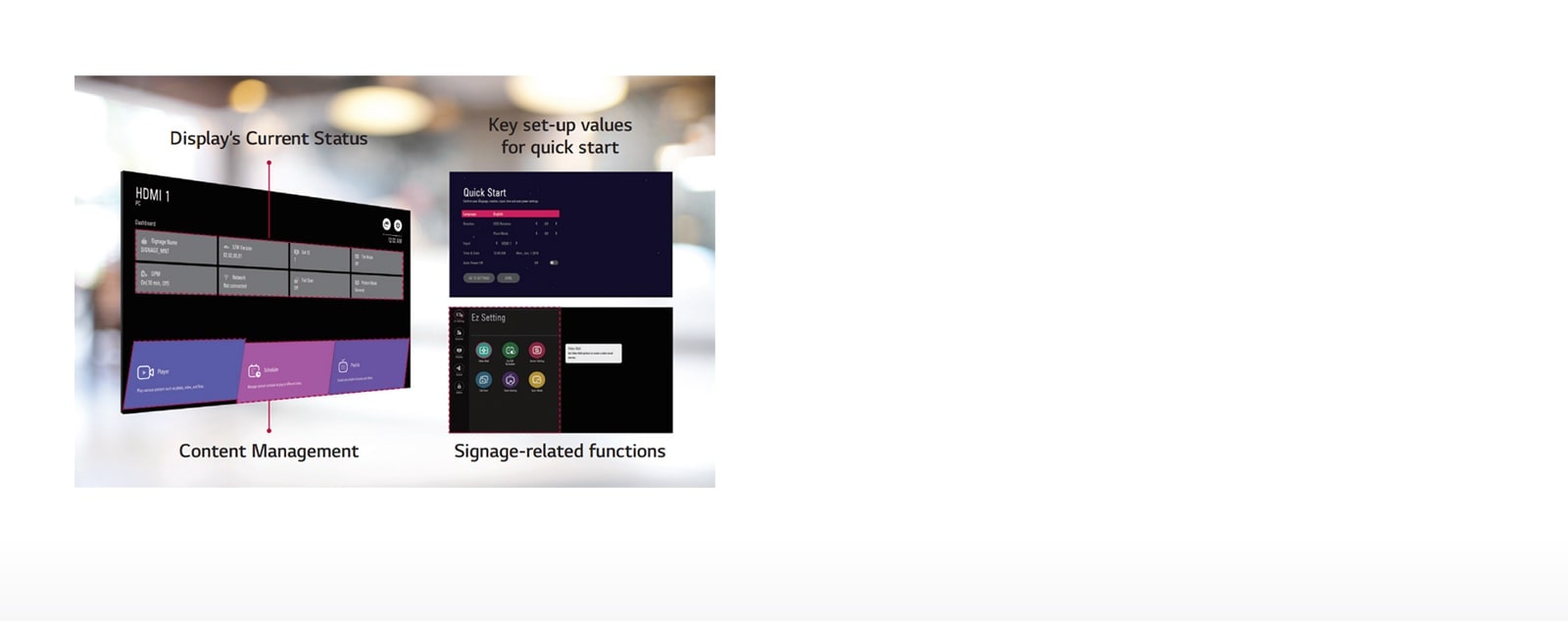

User-Friendly Menu Structure

The menu structure has been optimized for commercial use. It simplifies approach flows and groups similar functions together, adopting a more intuitive GUI for ease of use. This way, users can avoid having to do trial-anderror when exploring desired functions and managing displays.

User Convenience

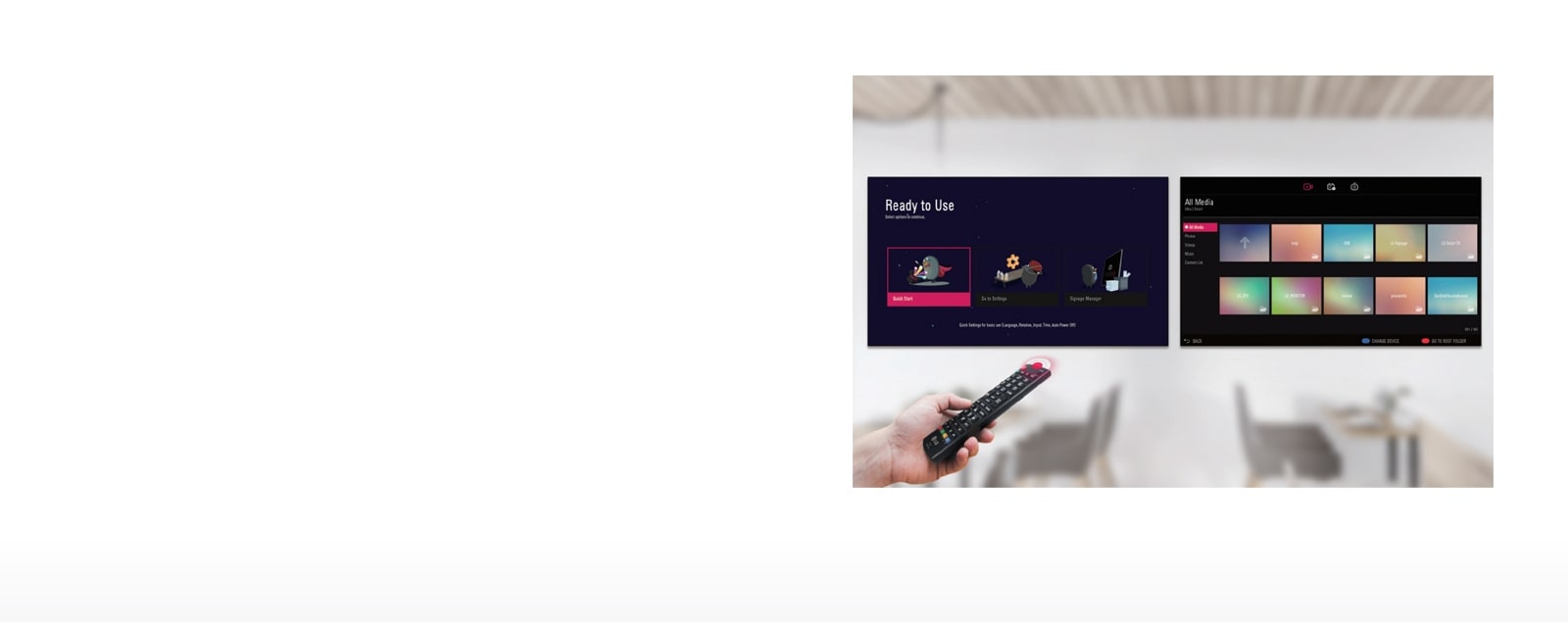

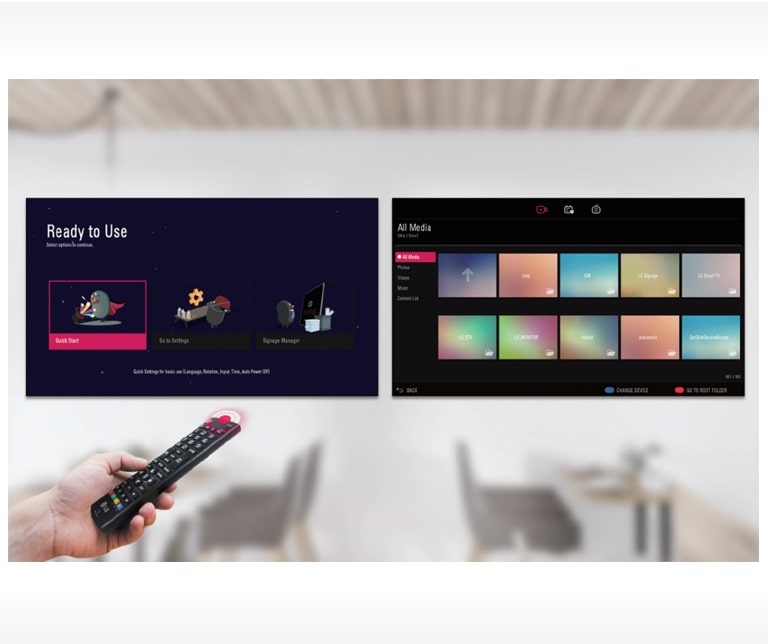

Intuitive GUI

The GUI^{(Graphic User Interface)} is carefully designed with a four-way navigation remote control that lets users easily switch to other settings. Also, it adopts a larger font for better visibility, which is necessary when users want to control displays from relatively far distances.

PANEL

Screen Size

49"

Panel Technology

IPS
Aspect Ratio

16:09

Native Resolution

1,920 x 1,080 (FHD)
Brightness (Typ., cd/m²)

700

Contrast Ratio

1,300:1
Dynamic CR

500,000 : 1 (The luminosity ratio of Full Black/Full White color on video input condition.)

Viewing Angle (H x V)

178 x 178
Response Time

8 ms (G to G)

Surface Treatment

3%
Life time (Typ.)

60,000 Hrs

Operation Hours

24 Hrs
Orientation

Landscape & Portrait

CONNECTIVITY

Input

HDMI, DP, DVI-D, RGB, Audio, USB

Output

DP, Audio
External Control

RS232C In/out, RJ45(LAN) In, IR In

MECHANICAL SPECIFICATION

Bezel Color

Black

Bezel Width

2.25 mm (T/L), 1.25 mm (B/R)
Monitor Dimensions (W × H × D)

1,077.6 x 607.8 x 89.7 mm

Weight (Head)

17.8 kg
Carton Dimensions (W × H × D)

1,214 x 778 x 263 mm

Packed Weight

22.8 kg
Handle

Yes

VESA™ Standard Mount Interface

600 x 400 mm

ENVIRONMENT CONDITIONS

Operation Temperature

0°C to 40°C

Operation Humidity

10 % to 80 %

POWER

Power Supply

100-240V~, 50/60Hz

Power Type

Built-In Power

POWER CONSUMPTION

Typ./Max

140 W / 165 W

Smart Energy Saving

75 W

CERTIFICATION

Safety

CB / NRTL

EMC

FCC Class "A" / CE / KC
ErP / Energy Star

Yes (EU Only) / Yes (Energy Star 8.0)

MEDIA PLAYER COMPATIBILITY

OPS Type Compatible

No

SOFTWARE COMPATIBILITY

Content Management Software

SuperSign CMS

Control and Monitoring Software

SuperSign Control/Control+

ACCESSORY

Basic

Remote Controller, Power Cord, RS232C Cable, DP Cable, IR Receiver, Guide Bracket, Screws, Manual

Optional

Wall Mount (Landscape: WM-L640V, Portrait: WM-P640V)

COMPLIANCE INFORMATION

More Compliance Information

The safety information for accessories is included with the safety information for the product and is not provided separately.
