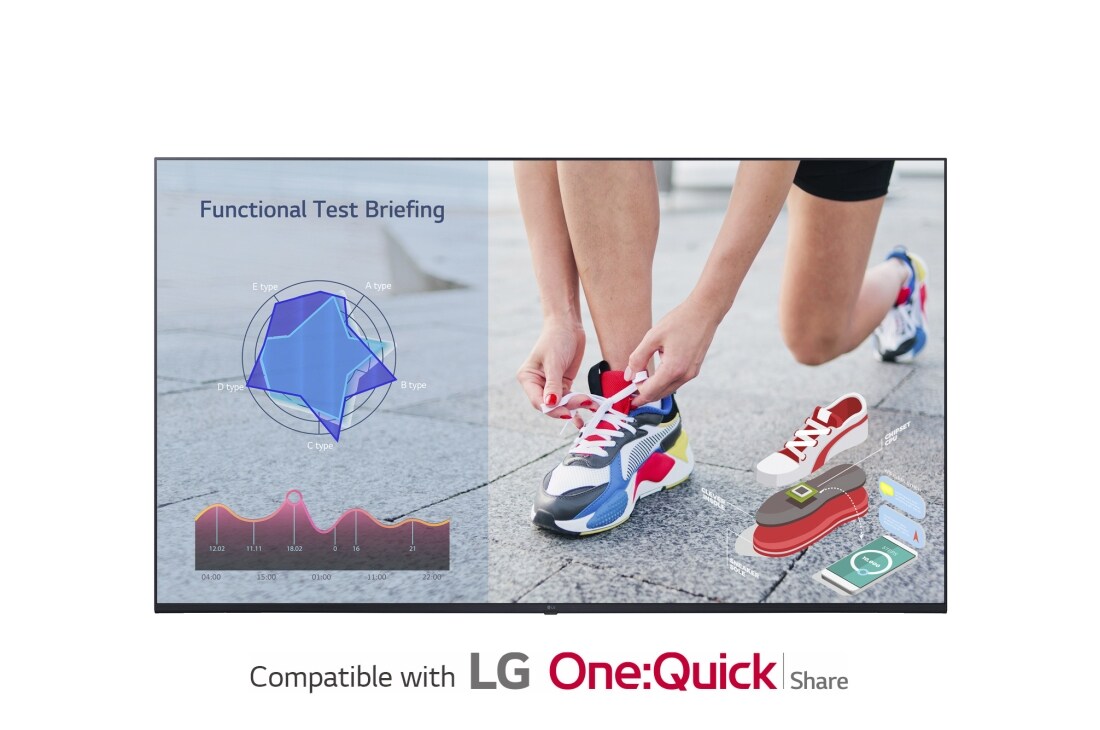

LG webOS UHD Signage, Front view with infill image, 50UL3J-N, thumbnail 1

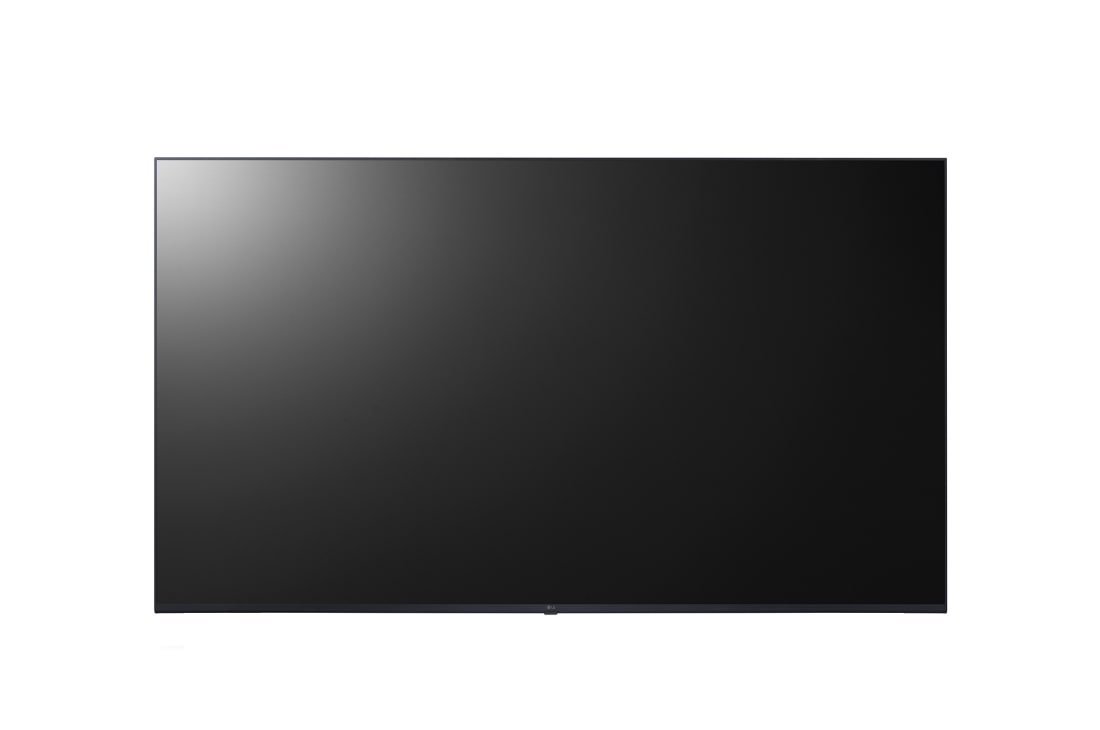

LG webOS UHD Signage, Front view, 50UL3J-N, thumbnail 2

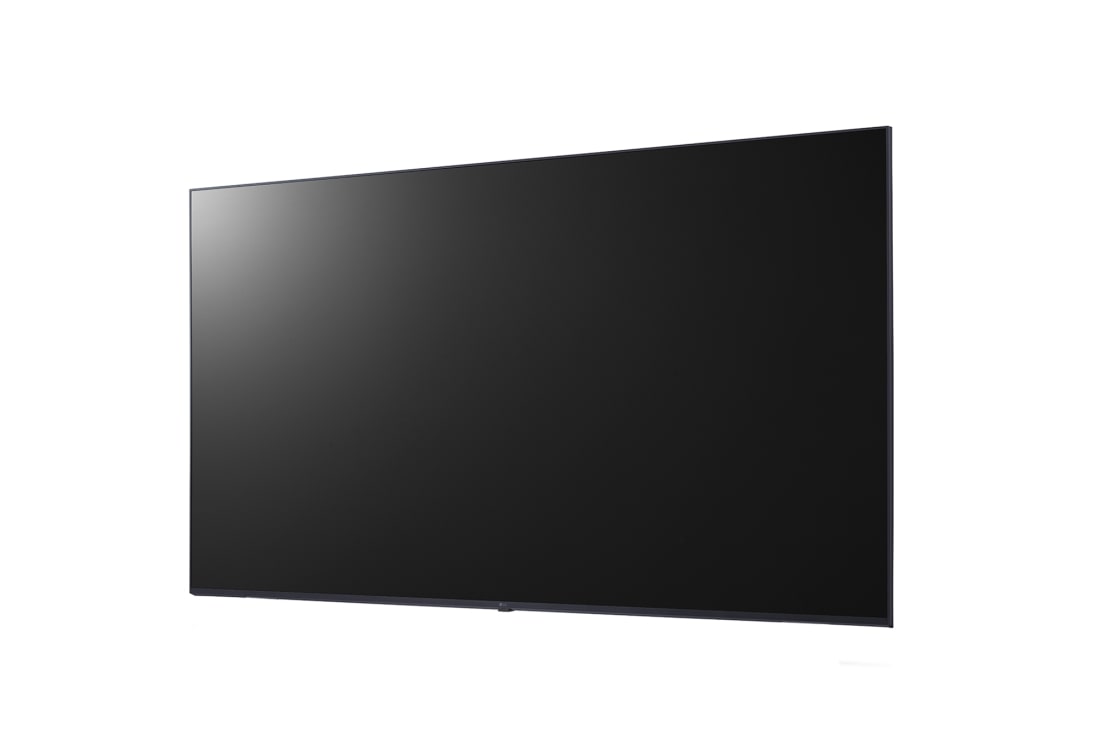

LG webOS UHD Signage, -15 degree side view, 50UL3J-N, thumbnail 3

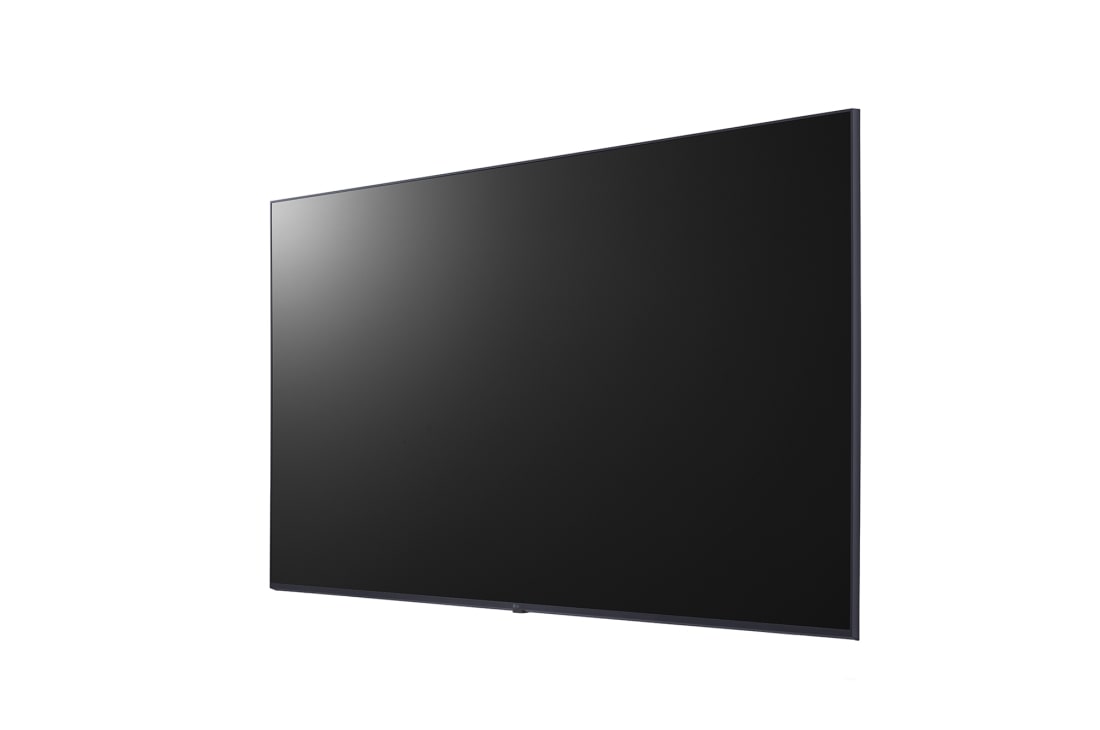

LG webOS UHD Signage, -45 degree side view, 50UL3J-N, thumbnail 4

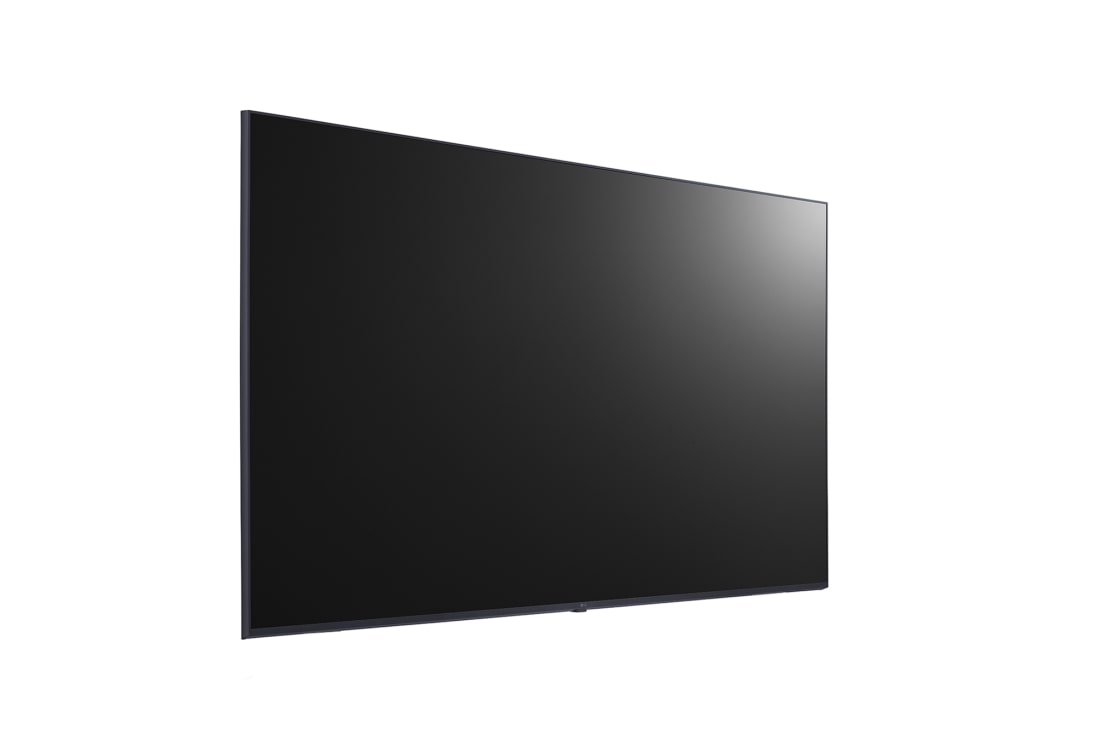

LG webOS UHD Signage, +45 degree side view, 50UL3J-N, thumbnail 5

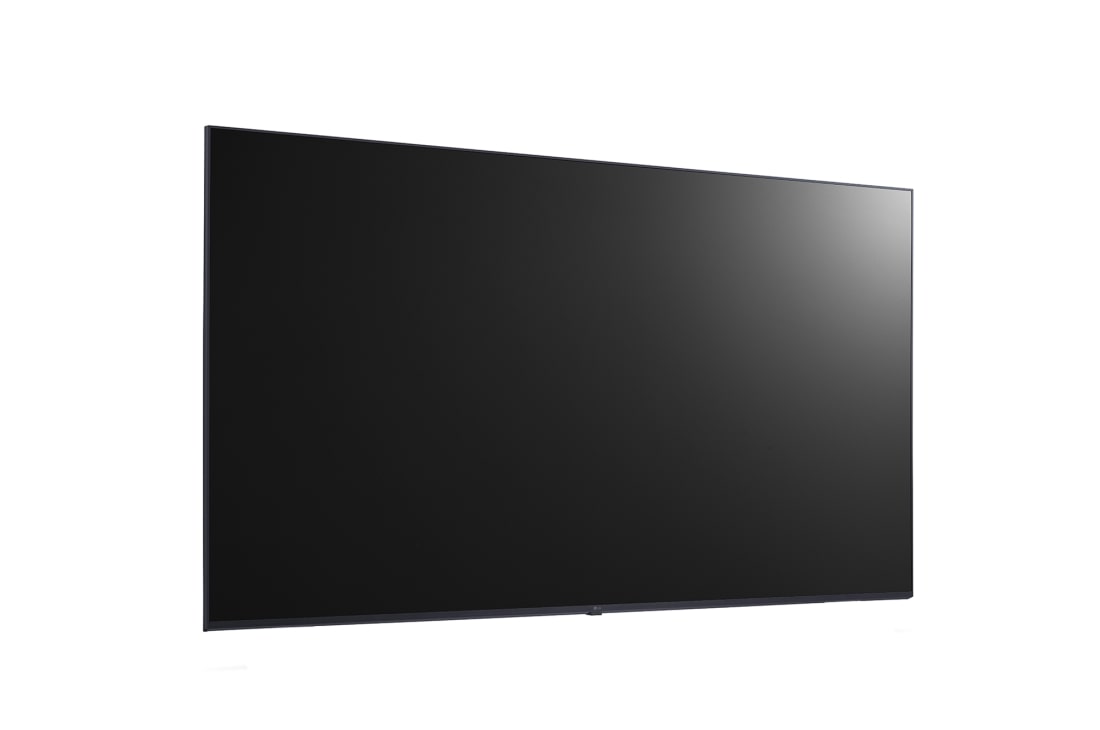

LG webOS UHD Signage, +15 degree side view, 50UL3J-N, thumbnail 6

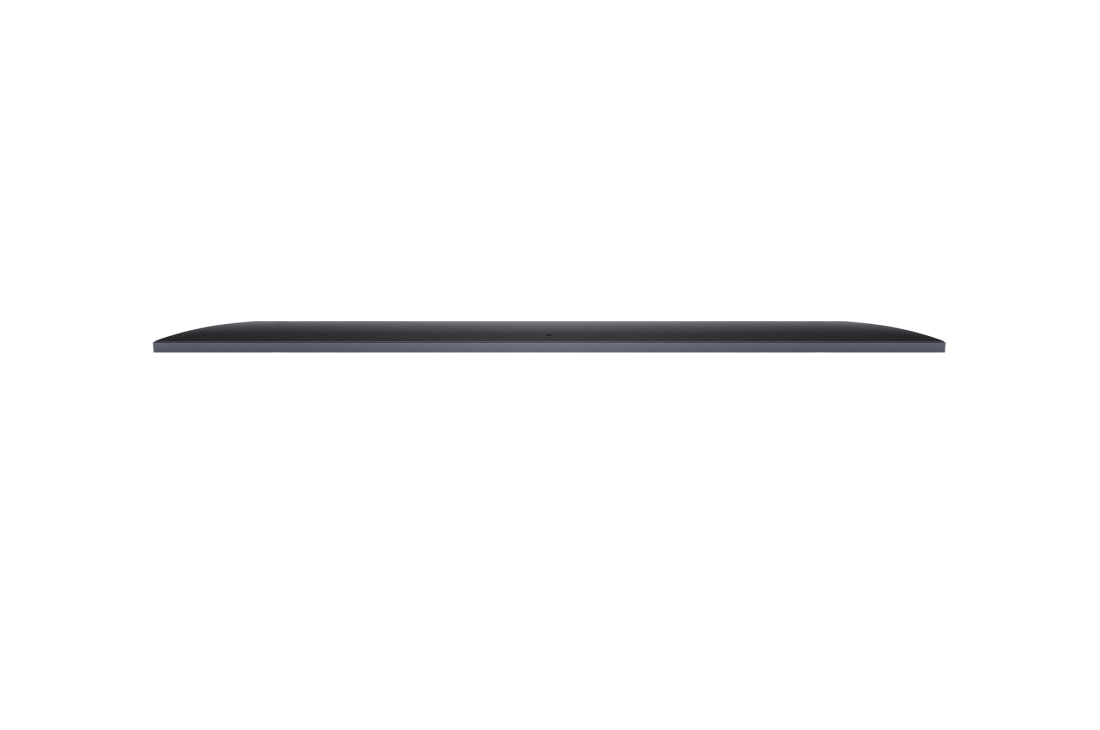

LG webOS UHD Signage, Top view, 50UL3J-N, thumbnail 7

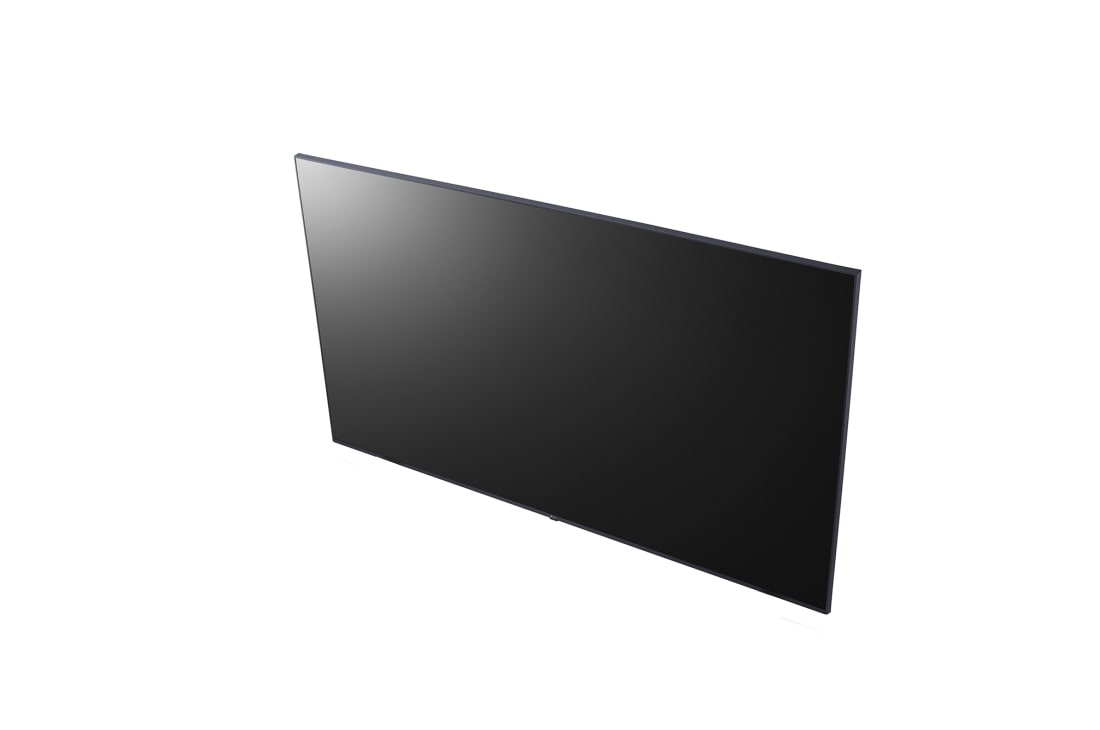

LG webOS UHD Signage, Image taken from the top right, 50UL3J-N, thumbnail 8

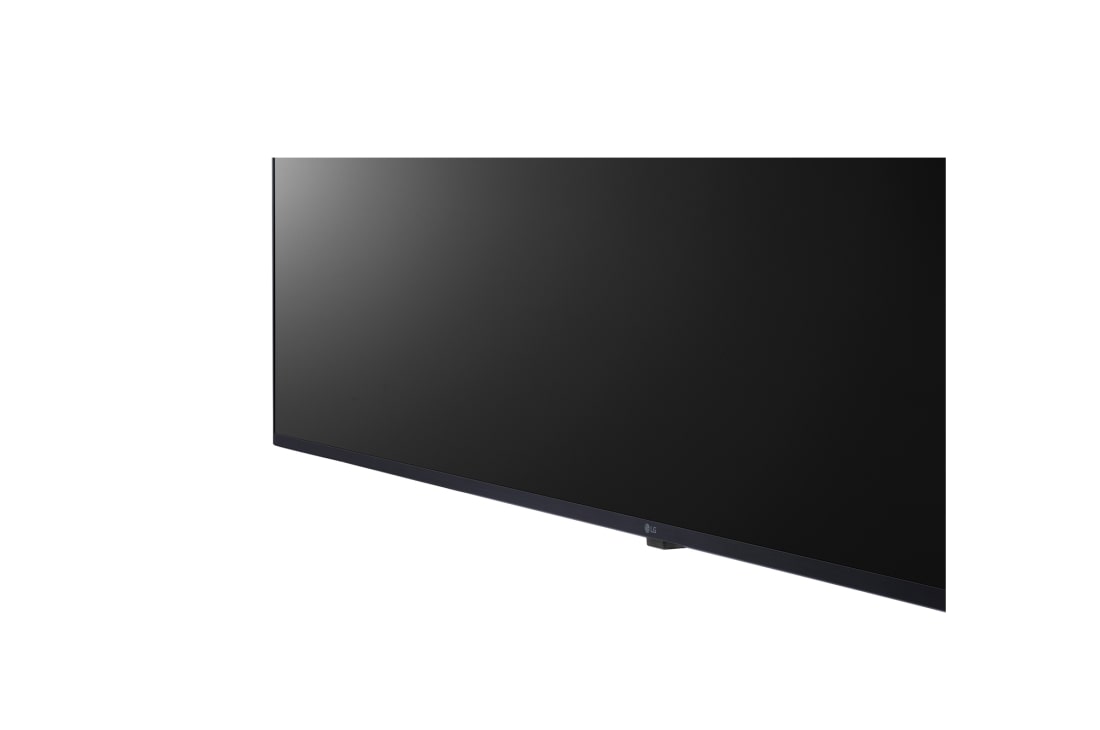

LG webOS UHD Signage, Close-up image of bottom left corner, 50UL3J-N, thumbnail 9

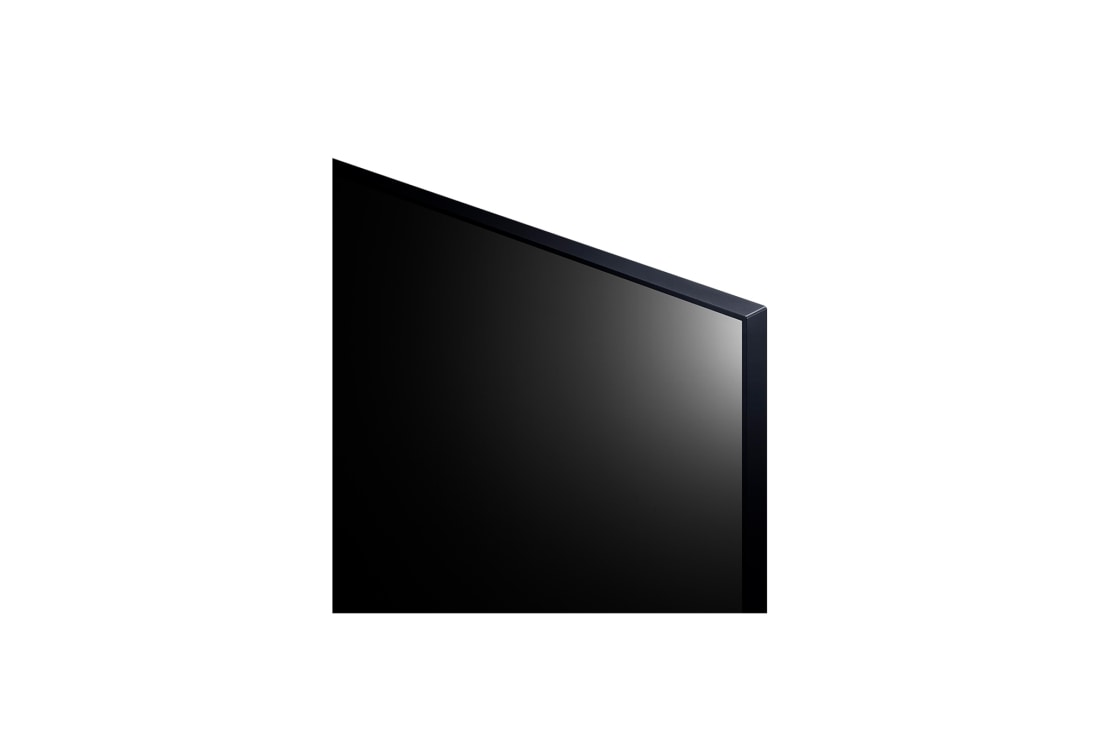

LG webOS UHD Signage, Close-up image of top right corner, 50UL3J-N, thumbnail 10

ADD TO WISHLIST

Discontinued

50UL3J-N component-copyModelName

webOS UHD Signage

Name: webOS UHD Signage
Brand: LG UAE
SKU: 50UL3J-N
Rating: 0 (0 reviews)

Key Features

Brightness(Typ.) : 400 nits
Resolution : ULTRA HD (3,840 x 2,160)
webOS-based High Performance
Built-in Speaker
Compatible with LG's One:Quick Share
Compatible with AV Control Systems

Choose your Size

Find a Dealer

Add to Compare

component-OBScountrySelectDesc

Key Features

Brightness(Typ.) : 400 nits
Resolution : ULTRA HD (3,840 x 2,160)
webOS-based High Performance
Built-in Speaker
Compatible with LG's One:Quick Share
Compatible with AV Control Systems

Choose your Size

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

webOS UHD Signage

LG webOS UHD Signage

There are five people conducting a meeting in a room with UL3J series installed on the wall. There is another UL3J series installed across the meeting room on the wall past the window on the left.

* All images in this web page are for illustrative purposes only.

Presenting a vivid and lively screen quality by magnifying the display’s content.

Superb Picture Quality with Ultra HD Resolution

With the resolution of UHD, it makes the color and details of the contents vivid and realistic. In addition, the wide viewing angle applied with an IPS panel, provides clear contents.

It is displaying the bezel size as 6.9mm by 18.4mm and demonstrating its thinness at 57.5mm depth.

Sophisticated Slim Design

This series is thin in bezel size and thickness*, which saves space and enables easy installation. In addition, it increases the immersive experience from the screen and provides a sophisticated design, improving the décor of the space where the product is installed.

* Compared to LG's UL3G series

A number of tasks that can be done simultaneously are easily arranged through the web OS platform.

High-Performance with LG webOS 6.0

LG webOS 6.0, upgraded in SoC* and web engine, is available on UL3J series for a smooth execution of several tasks. LG webOS smart signage platform enhances user convenience with intuitive GUI.**

* SoC : System On Chip
** GUI : Graphical User Interface

Various external sensors and signage can be connected through a USB plug-in, providing easy value-added solutions.

Various Sensor Connection

LG webOS smart signage platform helps to easily provide value-added solutions* by supporting simple connections with external sensors** such as GPIO, NFC/RFID, temperature sensors, etc., via USB plug-in.

* e.g. showing specific promotional information according to weather change to store visitors
** External sensors need to be purchased separately and tested for compatibility with webOS platform.

LG's Simple Advertisement Helper, Promota

Using LG's Promota* application, downloadable on a mobile device, you can easily create your own display contents. With Promota, you can add text and images to create an online profile for your business as well as deliver information such as event news, seasonal menus, promotions, and even more to your customers while recommending easy-to-use templates relevant to your industry.

The store owner is simply using a mobile phone to create menu contents on the menu board.

* LG Promota is can be downloaded from the App Store and Google Play store. (Not available for Europe/CIS Region)

LG’s Wireless Screen Sharing Solution, LG One:Quick Share

LG One:Quick Share is a wireless screen sharing solution available through the UL3J series, USB transmission unit, and its app. You can simply share personal PC screen to the display with it's USB dongle button and embedded Wi-Fi*, and can adjust the basic setting values (volume, picture mode, auto bright, etc.) of the connected display without a remote control. Also, the Office Meeting Mode** helps you to display the agenda, note before the meeting starts.

"This consist of images displaying the 3-step instructions on installing LG One:Quick Share USB Dongle and sharing the personal screen. The first image pairs the USB Dongle and the LG signage. The second image describes a person holding the USB dongle, attempting to connect it to the PC. The last image consists of people having a meeting by connecting an USB dongle device to a laptop, then sharing the screen through the UL3J on the wall."

* Users need to set up Soft AP enabled at Network Menu of the Signage.
** Users can enable Office Meeting Mode at EZ Setting Menu of the Signage.
*** LG One:Quick Share needs to be purchased separately.

UL3J series is remotely controlled and monitored in a remote location through Control Manager on mobile devices and/or laptops.

Remote Monitoring and Control

This web-based monitoring solution is user-friendly and allows the user to be at ease. It enables the user to have full access anywhere at anytime from their mobile phone & PC under network-accessible environment while having access to both current and past data. It allows the user to monitor the unit, make adjustments and control the unit remotely in real time.

There are one in the meeting rooms with the signage and one of AV control system which helps users control the UL3J series.

Compatible with AV Control Systems

The UL3J series supports Crestron Connected®* for high compatibility with professional AV controls to achieve seamless integration and automated control**, boosting business management efficiency.

* Initial setting from display is required for Crestron Connected® compatibility.
** Network based control

A video conference is being held as people are screened on signage installed on the wall.

Compatible with Video Conference System

For effective visual meeting, the UL3J series supports its compatibility with Cisco solutions that offers powerful and integrated control* for a smarter video conference.

* Using an HDMI cable connection (HDMI cable is optional)

Conveniently distributing content through Wi-Fi.

Easy Content Distribution &
SW Update

UL3J series features embedded Wi-Fi making it easy to distribute content wirelessly and update Firmware under the same network.

The UR3J series is on the wall and a woman is using a personal PC and mobile phone. This image shows that the signage can be connected wirelessly to the PC and mobile phone which she is holding.

Wireless Access Point

UL3J series operates as a virtual router which can be an wireless access point for mobile devices.

Built-in Speaker

Contents will be enriched with sound effects from built-in speakers, without the need for purchasing or installing external speakers.

The LG employee is remotely monitoring the UL3J series installed in a different place.

Real-Time LG ConnectedCare Service

Maintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, supporting the stable operation of clients' businesses.

* The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately.
So please contact the LG sales representative in your region for more details.

PANEL

Screen Size

50"

Panel Technology

IPS
Back Light Type

Direct

Aspect Ratio

16:9
Native Resolution

3840x2160 (UHD)

Refresh Rate

60Hz
Brightness

400nit (Typ.)

Contrast Ratio

1,200:1
Dynamic CR

1,000,000:1

Color Gamut

DCI 80%
Viewing Angle(H x V)

178 x 178

Color Depth

10 bit(D), 1.07Billion colors
Response Time

12ms (G to G)

Surface Treatment(Haze)

3%
Life time

30,000Hrs (Min)

Operation Hours (Hours/Day)

16/7
Portrait / Landscape

Yes / Yes

CONNECTIVITY

Input - Digital - HDMI

Yes(3), HDCP2.2/1.4

Input - Digital - DP

No
Input - Digital - DVI-D

No

Input - Analog - RGB

No
Input - Audio In

No

Input - RS232C IN

Yes(1), 4pin Phone-jack
Input - RJ45(LAN)

Yes(1)

Input - IR IN

No
Input - USB

USB2.0 Type A(2)

Output - DP Out

No
Output - Audio Out

Yes(1)

Output - Externel Speaker Out

No
Output - External Control - RS232C OUT

Yes(1), 4pin Phone-jack

Output - Externel Speaker Out - RJ45(LAN)

No

MECHANICAL SPECIFICATION

Bezel Color

Ashed Blue

Bezel Width

Off : 7.3/7.3/7.3/18.4
On : 12.8/12.8/12.8/19.9
Weight(Head)

11.7

Weight(Head+Stand)

-
Packed Weight

14.4

Monitor Dimension(W x H x D)

1121 x 651 x 57.1
Monitor Dimensions with Stand(W x H x D)

-

Carton Dimensions(W x H x D) (Box outer size)

1215 x 775 x 152
Handle

No

VESA™ Standard Mount Interface

200 x 200

KEY FEATURE

HW - Internal Memory

8GB

HW - Wi-Fi - Built-in

Yes
HW - Sensor - Temperature Sensor

Yes

HW - Sensor - Auto Brightness sensor

Yes
HW - Sensor - Pixel sensor

No

HW - Sensor - Proximity Sensor

No
HW - Sensor - Current Sensor

No

HW - Power Indicator

No
HW - Local Key Operation

Yes (Power On/Off only)

HW - FAN

No
SW - webOS ver.

webOS6.0

SW - Embedded CMS - Local Contents Scheduling

Yes
SW - Embedded CMS - Group Manager

Yes

SW - USB Plug & Play

Yes
SW - Fail over

Yes

SW - Background Image - Booting Logo Image

Yes
SW - Background Image - No Signal Image

Yes

SW - Sync Mode - RS-232C Sync

Yes
SW - Sync Mode - Local Network Sync

Yes

SW - Multi-screen - PIP

No
SW - Multi-screen - PBP

No

SW - Screen Share

Yes
SW - Video Tag

Yes(4, Max One HDMI input)

SW - Play via URL

Yes
SW - Rotation - Screen Rotation

Yes

SW - Rotation - External Input Rotation

Yes
SW - Gapless Playback

Yes

SW - Tile Mode Setting

No
SW - Setting Data Cloning

Yes

SW - SNMP

Yes
SW - ISM Method

Yes

SW - Auto Set ID

Yes
SW - Status Mailing

Yes

SW - Control Manager

Yes
SW - 3rd Party Compatibility - Cisco certi

TBD (Oct~)

SW - 3rd Party Compatibility - Crestron Connected

Yes
SW - Power - Smart Energy Saving

Yes

SW - Power - PM mode

Yes
SW - Power - Wake on LAN

Yes

SW - Power - Network Ready

Yes
SW - Beacon

Yes

SW - HDMI-CEC

Yes
SW - SI Server Setting

Yes

SW - webRTC

Yes
SW - Pro:Idiom

Yes

ENVIRONMENT CONDITIONS

Operation Temperature

0 °C to 40 °C (Portrait Scene : 0 °C to 35 °C)

Operation Humidity

10 % to 80 %

POWER

Power Supply

AC 100-240V~, 50/60Hz

Power Type

Built-In Power

POWER CONSUMPTION

Typ.

105 W

Max.

150W
BTU (British Thermal Unit)

358 BTU/Hr(Typ.), 512 BTU/Hr(Max.)

Smart Enegy Saving(~70%)

66W
DPM

0.5W

Power off

0.5W

SOUND

Speaker

Yes

CERTIFICATION

Safety

CB

EMC

FCC Class "A" / CE
ErP / Energy Star

Yes (OldErP for Jordan) / Yes

ePEAT(US only)

No

OPS Compatibility

OPS type compatible

No

OPS Power built in

No

SOFTWARE COMPATIBILITY

SuperSign CMS

Yes

SuperSign Control / Control+

Yes / Yes
SuperSign WB

Yes

SuperSign Media Editor

Yes
Promota

Yes (Not available for EU/CIS)

Mobile CMS

No
Signage 365 Care

Yes

Language

OSD

English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Turkish, Arabic, polski

ACCESSORY

Basic

Remote Controller(include battery 2ea), Power Cord, Regulation Book, Phone to D-Sub9 Gender, Cable Holder

SPECIAL FEATURE

Overlay Touch Compatibility

No

COMPLIANCE INFORMATION

More Compliance Information

The safety information for accessories is included with the safety information for the product and is not provided separately.
