ADD TO WISHLIST

Discontinued

55LV77D-B component-copyModelName

Ultra Narrow Bezel Video Wall

LG Ultra Narrow Bezel Video Wall, 55LV77D-B, thumbnail 1

LG Ultra Narrow Bezel Video Wall, 55LV77D-B, thumbnail 2

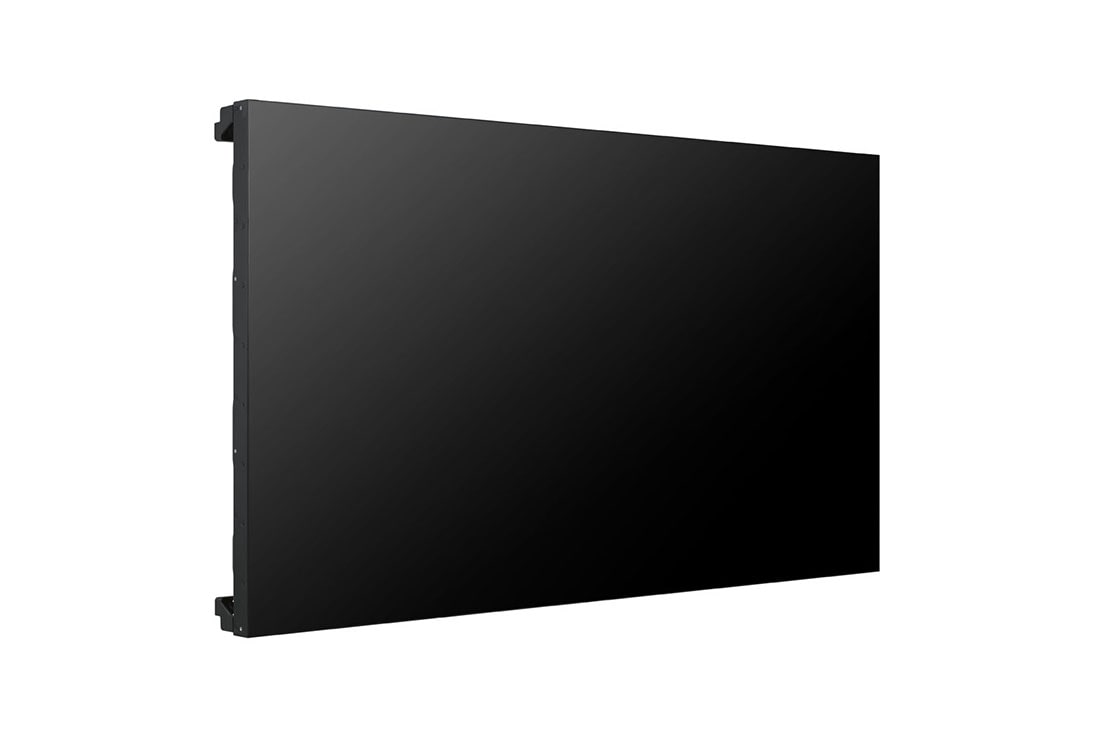

LG Ultra Narrow Bezel Video Wall, 55LV77D-B, thumbnail 3

LG Ultra Narrow Bezel Video Wall, 55LV77D-B, thumbnail 4

LG Ultra Narrow Bezel Video Wall, 55LV77D-B, thumbnail 5

LG Ultra Narrow Bezel Video Wall, 55LV77D-B, thumbnail 6

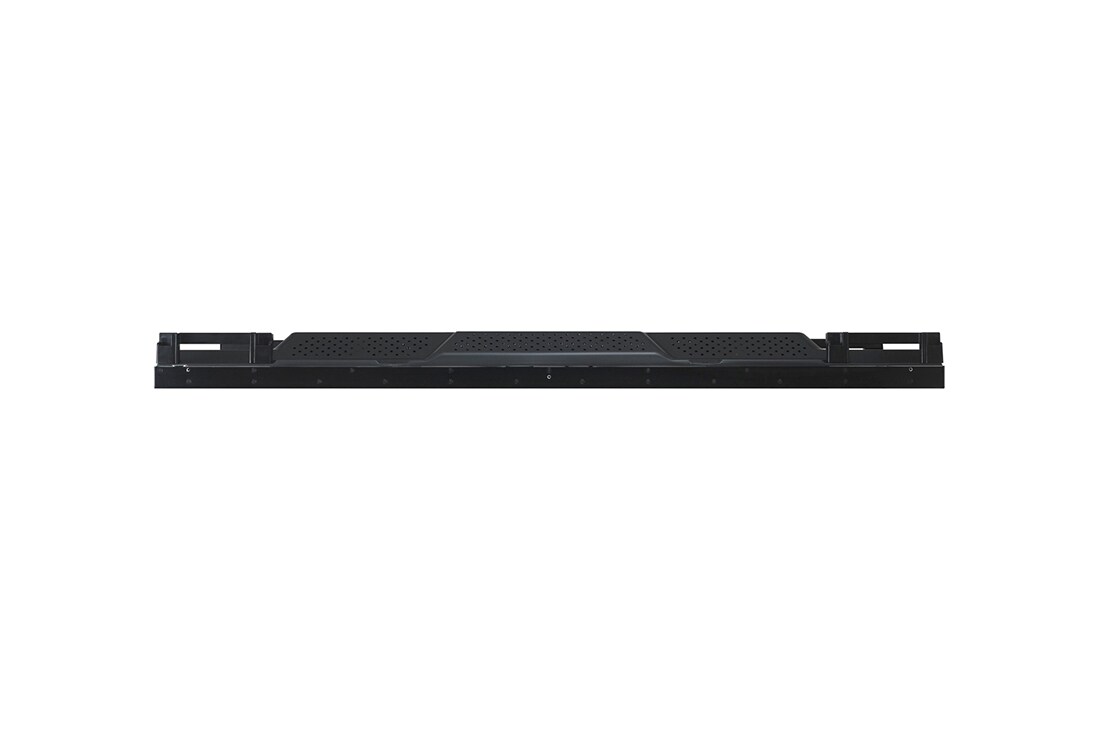

LG Ultra Narrow Bezel Video Wall, 55LV77D-B, thumbnail 7

ADD TO WISHLIST

Discontinued

55LV77D-B component-copyModelName

Ultra Narrow Bezel Video Wall

Name: Ultra Narrow Bezel Video Wall
Brand: LG UAE
SKU: 55LV77D-B
Rating: 0 (0 reviews)

Key Features

Brightness(Typ.): 700 cd/m²
Bezel: 2.25 mm (Top/Left), 1.25 mm (Bottom/Right)
Depth: 88.5mm
Interface: HDMI/DP/DVI-D/RGB/RS232C/RJ45/USB/IR Receiver/Audio

Find a Dealer

Add to Compare

component-OBScountrySelectDesc

Key Features

Brightness(Typ.): 700 cd/m²
Bezel: 2.25 mm (Top/Left), 1.25 mm (Bottom/Right)
Depth: 88.5mm
Interface: HDMI/DP/DVI-D/RGB/RS232C/RJ45/USB/IR Receiver/Audio

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

Ultra Narrow Bezel Video Wall

Immersive Viewing Experience

Ultra Narrow Bezel

The 3.5mm ultra narrow bezel size creates immersive and seamless viewing experiences on assembled video wall screens.

Immersive Viewing Experience

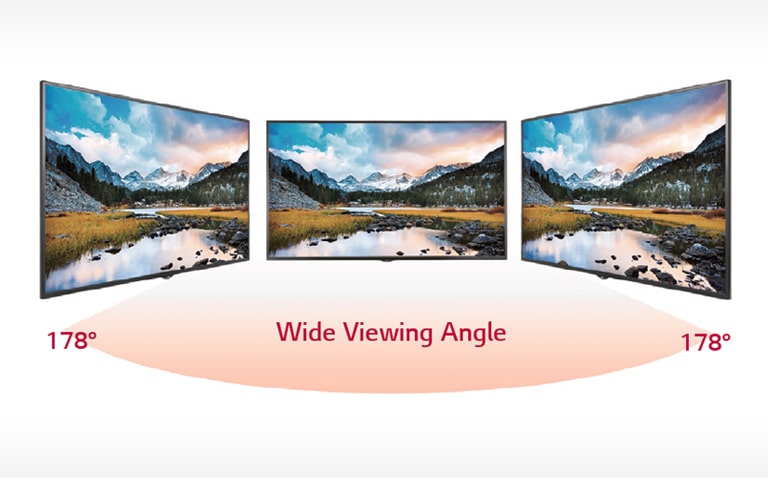

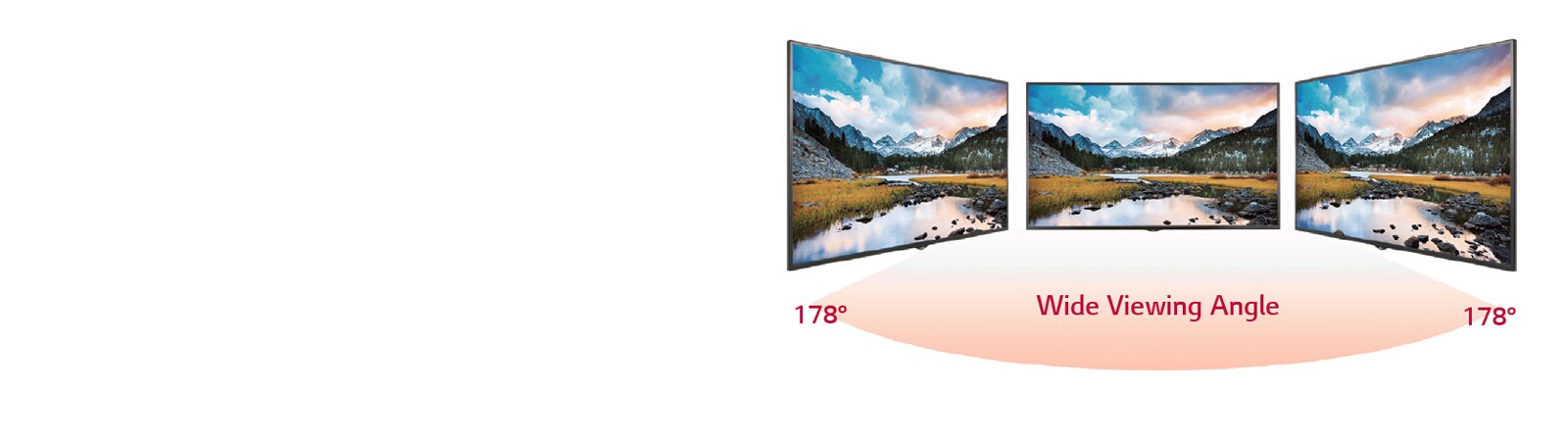

Wide Viewing Angle

IPS panel technology means a more advanced control of the loqiud crystal display. As a result, it has a wide viewing angle that delivers clear content, no matter where a passerby views. Every pixel in the IPS panel truly reproduces the image colors without distorting them.

Superior Picture Quality

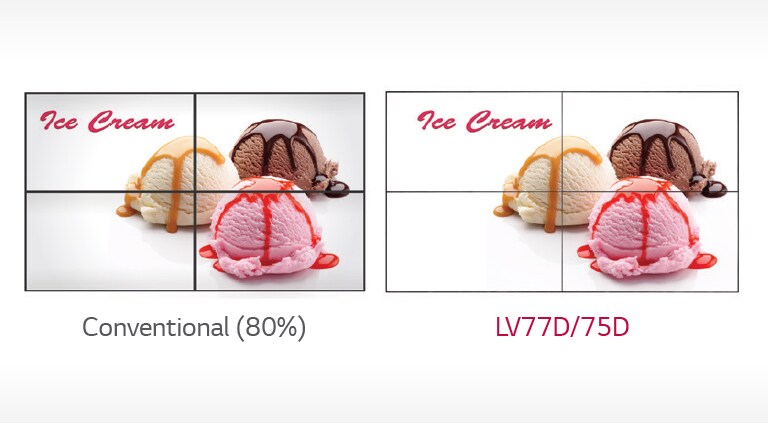

Uniform Brightness

LG's LED backlight technology guarantees high uniformity in brightness to ensure a clear picture. On other screens, certain spots may appear darker than others, but the new LV77D/75D generates high visibility and a consistent brightness across the whole screen.

Superior Picture Quality

Consistent White Balance

Through Video Wall Image Creation (VIC) technology, color and brightness differences are compensated in circuit part with an algorithm to make the panels into a same characteristic so that each video wall maintains the consistent white balance.

Superior Picture Quality

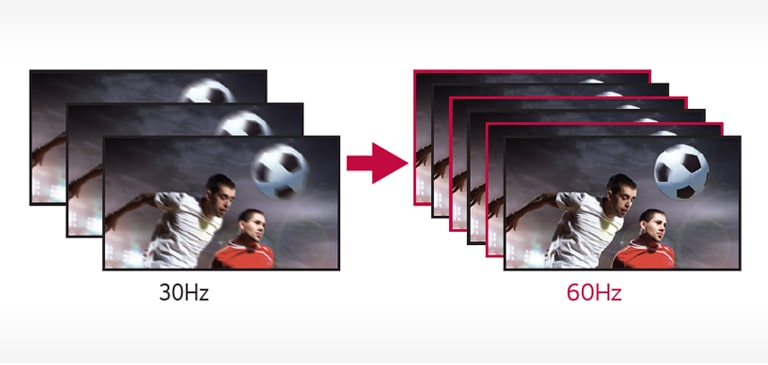

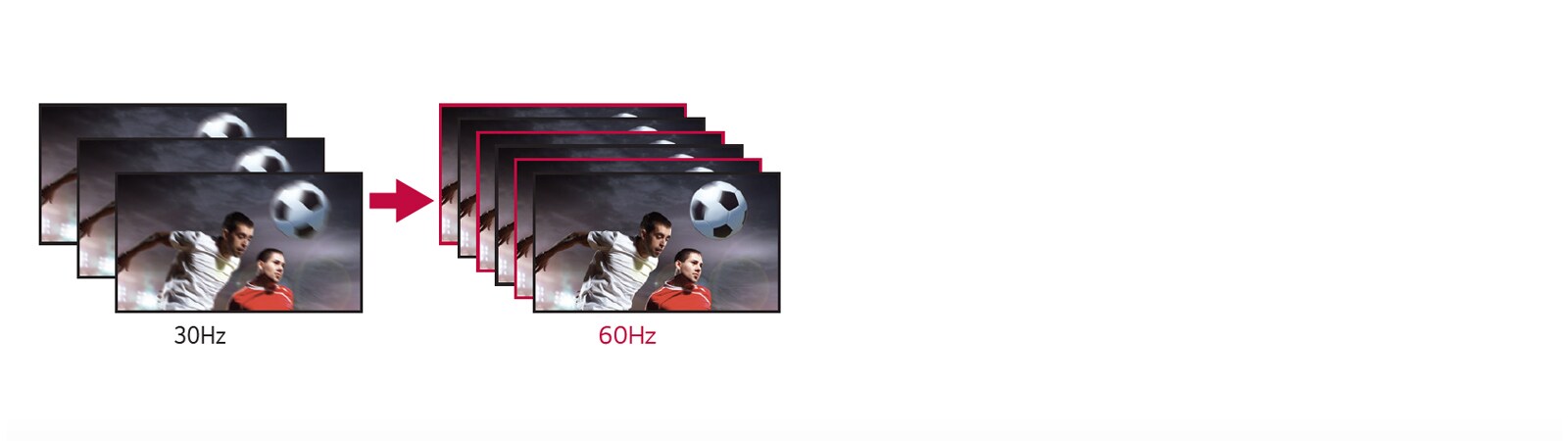

Vivid Imagery Viewing

TruMotion™ 60Hz Refresh Rate drastically reduces motion blur and judder ensuring vivid image playback
with fine details.

Content Management

SuperSign W Content Management

Flexible content editing in various layouts including regular matrix and non-formal irregular video-wall is possible to your preference in a timely and cost effective manner without unnecessary expensive video wall console.

PANEL

Screen Size

55"

Native Resolution

1,920 x 1,080 (FHD)
Brightness(Module, Typ., cd/m²)

700

Orientation

Landscape & Portrait

CONNECTIVITY

Input

HDMI, DP, DVI, RGB, Audio, USB

Output

DP, Audio
External Control

RS232C In/Out, RJ45 In, IR Reciever

PHYSICAL SPECIFICATION

Bezel Width

2.25 mm (L/T) / 1.25 mm (R/B)

Monitor Dimension (W x H x D)

1,213.4 x 684.2 x 88.5 mm
Weight (Head)

23 kg

Carton Dimensions (W x H x D)

1,337 x 828 x 239 mm
Packed Weight

30.5 kg

Handle

Yes
VESA™ Standard Mount Interface

600 x 400 mm

ENVIRONMENT CONDITIONS

Operation Temperature

0°C to 40°C

Operation Humidity

10 % to 80 %

POWER CONSUMPTION

Typ.

230 W

Max

290 W
Smart Energy Saving

130 W

STANDARD(CERTIFICATION)

Safety

UL / cUL / CB / TUV / KC

EMC

FCC Class "A" / CE / KCC
ErP / Energy Star

NA / No

MEDIA PLAYER COMPATIBILITY

OPS Type Compatible

No

External Media Player Attatchable

Yes

SOFTWARE COMPATIBILITY

Content Management Software

SuperSign W

Control and Monitoring Software

SuperSign C

ACCESSORY

Basic

Remote controller, Power cable, DP cable, IR receiver, RS-232C cable, Tiling guide, Screw

Optional

WM-L640V (Landscape), WM-P640V (Portrait), Frame kit (Horizontal: FK-55V10 / Vertical: FK-55V20)

COMPLIANCE INFORMATION

More Compliance Information

The safety information for accessories is included with the safety information for the product and is not provided separately.
