55SH7E-B
55'' 700 nits FHD 2.7G Hz Standard Signage
  • Brightness(Typ.): 700cd/m²
  • Bezel: 11.9mm (T/L/R), 18mm (B)
  • Depth: 54mm
  • Interface: HDMI(3), DP, DVI-D, USB 3.0, RS232C, RJ45, IR
  • Built-in Speaker(10W+10W)

component-OBScountrySelectDesc

55" 700 nits FHD 2.7G Hz Standard Signage
PANEL
  • Screen Size
    55"
    Native Resolution
    1,920 x 1,080 (FHD)
  • Brightness(Typ.,cd/m²)
    700
CONNECTIVITY
  • Input
    HDMI (3), DP, DVI-D, Audio, USB 3.0
    Output
    DP, Audio
  • External Control
    RS232C in/out, RJ45 in, IR in
PHYSICAL SPECIFICATION
  • Bezel Width
    11.9mm (T/R/L), 18mm (B)
    Monitor Dimension (W x H x D)
    1,238 x 714.9 x 54 mm
  • Weight (Head)
    17.5kg
    Carton Dimensions (W x H x D)
    1,330 x 807 x 170 mm
  • Packed Weight
    21.7kg
    VESA™ Standard Mount Interface
    300 x 300 mm
ENVIRONMENT CONDITIONS
  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10% to 80%
POWER
  • Power Supply
    100-240 V~, 50/60 Hz
    Power Type
    Built-In Power
POWER CONSUMPTION
  • Typ. / Max.
    130W/150W
    Smart Energy Saving
    91W
STANDARD(CERTIFICATION)
  • Safety
    IEC 60950-1/EN 60950-1/UL 60950-1
    EMC
    FCC Class "A"/CE/KC
  • ErP / Energy Star
    N/A/Yes (Energy Star 8.0)
MEDIA PLAYER COMPATIBILITY
  • OPS Type Compatible
    Yes
    External Media Player Attatchable
    Yes
SOFTWARE COMPATIBILITY

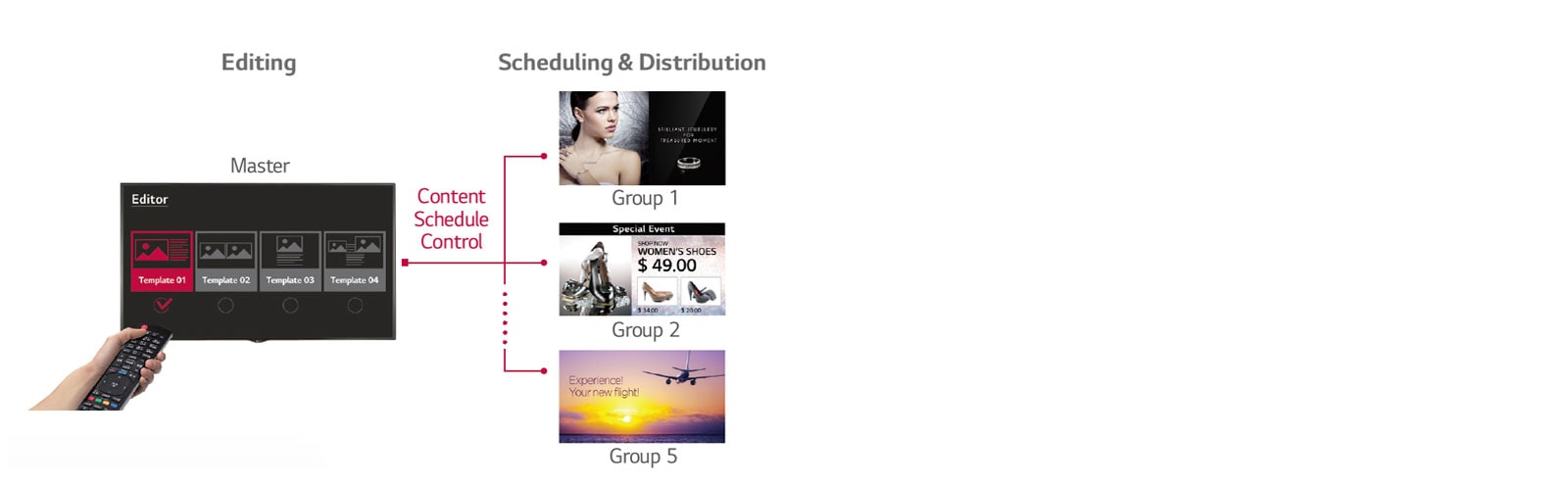

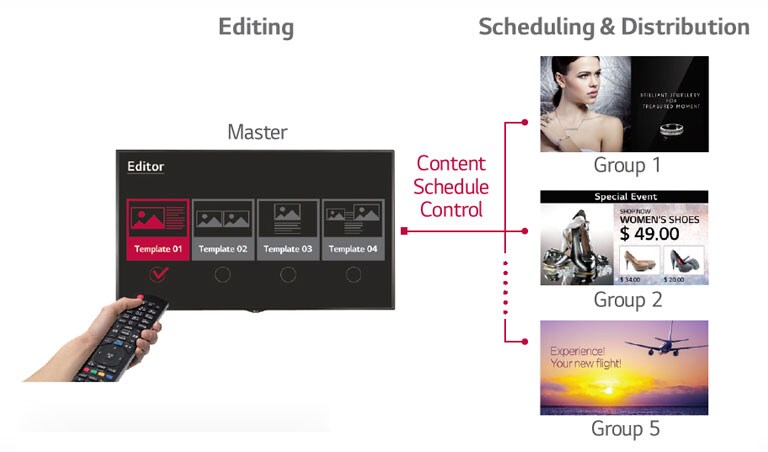

  • Content Management Software
    SuperSign CMS
    Control and Monitoring Software
    SuperSign Link

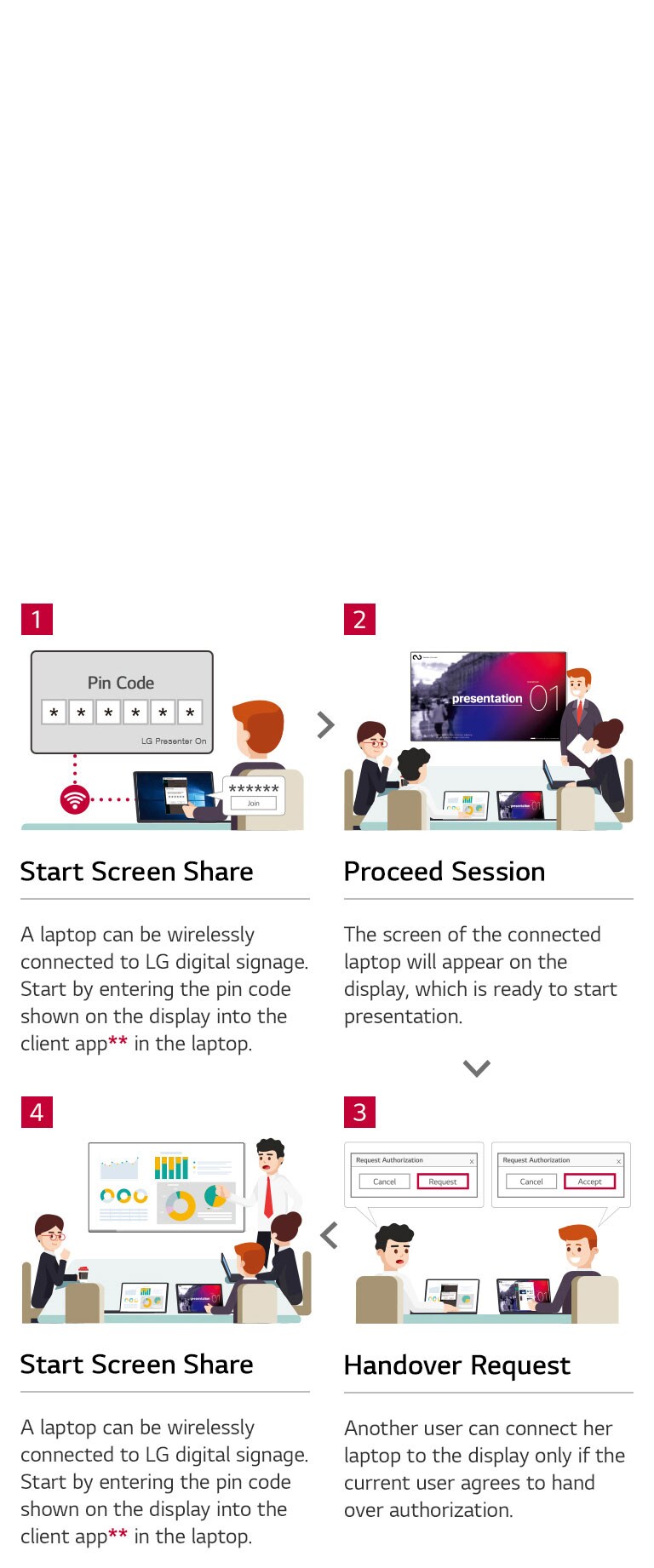

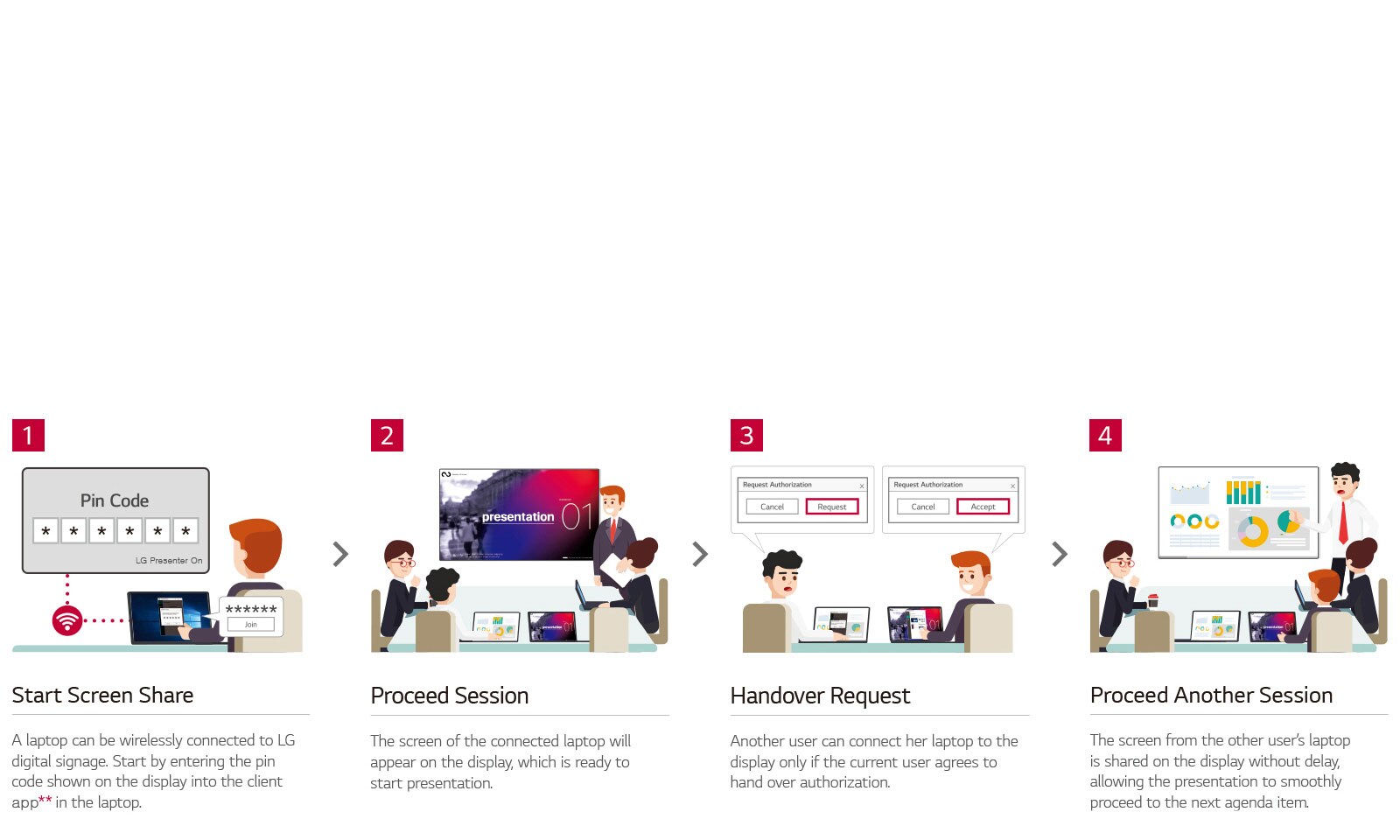

MINIMUM REQUIREMENTS FOR LG PRESENTER
  • OS (Windows)
    Windows 7 (64bit), Windows 10 (64bit)
    CPU (Windows)
    2.7GHz+ Dual Core Broadwell or higher
  • OS (macOS)
    macOS 10.12 Sierra, MacOS 10.13 High Sierra
    CPU (macOS)
    Any CPU which supports Sierra or High Sierra
  • Memory
    4GB RAM
    Hard Drive
    1GB of free space
  • Graphics Hardware (Windows)
    Intel Iris or higher, Nvidia, ATI
    Graphics Hardware (macOS)
    Any GPU which supports Sierra or High Sierra
ACCESSORY
  • Basic
    Remote Controller (2 Batteries Included), Power Cord, QSG, HDMI Cable, Regulation Book, Phone to RS232C Gender
    Optional
    Stand (ST-492T), Media Player, Wall Bracket (LSW350B), VESA Adapter (AM-B330S), OPS Kit (KT-OPSA), HDBaseT (EB-B100), Touch Overlay (KT-T55E)
