55TC3D-B component-copyModelName

Interactive Digital Board

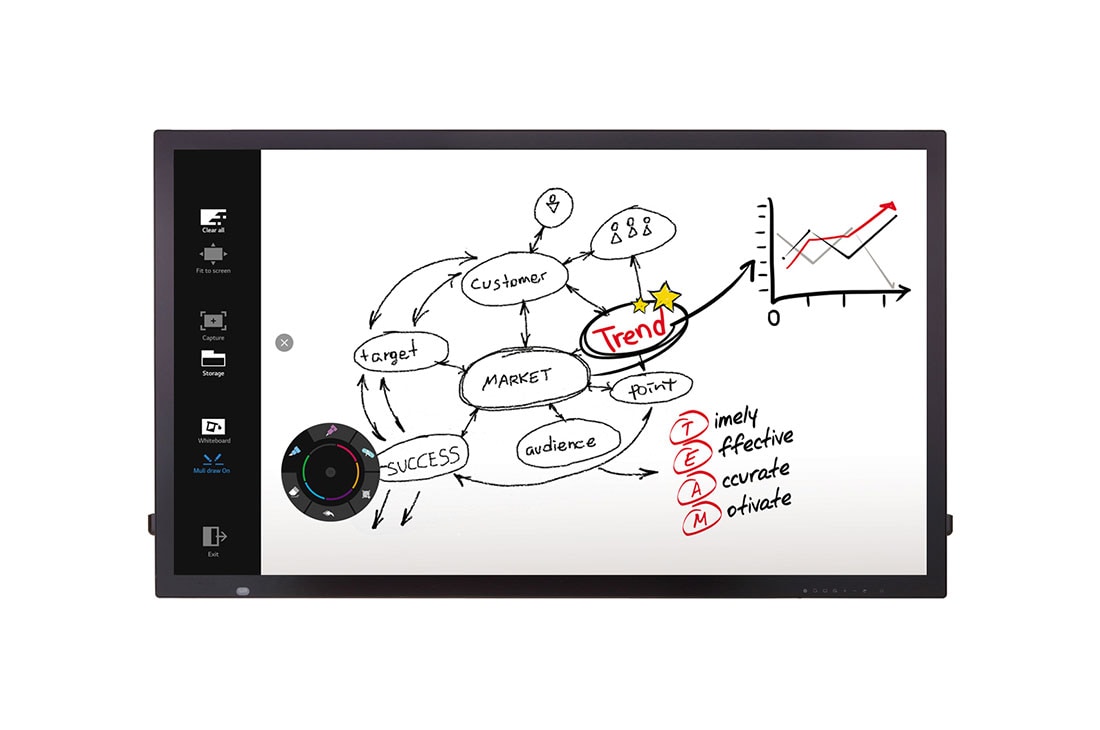

LG Interactive Digital Board, 55TC3D-B, thumbnail 1

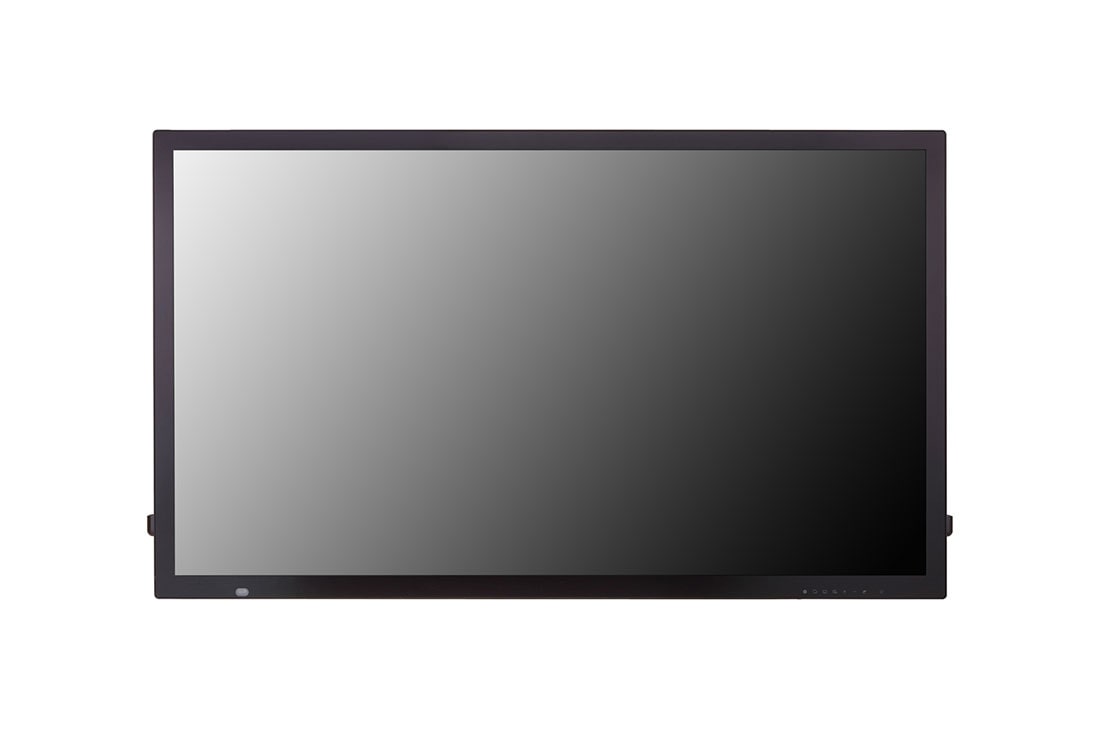

LG Interactive Digital Board, 55TC3D-B, thumbnail 2

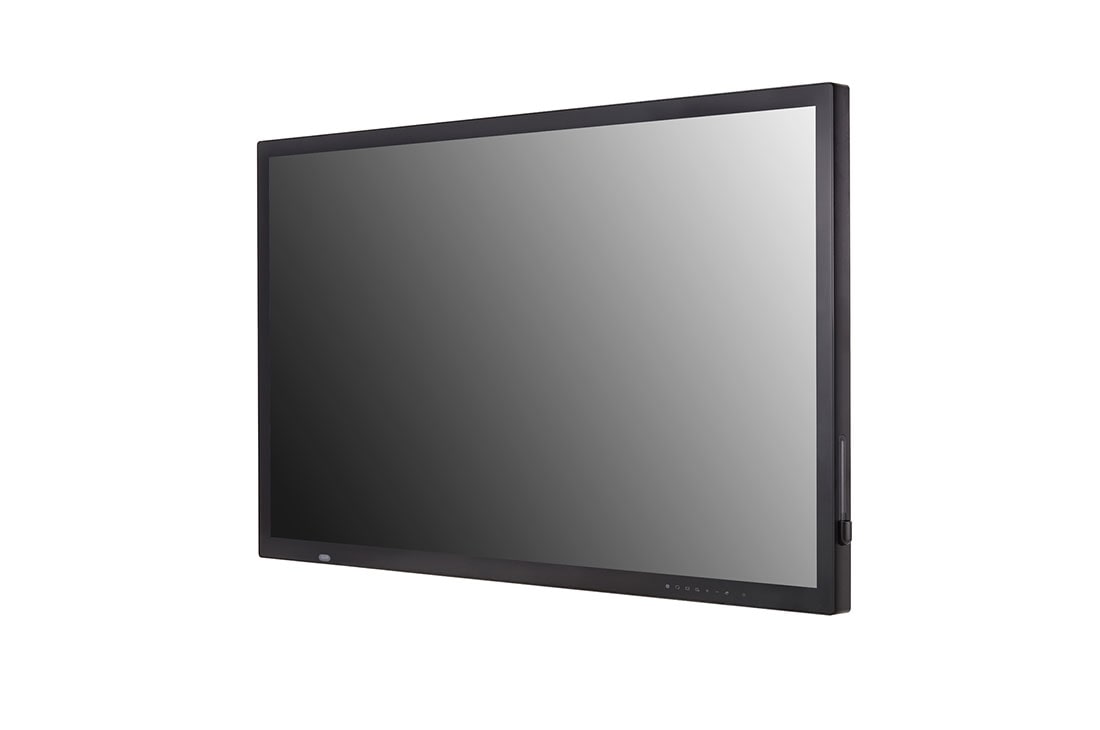

LG Interactive Digital Board, 55TC3D-B, thumbnail 3

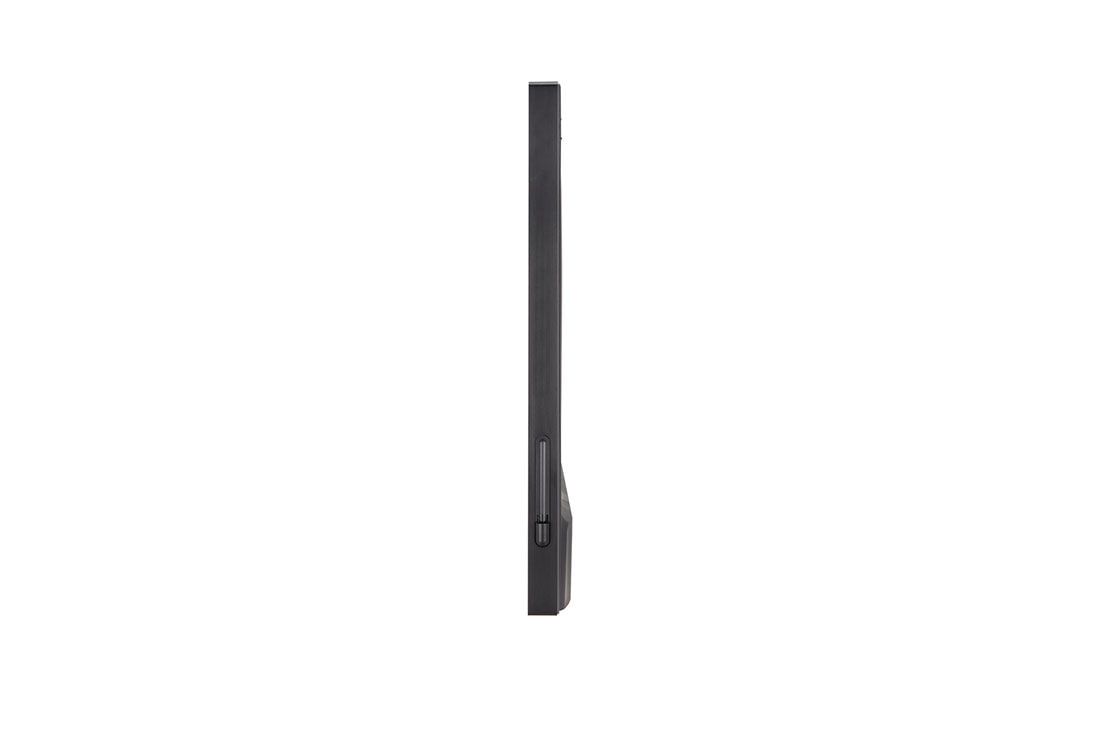

LG Interactive Digital Board, 55TC3D-B, thumbnail 4

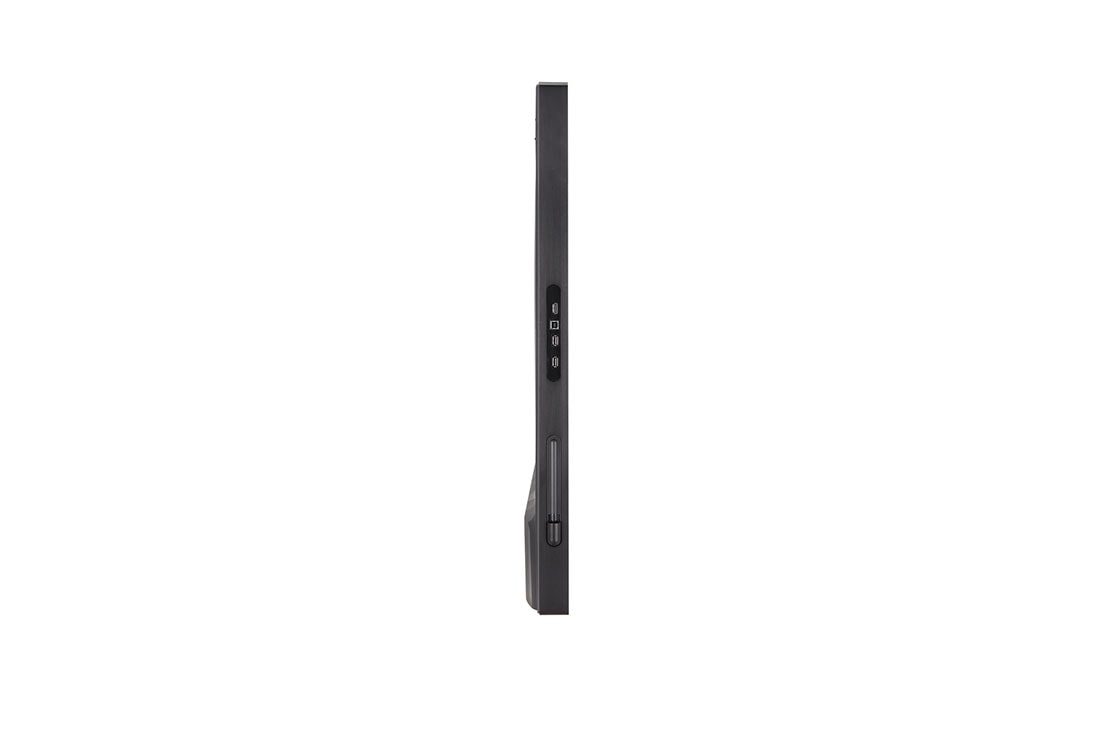

LG Interactive Digital Board, 55TC3D-B, thumbnail 5

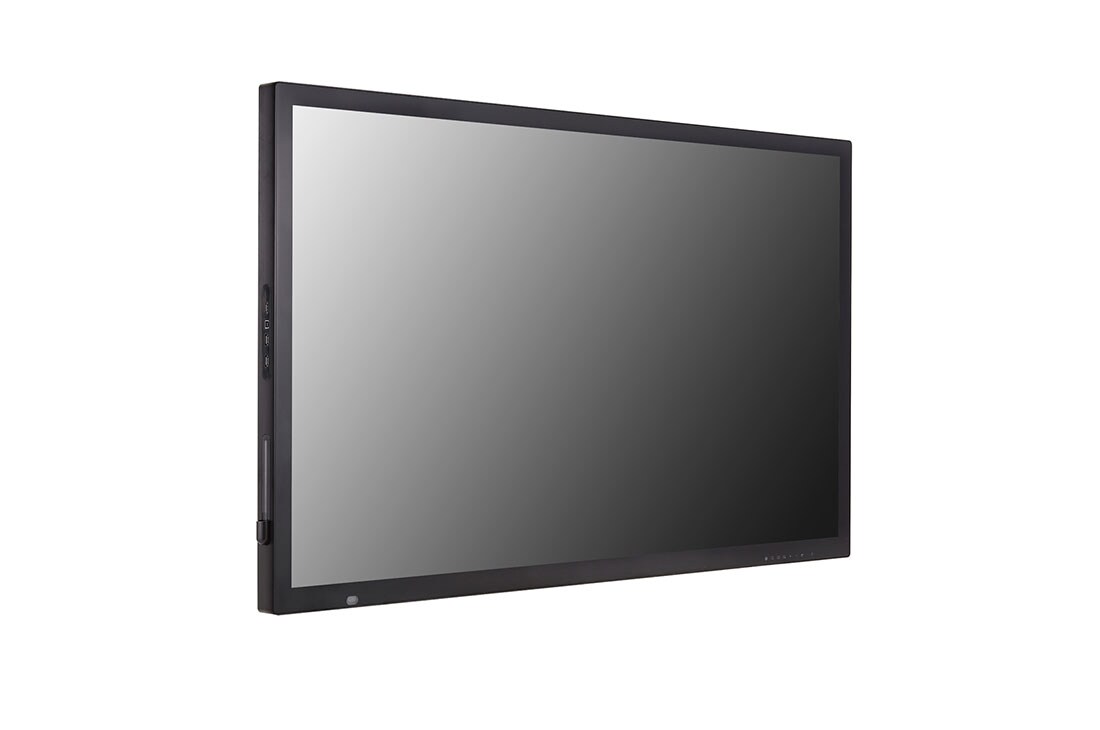

LG Interactive Digital Board, 55TC3D-B, thumbnail 6

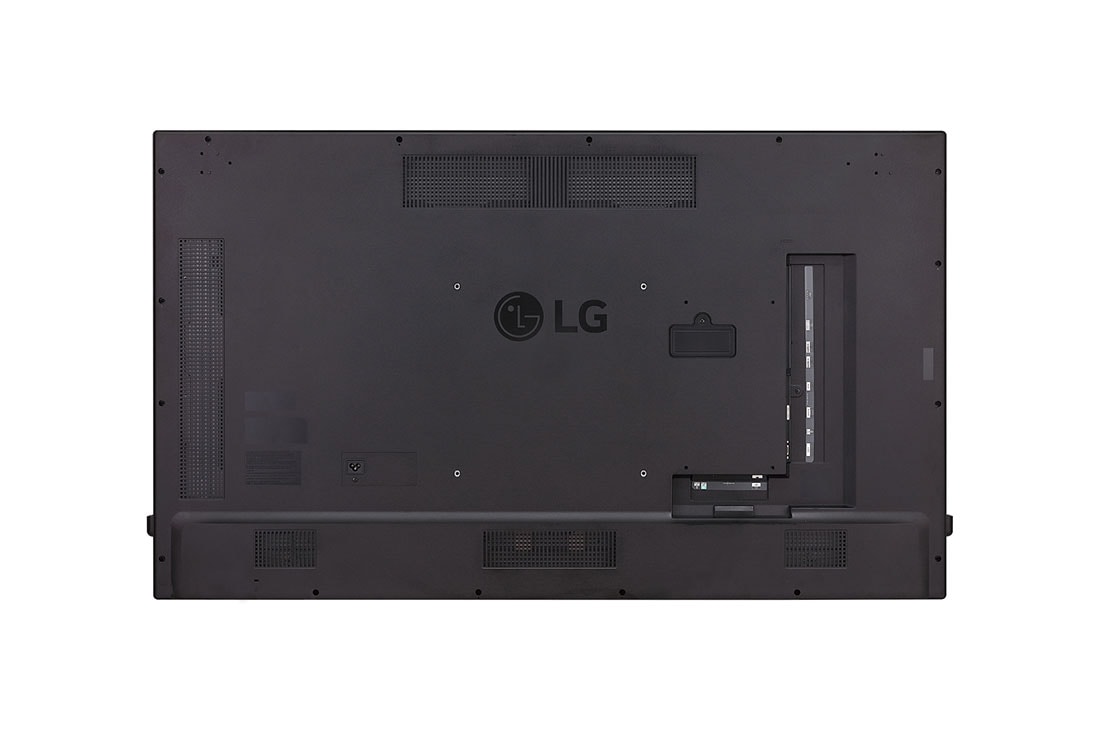

LG Interactive Digital Board, 55TC3D-B, thumbnail 7

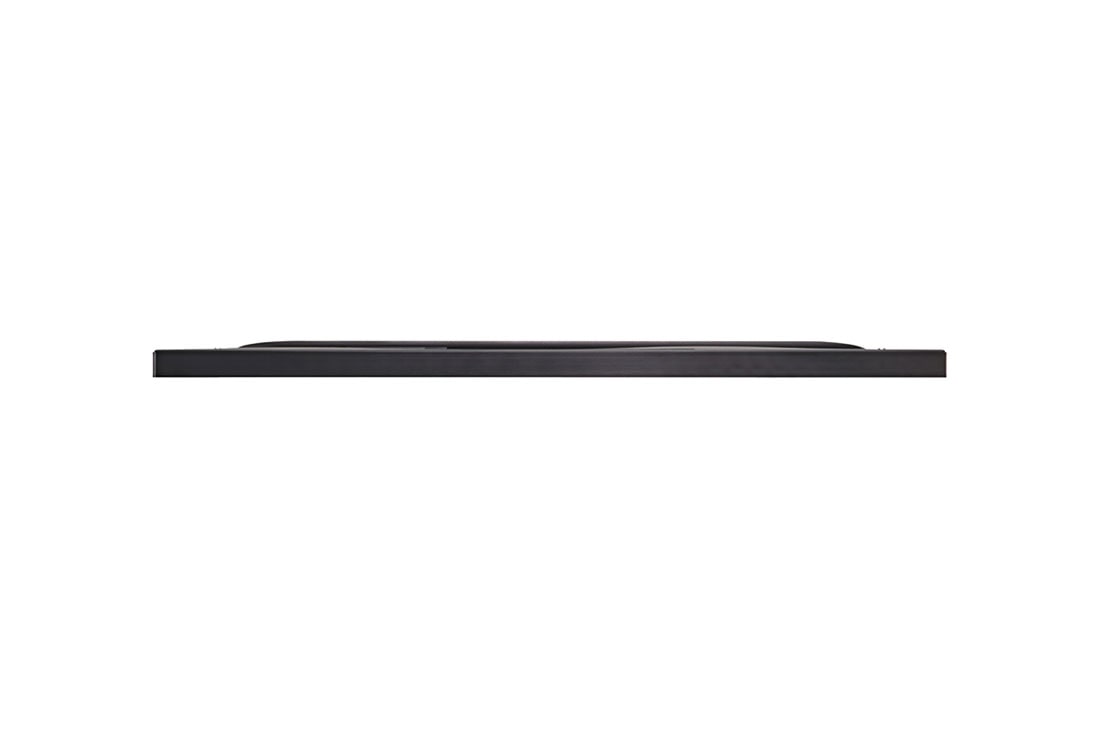

LG Interactive Digital Board, 55TC3D-B, thumbnail 8

ADD TO WISHLIST

Discontinued

55TC3D-B component-copyModelName

Interactive Digital Board

Name: Interactive Digital Board
Brand: LG UAE
SKU: 55TC3D-B
Rating: 0 (0 reviews)

Key Features

Brightness(Typ.): 450 cd/m²
Touch Type: P-Cap(Ag Metal Mesh)
Touch Point: Max. 40 points
Interface: HDMI (3), DP, DVI, RGB, RS232C, RJ45, USB (2), OPS USB, Touch USB (2), Wi-Fi Built-in

Find a Dealer

Add to Compare

component-OBScountrySelectDesc

Key Features

Brightness(Typ.): 450 cd/m²
Touch Type: P-Cap(Ag Metal Mesh)
Touch Point: Max. 40 points
Interface: HDMI (3), DP, DVI, RGB, RS232C, RJ45, USB (2), OPS USB, Touch USB (2), Wi-Fi Built-in

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

Interactive Digital Board

Embedded LG IDB App & webOS

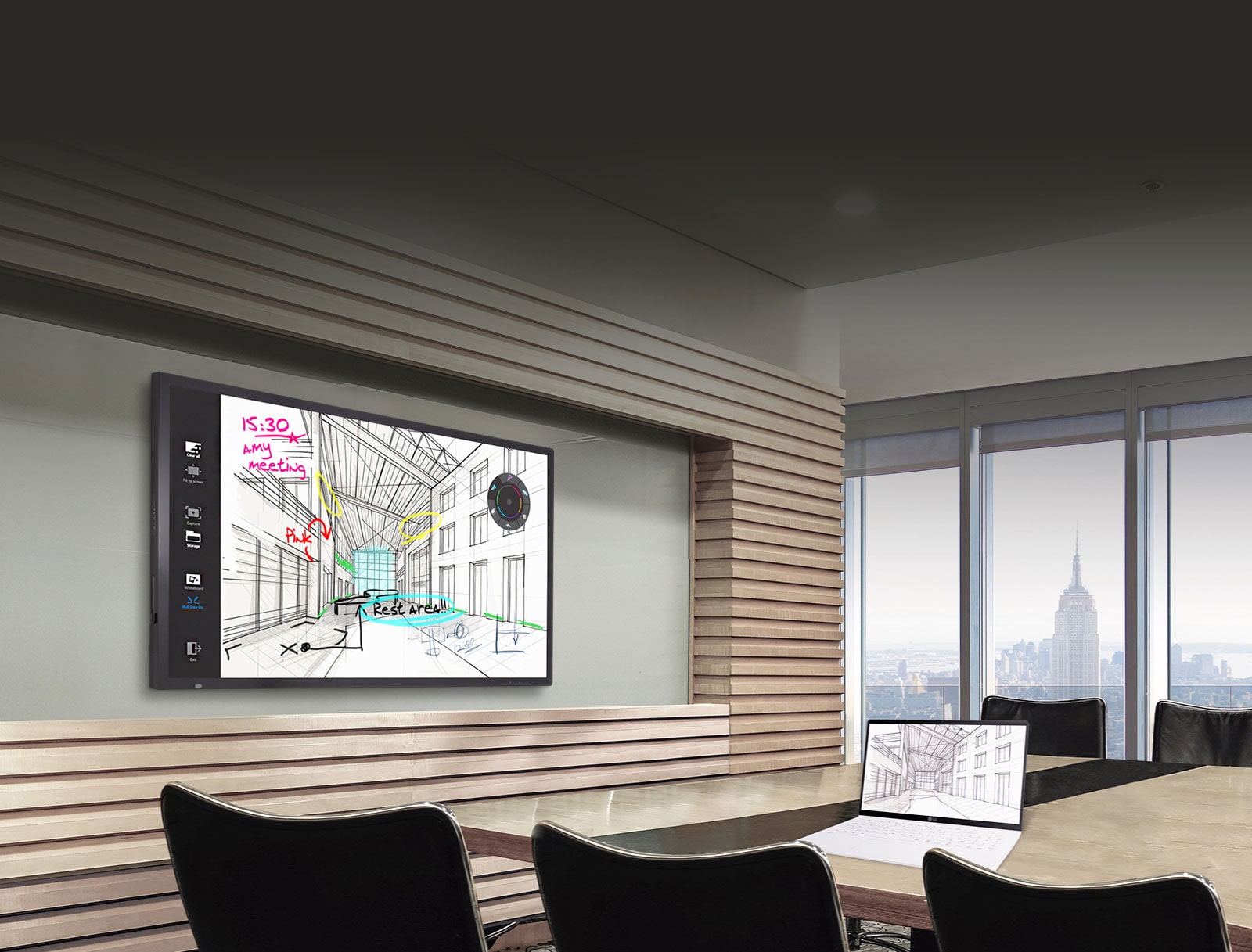

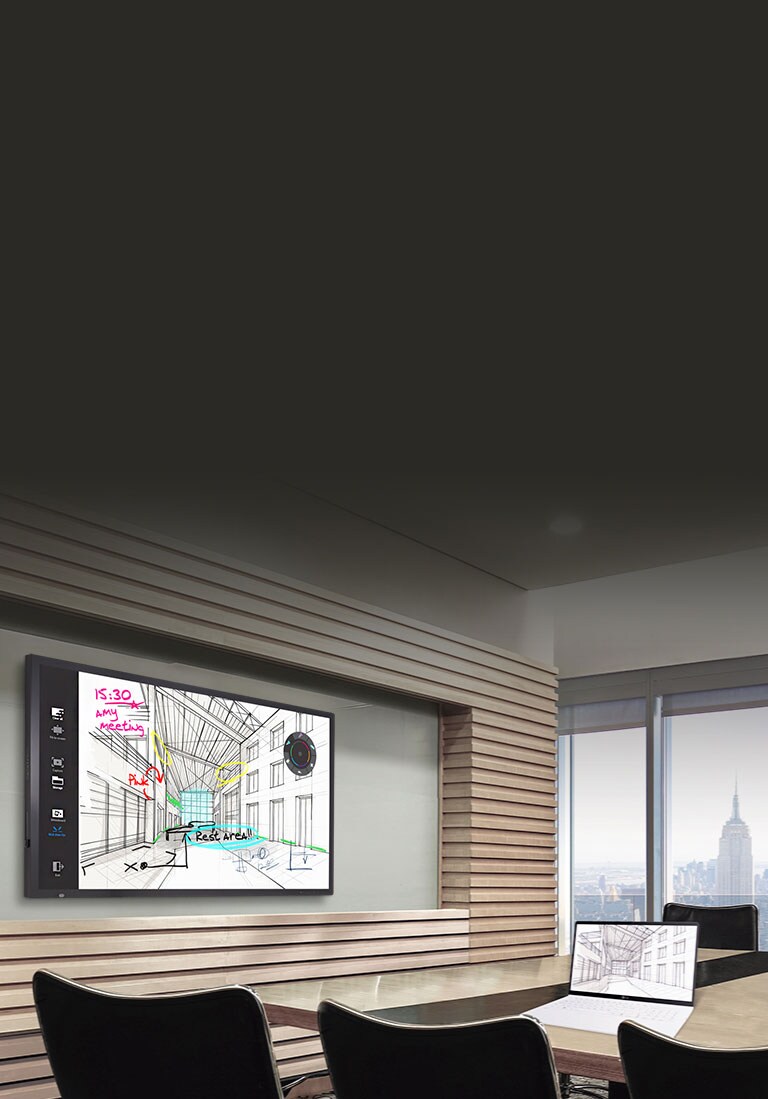

LG IDB: Do More Smartly, Simply

With the IDB app, based on the webOS smart platform, get rid of the need for a PC or additional software licenses when writing/collaborating on Interactive Digital Board.

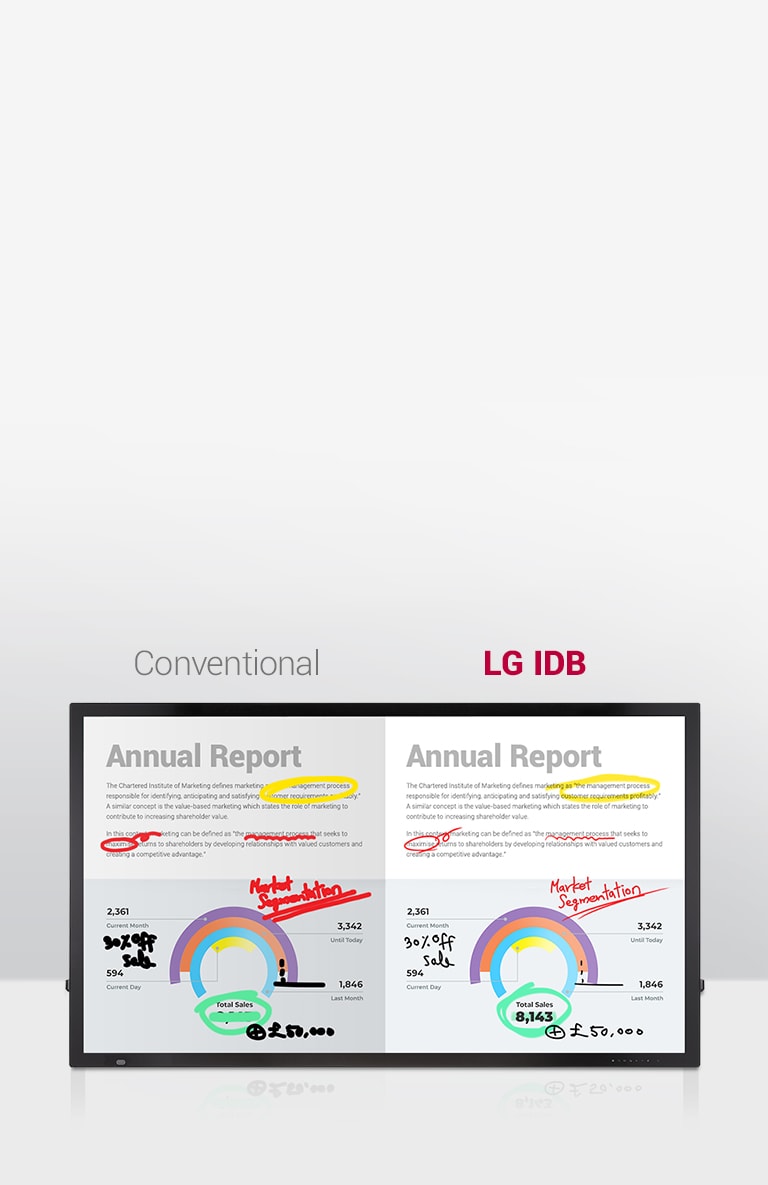

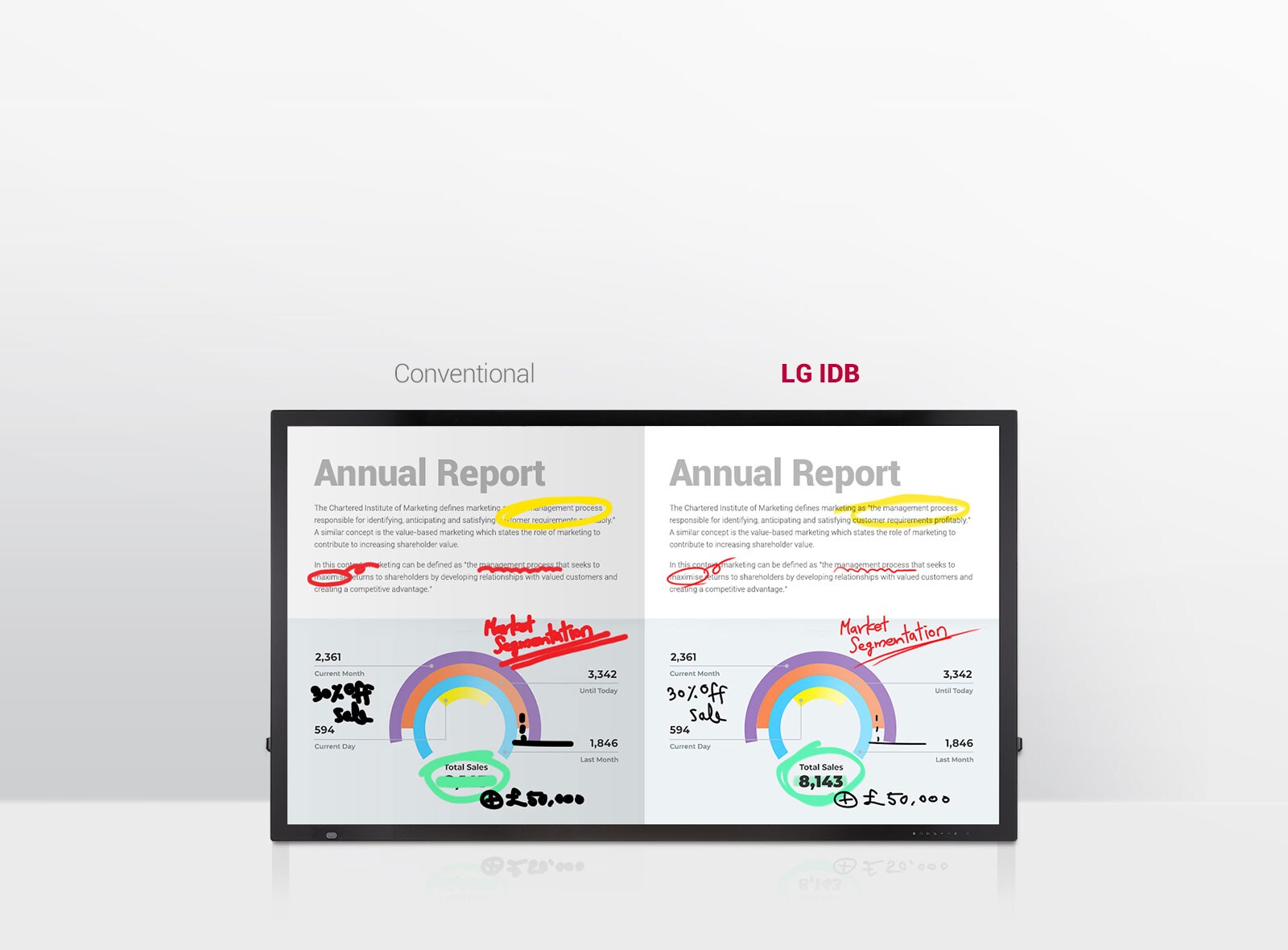

Innovative Touch Performance

Intuitive Touch and Writing

Advanced P-Cap touch-technology enables precise touch responses and realistic handwriting. Pen thickness adapts to the writing speed, with support for max. 40 point muli-touch.

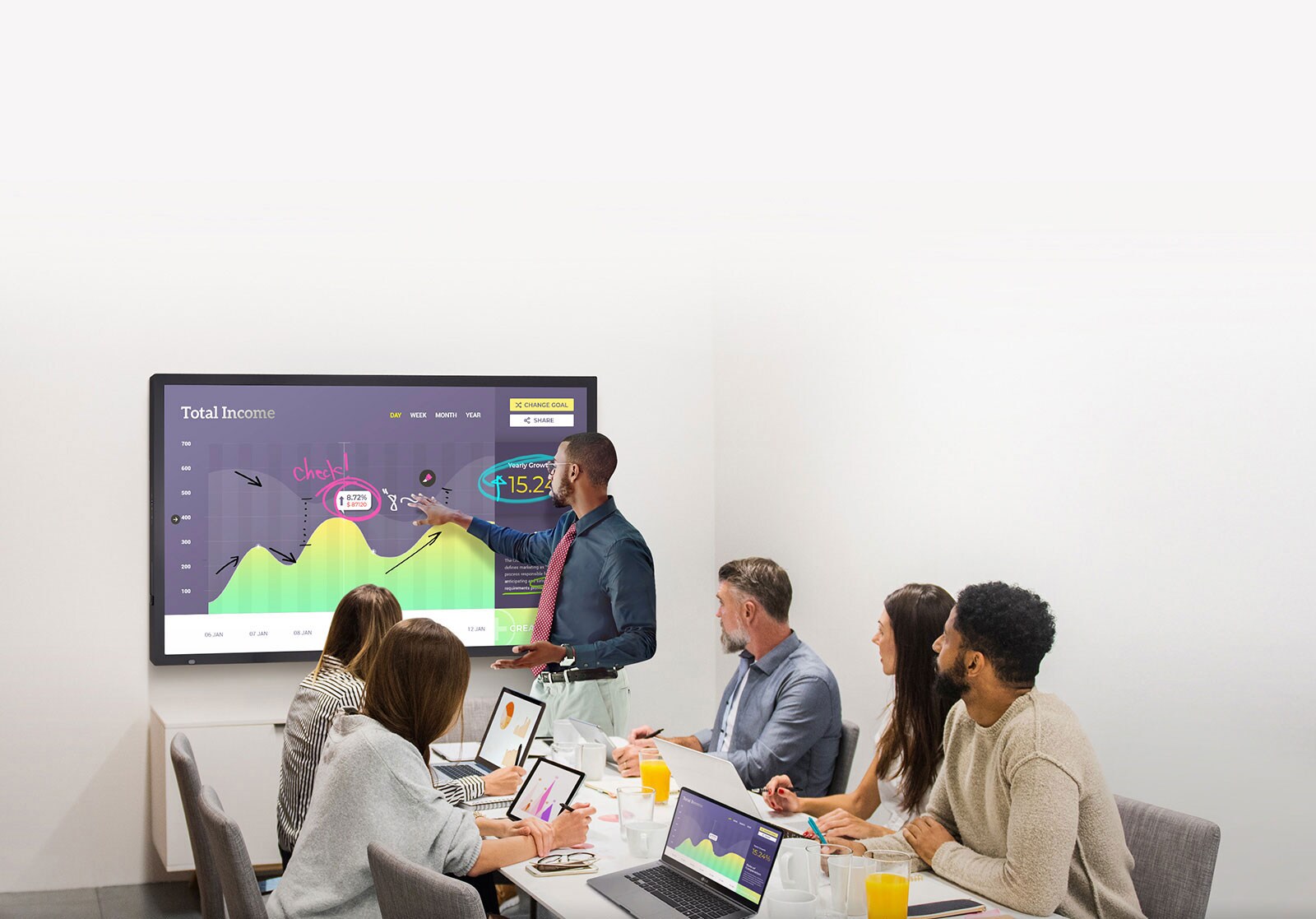

Efficient Collaboration

All-in-One Meeting Experience

For effective collaboration, LG IDB combines once separate processes including participant laptop screen sharing via wired/wireless* connection, writing on a shared screen, and saving annotations.

*Installation of the PC client app (IDB Duo) is required. Go to the 'Tech Spec' section of this page for the minimum requirements and then download the app from the 'Business Resources' section.

IPS Panel

True Color, Wide View

LG IPS panel features a wide viewing angle to deliver clear content regardless of where meeting participants are seated. Each pixel in the IPS panel reproduces image colors true-to-life, without distortion.

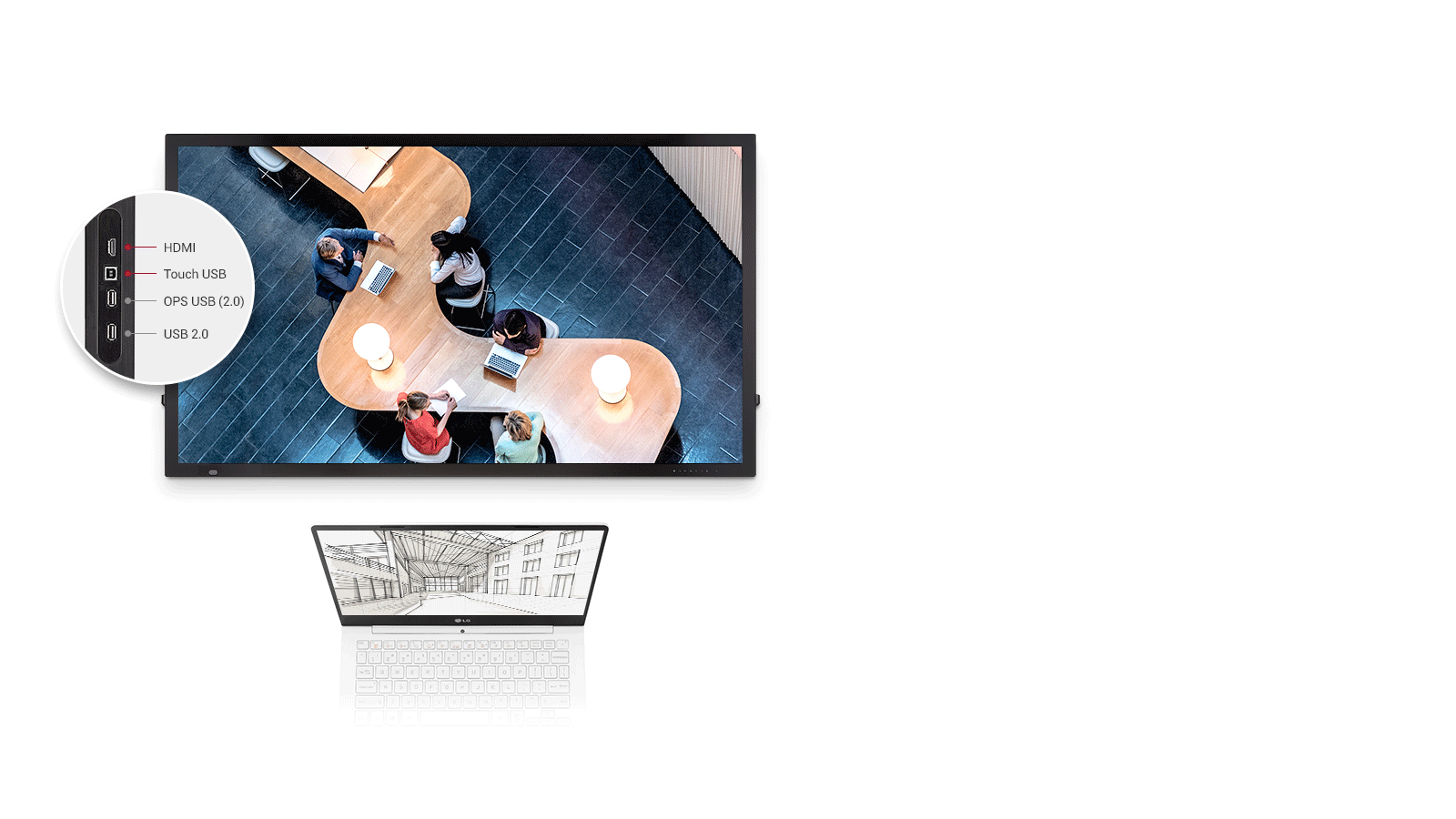

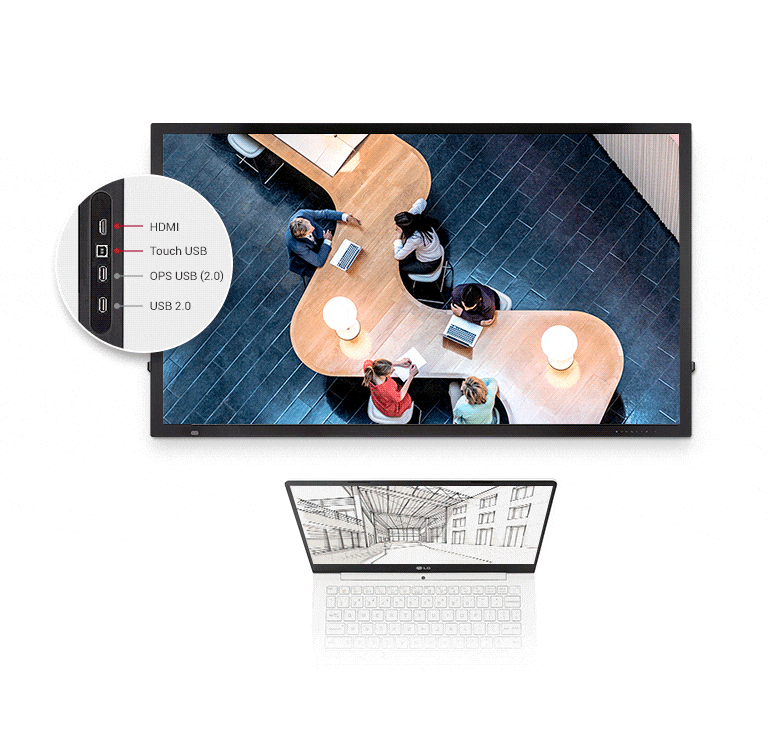

Auto Signal/Touch Switching

Quick and Easy Screen Sharing

Delivering time-saving functionality, the display can detect input/touch signals and automatically change the source if the new input has higher priority than the previous source.

Assistive Touch Menu

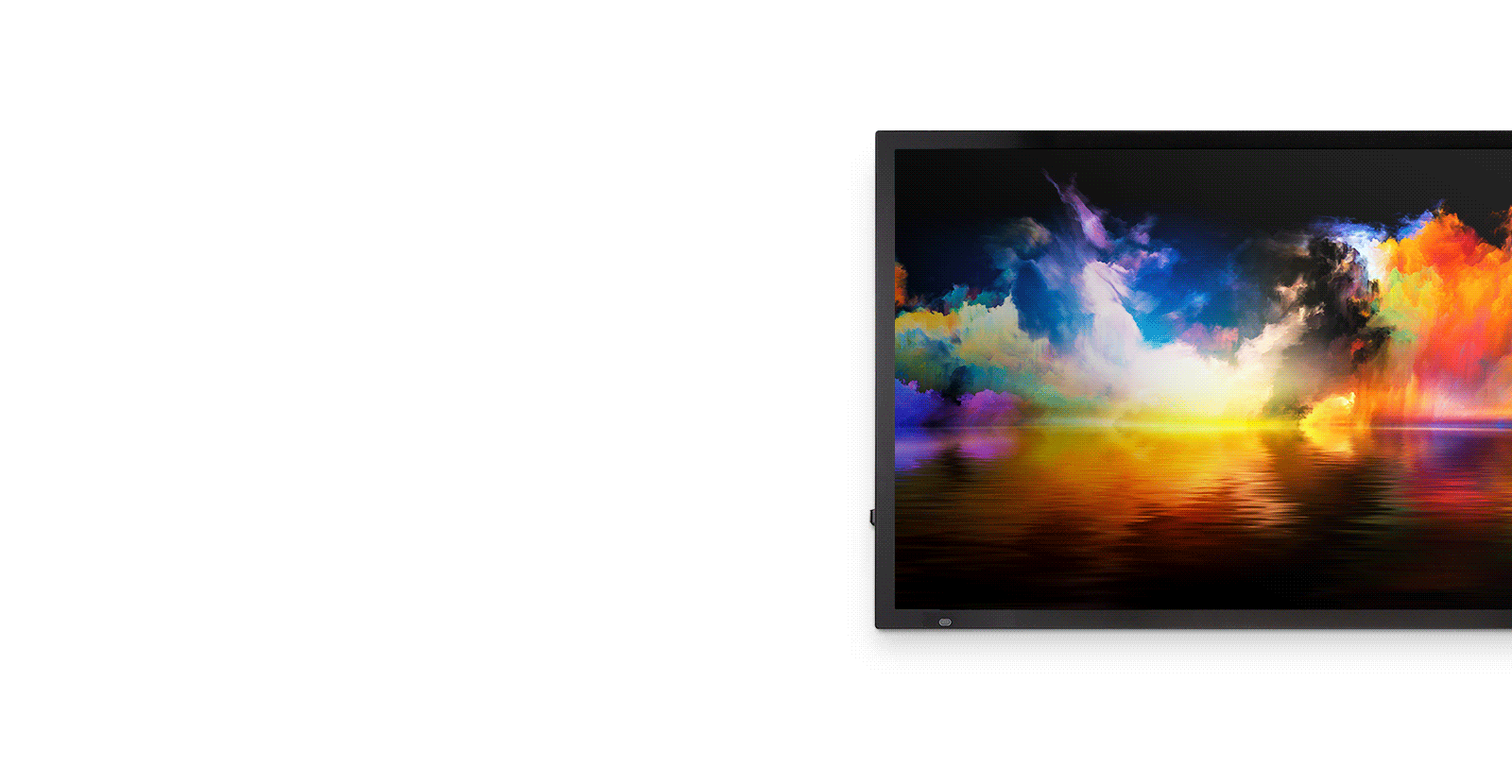

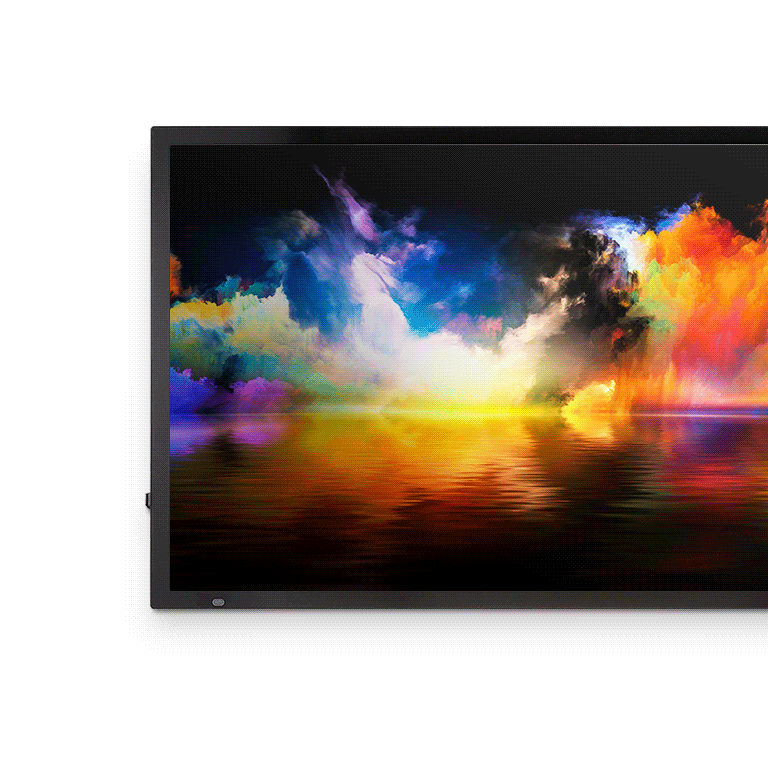

Easy Menu Calling, and Control

Providing optimal ease of use, LG IDB users can run desired functions or change settings by softly pressing the screen to call up the Touch Menu.

*The menu design(GUI) is subject to change without notice.

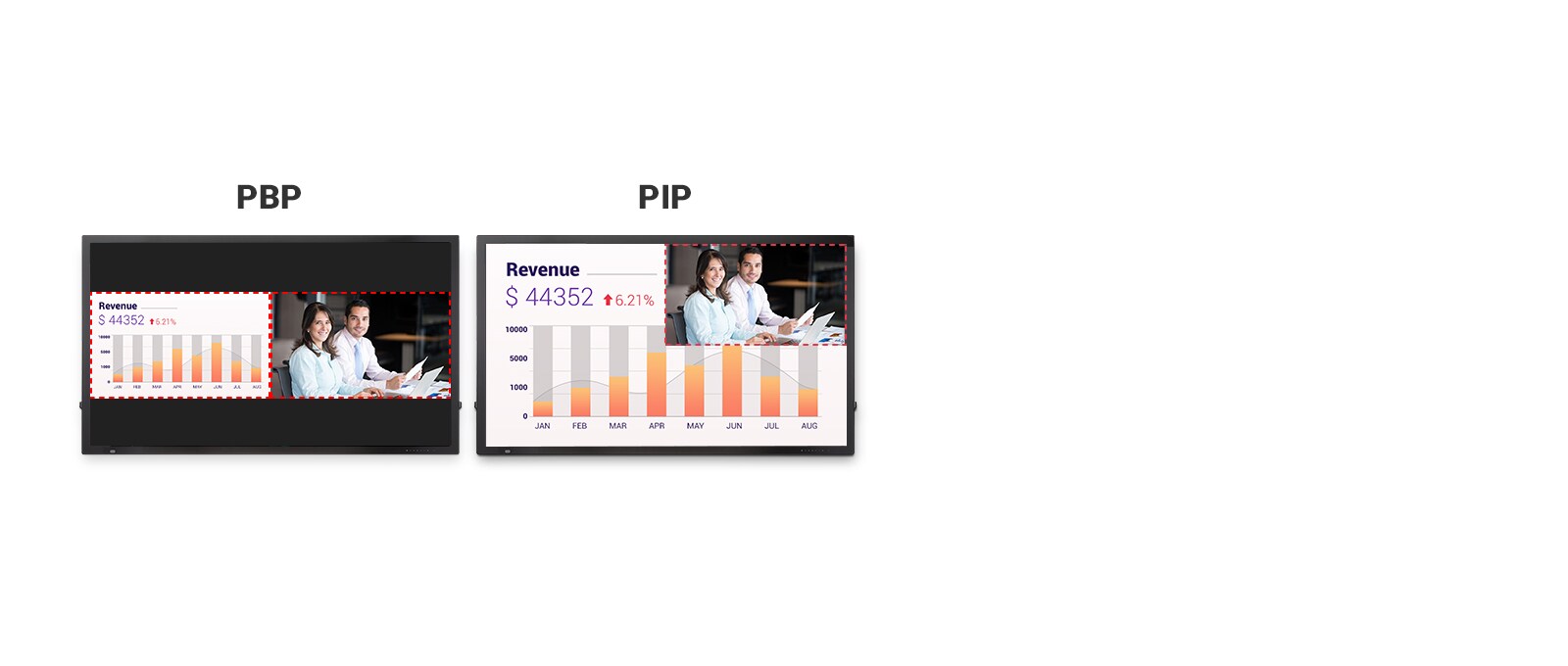

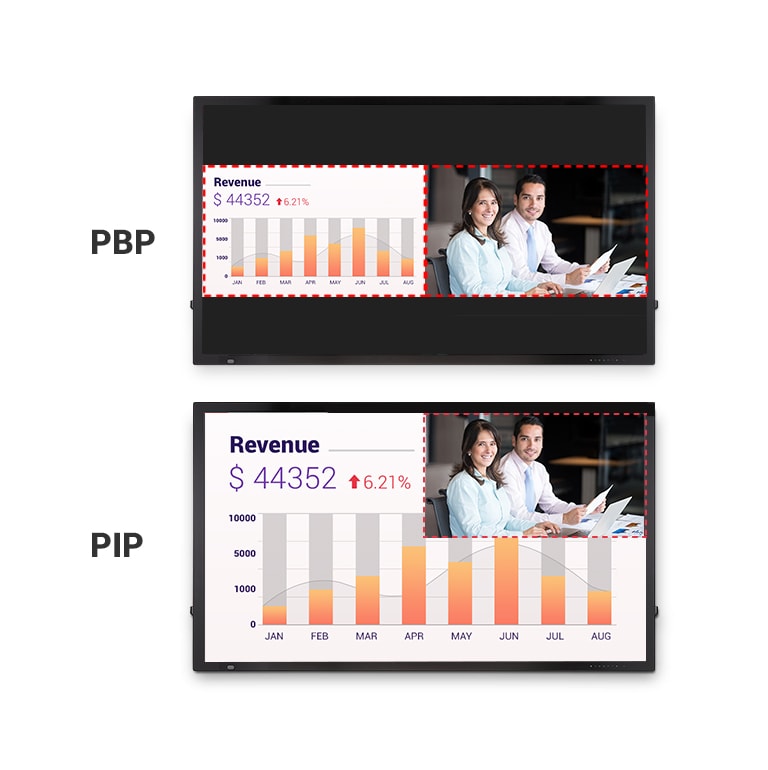

PBP/PIP

Enjoy a Multi Screen Experience

Providing enhanced flexibility for users, PBP/PIP enables two different content sources to be displayed in various layout settings including full screen, original ratio, and sub-screen modes.

PANEL

Screen Size

55"

Native Resolution

1,920 x 1,080 (FHD)
Brightness (Module, Typ., cd/m²)

450

CONNECTIVITY

Input

HDMI (3), DP, DVI-D, RGB, Audio in, USB 3.0, USB 2.0, OPS USB 2.0

Output

Touch USB 2.0 (2)
External Control

RS232C in/out, RJ45 in

PHYSICAL SPECIFICATION

Bezel Width

32.7mm (T), 33.4(L/R), 38.8 mm(B)

Monitor Dimension (W x H x D)

1,276.4 x 751.9 x 63.9 mm
Weight (Head)

30.1kg

Carton Dimensions (W x H x D)

1,369 x 890 x 210 mm
Packed Weight

36.1kg

VESA™ Standard Mount Interface

300 x 300 mm

ENVIRONMENT CONDITIONS

Operation Temperature

0°C to 40°C

Operation Humidity

10% to 80%

POWER CONSUMPTION

Typ.

≤ 100W

Smart Energy Saving

≤ 70W

STANDARD(CERTIFICATION)

Safety

UL/cUL/CB/TUV/KC

EMC

FCC Class "A"/CE/KCC

SOFTWARE COMPATIBILITY

Content Management Software

SuperSign Premium

Control and Monitoring Software

SuperSign Link

MINIMUM REQUIREMENTS FOR LG IDB DUO

OS (Windows 32bit or 64bit)

Windows 7, Windows 10

OS (macOS)

macOS 10.12 Sierra, MacOS 10.13 High Sierra
CPU (Windows)

2.7GHz+ Dual Core Broadwell or higher

CPU (macOS)

Any CPU which supports Sierra or High Sierra
Memory

4GB RAM

Hard Drive

1GB of free space
Graphics Hardware (Windows)

Intel Iris or higher, Nvidia, ATI

Graphics Hardware (macOS)

Any GPU which supports Sierra or High Sierra

ACCESSORY

Basic

Remote Controller (include battery 2ea), Power Cord, QSG, HDMI (3M), Regulation Book, Phone to RS232C Gender, Touch Pen (2ea), Touch Pen Tip (1ea)

Optional

OPS Kit (KT-OPSA), Wall Mount (LSW350A/B)

TOUCH

Touch type

P-Cap (Ag Metal Mesh)

Available object size for touch

more than Ø 6mm
Accuracy

2mm

Interface

USB 2.0
Protection Glass Thickness

3.2T (Anti-Glare)

Multi touch point

Max. 40 Points

COMPLIANCE INFORMATION

More Compliance Information

The safety information for accessories is included with the safety information for the product and is not provided separately.
