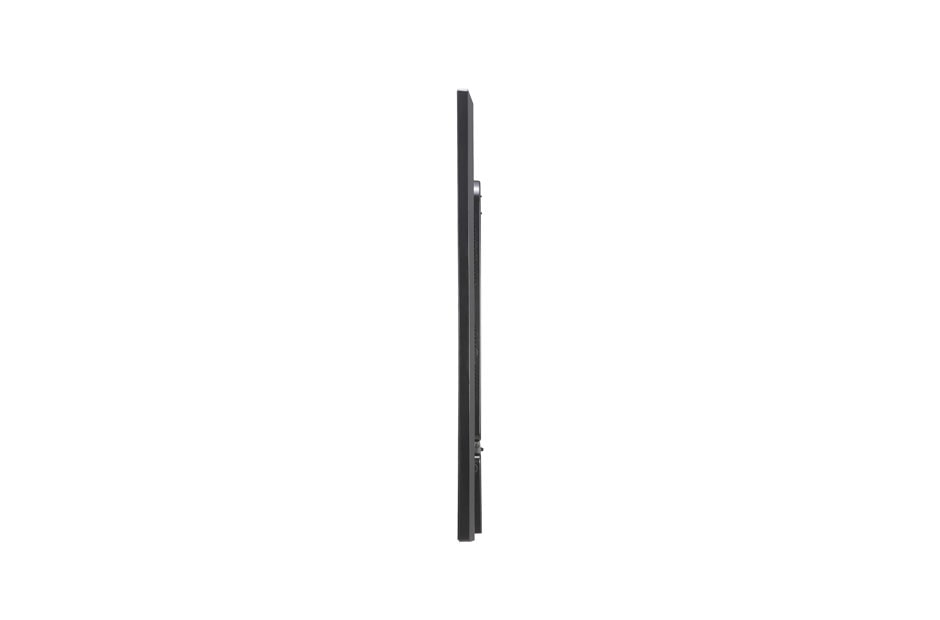

LG 55'' 500 nits UHD Signage, 55UH5C, thumbnail 6

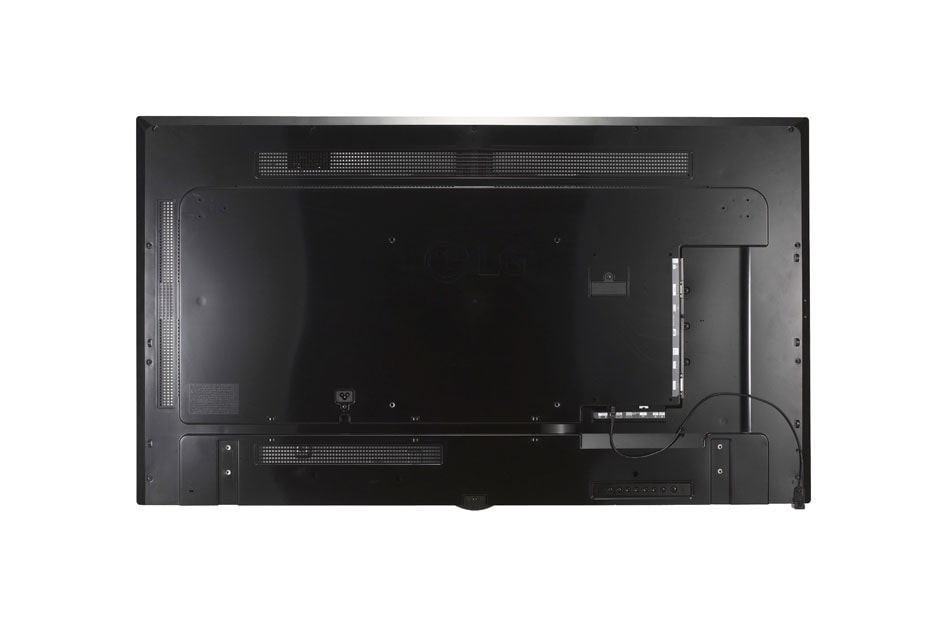

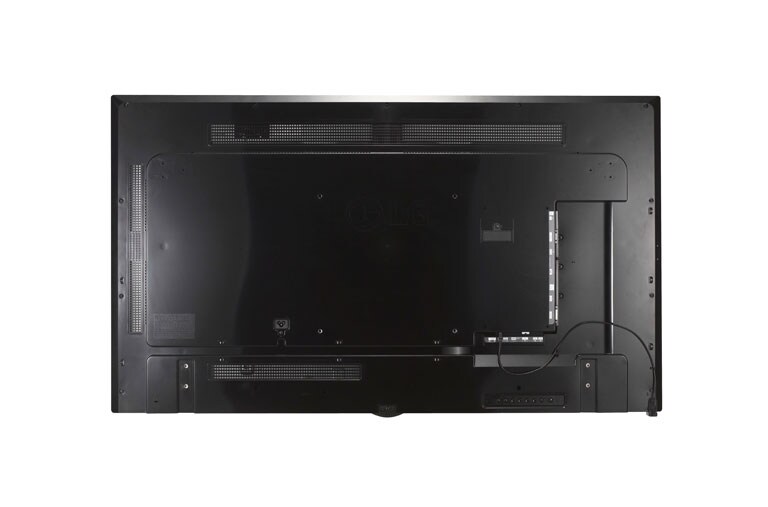

LG 55'' 500 nits UHD Signage, 55UH5C, thumbnail 7

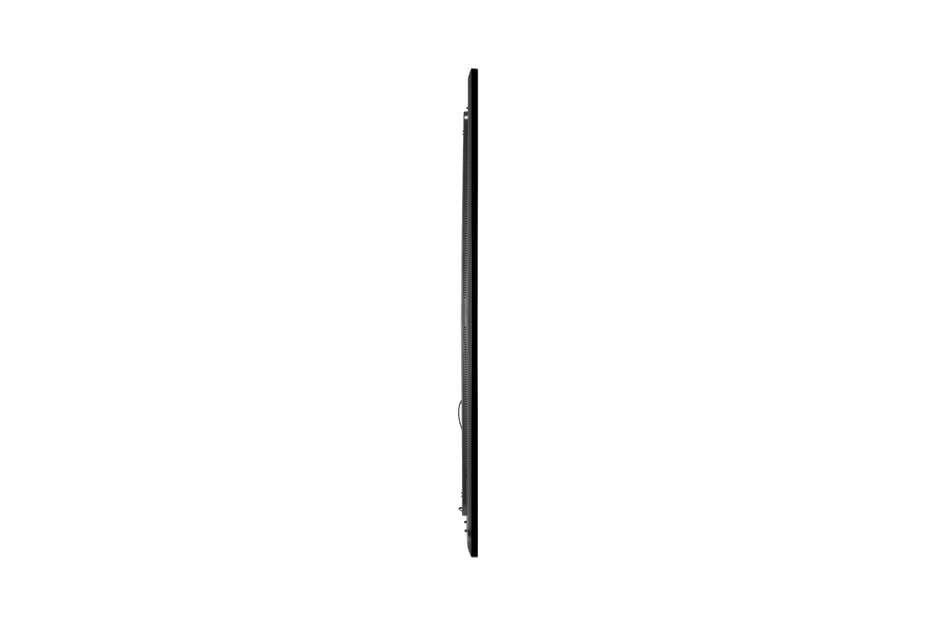

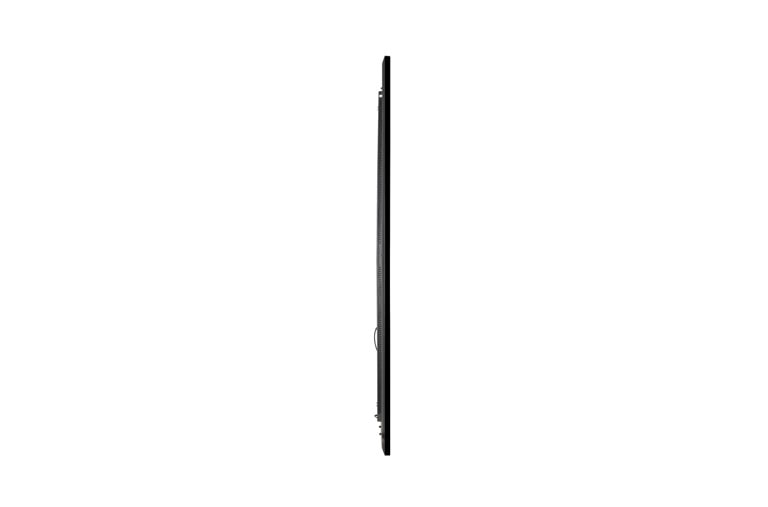

LG 55'' 500 nits UHD Signage, 55UH5C, thumbnail 8

ADD TO WISHLIST

Discontinued

55UH5C component-copyModelName

55'' 500 nits UHD Signage

Name: 55'' 500 nits UHD Signage
Brand: LG UAE
SKU: 55UH5C
Rating: 0 (0 reviews)

Key Features

Brightness : 500 cd/m2
Bezel : 12.1 mm (T), 12.6 mm (R/L), 15.7 mm (B)
Depth : 38.6 mm
Interface : HDMI / DVI / DP / RGB / RJ45 / IR / RS232C / SD Card / USB

Find a Dealer

Add to Compare

component-OBScountrySelectDesc

Key Features

Brightness : 500 cd/m2
Bezel : 12.1 mm (T), 12.6 mm (R/L), 15.7 mm (B)
Depth : 38.6 mm
Interface : HDMI / DVI / DP / RGB / RJ45 / IR / RS232C / SD Card / USB

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

55" 500 nits UHD Signage

Ultra HD

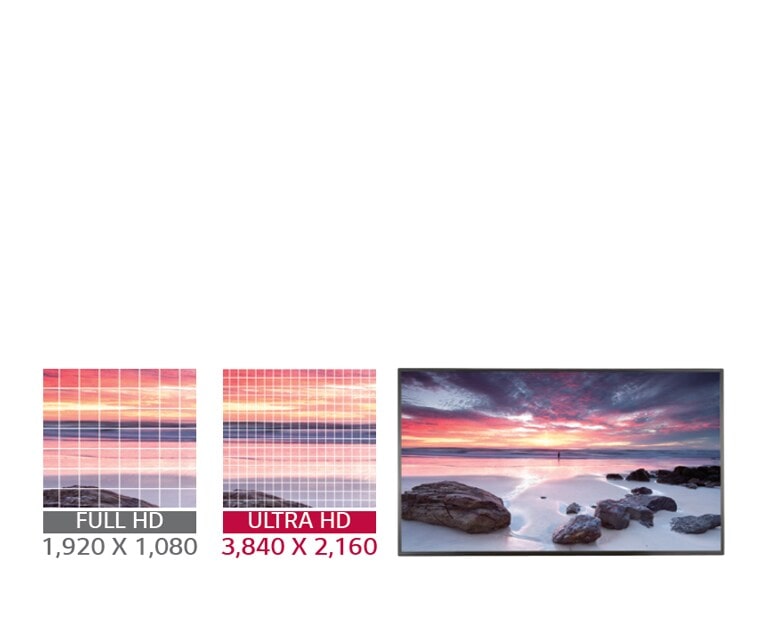

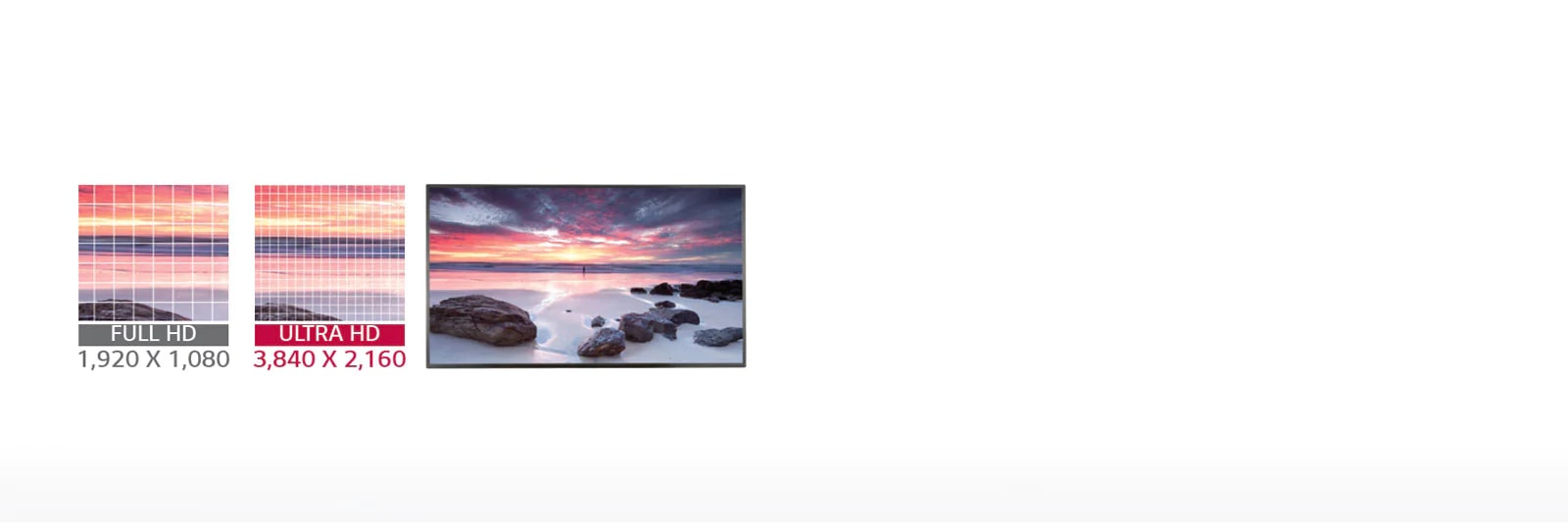

Ultra HD Resolution (3,840 x 2,160)

Ultra HD Large screen delivers immersive
viewing experience by 4 times higher
definition picture quality than FHD.

Ultra HD

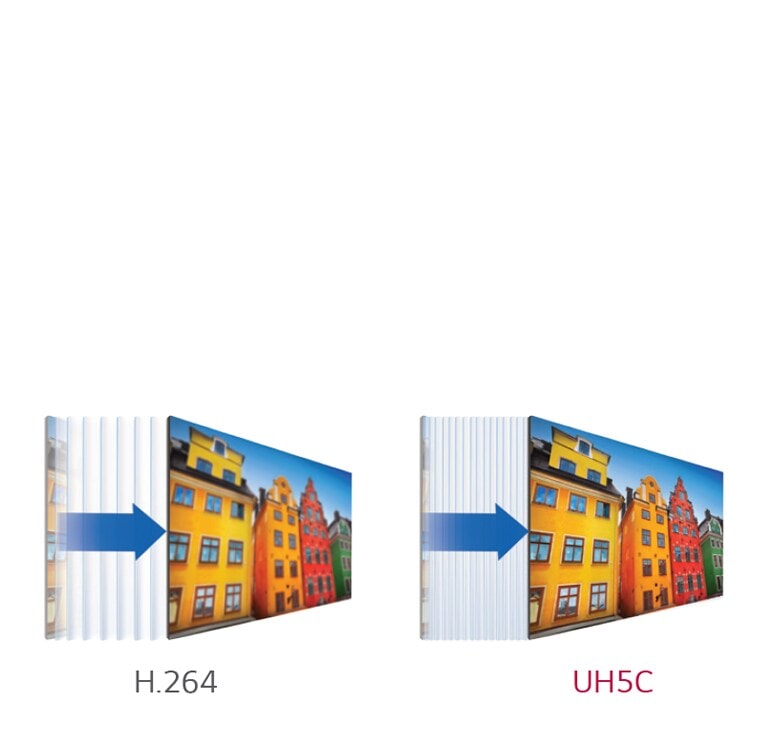

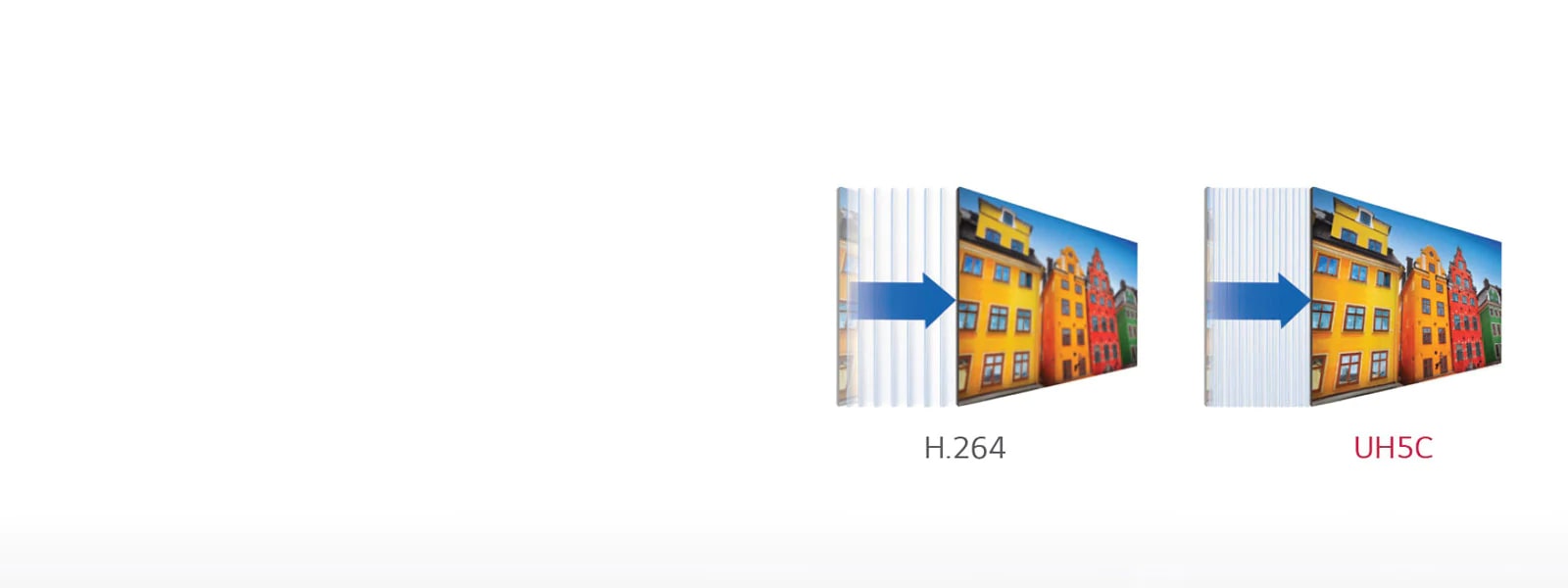

High Efficiency Video Coding

Supports HEVC-based content which has the double data
compression ratio than the H.264,
so network traffic can be reduced by half.

Built-in Wi-Fi

Mirroring

Content sharing is more
convenient on a Wi-Fi network.

Built-in Wi-Fi

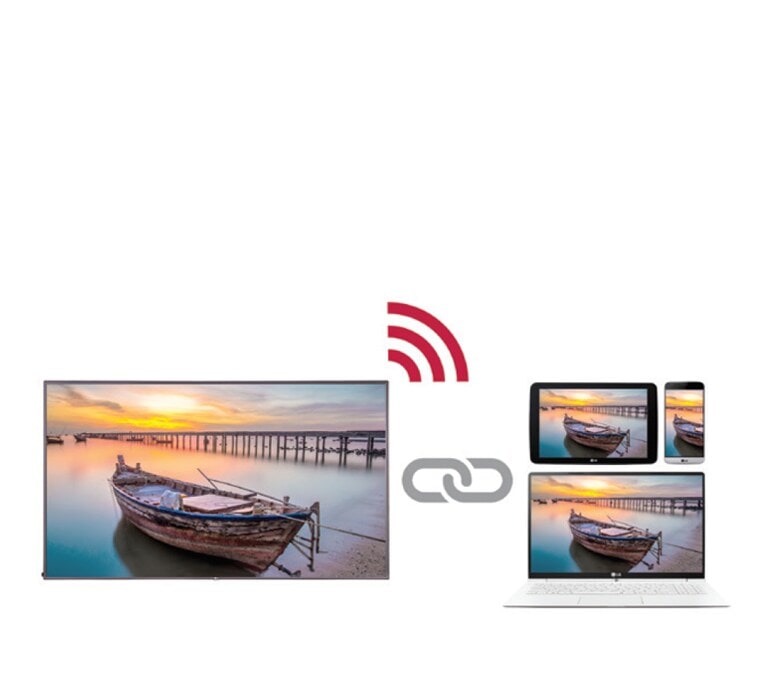

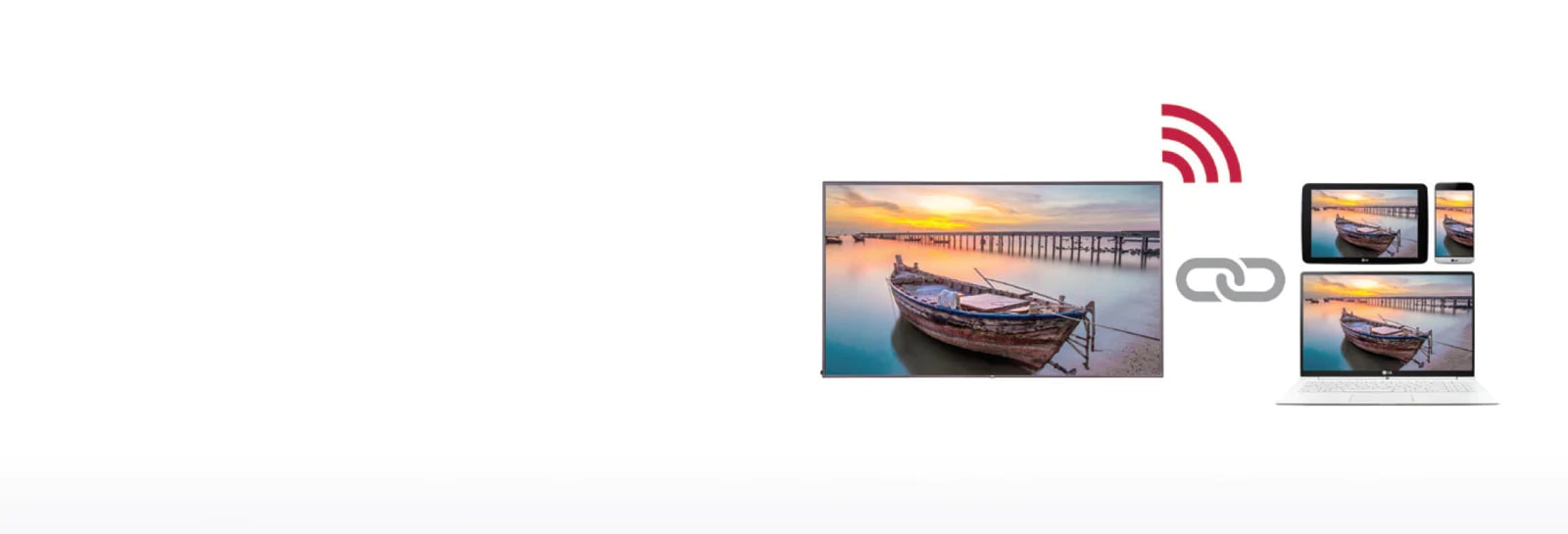

Soft AP

The UH5C with Soft AP
software can operate as a
wireless access point for mobile devices.

Cost Effectiveness

Low Power Consumption Using The M+ Panel
The M+ panel offers excellent energy efficiency and
cost savings and decreases power consumption by
approx. 31 compared to conventional RGB panels*.

Smart Platform

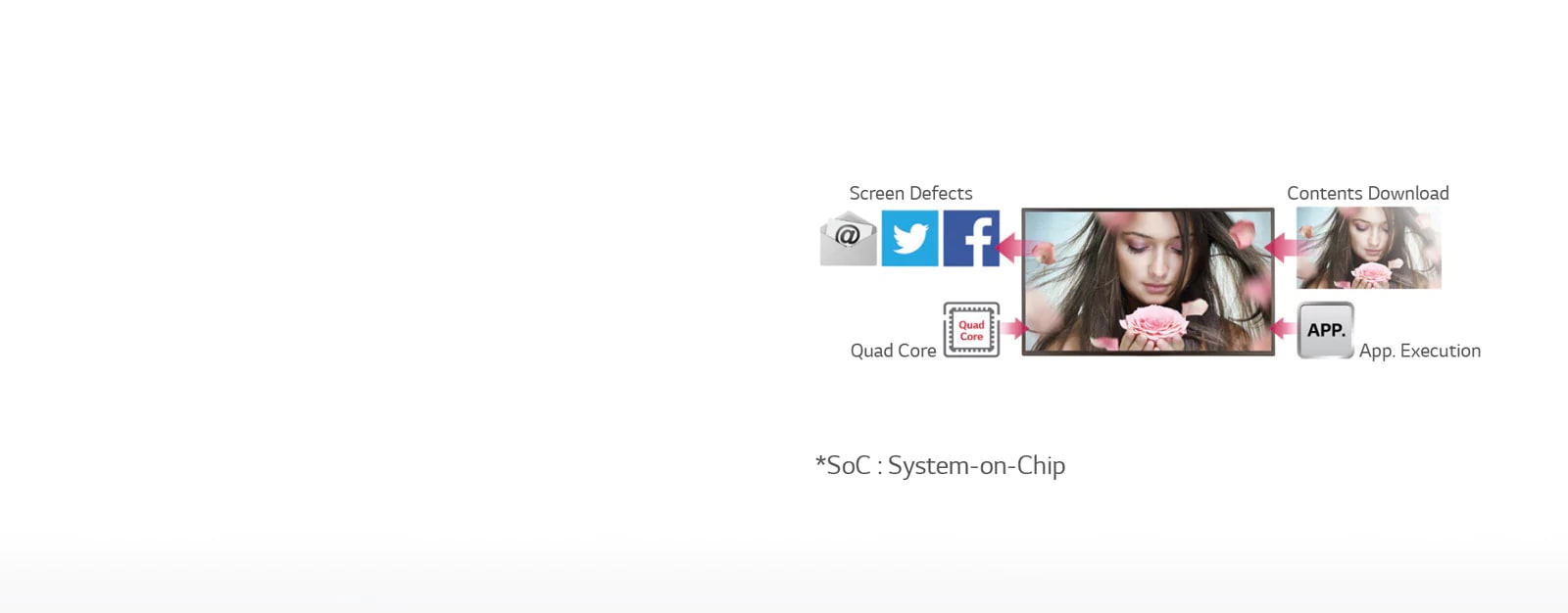

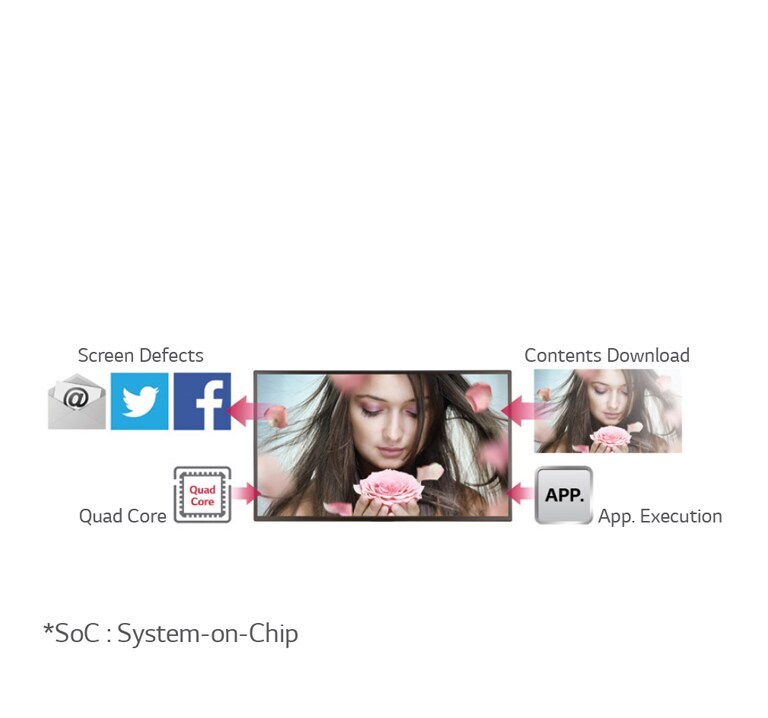

Quad Core SoC*

The high-performance SoC can execute several tasks at
the same time and provides smooth content playback.

PANEL

Screen Size

55"

Resolution

3,840 x 2,160 (UHD)
Brightness

500cd/m²

CONNECTIVITY

Input

HDMI, DP, DVI-D, Audio, USB 3.0, SD Card

Output

DP, Audio, Externel Speaker Out
External Control

RS232C, RJ45, IR Receiver, Pixel Sensor

PHYSICAL SPECIFICATION

Bezel Width

12.1 mm (T), 12.6 mm (R/L), 15.7 mm (B)

Monitor Dimension (W x H x D)

1,239.8 x 725.2 x 38.6 mm
Weight (Head)

16.6 kg

ENVIRONMENT CONDITIONS

Operation Temperature

0°C to 40°C

Operation Humidity

10 % to 80 %

POWER

Power Supply

100-240V~, 50/60Hz

Power Type

Built-In Power

POWER CONSUMPTION

Typ.

116 W

Smart Energy Saving

80 W

STANDARD(CERTIFICATION)

Safety

UL / cUL / CB / TUV / KC

EMC

FCC Class "A" / CE / KCC
ErP / Energy Star

Yes (EU Only) / Yes (Energy Star 8.0)

MEDIA PLAYER COMPATIBILITY

OPS Type Compatible

Yes

External Media Player Attatchable

Yes (MP500/MP700)

SOFTWARE COMPATIBILITY

SuperSign-w lite

Yes

SuperSign-c

Yes

ACCESSORY

Basic

Remote Controller (2ea batteries included), Power cord, QSG, HDMI cable, Regulation book, Phone to RS232C gender, Memory cover

Optional

Speaker (SP-5200), Stand (ST-201T), Pixel sensor (KT-SP0), Media player, Wall bracket (LSW350B), VESA Adapter (AM-B330S), OPS Kit (KT-OPSA), HDBaseT (EB-B100)
