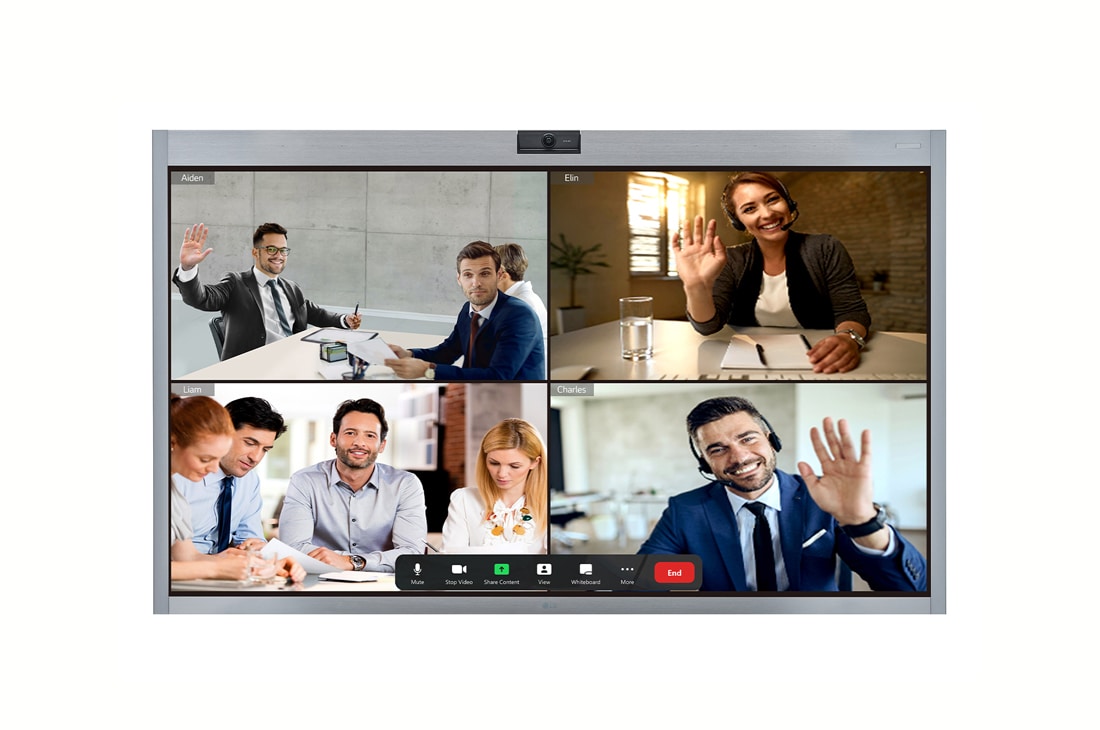

LG One:Quick Works for Zoom Rooms, Front view with infill image, 55CT5WN-Z, thumbnail 1

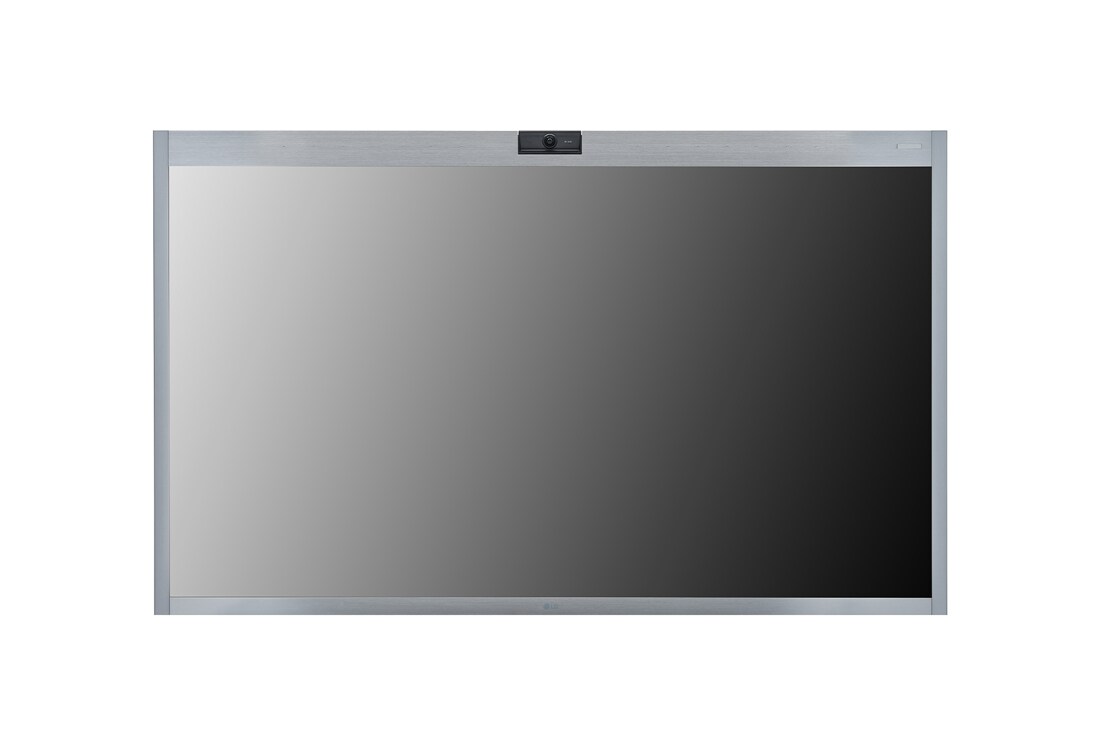

LG One:Quick Works for Zoom Rooms, Front view, 55CT5WN-Z, thumbnail 2

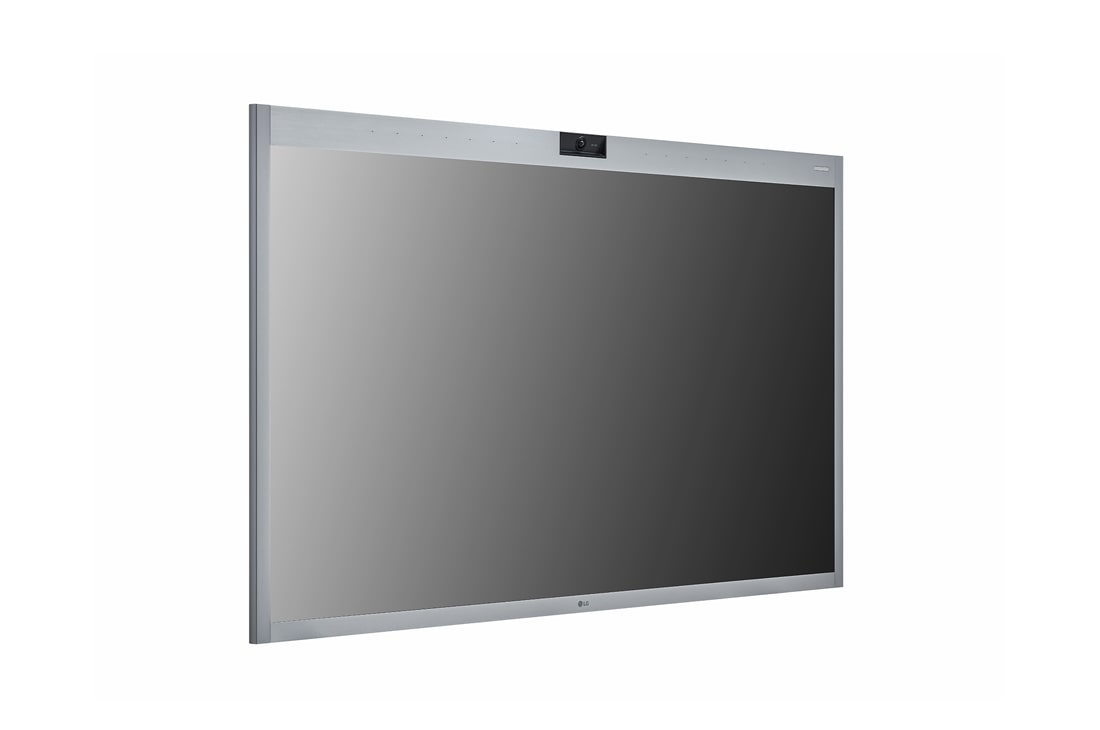

LG One:Quick Works for Zoom Rooms, +45 degree side view, 55CT5WN-Z, thumbnail 3

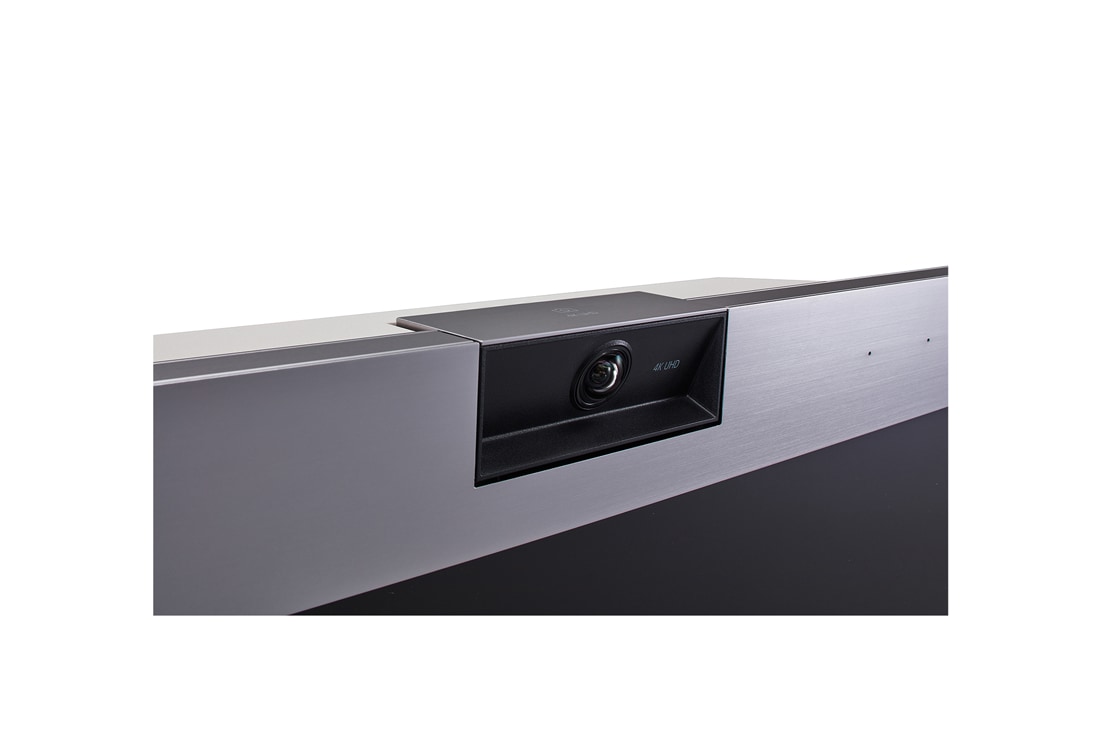

LG One:Quick Works for Zoom Rooms, Close-up image of top, 55CT5WN-Z, thumbnail 4

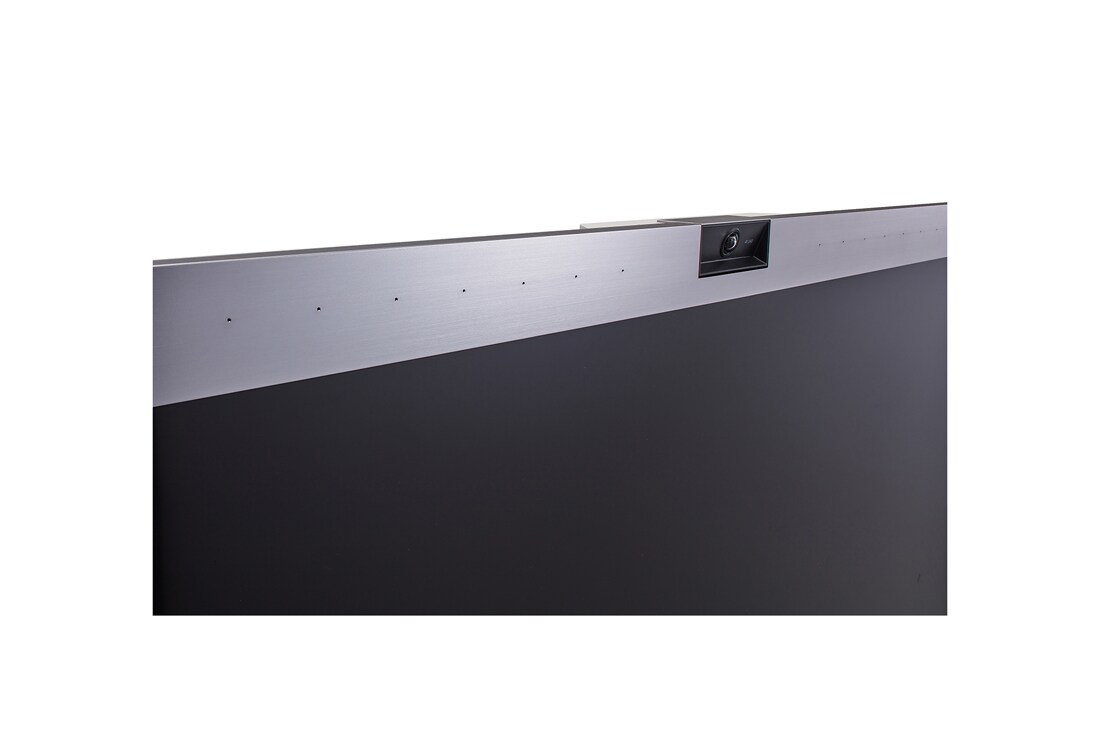

LG One:Quick Works for Zoom Rooms, Close-up image of top2, 55CT5WN-Z, thumbnail 5

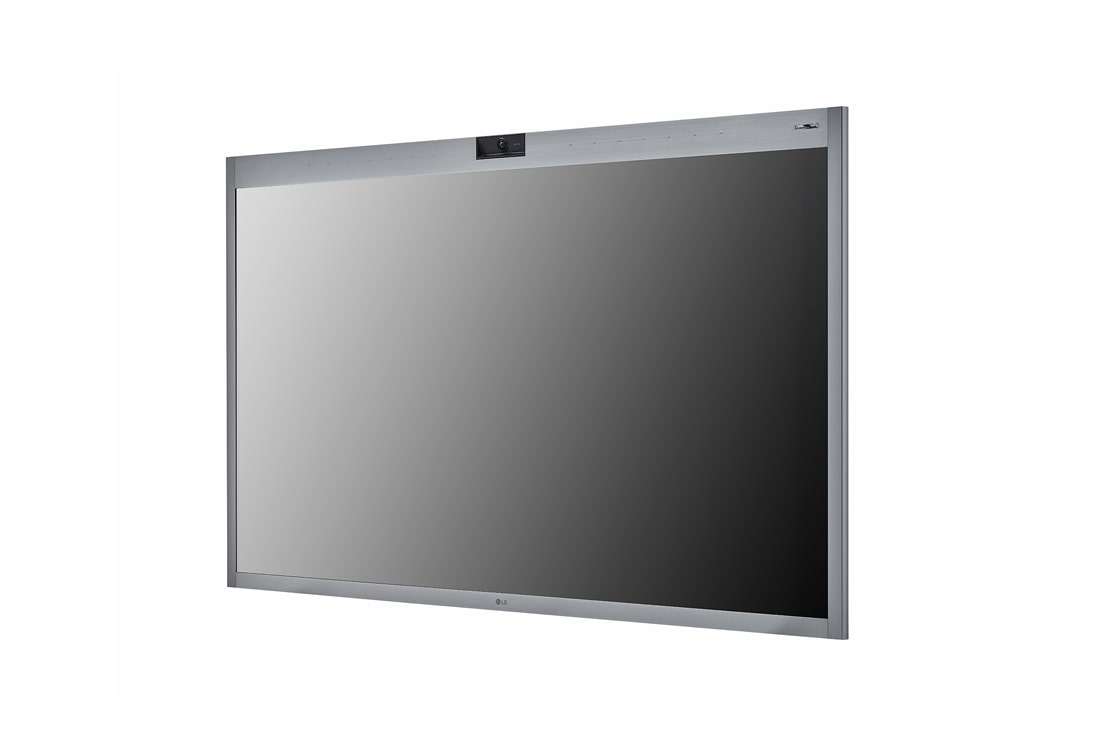

LG One:Quick Works for Zoom Rooms, -45 degree side view, 55CT5WN-Z, thumbnail 6

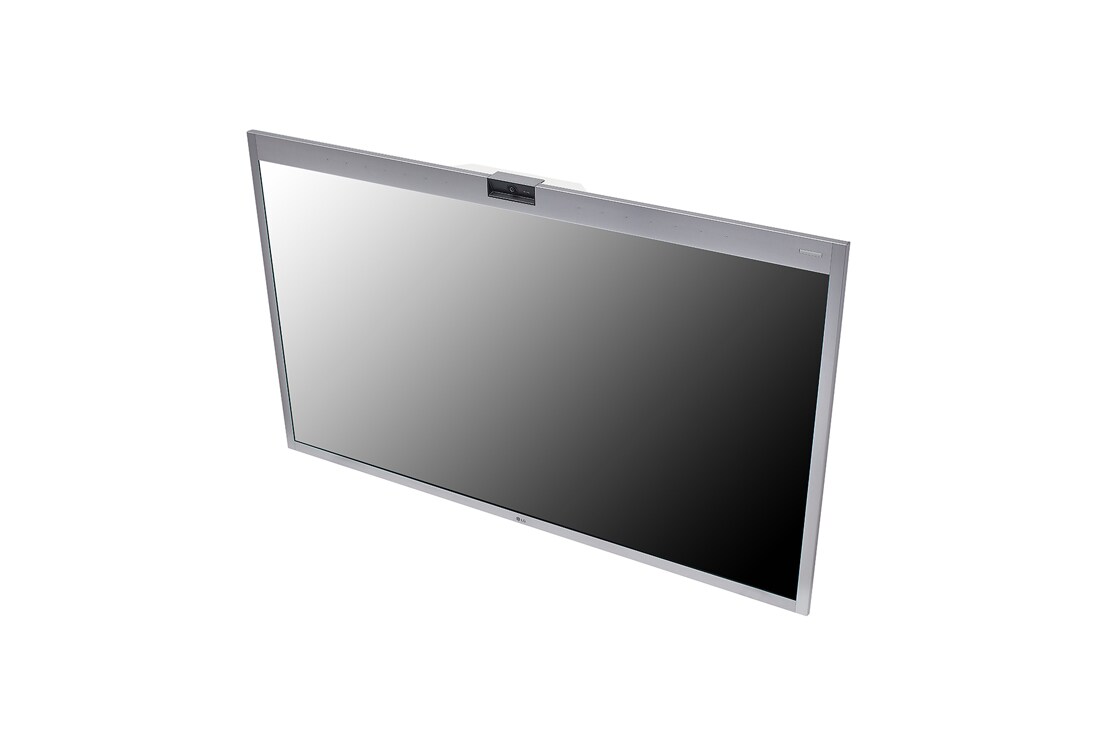

LG One:Quick Works for Zoom Rooms, Image taken from the top right, 55CT5WN-Z, thumbnail 7

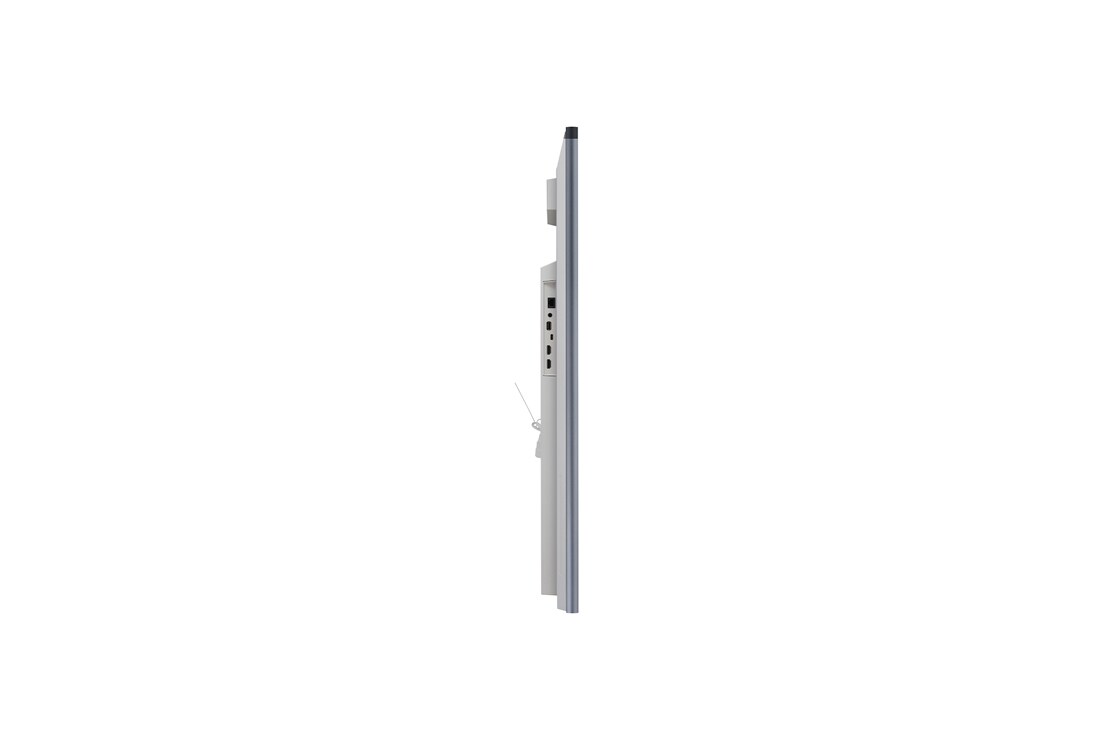

LG One:Quick Works for Zoom Rooms, +90 degree side view, 55CT5WN-Z, thumbnail 8

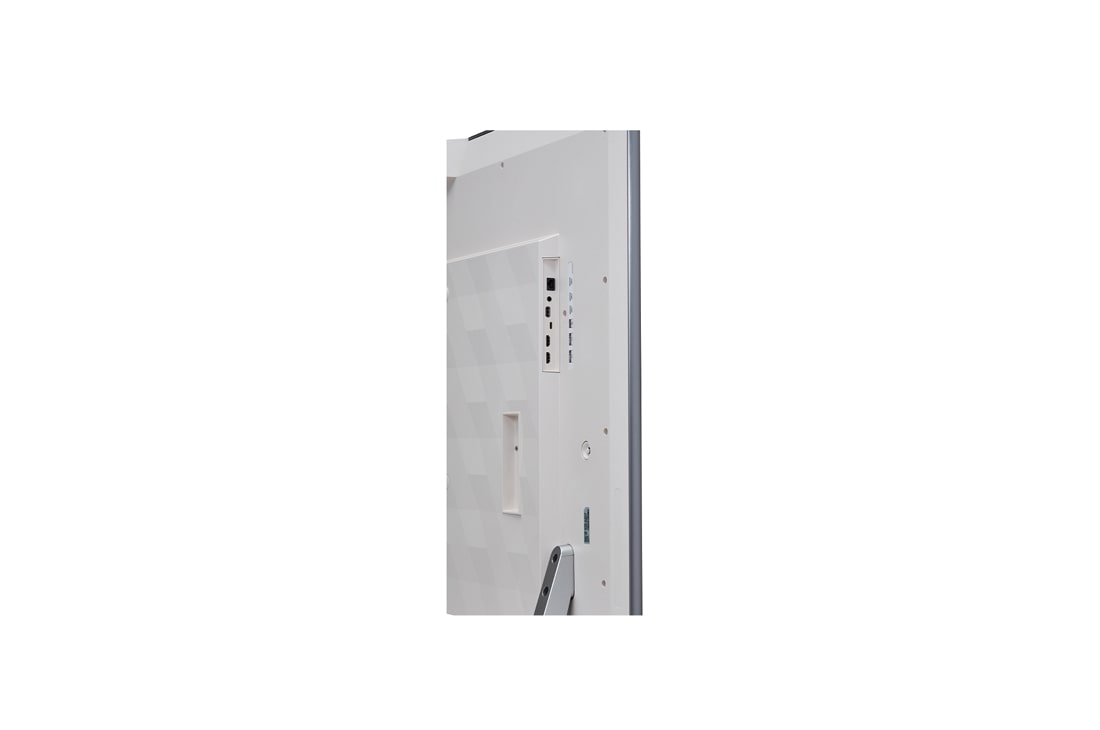

LG One:Quick Works for Zoom Rooms, Close-up image of side, 55CT5WN-Z, thumbnail 9

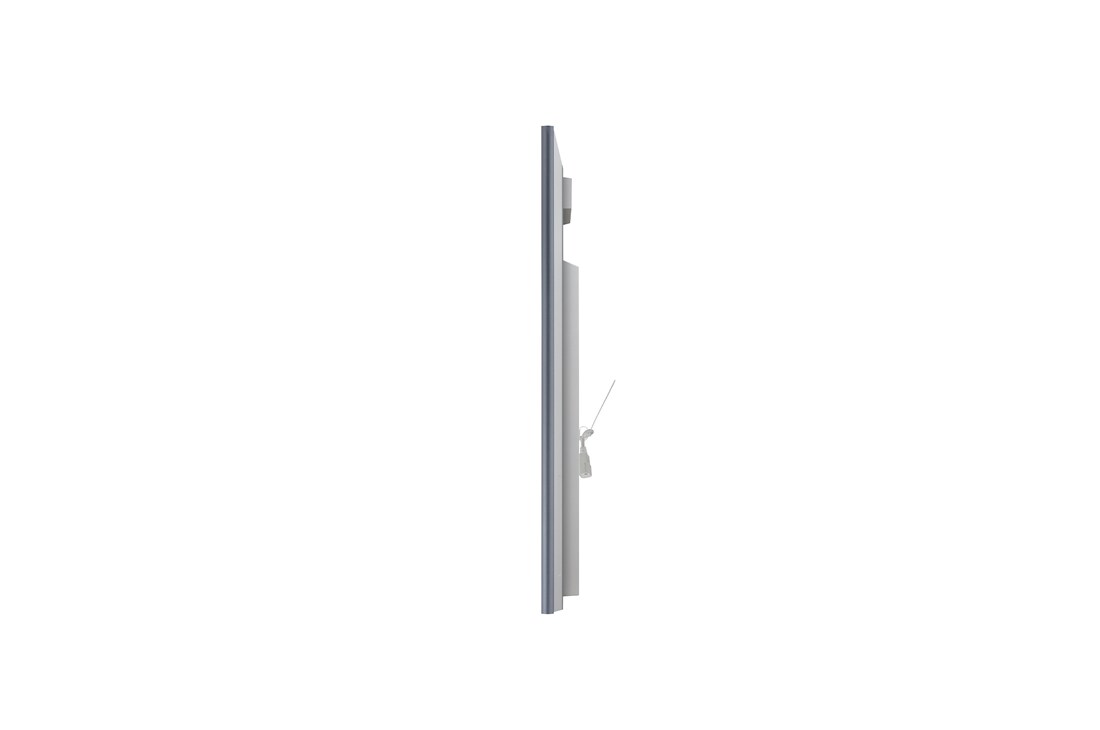

LG One:Quick Works for Zoom Rooms, -90 degree side view, 55CT5WN-Z, thumbnail 10

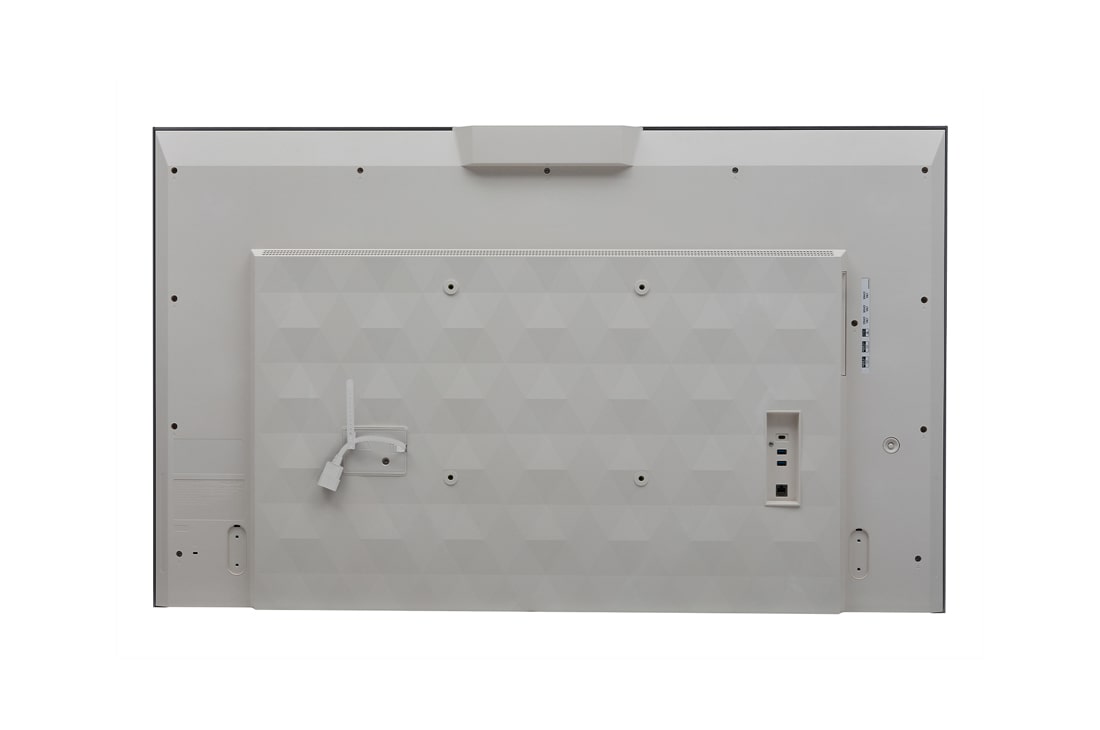

LG One:Quick Works for Zoom Rooms, Rear view, 55CT5WN-Z, thumbnail 11

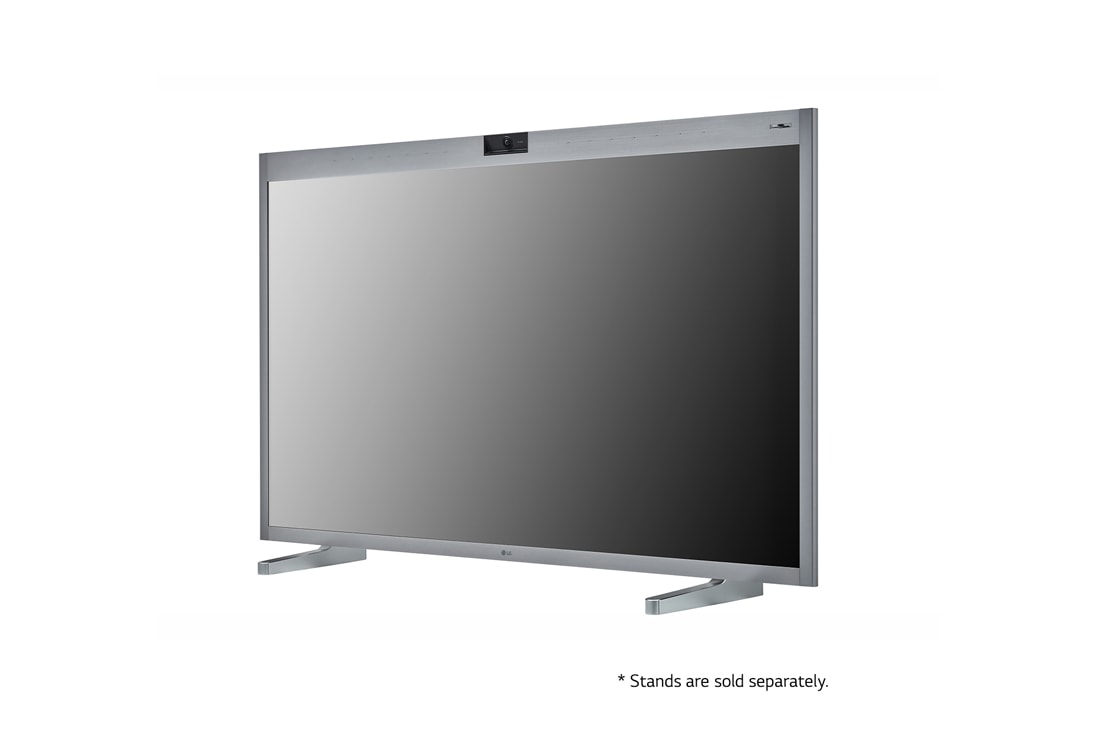

LG One:Quick Works for Zoom Rooms, -45 degree side view with stand, 55CT5WN-Z, thumbnail 12

ADD TO WISHLIST

Discontinued

55CT5WN-Z component-copyModelName

One:Quick Works for Zoom Rooms

Name: One:Quick Works for Zoom Rooms
Brand: LG UAE
SKU: 55CT5WN-Z
Rating: 0 (0 reviews)

Key Features

Resolution : 4K Ultra HD (3,840 x 2,160)
Brightness : 450 nit
BuIlt-in Camera & Microphone
Sound (10W + 10W)
In-Cell Touch (Max. 10 Points) & Whiteboard Support
Zoom Rooms App Preloaded

Add to Compare

component-OBScountrySelectDesc

Key Features

Resolution : 4K Ultra HD (3,840 x 2,160)
Brightness : 450 nit
BuIlt-in Camera & Microphone
Sound (10W + 10W)
In-Cell Touch (Max. 10 Points) & Whiteboard Support
Zoom Rooms App Preloaded

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

One:Quick Works for Zoom Rooms

Winner of Design Award

One:Quick Works
for Zoom Rooms

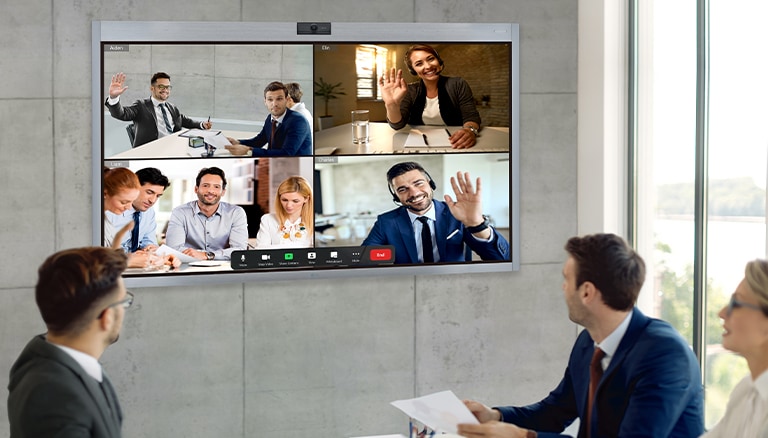

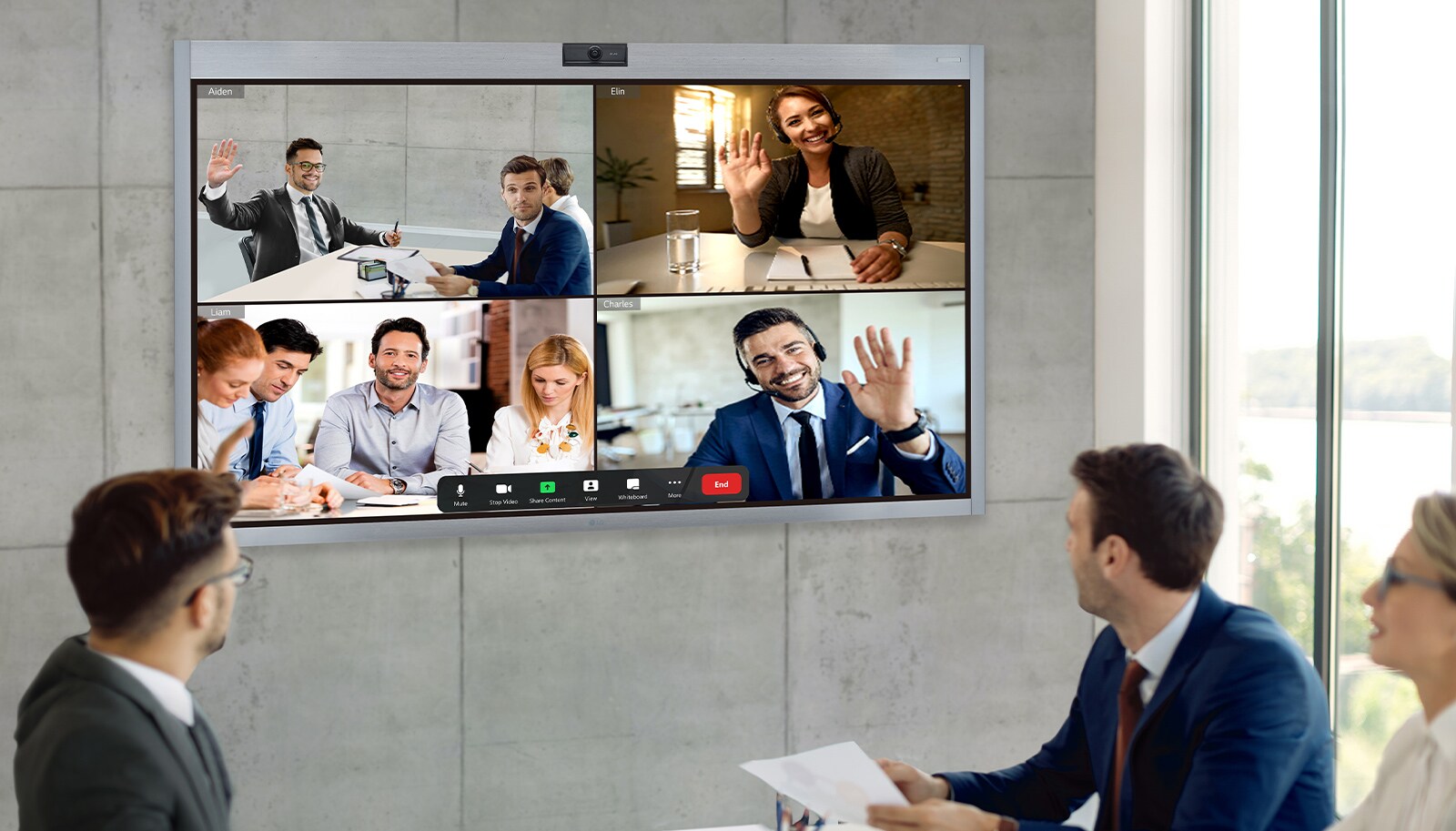

People are having a zoom video conference using LG One:Quick Works.

*All images in this page are for illustrative purposes only.

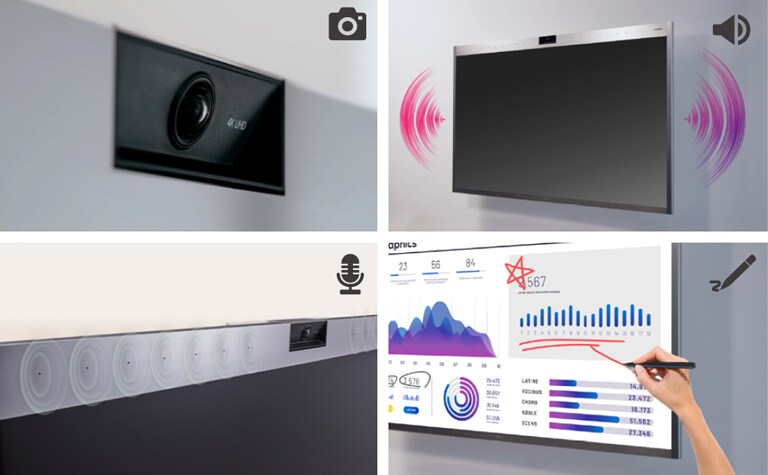

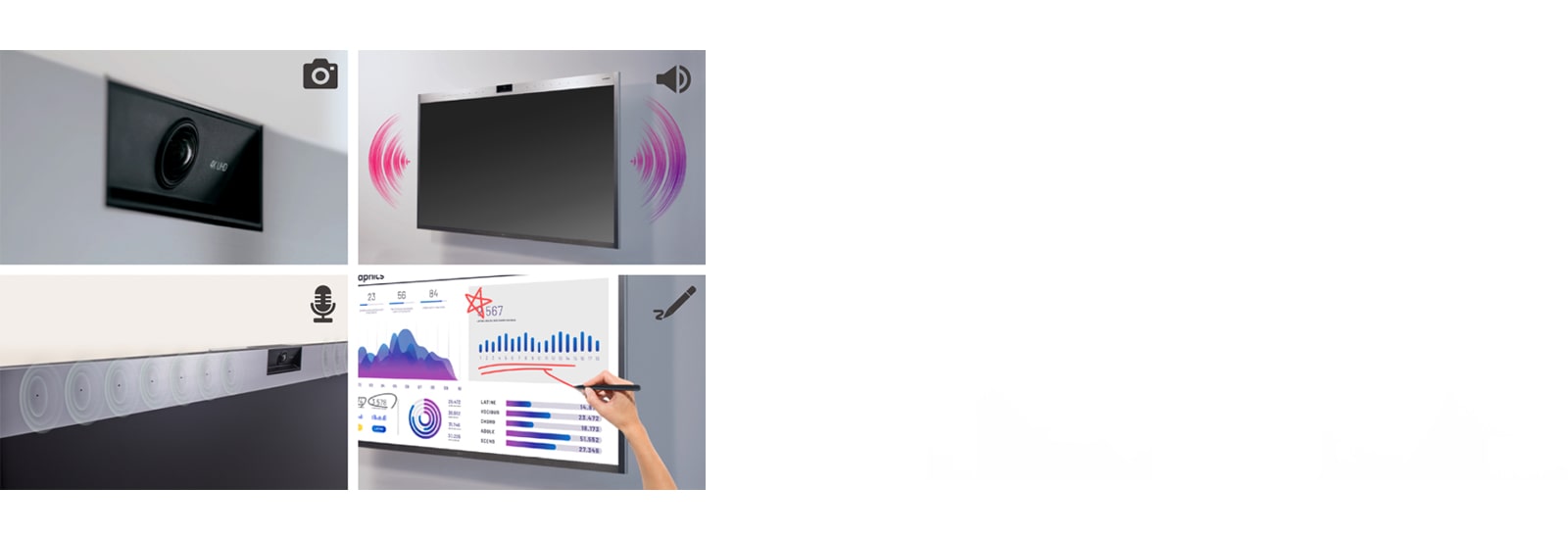

There are several close-up pictures of One:Quick Works to show a built-in camera, speaker, microphone, and annotation feature.

All-in-One Video Conferencing Solution

Video conferencing setup doesn't need to be stressful. This all-in-one solution features a built-in Windows PC, camera, microphone, speaker and a digital whiteboard. Experience clear video and sound qualities in your meetings.

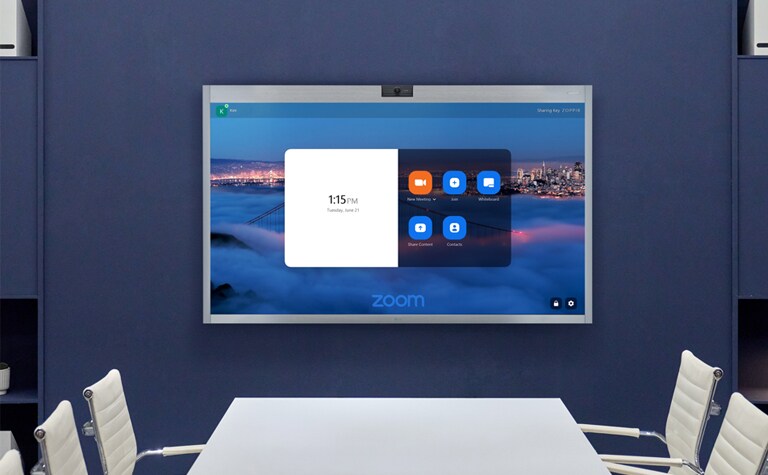

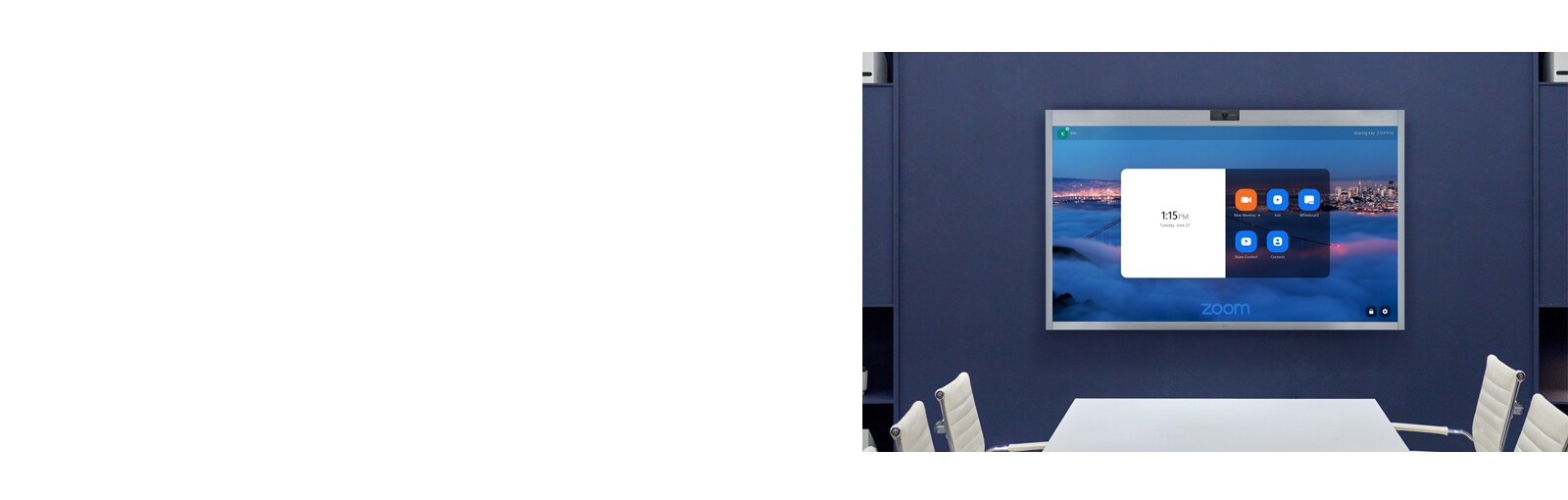

The Zoom dedicated features are being shown on the main menu of LG One:Quick Works.

Next-Level Video Conferencing, Optimized for Zoom

Users can utilize a range of virtual meeting features, thanks to innovative All-in-One features optimized for Zoom Rooms. With high-quality video and audio performance, synergy is at your fingertips.

* Actual screen could be different with the image.

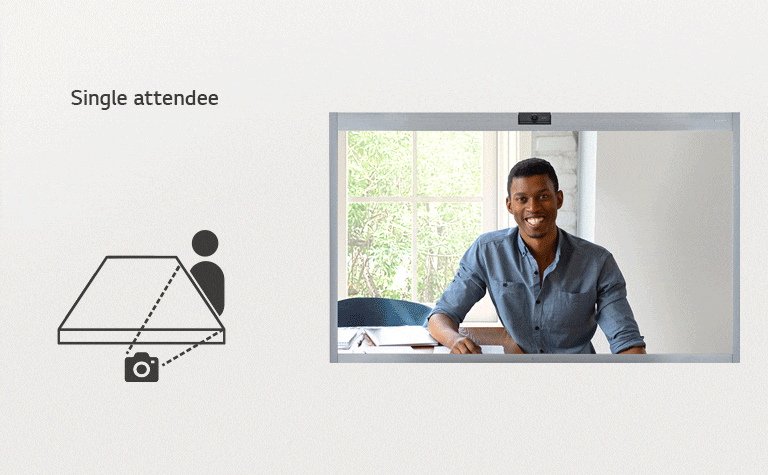

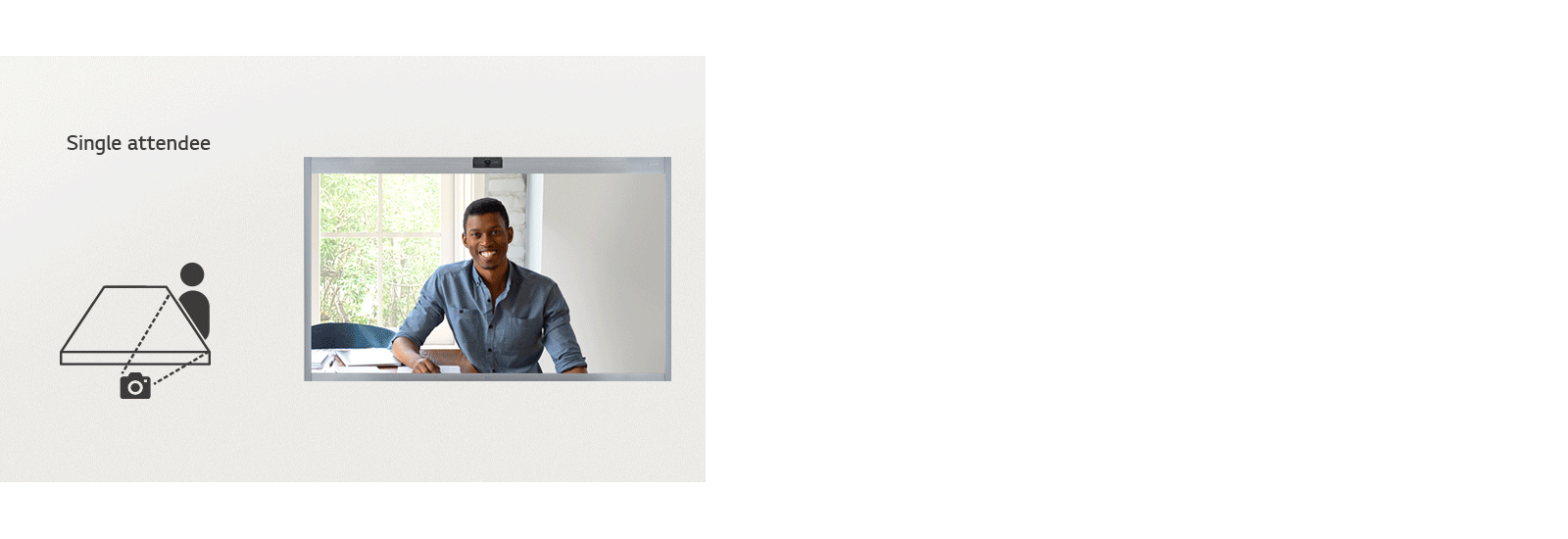

Depending on the position of meeting attendees, the camera can change its focus on their faces optimally.

Auto Framing

Build the optimal hybrid work environment, with LG One:Quick Works. The Auto Framing function automatically recognizes and focuses on conference room attendees, allowing remote participants to communicate more effectively.

* Product performance may differ depending on the environment.

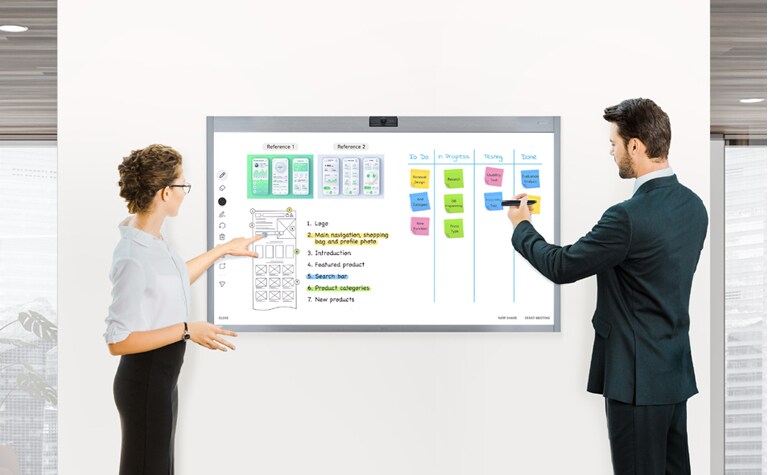

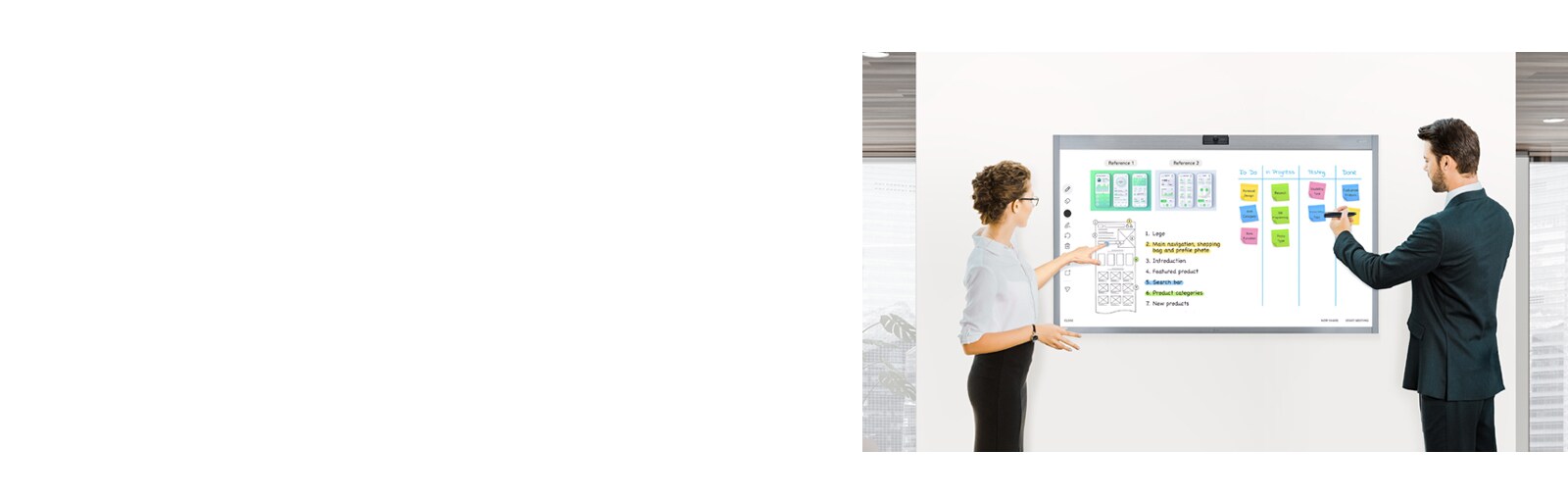

Two employees are sharing their ideas by touching the screen or taking notes on the screen.

Multi-Touch and Annotation

Powered by In-Cell Touch technology, One:Quick Works facilitates a more intuitive form of visual collaboration. With 10-point multi-touch functionality, the Zoom Whiteboard tool lets users take notes and sketch out ideas, all the while presenting or brainstorming together.

* Touch pen provided (1 ea.)

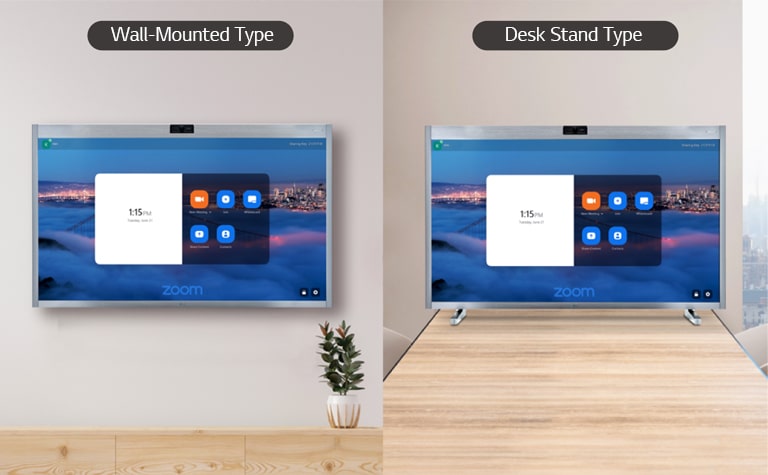

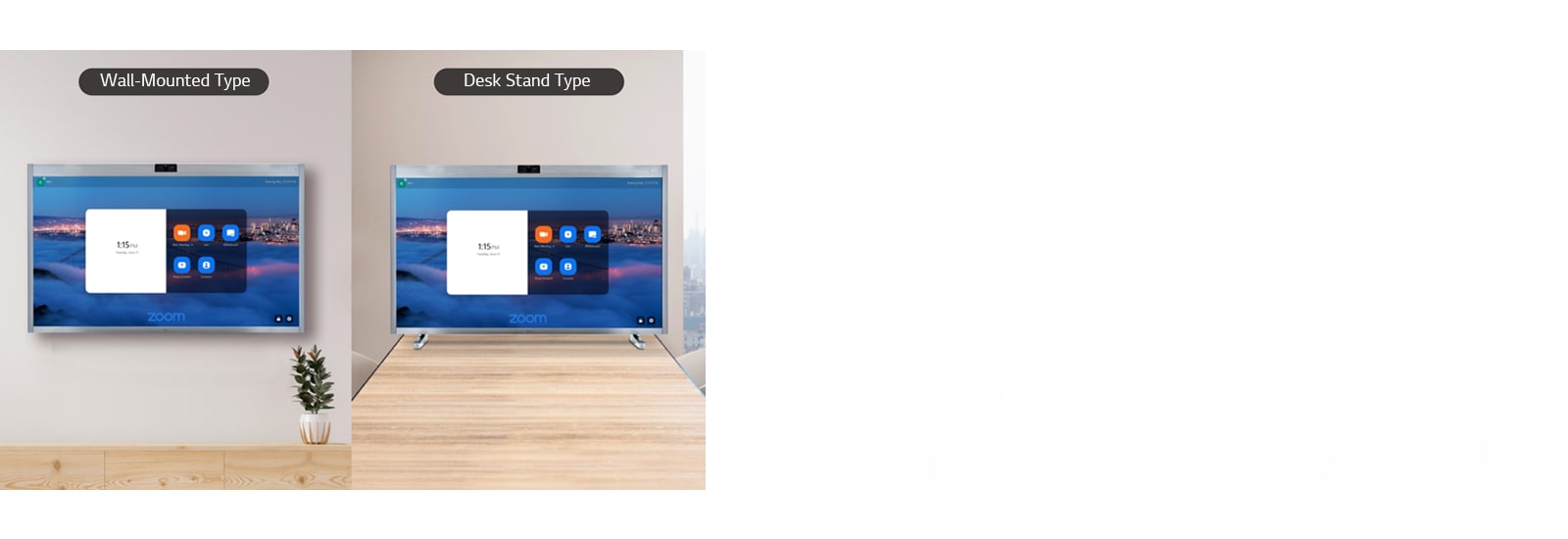

One:Quick Works comes with a Wall Mounted Type and Desk Stand Type for installation.

2-way Installation

The installation method can be adjusted depending on the surrounding environment and the user's specific needs. Able to choose between wall installation for maximum space utilization or desk installation using 2 pole stands.

* Stands are sold separately.

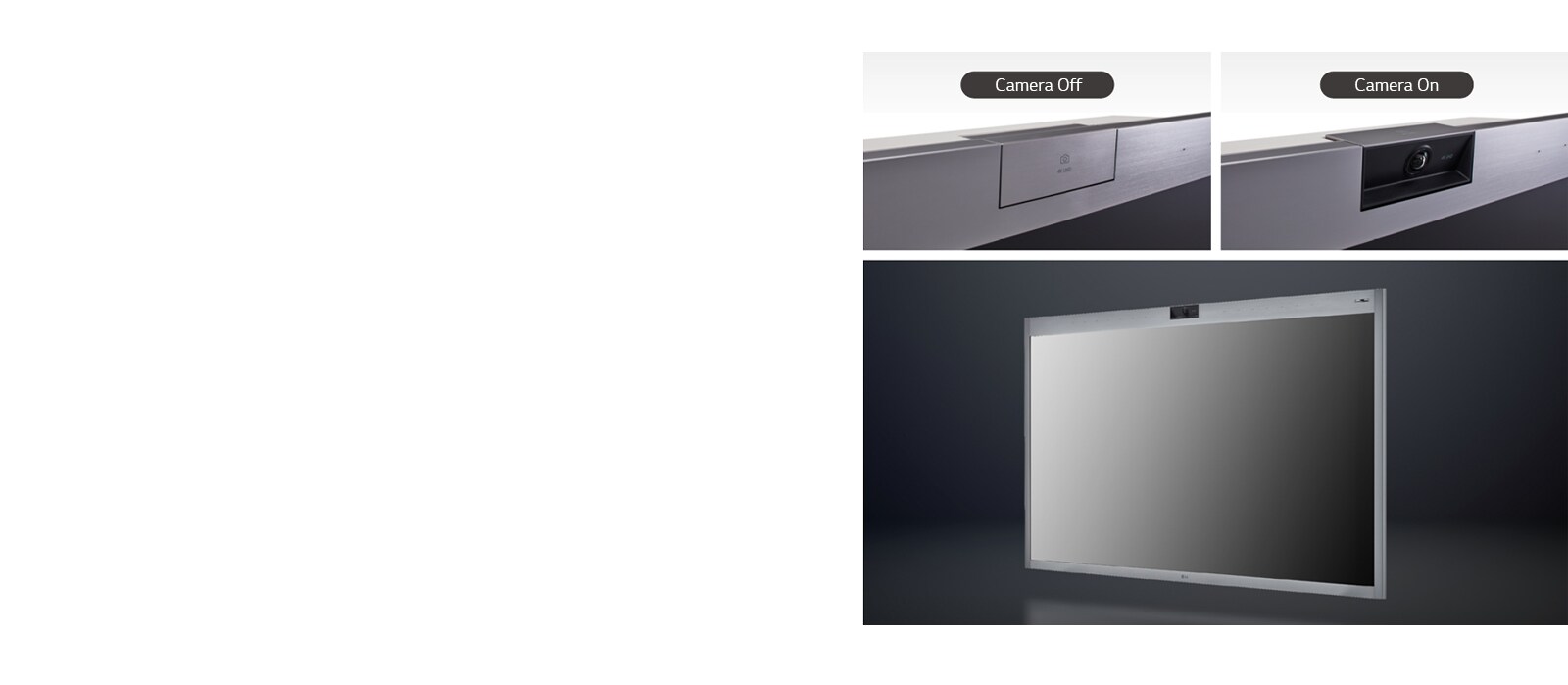

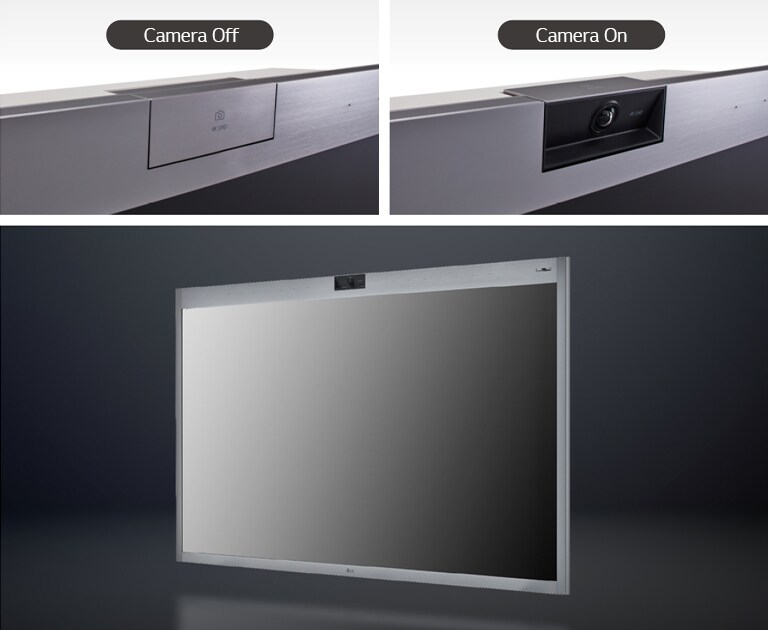

The images are showing sleek designs of One:Quick Works.

Awarded the reddot Award 2021 for its Sleek Design

With an impressive award-winning design, the One:Quick Works blends seamlessly with the rest of the workspace. Also brings an elevated aesthetic while providing a practical workspace for all participant.

PANEL

Screen Size

55"

Panel Technology

U-IPS
Native Resolution

3840x2160 (UHD)

Brightness

450nit
Contrast Ratio

1000:1

Color Gamut

NTSC 72%
Viewing Angle(H x V)

178x178

Color Depth

10-bit(D),1.07 Billion colors
Response Time

9ms

Surface Treatment(Haze)

Haze 12% (Enhanced in-TOUCH Pol.)
Operation Hours (Hours/Day)

24/7

Portrait / Landscape

No / Yes

CONNECTIVITY

Input

HDMI (2), DP (USB Type C), RJ45(LAN), USB (USB3.1 Type A(2), USB Type C)

Output

DP Out (1, USB Type C (DP ALT MODE))

MECHANICAL SPECIFICATION

Bezel Color

Silver

Bezel Width

57.2 / 26.2 / 26.2 / 28.9mm
Weight(Head)

26kg

Monitor Dimension(W x H x D)

1265 x 769.5 x 61.8mm
Monitor Dimensions with Stand(W x H x D)

1265 x 815 x 290mm

VESA™ Standard Mount Interface

300x300

KEY FEATURE

HW

CPU (AMD Ryzen Embedded V1605B), Graphics (AMD Radeon Vega), Internal Memory (SSD 128GB, RAM 8GB), Wi-Fi (802.11ac 2x2), Bluetooth 5.0, Temperature Sensor, Auto Brightness sensor, Local Key Operation (Jog Key)

SW

OS (Windows 10 IOT Enterprise (Value)), Built-in Apps (Zoom Rooms (Preloaded))

ENVIRONMENT CONDITIONS

Operation Temperature

0 °C to 40 °C

Operation Humidity

10 % to 80 %

POWER

Power Supply

AC 100-240V~, 50/60Hz

Power Type

Built-In Power

POWER CONSUMPTION

Typ.

127W

Max.

245W
BTU (British Thermal Unit)

72

SOUND

Speaker

Yes (10W x 2)

CERTIFICATION

Safety

CB / NRTL

EMC

FCC Class "B" / CE
ErP

Yes

Language

OSD

English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Arabic, Turkish, Polski

ACCESSORY

Basic

Remote Controller(include battery 2ea), Power Cord, Touch Pen, Pen tip, Manual, Regulation Book, Warranty Card, IG

Optional

2 pole Stand(ST-653TW)

SPECIAL FEATURE

Touch - Available object size for touch

Ø8 mm

Touch - Reponse Time(PC Win10)

35mm ↓
Touch - Accuracy

3.5mm ↓

Touch - Interface

USB1.1
Touch - Operating System Support

Windows 10 or higher

Touch - Multi touch point

Max 10 Points

Camera

Resolution

3840x2160 (UHD) * In line with the Zoom Rooms app specifications (HD, 720p)

Field of View (FoV)

120°
Zoom (ePTZ)

4x Zoom

Video Framing

Yes

MIC

Array

10EA

Beamforming

Yes
Pickup Range

6m
