Interactive Digital Board

Key Features

component-OBScountrySelectDesc

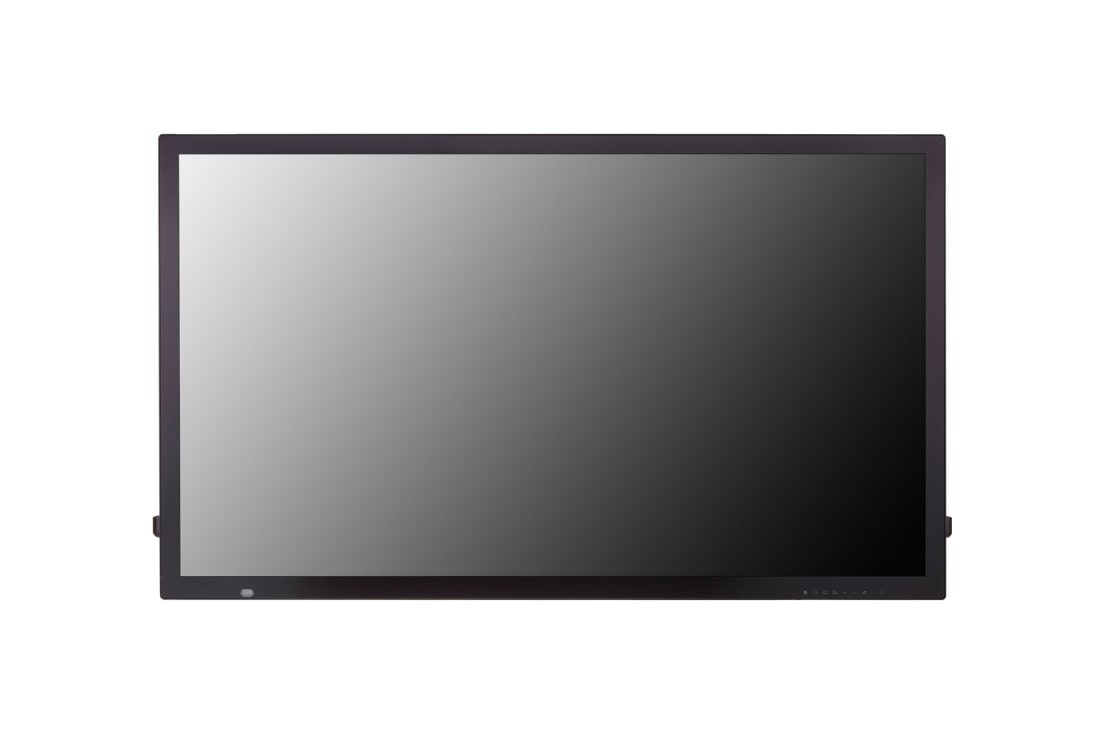

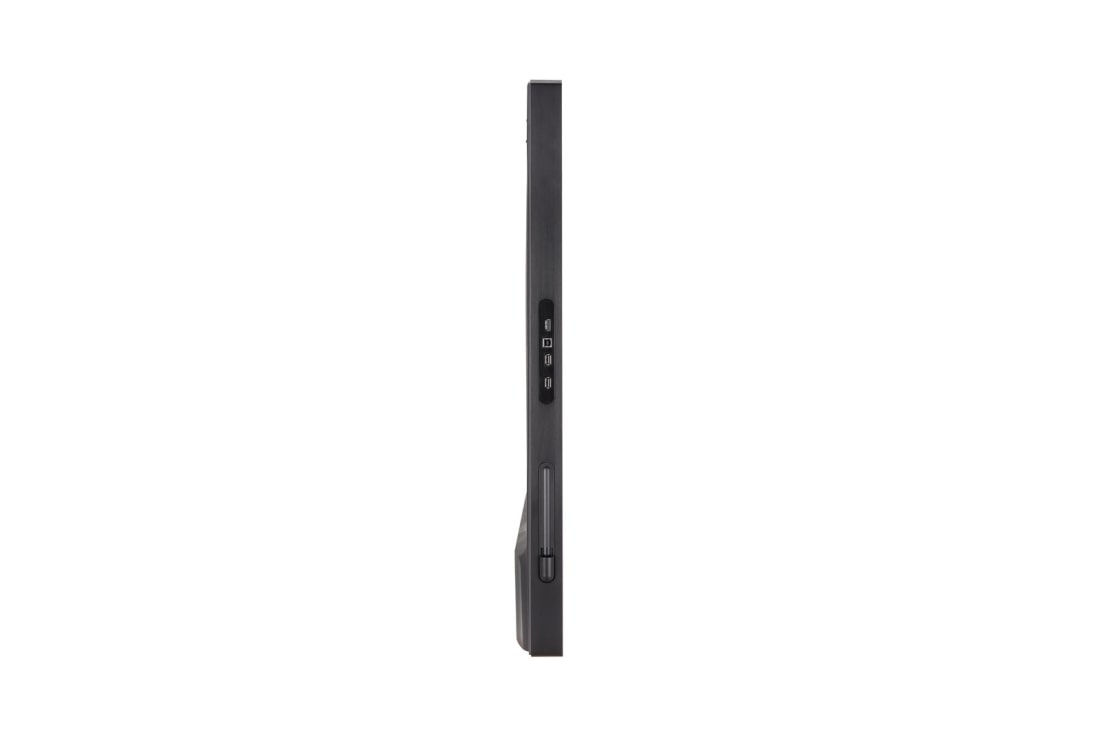

Interactive Digital Board
PANEL
  • Screen Size
    65”
    Native Resolution
    1,920 x 1,080 (FHD)
  • Brightness (Module, cd/㎡)
    450
CONNECTIVITY
  • Input

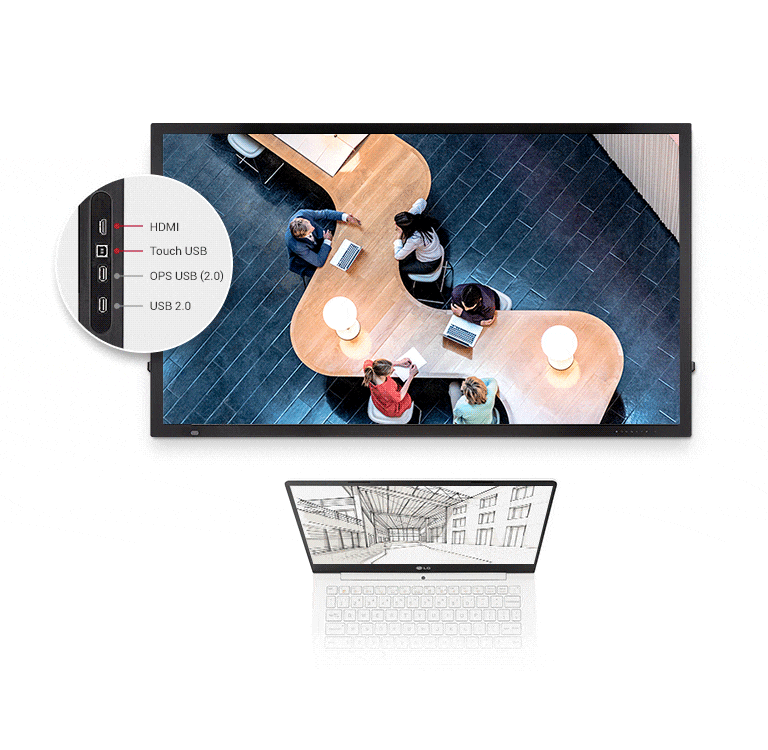

    HDMI (3), DP, DVI-D, RGB, Audio in, USB 3.0, USB 2.0, OPS USB 2.0
    Output
    Touch USB 2.0 (2)
  • External Control
    RS232C in/out, RJ45 in
PHYSICAL SPECIFICATION
  • Bezel Width
    36.1mm(T/L/R), 42.2mm(B)
    Monitor Dimension (W x H x D)
    1,530.8 x 883.8 x 71.7 mm(w/o Handle)
  • Weight (Head)
    51 kg
    Carton Dimensions (W x H x D)
    1,650 x 1,035 x 228 mm
  • Packed Weight
    59 kg
    VESA™ Standard Mount Interface
    300 x 300 mm
ENVIRONMENT CONDITIONS
  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10 % to 80 %
POWER CONSUMPTION
  • Typ.
    ≤ 120 W
    Smart Energy Saving
    ≤ 85 W
STANDARD(CERTIFICATION)
  • Safety
    UL / cUL / CB / TUV / KC
    EMC
    FCC Class “A” / CE / KCC
SOFTWARE COMPATIBILITY
  • Content Management Software
    SuperSign Premium
    Control and Monitoring Software
    SuperSign Link
ACCESSORY
  • Basic
    Remote Controller (include battery 2ea), Power Cord, QSG, HDMI (3M), Regulation Book, Phone to RS232C Gender, Touch Pen (2ea), Touch Pen Tip (1ea)
    Optional
    OPS Kit (KT-OPSA)
TOUCH
  • Touch type
    P-Cap(Ag Metal Mesh)
    Available object size for touch
    more than Ø 6 mm
  • Accuracy
    2 mm
    Interface
    USB 2.0
  • Protection Glass Thickness
    3.2T (Anti-Glare)
    Multi touch point
    Max. 40 Points
COMPLIANCE INFORMATION
  • The safety information for accessories is included with the safety information for the product and is not provided separately.
