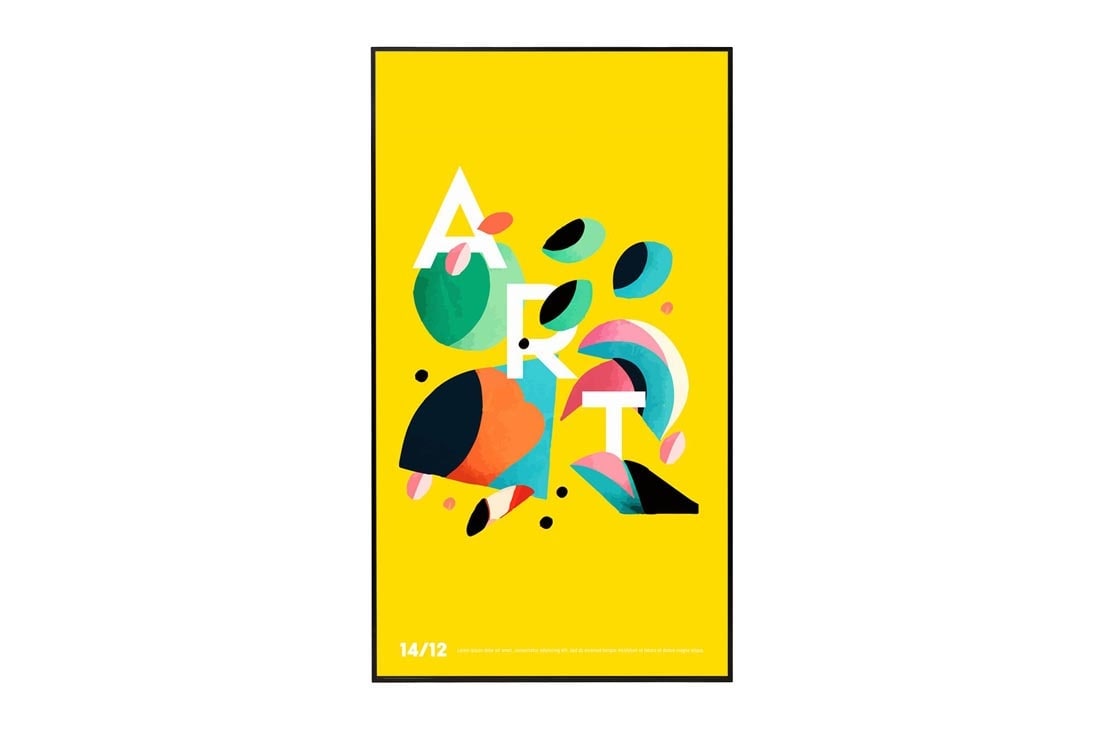

LG Open Frame, Front view with infill image, 75XF3P-B, thumbnail 1

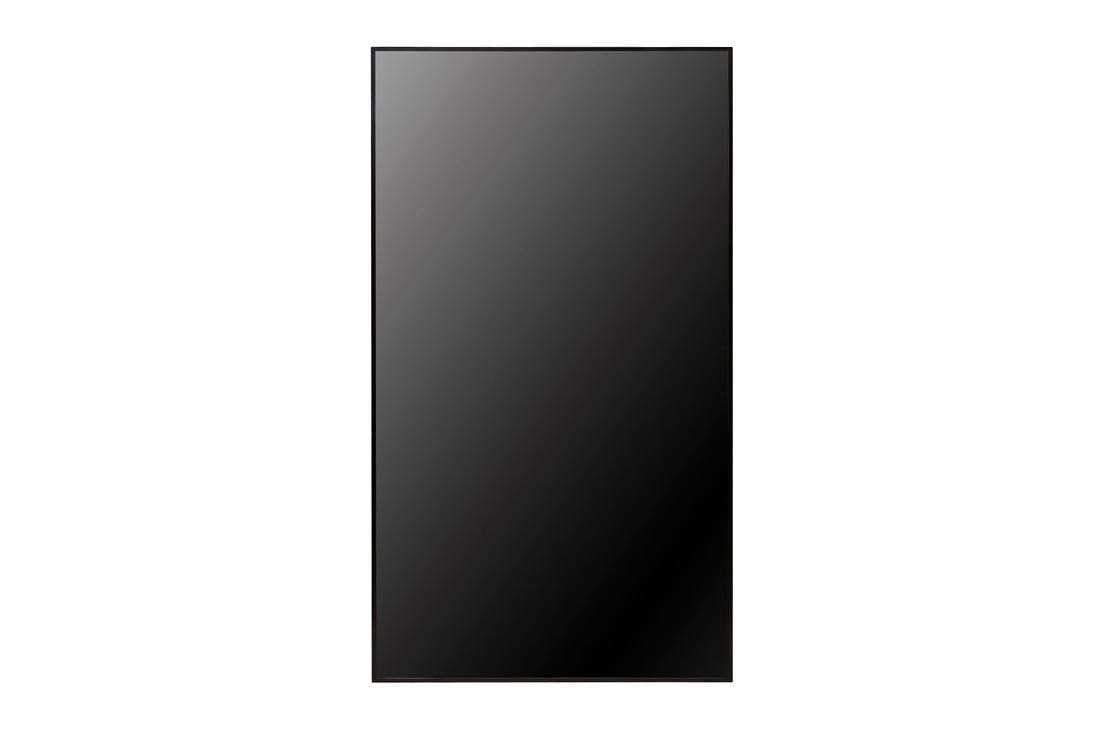

LG Open Frame, Front view, 75XF3P-B, thumbnail 2

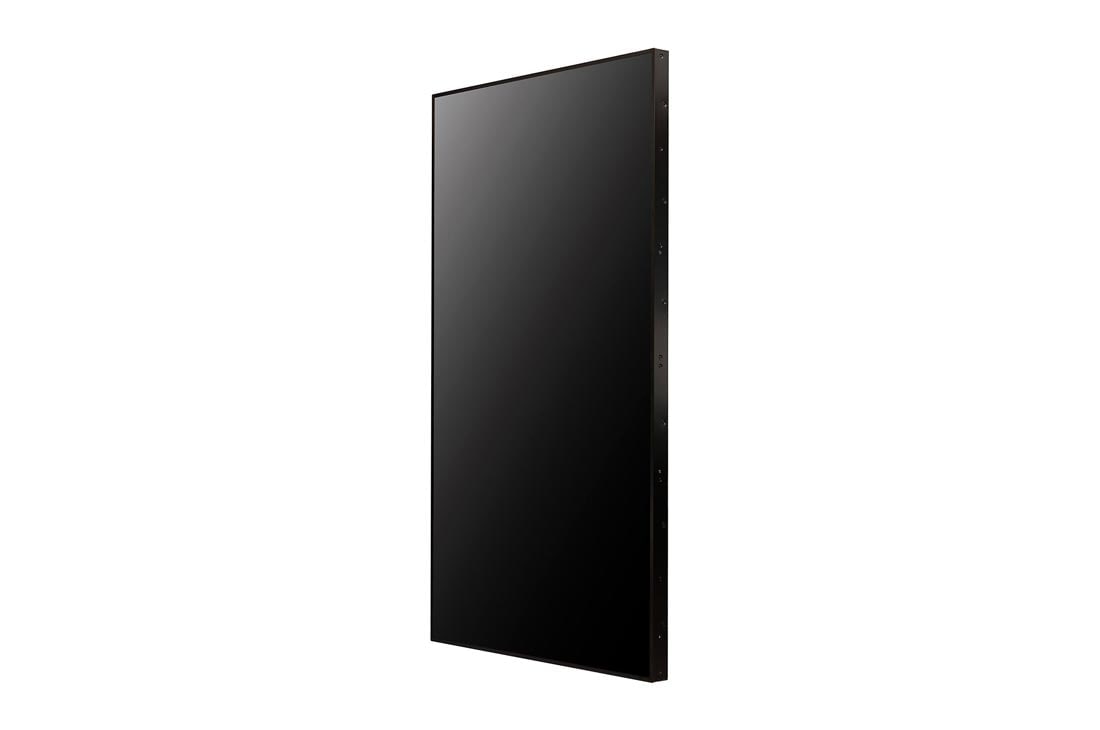

LG Open Frame, -45 degree side view, 75XF3P-B, thumbnail 3

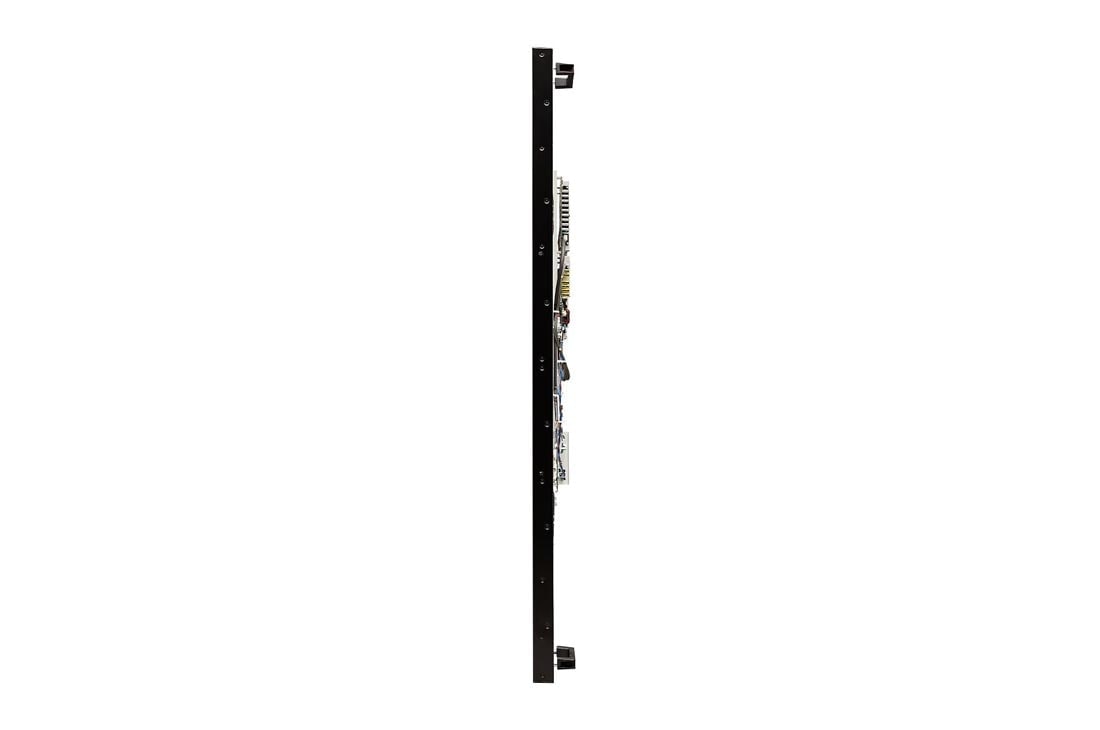

LG Open Frame, -90 degree side view, 75XF3P-B, thumbnail 4

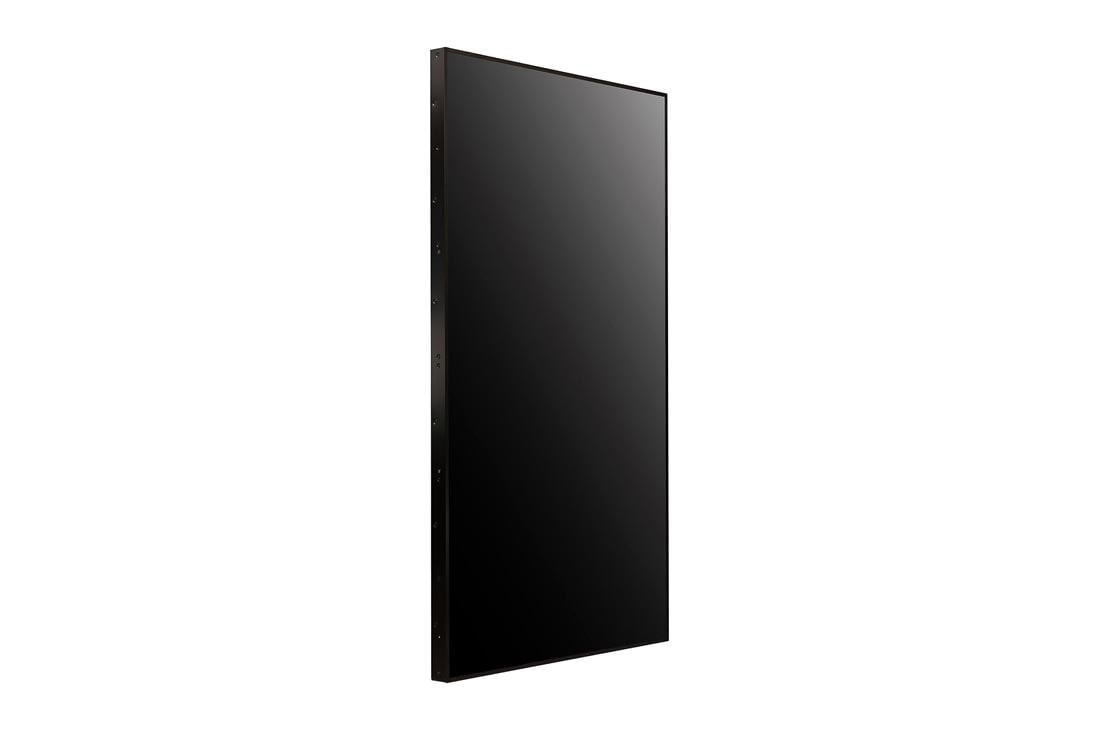

LG Open Frame, +45 degree side view, 75XF3P-B, thumbnail 5

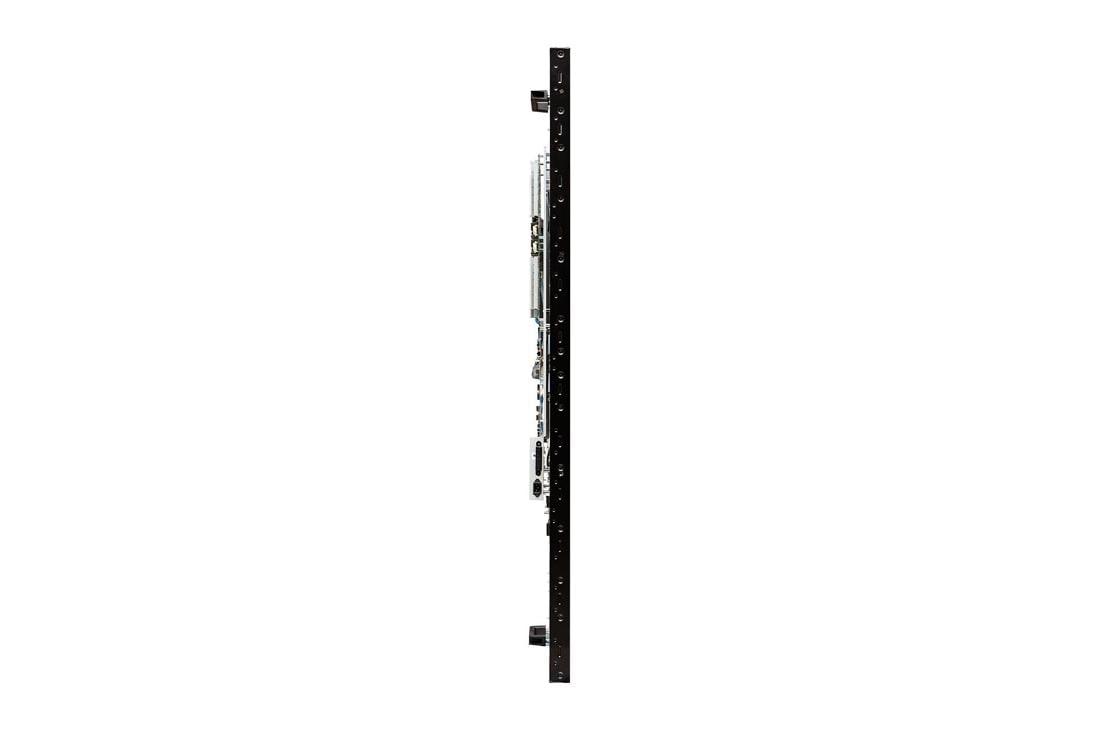

LG Open Frame, +90 degree side view, 75XF3P-B, thumbnail 6

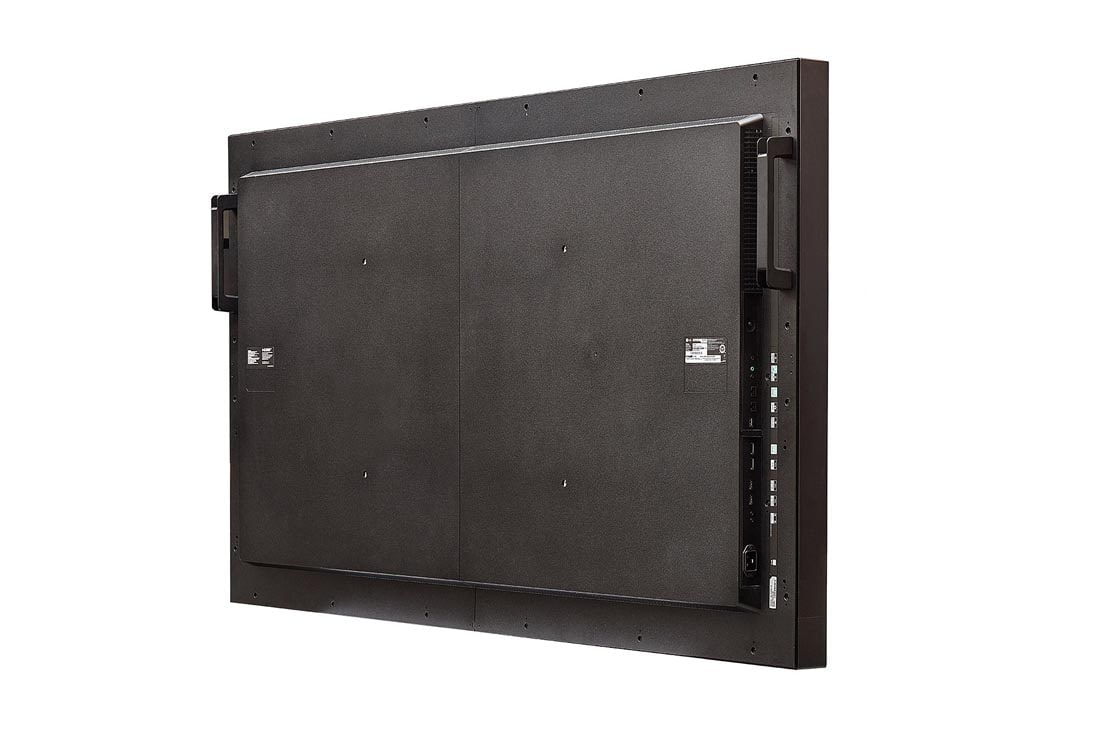

LG Open Frame, -45 degree rear side view, 75XF3P-B, thumbnail 7

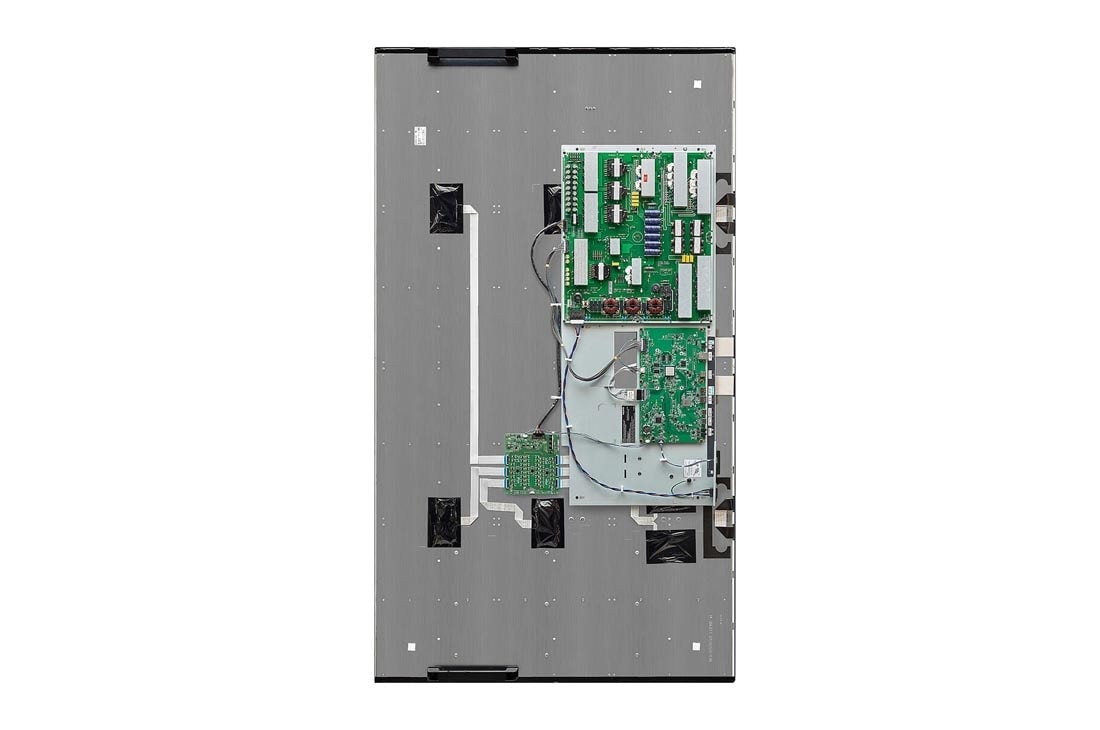

LG Open Frame, Rear view, 75XF3P-B, thumbnail 8

ADD TO WISHLIST

Discontinued

75XF3P-B component-copyModelName

Open Frame

Name: Open Frame
Brand: LG UAE
SKU: 75XF3P-B
Rating: 0 (0 reviews)

Key Features

Resolution : 3,840 × 2,160 (UHD)
Brightness : 3,000 cd/m² (Typ.), 2,800 cd/m² (Min.)
Portrait / Landscape
Slim Design
Conformal Coating
Auto Brightness Control

Find a Dealer

Add to Compare

component-OBScountrySelectDesc

Key Features

Resolution : 3,840 × 2,160 (UHD)
Brightness : 3,000 cd/m² (Typ.), 2,800 cd/m² (Min.)
Portrait / Landscape
Slim Design
Conformal Coating
Auto Brightness Control

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

Open Frame

Customizable Open-frame Display for Smart Effciency

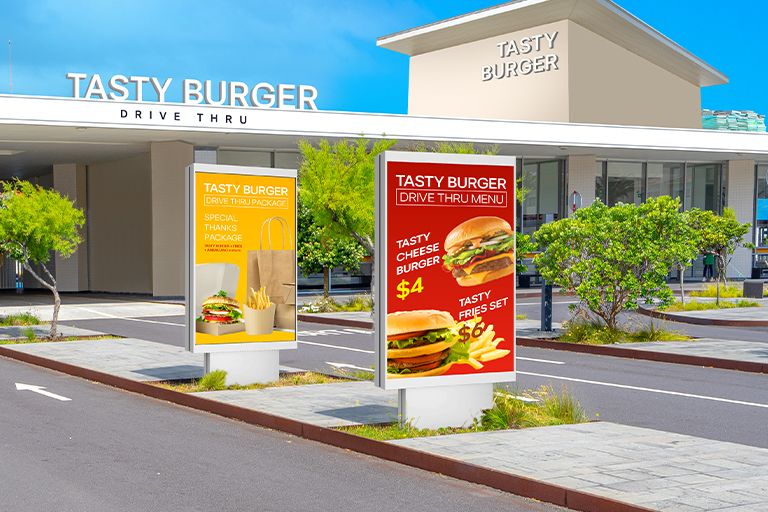

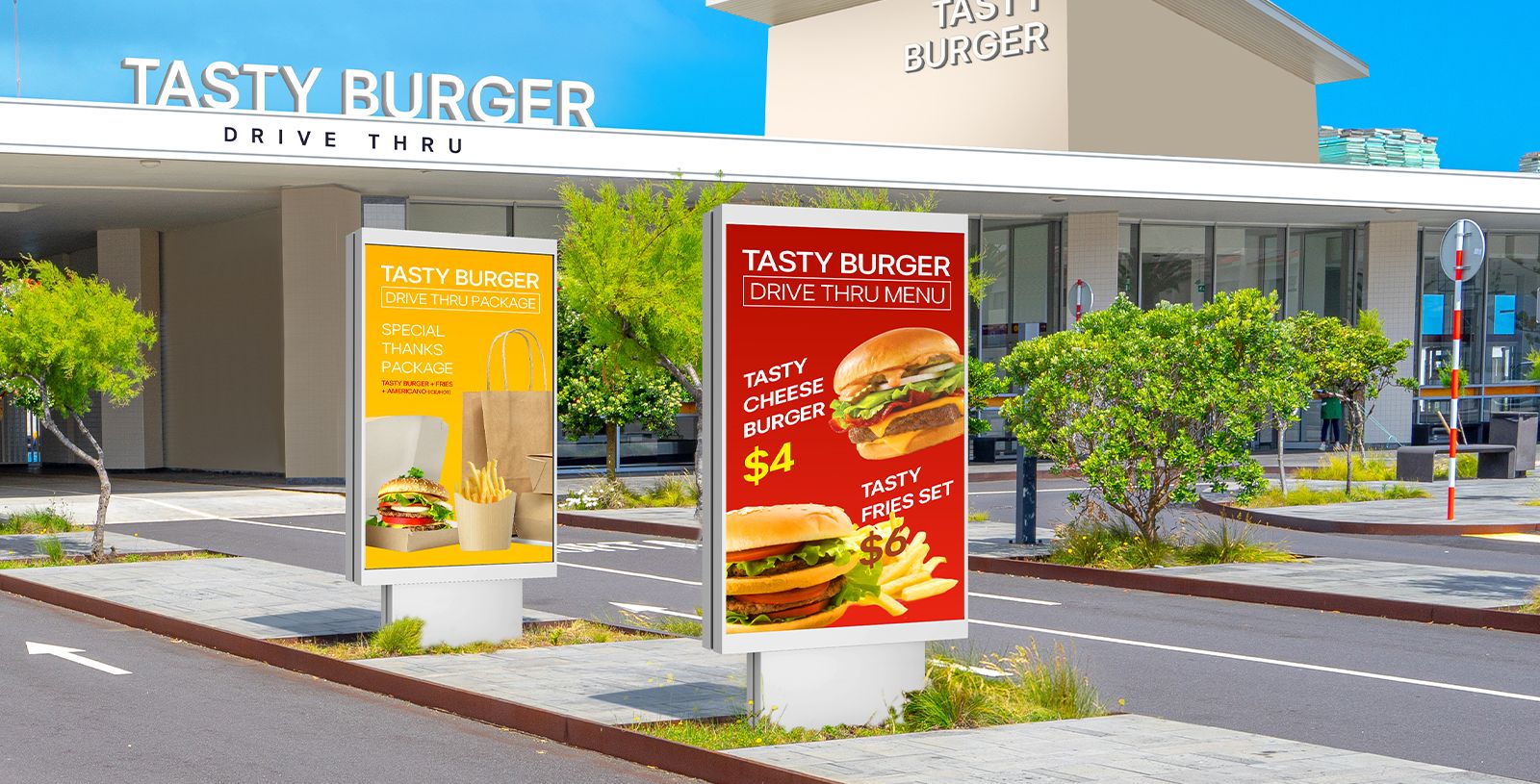

There are two 75XF3Ps installed in the drive-thru zone at the burger place, and they vividly display the burger menu and ads even in bright sunlight.

* All images in this page are for illustrative purposes only.

Open-frame Outdoor Display

LG Open Frame display empowers you to personalize not only the casing design but also the function, granting you the freedom to tailor the display to your exact preferences.

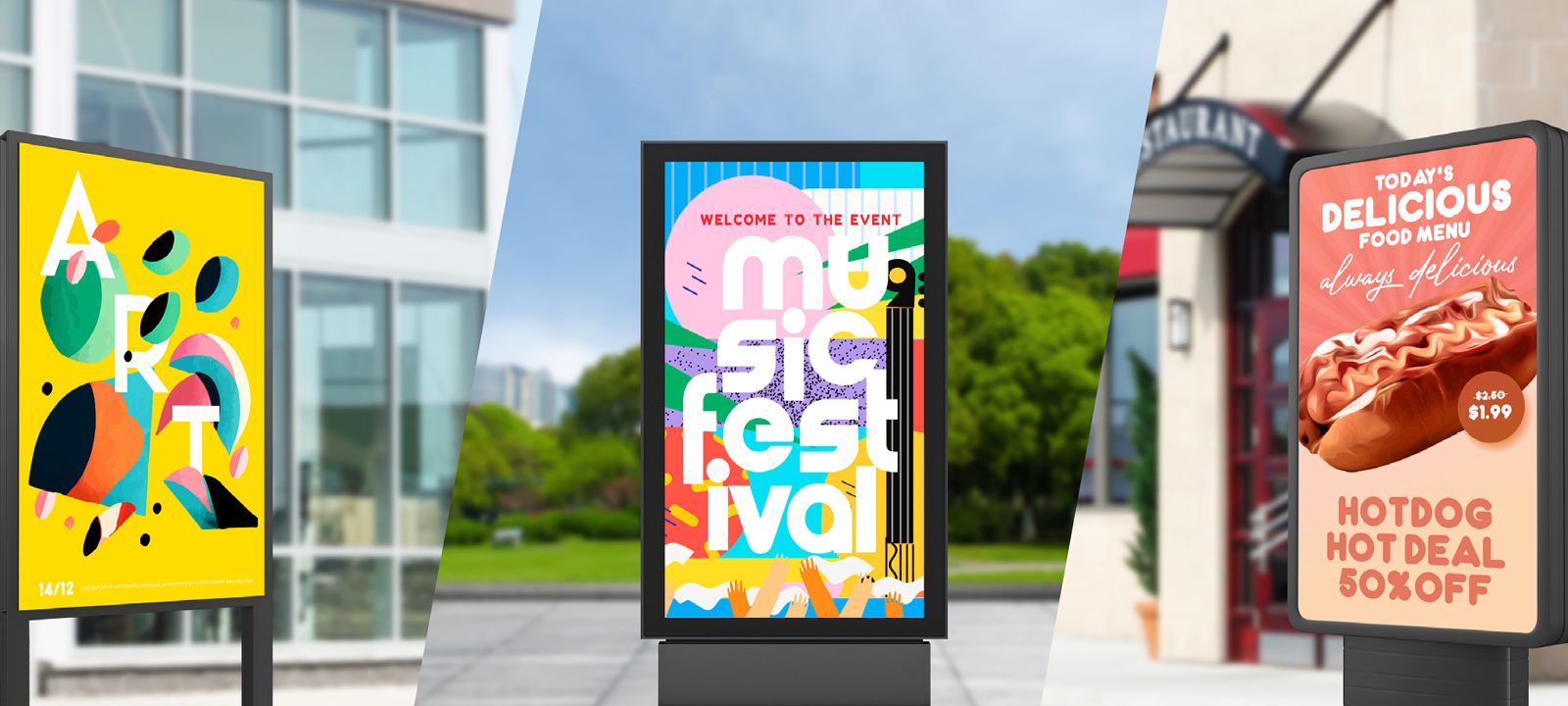

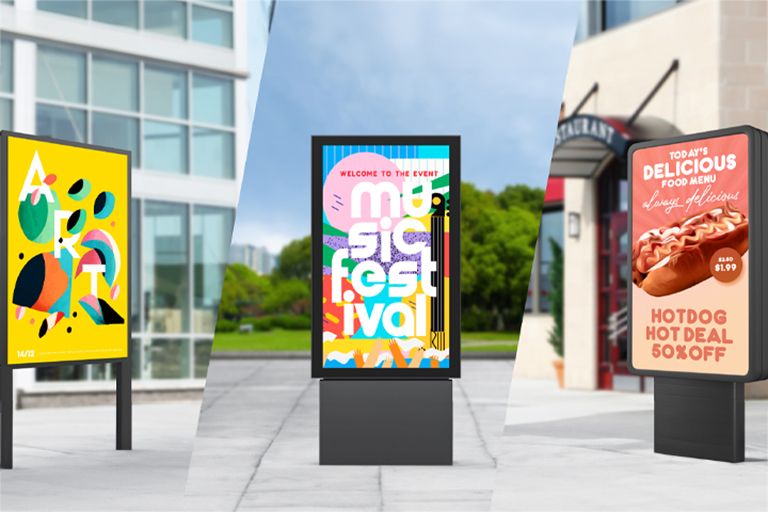

Various frame-shaped displays are installed outdoors.

* Please reach out to your local sales representatives for detailed casing guide

High Visibility Under
Strong Sunlight

With outstanding high brightness of 3,000 nits (Typ.), the XF3P outdoor display delivers content clearly while captivating passerby. In addition, its outdoor visibility can deliver a variety of information even to those wearing polarized sunglasses.

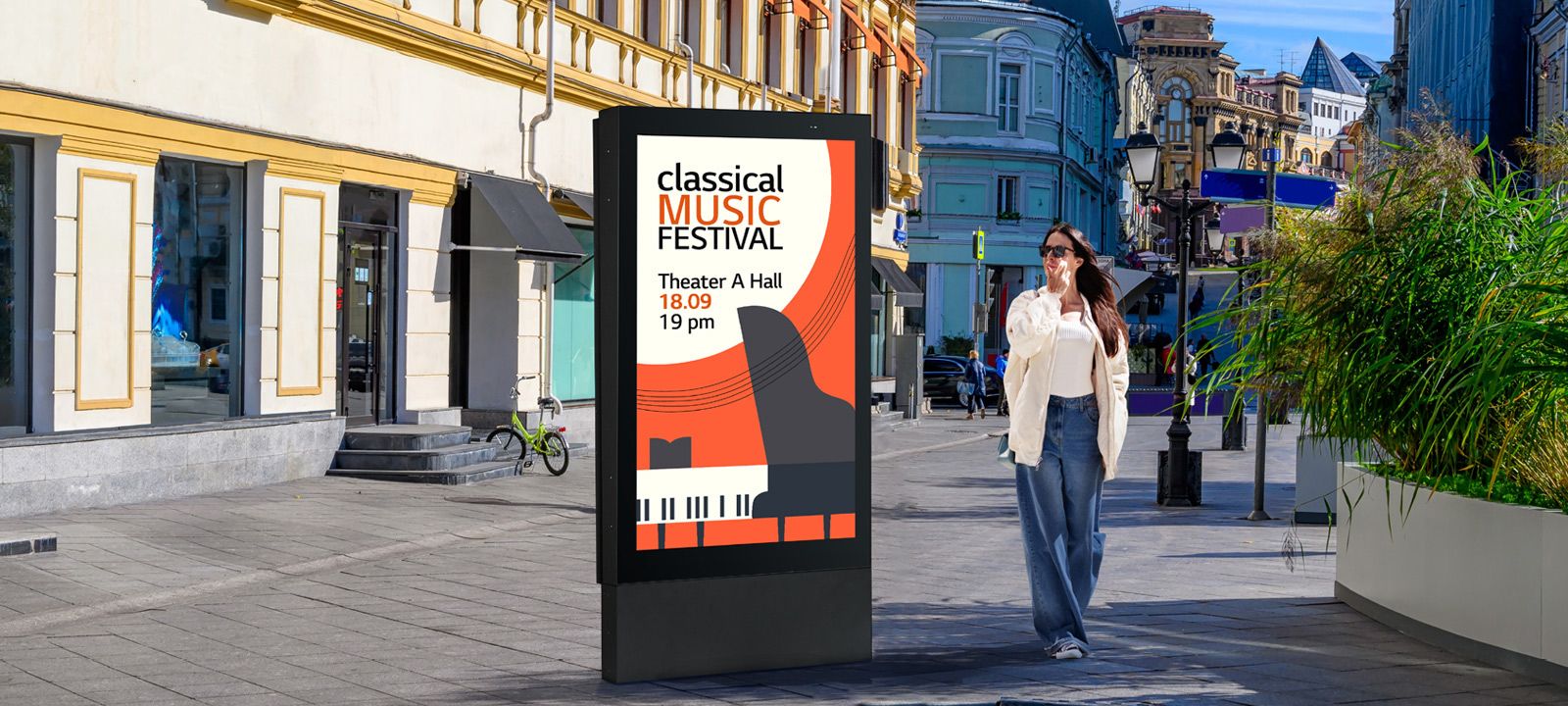

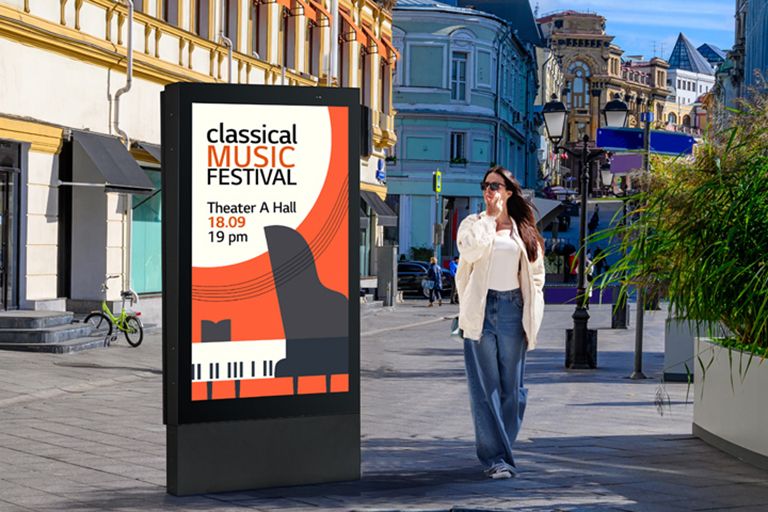

A large-sized display is installed on the street, and a woman is looking at a vivid-quality advertisement on the screen.

Optimized Design for
Double-sided Display

The XF3P, featuring a sleeker design than the conventional model, excels in maximizing space efficiency with its convenient double-sided display.

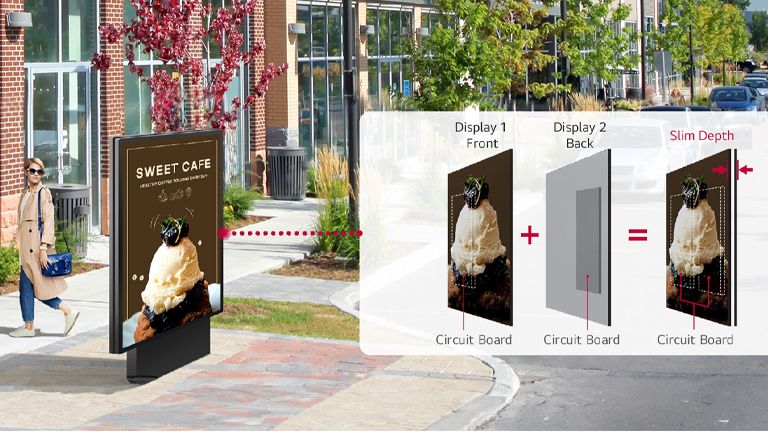

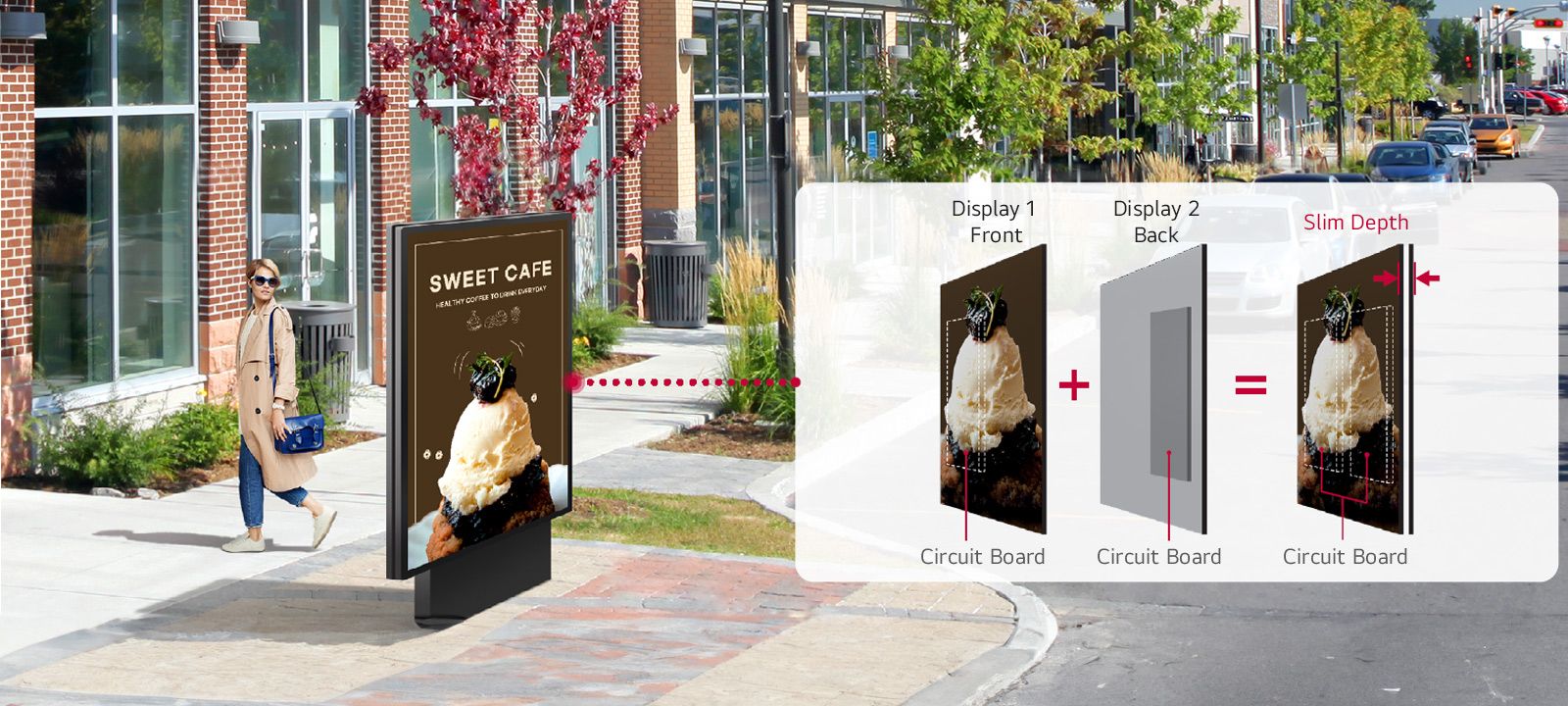

A double-sided display is set up on the street. The effective placement of the circuit board allows for a slim design of the double-sided display.

* The conventional model refers to the XF3C.

Efficient Energy Management

The screen brightness is automatically adjusted depending on the ambient light. The brightness is increased in light for better visibility, while it is decreased in darkness for efficient power management. Also, XF3P uses M+ panel that can offer high energy efficiency and cost savings by decreasing power consumption.

The 75XF3P screen can adjust its brightness automatically according to the ambient light.

* M+ IPS reduced approximately 35% BLU Power consumption (IEC62087, 10 min) compared to RGB IPS, tested under same brightness (@fullwhite, 400 nits).
** Specific features can differ from circumstances.

High-performance with
webOS 6.0

Quad Core SoC (System-on-Chip) can execute several tasks at the same time without a separate media player. In addition, webOS 6.0 platform enhances not only user convenience with intuitive UI but also web-app integration with updated Node JS / Chromium version.

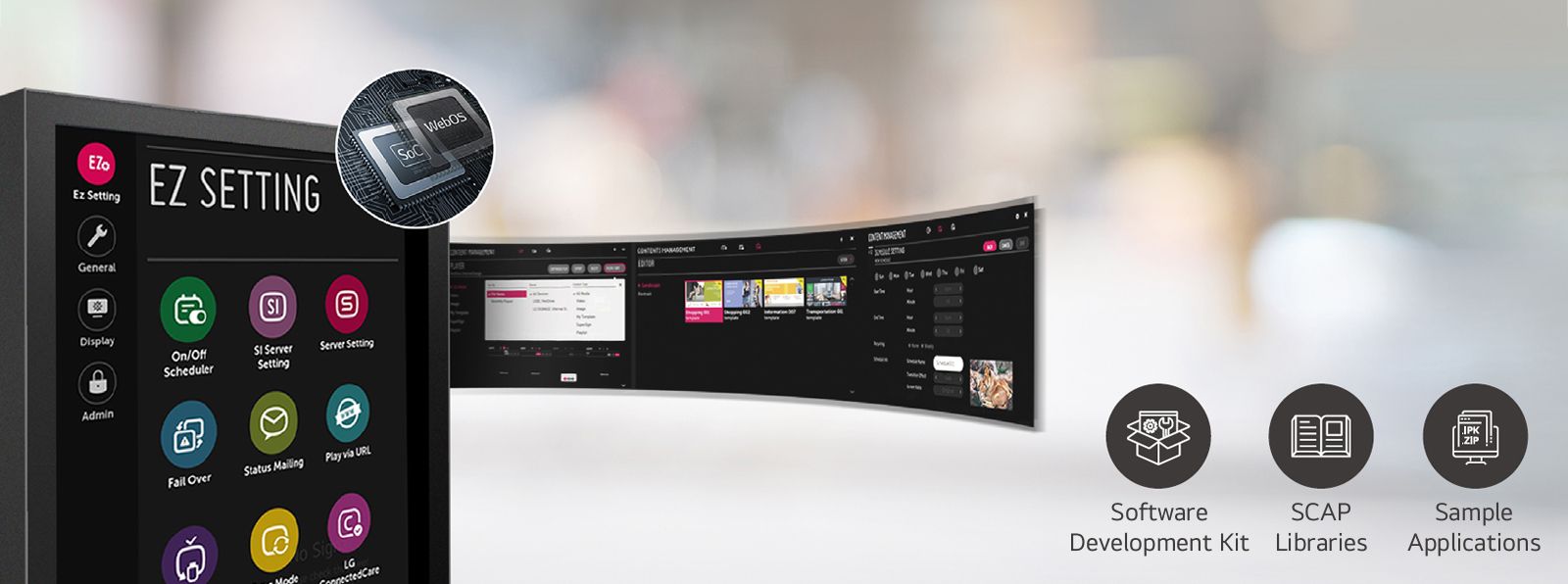

It has improved user convenience by utilizing the SoC and webOS.

A display is working well in an environment of 0~50°C.

Wide Range of Operating Temperature

The XF3P can be used under a wide range of operating temperature from 0℃ to 50℃.

* Conducted by LG internal test, Operating temperature: 0℃~50℃ (without direct sunlight; with direct sunlight in cooling system), 0℃~40℃ (with direct sunlight)

Conformal Coating

Conformal Coating* protects the circuit board and power board against dust, iron powder, humidity, etc.

* Thin protective films/breathing membranes that filter water vapor and solid debris

Installation Guide for
a Customized Casing

LG offers an installation guide for designing a customized casing to ensure stable performance for outdoor displays. It includes information about the size of ventilation and the location of partitions within the casing.

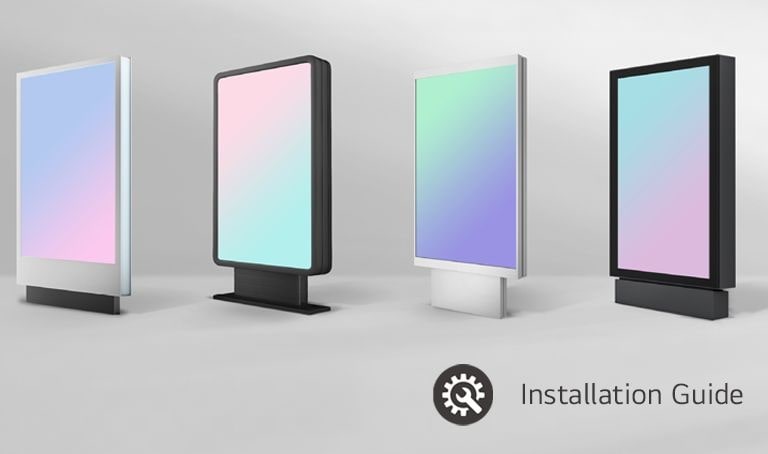

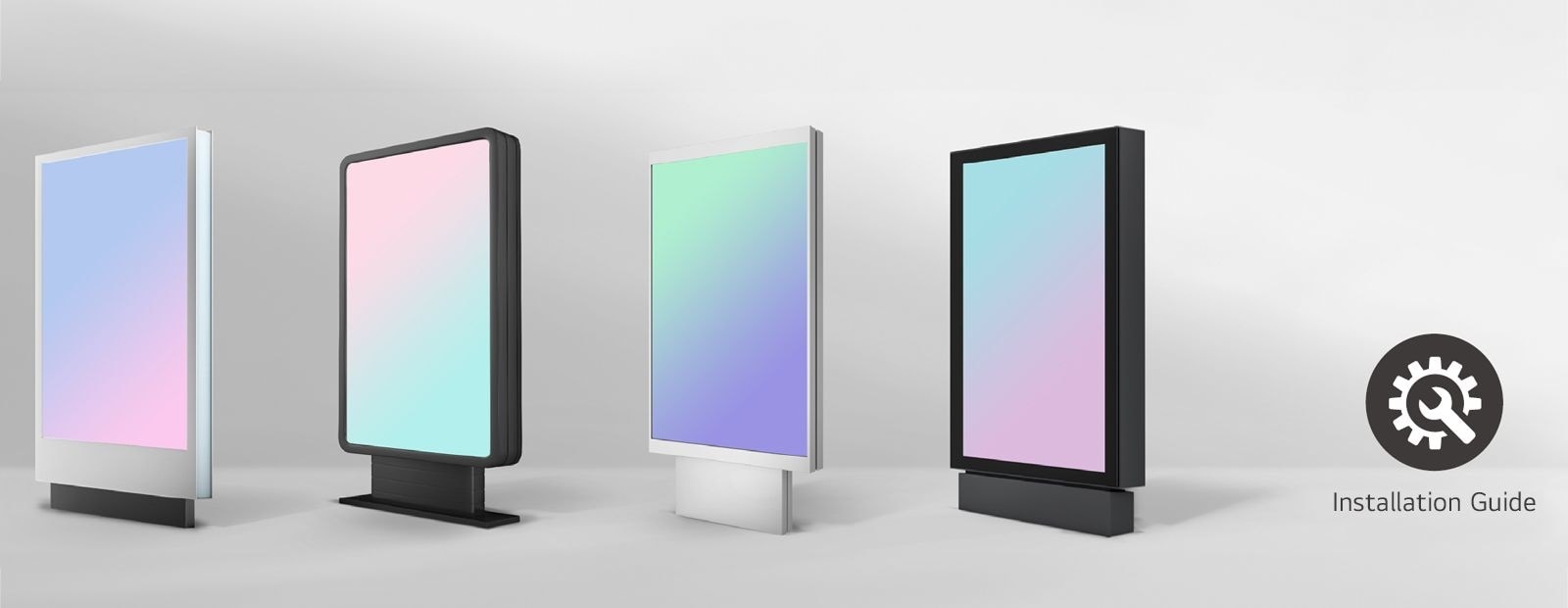

Each of the four 75XF3Ps has a customized casing.

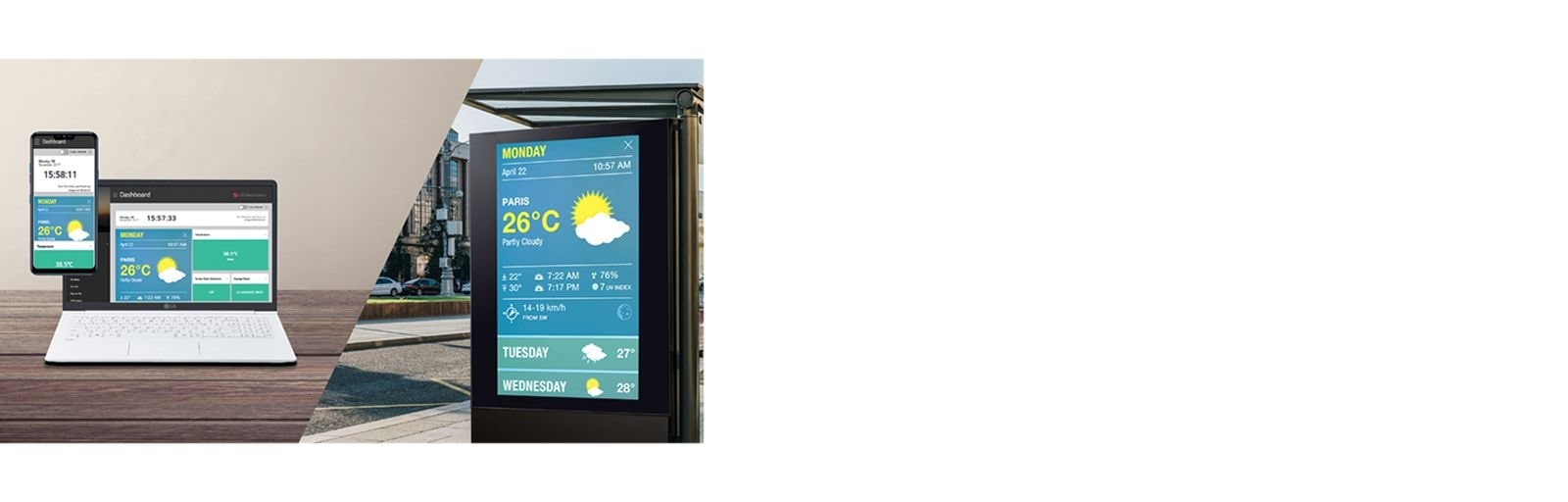

Users can monitor and control their displays through a mobile phone and laptop.

Web Monitoring

The LG Control Manager, the embedded web monitoring program, is user-friendly and enables the user to have full access anywhere at anytime from their mobile phone or PC while having access to both current and past data. It allows the user to monitor the unit, make adjustments, and control the unit remotely in real time.

* Enabled by wired LAN connection

Partner content is being utilized to compose the content intended for playback on the signage.

Professional Content Partners

Pairing the XF3P with LG SW solutions would enhance its utilization.

* Sold separately

PANEL

Screen Size

75"

Panel Technology

IPS, M+
Aspect Ratio

16:9

Native Resolution

3,840 x 2,160 (UHD)
Refresh Rate

60Hz

Brightness

Min: 2,800cd/m², Typ: 3,000cd/m²
Contrast Ratio

1,200:1 (Typ)

Dynamic CR

500,000:1
Color Gamut

NTSC 72%

Viewing Angle (H x V)

178 x 178
Color Depth

10bit ( Dethering), 1.07 billion colors

Response Time

8ms (G to G BW) typ.
Surface Treatment (Haze)

AGLR(Haze 3%), QWP

Life Time (Typ.)

50,000 Hrs
Operation Hours (Hours / Days)

24Hrs

Portrait / Landscape

Yes / Yes
QWP (Quarter Wave Plate)

Yes

MECHANICAL SPECIFICATION

Bezel Color

Black

Bezel Width

11.8 mm Even
Weight (Head)

32.7kg

Packed Weight

43kg
Monitor Dimensions (W × H × D)

1,675.2 x 953.6 x 114.6 mm

Carton Dimensions (W × H × D)

1,816 x 1,106 x 285 mm
Handle

Yes (2)

FEATURE

Special Features

Conformal Coating (Power Board), Direct Sunlight

Key Feature(Hardware)

Internal Memory

8GB

Sensor

Temperature Sensor (2), Auto Brightness Sensor, Pixel sensor (TBD), Humidity Sensor

Key Feature(Software)

webOS ver.

webOS6.0

Features

Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail Over, Background Image (Booting Logo Image, No Signal Image), Sync Mode (RS-232C Sync, Local Network Sync, Backlight Sync), PIP, PBP, Video Tag (4), Play via URL, Rotation (Screen Rotation, External Input Rotation), Gapless Playback, Tile Mode Setting, Setting Data Cloning, SNMP, ISM Method, Auto Set ID, Status Mailing, Control Manager, Power (Smart Energy Saving, PM Mode, Wake on LAN, Network Ready), HDMI-CEC, SI Server Setting, webRTC, Pro:Idiom

ENVIRONMENT CONDITIONS

Operation Temperature

0℃ to 40℃ (with Solar)
0℃ to 50℃ (w/o Solar)

Operation Humidity

10% to 80%

POWER

Power Supply

AC 100-240 V ~, 50/60 Hz

Power Type

Built-In Power

POWER CONSUMPTION

Typ.

745W

Max.

775W
Smart Energy Saving (70%)

280W

DPM

0.5W(DP, HDMI)
Power off

0.5W

BTU (British Thermal Unit)

2,644

CERTIFICATION

Safety

CB / NRTL

EMC

FCC Class "A" / CE / KC / VCCI
ErP

Yes

SOFTWARE COMPATIBILITY

Content Management Software

SuperSign CMS

Control and Monitoring Software

SuperSign Control+
LG ConnectedCare

Yes

CONNECTIVITY

Input

HDMI In ((2), HDMI1/2 : HDCP 2.2), DP In (HDCP1.3), DVI-D In, Audio In, RS232C In (4pin phone jack), RJ45(LAN) In, IR In, USB In (USB2.0 Type A)

Output

DP Out, External Speaker Out (4pin phone jack), RS232C Out

Language

OSD

English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Arab, Türkçe, Polski

ACCESSORY

Basic

Remote Controller(including battery 2ea), Power Cord, HDMI Cable,Manual (EIG, IG) RS-232C Gender

Optional

Double sided Bracket (Landscape&Portrait : WM-B640S)

COMPLIANCE INFORMATION

More Compliance Information

The safety information for accessories is included with the safety information for the product and is not provided separately.
