75XS4G-B component-copyModelName

Window Facing Display

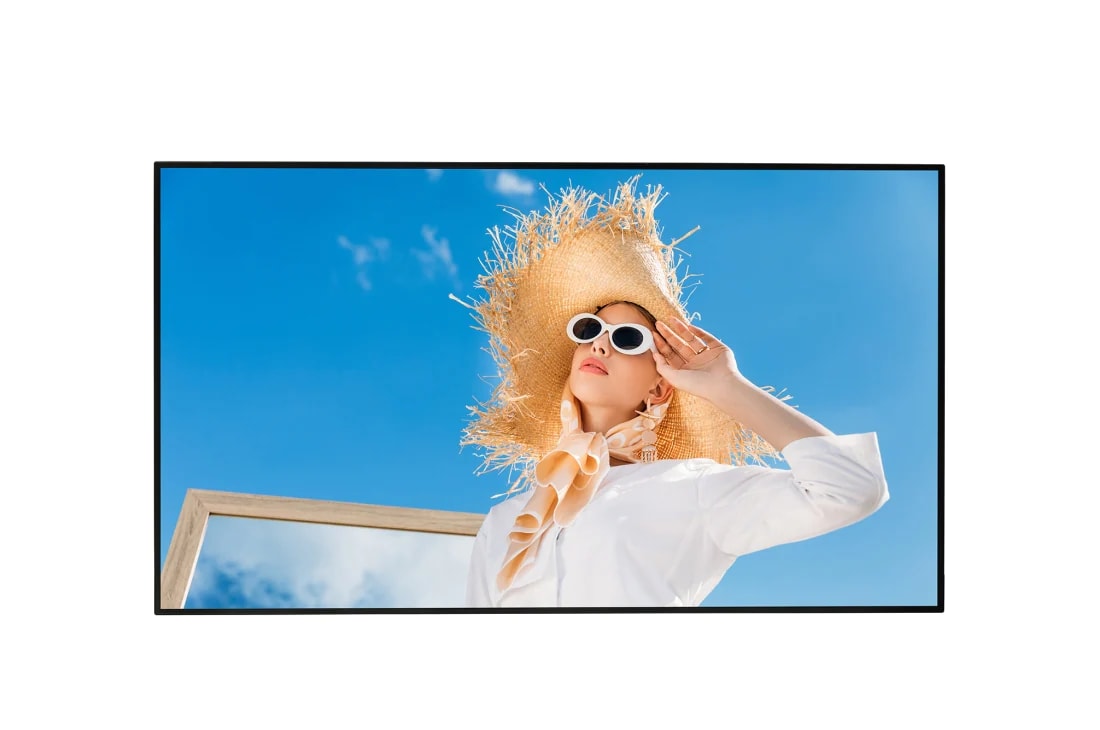

LG Window Facing Display, Front view with infill image, 75XS4G-B, thumbnail 1

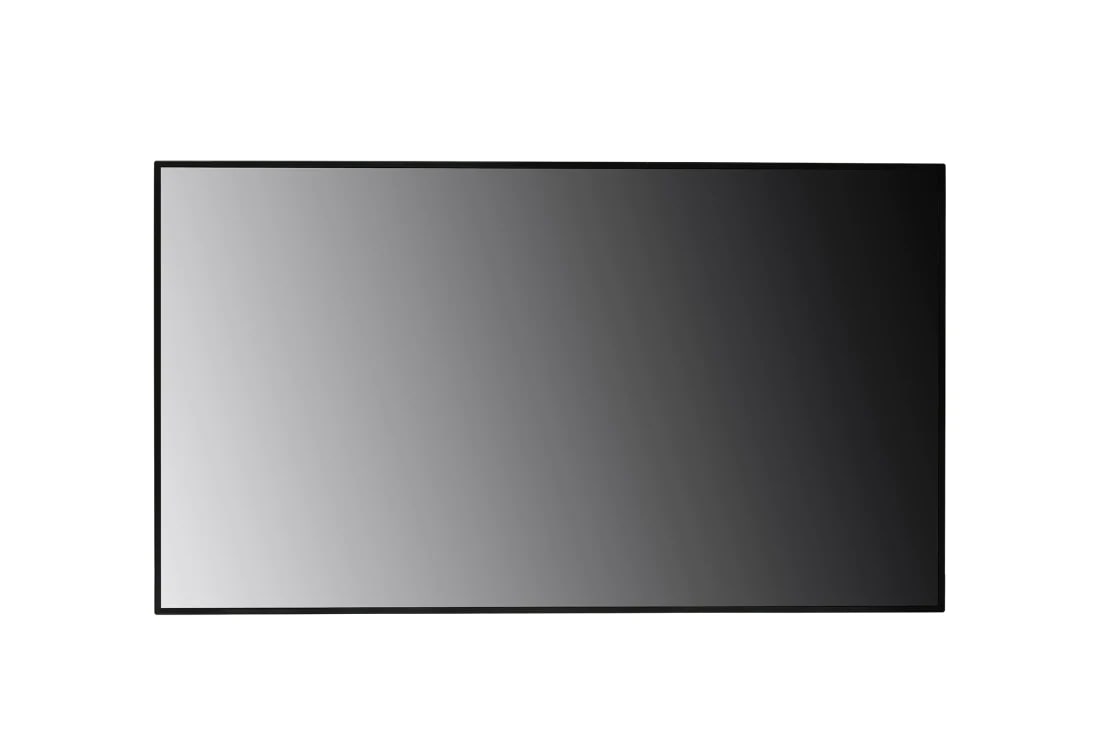

LG Window Facing Display, Front view, 75XS4G-B, thumbnail 2

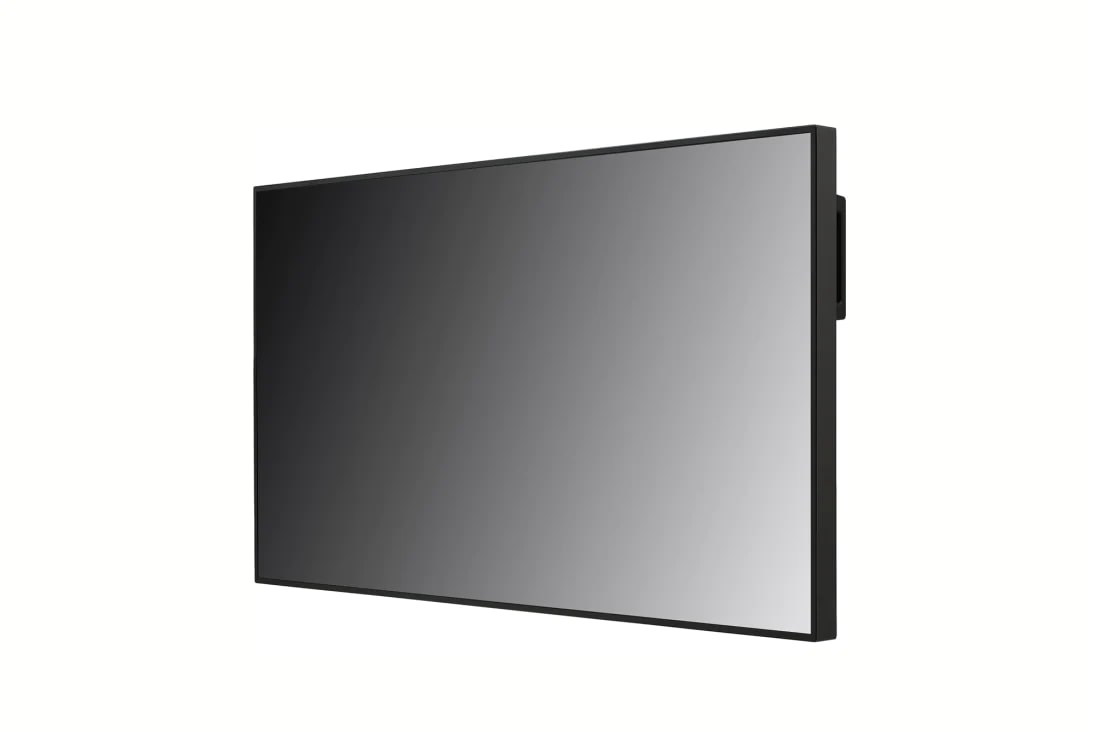

LG Window Facing Display, -45 degree side view, 75XS4G-B, thumbnail 3

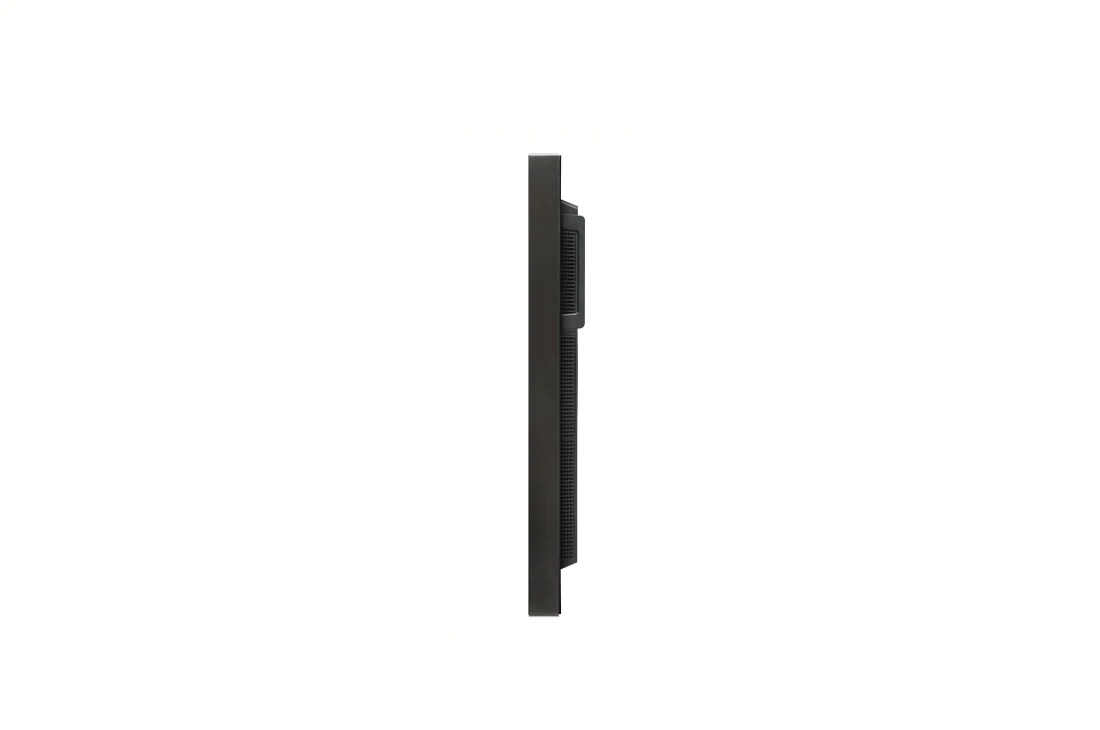

LG Window Facing Display, -90 degree side view, 75XS4G-B, thumbnail 4

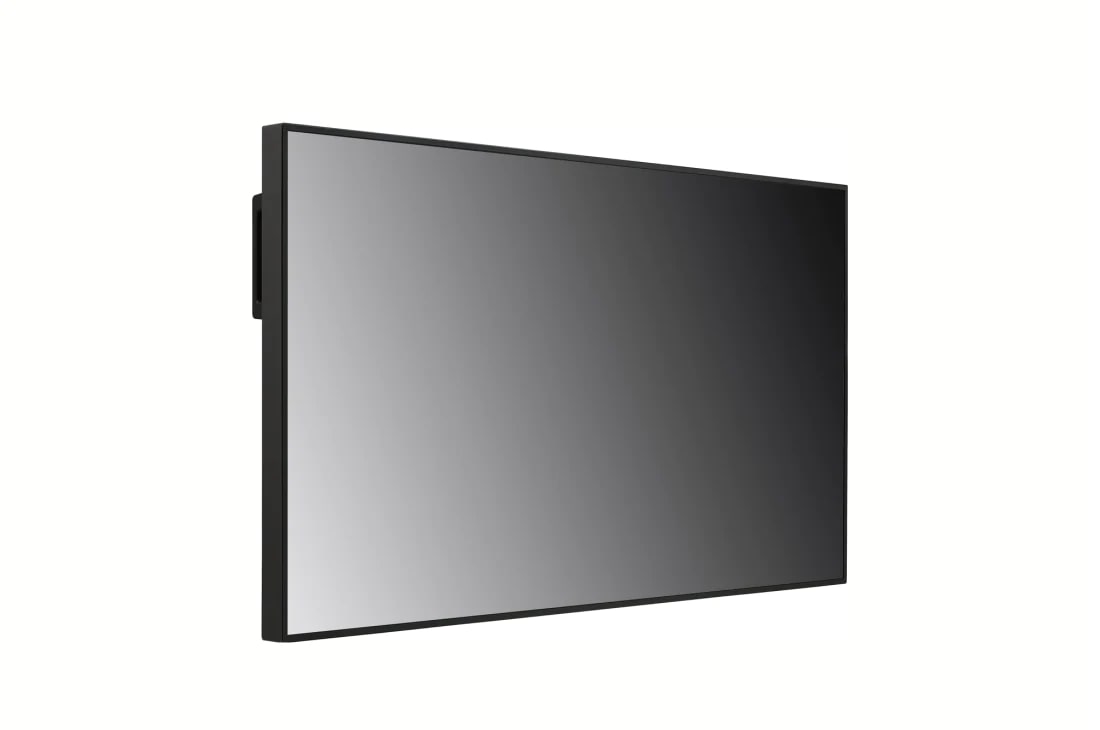

LG Window Facing Display, +45 degree side view, 75XS4G-B, thumbnail 5

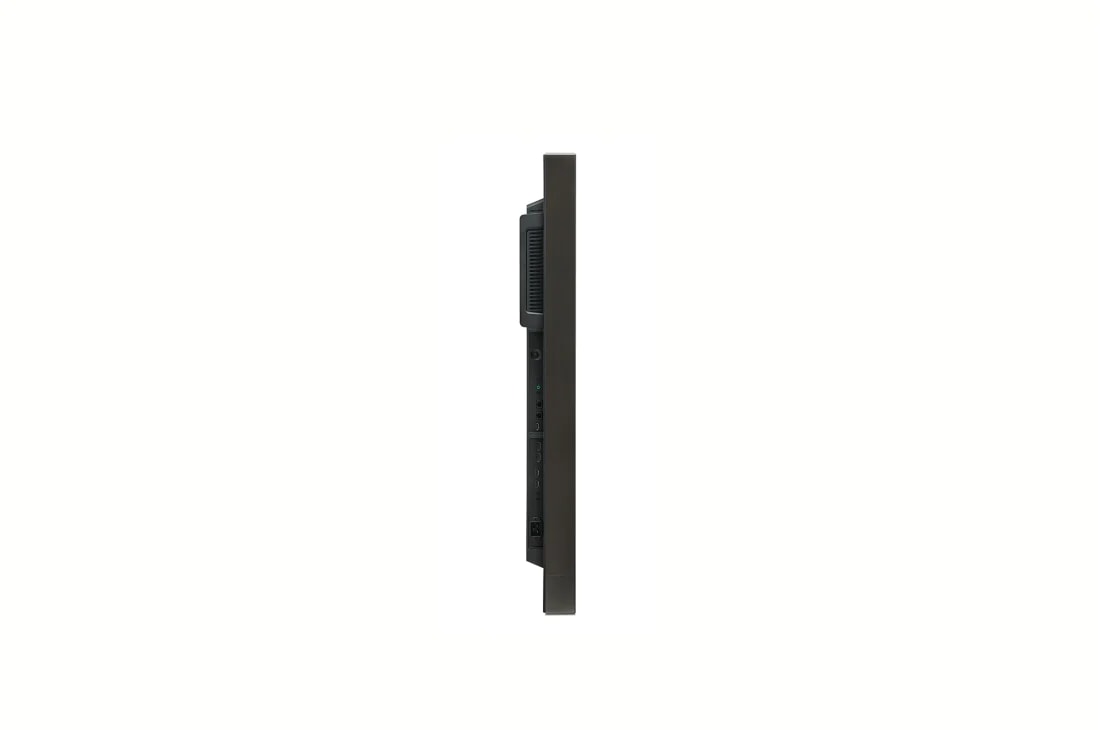

LG Window Facing Display, +90 degree side view, 75XS4G-B, thumbnail 6

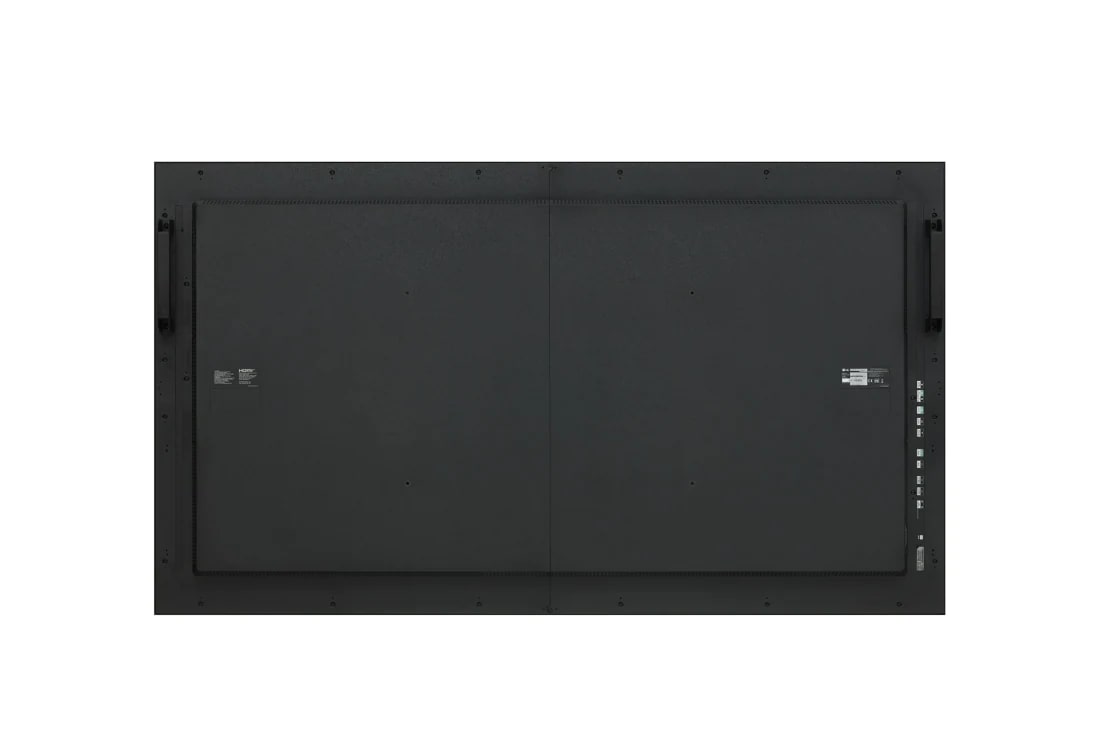

LG Window Facing Display, Rear view, 75XS4G-B, thumbnail 7

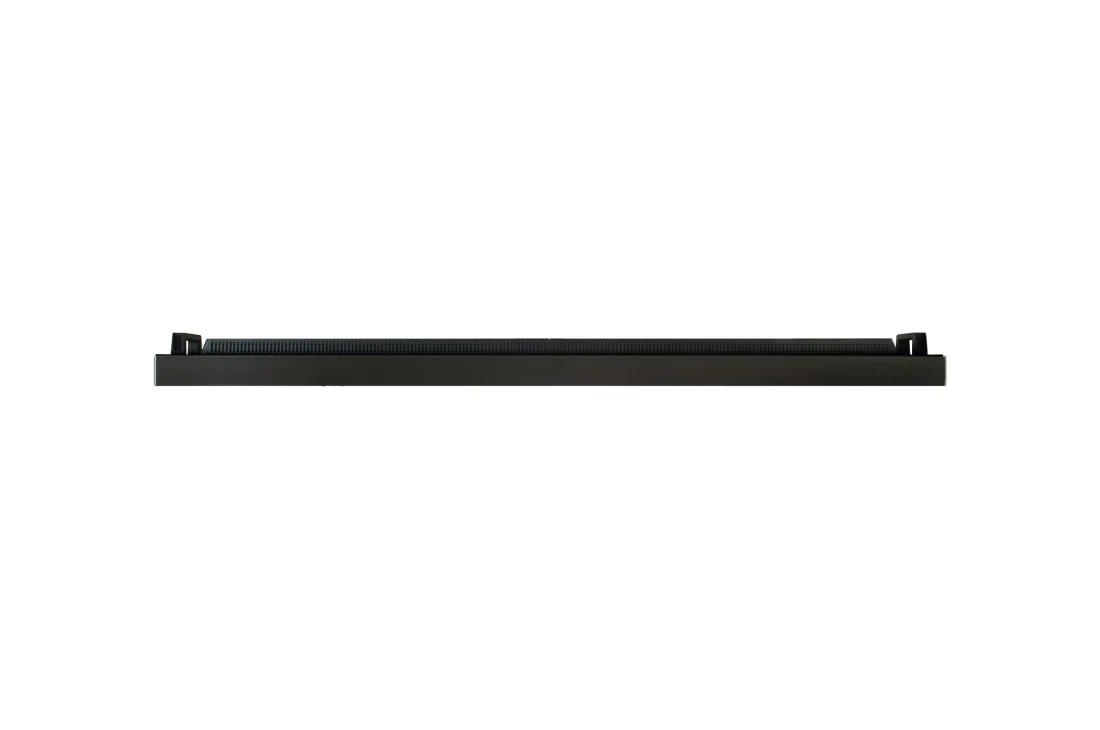

LG Window Facing Display, Top view, 75XS4G-B, thumbnail 8

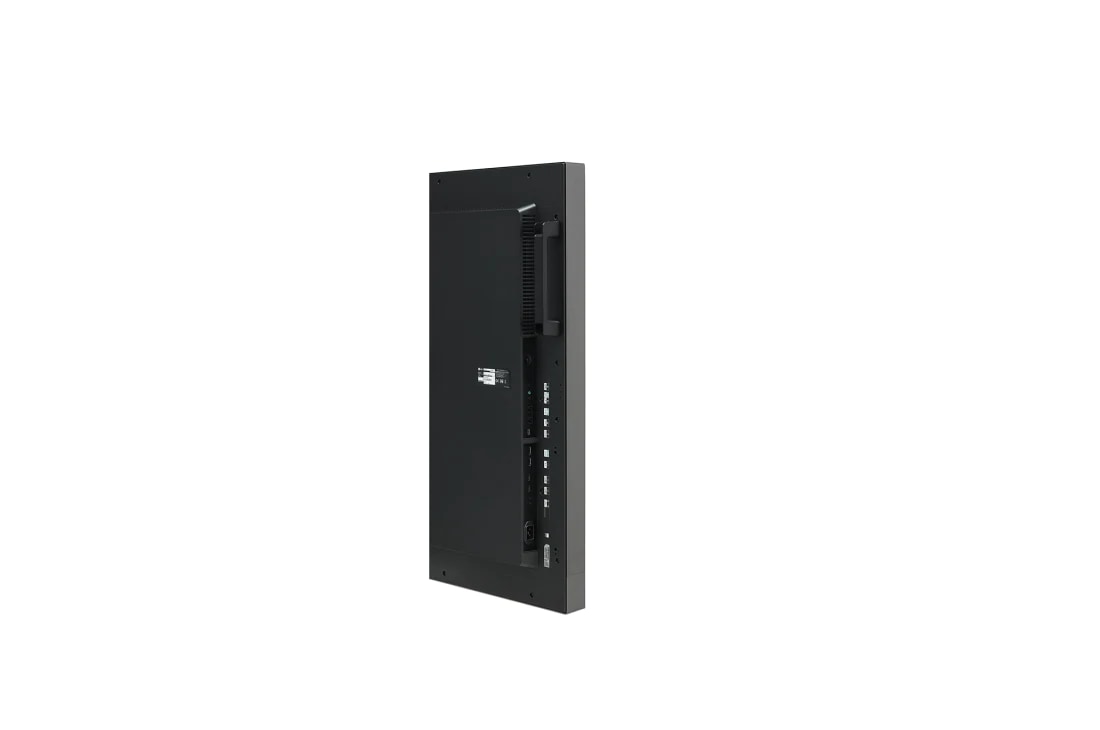

LG Window Facing Display, Close-up side view, 75XS4G-B, thumbnail 9

ADD TO WISHLIST

Discontinued

75XS4G-B component-copyModelName

Window Facing Display

Name: Window Facing Display
Brand: LG UAE
SKU: 75XS4G-B
Rating: 0 (0 reviews)

Key Features

Brightness : 4,000 nits (Typ.) / 3,200 nits (Min.)
Resolution : ULTRA HD (3,840 x 2,160)
Bezel : 13.8 mm (Even Bezel)
Double-sided Usage with Dedicated Bracket
Built-in Wi-Fi & Bluetooth
Web-based Monitoring Solution

Choose your Size

Find a Dealer

Add to Compare

component-OBScountrySelectDesc

Key Features

Brightness : 4,000 nits (Typ.) / 3,200 nits (Min.)
Resolution : ULTRA HD (3,840 x 2,160)
Bezel : 13.8 mm (Even Bezel)
Double-sided Usage with Dedicated Bracket
Built-in Wi-Fi & Bluetooth
Web-based Monitoring Solution

Choose your Size

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

Window Facing Display

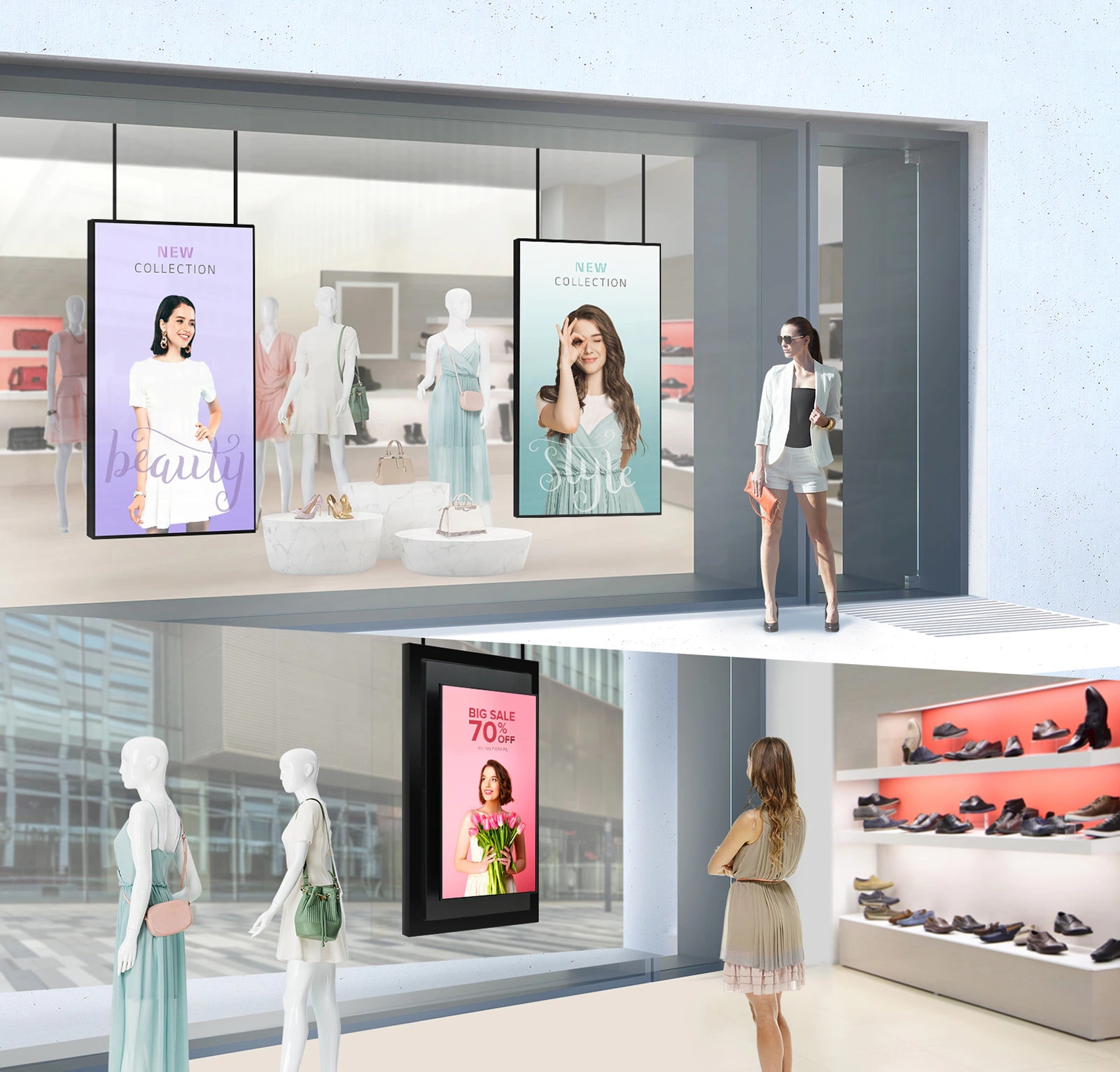

Make Your Content Stand Out beyond Window with the Outstanding Visibility

Double-sided display is attached to the store, allowing customers to get information about the promotion both inside and outside.

* All images of this page are for illustrative purposes only.

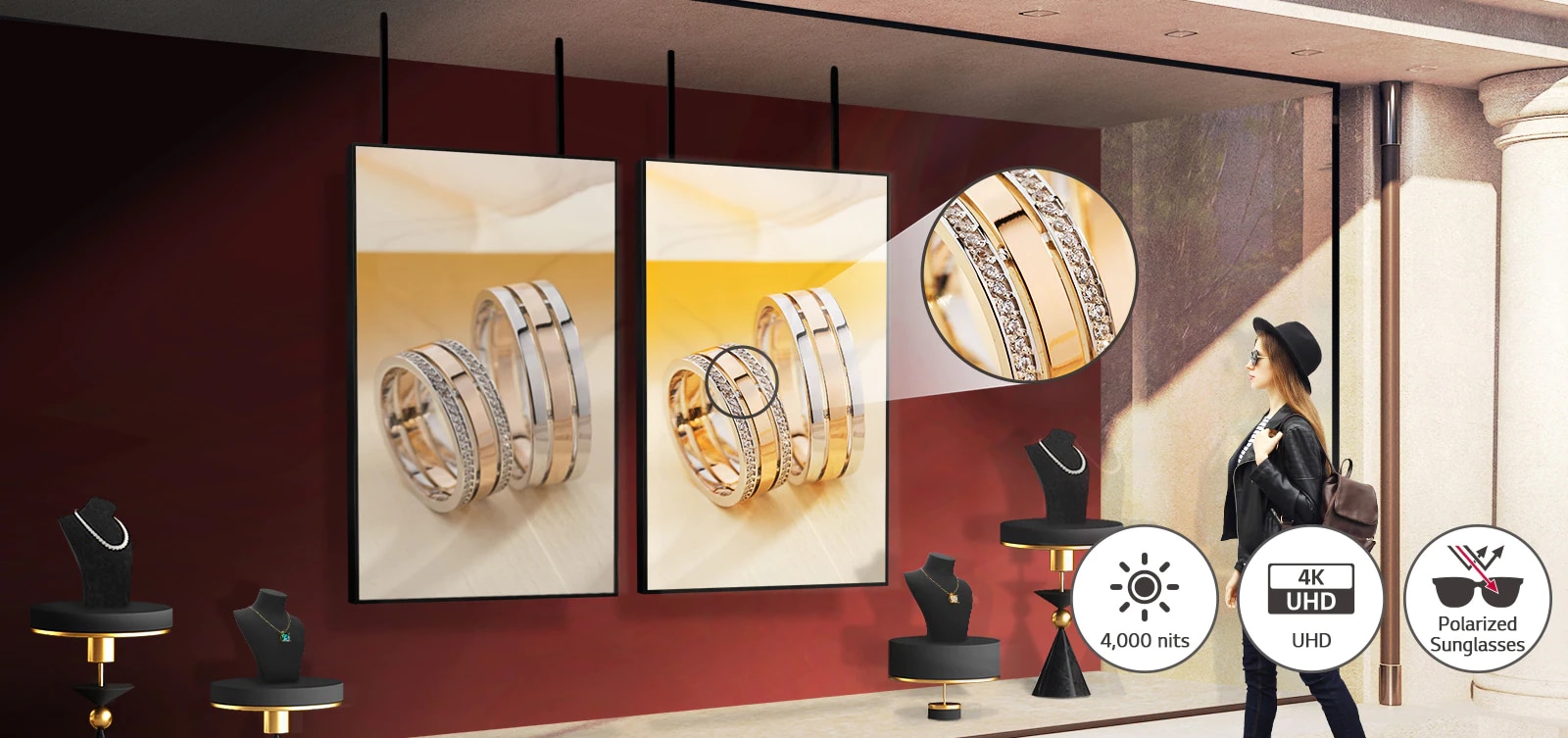

Deliver Your Message
with High Visibility
Even Under the Strong Sunlight

With a great brightness of 4,000 nits** and UHD picture quality,
75XS4G clearly deliver contents and attract public attention,
which is the ultimate display for outdoor visibility.
QWP*** enables clear visibility even when the viewer is wearing polarized sunglasses.

Unlike other products, 75XS4G's display is clearly visible under the sunlight or in environment with sunglasses on.

* ‘LG Conventional’ refers to LG 75XS2E.
** Brightness of 75XS4G : Max. 4,000 nits, Typ. 3,200 nits
*** Quarter Wave Plate

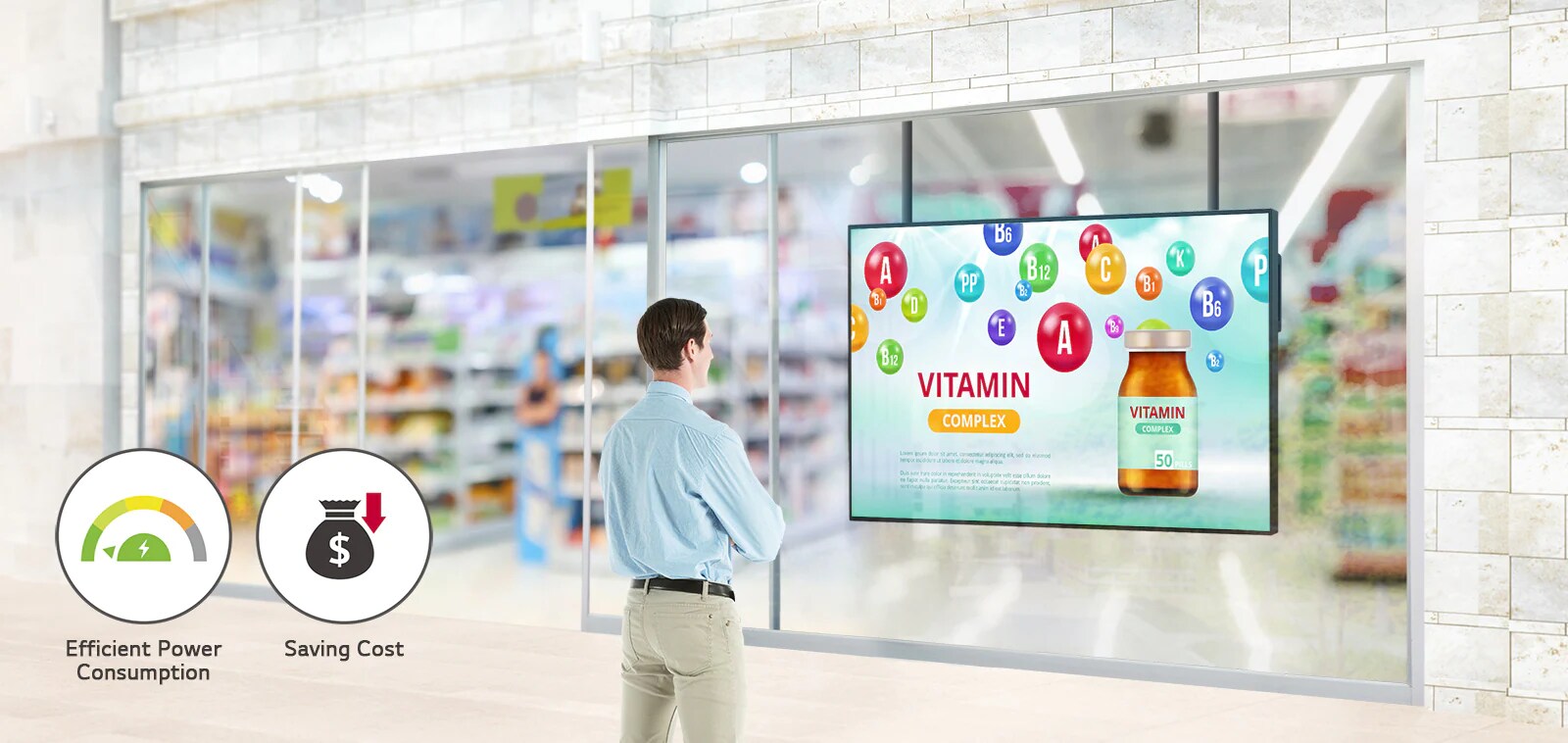

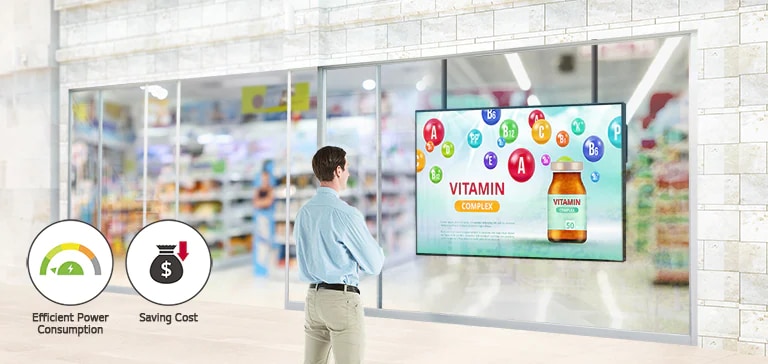

High Energy Efficiency

The 75XS4G is *energy efficient, allowing for an efficient total cost management
while showing content in UHD resolution even with 4,000 nits of high brightness.

* Maximum power consumption of 75XS4G is 790 W at ‘On Mode’. The figure may differ depending on the actual environment.

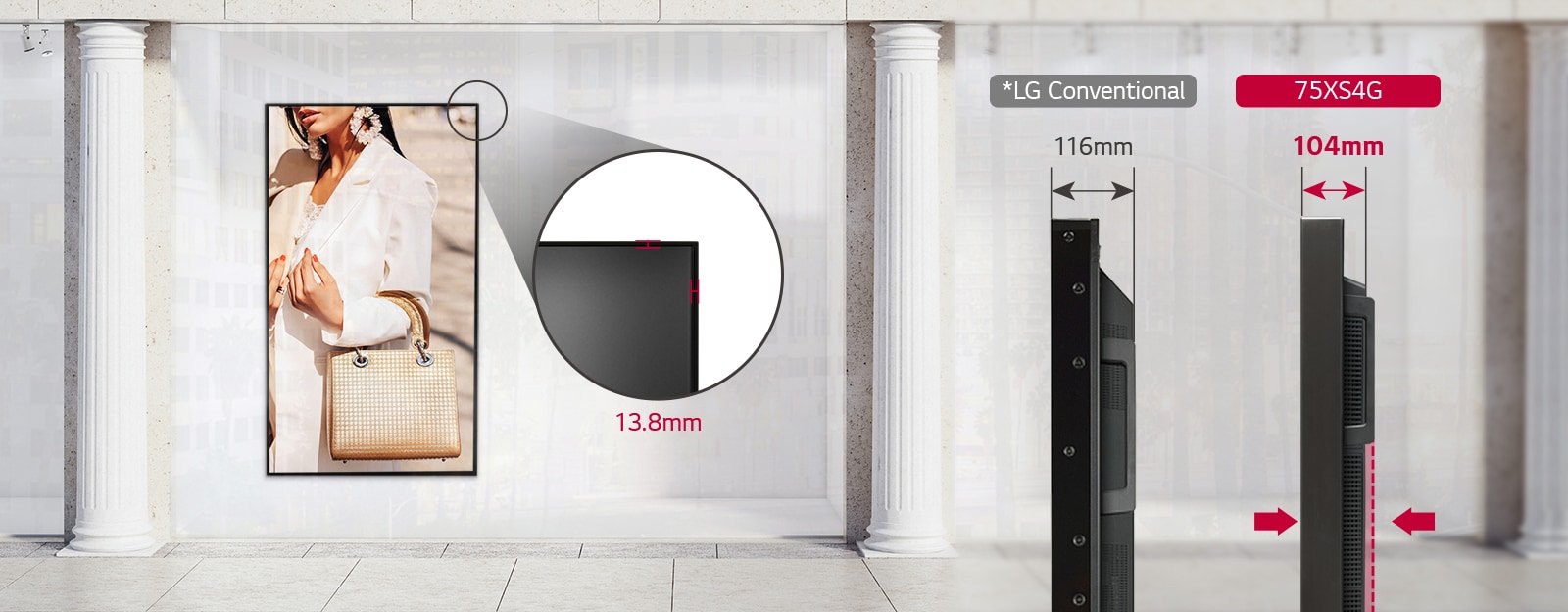

Space Blending Slim Design

Given that window-facing displays are usually installed indoors close to the window,
75XS4G's slim design is useful as it can blend naturally inside the store.

75XS4G is installed close to the window and has a high level of immersion in the display due to its thin bezel and width.

* ‘LG Conventional’ refers to LG 75XS2E

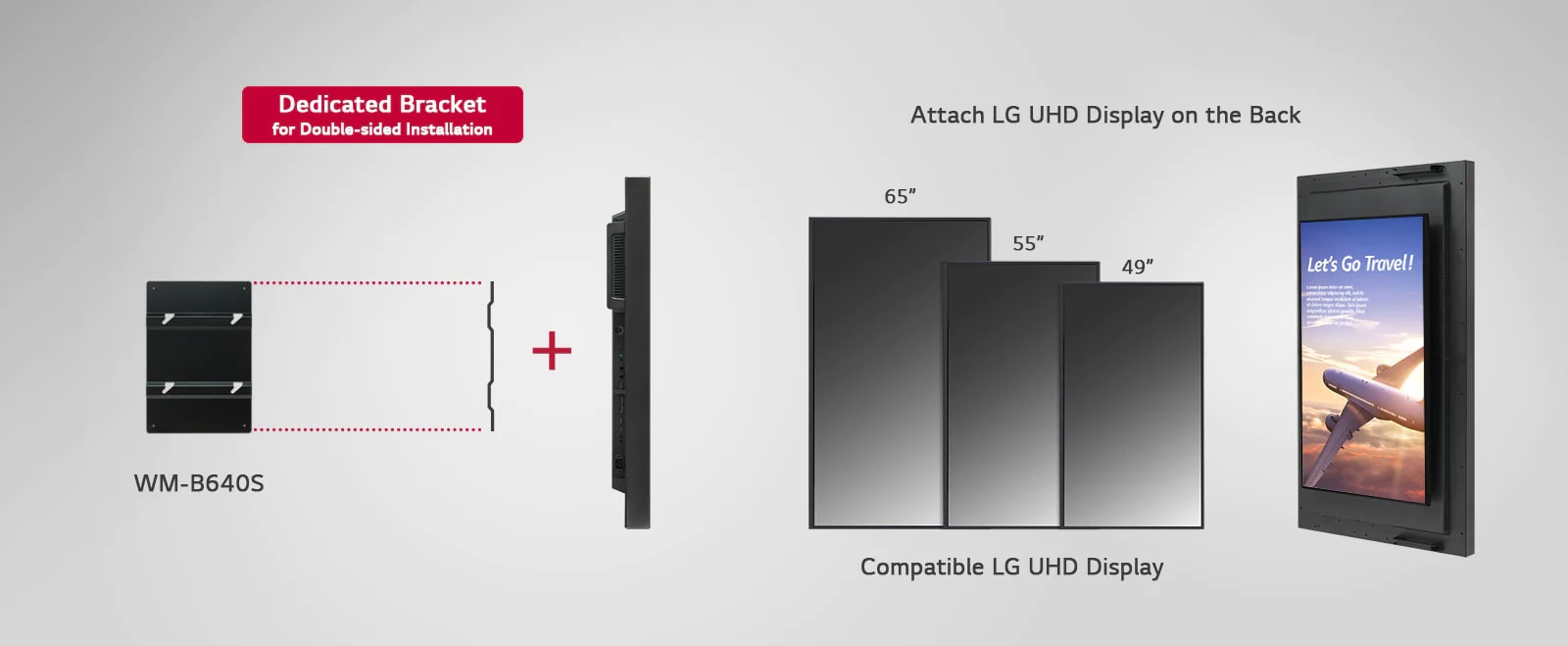

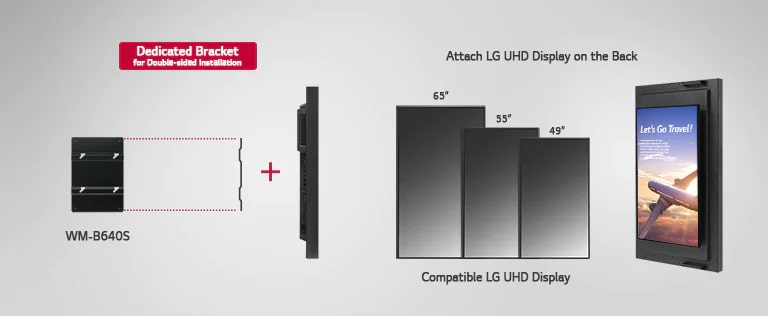

Double-sided Usage with Dedicated Bracket

Due to the 75XS4G flat-back design and dedicated bracket*,
store owner can attach LG’s UHD display** to the back for the purpose of
displaying a variety of content for both external and internal customers.

Using an dedicated bracket, LG UHD display compatible with 75XS4G can be attached on the back.

* Bracket is optional.
** Attachable Displays : LG 65/55/49 inches UH7 Series, 65/55/49 inches UH5/UM3 Series

Wide Operating
Temperature Range

75XS4G can operate at various temperatures of 0-40°C.

A display is working well in an environment of 0-40°C.

Conformal Coating

*Conformal Coating improves reliability of the circuit board, power board
by protecting it against dust, iron powder, humidity, etc.

75XS4G applies conformal coated circuit board and powerboard for protection against dust, iron powder, humidity etc.

* Conformal Coating : Thin protective films/breathing membranes that filter water vapor and solid debris

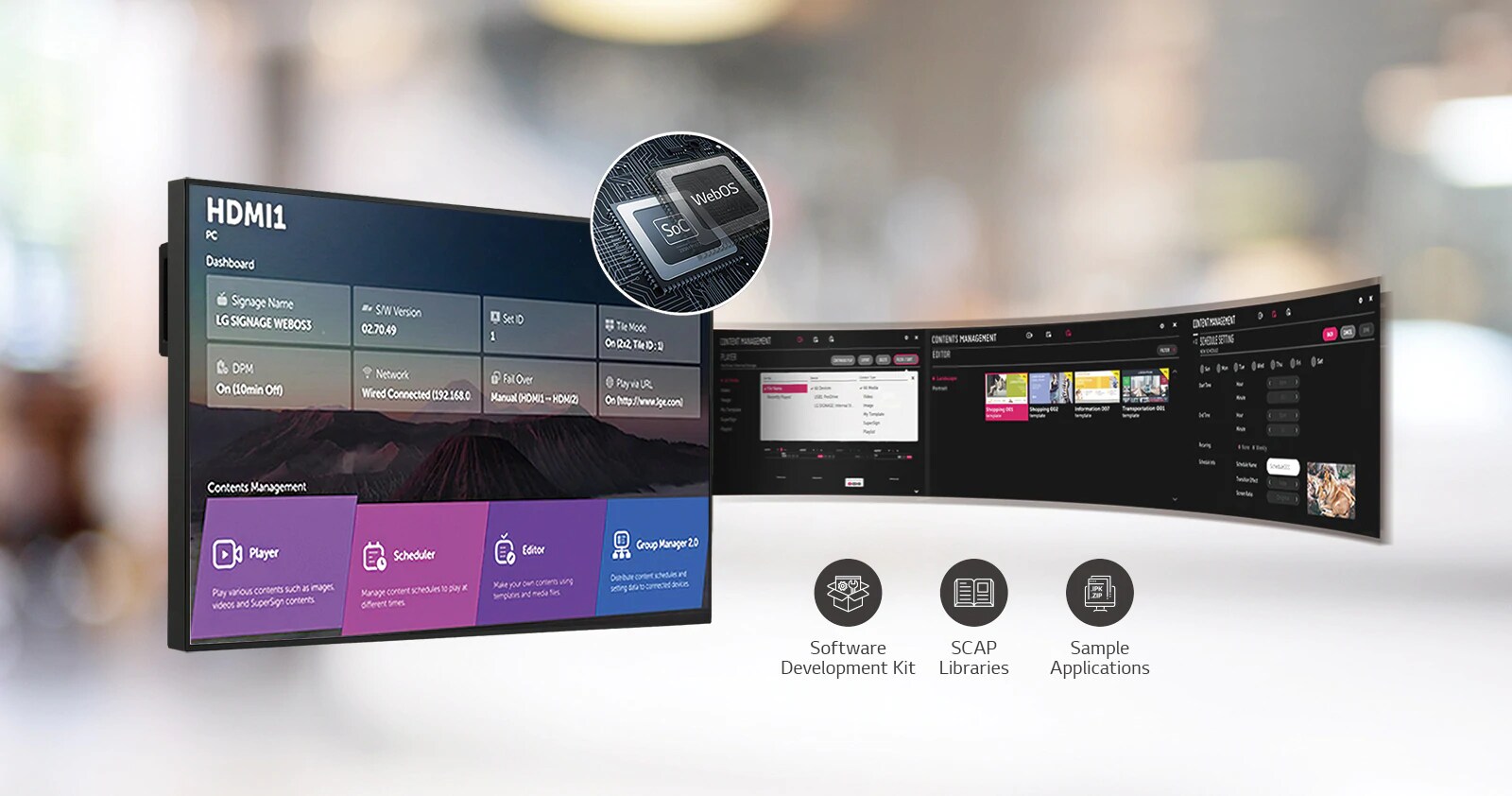

High Performance with webOS

Quad Core SoC* can execute several tasks at the same time without a separate media player.
In addition, webOS 4.1 platform enhances user convenience with intuitive UI and simple app development tools.

A number of tasks that can be done at the same time are arranged easily through webOS platform.

* System-on-Chip

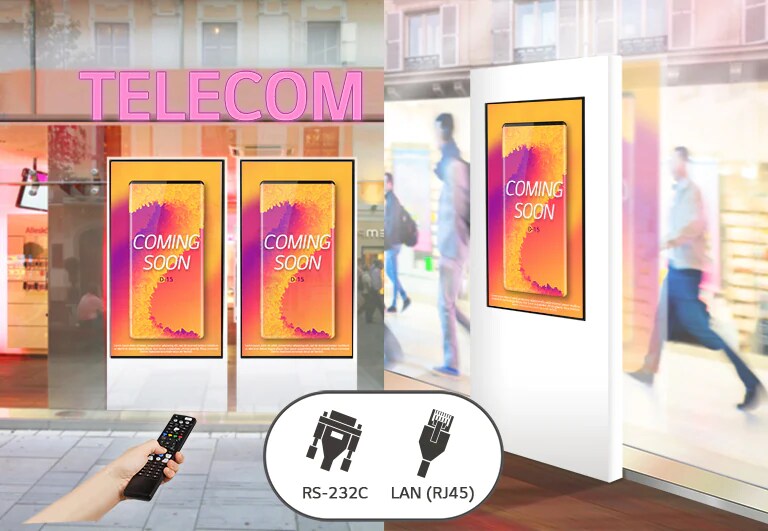

Multiple Display Control with a Remote Control

Multiple device controls are available through the RJ45 & RS-232C ports.
It means that even double-sided displays can be easily controlled simultaneously
with a remote control.

It operates double-sided displays simultaneously with one remote control.

Easy Content Distribution
& SW Update

75XS4G features embedded Wi-Fi, Bluetooth, Beacon making it easy to distribute content wirelessly and update Firmware. In particular, using Beacon and BLE (Bluetooth Low Energy),
Shop manager can do various promotional activities, such as providing promotional coupons or product information to visitor in real time.

A visitor is receiving promotional coupon in real time through Wi-Fi, Bluetooth, and Beacon built into the display.

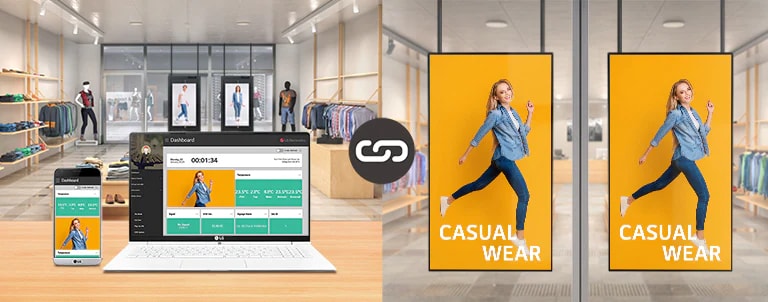

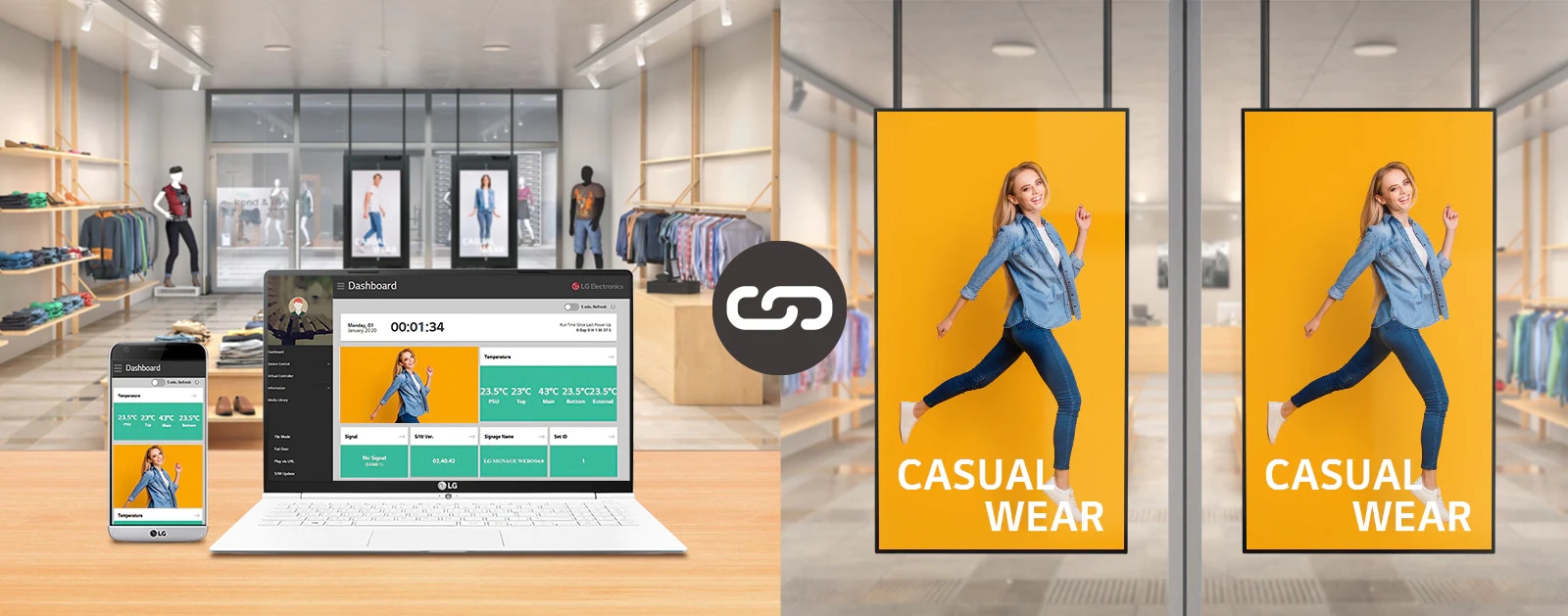

Web Monitoring
(Control Manager)

This web-based monitoring solution is user-friendly and allows the user to be at ease.
It enables the user to have full access anywhere at anytime
from their mobile phone while having access to both current and past data.
It allows the user to monitor the unit, make adjustments, and control the unit remotely in real time.

User can monitor and control their displays through mobile phone and laptop.

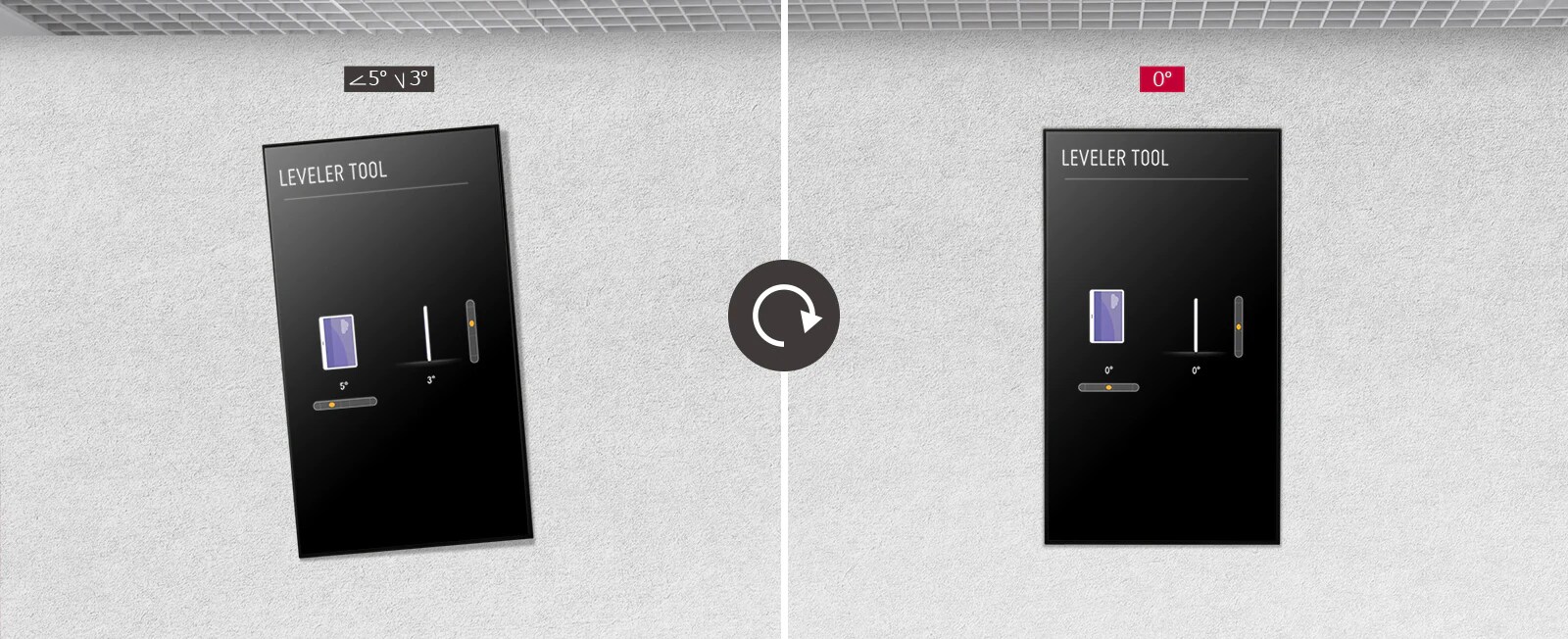

Precise Installation Using Leveler Tool

The 75XS4G is equipped with a "Leveler Tool" which shows users how the device is tilt,
so the display can be precisely installed.

A display is installed without tilting using the leveler tool.

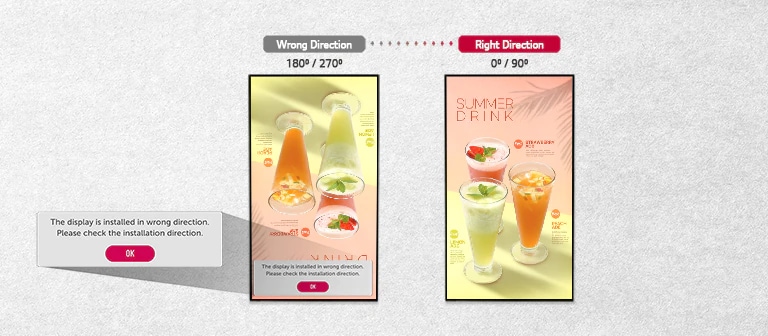

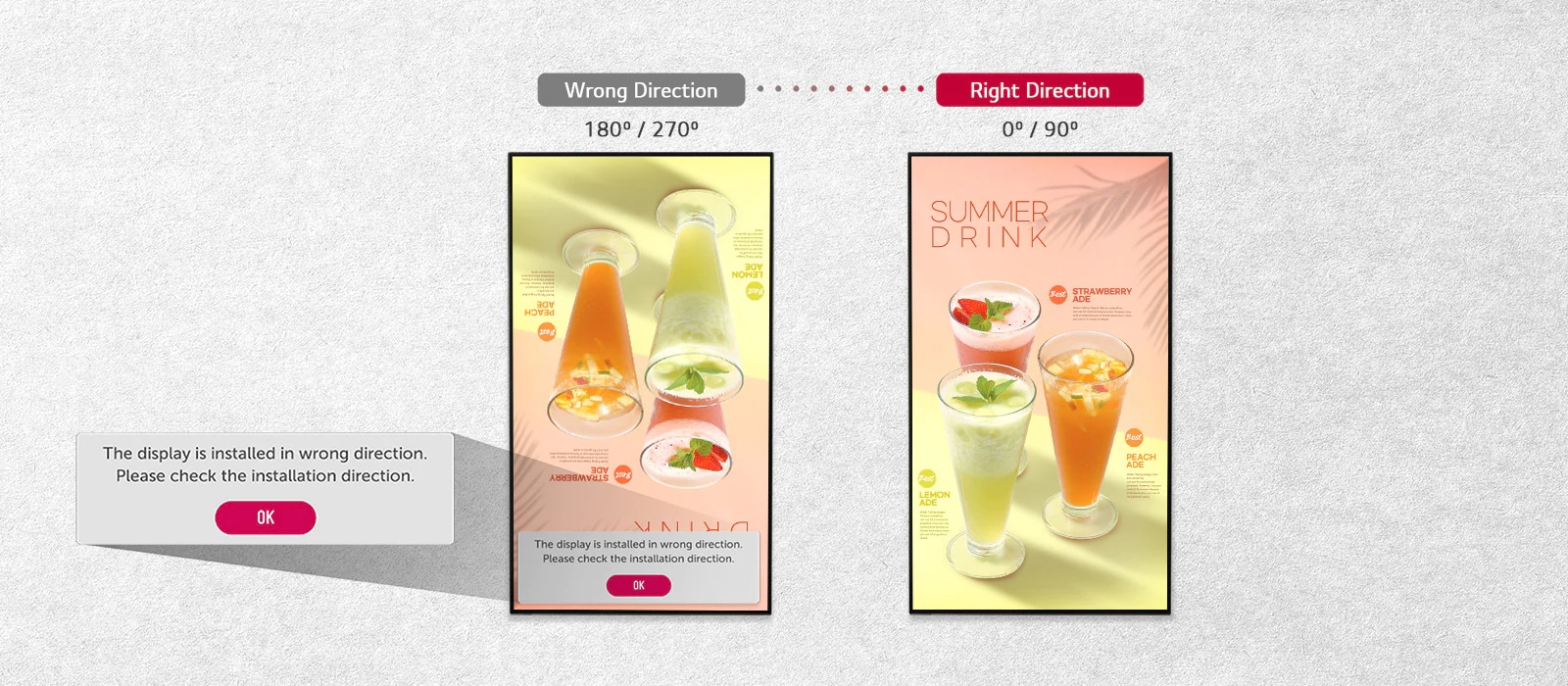

Alert for Right Direction

The 75XS4G is equipped with a "horizontal sensor", so the display can be installed accurately.

Through equipped horizontal sensor, the display can be reinstalled in the correct direction if it is incorrectly installed.

Explore more showroom at<br>LG Digital Connect1

Explore more showroom at
LG Digital Connect

Explore

PANEL

Screen Size

75"

Panel Technology

IPS, M+ (WRGB)
Aspect Ratio

16:9

Brightness (Typ., cd/m²)

4000
Brightness (Min., cd/m²)

3200

Contrast Ratio (Typ.)

1,200:1
Viewing Angle (H x V)

178 x 178

Surface Treatment

Haze 3%
Life time

50,000 Hrs (Typ.)

Operation Hours

24 Hrs / 7 Days
Orientation

Landscape & Portrait

CONNECTIVITY

Input

HDMI(2, HDCP2.2 / 1.4), DP(1, HDCP2.2 / 1.3), RS232C IN(1, (4pin phone jack)), RJ45(LAN), IR IN, USB 2.0 Type A (1)

Output

DP Out(1, Input DP/HDMI), Externel Speaker Out(1, L/R, 10W+10W), RS232C OUT, RJ45(LAN)

PHYSICAL SPECIFICATION

Bezel Color

Black

Bezel Width

Even bezel : 13.8mm
Monitor Dimension (W x H x D)

1679.2 x 957.6 x 104mm

Weight (Head)

39.6 kg
Packed Weight

50 kg

Handle

Yes
VESA™ Standard Mount Interface

600 x 400 mm

ENVIRONMENT CONDITIONS

Operation Temperature

0 °C to 40°C (w/o Direct Sunlight, Direct Sunlight in Cooling System) 0 °C to 30°C (Direct Sunlight)

Operation Humidity

10 % to 80 %

POWER

Power Type

Built-In Power

Power Supply

AC 100-240V~, 50/60Hz

POWER CONSUMPTION

Typ.

750W (Full White)
405W (IEC 62087)

Max

790W

STANDARD(CERTIFICATION)

Safety

CB / NRTL

EMC

FCC Class "A" / CE / KC / VCCI
ErP / Energy Star

Yes / No

SOFTWARE COMPATIBILITY

Content Management Software

SuperSign CMS

Control and Monitoring Software

SuperSign Control / Control+
Real-time Connected Care Service

Yes (LG ConnectedCare)

ACCESSORY

Basic

Remote Controller (including battery 2ea), Power Cord, HDMI Cable,Manual (EIG, IG), IR Receiver (w/ Ambient Light Sensor), RS-232C Gender, IR Sheet

Optional

Double sided Bracket, (Landscape&Portrait : WM-B640S)

COMPLIANCE INFORMATION

More Compliance Information

The safety information for accessories is included with the safety information for the product and is not provided separately.
