Discontinued
84TR3B component-copyModelName

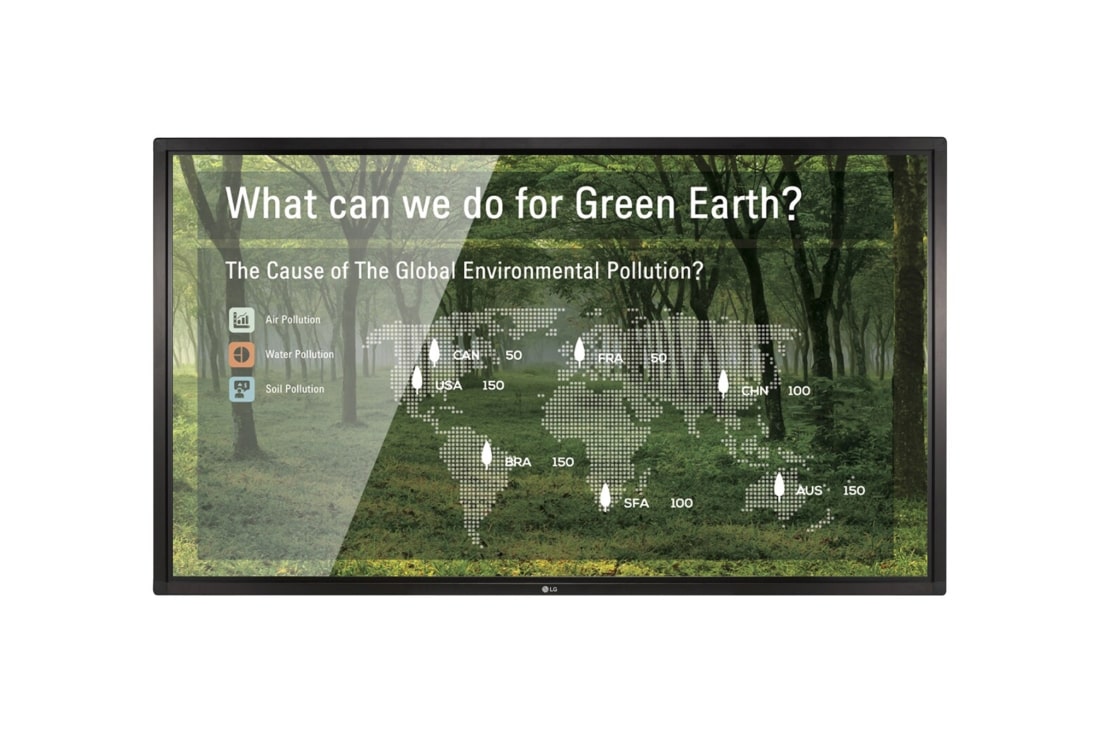

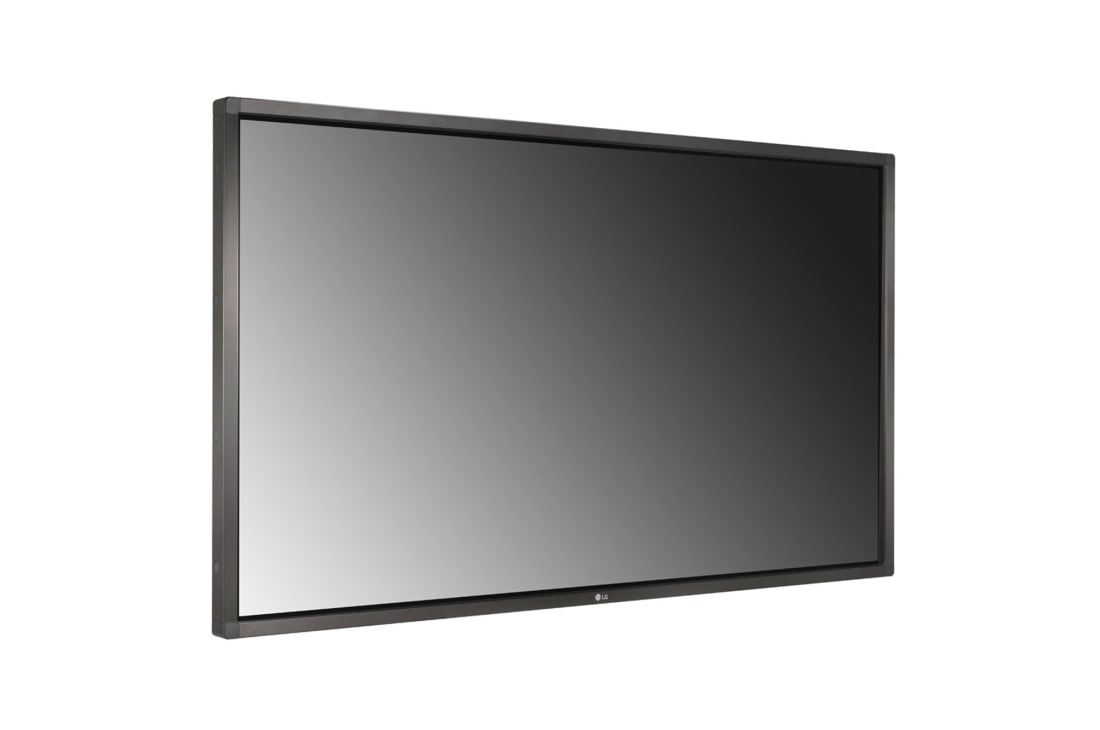

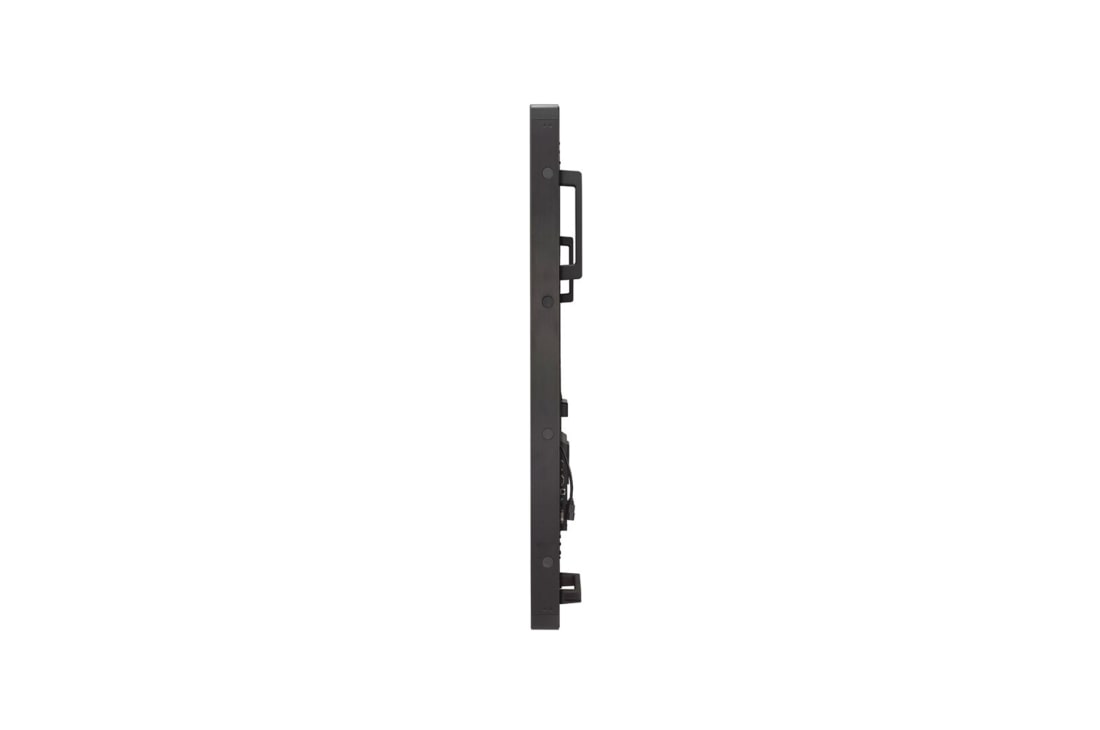

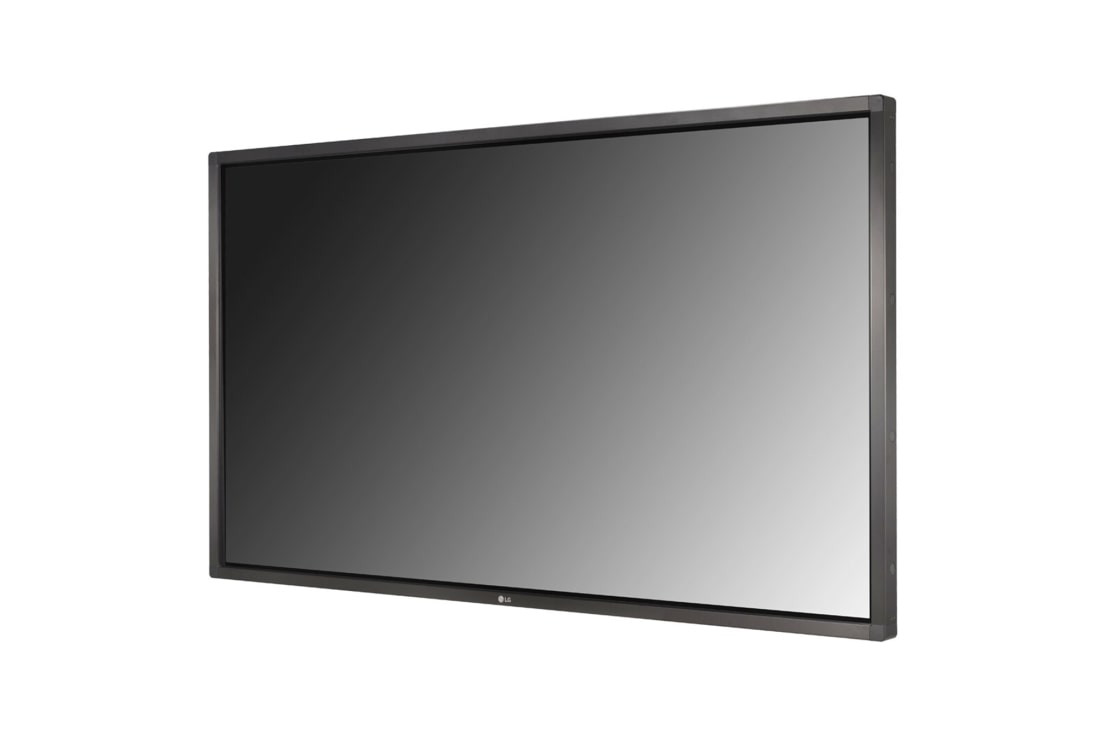

84'' 350 nits UHD Interactive Digital Board

Key Features

Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

84" 350 nits UHD Interactive Digital Board
Find a Dealer
Close
PANEL
  • Screen Size
    84"
    Resolution

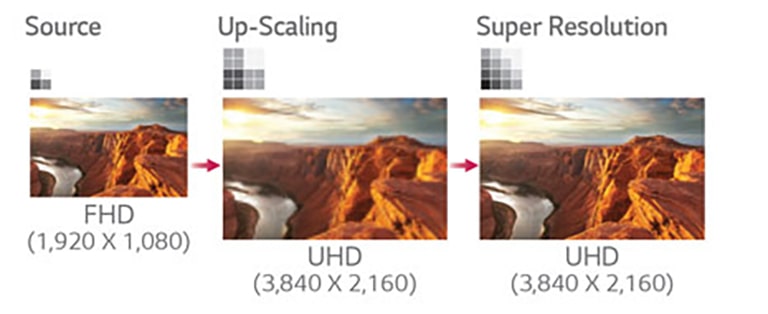

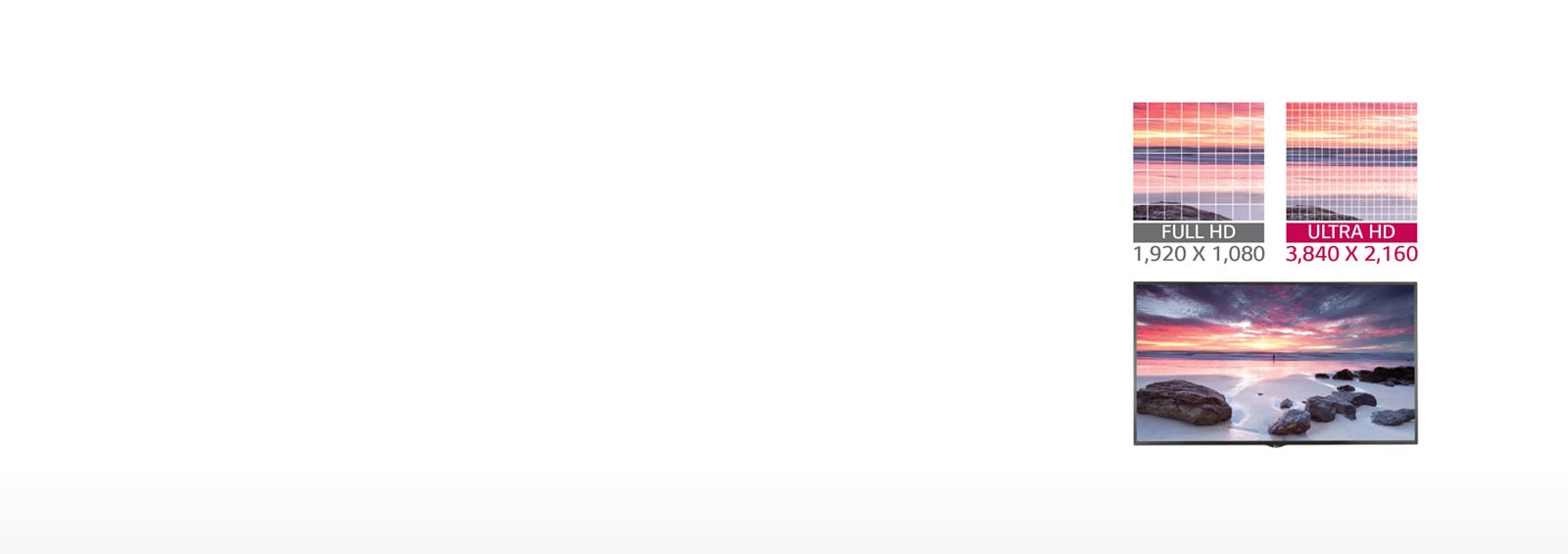

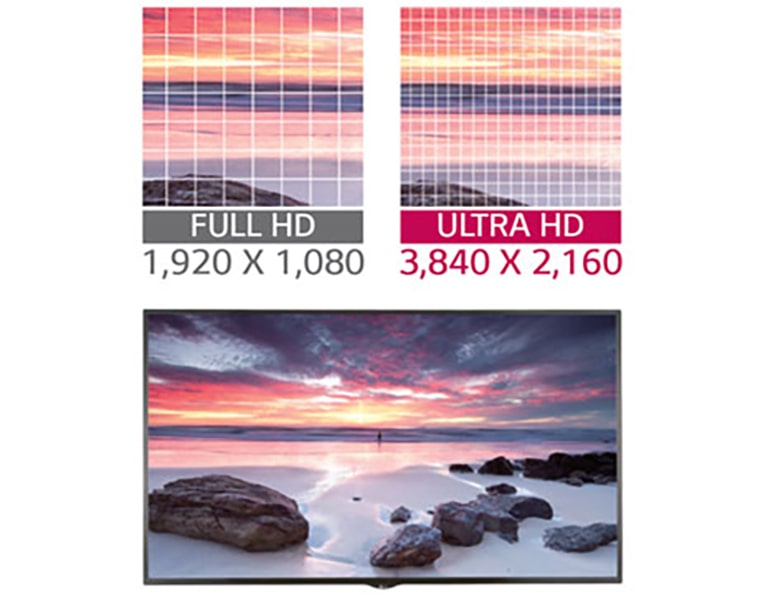

    3,840 x 2,160 (UHD)
  • Brightness
    350 cd/m² Typ. (300 cd/m² with Protection Glass)
CONNECTIVITY - INTPUT
  • HDMI
    Yes (2)
    DP
    Yes (1)
  • DVI-D
    Yes (1)
    Analog (RGB)
    No
  • Analog (Component)
    Yes (1)
    External Control (RS232C IN)
    Yes (1)
  • Audio
    Yes (1)
    External Control (LAN)
    Yes (1)
  • External Control (IR/Light sensor)
    Yes (1)
    External Control (Pixel Sensor)
    No
  • External Control (Pentray Control)
    Yes (1)
    USB
    USB 3.0 : 1EA, USB 2.0 : 2EA
CONNECTIVITY - OUTPUT
  • Audio Out
    Yes (1)
    Externel Speaker Out
    Yes (1, L/R)
  • External Control (RS232C OUT)
    Yes (1)

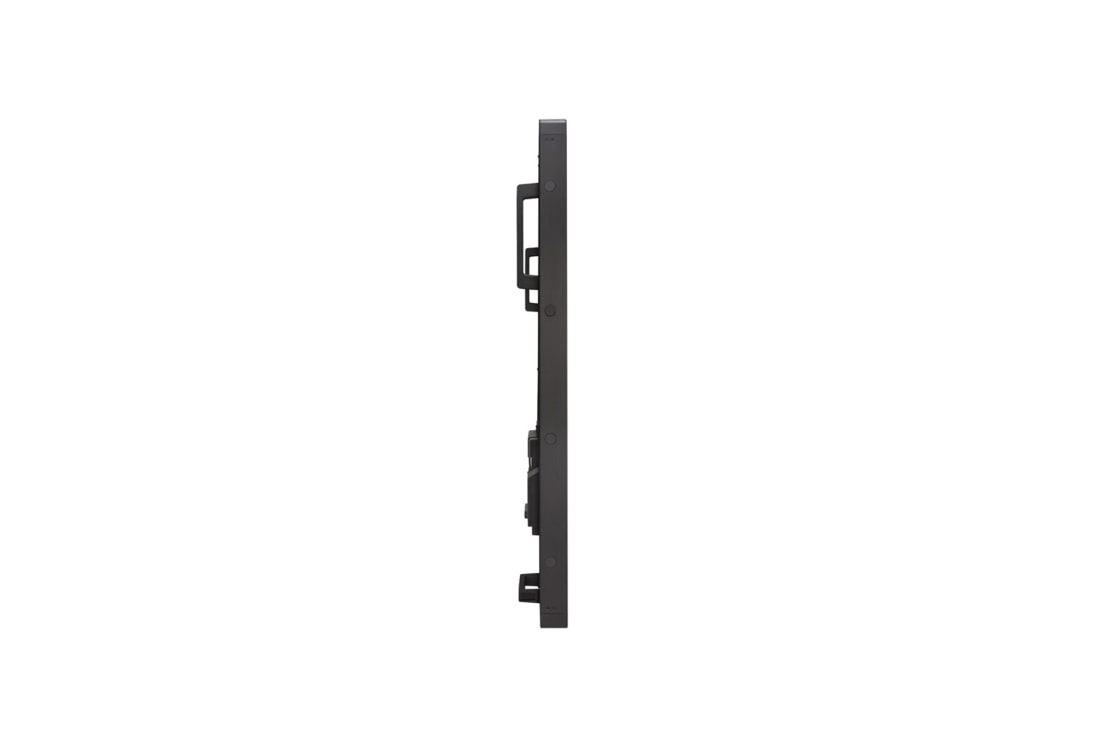

PHYSICAL SPECIFICATION
  • Bezel Width
    34.0mm
    Monitor Dimension (W x H x D)
    1,951.2mm X 1,137.2mm X 111.9mm
  • Weight (Head)
    104.0kg
    VESA™ Standard Mount Interface
    600mm x 400mm (M8)
MEDIA PLAYER COMPATIBILITY
  • External Media Player Attatchable
    No
SOFTWARE COMPATIBILITY
  • SuperSign-w lite
    Yes
    SuperSign-c
    No
ACCESSORY
  • Basic
    Power Cord, Remote Controller (include battery 2ea ), IR/Light sensor receiver, USB 2.0 Cable, HDMI 2.0 Cable, DisplayPort Cable, Cable Tie (2ea), Touch Pen (2ea), PenTray (1ea), Eye-Bolt Assy (2ea), Screw Package, ESG
    Optional
    Media Player: MP700/MP500, External Speaker: SP-2100, Pen Tray: KT-WT1 (TBD)
GENERAL
  • Region
    Global
COMPLIANCE INFORMATION
  • The safety information for accessories is included with the safety information for the product and is not provided separately.
