86TN3F-B component-copyModelName

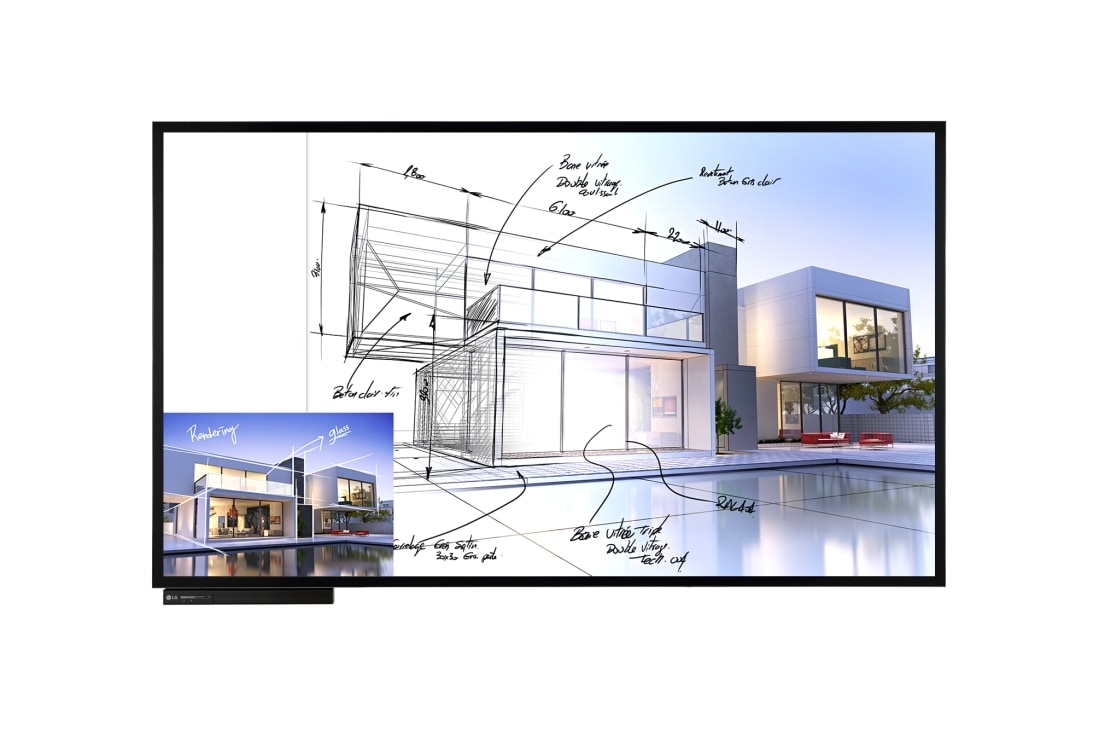

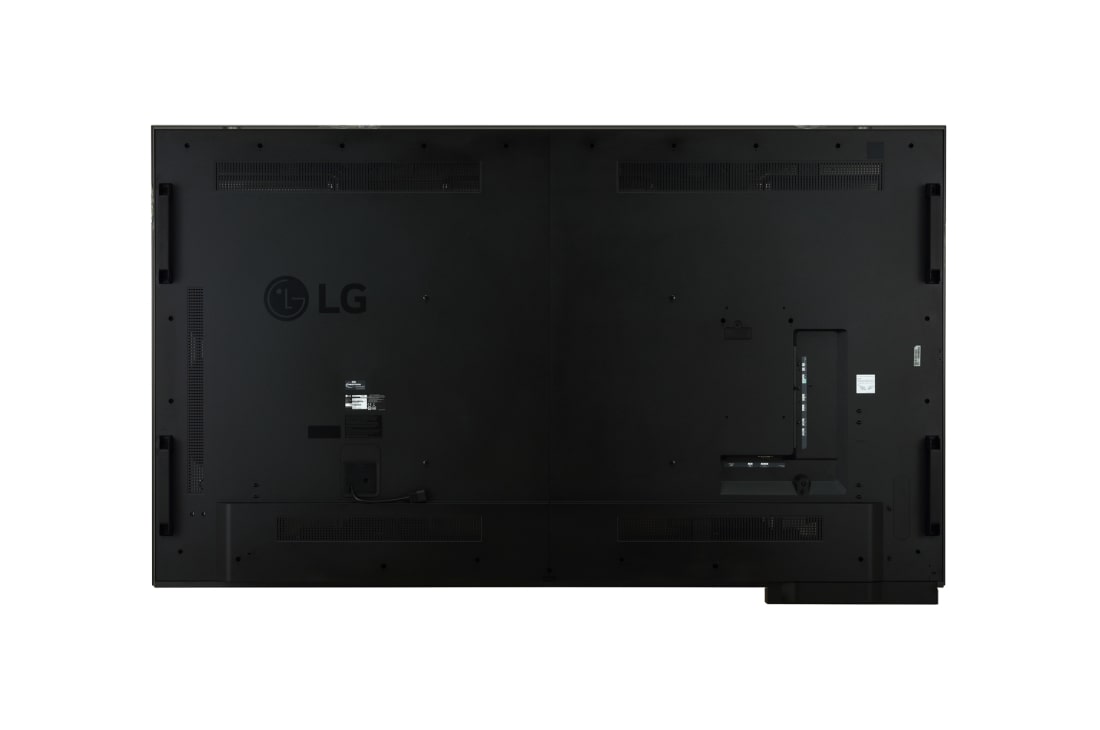

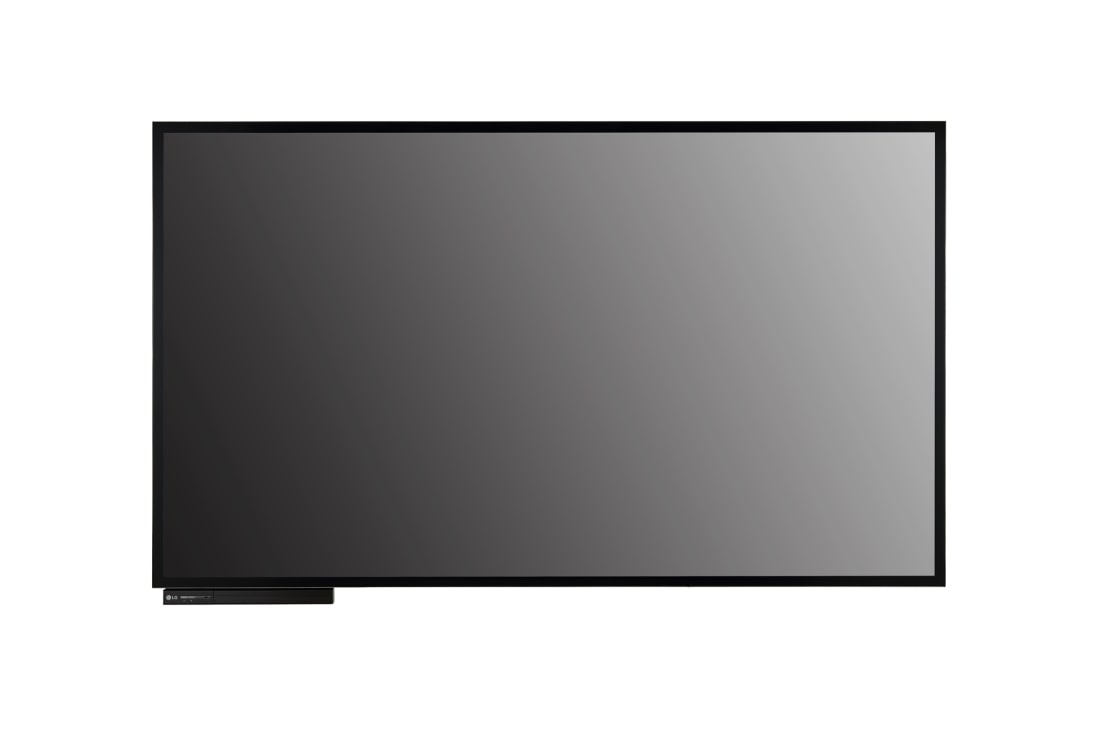

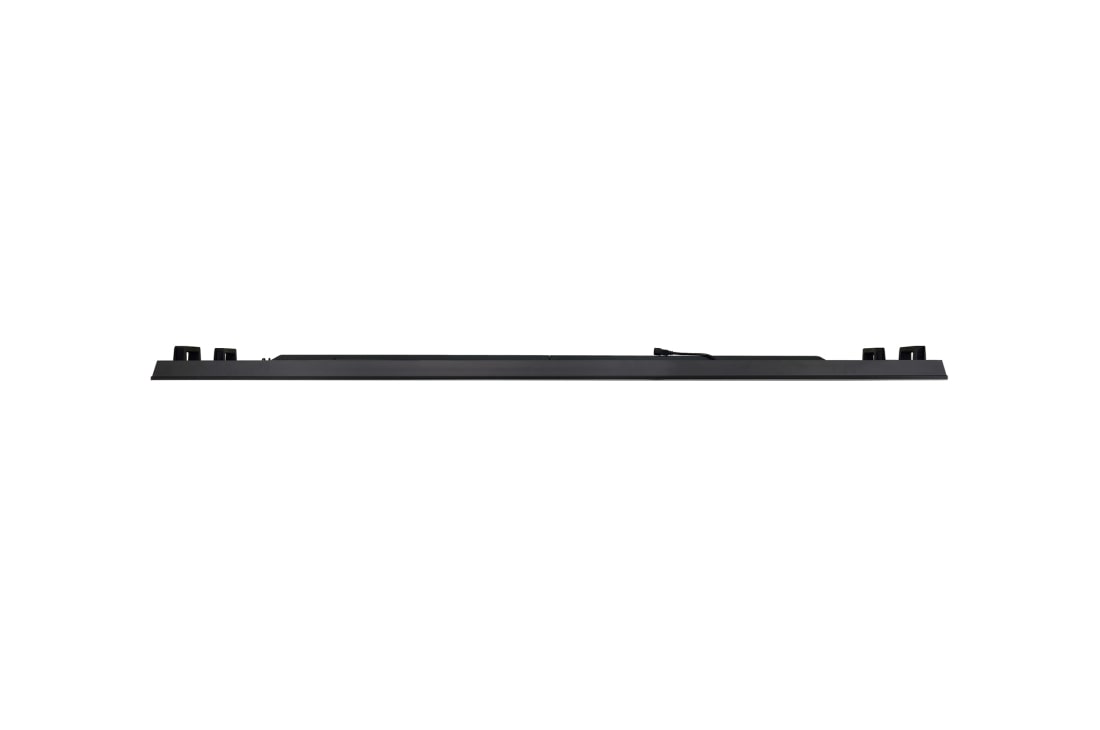

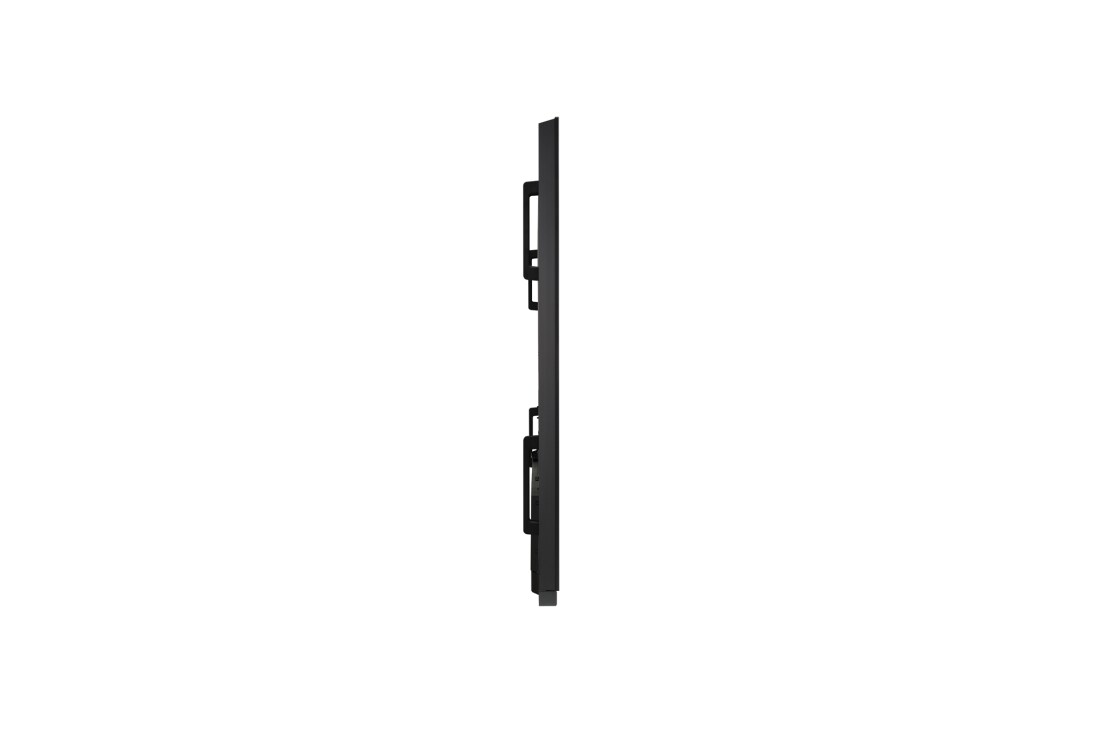

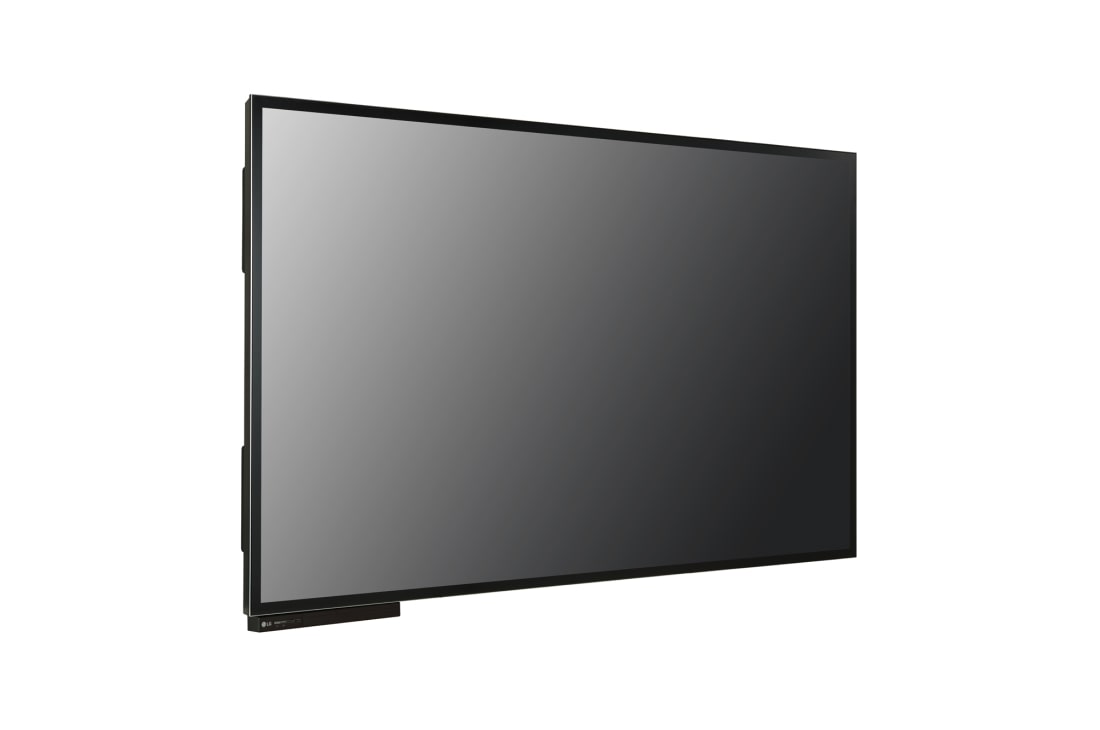

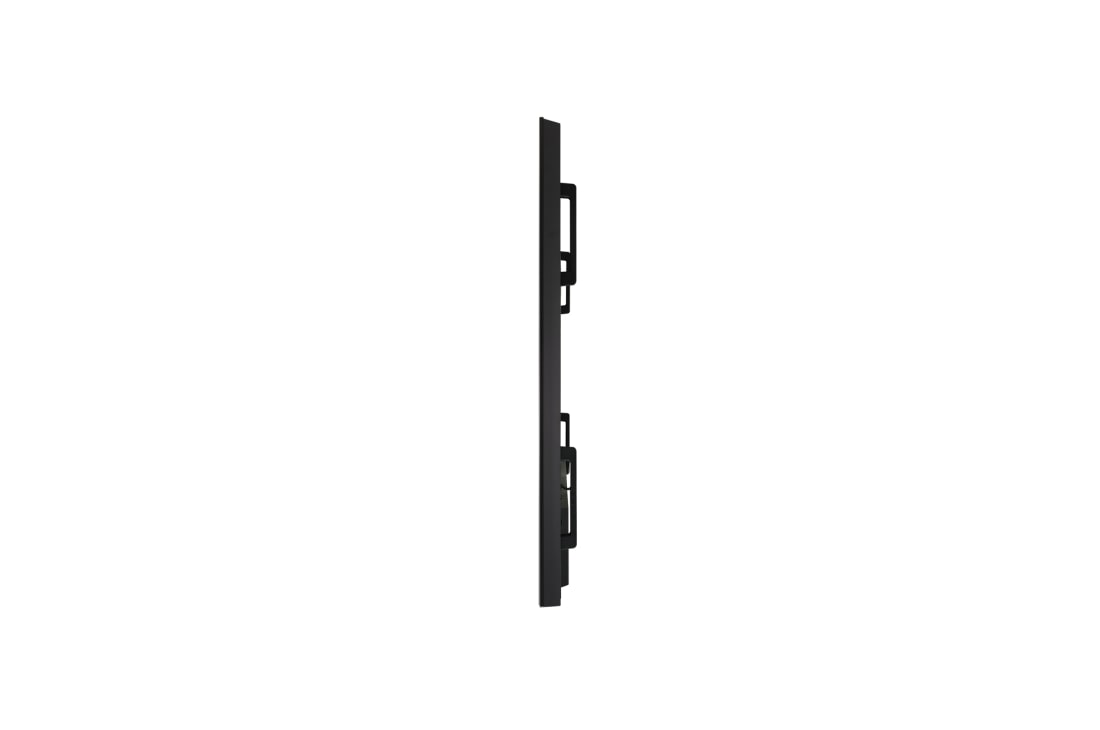

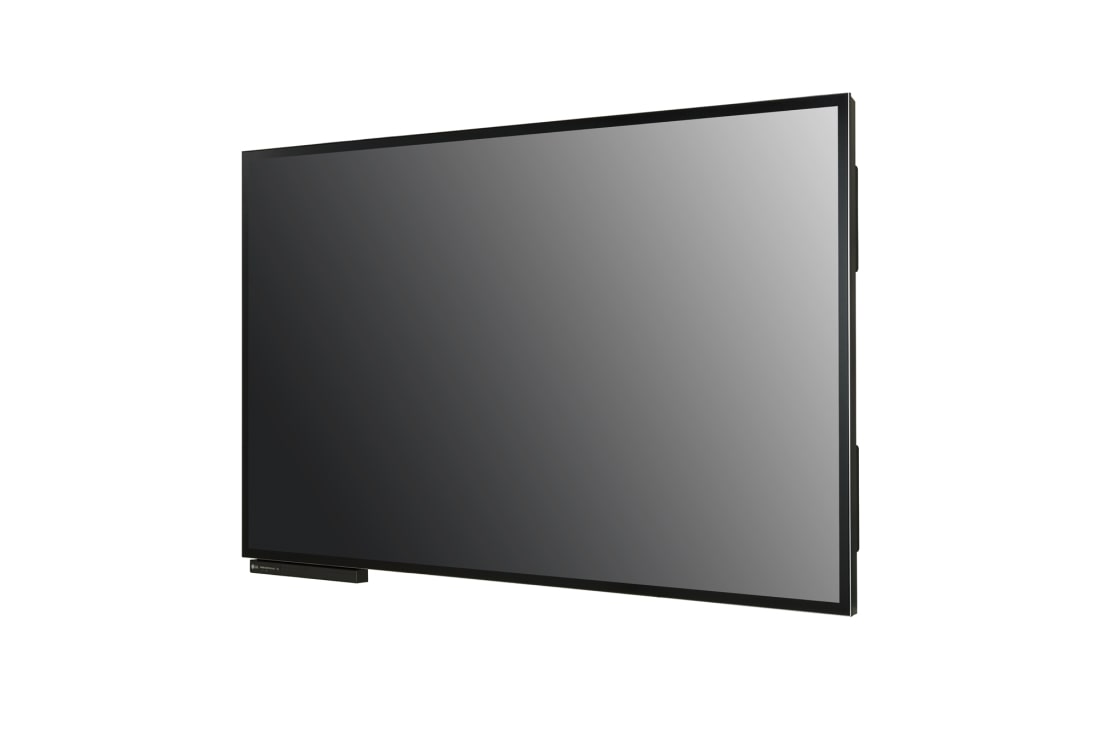

86'' 350 nits UHD Interactive Digital Board

Key Features

Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

86" 350 nits UHD Interactive Digital Board
Find a Dealer
Close
PANEL
  • Screen Size
    85.6
    Panel Technology
    IPS
  • Back Light Type
    Edge
    Aspect Ratio
    16 : 9
  • Native Resolution
    3,840 x 2,160 (UHD)
    Brightness(Typ., cd/m², w/ Protection Glass)
    350
  • Contrast Ratio
    1,000:1
    Viewing Angle (H x V)
    178 x 178
  • Response Time
    8ms(G to G)
    Life time (Typ.)
    50,000 Hrs (Typ.)
  • Operation Hours
    16Hr
    Orientation
    Landscape
CONNECTIVITY
  • Video / Audio
    HDMI (3), DP, DVI-D, USB
    External Control
    RS232C In/Out
  • USB
    USB 2.0 (2), USB Type C(USB2.0), Touch Out(USB2.0,B Type)(2)
MECHANICAL SPECIFICATION
  • Bezel Color
    Black
    Bezel Width
    (T/L/R/B) set: 28.8mm
  • Monitor Dimension (W × H × D)
    1952.6 X 1164.1 X 86.4mm
    Weight (Head)
    66.7 kg
  • Carton Dimensions (W × H × D)
    2190 X 1470 X 371mm
    Packed Weight
    96.4kg
  • Handle
    Yes
    VESA™ Standard Mount Interface
    600 x 400
ENVIRONMENT CONDITIONS
  • Operation Temperature
    0 °C to 40 °C
    Operation Humidity
    10 % to 80 %
POWER
  • Power Supply
    100-240V~, 50/60Hz
    Power Type
    Built-In Power
  • Power Consumption (Typ. / Max.)
    360W / 420W
SOUND
  • Speaker
    Built in(10W/Ch)
STANDARD(CERTIFICATION)
  • Safety
    CB / NRTL
    EMC
    FCC Class "A" / CE / KC
MEDIA PLAYER COMPATIBILITY
  • OPS Type Compatible
    Yes
    optional
    (OPS Kit (KT-OPSF))
ACCESSORY
  • Basic

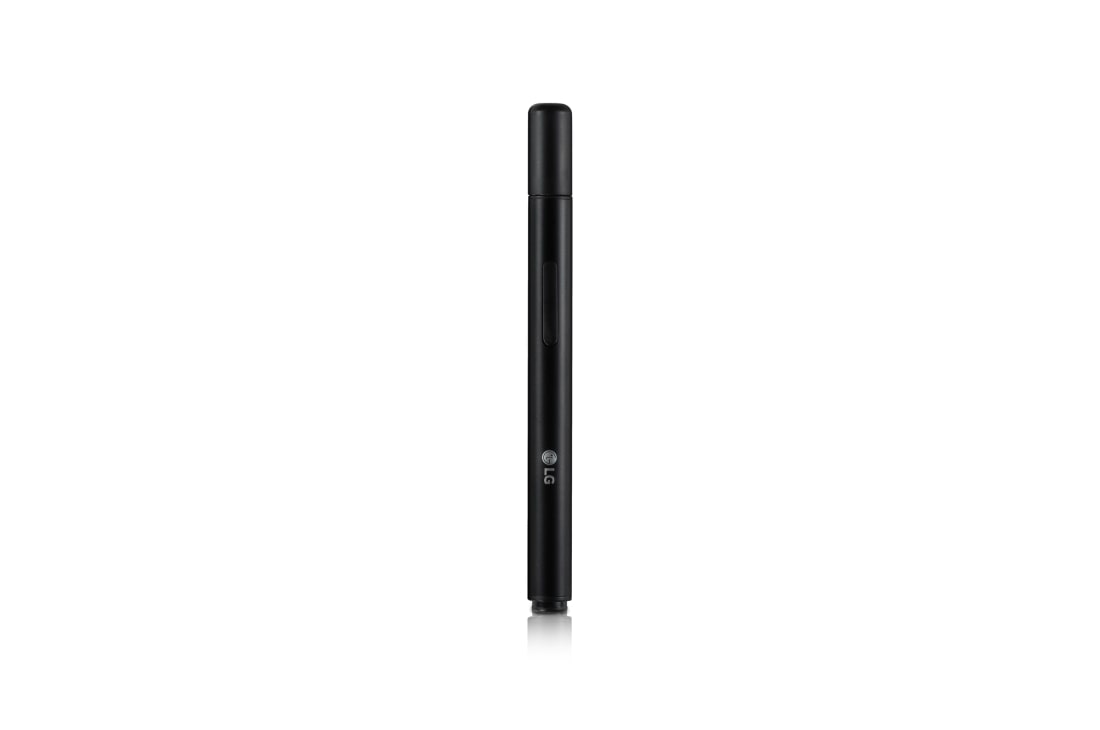

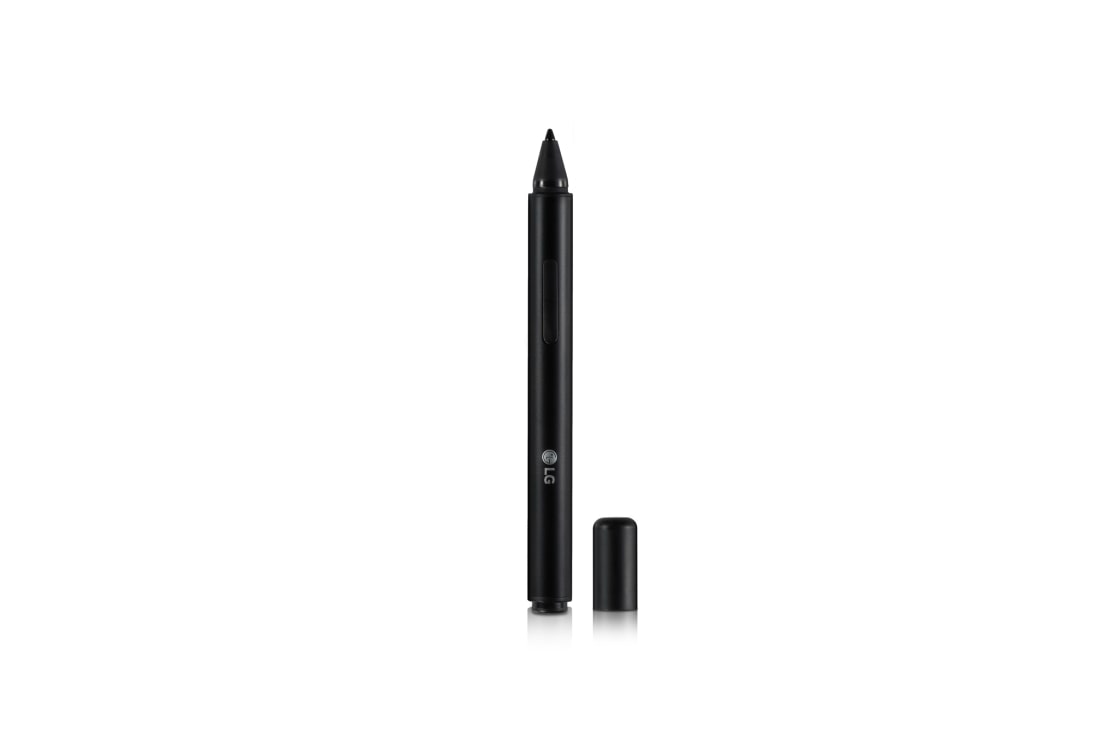

    Remote Controller, Power Cord, QSG, HDMI(3M), Regulation Book, Phone to RS232C Gender, Touch Pen(2ea, include battery 2ea), Pen Tip(12ea), Tip Remover(2ea), USB Type-C Cable, Ferrite Core Filter
SPECIAL FEATURE
  • IDB App
    Yes
TOUCH SPECIFICATIONS
  • Touch type
    In-cell
    Available object size for touch
    Ø5 mm ↑
  • Reponse Time (PC Windows 10)
    70ms↓
    Accuracy
    1.5mm
  • Interface
    USB 2.0
    Protection Glass Thickness
    1.85T (Anti-Glare)
  • Protection Glass Transmission
    88%
    Operating System Support
    Win7 professional, Win8.1, Win10
  • Multi touch point
    Finger : Max 20 Point (Windows), Finger: Max 10Point (webOS), Active Pen : Max 2 Point
