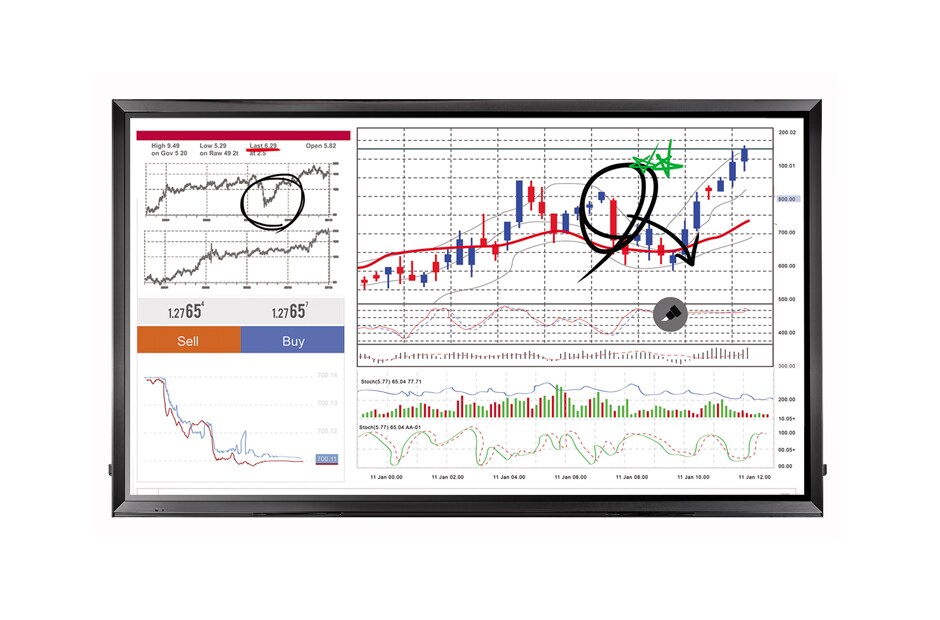

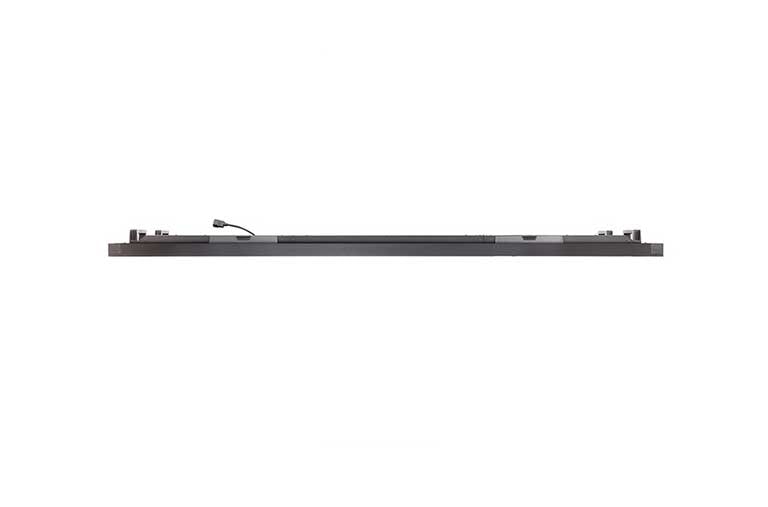

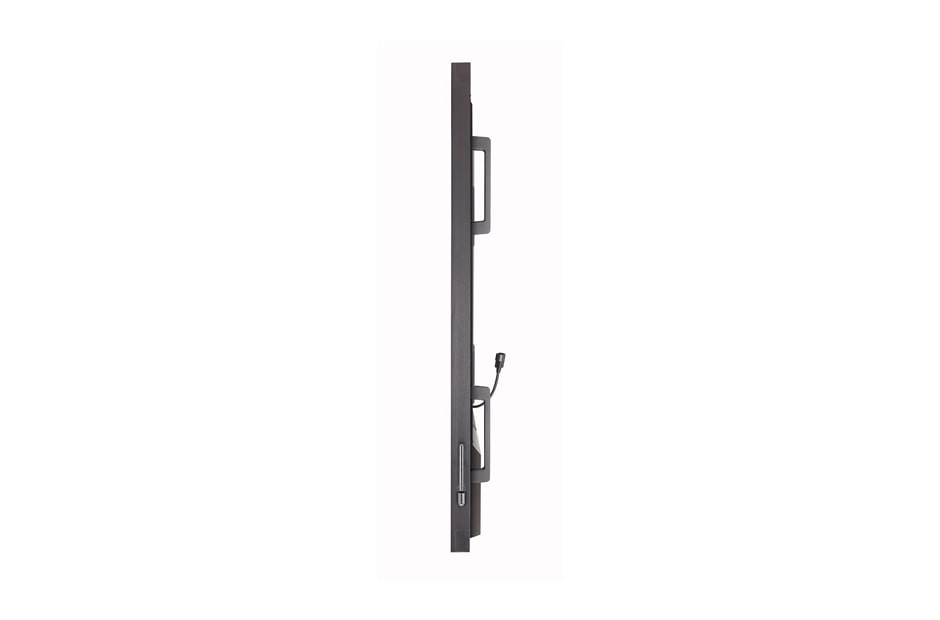

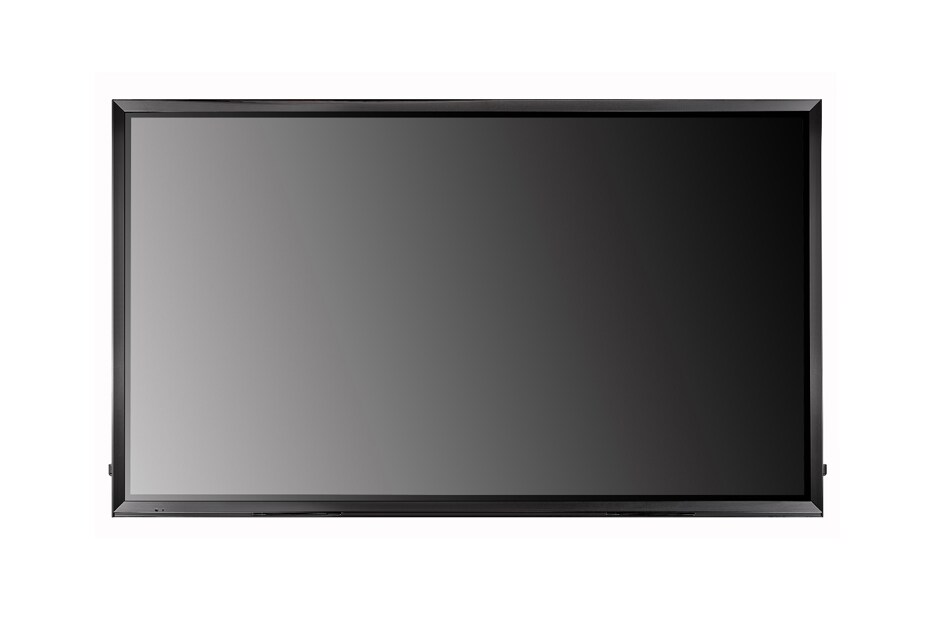

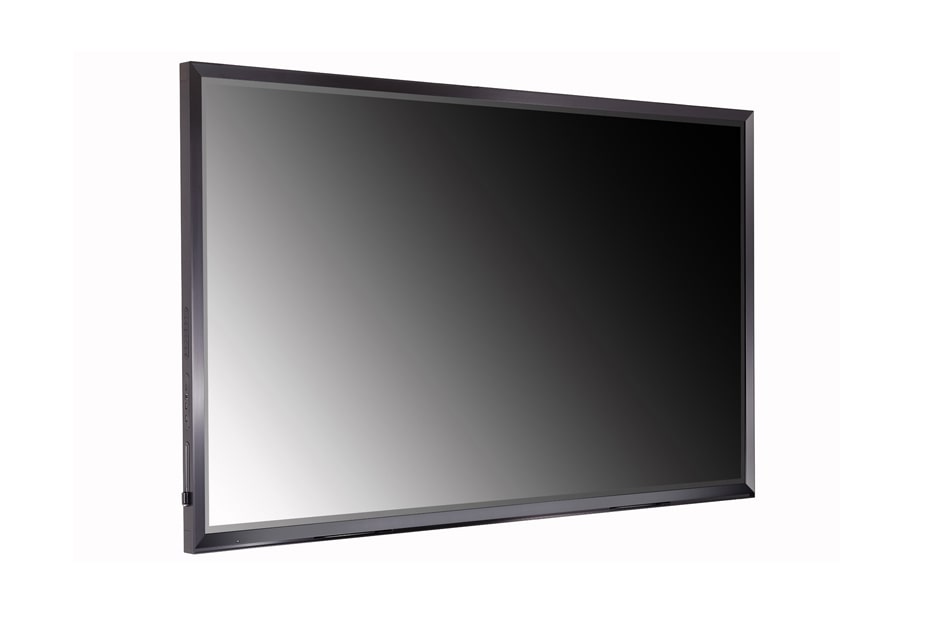

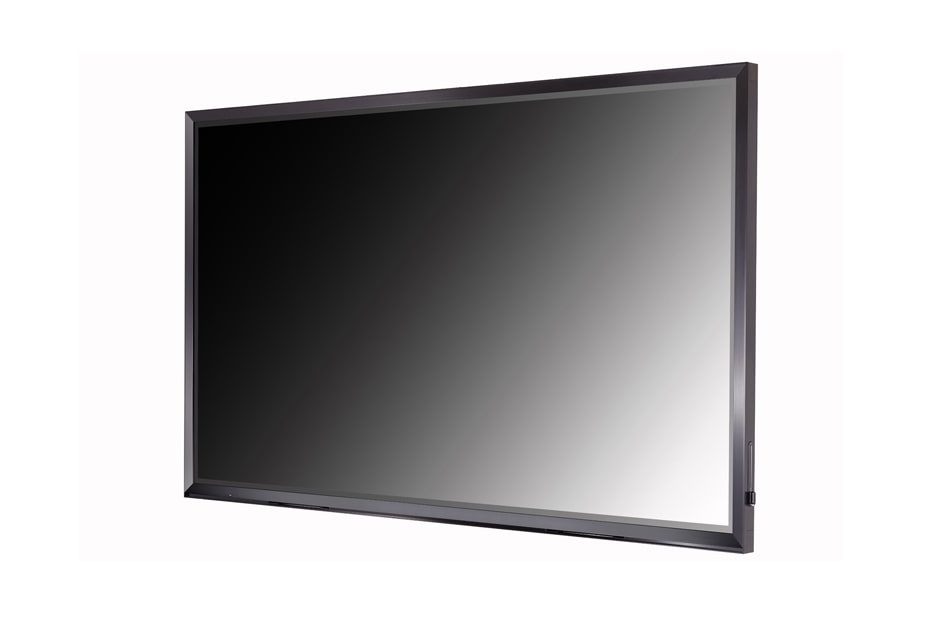

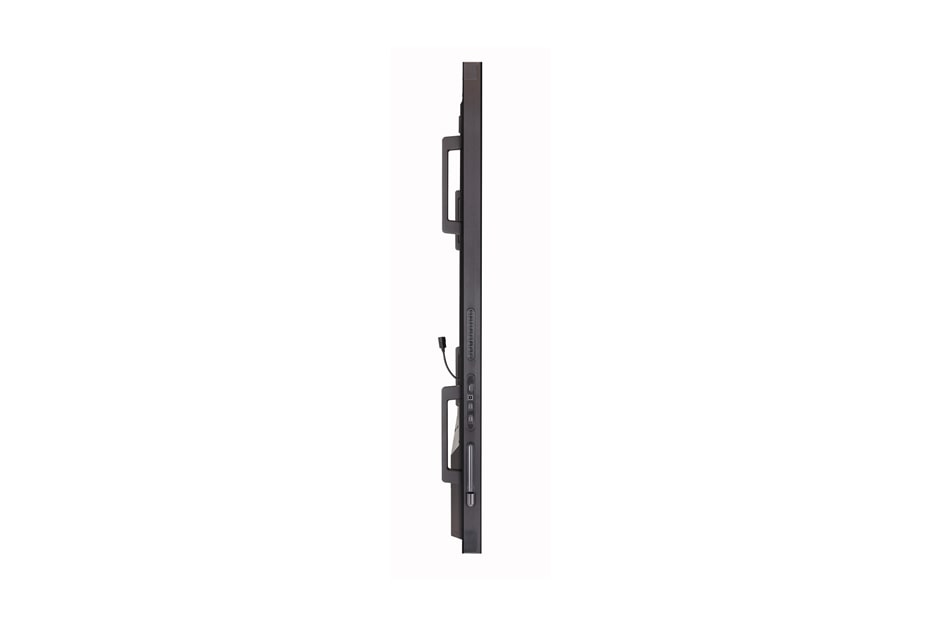

86TR3E-B component-copyModelName
Interactive Digital Board

Key Features

Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

Interactive Digital Board
Find a Dealer
Close
PANEL
  • Screen Size
    86"
    Brightness(Module, Typ., cd/m²)
    410
CONNECTIVITY
  • Input
    HDMI (3), DP, DVI-D, RGB, Audio, USB 3.0, USB 2.0, OPS USB 2.0
    Output
    Touch USB 2.0 (2)
PHYSICAL SPECIFICATION
  • Bezel Width
    50.7 mm (T/L/R), 62.2 mm (B)
    Monitor Dimension (W x H x D)
    2,026.9 x 1,180.3 x 79.5 mm (w/o Handle)
  • Weight (Head)
    85.8 kg
    Carton Dimensions (W x H x D)
    2,190 × 1,470 × 371 mm
  • Packed Weight
    114.6 kg
    VESA™ Standard Mount Interface
    600 x 400 mm
ENVIRONMENT CONDITIONS
  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10 % to 80 %
SOFTWARE COMPATIBILITY
  • Content Management Software
    SuperSign Premium
    Control and Monitoring Software
    SuperSign Link
ACCESSORY
  • Basic
    Remote Controller (include battery 2ea), Power Cord, QSG, HDMI (3M), Regulation Book, Phone to RS232C Gender, Touch Pen (2ea), Eyebolt (2ea)
    Optional
    OPS Kit (KT-OPSA)
TOUCH
  • Touch type
    InGlass™
    Available object size for touch
    more than Ø 3 mm
  • Accuracy
    2 mm
    Interface
    USB 2.0
  • Protection Glass Thickness
    4T (Anti-Glare)
    Multi touch point
    Max 20 Point
COMPLIANCE INFORMATION
  • The safety information for accessories is included with the safety information for the product and is not provided separately.
