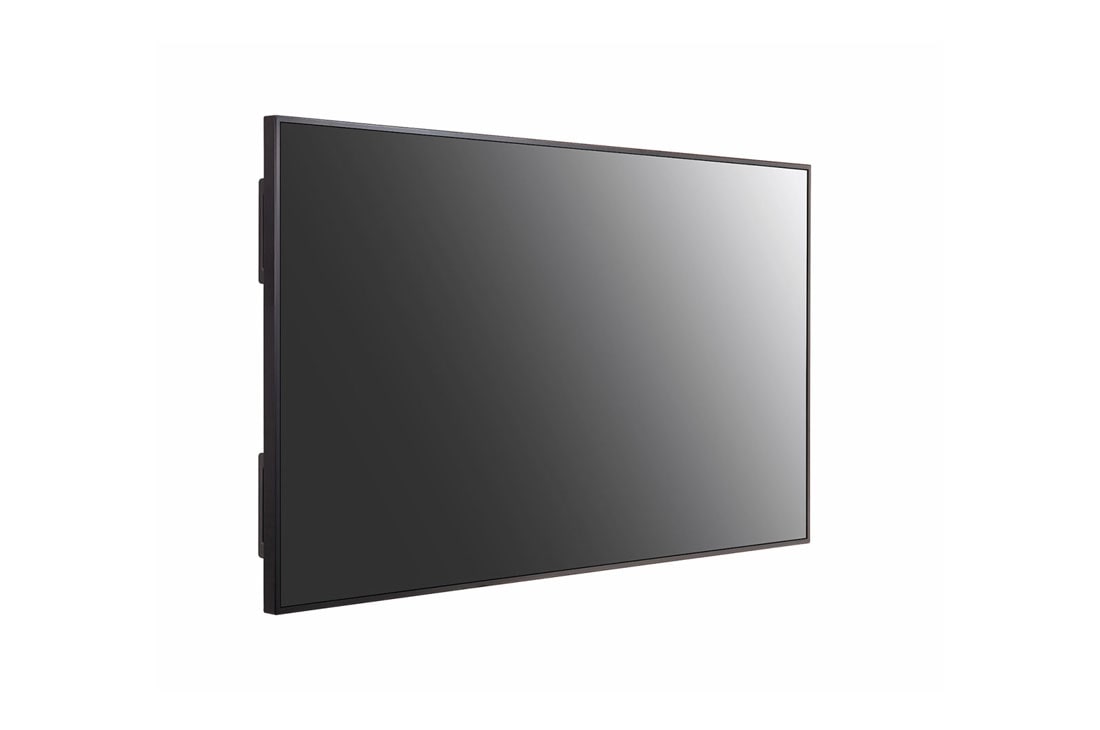

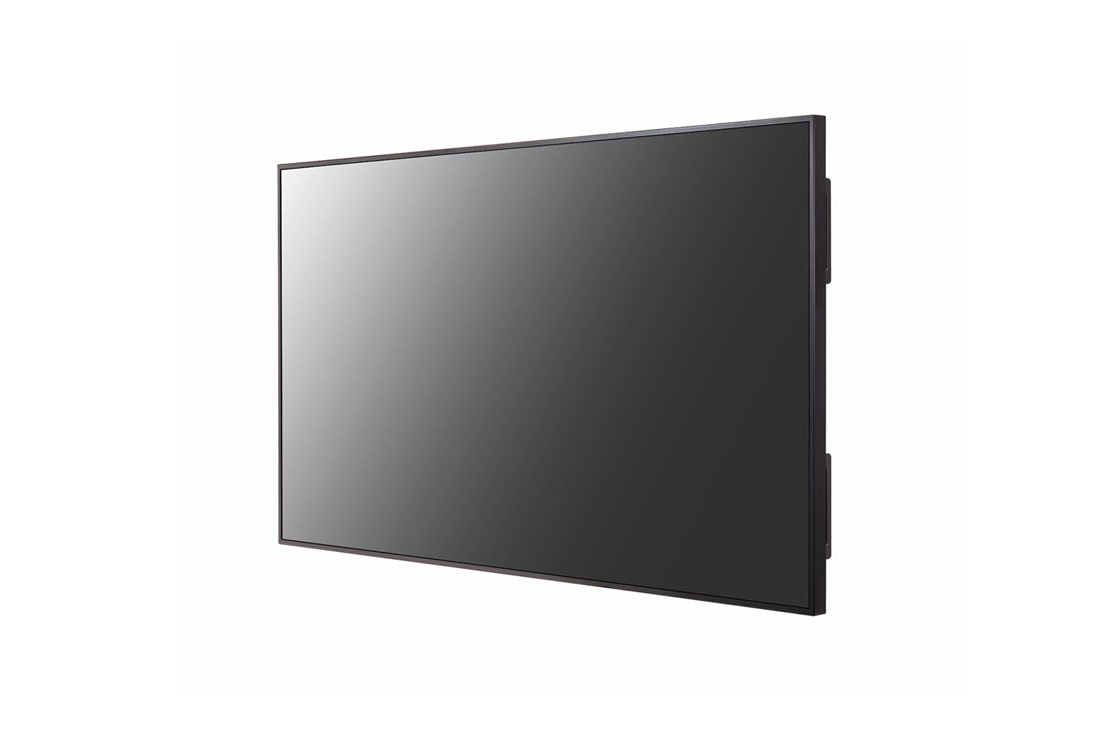

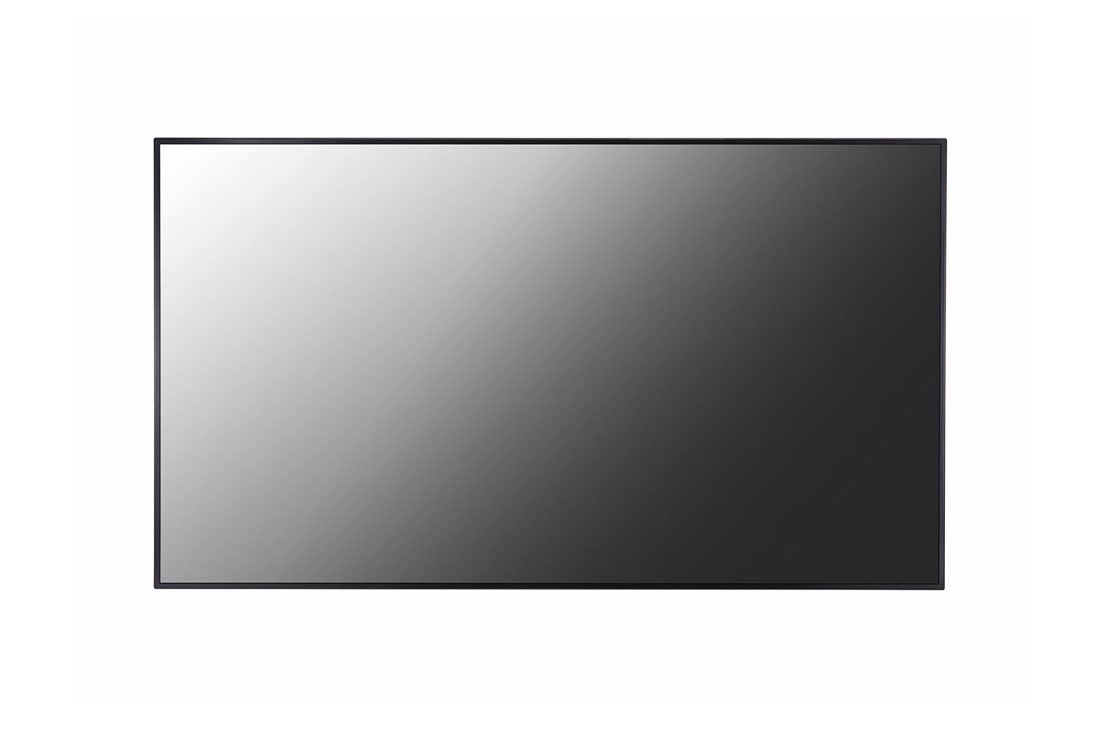

86UM3E-B
UM3E Series
  • Brightness(Typ.) : 350 cd/m²
  • Bezel : 14.3 mm (Even)

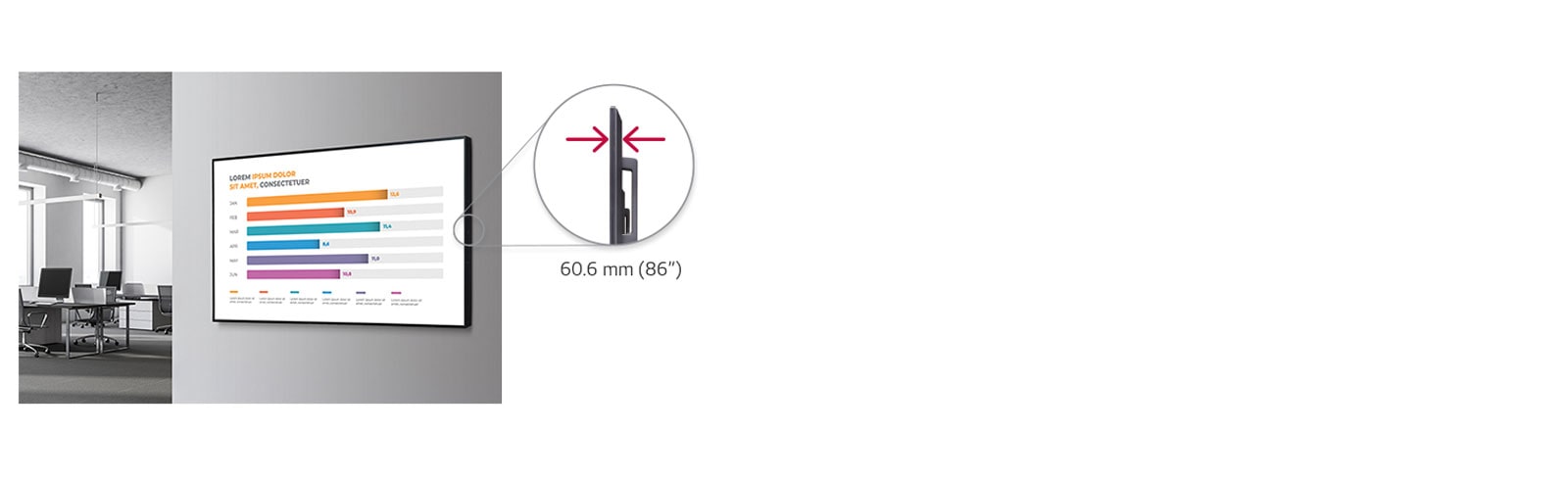

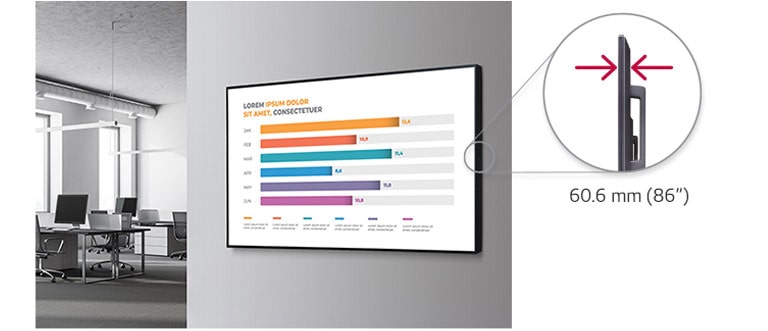

  • Depth : 60.6 mm
  • Interface : HDMI(3)/DP/DVI-D/USB 2.0(2)/ RS232C/ RJ45/ Audio/ IR
  • Built-in Speaker(10W+10W)
UM3E Series
MSRP AED
  • Superior Picture Quality

    Superior Picture Quality1 Superior Picture Quality2
  • True Color, Immersive View

    The UM3E series is large enough to display content and get undivided attention from various viewers. LG IPS panel features a wide range of angle to deliver clear content regardless of the position of viewers. Each pixel in the IPS panel reproduces image colors true-to-life, without distortion.

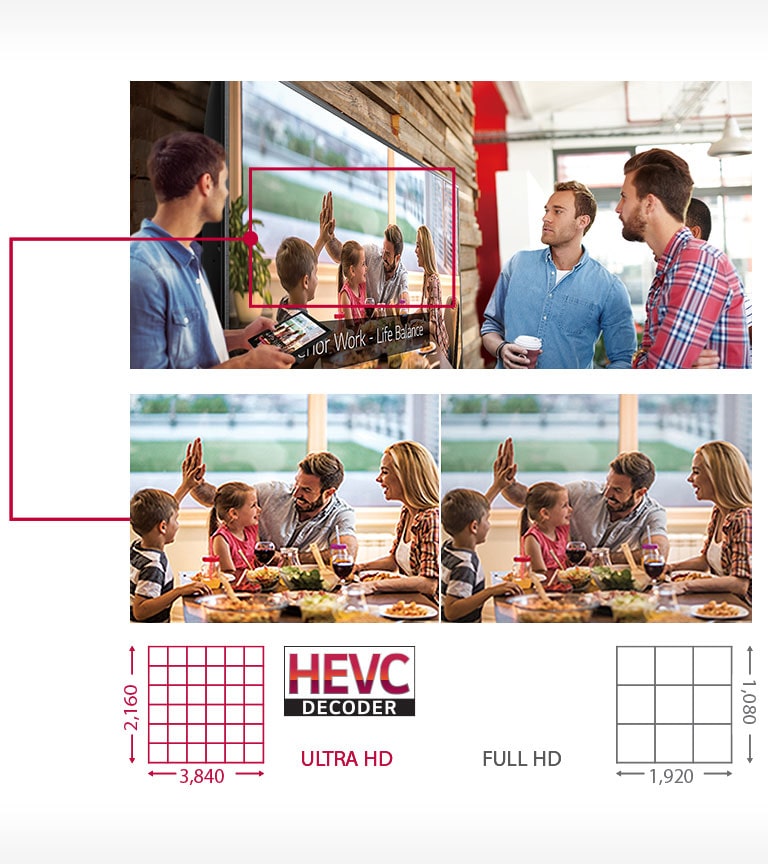

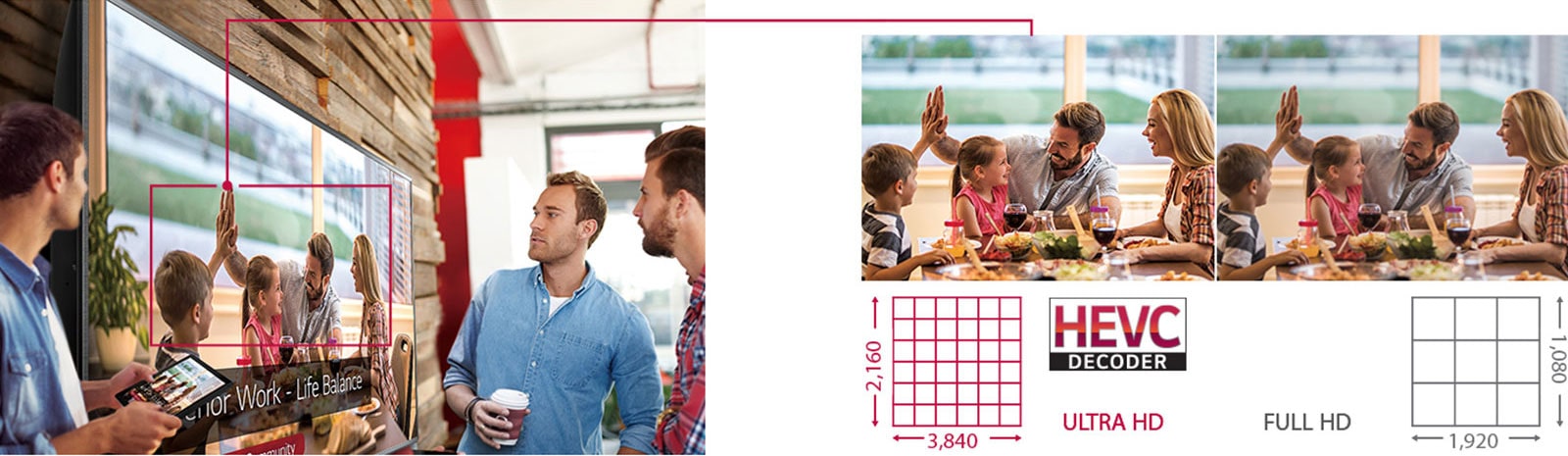

  • Vivid Color Details with Ultra HD

    The UHD resolution allows users to view details even when zooming in on the display, with four times higher definition than FHD. The UL3E ensures stable UHD video playback with HEVC(High Efficiency Video Coding).

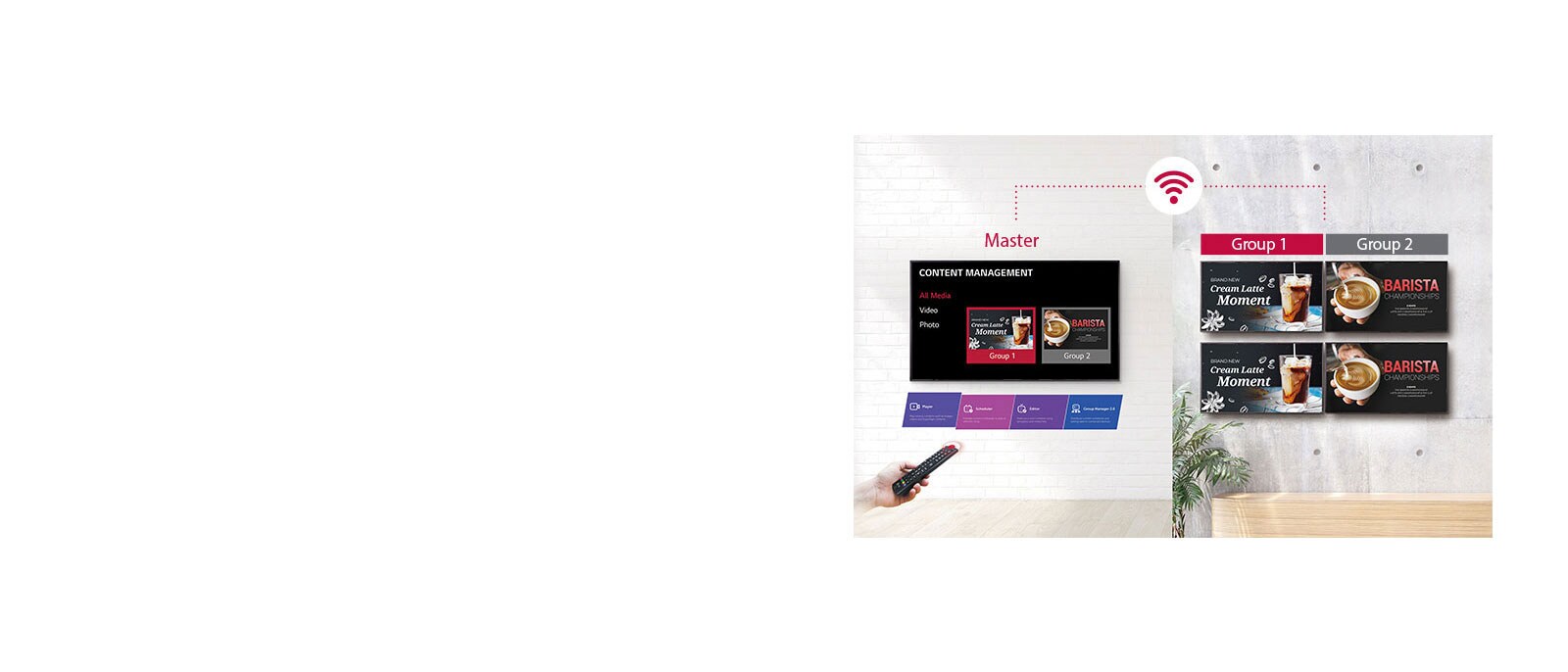

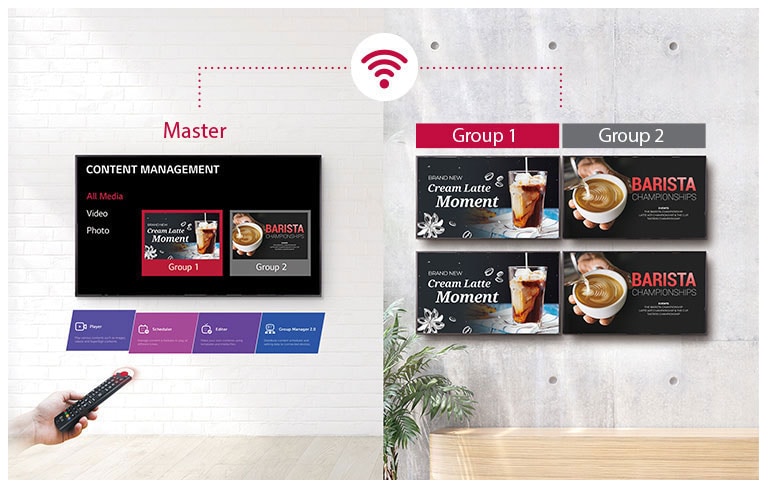

1) One master display can create a max. of 25 groups and each group can consist of max. of 12 slave displays.
1) Network-based control

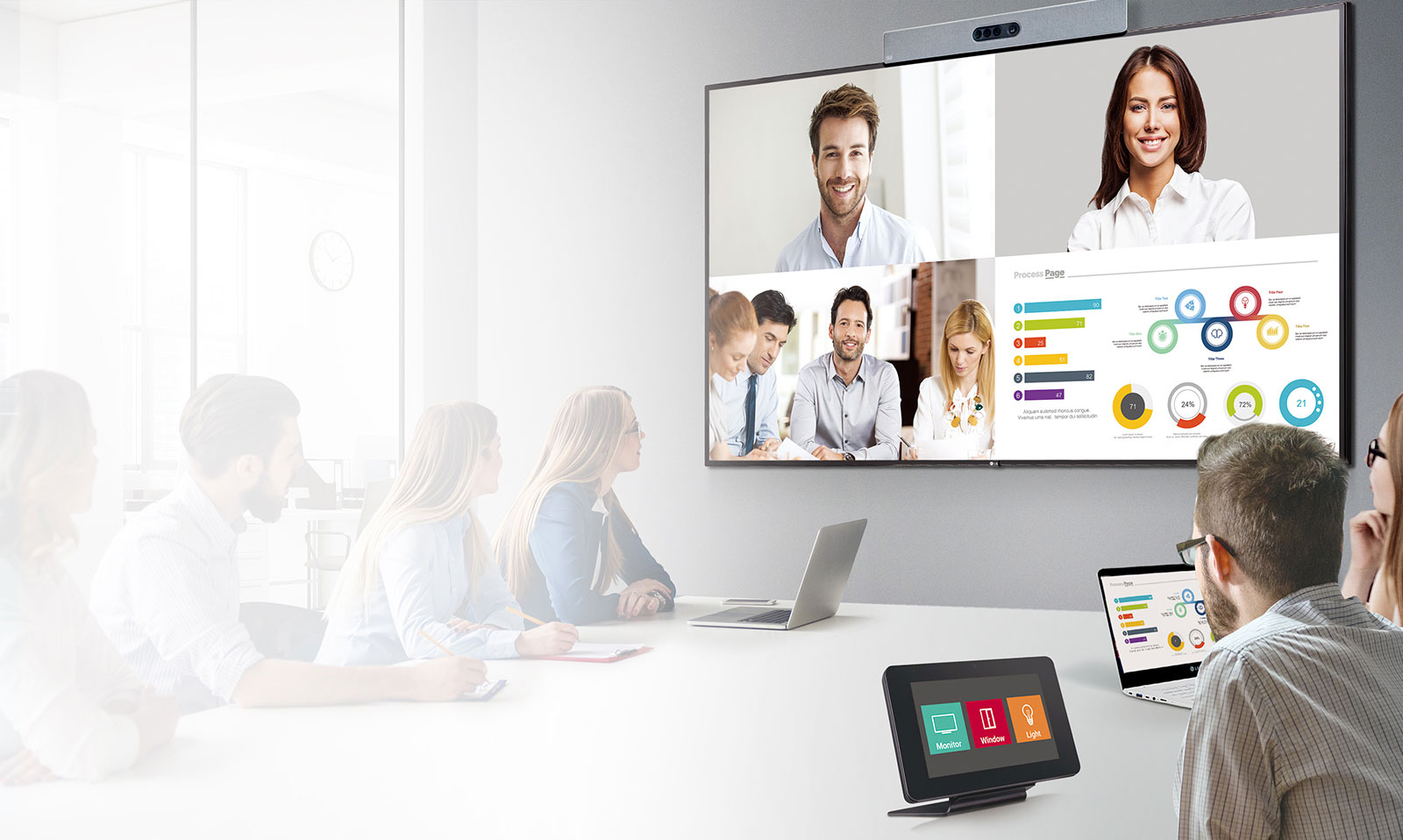

1) The integrated control of the display and Cisco system is enabled through the HDMI cable connection.

PANEL

  • Screen Size
    86"
    Resolution
    3,840 x 2,160 (UHD)
  • Brightness(Typ.,cd/m²)
    350

CONNECTIVITY

  • Input
    HDMI (3), DP, DVI-D, Audio, USB 2.0 (2)
    Output
    DP, Audio (Off/Fixed/Variable)
  • External Control
    RS232C in/out, RJ45 in, IR in

PHYSICAL SPECIFICATION

  • Bezel Width
    14.3mm (Even)
    Monitor Dimension (W x H x D)
    1,926.2 x 1097.2 x 60.6 mm (w/o Handle and Logo)
  • Weight (Head)
    49kg
    Carton Dimensions (W x H x D)
    2,073 x 1,260 x 292 mm
  • Packed Weight
    61.1kg
    VESA™ Standard Mount Interface
    600 x 400 mm

ENVIRONMENT CONDITIONS

  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10% to 80%

POWER

  • Power Supply
    100 ~ 240V, 50/60Hz
    Power Type
    Built-In Power

POWER CONSUMPTION

  • Typ.
    250W
    Max
    345W

CERTIFICATION

  • Safety
    CB / NRTL
    EMC
    FCC Class "A"/CE/KC
  • ErP / Energy Star
    Yes(EU Only) / No

MEDIA PLAYER COMPATIBILITY

  • OPS Type Compatible
    Yes

SOFTWARE COMPATIBILITY

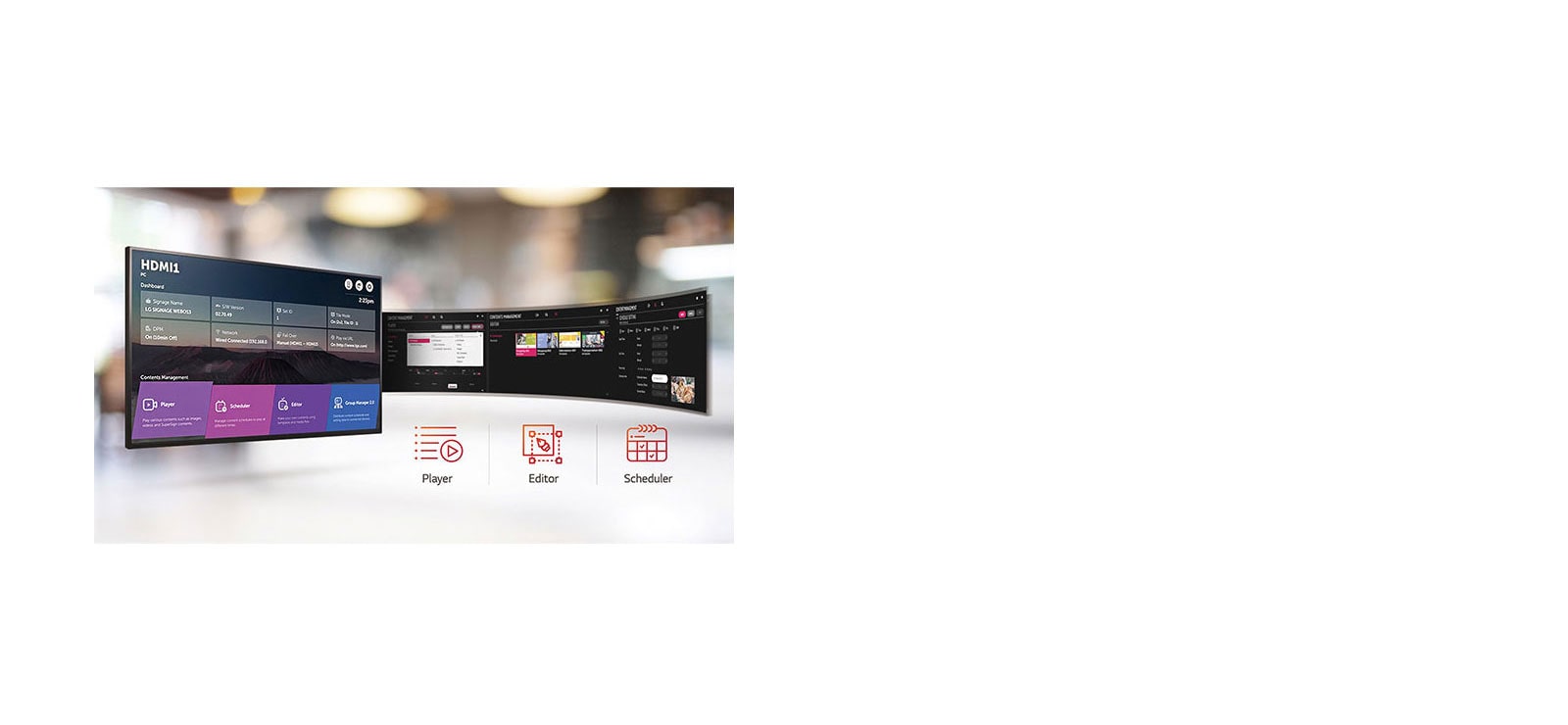

  • Content Management Software
    SuperSign CMS
    Control and Monitoring Software
    SuperSign Control+/Control

ACCESSORY

  • Basic
    Remote Controller, Power Cord, QSG, DP Cable (1.8M), Regulation Book, Phone to RS232C Gender
    Optional
    OPS Kit (KT-OPSF), Wall Mount (LSW640A/B)
