LG 86 Inch Ultra Stretch Sigage
MSRP
AED *rPrice*
MSRP
AED *rPromoPrice*
*discountMsg*
MSRP
AED
See Retailer for Pricing
MSRP
vip-price-message
AED

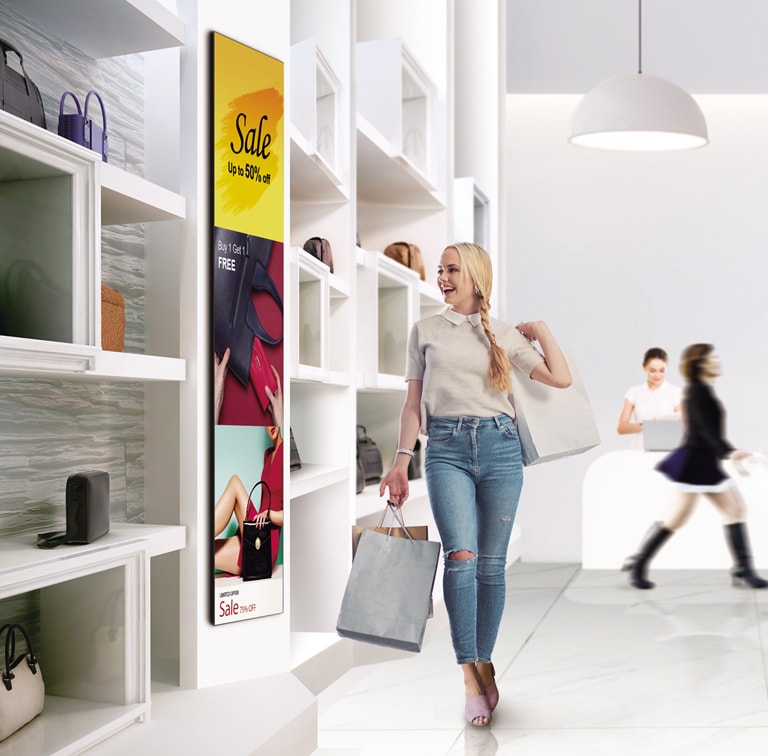

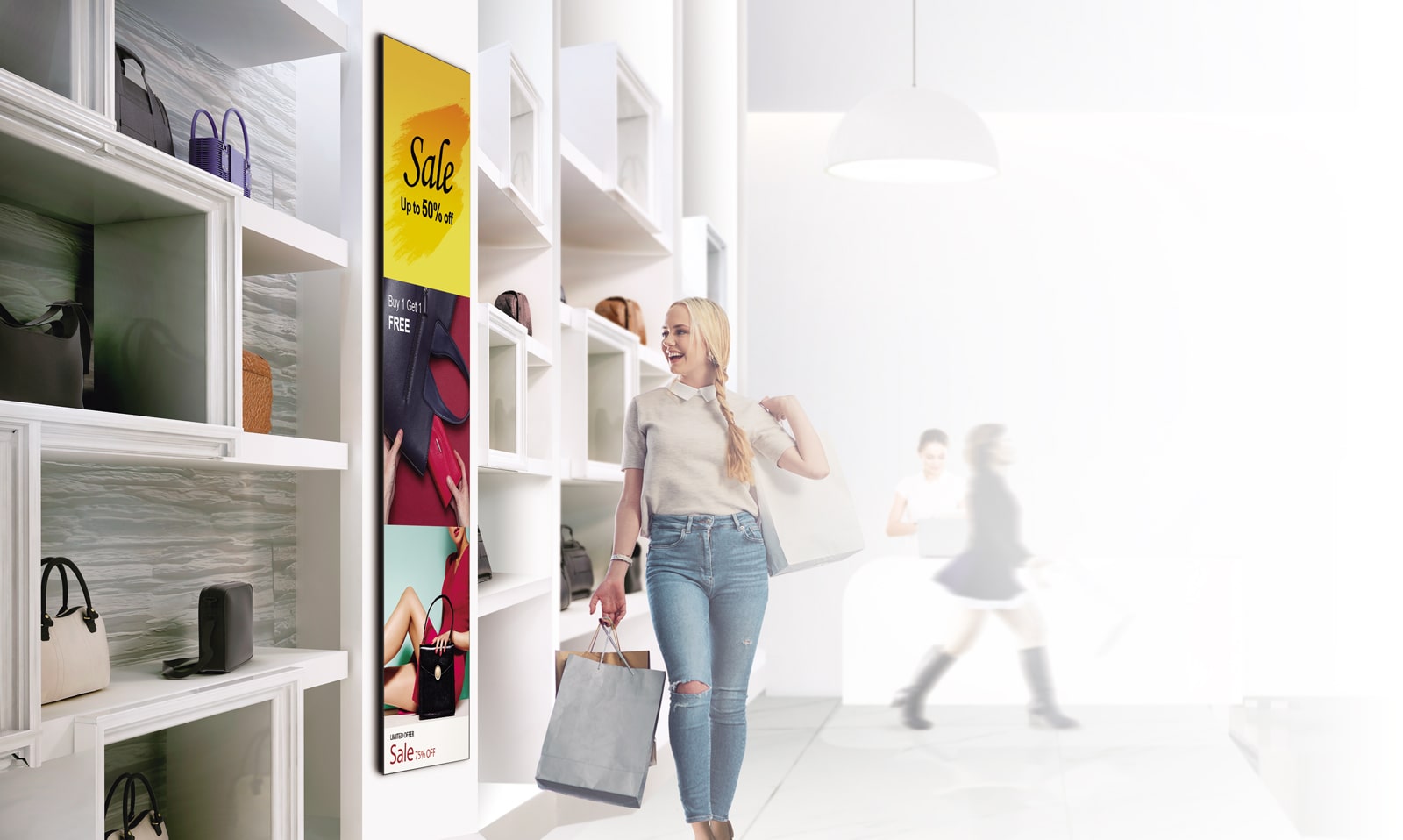

Ultra Stretch Signage, 58:9 Space-Fitting Wide Screen
The 86BH5F is the most suitable display for delivering new forms of advertising and multiplexed information in a 58:9 widescreen format. It can bring unused & leftover space to life by being installed without restriction.
EXTRAORDINARY VIEWING EXPERIENCE

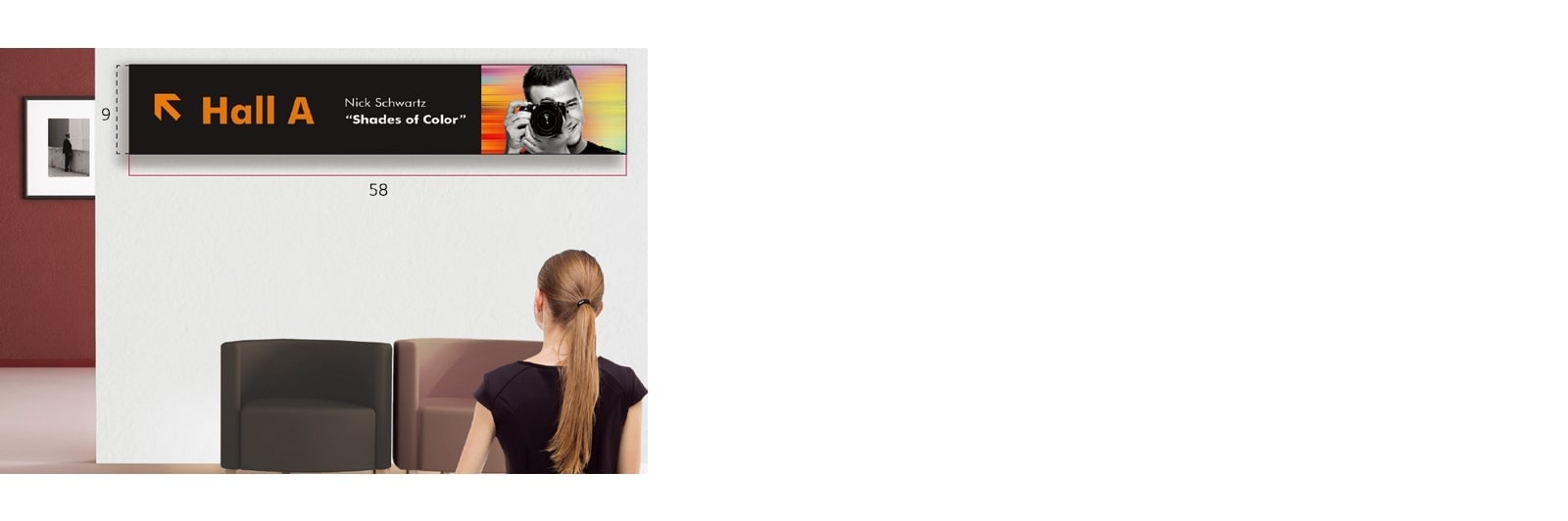

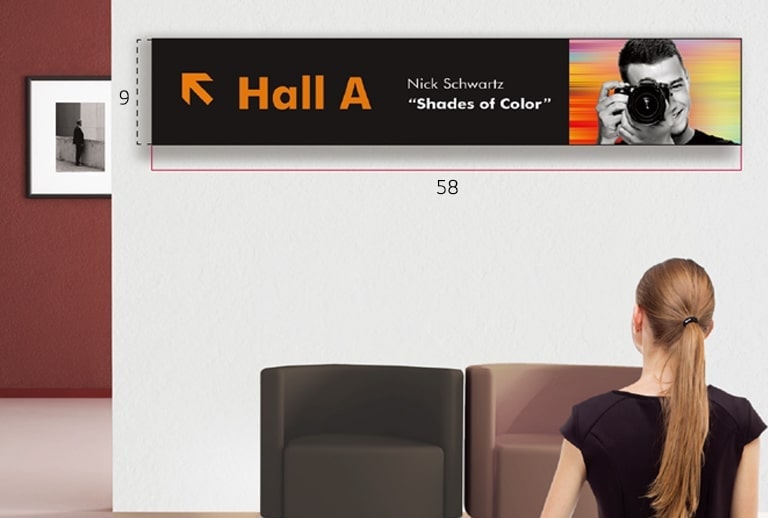

58:9 Extended Wide Format
It is a unique wide screen with 58:9 bar type which provides much more flexibility in playing content than the conventional display of 32:9 ratio.
EXTRAORDINARY VIEWING EXPERIENCE

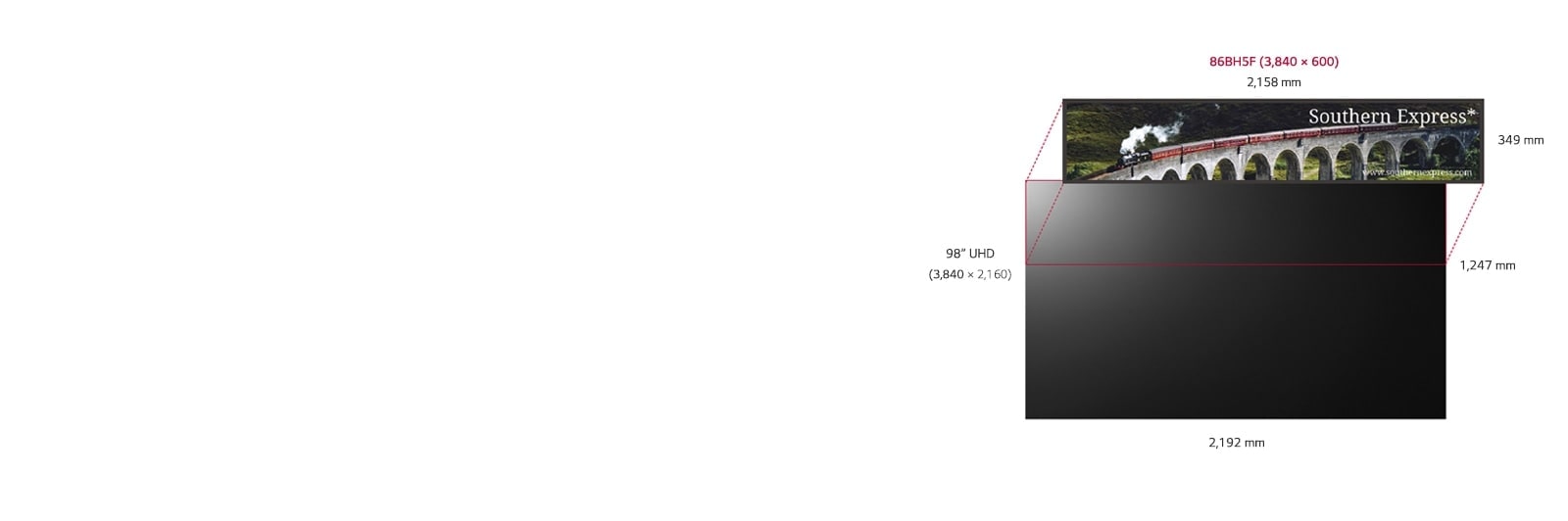

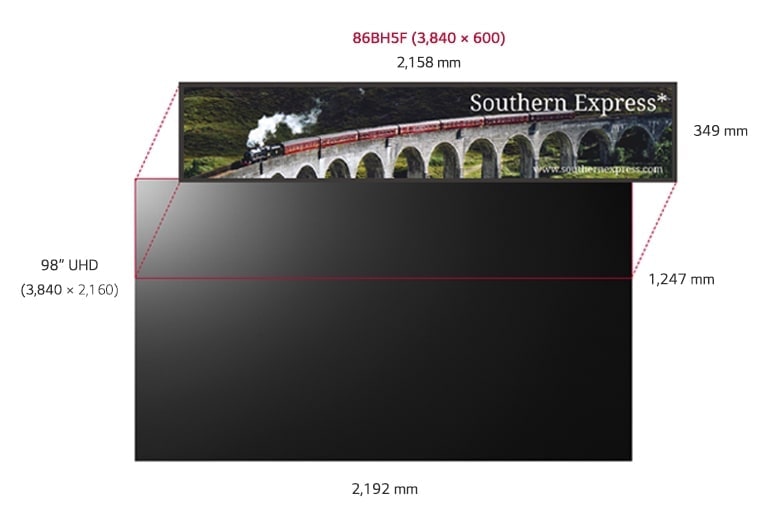

Ultra HD Resolution (3,840 x 600)
Ultra HD resolution delivers an immersive viewing experience with vivid colors and clear images.
EFFECTIVE CONTENT DELIVERY

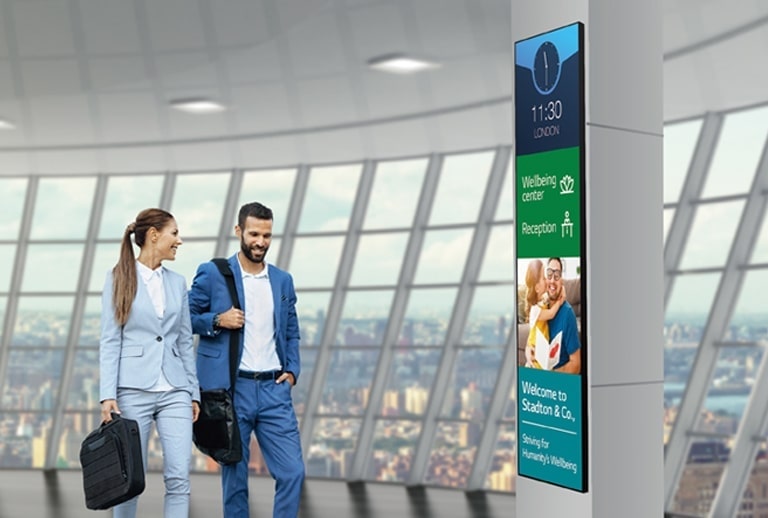

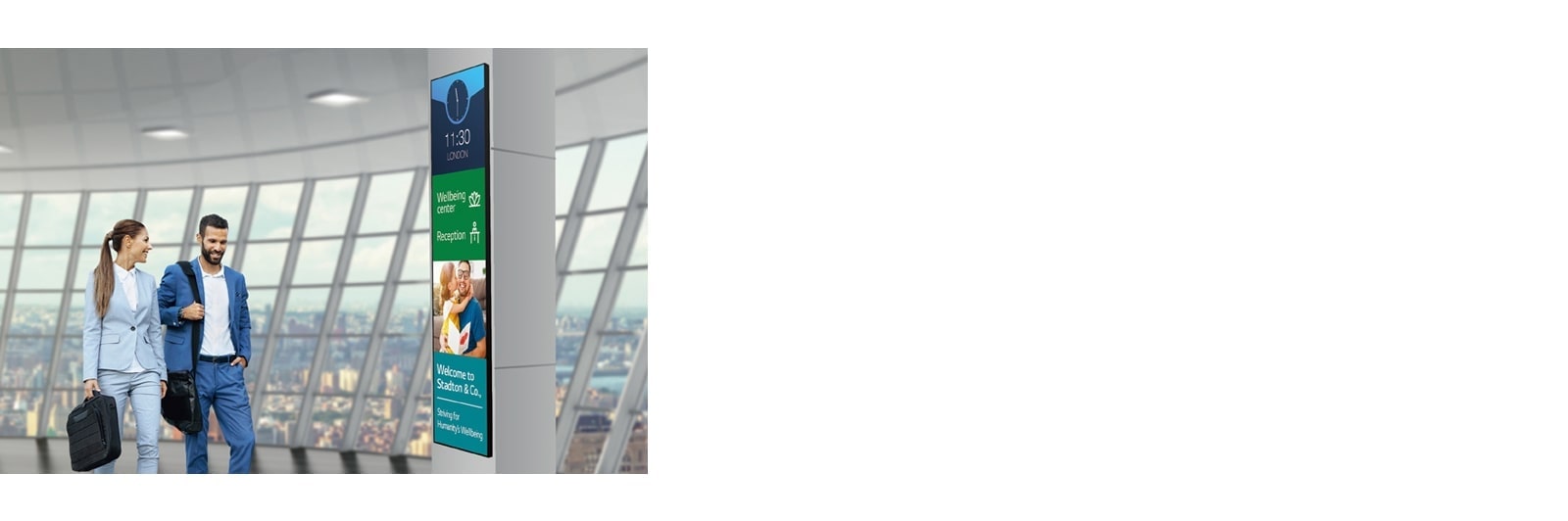

Multi Screen Mode with 4PBP
The Picture-by-Picture (PBP) feature allows you to show multi content in one single display by up-to four parts. It is very useful and convenient to deliver various advertisements or pieces of information at the same time without calibration.
EFFECTIVE CONTENT DELIVERY

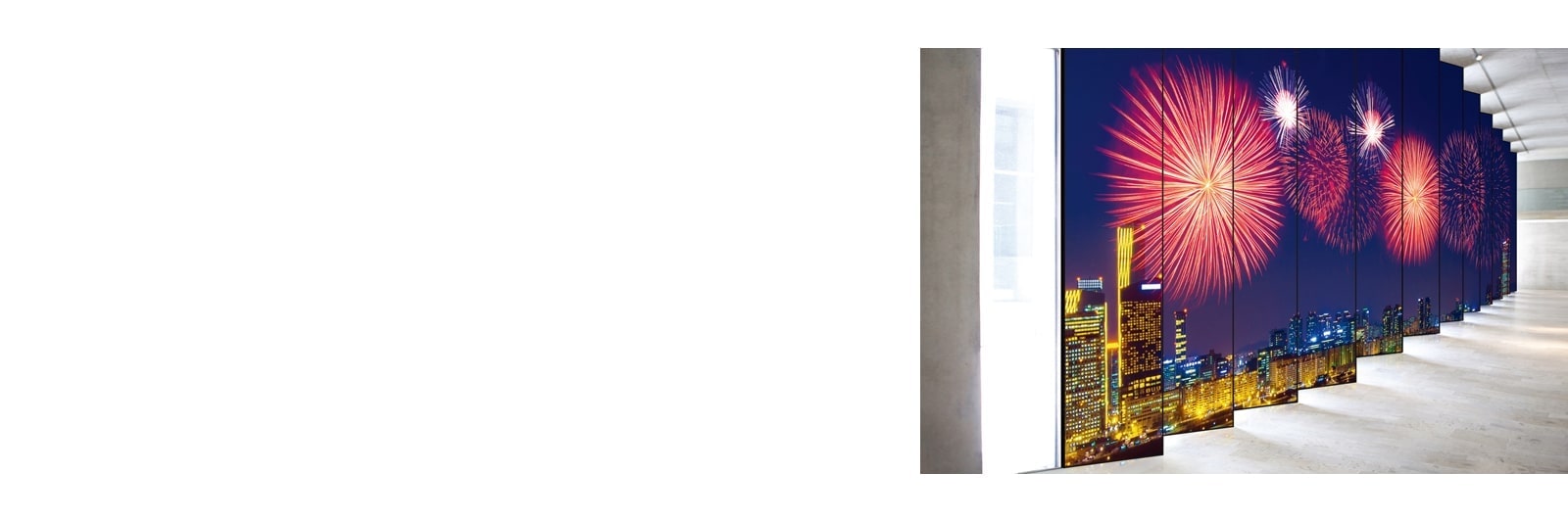

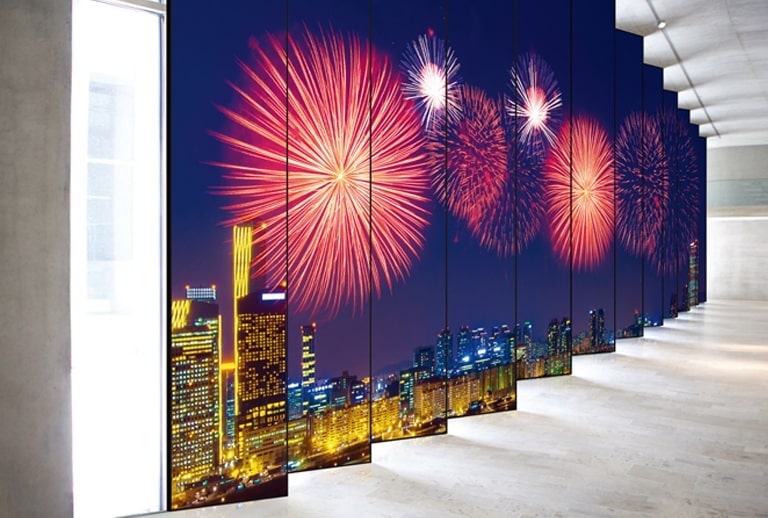

Tiled Scene with Immersive View
The 86BH5F can show a tiled scene by up to 15 × 15 configuration. This will be the best choice if you want to use a large screen, or provide visual impact to your customers in a different way.
OPERATIONAL EFFICIENCY

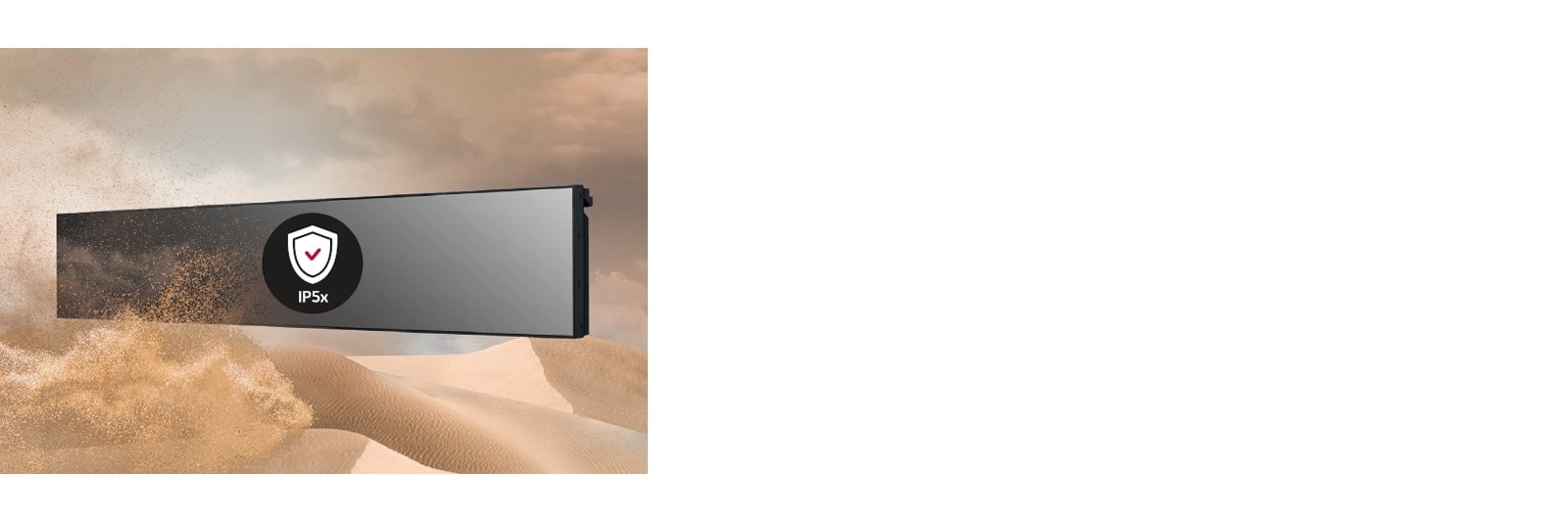

IP5x Certified Design
The IP5x Dust-Proof Certification ensures that the product is completely protected from dust, eliminating the risk of performance degradation.
OPERATIONAL EFFICIENCY

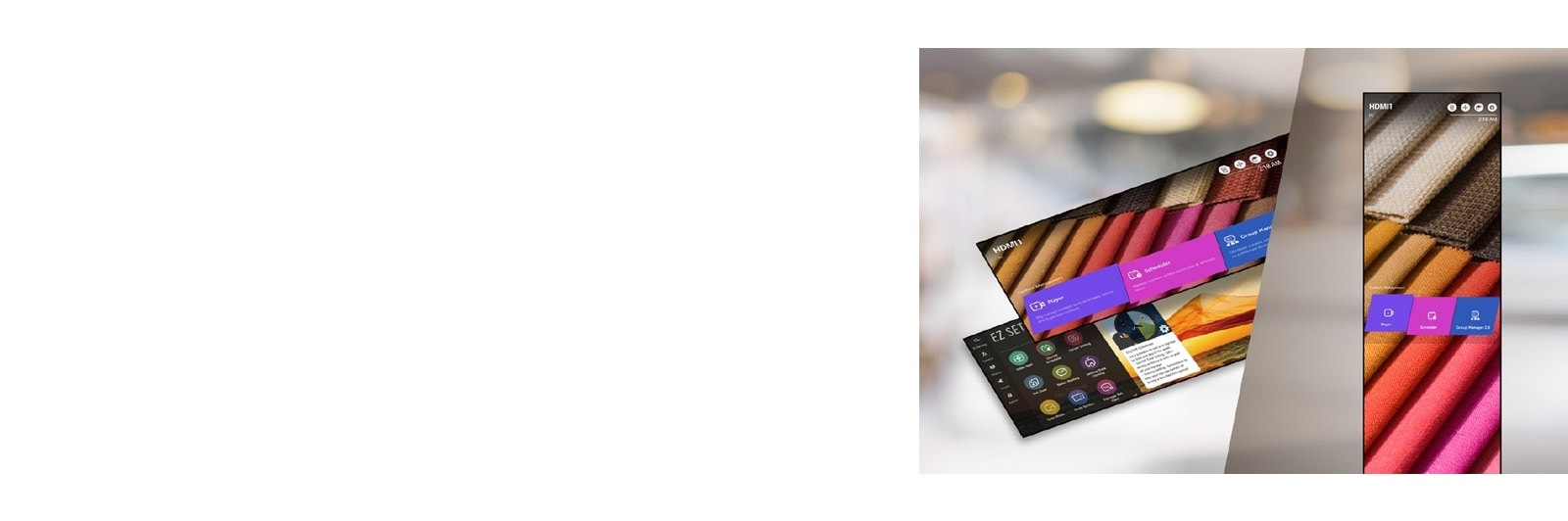

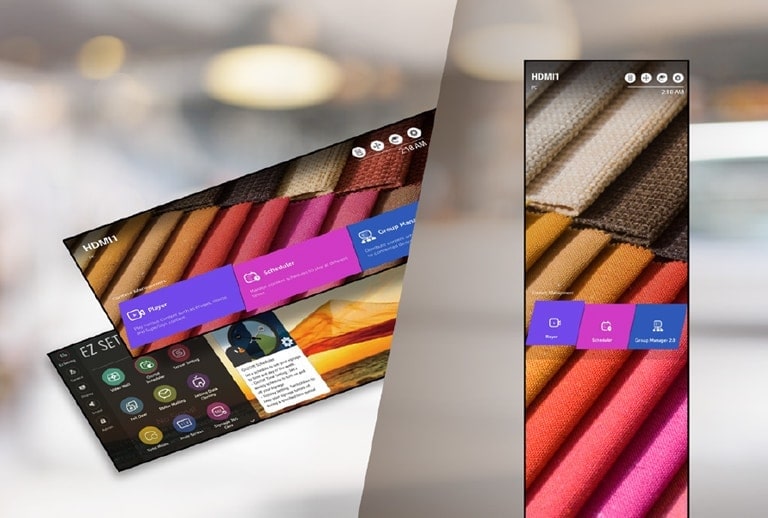

High Performance SoC with webOS
Built-in Quad Core SoC can execute several tasks at once while providing smooth content playback without the need for a media player. Also LG webOS platform enhances user convenience with intuitive GUI.
OPERATIONAL EFFICIENCY

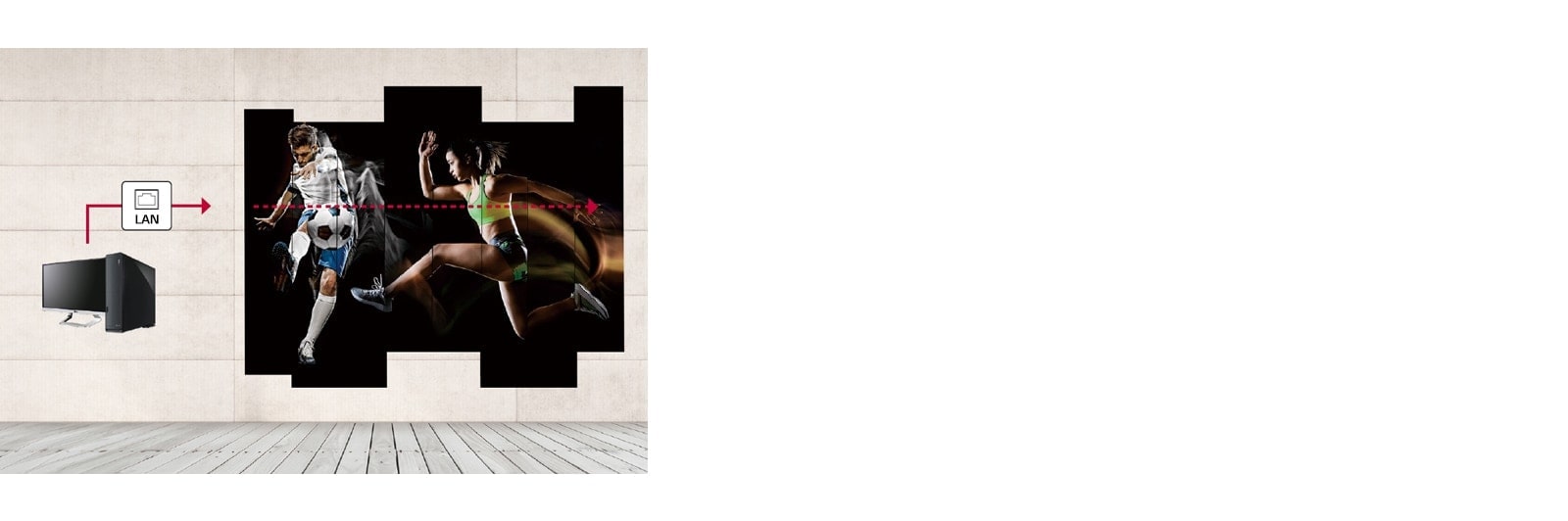

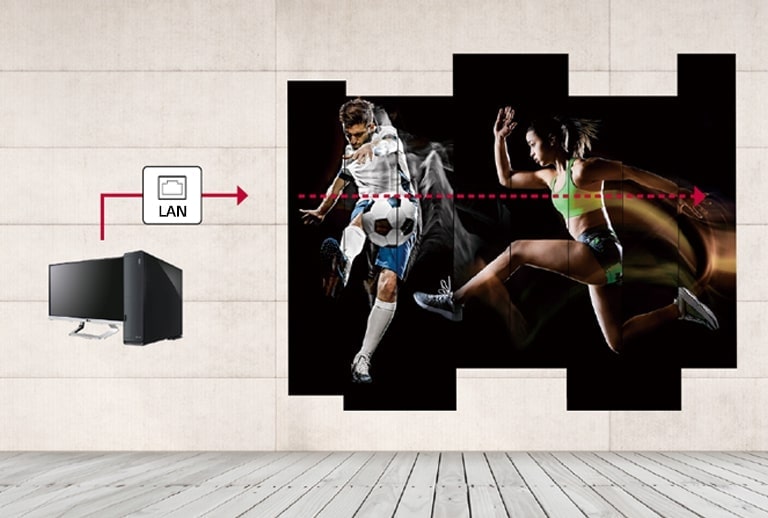

LAN Daisy Chain Management
By using this daisy-chained network feature, you can execute commands such as controlling, monitoring and even updating firmware.
OPERATIONAL EFFICIENCY
Real-Time Monitoring with Signage365Care
Easier and faster maintenance are available with our optional cloud service solution Signage365Care*. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, ensuring the stable operation of clients' businesses.
PANEL
-
- Screen Size
- 86"
- Panel Technology
- IPS
-
- Aspect Ratio
- 58:9
- Contrast Ratio
- 1,100:1
-
- Viewing Angle (H x V)
- 178 x 178
- Response Time
- 8ms (G to G)
-
- Surface Treatment (Haze)
- 3%
- Brightness (Typ., cd/m²)
- 500
-
- Life time (Typ.)
- 50,000 Hrs
- Operation Hours (Hours/Day)
- 24/7
-
- Portrait / Landscape
- Yes / Yes

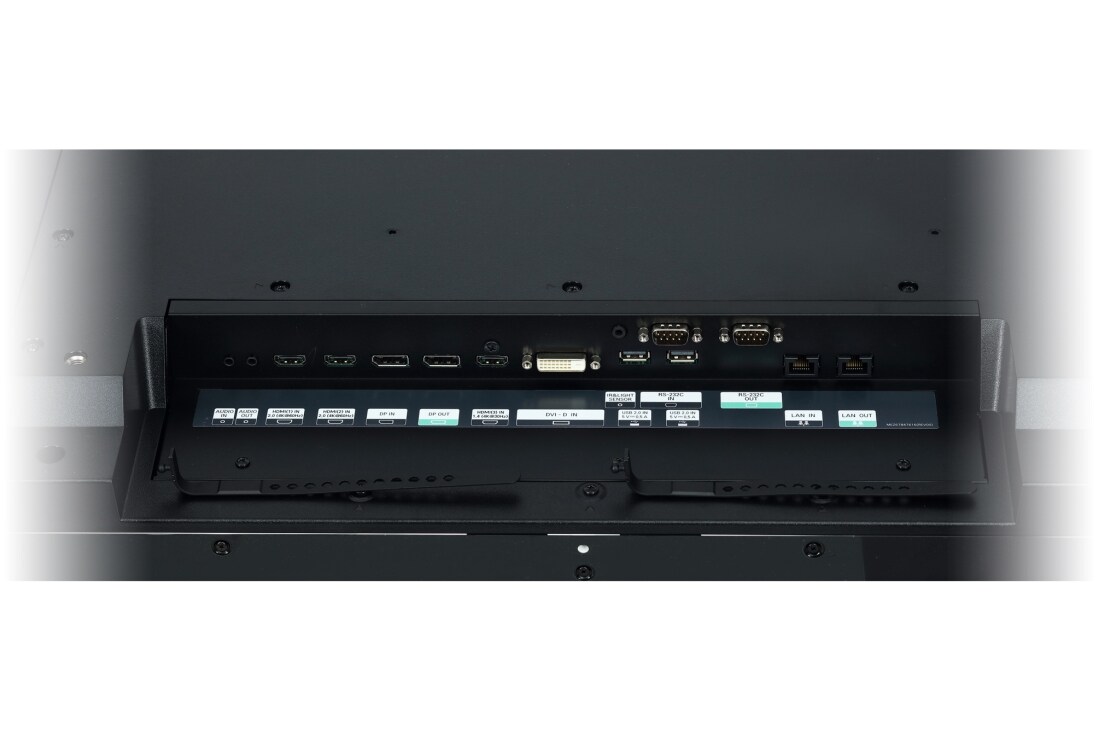

CONNECTIVITY
-
- Input
- HDMI (3), DP, DVI-D, Audio, USB 2.0 (2)
- Output
- DP, Audio
-
- External Control
- RS232C In/out, RJ45(LAN) In/out, IR In
MECHANICAL SPECIFICATION
-
- Bezel Color
- Black
- Bezel Width
- 4.4 mm (L/R), 5.9 mm (T/B)
-
- Packed Weight
- 38.2 kg
- Monitor Dimensions (W × H × D)
- 2,158.3 x 348.5 × 81.7 mm
-
- Weight (Head)
- 20.5 kg
- Carton Dimensions (W × H × D)
- 2,290 x 599 x 228 mm
-
- Handle
- Yes
- VESA™ Standard Mount Interface
- 600 x 200 mm
ENVIRONMENT CONDITIONS
-
- Operation Temperature Range
- 0°C to 40°C
- Operation Humidity Range
- 10 % to 80 %
POWER
-
- Power Supply
- 100-240V~, 50/60Hz
- Power Type
- Built-In Power
POWER CONSUMPTION
-
- Smart Energy Saving
- 100 W
- Typ. / Max.
- 220 W / 240 W
STANDARD(CERTIFICATION)
-
- Safety
- CB / NRTL
- EMC
- FCC Class "A" / CE / KC
-
- ErP
- Yes (EU Only)
MEDIA PLAYER COMPATIBILITY
-
- OPS Type Compatible
- Yes (Piggyback)
SOFTWARE COMPATIBILITY
-
- Content Management Software
- SuperSign CMS (The SuperSign Editor function is not supported.)
- Control and Monitoring Software
- SuperSign Control / Control+
-
- LG ConnectedCare
- Yes
ACCESSORIES
-
- Basic
- Remote Controller, Power Cord, DP Cable, RS-232C Cable, IR/Light Sensor Receiver, Manual
- Optional
- OPS Kit (KT-OPSF)
COMPLIANCE INFORMATION
- The safety information for accessories is included with the safety information for the product and is not provided separately.
