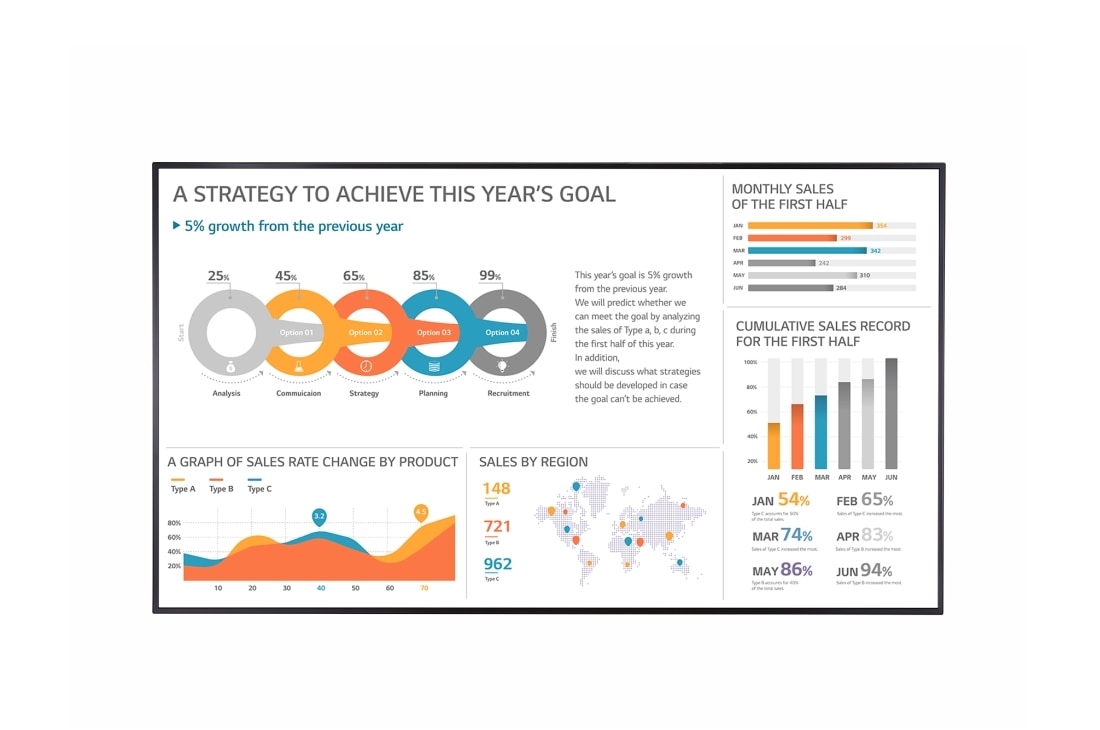

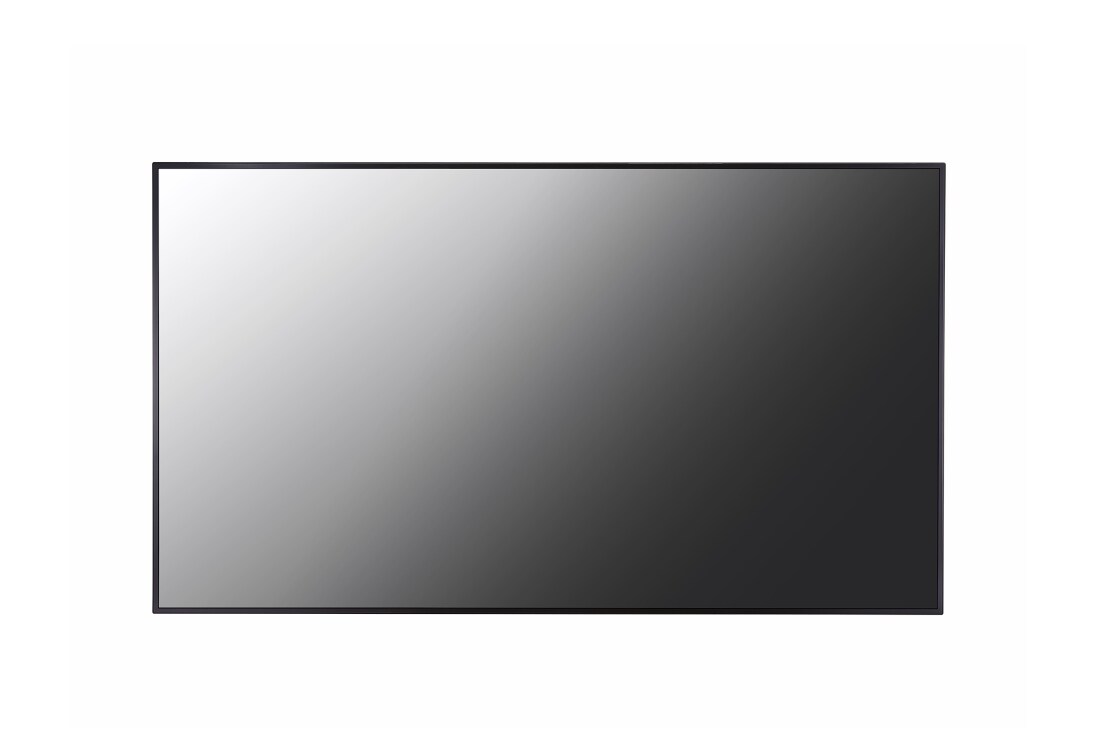

86UH5F-H
UH5F-H Series
  • Brightness(Typ.) : 500 cd/m²
  • Surface Treatment (Haze) : 28%
  • Bezel : 14.3 mm (Even)

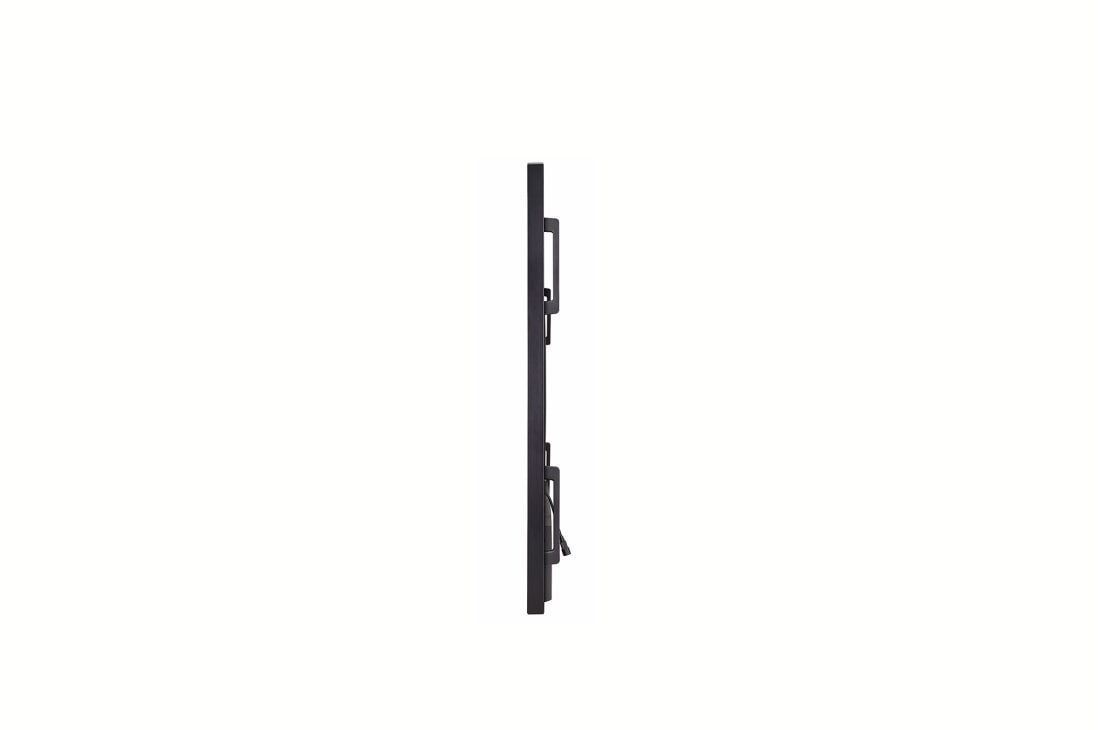

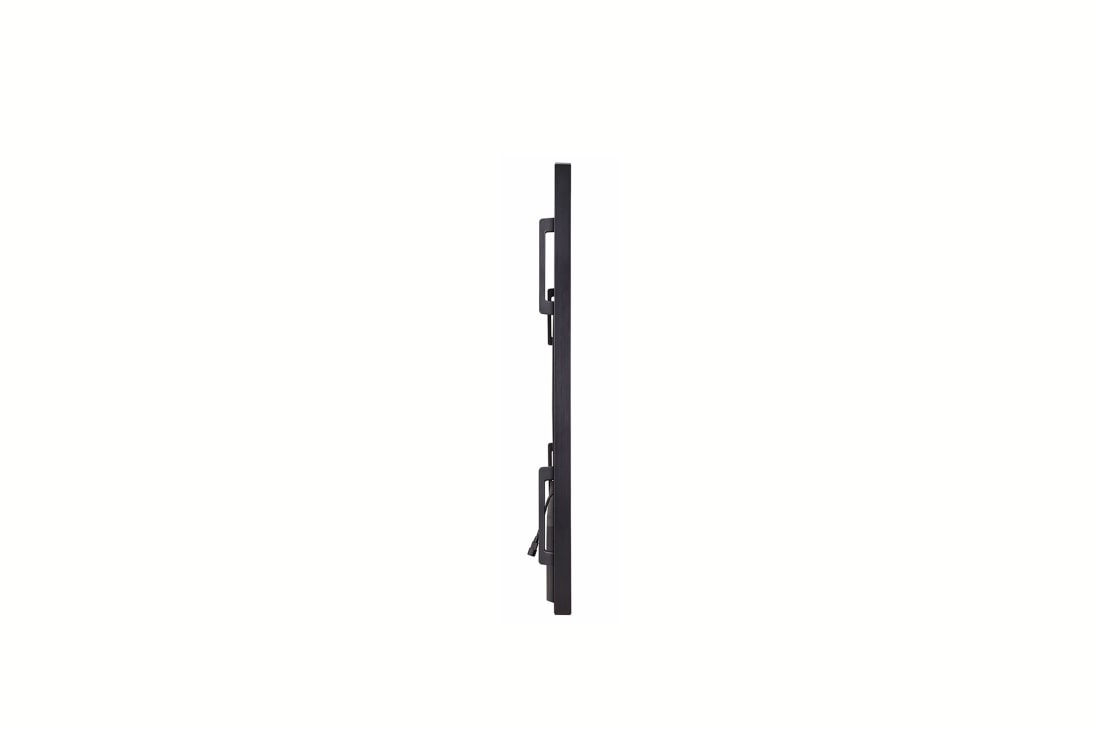

  • Depth : 60.6 mm (without Handle)
  • Interface : HDMI(3)/ DP/ DVI-D/ USB 2.0(2)/ RS232C/ RJ45/ Audio/ IR
  • Built-in Speaker and Detachable Logo
UH5F-H Series
MSRP AED
LG UHD Large Screen Signage. LG UHD Large Screen Signage.
SUPERB PICTURE QUALITY

Clear View with Non-glare Coating

Viewers can be annoyed by unnecessary reflections when watching a screen under brightly lit conditions. The UH5F-H series has resolved such inconveniences by increasing the level of haze, which enhances visibility and text readability.
Clear View with Non-glare Coating. Clear View with Non-glare Coating.
SUPERB PICTURE QUALITY

ULTRA HD Resolution

With the resolution that is 4 times higher than FHD, it makes the color and details of the contents more vivid and realistic. In addition, the wide viewing angle applied with an IPS panel, provides clear contents with no distortion.
ULTRA HD Resolution. ULTRA HD Resolution.
webOS SMART SIGNAGE PLATFORM

High-Performance with webOS

Built-in Quad Core SoC can execute several tasks at once while providing smooth content playback without the need for a media player. Also, LG webOS smart signage platform enhances user convenience with intuitive GUI and simple app development tools.
High-Performance with webOS. High-Performance with webOS.
webOS SMART SIGNAGE PLATFORM

Various Sensor Applications

LG webOS smart signage platform easily supports connections with external sensors such as GPIO, NFC/RFID, temperature sensors, etc, via USB plug-in. The overall cost for maintenance is reduced as there's no need to purchase additional software or media players for creating value-added solutions.
Various Sensor Applications. Various Sensor Applications.
MEETING ROOM SOLUTION COMPATIBILITY

Compatible with AV Control System

The UH5F-H series has been certified Crestron Connected® for high compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency.
Compatible with AV Control System. Compatible with AV Control System.
* Network based control
MEETING ROOM SOLUTION COMPATIBILITY

Compatible with Video Conference System

For the optimum visual meeting, the UH5F-H series has certified its compatibility with Cisco System that offers powerful and integrated control* for a smarter video conference, eliminating a waste of time for setting up the picture quality or changing input on incoming calls.
Compatible with Video Conference System. Compatible with Video Conference System.
* Using an HDMI cable connection
EASY MANAGEMENT

Real-time Monitoring & Control

Through the Control Manager, the embedded web monitoring solution, you can control and monitor the status of multiple UH5F-H series displays in different locations in real-time. It is available on internet connected devices, allowing you to flexibly and rapidly respond to emergency situations anywhere.
Real-time Monitoring & Control. Real-time Monitoring & Control.
EASY MANAGEMENT

Real-time Cloud Care Service - Signage365care

The maintenance gets easier and faster with an optional service Signage365Care*, a cloud service solution provided by LG service. It remotely manages status of displays in client workplaces for fault diagnosis and remote-control services, ensuring the stable operation of a client’s business.
Real-time Cloud Care Service - Signage365care. Real-time Cloud Care Service - Signage365care.
* The availability of “Signage365Care” service can differ by region, so please contact the LG sales representative in your region for further details.
USER CONVENIENCE

Multiscreen Feature with PBP / PIP

PBP (Picture-By-Picture)features multiple screens in a single display with up to 4 input sources while PIP (Picture-In-Picture) supports playing both a main screen and a subscreen at the same time with various layouts. This gives great flexibility to allocate space for each content source.
Multiscreen Feature with PBP / PIP. Multiscreen Feature with PBP / PIP.
USER CONVENIENCE

Wireless Access Point

The UH5F-H series operates as a virtual router which can be an wireless access point for mobile devices.
Wireless Access Point. Wireless Access Point.

PANEL

  • Screen Size
    86
    Panel Technology
    IPS
  • Back Light Type
    Edge
    Aspect Ratio
    16:9
  • Native Resolution
    3840 x 2160 (UHD)
    Refresh Rate
    120 Hz
  • Brightness
    500nit (Typ.)
    Contrast Ratio
    500nit (Typ.)
  • Dynamic CR
    1,000,000:1
    *The luminosity ratio of Full Black / Full White color on video input condition.
    Color Gamut
    NTSC 72%
  • Viewing Angle(H x V)
    178 x 178
    Color Depth
    10bit, 1.07Billion colors
  • Response Time
    8 ms (G to G)
    Surface Treatment(Haze)
    28%
  • Life time
    50,000Hrs (Typ.)
    Operation Hours (Hours/Day)
    24/7
  • Portrait / Landscape
    Yes / Yes

CONNECTIVITY

  • Input - Digital - HDMI
    Yes(3)
    HDMI1/HDMI2 : HDCP 2.2/1.4
    HDMI3 : HDCP 1.4
    Input - Digital - DP
    Yes(1), HDCP2.2/1.3
  • Input - Digital - DVI-D
    Yes(1), HDCP1.4
    Input - Audio In
    Yes(1)
  • Input - External Control - RS232C IN
    Yes(1), 4pin Phone-jack
    Input - External Control - RJ45(LAN)
    Yes(1)
  • Input - External Control - IR IN
    Yes(1)
    Input - USB
    USB2.0 Type A(2)
  • Output - DP Out
    Yes(1), Input : HDMI1/2/3/DVI/DP/OPS
    Output - Audio Out
    Yes(1)
  • Output - External Control - RS232C OUT
    Yes(1), 4pin Phone-jack

MECHANICAL SPECIFICATION

  • Bezel Color
    Black
    Bezel Width
    Even bezel : 14.3mm
  • Weight(Head)
    49.0Kg
    Packed Weight
    72.5Kg (With Pallet)
  • Monitor Dimension(W x H x D)
    1926.2 x 1097.2 x 60.6mm
    (without Handle and LG Logo)
    Carton Dimensions(W x H x D) (Box outer size)
    2073 x 1250 x 285mm
  • Handle
    Yes
    VESA™ Standard Mount Interface
    600 x 400

KEY FEATURE

  • HW - Internal Memory
    8GB
    HW - Wi-Fi - Built-in
    Yes
  • HW - Sensor - Temperature Sensor
    Yes
    HW - Sensor - Auto Brightness sensor
    Yes
  • HW - Local Key Operation
    Yes
    HW - FAN
    Yes
  • SW - webOS ver.
    webOS4.0
    SW - Embedded CMS - Local Contents Scheduling
    Yes
  • SW - Embedded CMS - Group Manager
    Yes
    SW - USB Plug & Play
    Yes
  • SW - Fail over
    Yes
    SW - Background Image - Booting Logo Image
    Yes
  • SW - Background Image - No Signal Image
    Yes
    SW - Sync Mode - RS-232C Sync
    Yes
  • SW - Sync Mode - Local Network Sync
    Yes
    SW - Multi-screen - PIP
    Yes
  • SW - Multi-screen - PBP
    Yes(4)
    SW - Screen Share
    Yes
  • SW - Video Tag
    Yes(4)
    SW - Play via URL
    Yes
  • SW - Rotation - Screen Rotation
    Yes
    SW - Rotation - External Input Rotation
    Yes
  • SW - Gapless Playback
    Yes
    SW - Tile Mode Setting
    Yes(Max. 15x15)
  • SW - Setting Data Cloning
    Yes
    SW - SNMP
    Yes
  • SW - ISM Method
    Yes
    SW - Auto Set ID
    Yes
  • SW - Status Mailing
    Yes
    SW - Control Manager
    Yes
  • SW - 3rd Party Compatibility - Crestron Inside
    Yes *Network based control
    SW - Smart Energy Saving
    Yes
  • SW - PM mode
    Yes
    SW - Wake on LAN
    Yes
  • SW - Beacon
    Yes
    SW - HDMI-CEC
    Yes *Compatibility may differ by equipment.
  • SW - SI Server Setting
    Yes
    SW - webRTC
    Yes
  • SW - Pro:Idiom
    Yes

ENVIRONMENT CONDITIONS

  • Operation Temperature
    0 °C to 40 °C
    Operation Humidity
    10 % to 80 %

POWER

  • Power Supply
    AC 100-240V~, 50/60Hz
    Power Type
    Built-In Power

POWER CONSUMPTION

  • Typ.
    215W
    Max.
    280W
  • BTU (British Thermal Unit)
    733.69 BTU/Hr(Typ.), 955.5 BTU/Hr(Max)
    Smart Enegy Saving
    150.5W
  • DPM
    0.5W
    Power off
    0.5 W

SOUND

  • Speaker
    Yes

CERTIFICATION

  • Safety
    CB / NRTL
    EMC
    FCC Class "A" / CE / KC
  • ErP
    Yes

OPS Compatibility

  • OPS type compatible
    Yes
    OPS Power built in
    Yes

SOFTWARE COMPATIBILITY

  • SuperSign CMS
    Yes
    SuperSign Control / Control+
    Yes / Yes
  • SuperSign WB
    Yes
    SuperSign Media Editor
    Yes
  • Signage 365 Care
    Yes (The availability can differ by region.)

Language

  • OSD
    English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Arabic

ACCESSORY

  • Basic
    Remote Controller(include battery 2ea), Power Cord, QSG, DP Cable(1.8M), Regulation Book, Phone to RS232C Gender
    Optional
    OPS Kit(KT-OPSF), LSW640A/B(Wall Mount)
