86UL3Q-E component-copyModelName
86-inch UHD signage, rotatable, with standard brightness of 350 nits

Key Features

Choose your Size

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (86UL3Q-E)
    AED
    AED
    LG Members Price
Total
Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (86UL3Q-E)
    AED
    AED
    LG Members Price
Total
86-inch UHD signage, rotatable, with standard brightness of 350 nits

LG webOS UHD Signage

A signage display is mounted on the wall of a meeting room, clearly showing meeting content on the screen. A signage display is mounted on the wall of a meeting room, clearly showing meeting content on the screen.
* All images in this page are for illustrative purposes only.
Presenting vivid and lively screen quality by magnifying part of the display’s content. Presenting vivid and lively screen quality by magnifying part of the display’s content.

Superb Picture Quality with Ultra HD Resolution

With the resolution of UHD, it makes the color and details of the contents vivid and realistic. In addition, the wide viewing angle provides clear contents.
A number of tasks that can be done simultaneously are easily arranged through the webOS platform. A number of tasks that can be done simultaneously are easily arranged through the webOS platform.

High-Performance with LG webOS 6.1

LG webOS 6.1 is available on the UL3Q series for smooth execution of multiple tasks. The LG webOS smart signage platform enhances user convenience with an intuitive GUI*.

* GUI : Graphical User Interface

One UL3Q is mounted on the wall in landscape orientation, and the other in portrait orientation, with an enlarged image showing the uniform bezel thickness of the UL3Q. One UL3Q is mounted on the wall in landscape orientation, and the other in portrait orientation, with an enlarged image showing the uniform bezel thickness of the UL3Q.

Easy Installation with Uniform Bezel Design

The UL3Q series features perfectly balanced horizontal and vertical bezels, creating a visually harmonious display solution. Its specialized design simplifies installation in retail environments while delivering a truly immersive viewing experience. The sophisticated, symmetrical bezels enhance the aesthetic appeal of any space, transforming ordinary displays into elegant focal points.
One UL3Q is installed on the store ceiling with a Face Down tilt, and the other is mounted below the counter with a Face Up tilt, both displaying content. One UL3Q is installed on the store ceiling with a Face Down tilt, and the other is mounted below the counter with a Face Up tilt, both displaying content.

Adaptive Viewing Experience

Experience enhanced flexibility with the UL3Q's innovative Face Up/Down tilt support. Whether mounted high or low, each display can adjusted to better meet viewers at eye level, promoting maximum engagement regardless of installation height. This versatility optimizes both spatial efficiency and visual comfort, delivering clear information from various viewing angles.

* 76”/86” are not supported.
** This display tilts up/down up to 15 degrees; do not exceed this rangeto prevent damage.

The UL3Q series can be remotely controlled and monitored through Control Manager on mobile devices and/or laptops. The UL3Q series can be remotely controlled and monitored through Control Manager on mobile devices and/or laptops.

Remote Monitoring and Control

This web-based monitoring solution is user-friendly and allows the user to be at ease. It enables the user to have full access anywhere at anytime from their mobile phone & PC under network-accessible environment while having access to both current and past data. It allows the user to monitor the unit, make adjustments and control the unit remotely in real time.
A UL3Q is mounted on the wall, with a close-up of the brightness sensor located on the lower front of the display. A UL3Q is mounted on the wall, with a close-up of the brightness sensor located on the lower front of the display.

Built-In Brightness Sensor

The UL3Q's front-mounted sensor automatically adjusts brightness to match various lighting conditions, helping to optimize viewing quality and energy efficiency without manual intervention. This adaptive feature helps maintain consistent display performance while supporting power savings, delivering improved visual experience that responds to environmental changes.
The UL3Q series provides security features to protect important data from external access or attacks. The UL3Q series provides security features to protect important data from external access or attacks.

Advanced Security Architecture

The UL3Q incorporates LG’s Enhanced Kernel Protection (EKP) technology, safeguarding critical data from unauthorized access and potential security threats. This commitment to information security is validated by the ISO/IEC 15408 Common Criteria EAL2 certification, providing businesses with the confidence that their sensitive content and operations remain protected in today’s challenging security landscape.
LG received the 2025 EcoVadis Platinum medal. LG received the 2025 EcoVadis Platinum medal.

Award-Winning Sustainability

The UL3Q series embodies LG Display's ESG commitment: "Better Life for All." This company-wide dedication to environmental responsibility has earned the prestigious 2025 EcoVadis Platinum medal, placing us among the top 1% of global companies for sustainability excellence.
The LG employee is remotely monitoring the UL3Q series installed in another location. The LG employee is remotely monitoring the UL3Q series installed in another location.

LG ConnectedCare

Maintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, supporting the stable operation of clients' businesses.

* The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details.

Close
INFO
  • Product
    Standard (UHD)
    Year
    Y24
  • Month
    M05
PANEL
  • Screen Size (Inch)
    86"
    Panel Technology
    ADS
  • Back Light Type
    Direct
    Aspect Ratio
    16:9
  • Native Resolution
    3840 x 2160 (UHD)
    Refresh Rate
    60Hz
  • Brightness
    350nit (Typ.)
    Contrast Ratio
    1,200 : 1
  • Dynamic CR
    1,000,000:1
    Color Gamut
    DCI 80%
  • Viewing Angle (H x V)
    178 x 178
    Color Depth (Number of Colors)
    Advanced 10bit, 1.07 Billion colors
  • Response Time
    8ms (G to G)
    Surface Treatment (Haze)
    1%
  • Life time
    30,000Hrs (Min)
    Operation Hours (Hours/Day)
    16/7
  • Portait / Landscape
    Yes / Yes

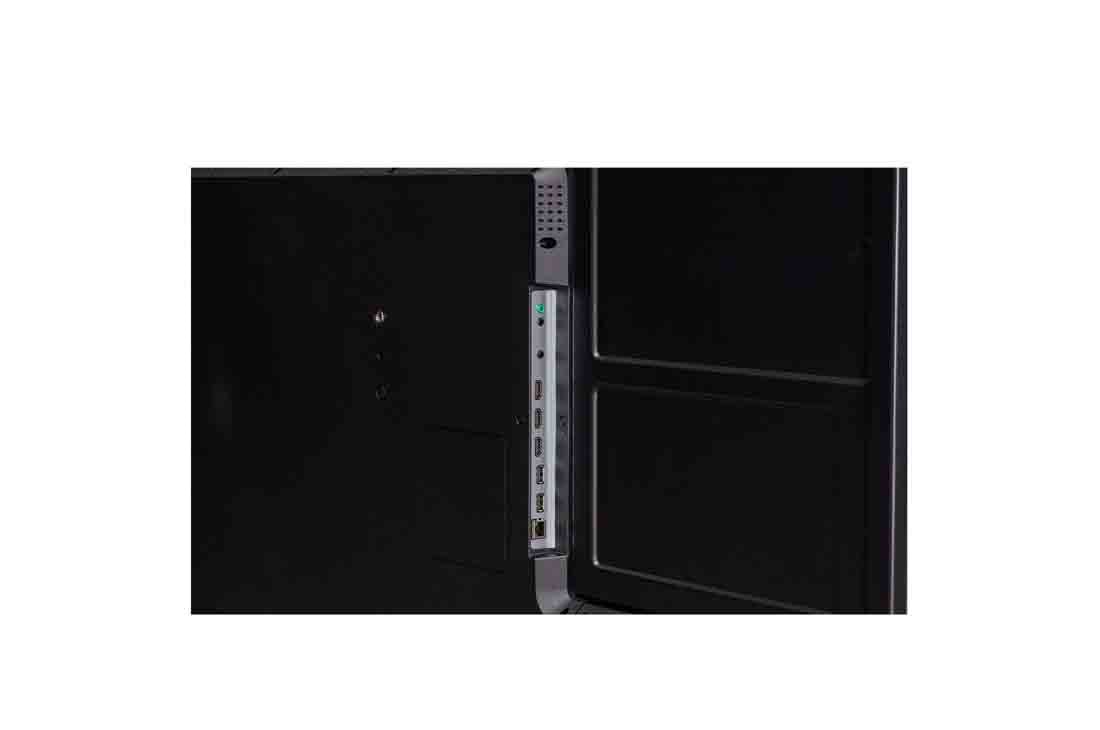

CONNECTIVITY(JACK INTERFACE)
  • HDMI IN
    Yes(3), HDCP2.2/1.4
    RS232C IN
    Yes(1), 4pin Phone-jack
  • RJ45(LAN) IN
    Yes(1)
    USB IN
    USB2.0 Type A(2)
  • Audio Out
    Yes(1)
    RS232C Out
    Yes
MECHANICAL
  • Bezel Color
    Black
    Bezel Width
    12.9mm Even
  • Weight (Head)
    31.8
    Packed Weight
    42.6
  • Monitor Dimensions (W x H x D)
    1926.6 X 1098 X 60
    Carton Dimensions (W x H x D)
    2080 X 220 X 1255
  • VESA™ Standard Mount Interface
    600 x 400
HW FEATURE
  • Internal Memory (eMMC)
    8GB
    Wi-Fi/BT (Built-in)
    Yes
  • Temperature Sensor
    Yes
    Auto Brightness sensor
    Yes
  • Acceleration(Gyro) Sensor
    Yes
    Local Key Operation
    Yes (Power On/Off only)
SW FEATURE
  • OS Ver. (webOS)
    webOS6.1
    Local Contents Scheduling
    Yes
  • Group Manager
    Yes
    USB Plug & Play
    Yes
  • Fail over
    Yes
    Booting Logo Image
    Yes
  • No Signal Image
    Yes
    RS232C Sync
    Yes
  • Local Network Sync
    Yes
    Screen Share
    Yes
  • Video Tag
    Yes(4, Max One HDMI input)
    Play via URL
    Yes
  • Screen Rotation
    Yes
    External Input Rotation
    Yes
  • Gapless Playback
    Yes
    Tile Mode Setting
    Yes
  • Setting Data Cloning
    Yes
    SNMP
    Yes
  • ISM Method
    Yes
    Auto Set ID
    Yes
  • Status Mailing
    Yes
    Control Manager
    Yes
  • Cisco Certification
    Yes(TBD)
    Crestron Connected
    Yes
  • Smart Energy Saving
    Yes
    PM mode
    Yes
  • Wake on LAN
    Yes
    Network Ready
    Yes
  • Beacon
    Yes
    HDMI-CEC
    Yes
  • SI Server Setting
    Yes
    webRTC
    Yes
  • Pro:Idiom
    Yes
ENVIRONMENT CONDITIONS
  • Operation Temperature
    0 °C to 40 °C (Portrait Scene : 0 °C to 35 °C)
    Operation Humidity
    10 % to 80 %
POWER
  • Power Supply
    AC 100-240V~, 50/60Hz
    Power Type
    Built-In Power
POWER CONSUMPTION
  • Typ.
    205 W
    Max.
    287 W
  • BTU (British Thermal Unit)
    699.489BTU/Hr(Typ.), 979.284BTU/Hr(Max.)
    Smart Enegy Saving (70%)
    143.5W
  • DPM
    0.5 W
    Power off
    0.5 W
SOUND
  • Speaker (Built-in)
    Yes (10W X 2)
CERTIFICATION
  • Safety
    CB
    EMC
    FCC Class "B" / CE
  • ErP / Energy Star
    NA(New ERP)/Yes
    ePEAT(US only)
    Yes
SOFTWARE COMPATIBILITY
  • SuperSign CMS
    Yes
    SuperSign Control+
    Yes
  • SuperSign WB
    Yes
    SuperSign Cloud
    Yes
  • Mobile CMS
    Yes
    Connected Care
    Yes
Language
  • OSD
    English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Türkçe, Arabic, polski
ACCESSORY
  • Basic
    Remote Controller(include battery 2ea), Power Cord, Regulation Book, Easy setup guide, Warranty Card, Phone to D-Sub9 Gender
SPECIAL FEATURE
  • Conformal Coating (Power Board)
    Yes
COMPLIANCE INFORMATION
  • The safety information for accessories is included with the safety information for the product and is not provided separately.

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
