88BH7D-B component-copyModelName

Ultra Stretch Signage

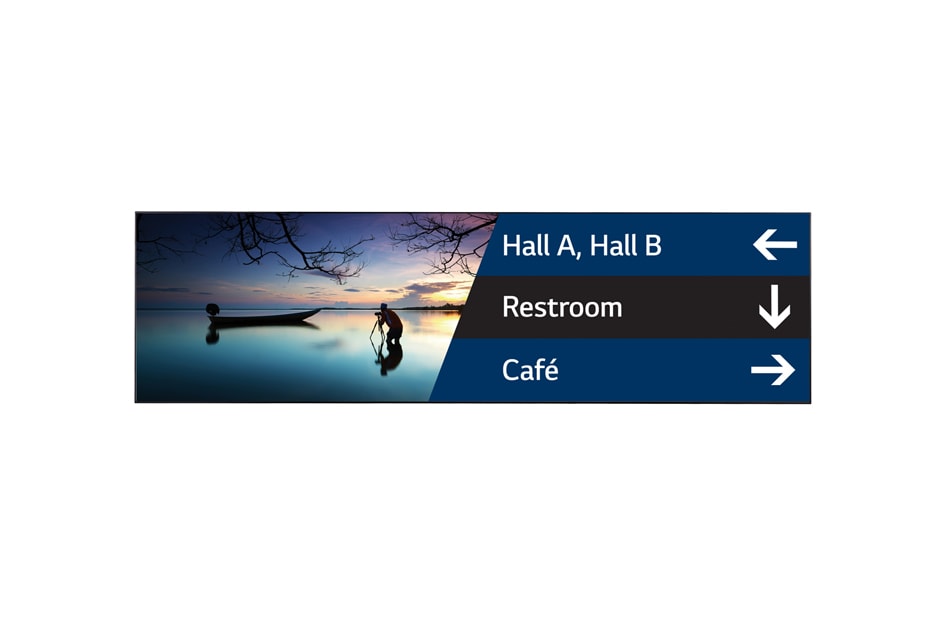

LG Ultra Stretch Signage, 88BH7D-B, thumbnail 1

LG Ultra Stretch Signage, 88BH7D-B, thumbnail 2

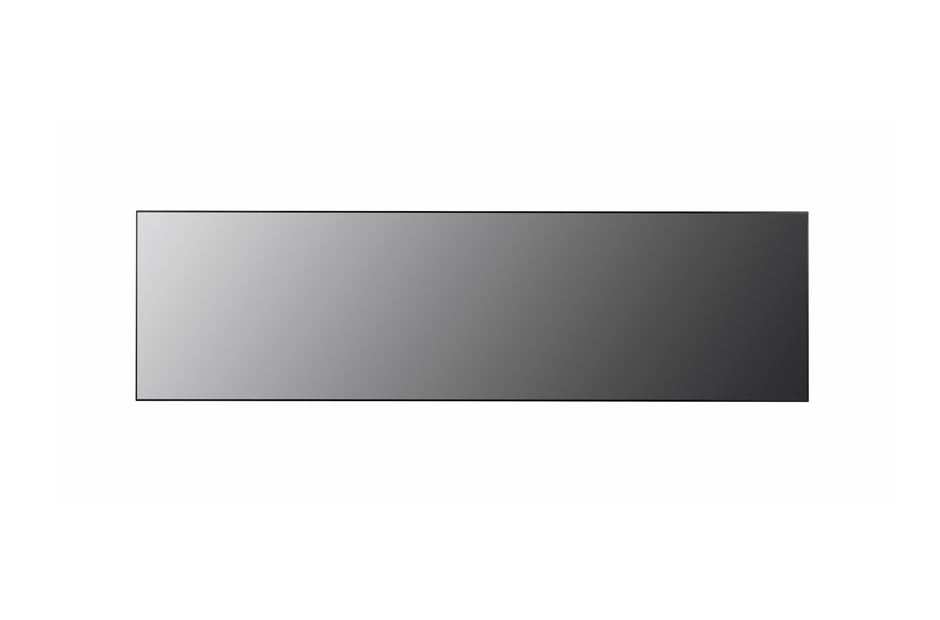

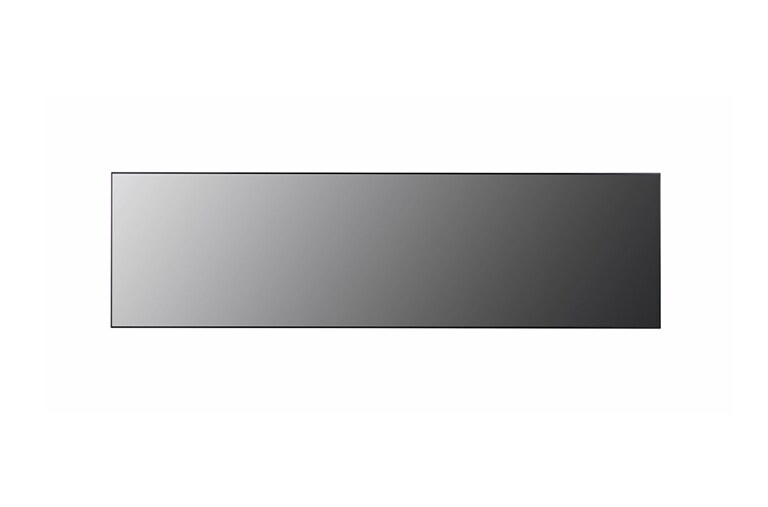

LG Ultra Stretch Signage, 88BH7D-B, thumbnail 3

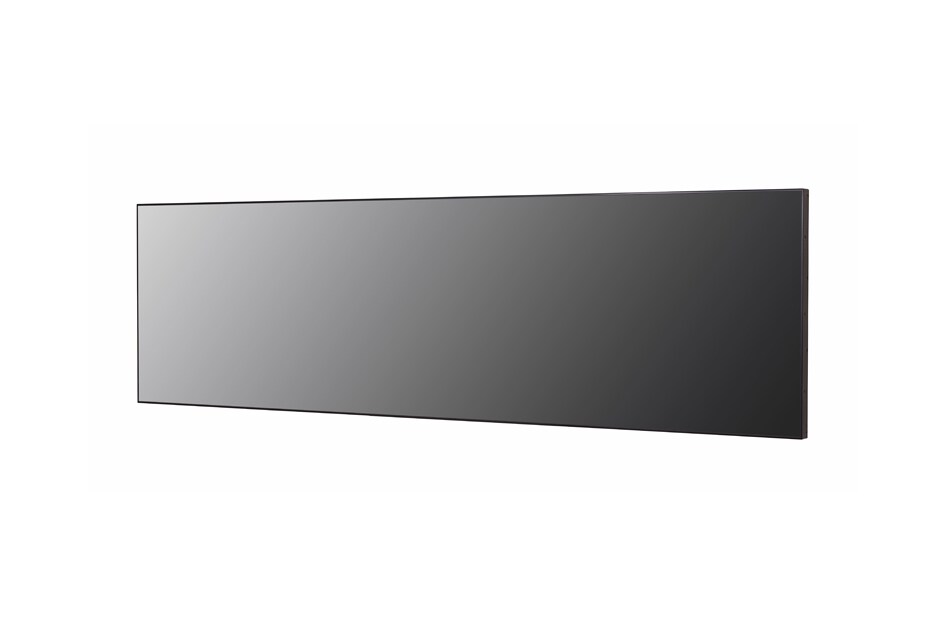

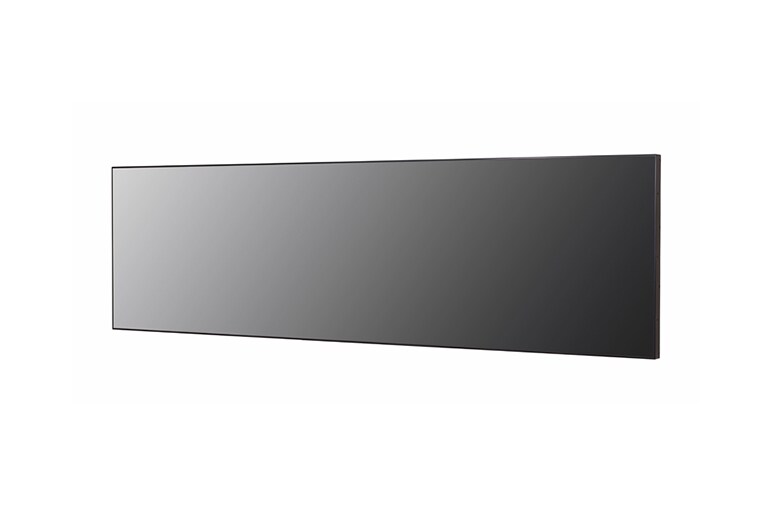

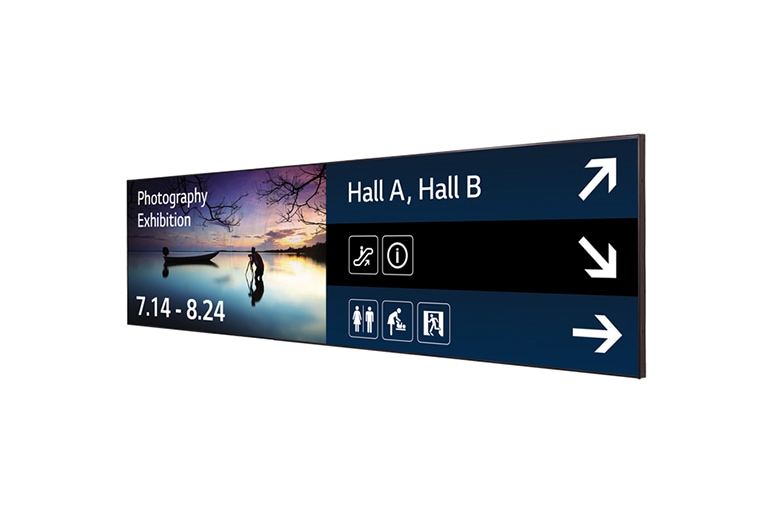

LG Ultra Stretch Signage, 88BH7D-B, thumbnail 4

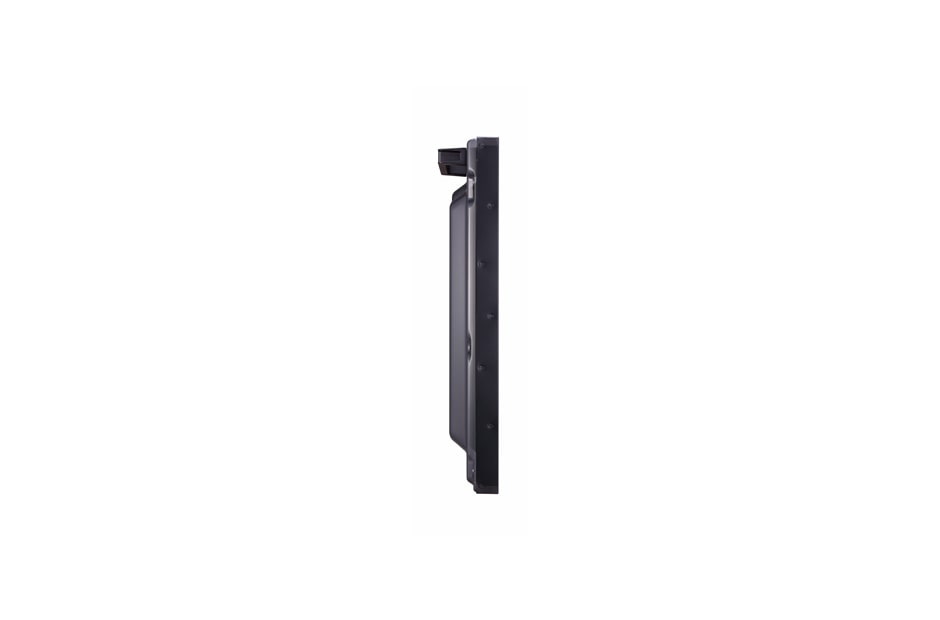

LG Ultra Stretch Signage, 88BH7D-B, thumbnail 5

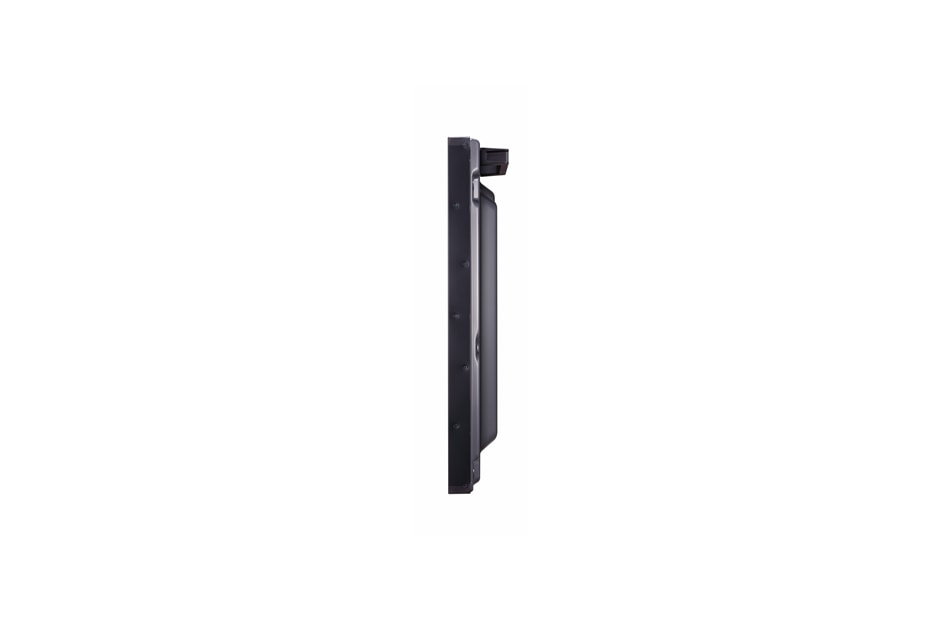

LG Ultra Stretch Signage, 88BH7D-B, thumbnail 6

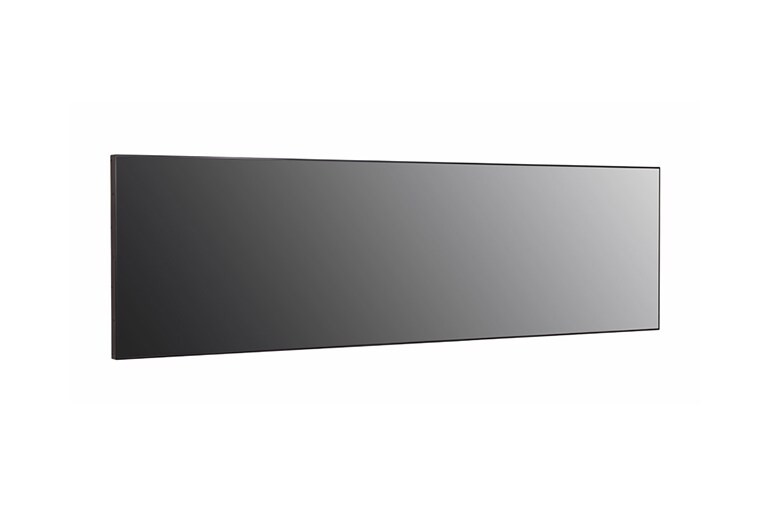

LG Ultra Stretch Signage, 88BH7D-B, thumbnail 7

ADD TO WISHLIST

Discontinued

88BH7D-B component-copyModelName

Ultra Stretch Signage

Name: Ultra Stretch Signage
Brand: LG UAE
SKU: 88BH7D-B
Rating: 0 (0 reviews)

Key Features

Brightness(Typ.): 700 cd/m²
Aspect Ratio: 32:9
Bezel: 4.4 mm(L/R), 5.9 mm(T/B)
Depth: 84.8mm
Interface: HDMI (3), DP, RJ45, IR, USB (2), SD Card, RS232C

Find a Dealer

Add to Compare

component-OBScountrySelectDesc

Key Features

Brightness(Typ.): 700 cd/m²
Aspect Ratio: 32:9
Bezel: 4.4 mm(L/R), 5.9 mm(T/B)
Depth: 84.8mm
Interface: HDMI (3), DP, RJ45, IR, USB (2), SD Card, RS232C

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

Ultra Stretch Signage

New Design Configuration

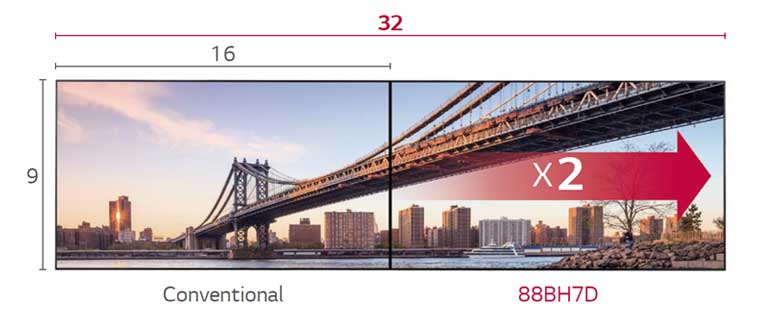

32:9 Extended Wide Format

It is a totally new wide screen format with 32:9 bar type,
the most promising display for advertisement and information delivery.

New Design Configuration

Ultra HD Resolution (3,840 x 1,080)

Ultra HD resolution delivers an immersive viewing experiences with vivid colors and clear images.

Optimized Content Delivery

88BH7D is ready to organize multi content with video and text according to user's desired ratio. Also, it is optimal to show a vertical or horizontal object without truncation, providing real-like viewing experiences to the audience. It is the best way to attract people's attention and maximize advertisement effect.

PBP with Four Divisions in Landscape or Portrait1

Multiple Screens

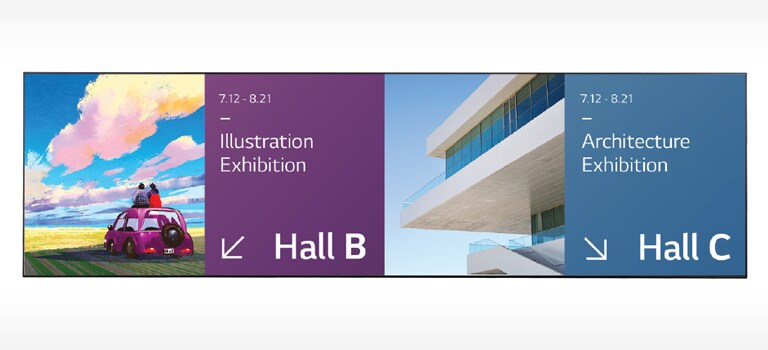

PBP with Four Divisions in Landscape or Portrait

The Picture-by-Picture (PBP) feature allows you to compose multi content in one single display with upto four parts. It is very useful and convenient to deliver many different advertisements or pieces of information at the same time without calibration.

Content Management

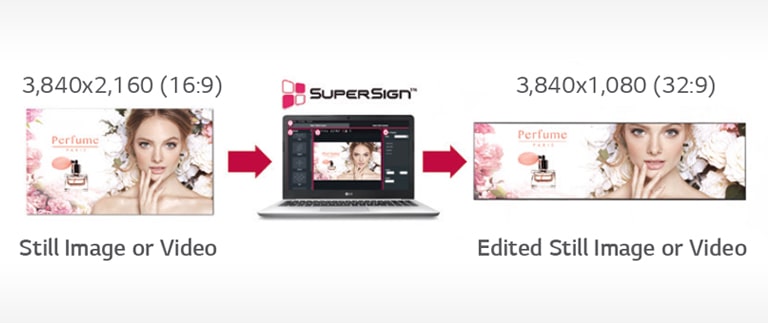

32:9 Content Editing

With the LG SuperSign Media Editor, you can easily edit images or video clips of original content to fit 32:9 ratio.

Content Management

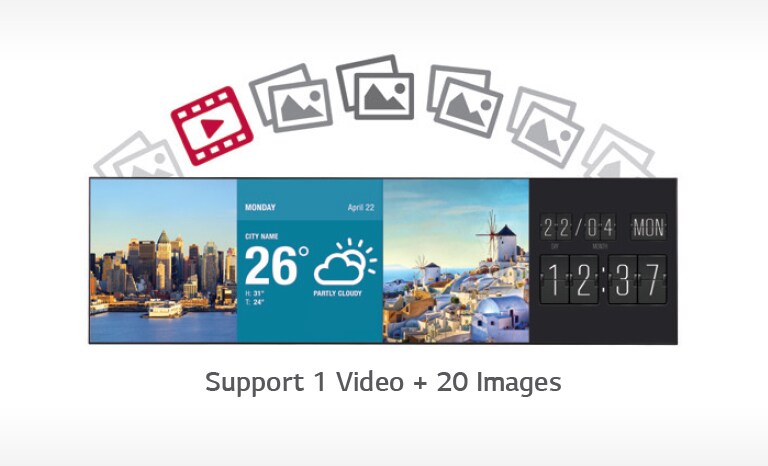

Multiple Content Creation

Users can edit content that consists of one video and several still images (up to 20) as they want.

Convenient Connectivity

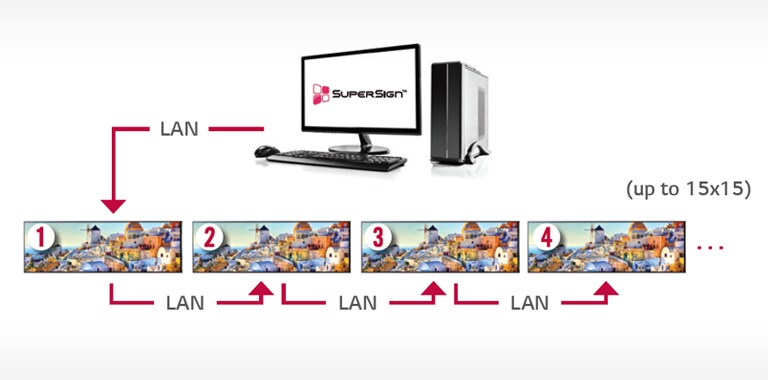

Easy Management with LAN Daisy Chain

The LAN daisy chain allows you to control and monitor devices, distribute content, and even update firmware.

Convenient Connectivity

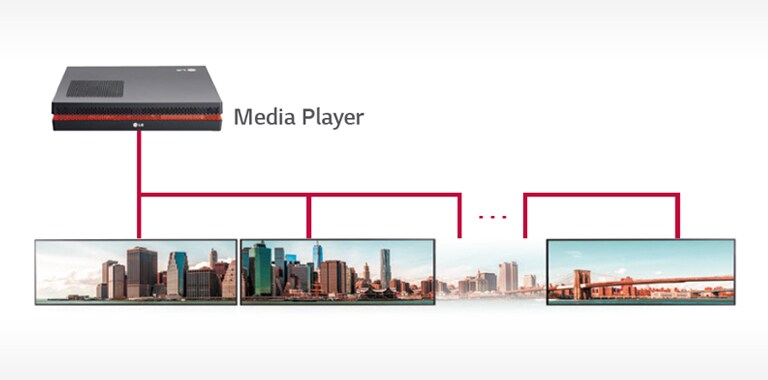

Tiling Scene with DP Daisy Chain

This product supports lateral tiling for 1x4 or 4x1 installations (landscape or portrait), and up to a 4x4 installation with a daisy chain configuration.

PANEL

Screen Size

88"

Resolution

3,840 x 1,080 (UHD)
Brightness (Typ., cd/m²)

700

CONNECTIVITY

Input

HDMI (3), DP, OPS, DVI-D, Analog Audio, USB 2.0, USB 3.0, SD Card

Output

DP, Analog Audio
External Control

RS232C In/Out, RJ45 In/Out, IR+B Receiver, Pixel Sensor

PHYSICAL SPECIFICATION

Bezel Width

4.4 mm (L/R), 5.9 mm (U/D)

Monitor Dimension (W x H x D)

2,158.3 x 611.2 x 84.8 mm (without handle)
Weight (Head)

38 kg

Carton Dimensions (W x H x D)

2,274 x 717 x 212 mm
Packed Weight

53.2 kg (Pallet included)

STANDARD(CERTIFICATION)

Safety

UL / cUL / CB / TUV / KC

EMC

FCC Class "A" / CE / KC
ErP / Energy Star

Yes / No

SOFTWARE COMPATIBILITY

Content Management Software

SuperSign Premium

Control and Monitoring Software

SuperSign C

ACCESSORY

Basic

Remote Controller (including battery 2ea), Power Cord, DP (2.6M), RS-232C Cable (3M), Owner's Manual (Website upload)

Optional

AN-WF500 (Wi-Fi USB Dongle), MP700, KT-OPSA (OPS KIT), KT-SP0 (RGB Sensor)
** Stand is not available
