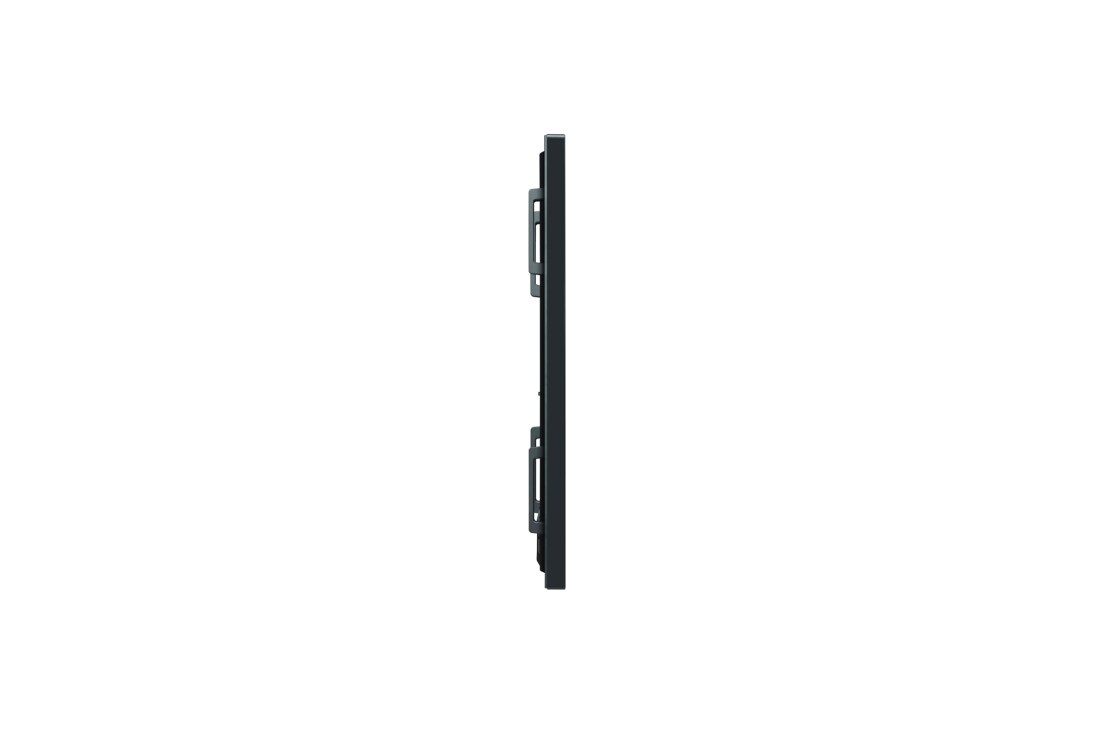

LG 98'' 350 nits 120 Hz UHD Signage, 98UM3F-B, thumbnail 5

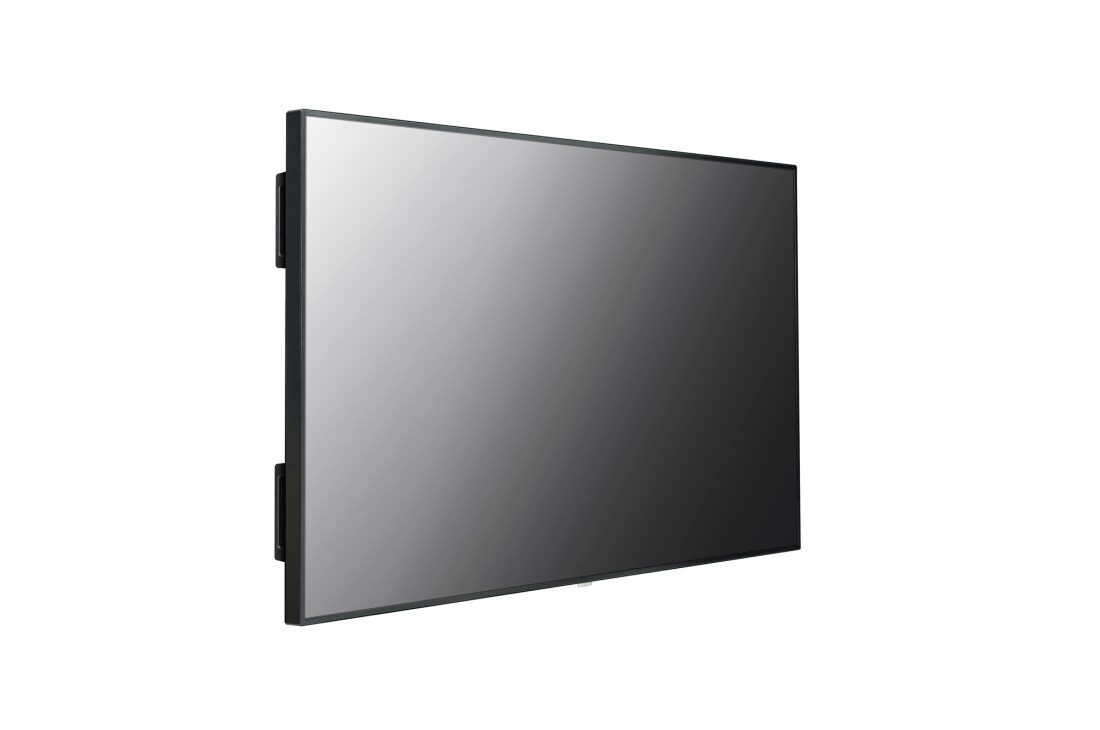

LG 98'' 350 nits 120 Hz UHD Signage, 98UM3F-B, thumbnail 6

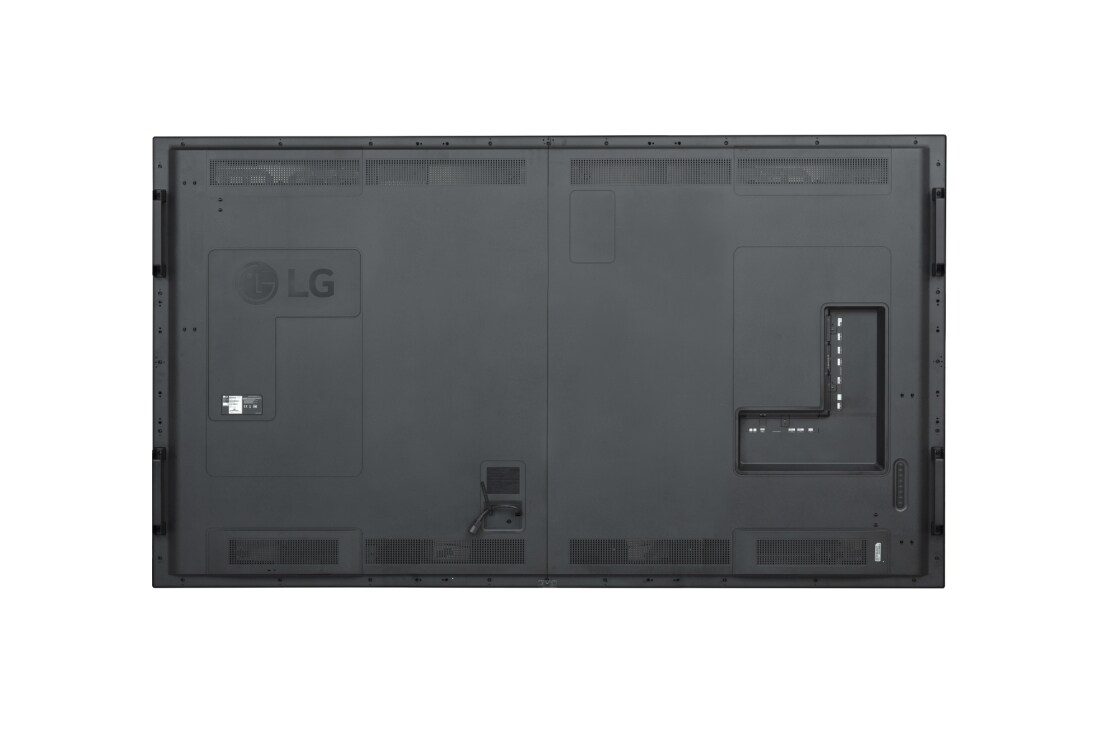

LG 98'' 350 nits 120 Hz UHD Signage, 98UM3F-B, thumbnail 7

LG 98'' 350 nits 120 Hz UHD Signage, 98UM3F-B, thumbnail 8

ADD TO WISHLIST

Discontinued

98UM3F-B component-copyModelName

98'' 350 nits 120 Hz UHD Signage

Name: 98'' 350 nits 120 Hz UHD Signage
Brand: LG UAE
SKU: 98UM3F-B
Rating: 0 (0 reviews)

Key Features

Brightness(Typ.) : 350 cd/m²
Bezel : 14.9 mm (Even, Off-Bezel)
Depth : 83.8 mm (without Handle)
Interface : HDMI(3)/ DP/ DVI-D/ USB 2.0(2)/ RS232C/ RJ45/ Audio/ IR
Built-in Speaker and Detachable Logo

Choose your Size

Find a Dealer

Add to Compare

component-OBScountrySelectDesc

Key Features

Brightness(Typ.) : 350 cd/m²
Bezel : 14.9 mm (Even, Off-Bezel)
Depth : 83.8 mm (without Handle)
Interface : HDMI(3)/ DP/ DVI-D/ USB 2.0(2)/ RS232C/ RJ45/ Audio/ IR
Built-in Speaker and Detachable Logo

Choose your Size

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

98" 350 nits 120 Hz UHD Signage

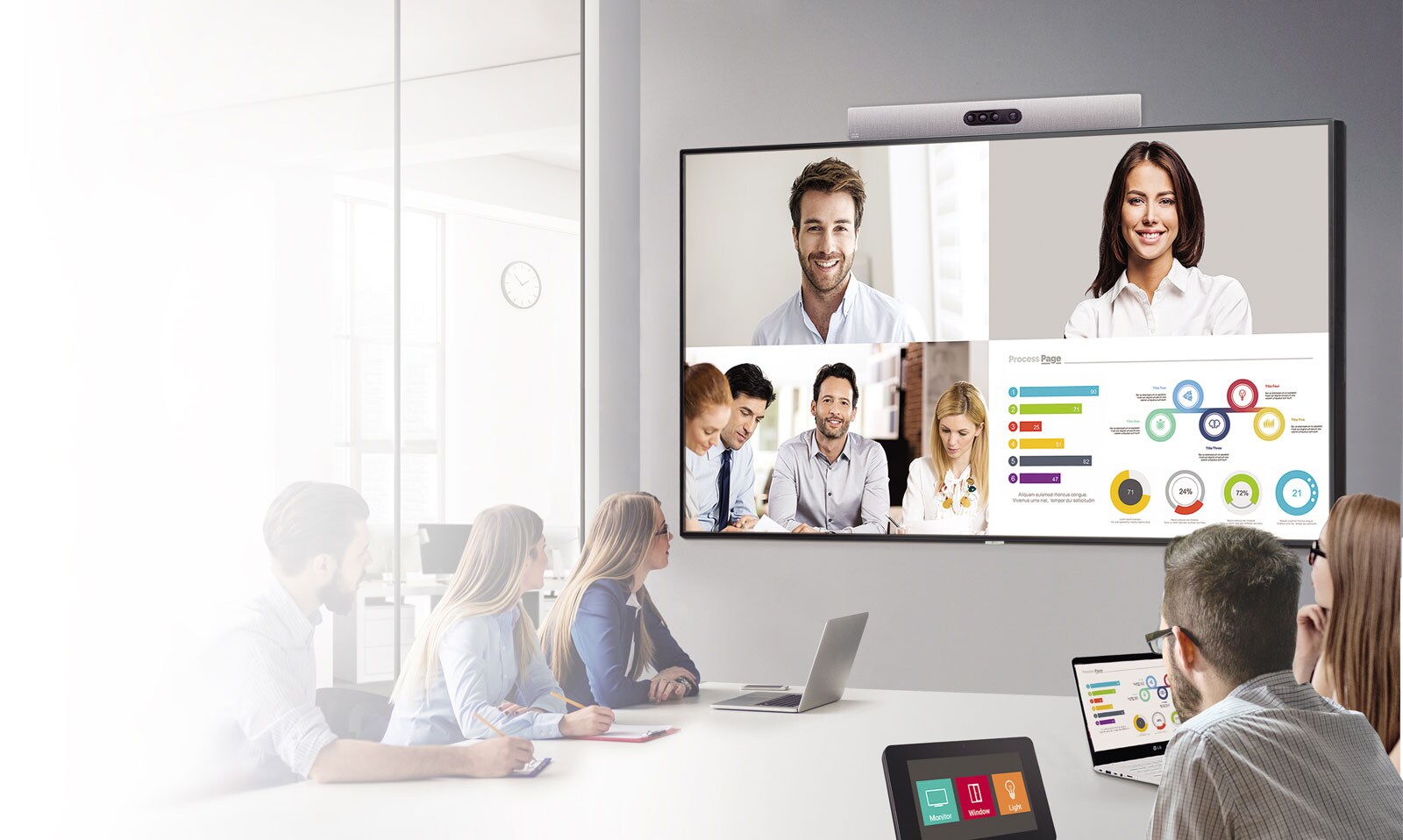

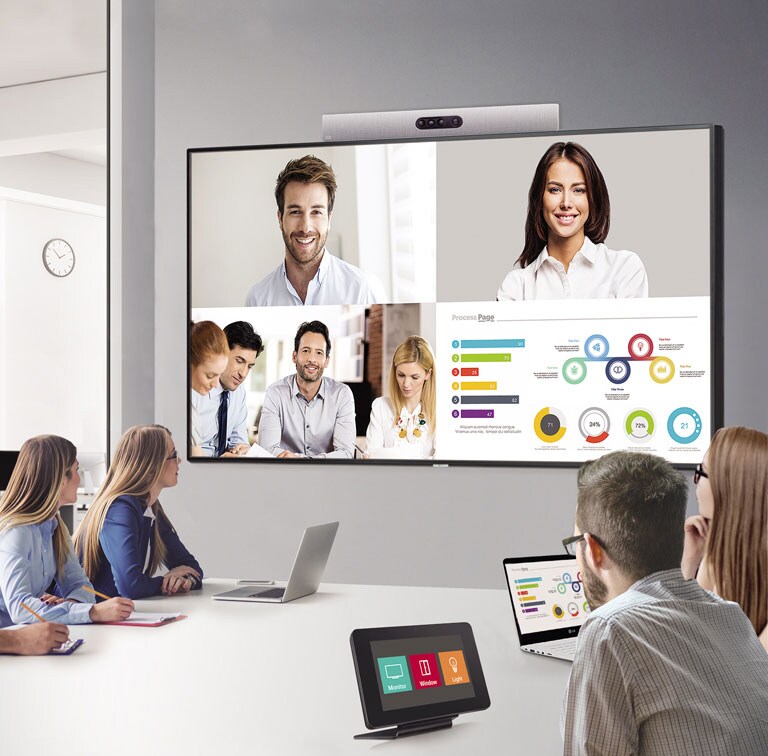

LG UHD Signage Offers Optimum Vision for Meetings

With superb picture quality and slim design, the UM3F/E series provides optimal vision for various indoor environments. Its quality and performance capture the attention of conference goers.

SUPERB PICTURE QUALITY

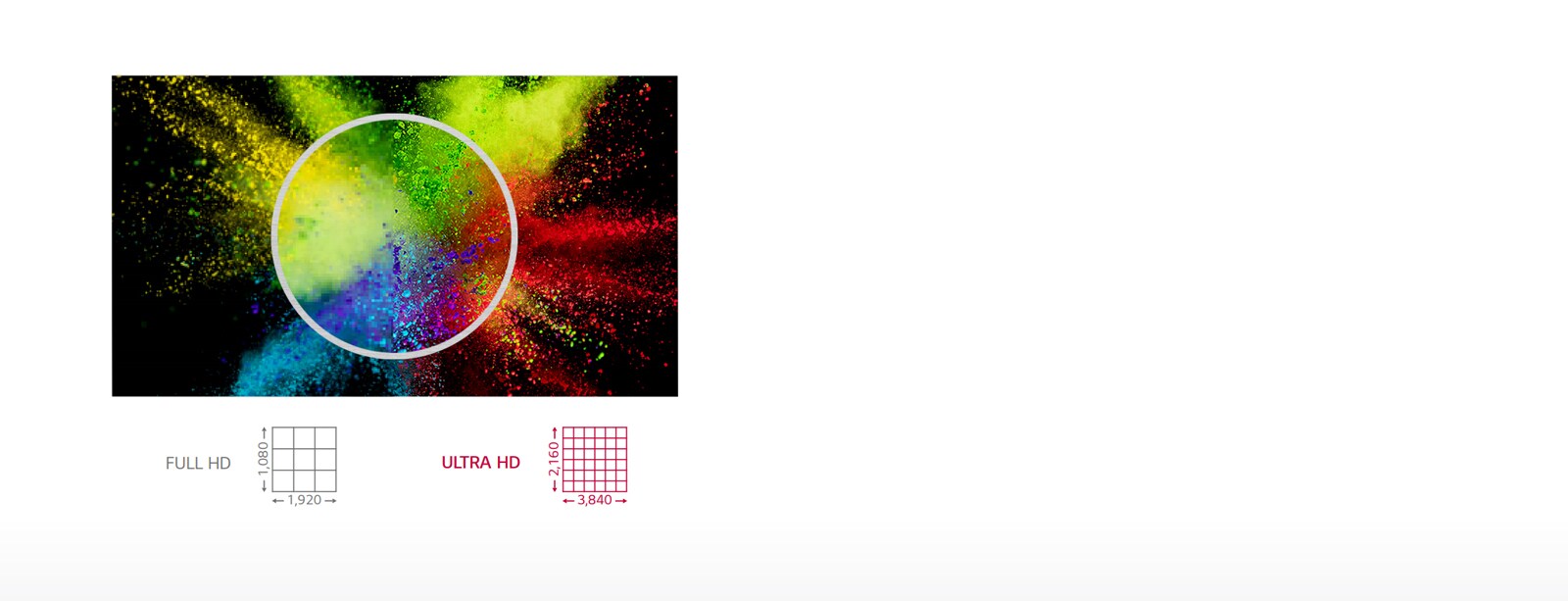

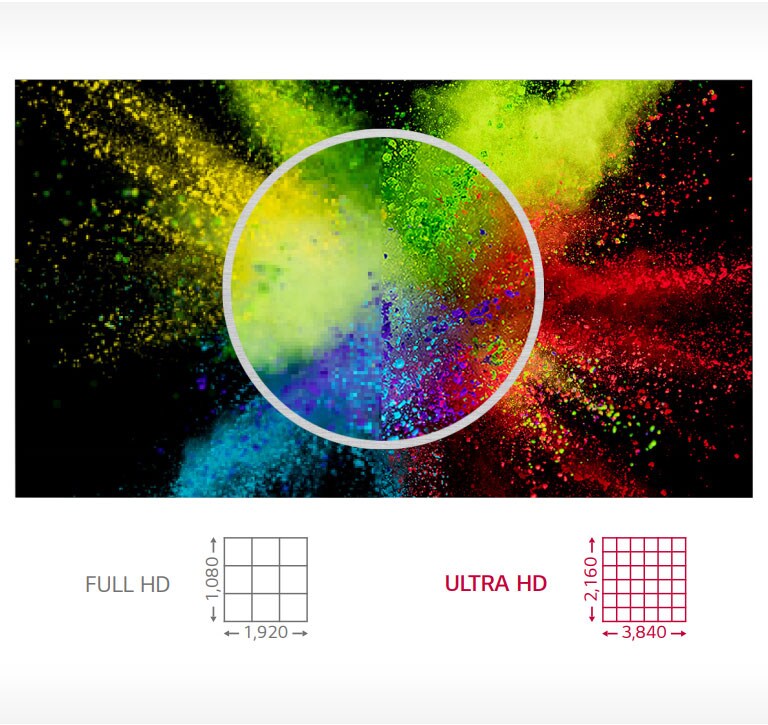

ULTRA HD Resolution

With the resolution that is 4 times higher than FHD, it makes the color and details of the contents more vivid and realistic. In addition, the wide viewing angle applied with LG IPS Panel, provides clear contents with no distortion.

SUPERB PICTURE QUALITY

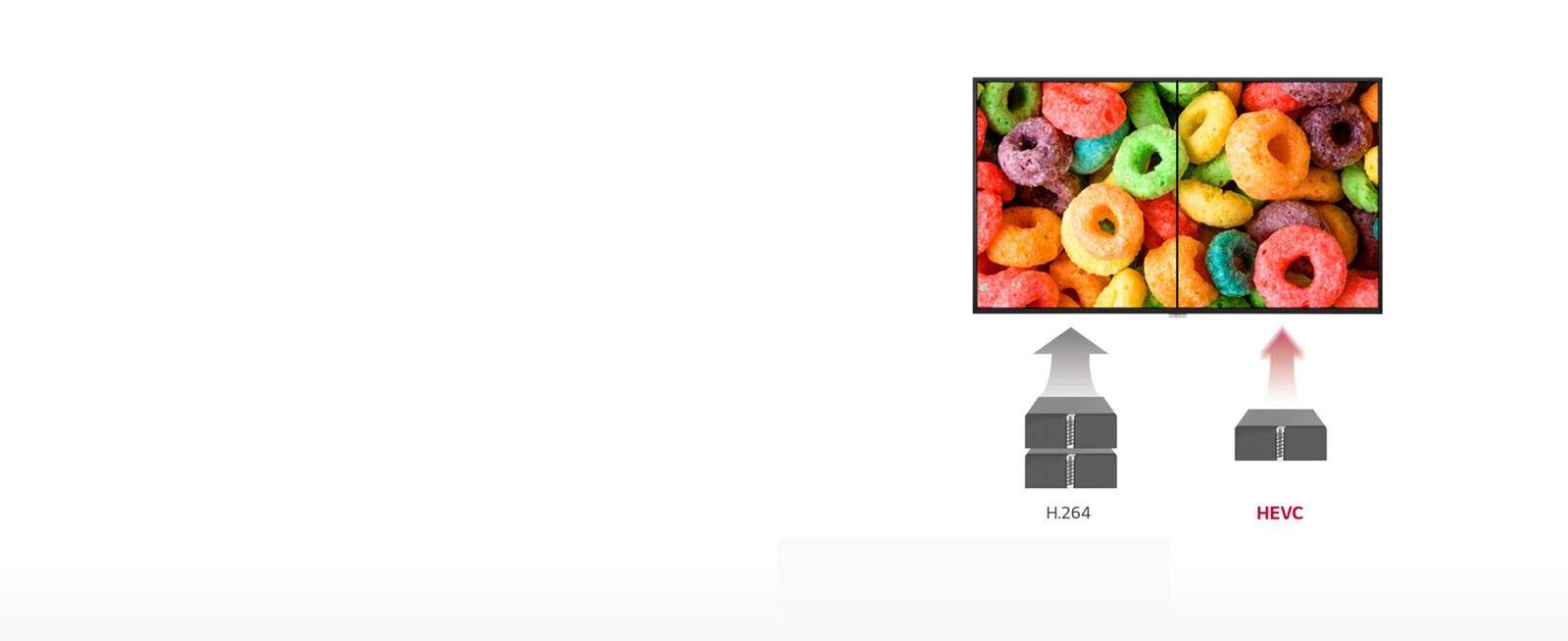

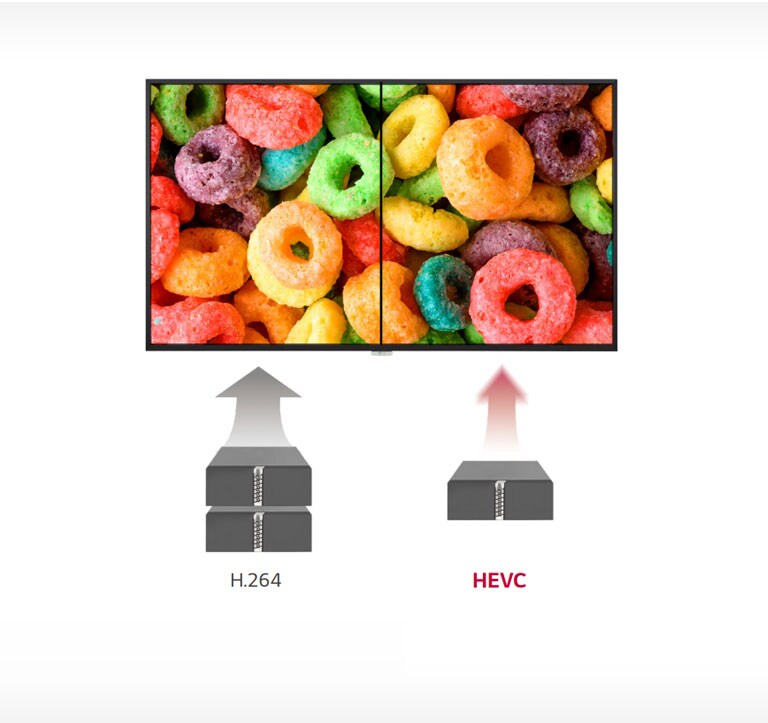

High Efficiency Video Coding

The UM3F/E series supports HEVC* which efficiently compresses/decompresses high-capacity UHD contents, playing ultra-high quality videos with half the network traffic than the existing H.264 codec.

* HEVC: High Efficiency Video Coding

SLEEK AND PRACTICAL DESIGN

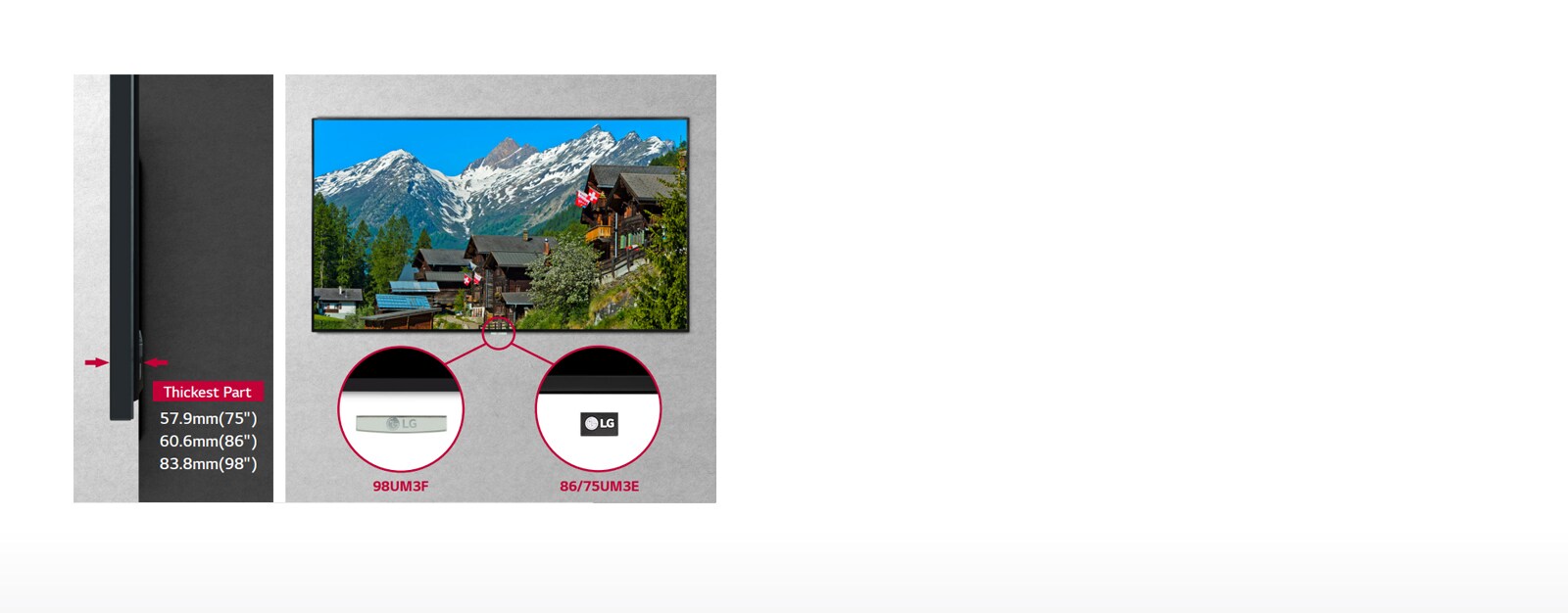

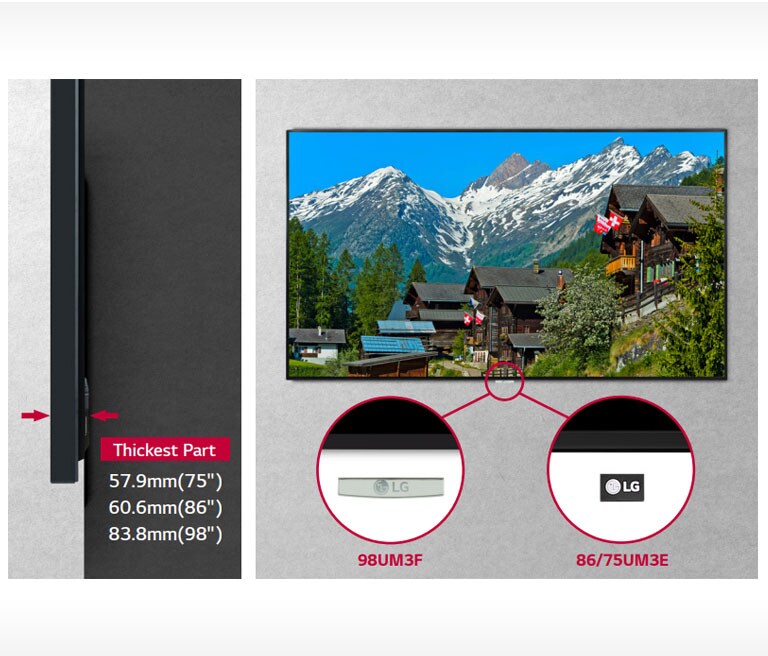

Slim Depth and Detachable Logo

Although the UM3F/E series is a large-sized display, the product still has a slim depth which allows easy installation by using less space. Also, the detachable logos give users flexibility to arrange the display.

SLEEK AND PRACTICAL DESIGN

Built-in Speakers

Contents will be enriched with sound effects from built-in speakers, without the need for purchasing or installing external speakers.

webOS SMART SIGNAGE PLATFORM

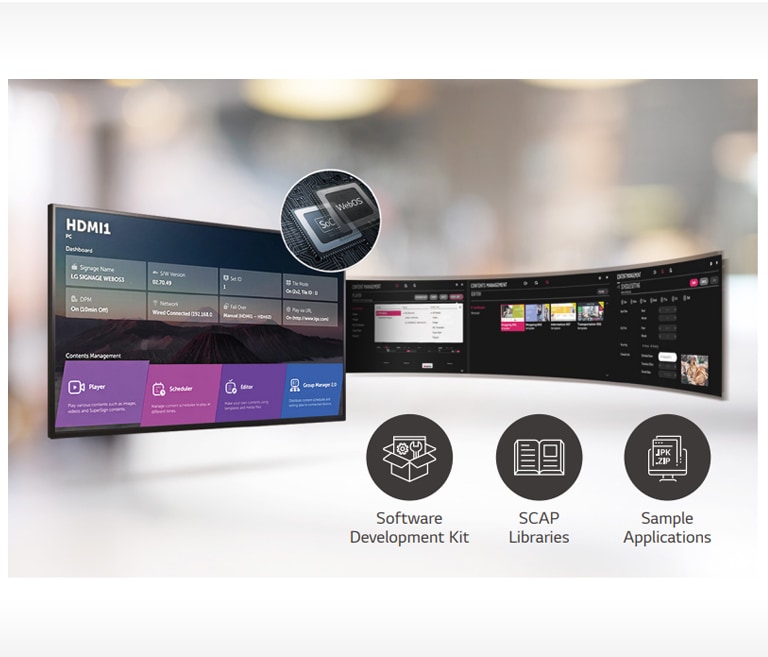

High-Performance with webOS

Built-in Quad Core SoC can execute several tasks at once while providing smooth content playback without the need for a media player. Also, LG webOS smart signage platform enhances user convenience with intuitive GUI and simple app development tools.

webOS SMART SIGNAGE PLATFORM

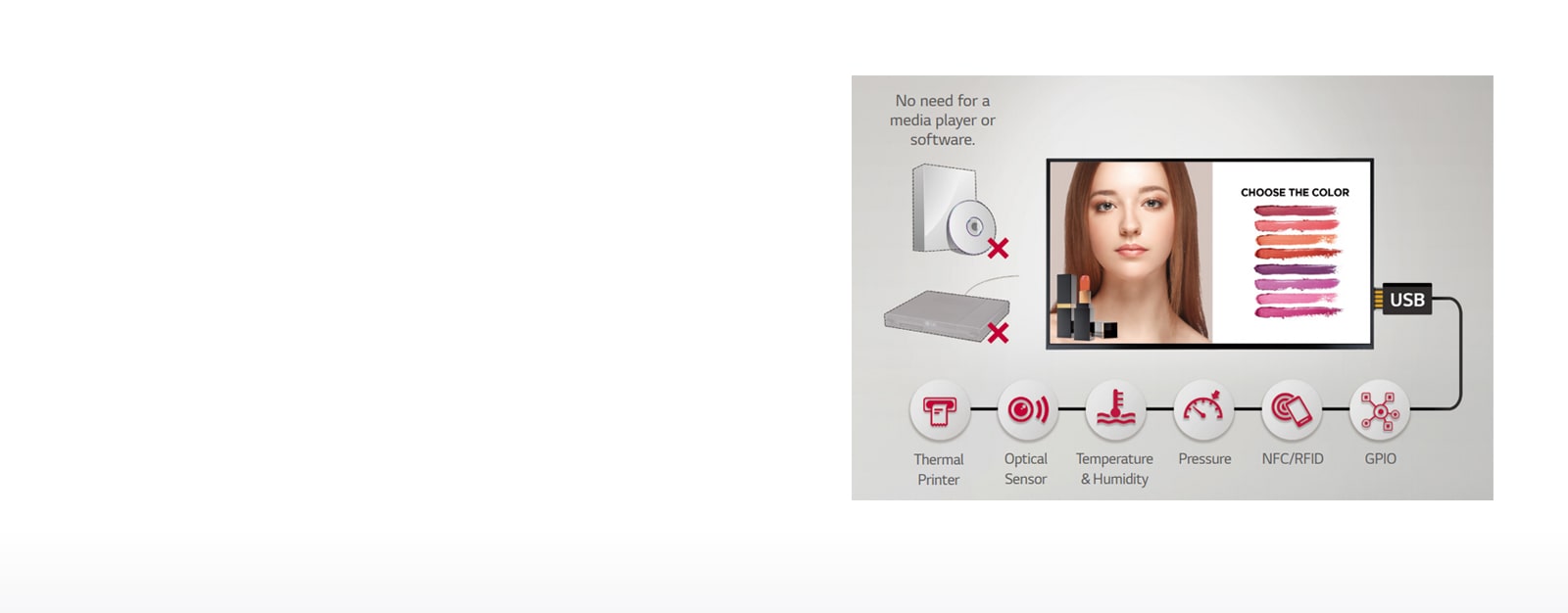

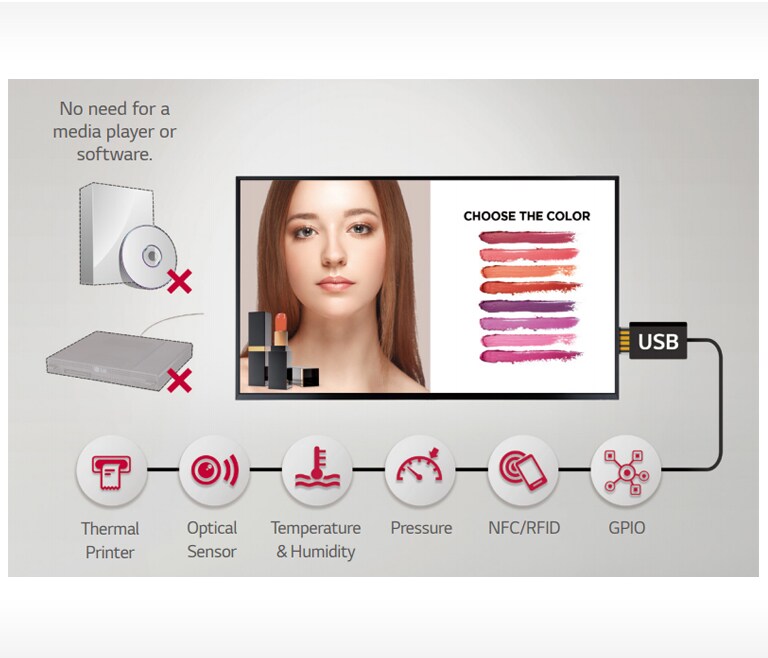

Various Sensor Applications

LG webOS smart signage platform easily supports connections with external sensors such as GPIO, NFC/RFID, temperature sensors, etc, via USB plug-in. The overall cost for maintenance is reduced as there's no need to purchase additional software or media players for creating value-added solutions.

MEETING ROOM SOLUTION COMPATIBILITY

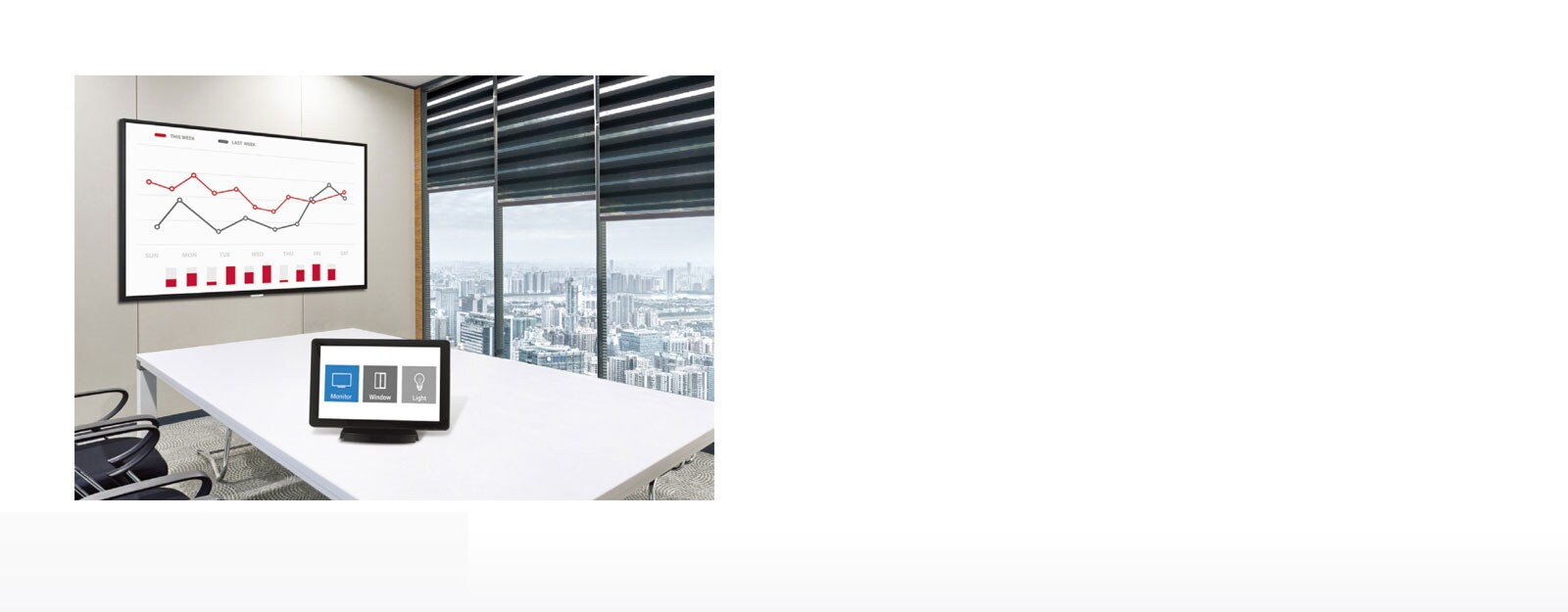

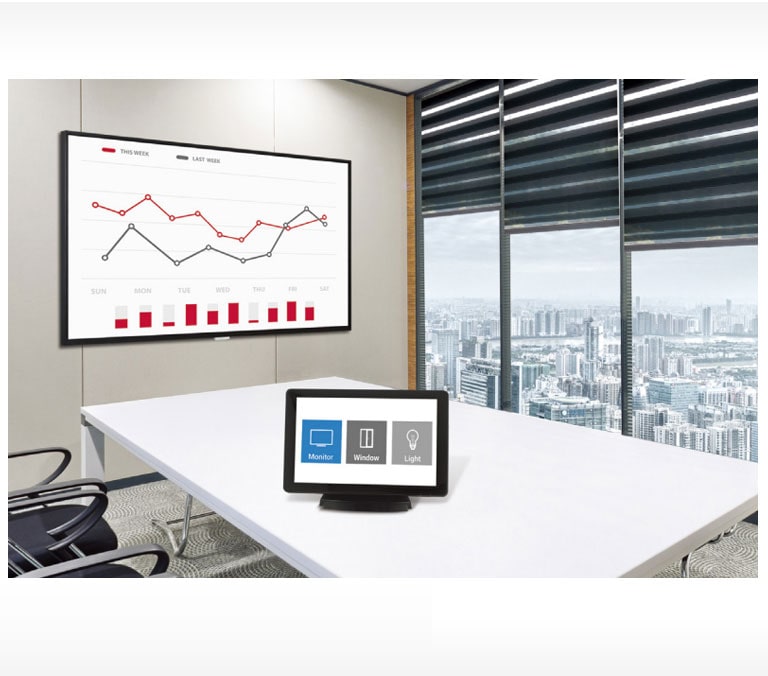

Compatible with AV Control System

The UM3F/E series has been certified Crestron Connected® for high compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency.

* Network based control

Compatible with Video Conference System1

MEETING ROOM SOLUTION COMPATIBILITY

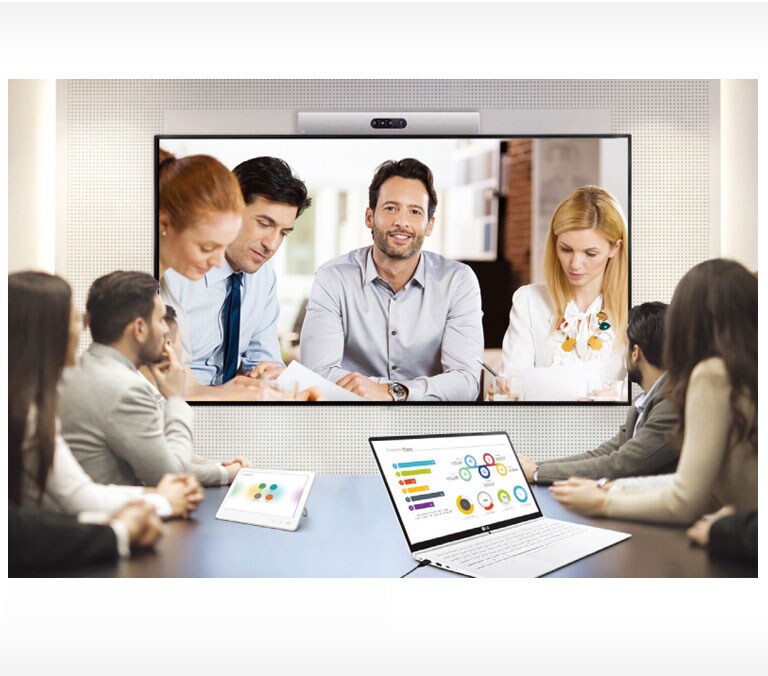

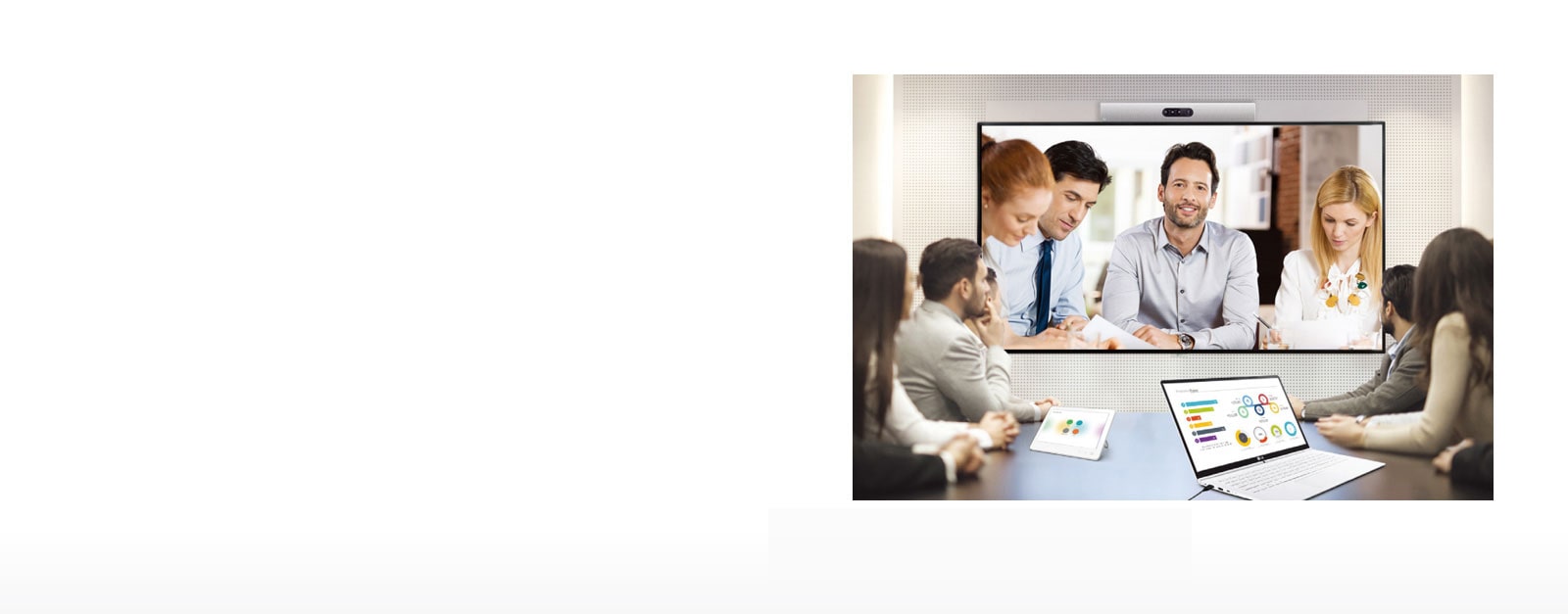

Compatible with Video Conference System

For the optimum visual meeting, the UM3F/E series has certified its compatibility with Cisco System that offers powerful and integrated control* for a smarter video conference, eliminating a waste of time for setting up the picture quality or changing input on incoming calls.

* Using an HDMI cable connection

USER CONVENIENCE

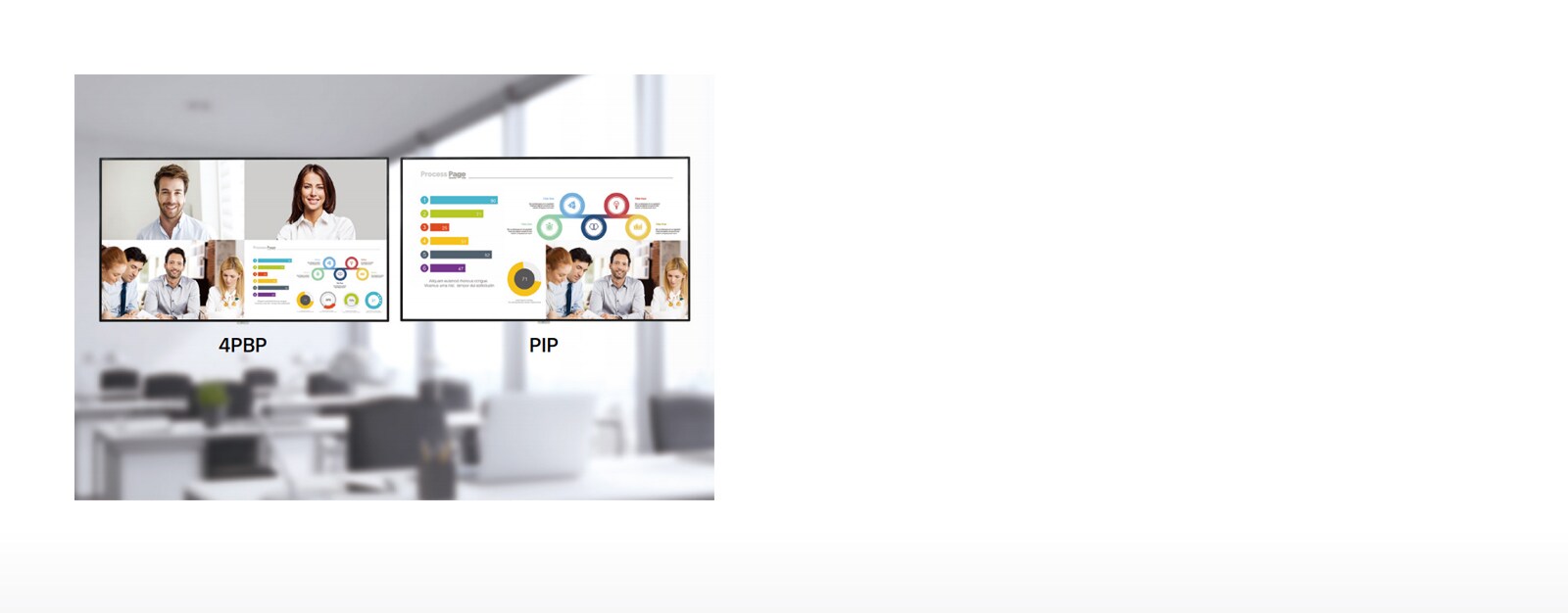

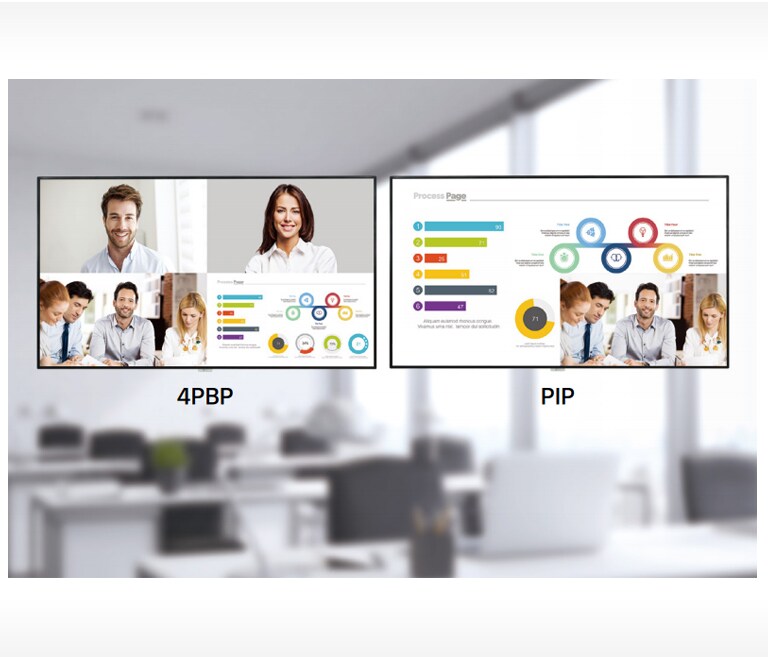

Multi Screen with PBP/PIP

PBP ^{(Picture-By-Picture)} features multi screen in a single display with up to 4 input sources while PIP ^{(Picture-In-Picture)} supports playing both main screen and sub screen at the same time with various layouts. This gives great flexibility to allocate space for each content source.

USER CONVENIENCE

Real-Time Monitoring & Control

Through the Control Manager, the embedded web monitoring solution, you can control and monitor the status of multiple UM3F/E series displays in different locations in real-time. It is available on internetconnected devices, allowing you to flexibly and rapidly respond to emergency situations anywhere.

USER CONVENIENCE

Content Sharing

Content Mirroring among devices is more convenient on a Wi-Fi network.
Real-time Promotion

With Beacon and BLE(Bluetooth Low Energy), shop managers can provide coupons and information in real-time.
Wireless Access Point

The UM3F/E series operates as a virtual router which can be a wireless access point for mobile devices.

PANEL

Screen Size

98"

Panel Technology

IPS
Aspect Ratio

16 : 9

Native Resolution

3,840 x 2,160 (UHD)
Refresh Rate

120 Hz

Brightness(Typ.,cd/m²)

350
Contrast Ratio

1,300:1

Viewing Angle (H x V)

178 x 178
Response Time

8ms (G to G)

Surface Treatment (Haze)

Haze 1%
Life Time (Typ.)

50,000 Hrs

Operation Hours

24Hrs
Orientation

Portrait & Landscape

CONNECTIVITY

Input

HDMI (3), DP, DVI-D, Audio, USB 2.0 (2)

Output

DP, Audio (Off/Fixed/Variable)
External Control

RS232C In/out (4 Pin Phone-Jack), RJ45 (LAN) In, IR In

MECHANICAL SPECIFICATION

Bezel Color

Black

Bezel Width

14.9 mm (Even) * Off-Bezel
Monitor Dimension (W × H × D)

2,191.8 x 1,246.8 x 83.8 mm (without Handle and Logo)

Weight (Head)

81.1 kg
Carton Dimensions (W × H × D)

2,354 x 1,386 x 420mm

Packed Weight

119 kg
Handle

Yes

VESA™ Standard Mount Interface

800 x 400 mm

ENVIRONMENT CONDITIONS

Operation Temperature

0°C to 40°C

Operation Humidity

10% to 80%

POWER

Power Supply

100-240V~, 50/60Hz

Power Type

Built-In Power

POWER CONSUMPTION

Typ. / Max.

315 W / 415 W

Smart Energy Saving

221 W

SOUND

Speaker

Built-in (10W×2)

CERTIFICATION

Safety

CB / NRTL

EMC

FCC Class “A” / CE / KC
ErP / Energy Star

Yes (EU Only) / N/A

MEDIA PLAYER COMPATIBILITY

OPS Type Compatible

No

SOFTWARE COMPATIBILITY

Content Management Software

SuperSign CMS

Control and Monitoring Software

SuperSign Control/Control+

ACCESSORY

Basic

Remote Controller, Power Cord, QSG, IR/Light Sensor Receiver, DP Cable (1.8M), Regulation Book, Phone to RS232C Gender, EYE-BOLT

Optional

No

COMPLIANCE INFORMATION

More Compliance Information

The safety information for accessories is included with the safety information for the product and is not provided separately.
The safety information for accessories is included with the safety information for the product and is not provided separately.
