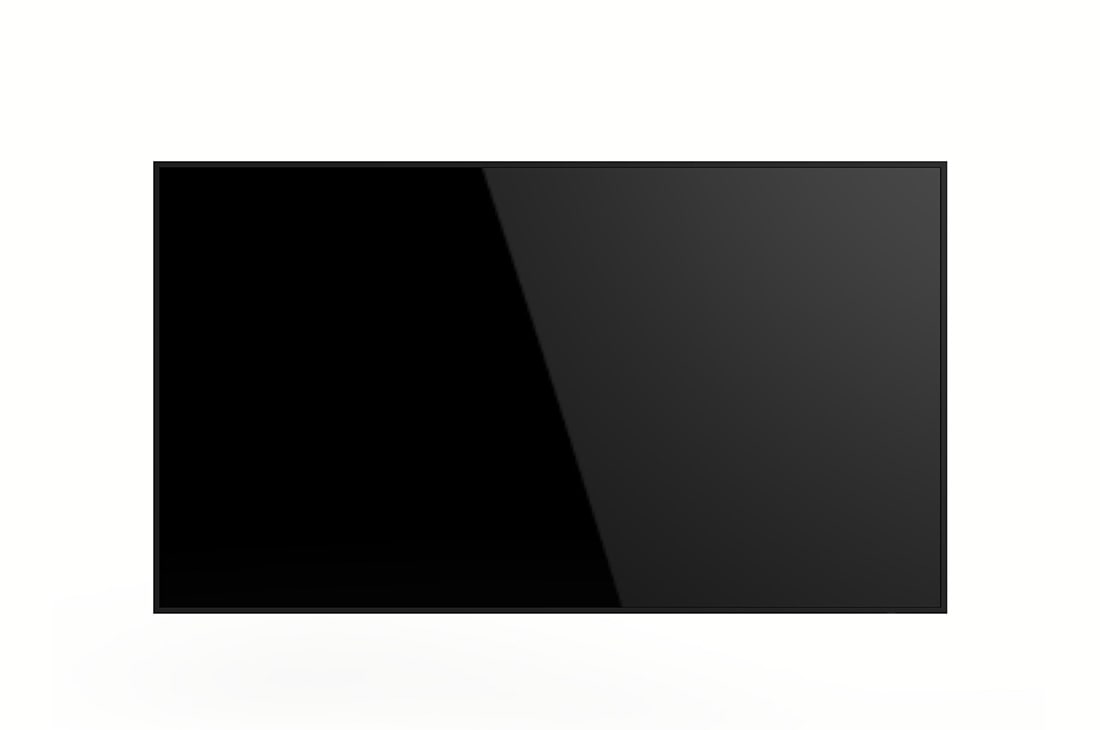

LG UHD Large Screen Signage Display, Front view, 98UM5J-B, thumbnail 2

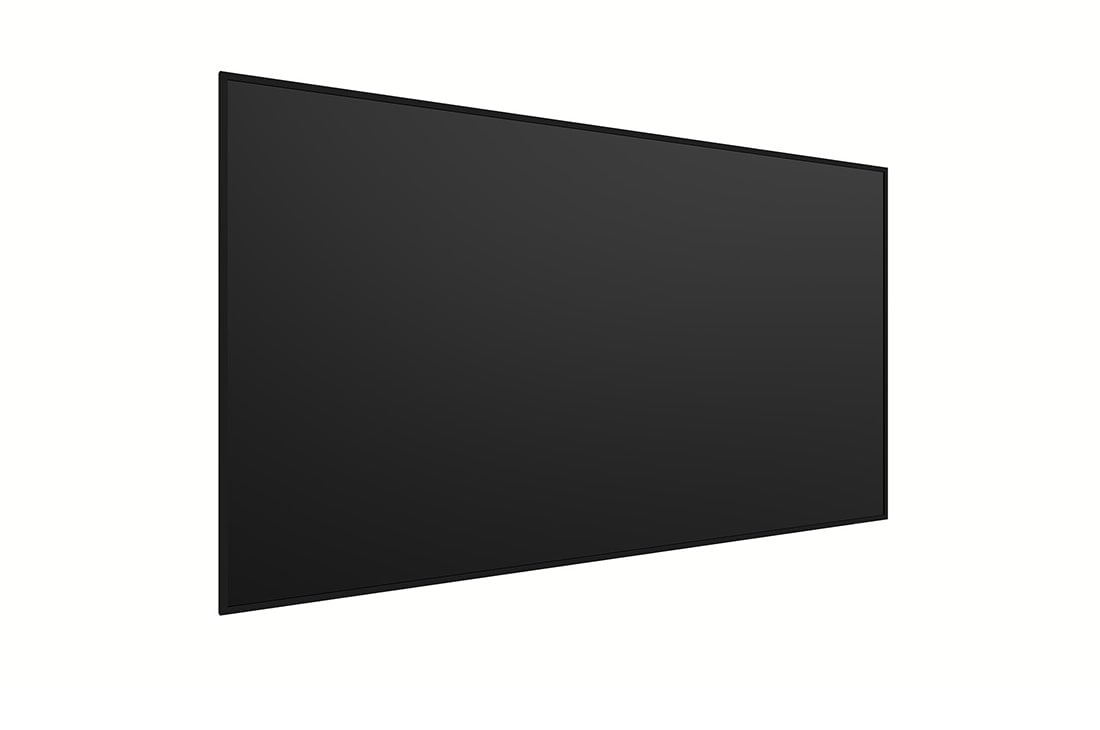

LG UHD Large Screen Signage Display, +45 degree side view, 98UM5J-B, thumbnail 3

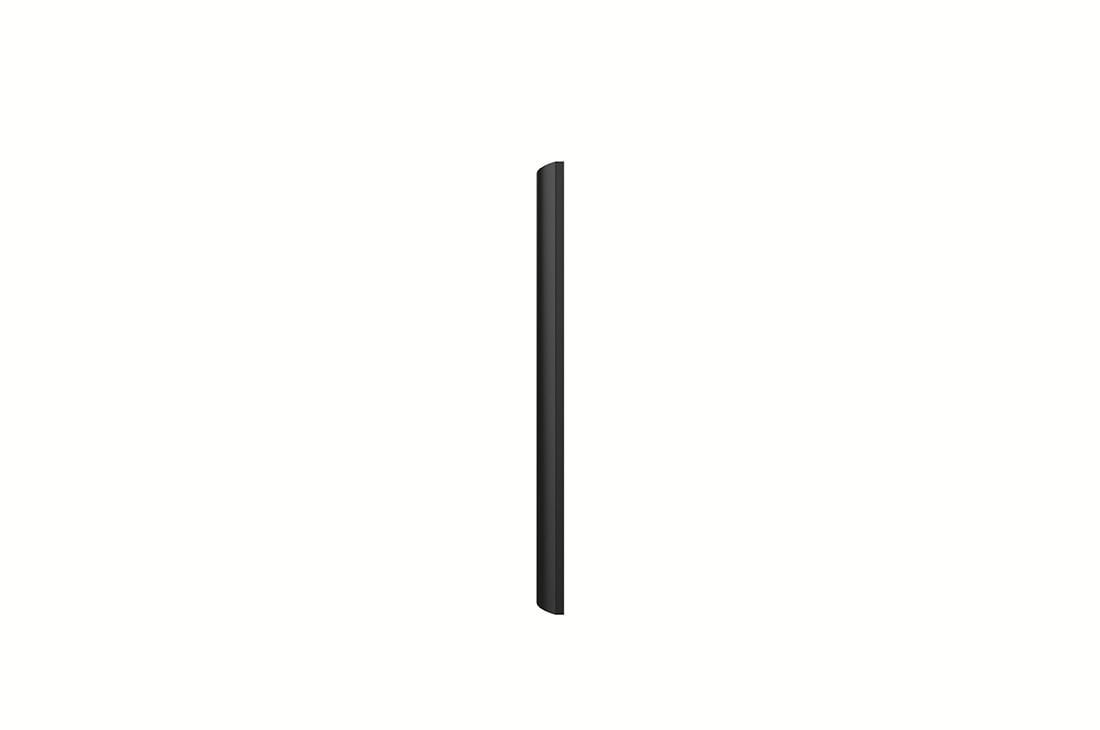

LG UHD Large Screen Signage Display, +90 degree side view, 98UM5J-B, thumbnail 4

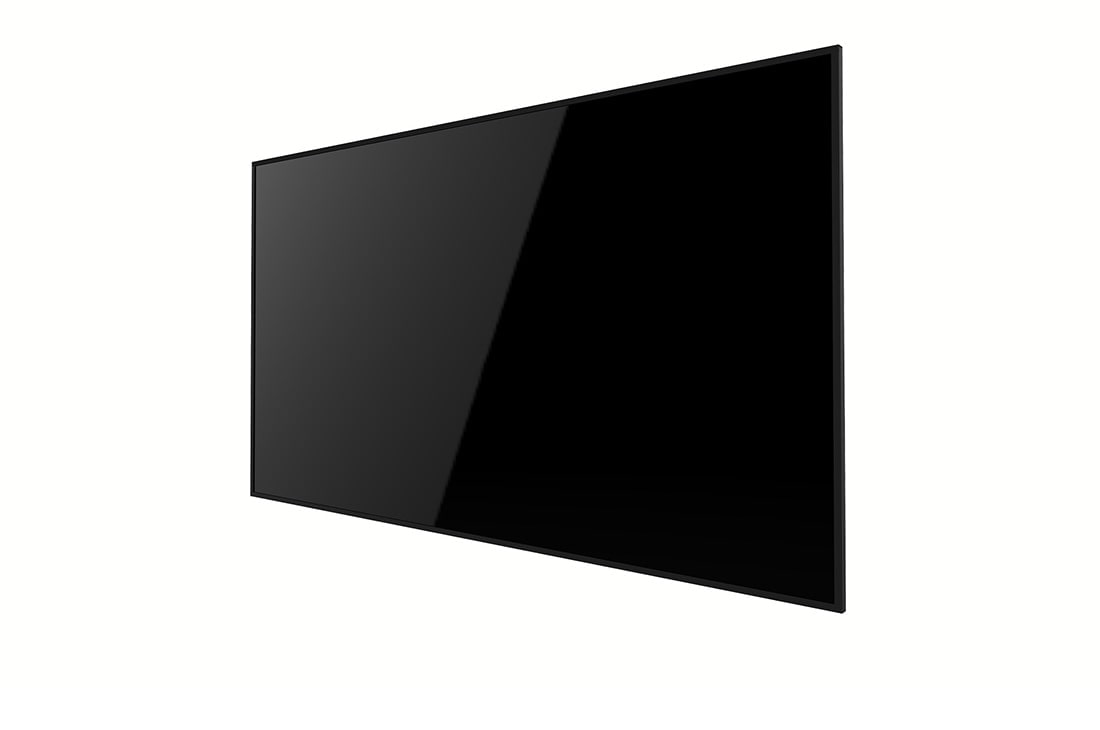

LG UHD Large Screen Signage Display, -45 degree side view, 98UM5J-B, thumbnail 5

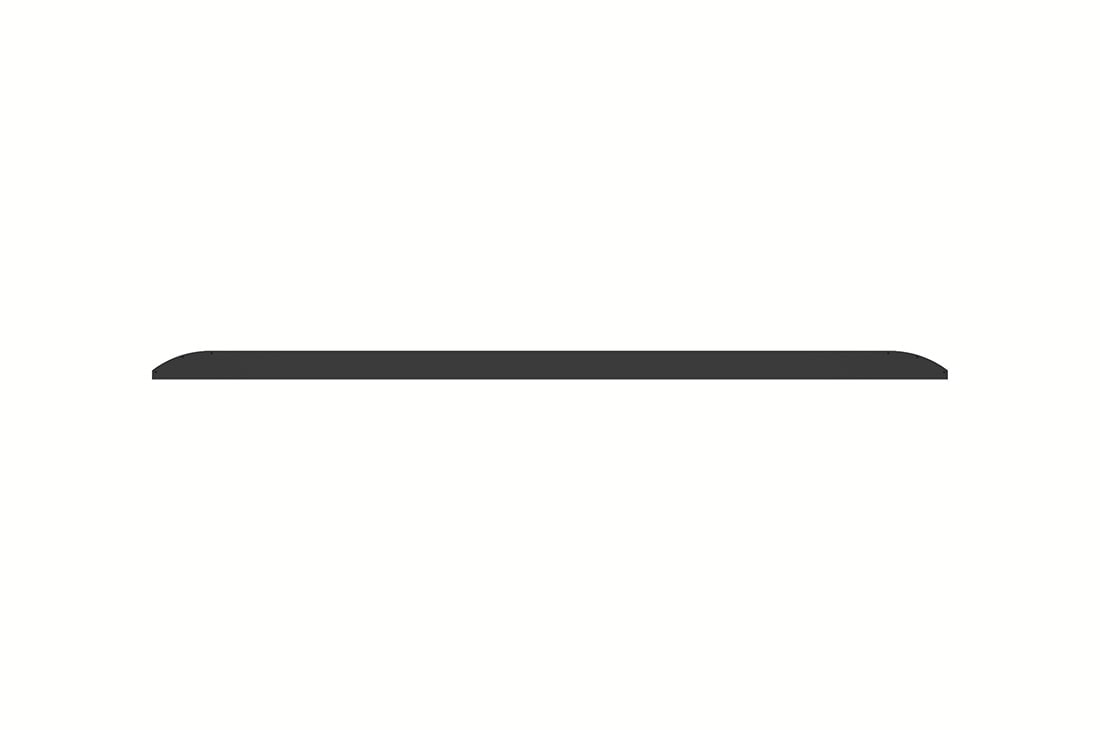

LG UHD Large Screen Signage Display, Top view, 98UM5J-B, thumbnail 6

ADD TO WISHLIST

Discontinued

98UM5J-B component-copyModelName

UHD Large Screen Signage Display

Name: UHD Large Screen Signage Display
Brand: LG UAE
SKU: 98UM5J-B
Rating: 0 (0 reviews)

Key Features

Brightness : 500 nit (Typ.)
Resolution : ULTRA HD (3,840 x 2,160)
Built-in Wi-Fi / Bluetooth
Built-in Speaker (10 W + 10 W)

Choose your Size

Find a Dealer

Add to Compare

component-OBScountrySelectDesc

Key Features

Brightness : 500 nit (Typ.)
Resolution : ULTRA HD (3,840 x 2,160)
Built-in Wi-Fi / Bluetooth
Built-in Speaker (10 W + 10 W)

Choose your Size

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

UHD Large Screen Signage Display

A man is watching an advertisement on the big screen of a sports store.

* All images in this web page are for illustrative purposes only.

Slim Design

Being slim, a closer installation to the wall is advised. Additionally, this increases the screen’s immersive experience and provides a sophisticated design, improving the installed-space’s décor.

The bezel size of UM5J is 17mm. And the depth of the UM5J 98" is 79.5mm, and 110" is 99mm.

Super High Resolution

Delivering immersive viewing experience by 4 times higher definition picture quality than FHD.

This image illustratively compares FHD resolution and UHD resolution. This image indicates that the screen with UHD has 4 times higher resolution than FHD, so contents can be seen more vivid and colorful.

Built-in Speaker

Contents will be enriched with sound effects from built-in speakers, without the need for purchasing or installing external speakers.

* Internal Built-in Speaker Support (L/R max 10 W)

High Brightness

With a great brightness of 500 cd/m², UM5J series clearly deliver contents and attract public attention, which is the ultimate display for market of retail, cooperate etc.

UM5J has a brightness of 500 nits, so it is clearly visible, even under strong light.

Support HDMI CEC Command

This allows you to use the LG Remote Controller to control the basic functions of connected HDMI devices.

UM5J has a function called HDMI-CEC, so when HDMI is connected, other devices connected to the TV can be easily operated using an LG Remote Controller.

* The LG Media Player and LG Remote Controller may appear differently than the actual ones.

TYPE

Type

Standard

PANEL

Screen Size

98"

Panel Technology

IPS
Back Light Type

Direct

Aspect Ratio

16 : 9
Native Resolution

3840 x 2160 (UHD)

Refresh Rate

60Hz
Brightness

500nit (Typ.)

Contrast Ratio

1,200:1
Dynamic CR

200,000:1

Color Gamut

NTSC 85%
Viewing Angle(H x V)

178 Deg.(H) x 178 Deg.(V)

Color Depth

1.07Billon colors(8bit + FRC)
Response Time

8ms

Surface Treatment(Haze)

1%
Life time

30,000Hrs (Typ)

Operation Hours (Hours/Day)

16/7
Portrait / Landscape

Yes / Yes

CONNECTIVITY

Input

HDMI (3), RJ45(LAN) (1, FW update only), IR IN (No, Built-in IR), USB2.0 Type A (2)

Output

Audio Out (SPDIF 1, Phone Jack 1)

MECHANICAL SPECIFICATION

Bezel Color

Black

Bezel Width

T/B/L/R: 17mm
Weight(Head)

78kg

Packed Weight

105kg
Monitor Dimension(W x H x D)

2198 x 1253 x 79.5mm

Carton Dimensions(W x H x D) (Box outer size)

2440 x 1468 x 275mm
Wall Mount Interface

800 x 400 or 800 x 800

KEY FEATURE

HW

Internal Memory 16GB (based on EMMC), Wi-Fi / Bluetooth (Built-in), Power Indicator, Local Key Operation (7key, Power/UP/DOWN/LEFT/RIGHT/INPUT/MENU)

SW

webOS ver. (Non Smart/ Non webOS platform), Background Image (Booting Logo Image(No, LG logo only)), Rotation (Screen Rotation (Manually change)), HDMI-CEC

ENVIRONMENT CONDITIONS

Operation Temperature

0 °C to 40 °C

Operation Humidity

10% ~ 80%

POWER

Power Supply

AC 100-240V~, 50/60Hz

Power Type

Built-In Power

POWER CONSUMPTION

Typ.

500W

Max.

560W
BTU (British Thermal Unit)

1706 BTU/Hr(Typ.), 1911 BTU/Hr(Max)

Power off

0.5W

SOUND

Speaker

Yes (10W+10W)

CERTIFICATION

Safety

UL, CB

EMC

FCC Class "A" / CE
ErP / Energy Star

Ye (NewErP) / No

LANGUAGE

OSD

English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original),
Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese,
Portugues(Europe), Dutch, Czech, Greek, Turkish, Arabic, polski

ACCESSORY

Basic

LG Remote Controller(include battery 2ea),
Power Cord, Manual

COMPLIANCE INFORMATION

More Compliance Information

The safety information for accessories is included with the safety information for the product and is not provided separately.
