* Optional
Model Name | LAE029DD8E | LAE029DD8DE | LAE039DD8 | LAE039DD8D |
---|---|---|---|---|
Pixel Configuration | 3 in 1 SMD | 3 in 1 SMD | 3 in 1 SMD | 3 in 1 SMD |
Pixel Pitch(mm) | 2.97 | 2.97 | 3.91 | 3.91 |
Unit Case Resolution (WxH) |
168x336 | 168x336 | 128x256 | 128x128 |

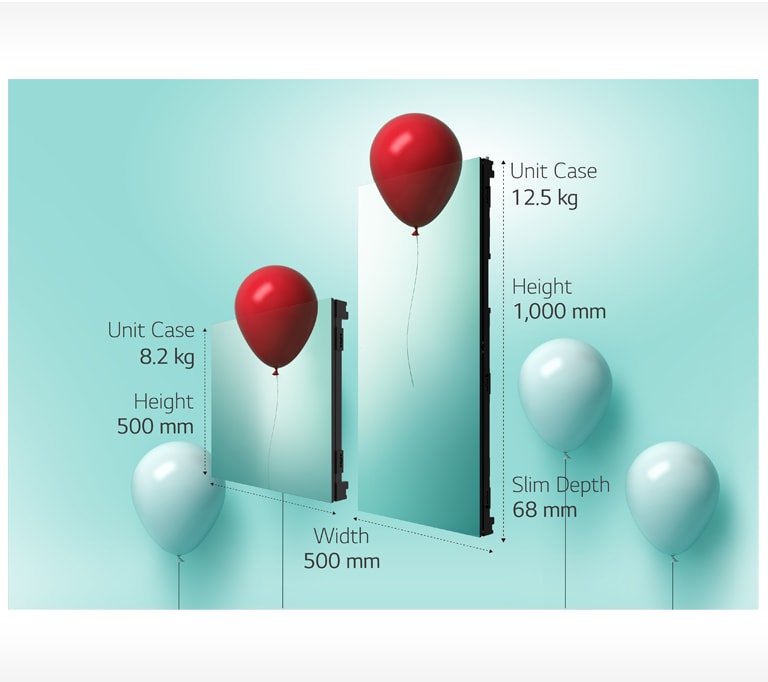

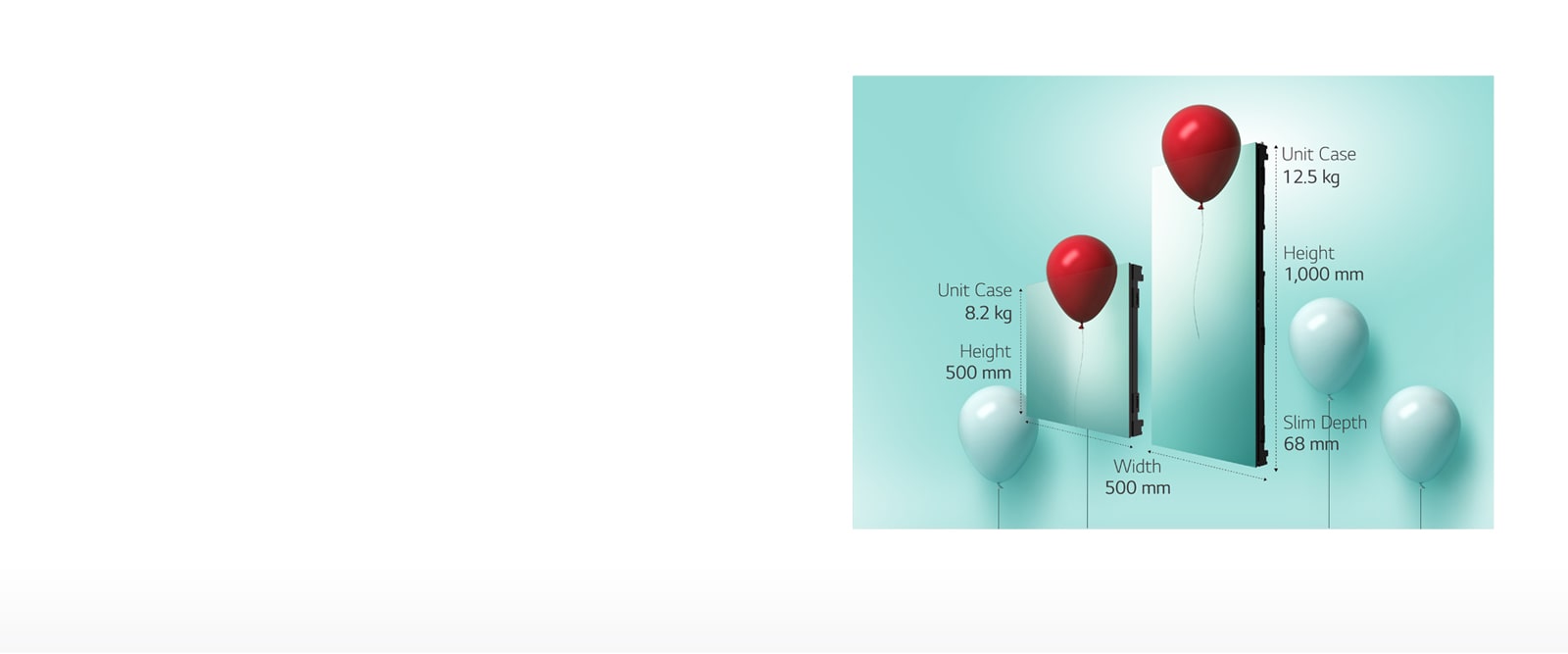

Unit Case Dimensions (W x H x D, mm) |
500x1,000x68 | 500x500x68 | 500x1,000x68 | 500x500x68 |
Weight per Unit Case / Square Meter (kg) |
15.5 / 31.0 | 10.0 / 40.0 | 12.5 / 25.0 | 8.2 / 32.8 |

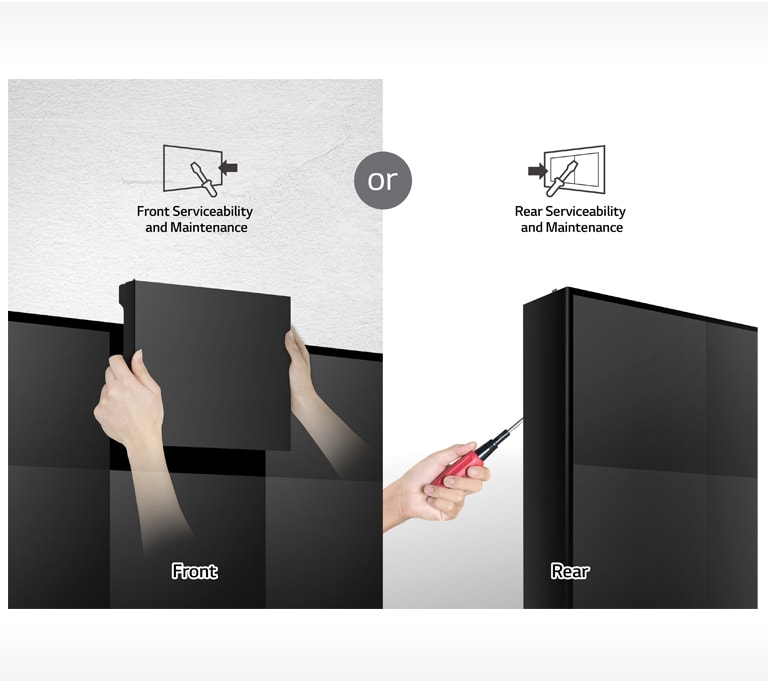

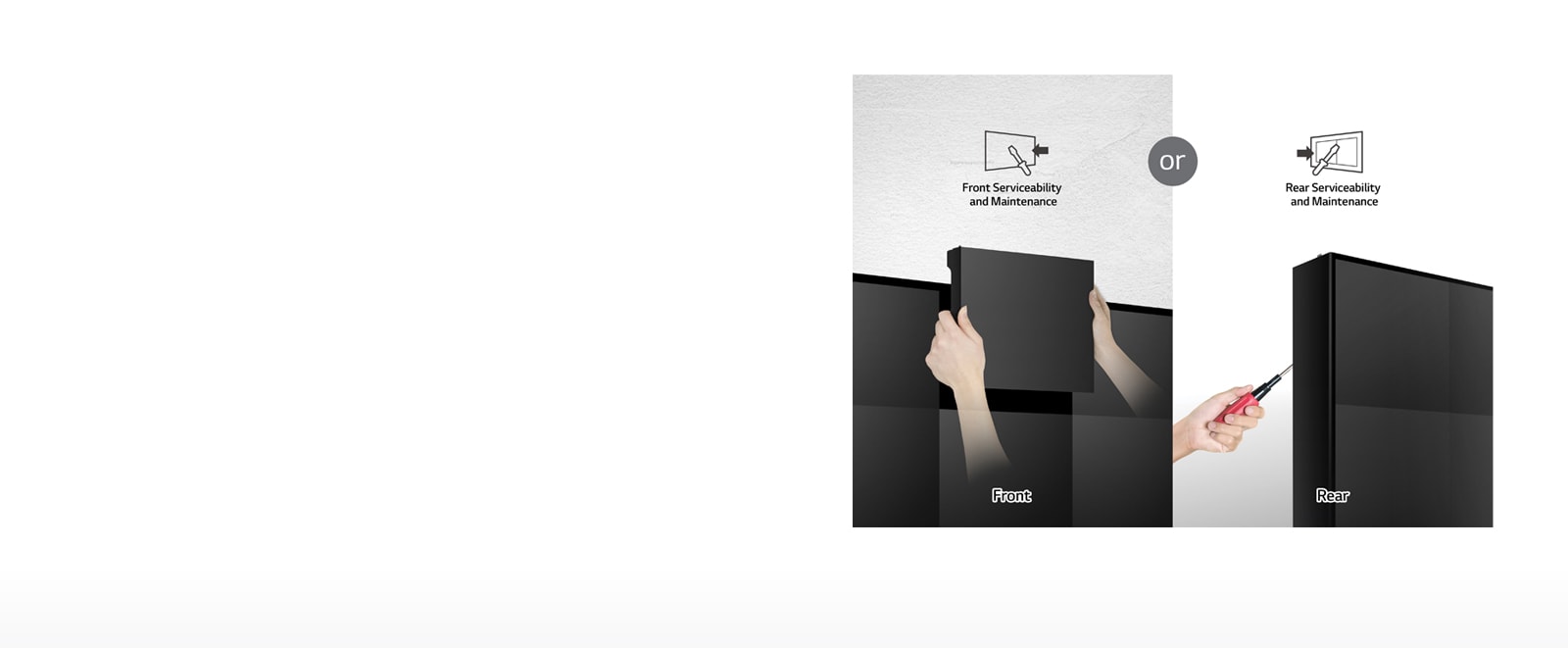

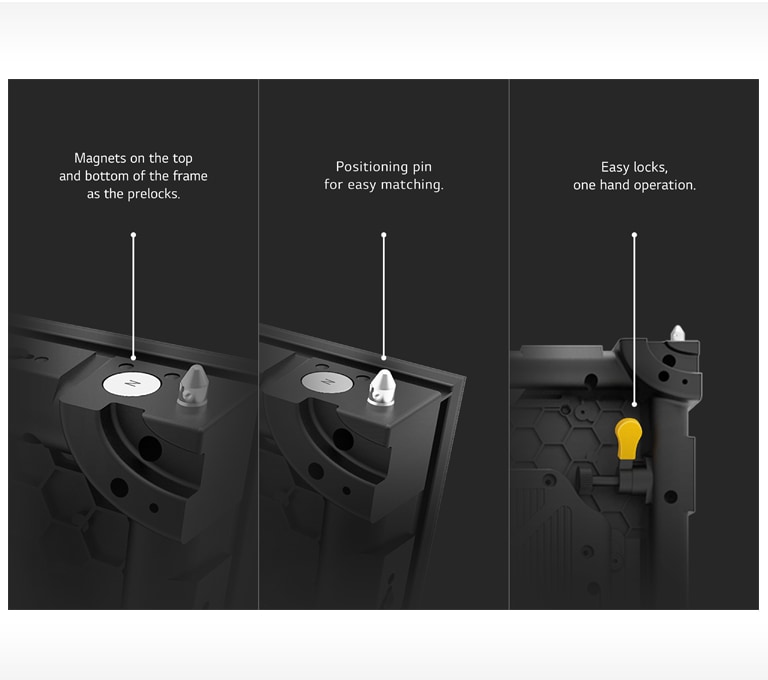

Service Access | Front or Rear (One Option Only) |
Front or Rear (One Option Only) |
Front or Rear (One Option Only) |
Front or Rear (One Option Only) |
Min. Brightness (After Calibration, cd/㎡) |
1,000 | 1,000 | 1,000 | 1,000 |
Color Temperature | 6,500 | 6,500 | 6,500 | 6,500 |
Visual Viewing Angle (Horizaontal / Vertical) |
160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 |
Brightness Uniformity | 97% | 97% | 97% | 97% |
Color Uniformity | ±0.003CxCy | ±0.003CxCy | ±0.003CxCy | ±0.003CxCy |
Contrast Ratio | 5,000 | 5,000 | 5,000 | 5,000 |
Processing Depth (bit) | 13 | 13 | 14 | 14 |
Power Consumption (W/Unit, Avg./Max.) |
330 / 110 | 160 / 53 | 330 / 110 | 160 / 53 |
Power Consumption (W/㎡, Max.) |
660 | 640 | 660 | 640 |
Power Supply (V) | 100 to 240 | 100 to 240 | 100 to 240 | 100 to 240 |
Refresh Rate (Hz) | 1,920 | 1,920 | 3,840 | 3,840 |
Lifetime (Duration of Half Brightness in Hrs) | 100,000 | 100,000 | 100,000 | 100,000 |
Operating Temperature(℃)/ Humidity | -10 to 45 / 0~80% RH | -10 to 45 / 0~80% RH | -10 to 45 / 0~80% RH | -10 to 45 / 0~80% RH |
