LAS Standard

The only go-to display you need, the LAS indoor screen boasts clearer colours and superior image quality. Find out more about our LAS indoor screens below..

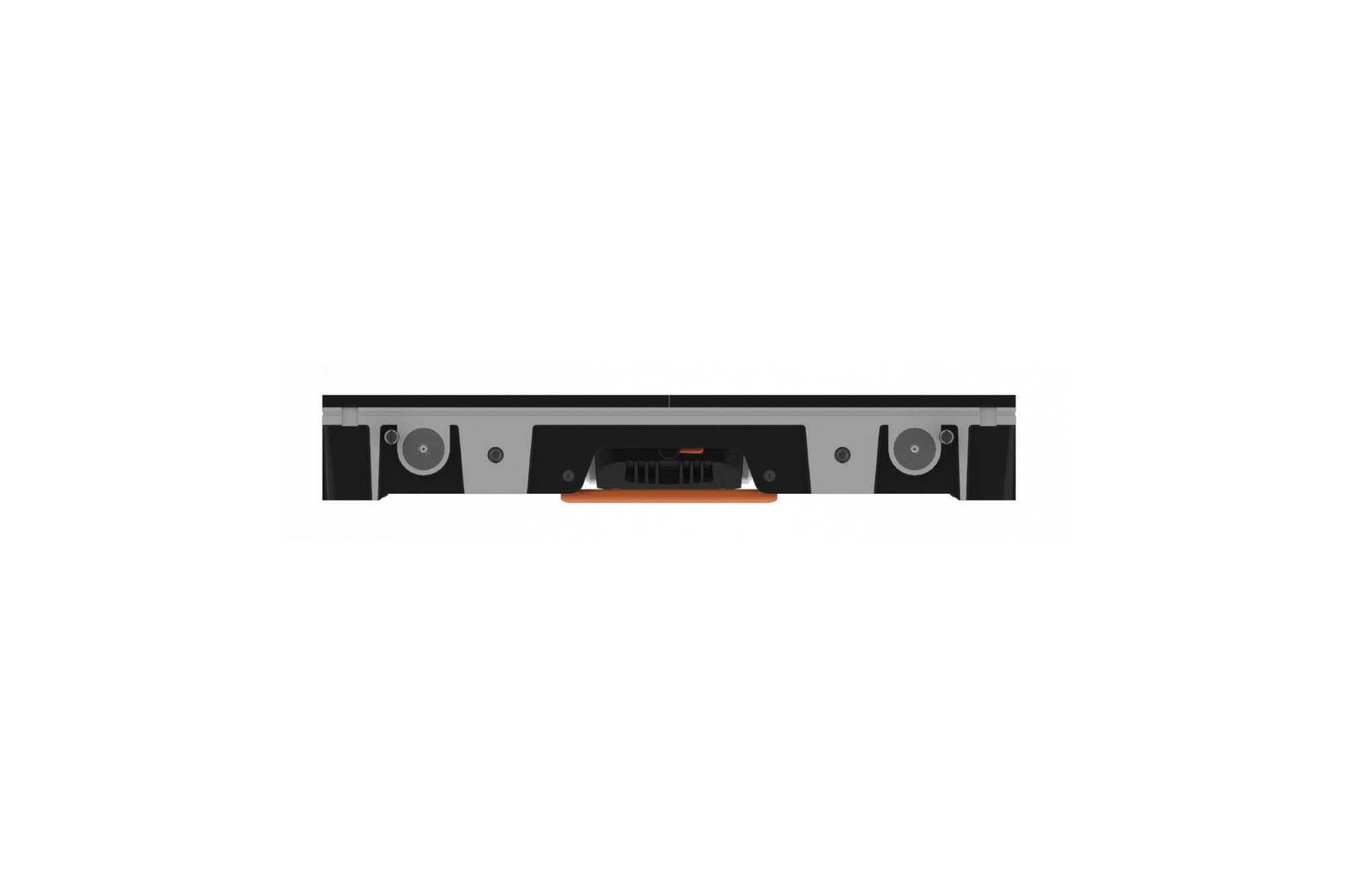

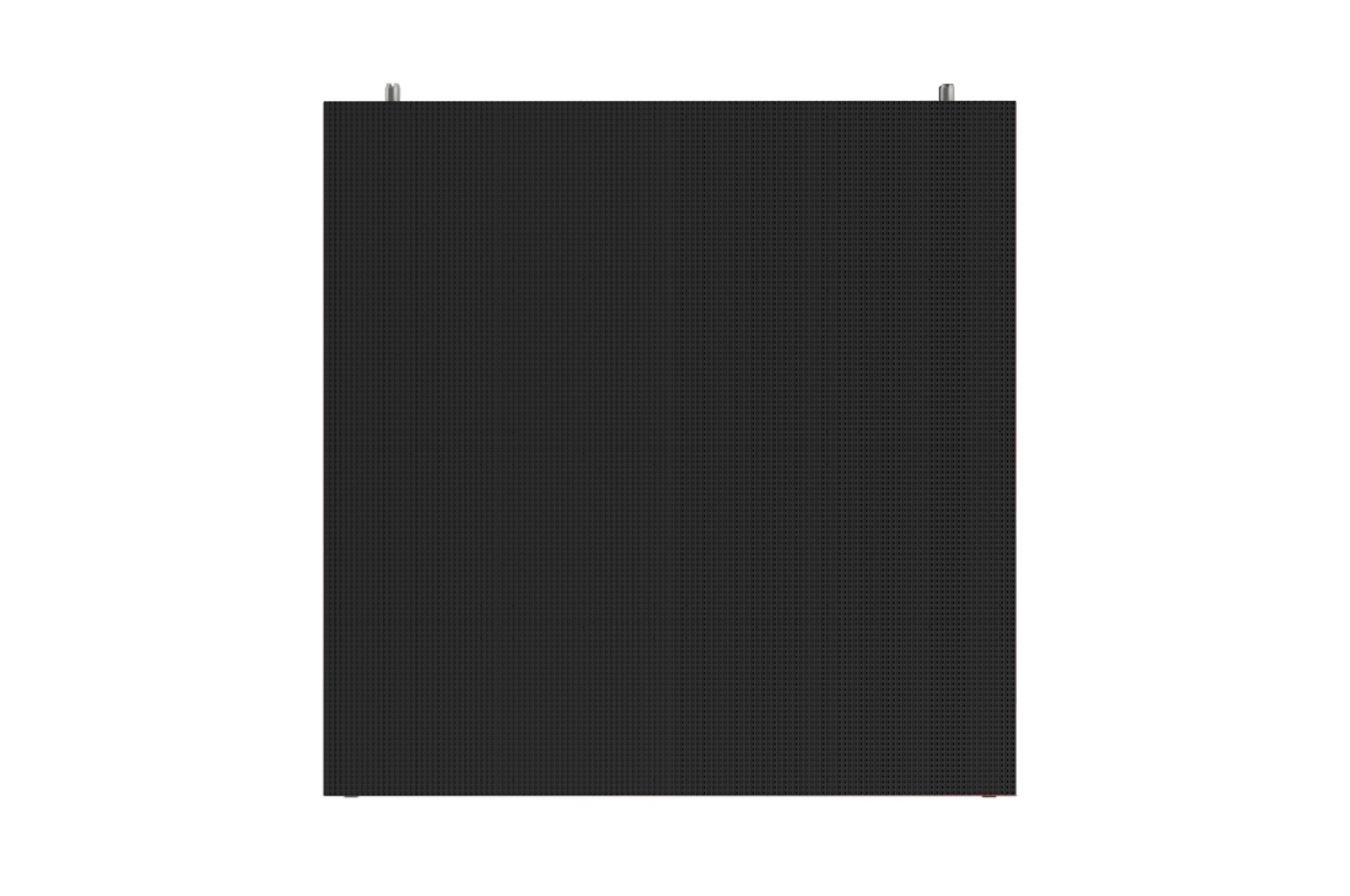

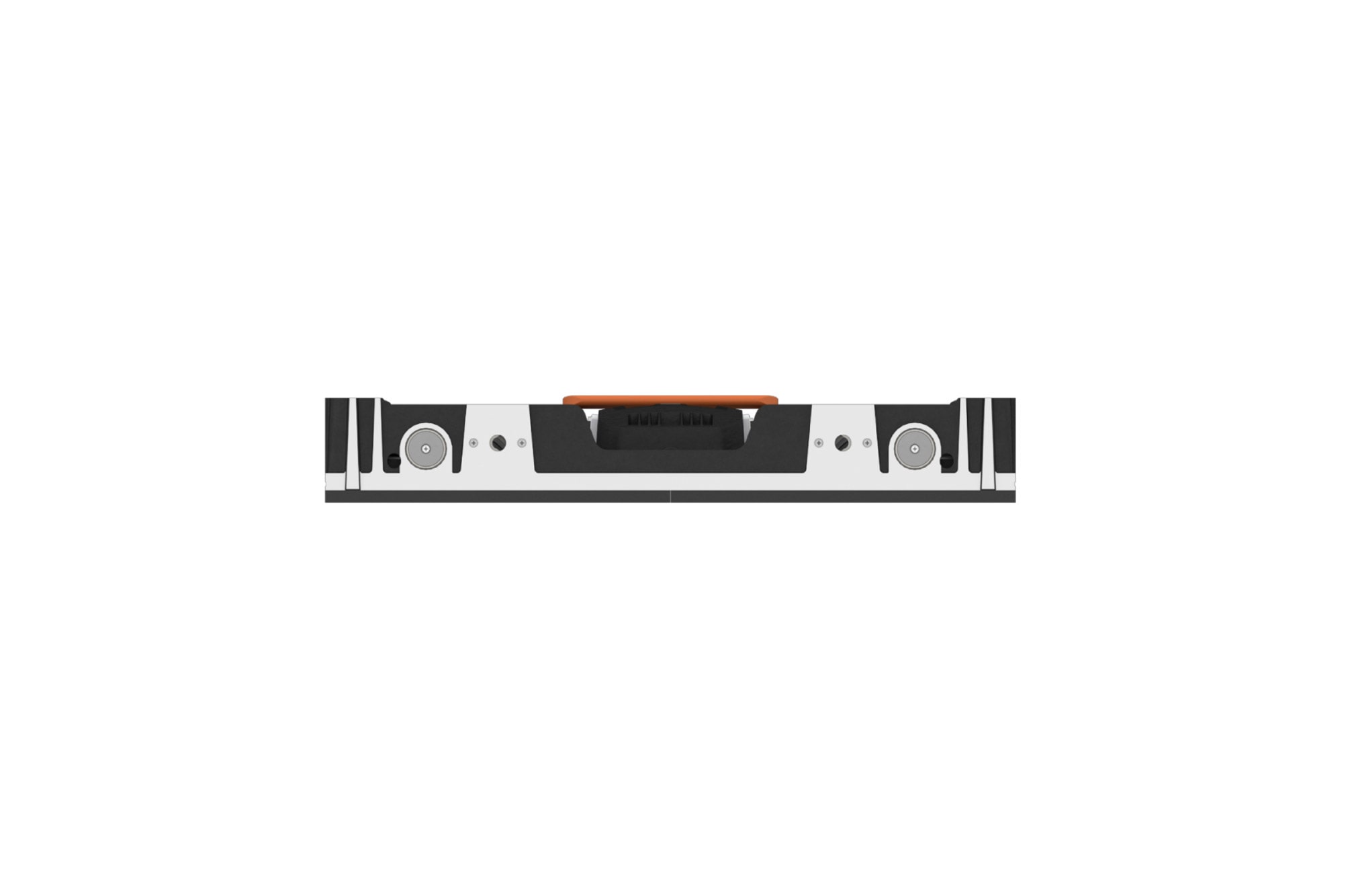

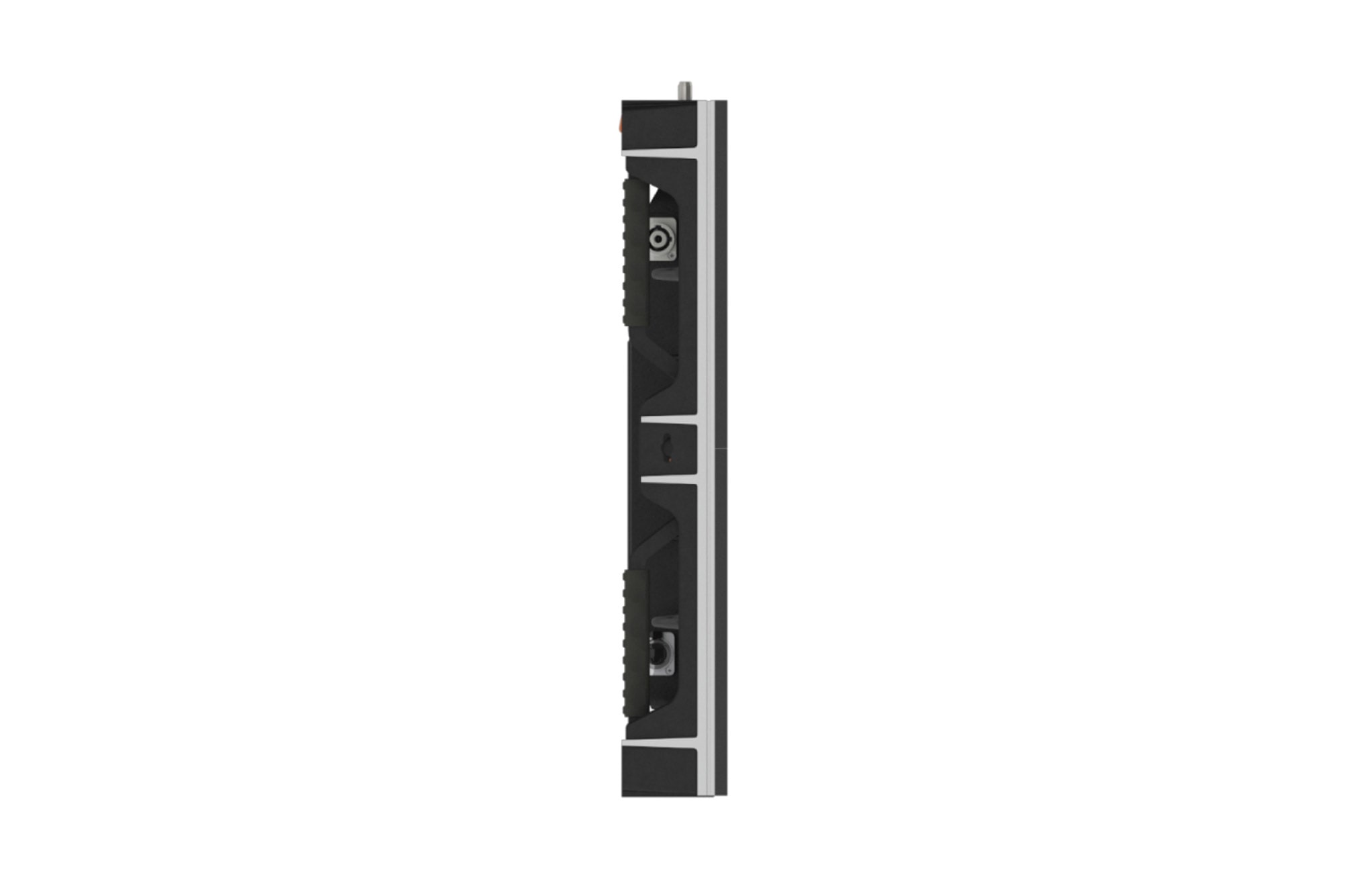

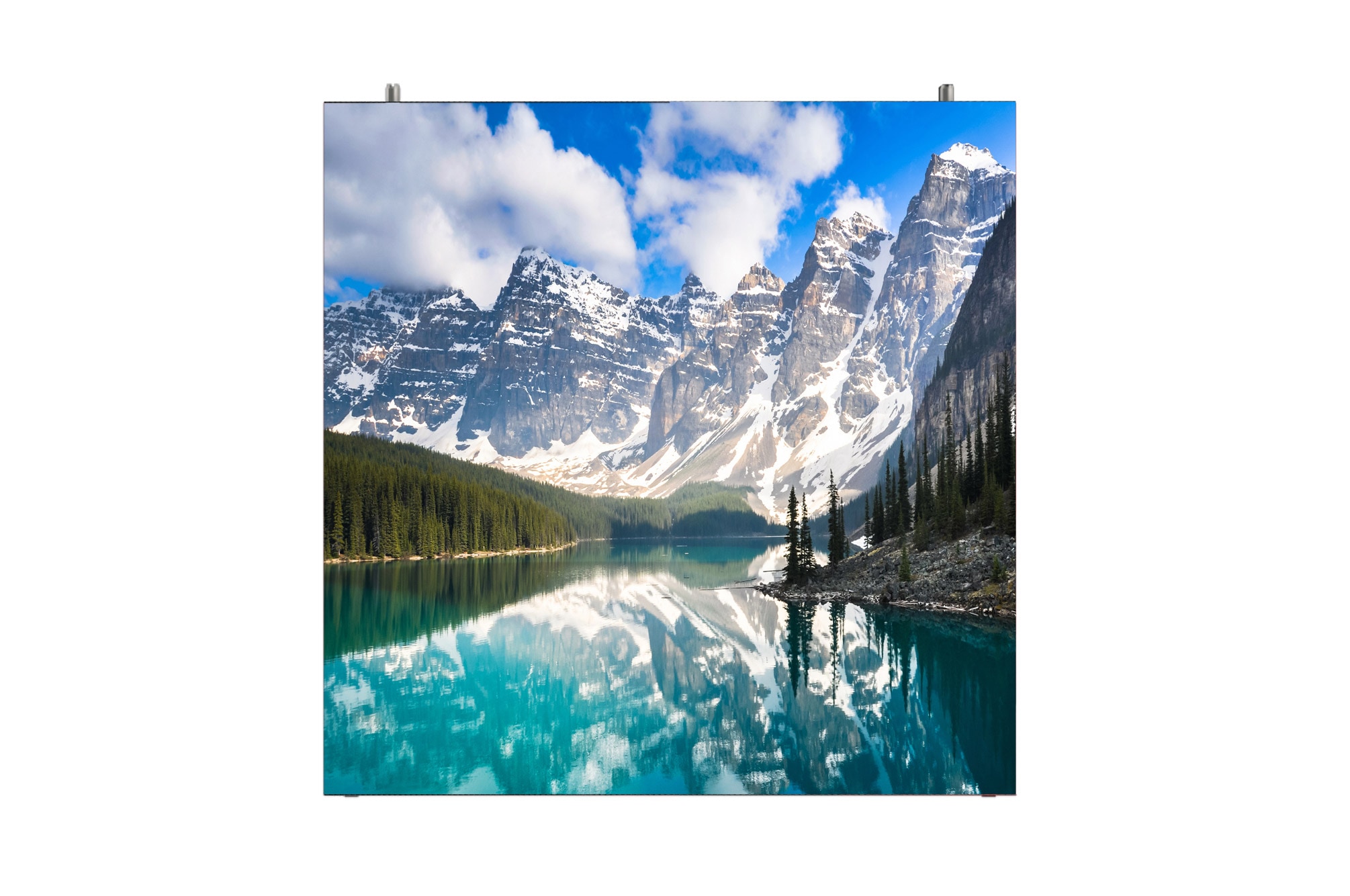

Gallery
Vertical Table
Model Name LAS025DB4-V LAS025DB7-V LAS039DB4-V LAS039DB7-V
Pixel Configuration 3 in 1 SMD 3 in 1 SMD 3 in 1 SMD 3 in 1 SMD
Pixel Pitch(mm) 2.50 2.50 3.90 3.90
Unit Case Resolution
(WxH)
200 x 200 200x200 128 x 128 128 x 128
Unit Case Dimensions
(WxHxD, mm)
500 x 500 x 74 500 x 500 x 74 500 x 500 x 74 500 x 500 x 74
Weight per Unit Case
/ Square Meter (kg)
7.0/28.0 7.0/28.0 7.0/28.0 7.0/28.0

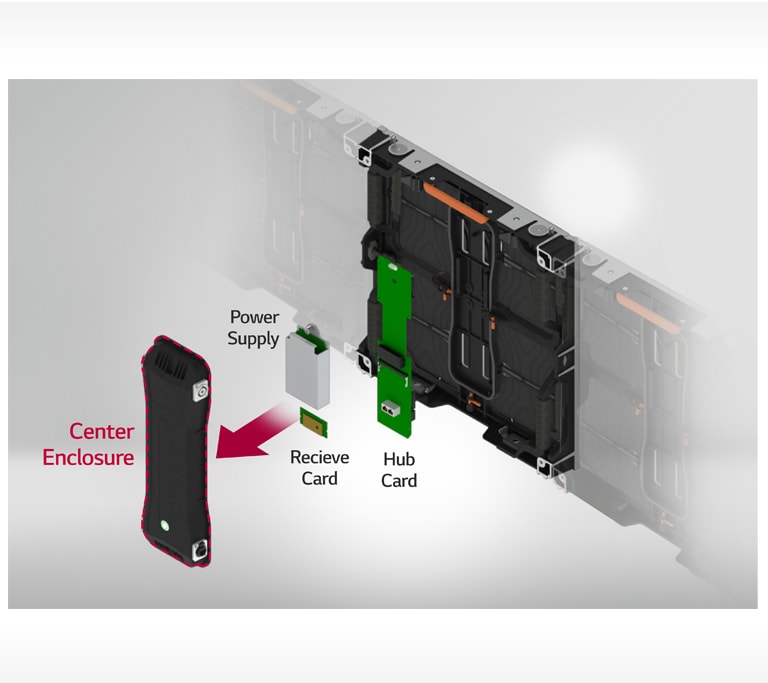

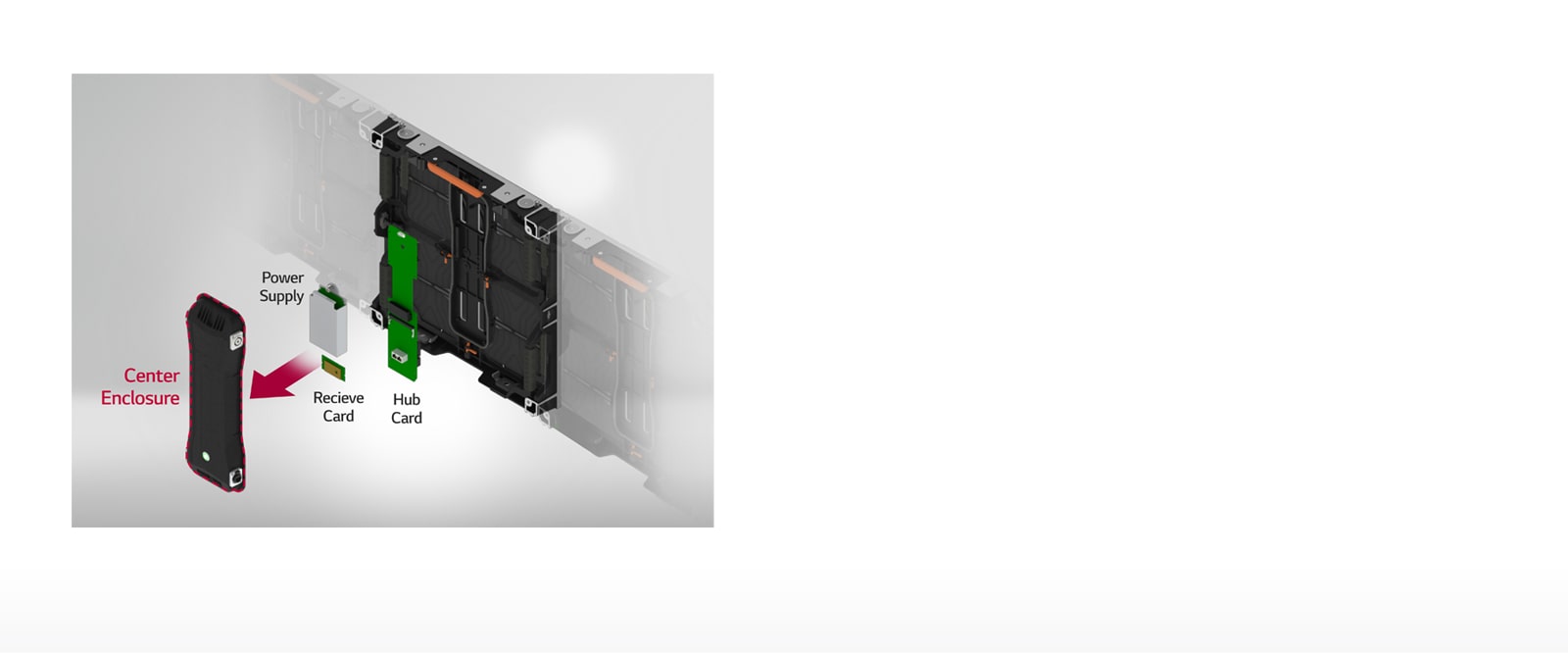

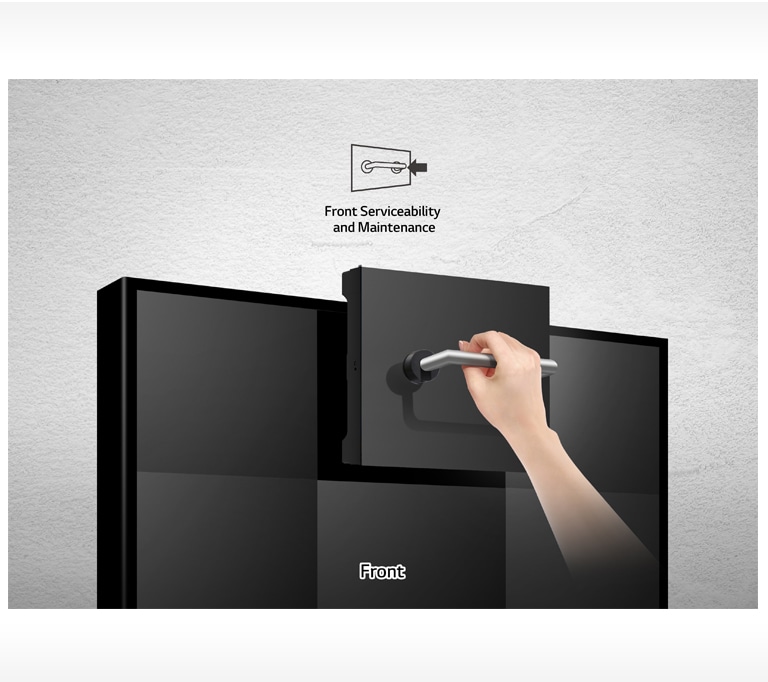

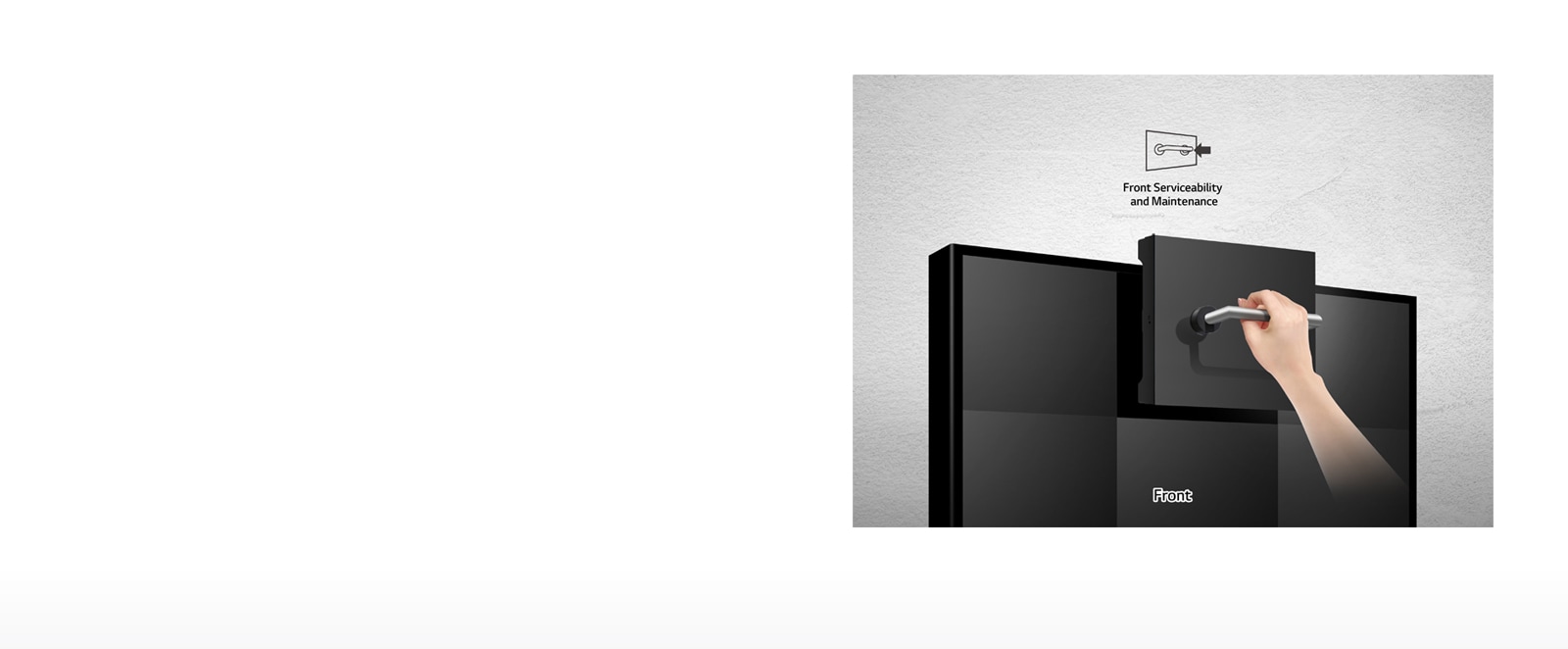

Service access Front Front Front Front
Min. Brightness
(After Calibration)
1,000 1,000 1,000 1,000
Color Temperature 3000 - 10000 3000 - 10000 3000 - 10000 3000 - 10000
Visual Viewing Angle
(Horizontal/Vertical)
160º/140º 160º/140º 160º/140º 160º/140º
Brightness Uniformity 97% 97% 97% 97%
Color Uniformity ±0.003Cx,Cy ±0.003Cx,Cy ±0.003Cx,Cy ±0.003Cx,Cy
Contrast Ratio 8,000:1 8,000:1 8,000:1 8,000:1
Processing Depth (bit) 16 16 16 16
Power Consumption
(W/Unit, Avg./Max.)
95/188 95/188 95/188 95/188
Power Consumption
(W/m², Max.)
750 750 750 750
Power Supply (V) 100 to 240 100 to 240 100 to 240 100 to 240
Refresh Rate (Hz) 3,840 3,840 3,840 3,840
Lifetime
(Half brightness)*
80,000 80,000 80,000 80,000
Operating Temperature(°C)
/ Humidity
-10° to 40°/10-80%RH -10° to 40°/10-80%RH -10° to 40°/10-80%RH -10° to 40° C/10-80%RH
* The Lifetime(Half brightness) spec is subject to LED package spec.
**Models may vary by region. Check with local salesteam for availability.
