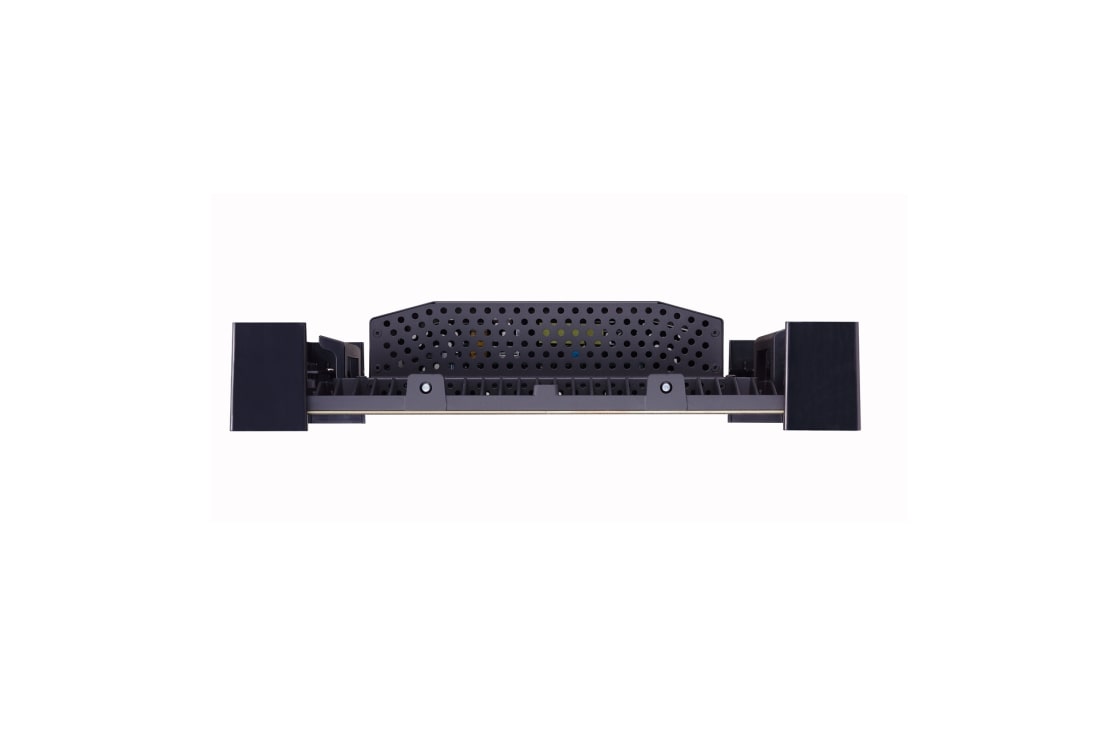

LAP010BL2 component-copyModelName

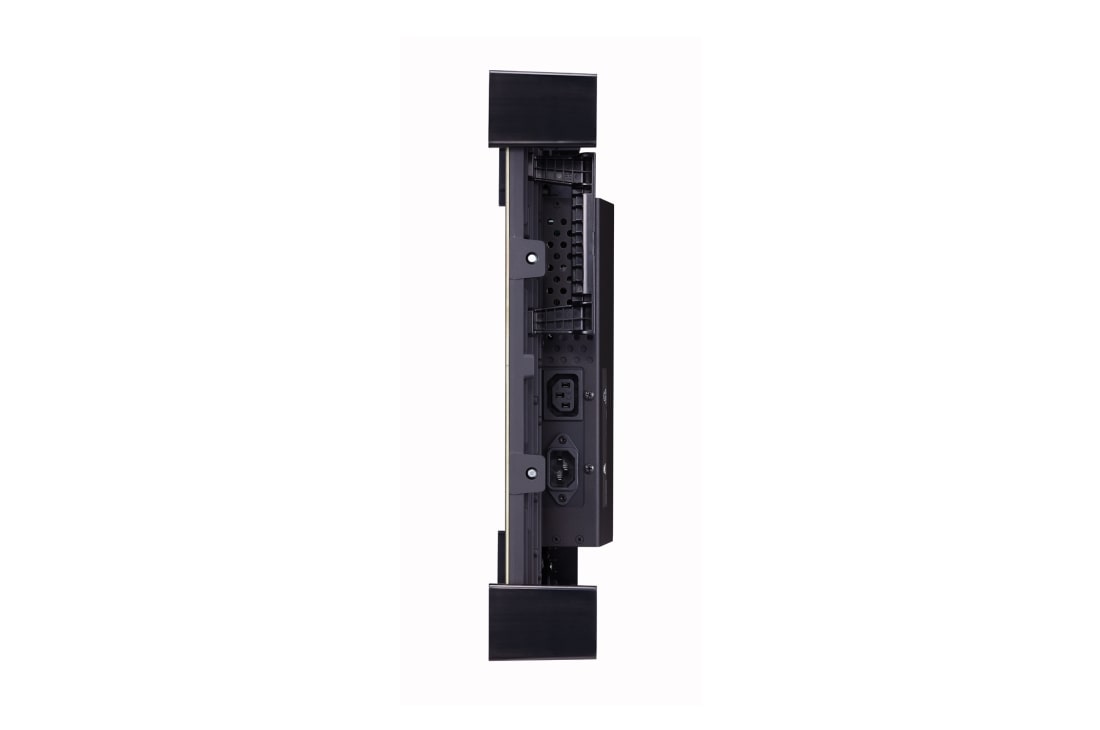

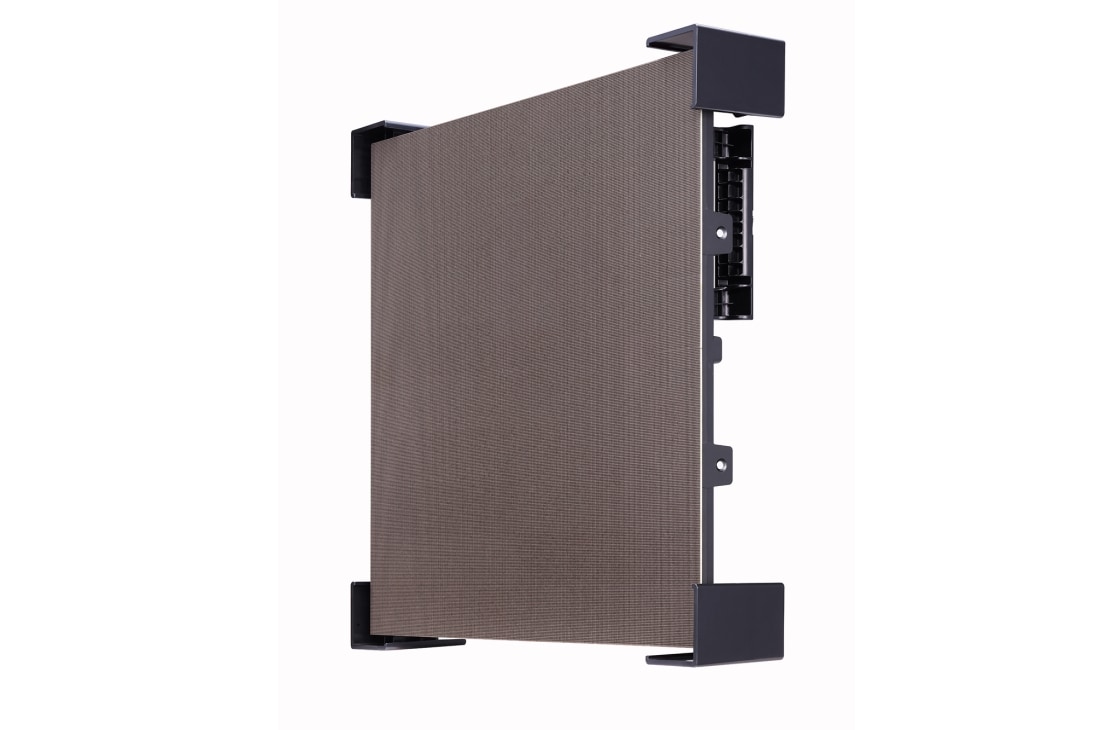

P1.0 1,000 nits LG LED Curve Series for Indoor

Key Features

Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

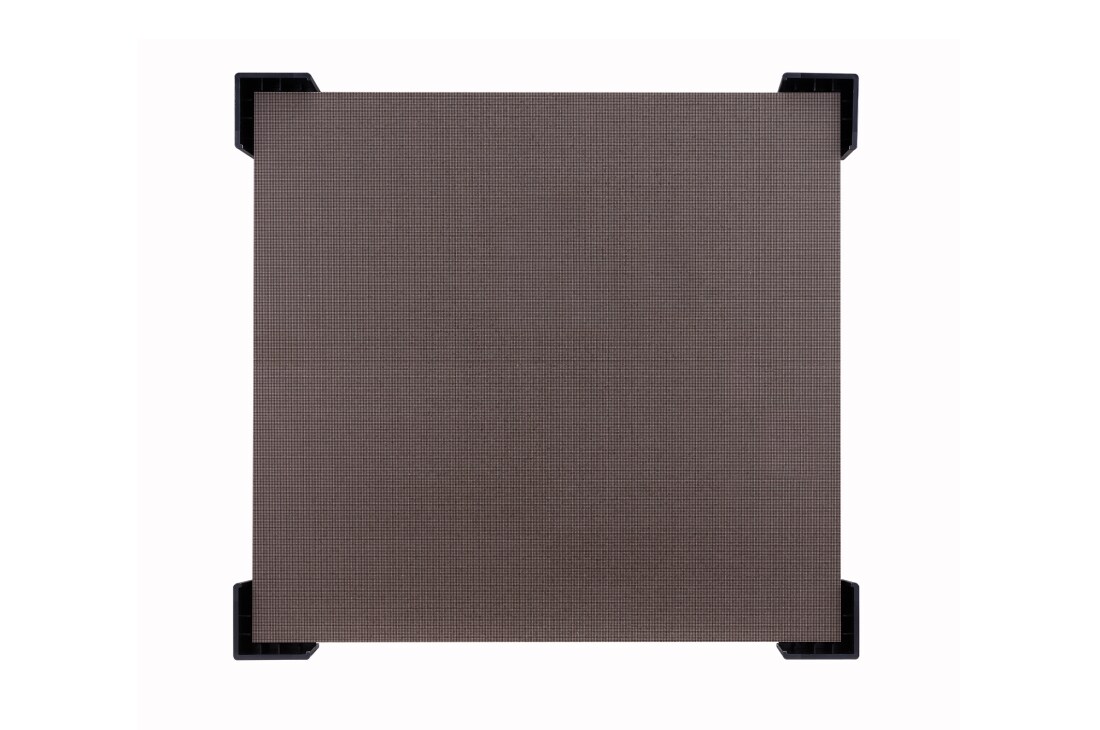

P1.0 1,000 nits LG LED Curve Series for Indoor
Find a Dealer
Close
PHYSICAL PARAMETERS
  • Pixel Configuration
    3 in 1 SMD
    Pixel Pitch(mm)
    1.00
  • Module Resolution (WxH)
    192x180
    Module Dimensions(WxH,mm)
    192x180
  • No. of Modules per Unit Case (WxH)
    2x2
    Unit Case Resolution (WxH)
    384x360

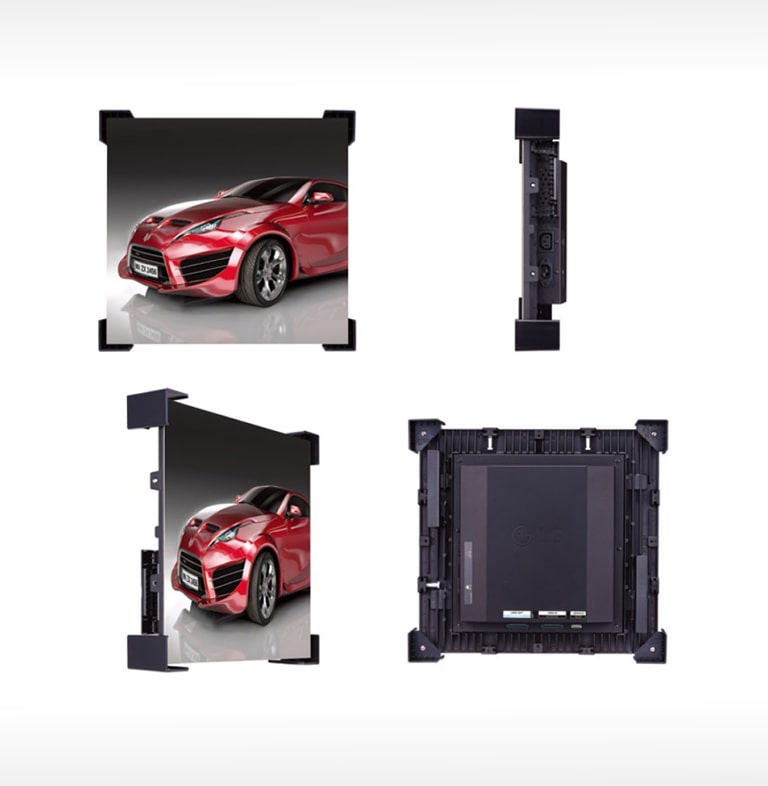

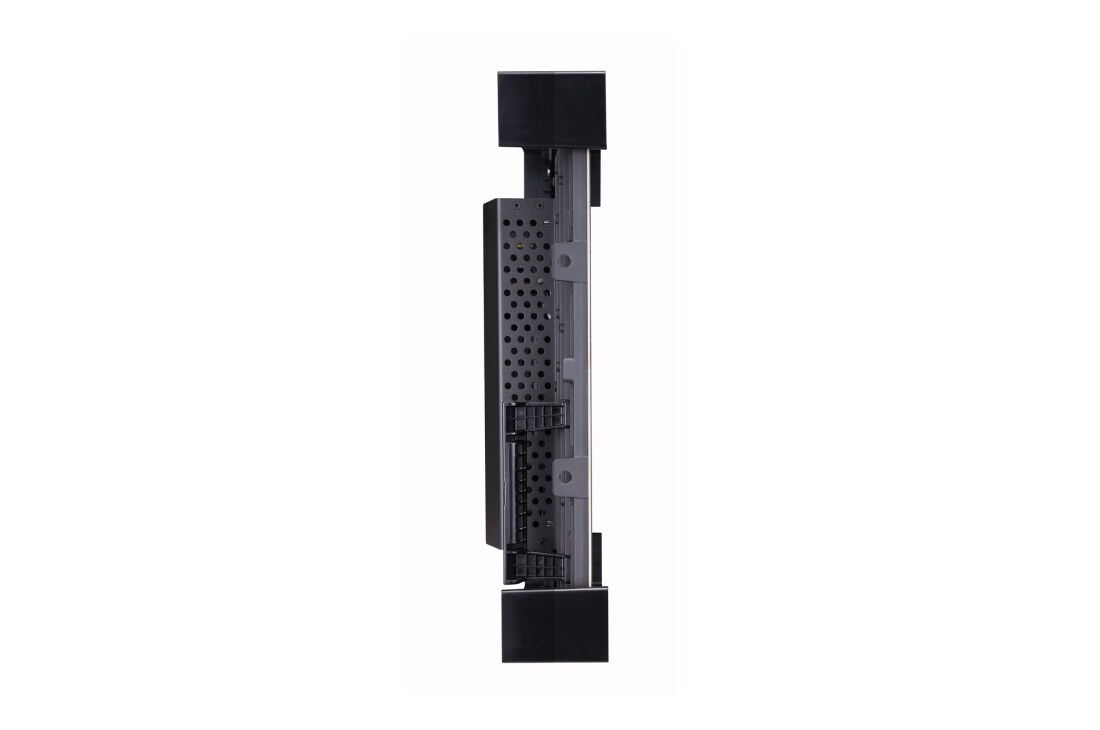

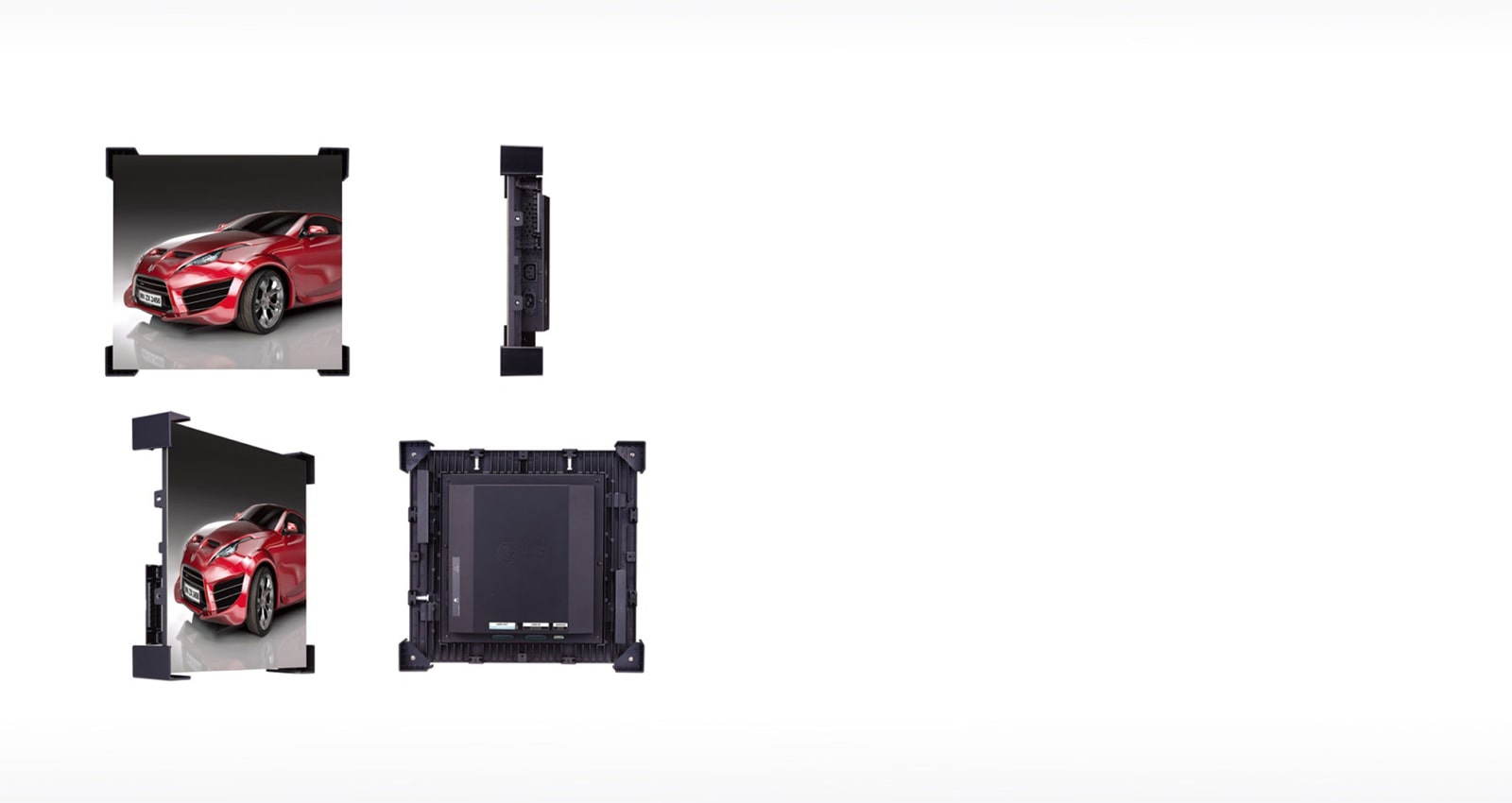

  • Unit Case Dimensions (W x H x D, mm)
    384x360x77
    Unit Case Surface Area (㎡)
    0.138
  • Weight per Unit Case (kg/unit)
    5.0
    Weight per Square Meter (kg/㎡)
    36.2
  • Physical Pixel Density (pixels/㎡)
    1,000,000
    Flatness of Unit Case (mm)
    ±0.2
  • Unit Case material
    Die casting alluminum

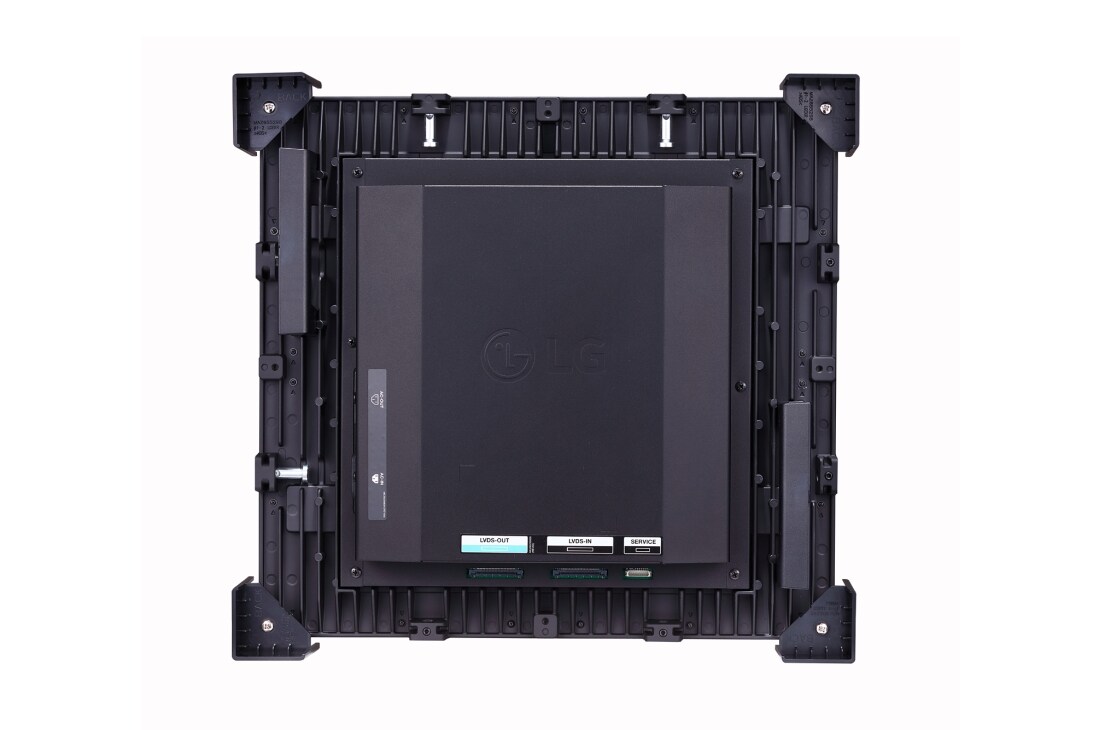

    Service access
    Rear
OPTICAL SPECIFICATIONS
  • Min. Brightness (After Calibration)
    1,000
    Color Temperature
    3,200 ~ 9,300
  • Visual Viewing Angle (Horizontal)
    160
    Visual Viewing Angle (Vertical)
    140
  • Brightness Uniformity
    ≥97%
    Color Uniformity
    ±0.015Cx,Cy
  • Contrast Ratio
    6,000
    Processing Depth (bit)
    16
ELECTRICAL SPECIFICATIONS
  • Power Consumption (W/Unit, Avg.)
    85
    Power Consumption (W/Unit, Max.)
    170
  • Power Consumption (W/㎡, Max.)
    1230
    Power Supply (V)
    100 to 240
  • Frame Rate (Hz)
    50 / 60
    Refresh Rate (Hz)
    1,920
OPERATION SPECIFICATIONS
  • Lifetime (Half brightness)* * The Lifetime(Half brightness) spec is subject to LED package spec.
    100,000
    Operating Temperature(℃)
    0∘to +40∘
  • Operating Humidity
    10-80%RH(TBD)
CONTROLLER

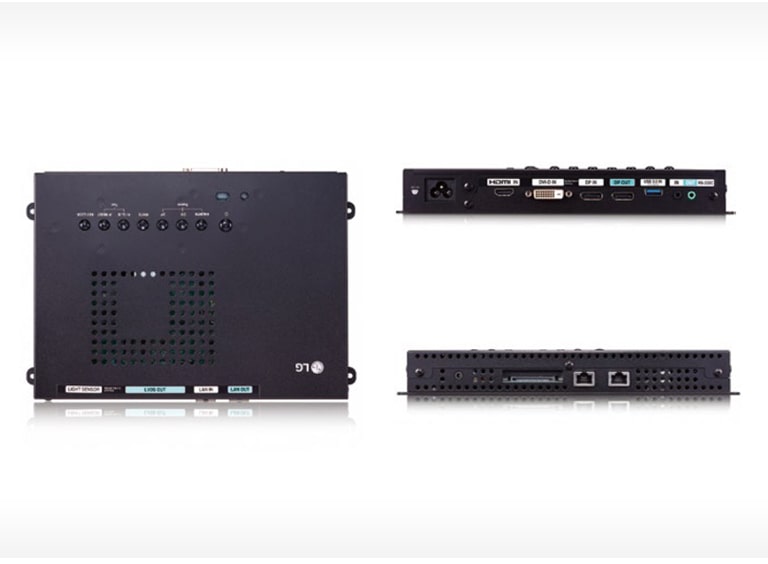

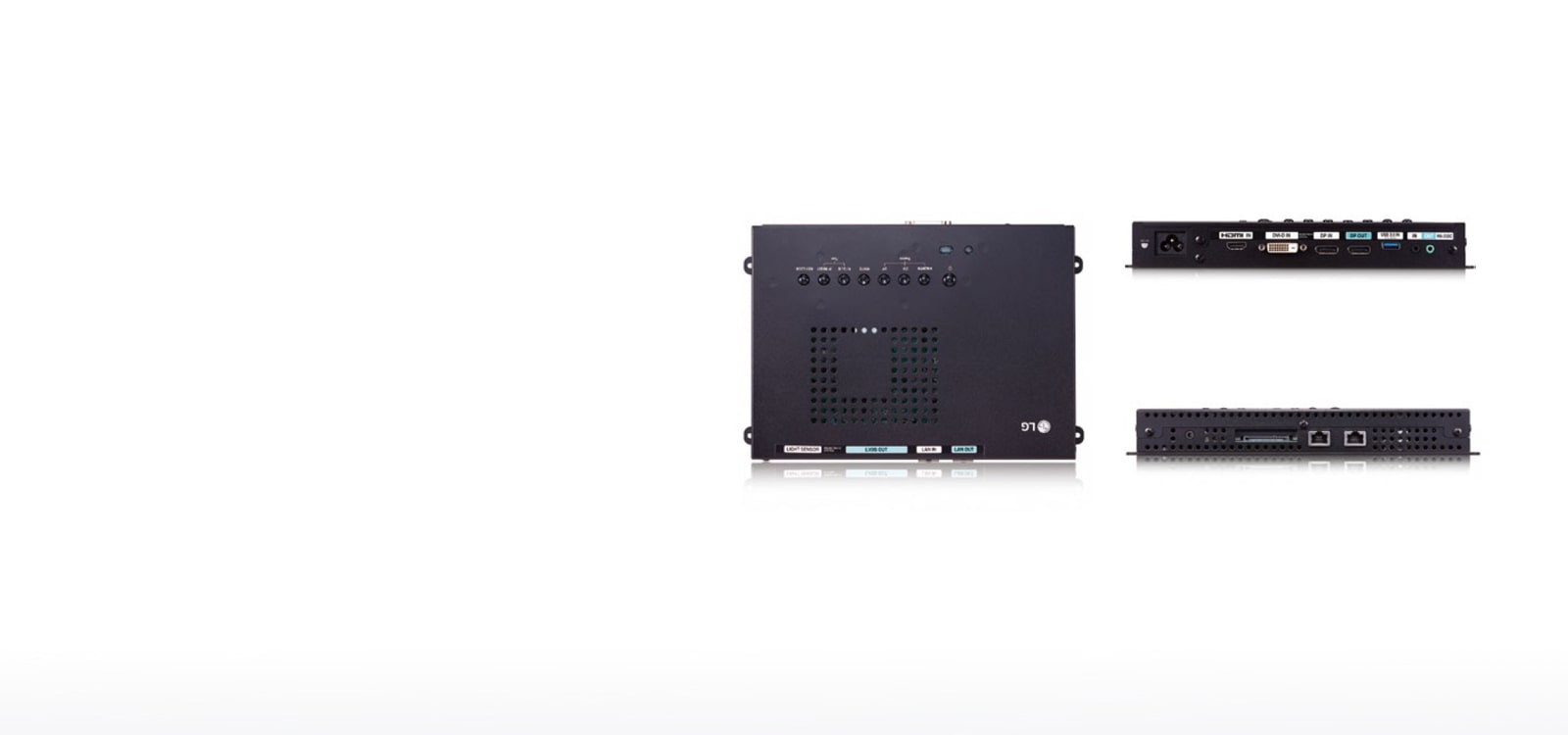

  • Controller
    LCLG001
COMPLIANCE INFORMATION
  • The safety information for accessories is included with the safety information for the product and is not provided separately.

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.

Find a dealer to help with service for sales, installation, and after sales.
