LAP020E component-copyModelName

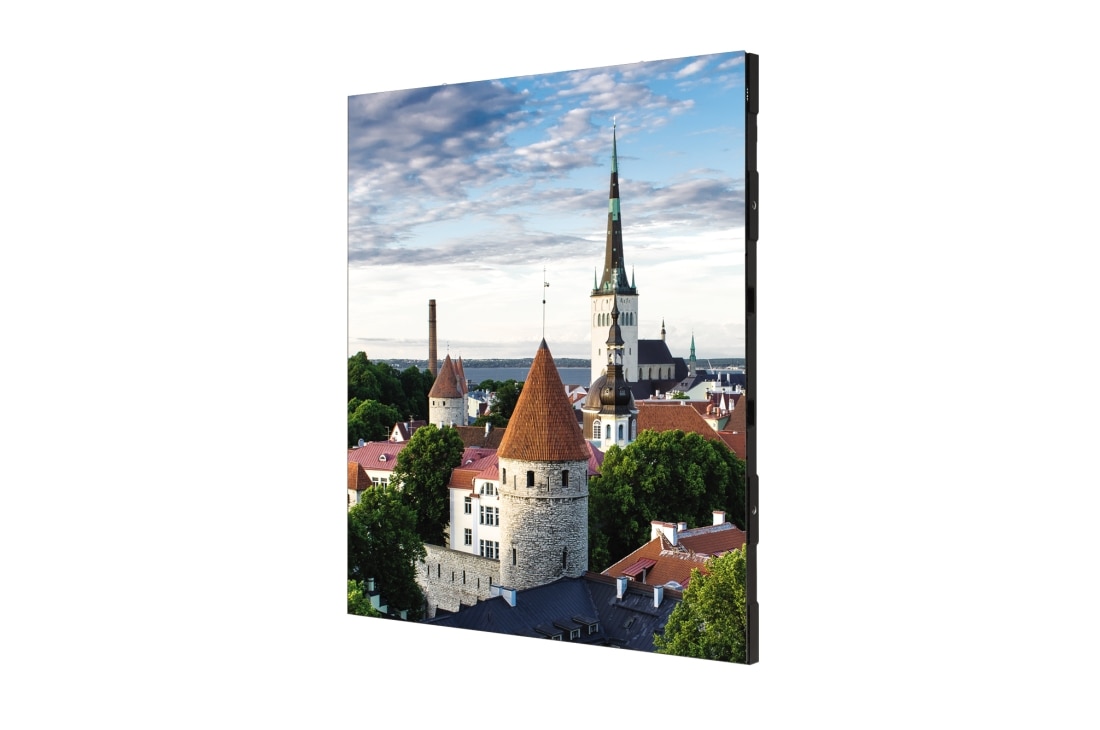

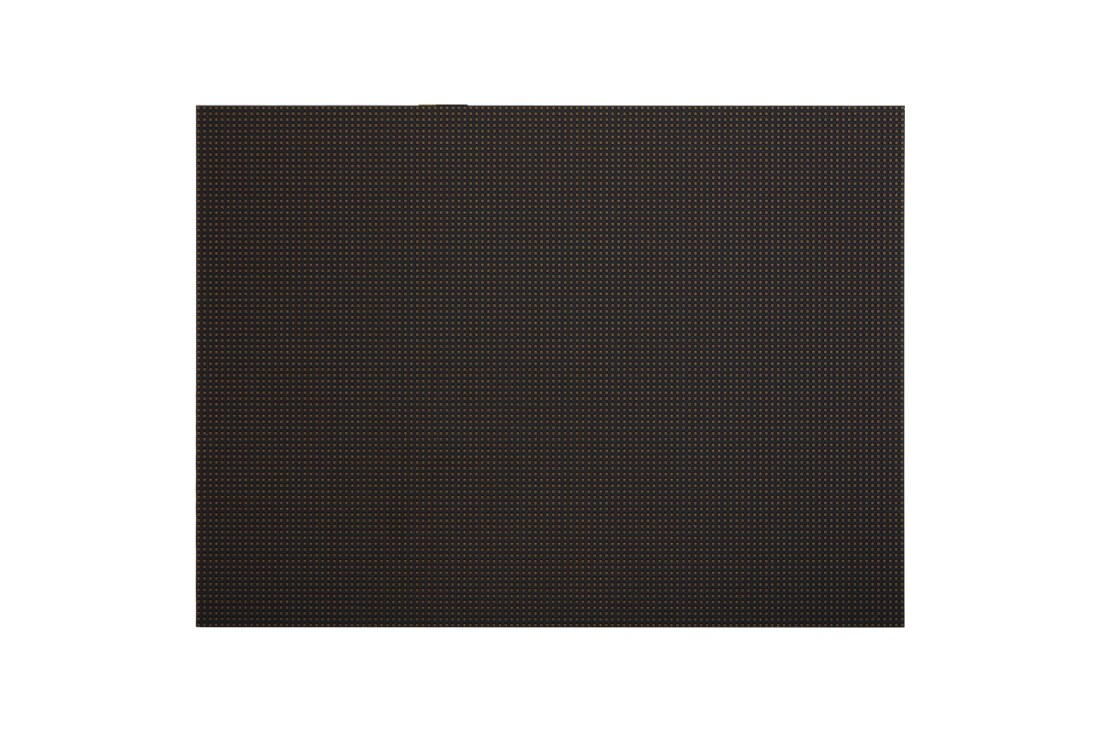

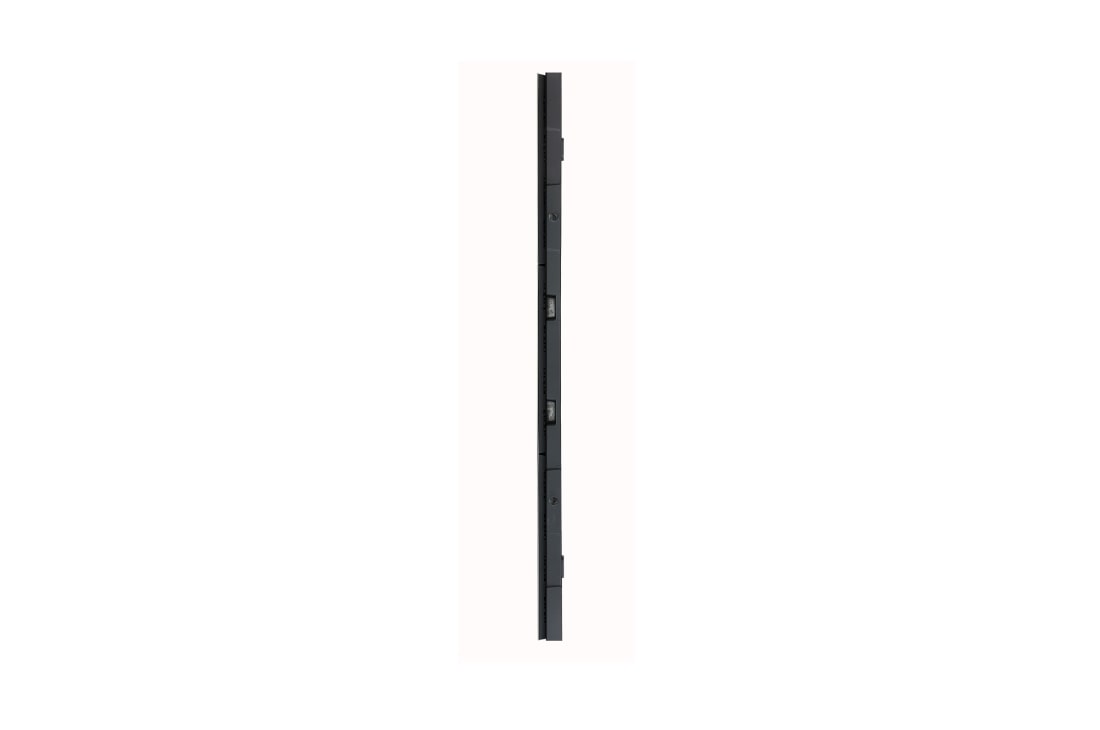

P2.0 1,000 nits LG LED Curve Series for Indoor

Key Features

Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

P2.0 1,000 nits LG LED Curve Series for Indoor
Find a Dealer
Close
PHYSICAL PARAMETERS
  • Pitch Name
    P2.0
    Pixel Configuration
    3 in 1 SMD
  • Pixel Pitch (mm)
    2.00

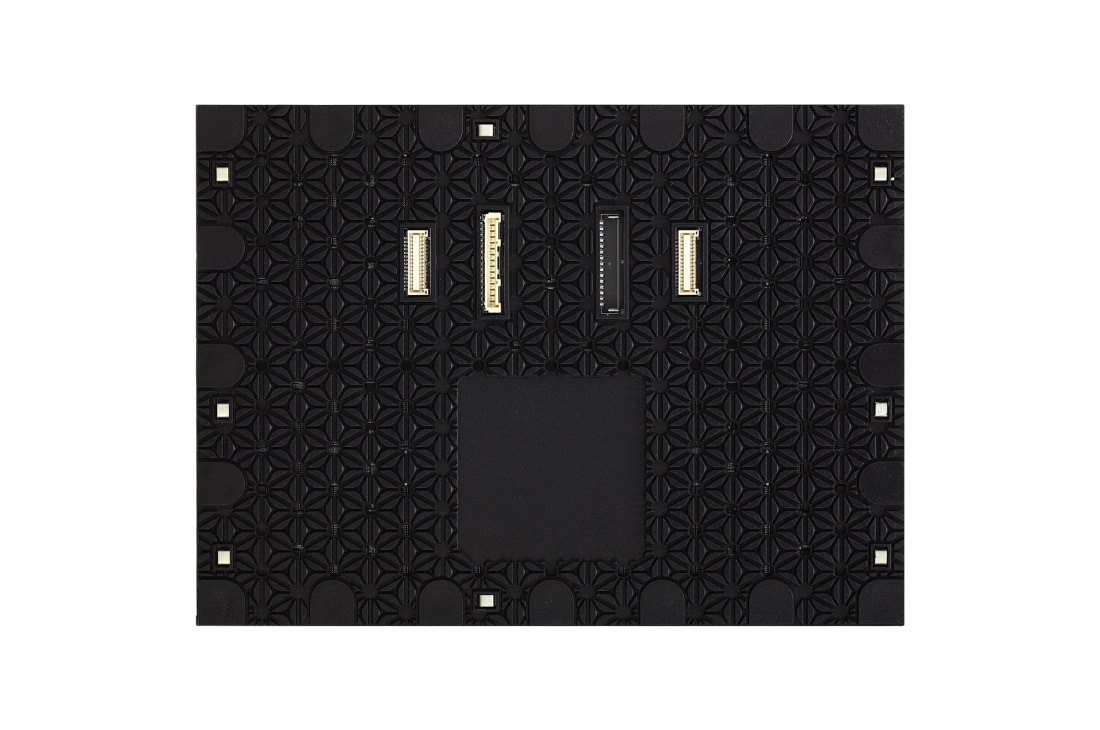

    Module Resolution (W x H)
    120 x 90
  • Module Dimensions (W x H, mm)
    240 x 180
    Weight per Module (kg)
    0.36

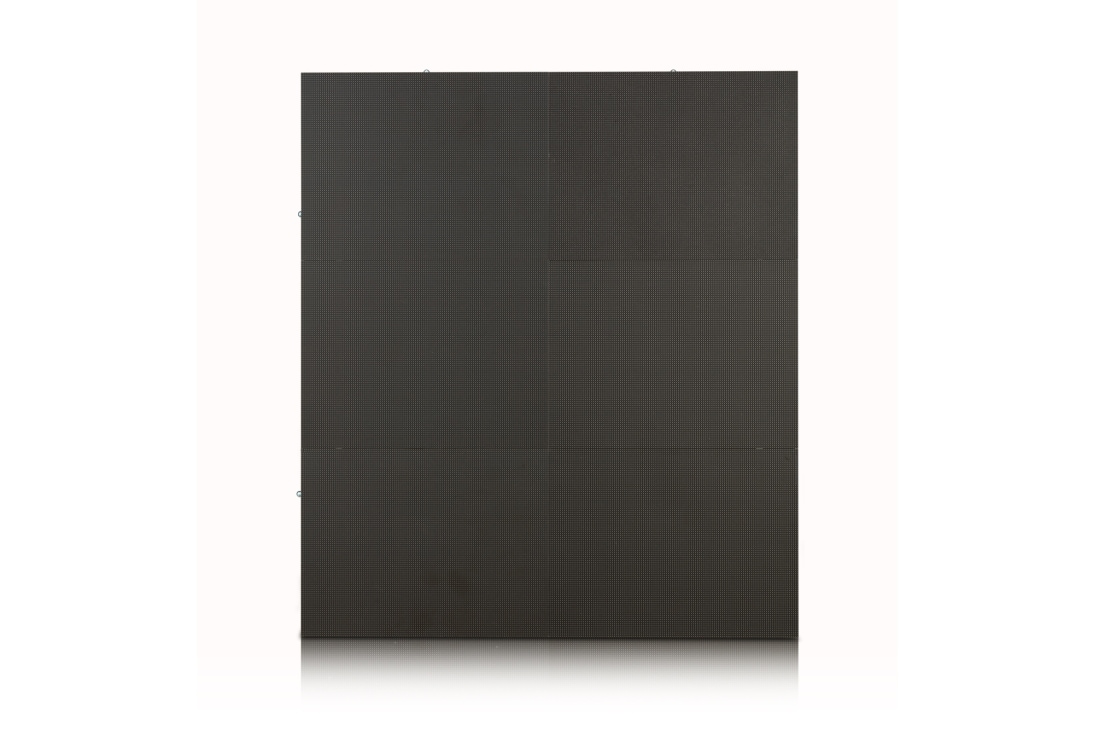

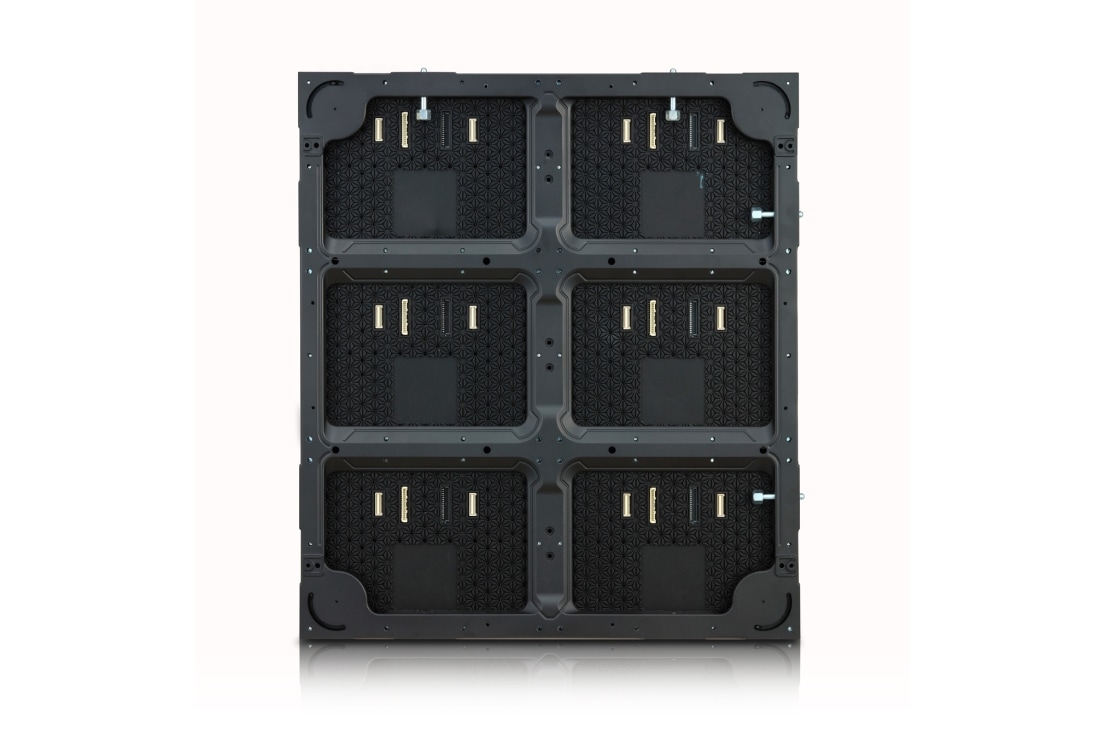

  • No. of Modules per Unit Case (W x H)
    2 x 3
    Unit Case Resolution (W x H)
    240 x 270
  • Unit Case Dimensions (W x H x D, mm)
    480 x 540 x 53
    Unit Case Surface Area (m²)
    0.260
  • Weight per Unit Case (kg/unit)
    6.0
    Weight per Square Meter (kg/m²)
    21.8
  • Physical Pixel Density (pixels/m²)
    250,000
    Flatness of Unit Case (mm)
    ±0.2
  • Unit Case material
    Die Casting Aluminum
    Service access
    Front and Rear
OPTICAL PARAMETER
  • Min. Brightness (After Calibration)
    1,0001) cd/m²

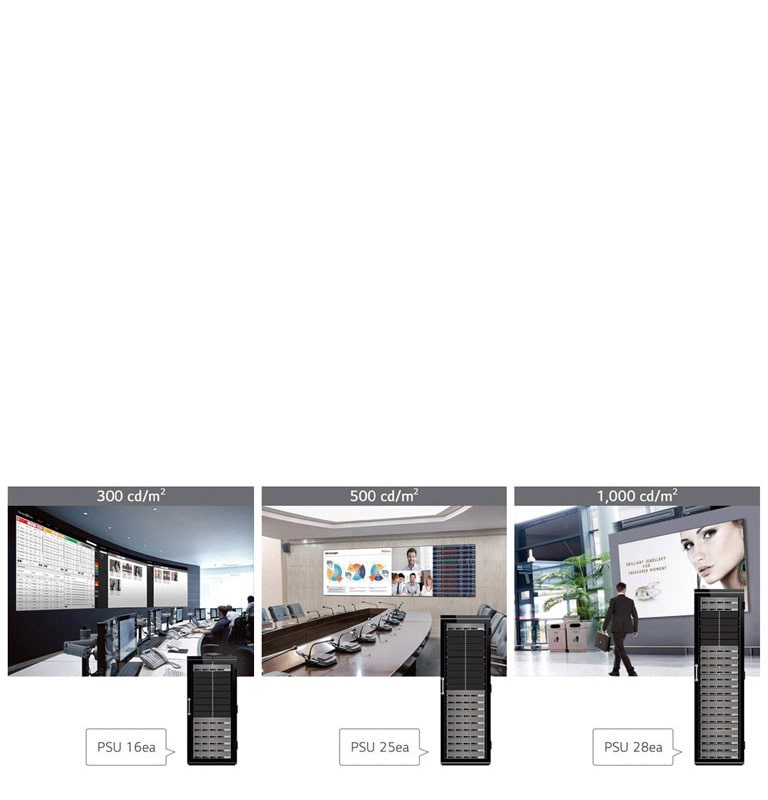

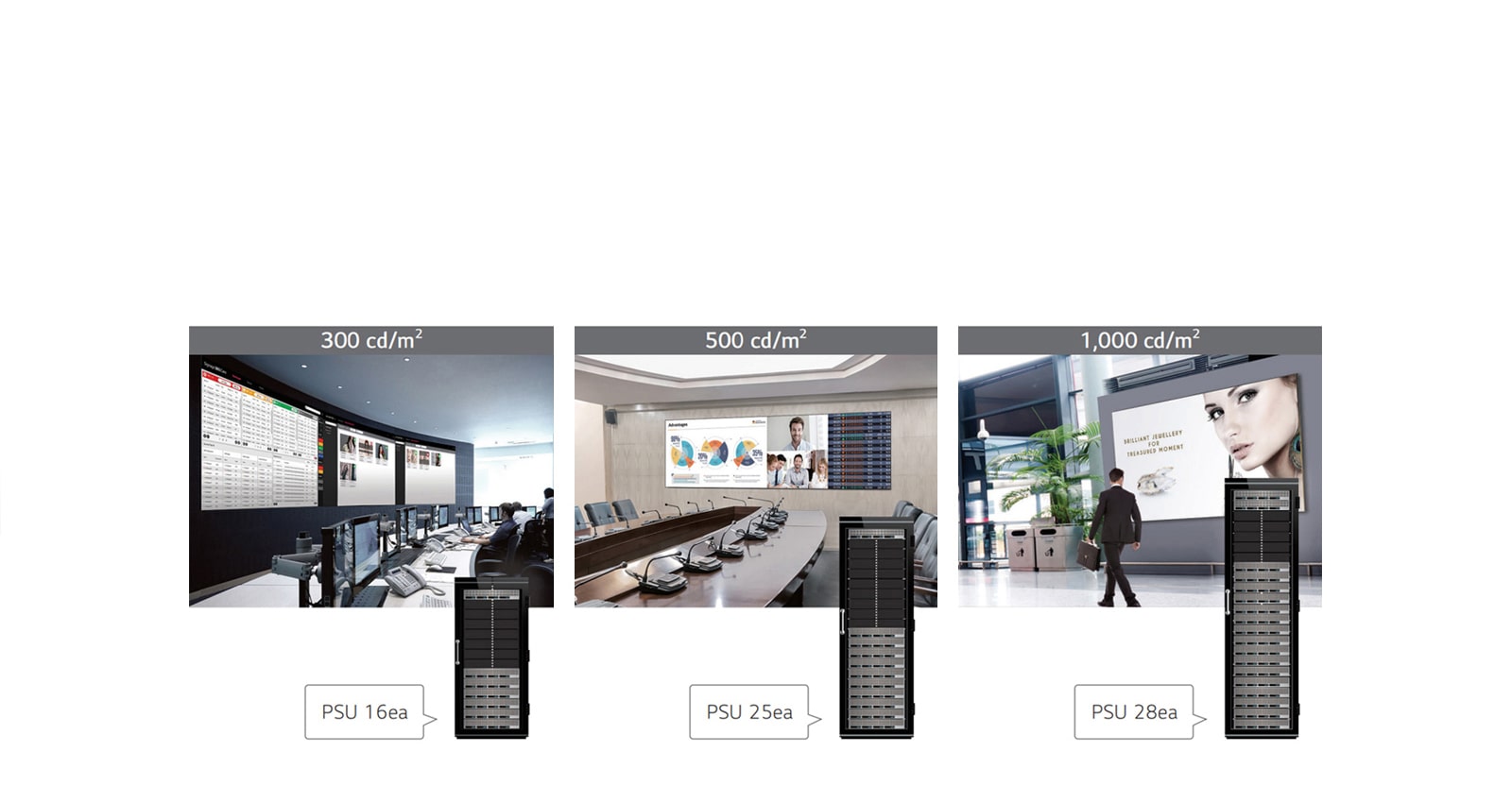

    1)Brightness can be reduced (up to 300nit) by the number of PSU modules, thereby decreasing power consumption.
    Color Temperature
    3,200 ~ 9,300
  • Visual Viewing Angle (Horizontal)
    160
    Visual Viewing Angle (Vertical)
    140
  • Brightness Uniformity
    95%
    Color Uniformity
    ±0.015Cx, Cy
  • Contrast Ratio
    6,000
    Processing Depth (bit)
    16 (HDR10)
ELECTRICAL PARAMETER
  • Power Consumption (W/Unit, Max.)
    285
    Power Consumption (W/Unit, Avg.)
    104
  • Power Consumption (W/m², Max.)
    1,100
    Power Supply (V)
    100 to 240
  • Frame Rate (Hz)
    50 / 60
    Refresh Rate (Hz)
    3,840
OPERATION CONDITIONS
  • Lifetime (Duration of Half Brightness in Hours)
    100,000
    Operating Temperature (°C)
    0°C to + 40°C
  • Operating Humidity
    10-80% RH
CERTIFICATION
  • EMC
    FCC Class A / CE / KC
    Environment
    RoHS
CONTROLLER
  • Controller
    LCLG003-A
CONNECTIVITY
  • Video Inputs
    HDMI In, DP In, OPS In, USB
    Control
    RJ45 In, RS232C In/out
  • Special Features

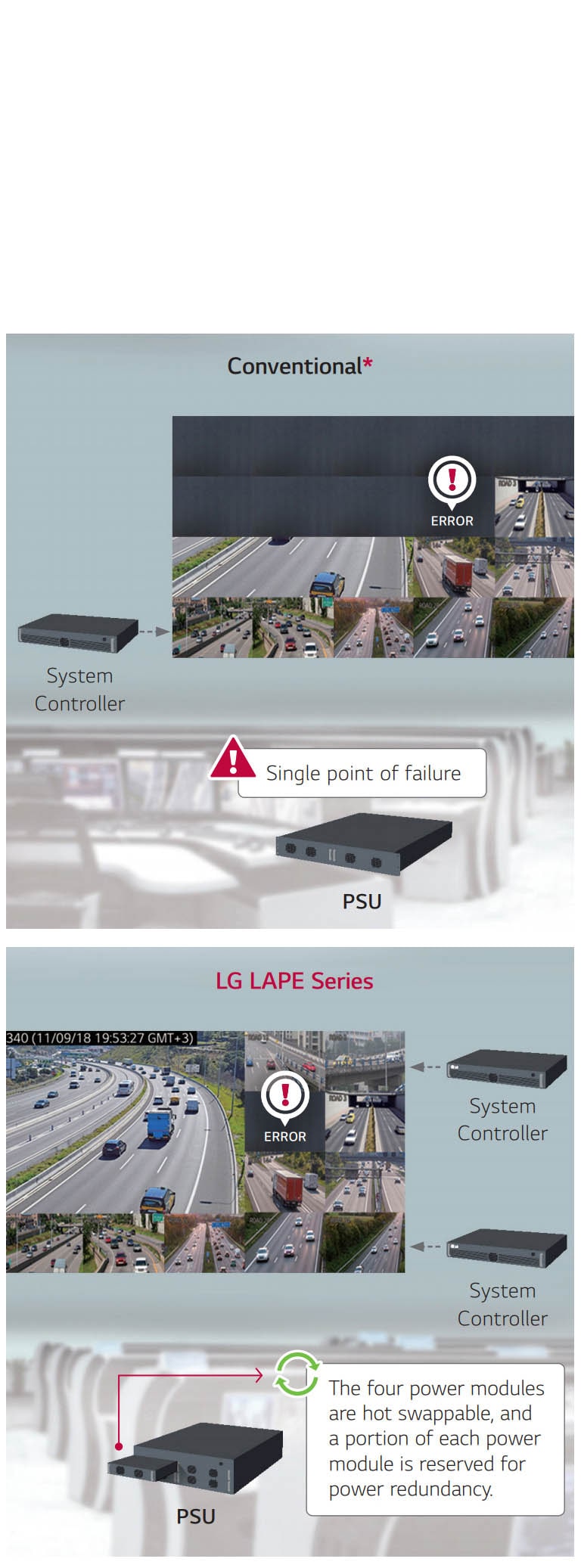

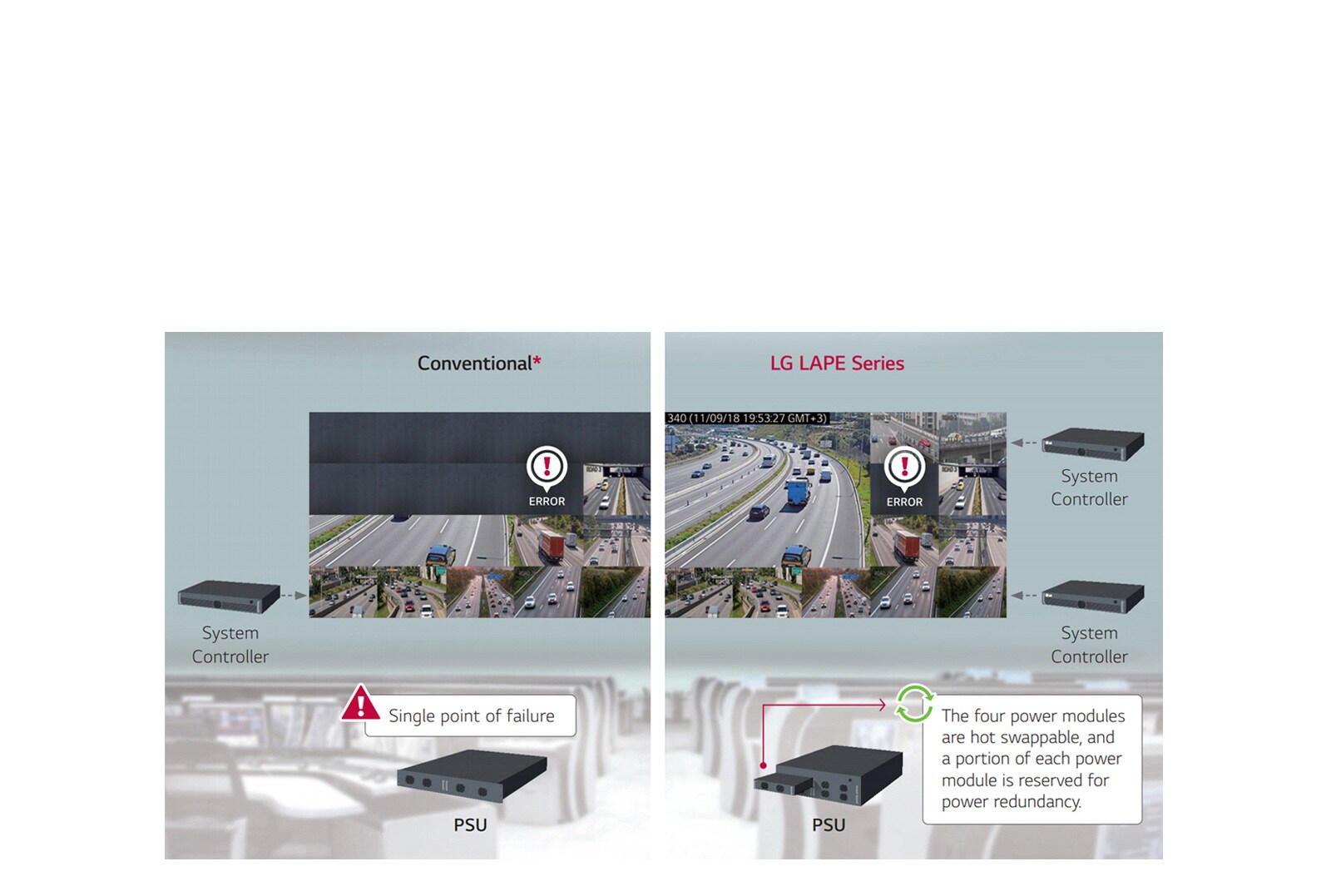

    HDR10, Temperature Sensor, Power Detection, ADA Compliant, PSU Hot Swappable
OPTIONAL ACCESSORY
  • Optional Accessory
    ACC-LAPPC06(DC PSU Cable 6m), ACC-LAPPC60(DC PSU Cable 60m)

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
