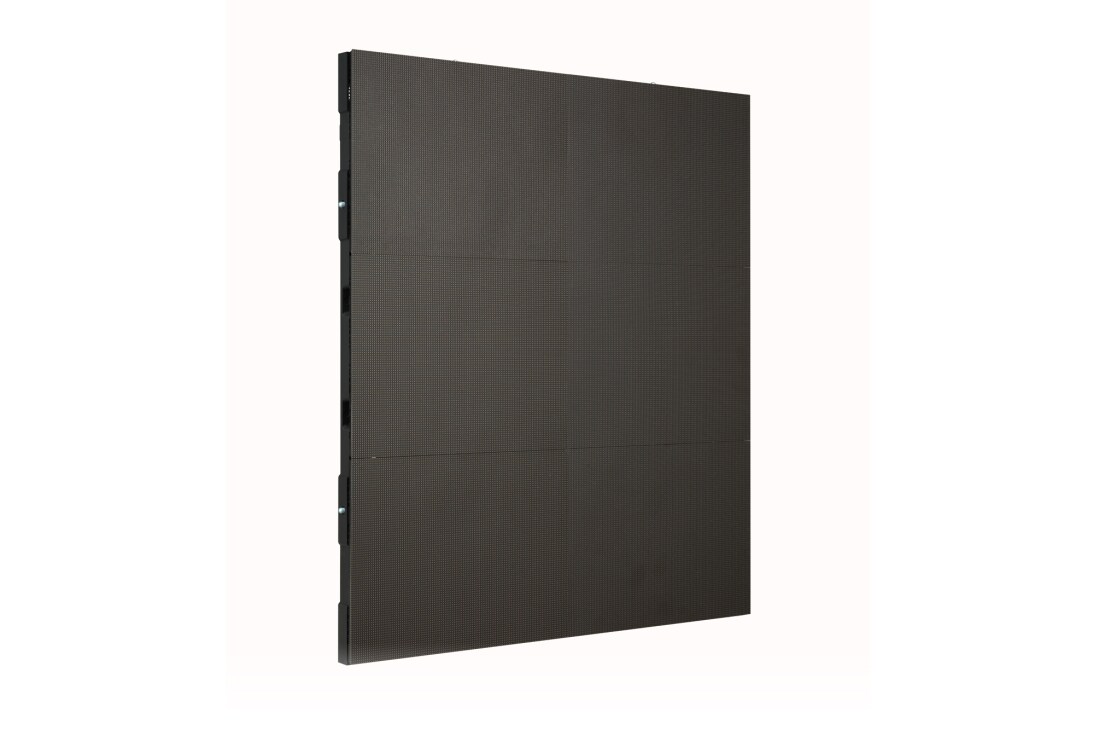

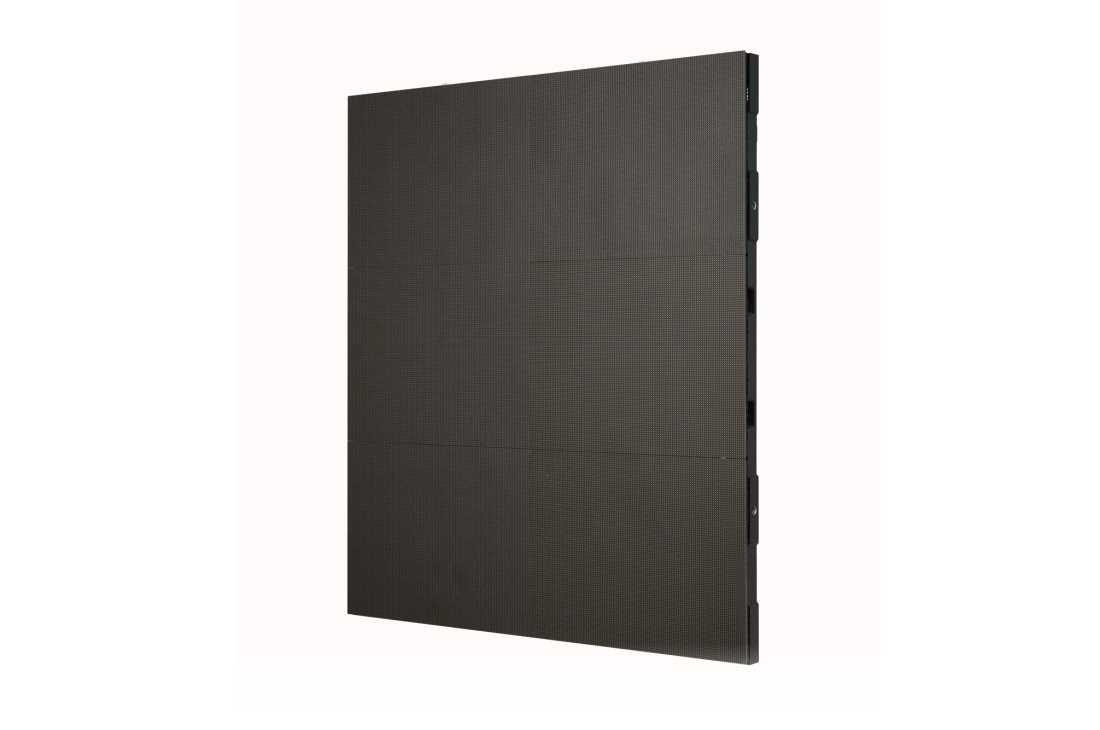

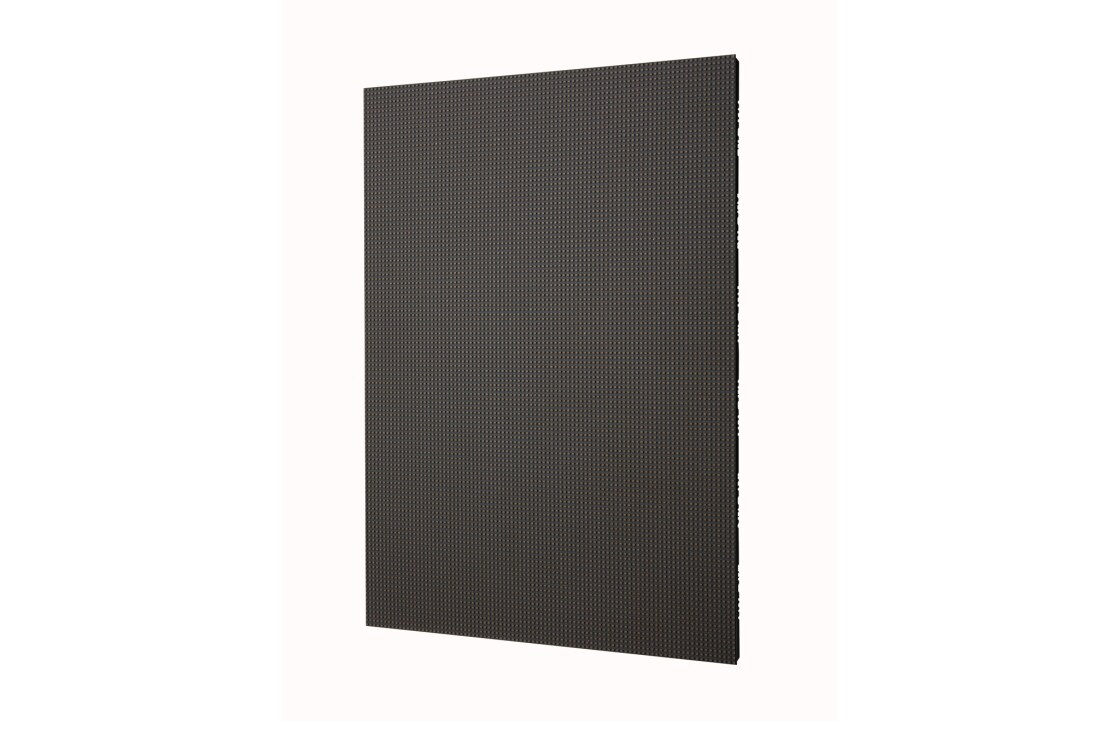

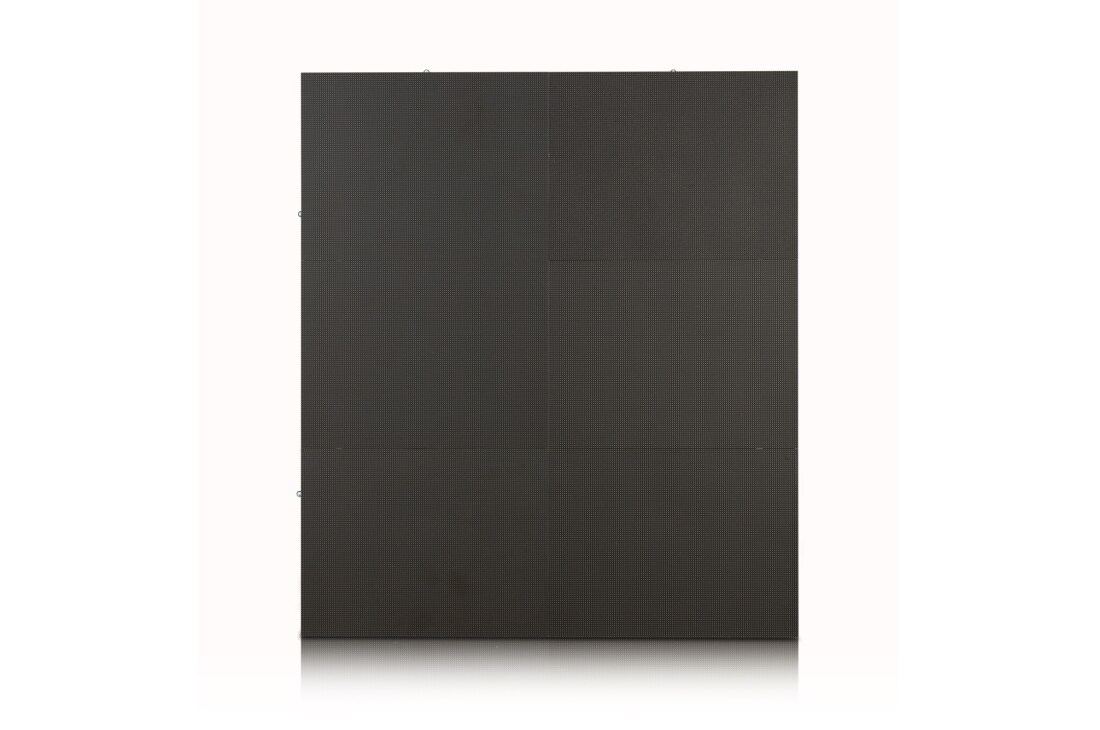

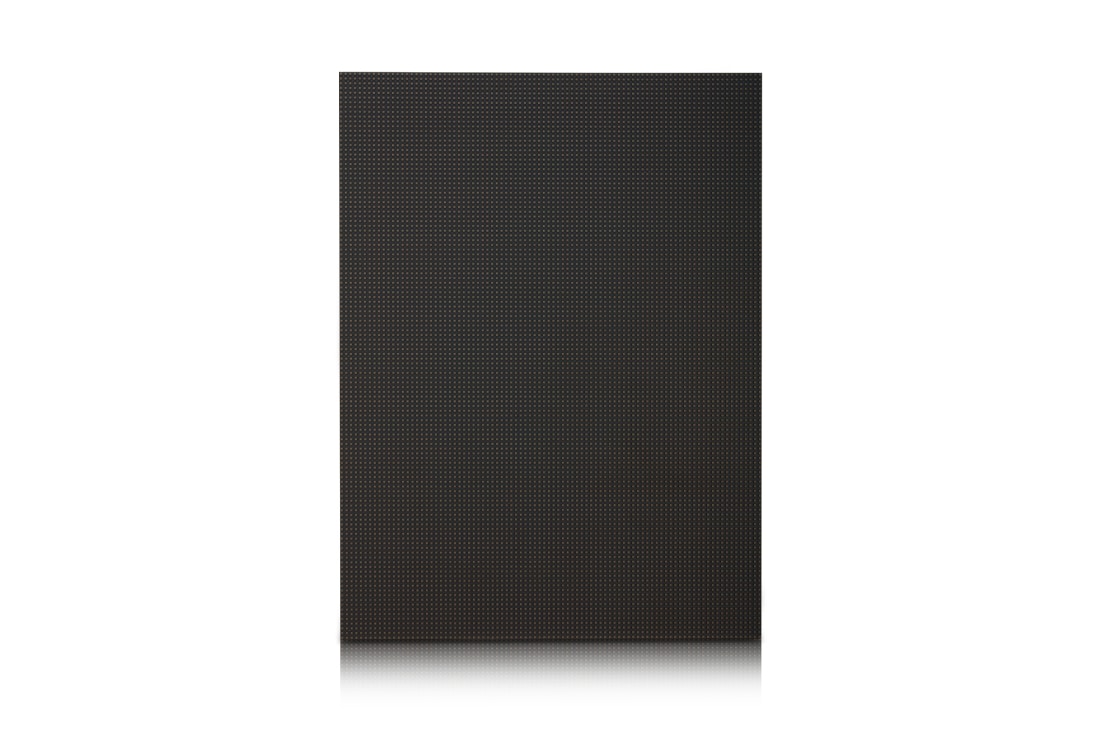

LAP025EL4DP
LAPE Series
  • Pixel Pitch: 2.5mm
  • Brightness: 700nit

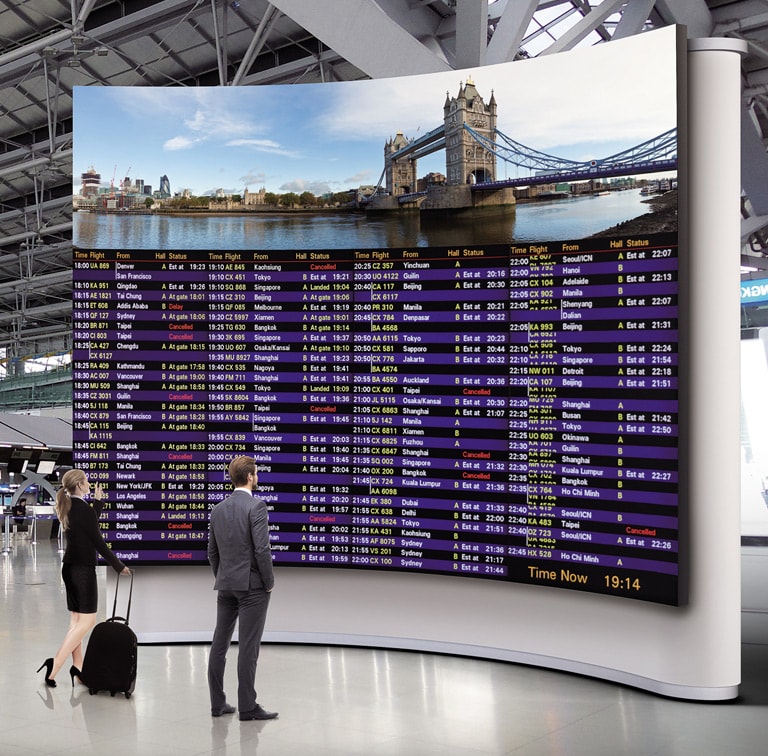

  • Curvature(Concave/convex): Up to 1,000R
  • High performance system controller

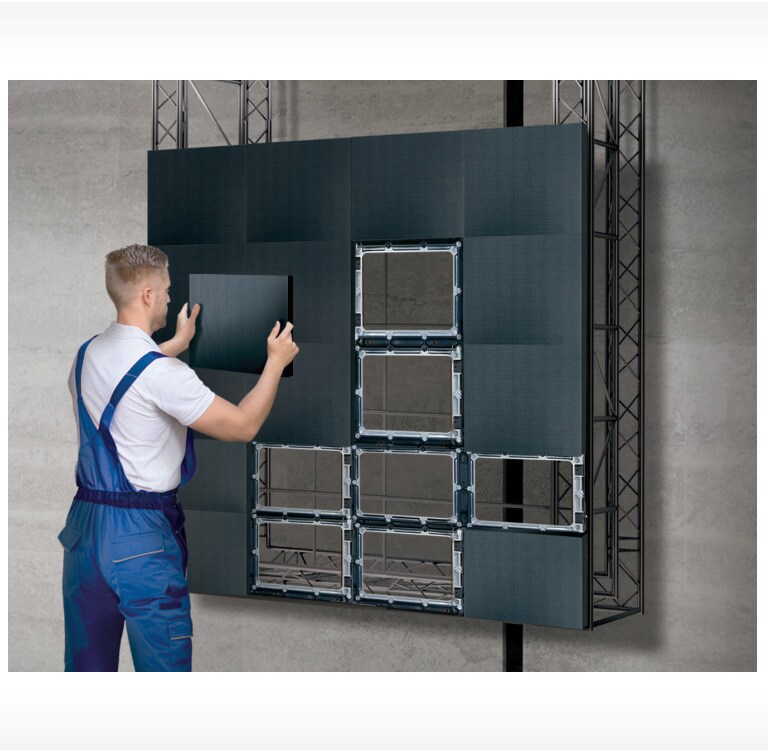

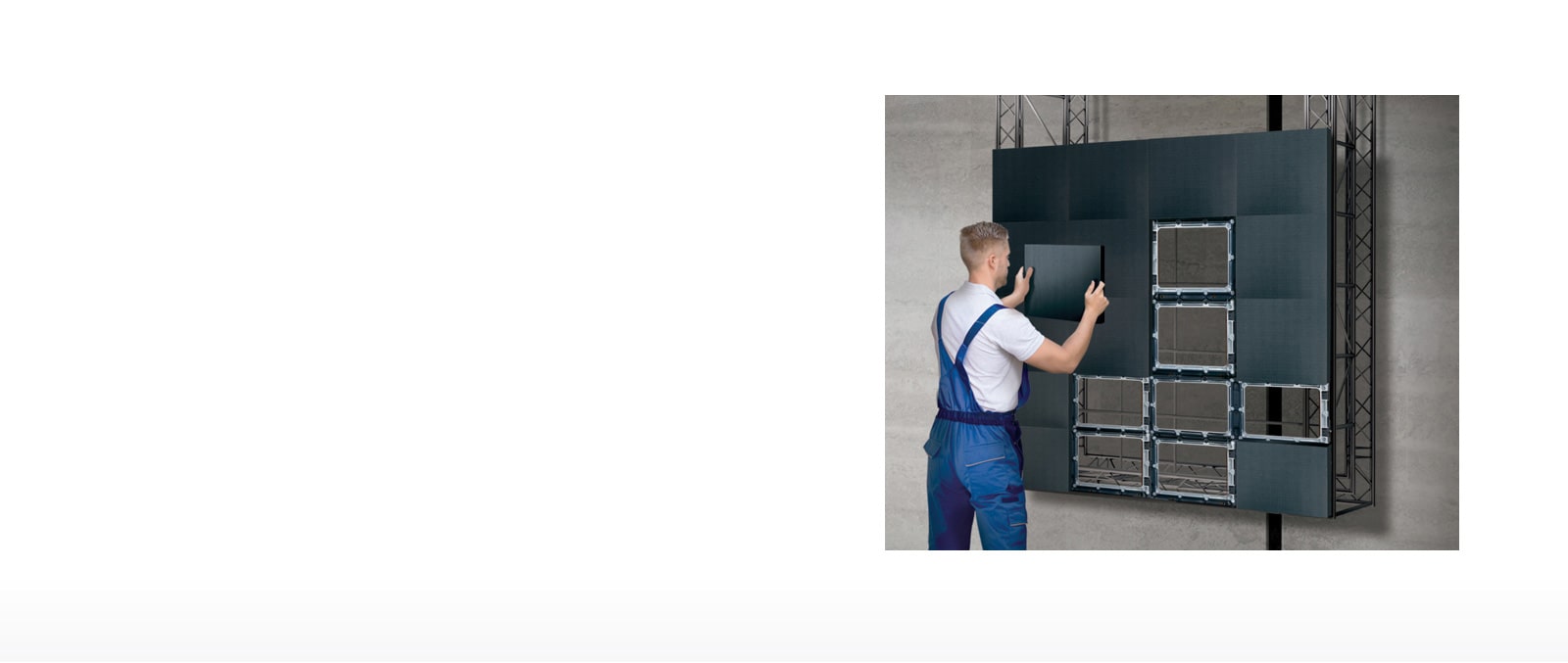

  • Front and rear serviceability
LAPE Series
MSRP AED

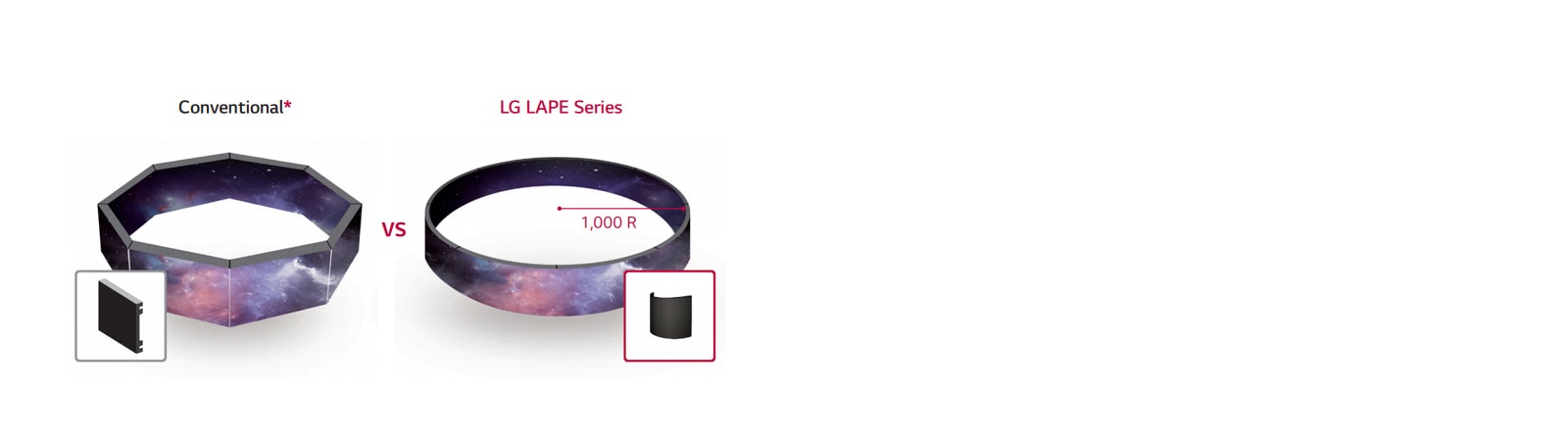

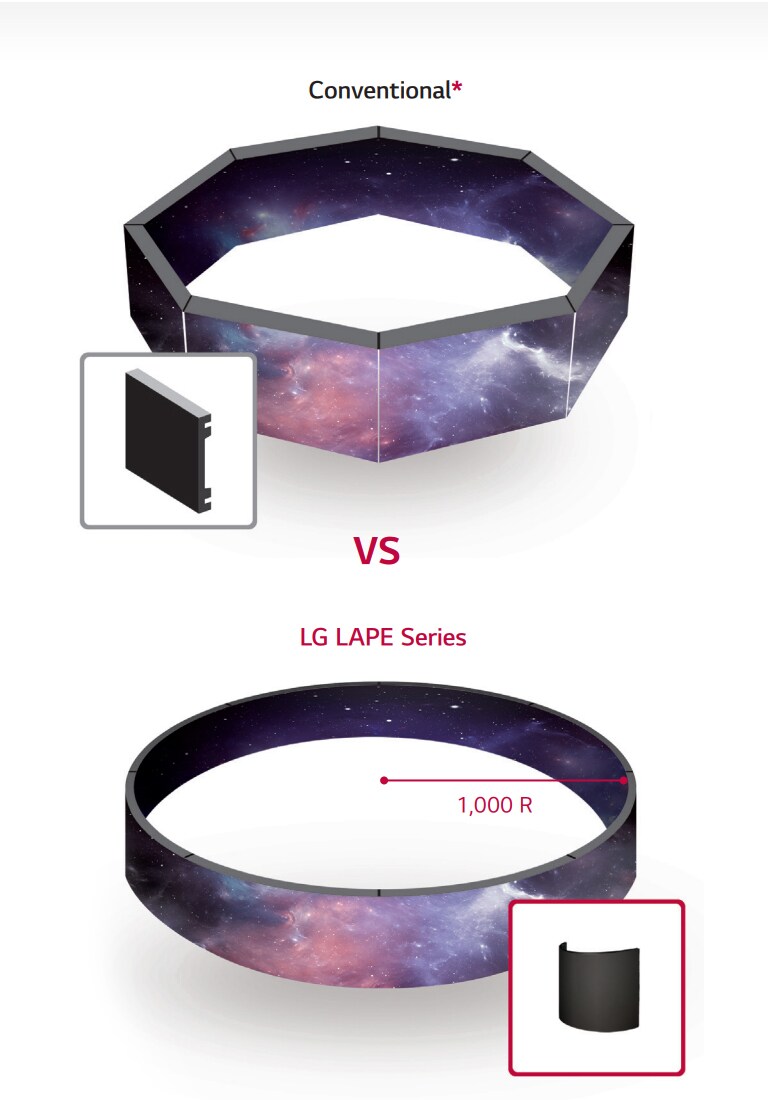

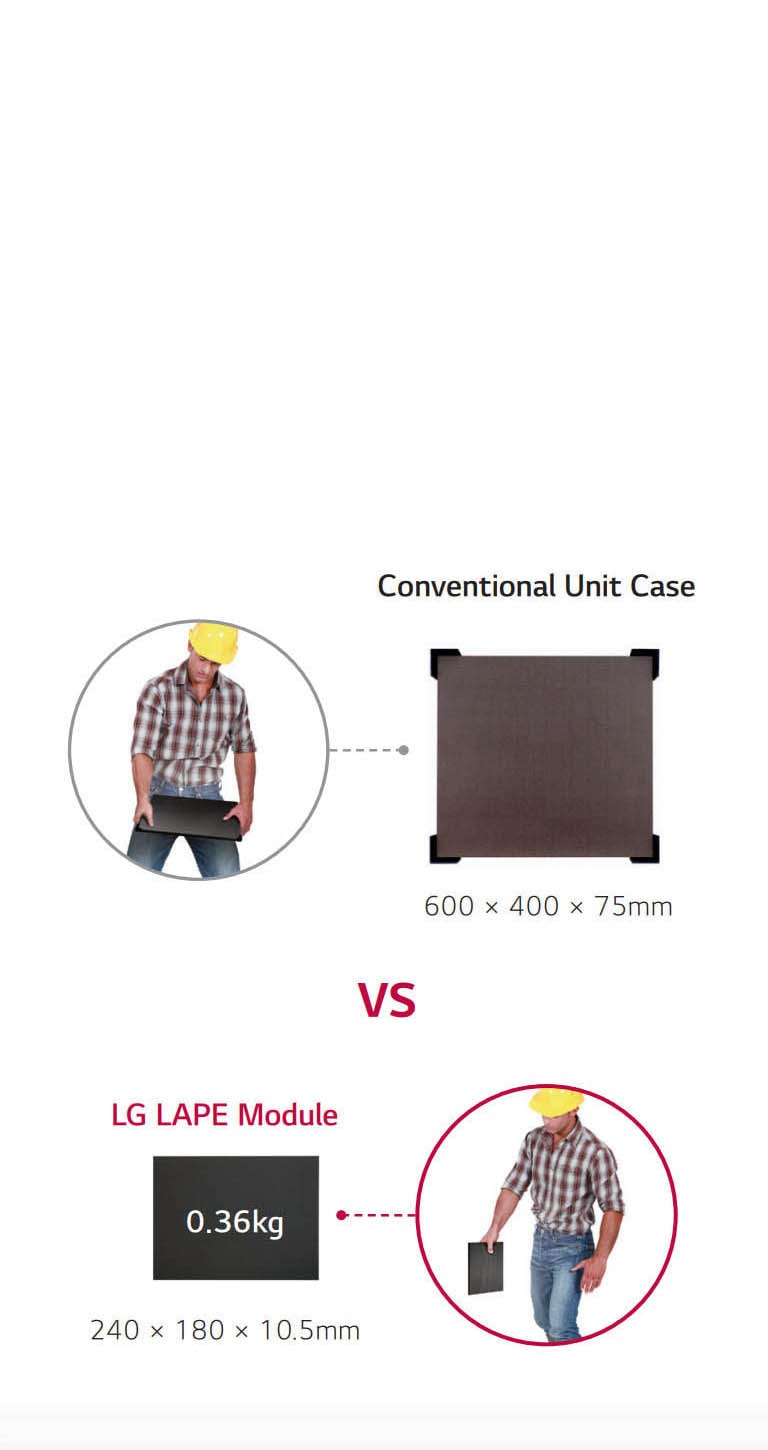

* The "Conventional" shown above refers to an LED screen composed of flat LED unit cases.

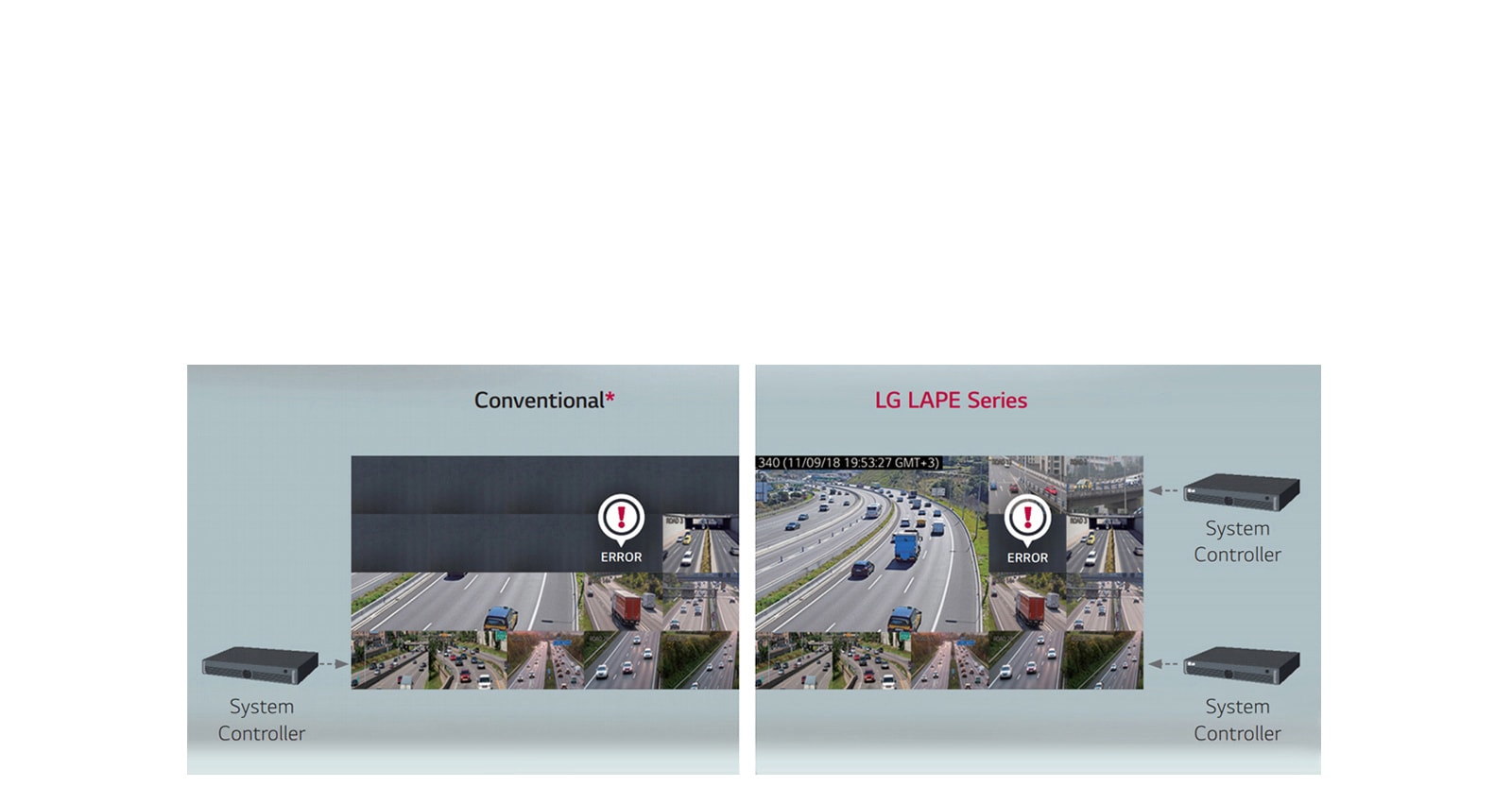

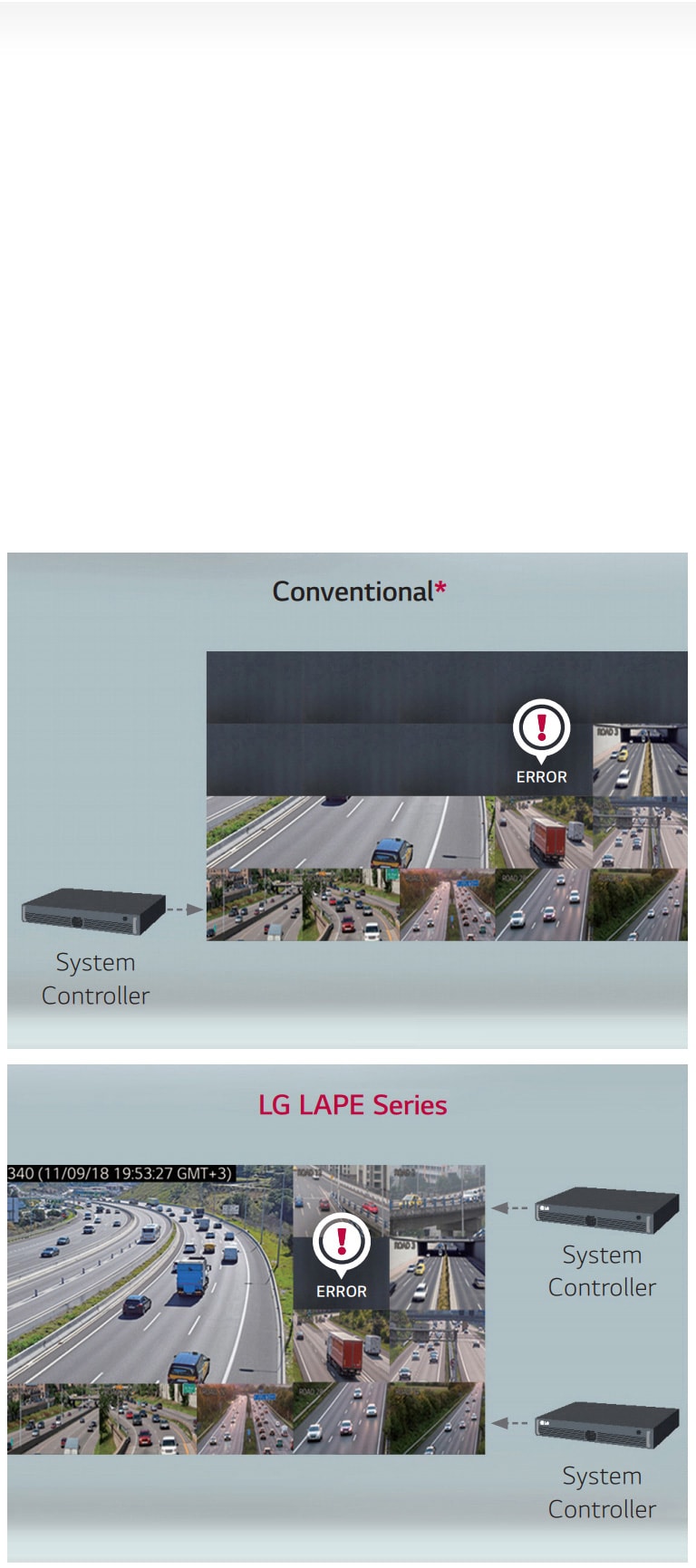

* The "Conventional" shown above refers to LED displays which do not support the power/signal redundancy mode.

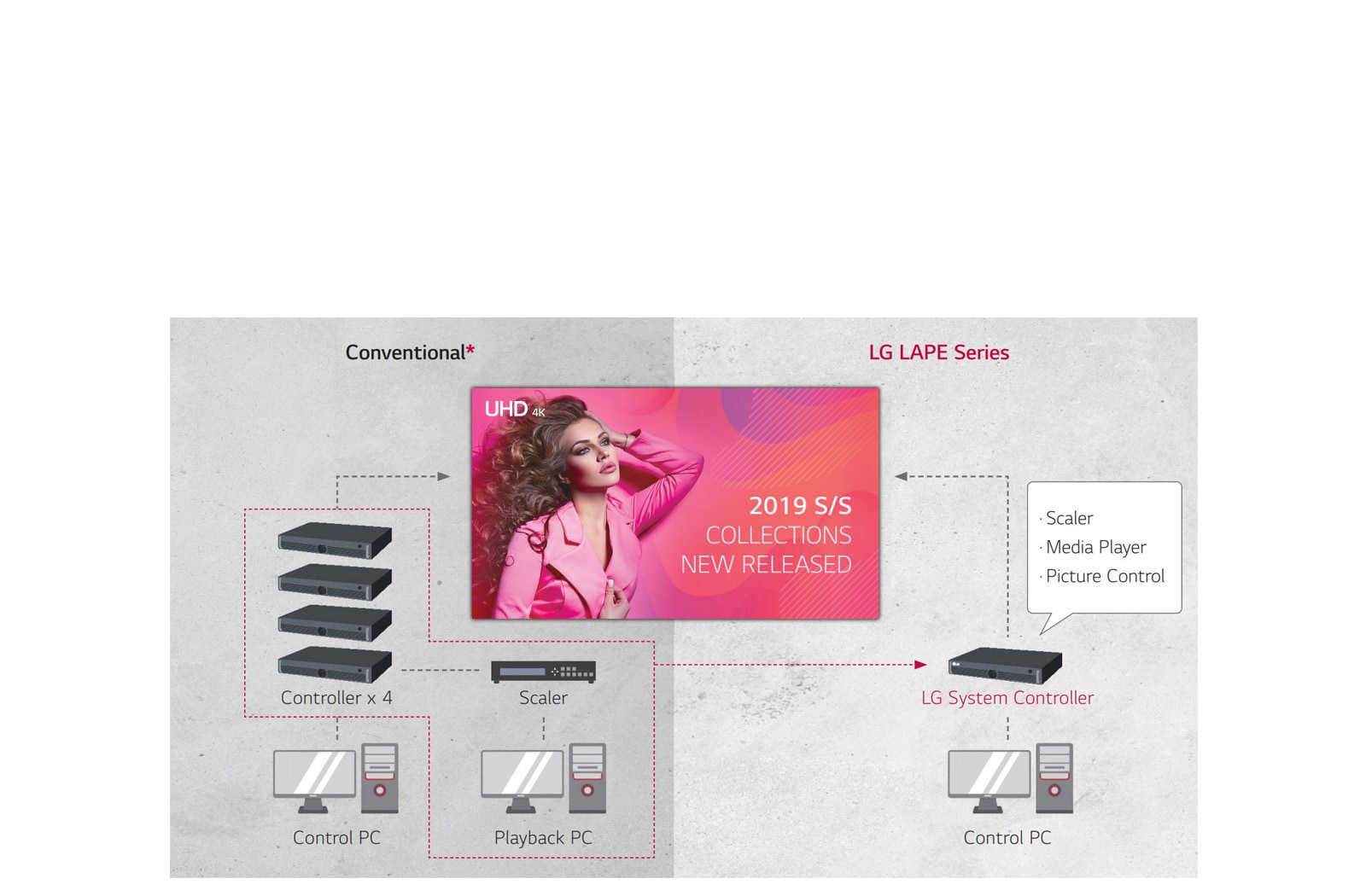

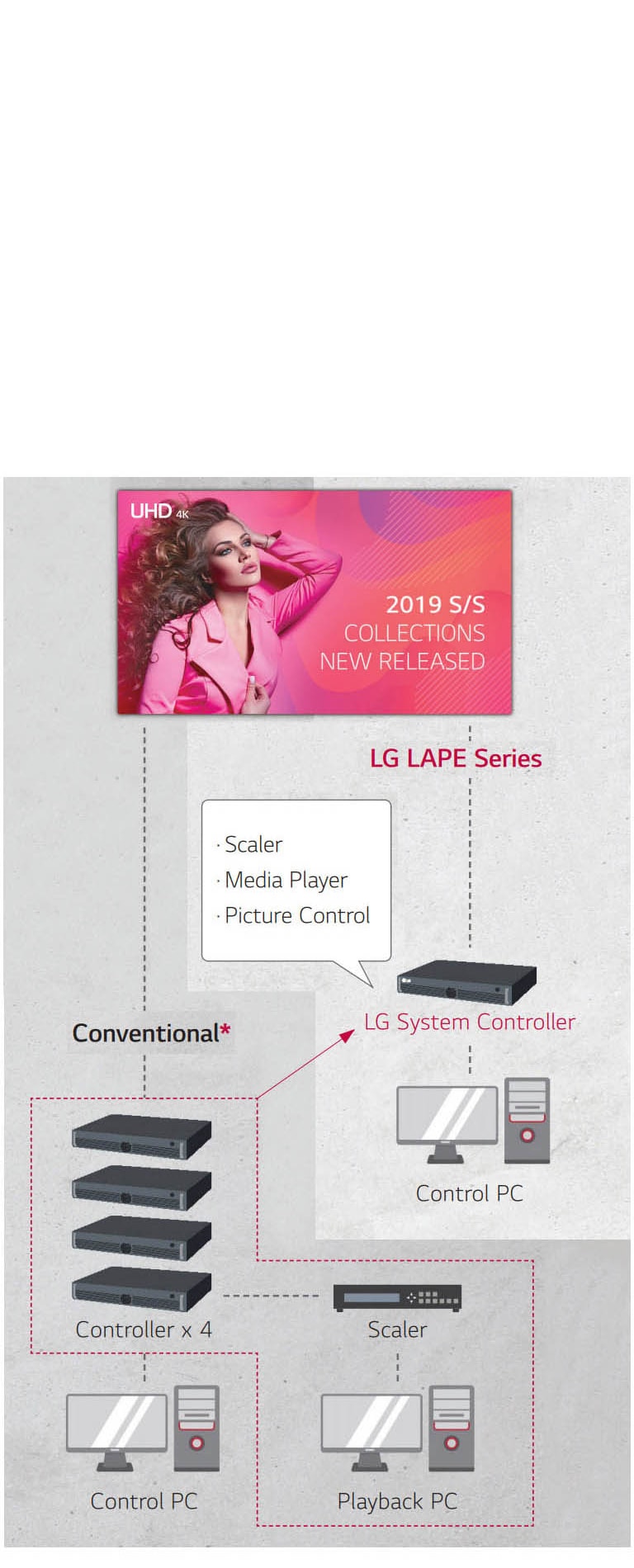

* The "Conventional" shown above refers to LED displays that don't have an all-in-one system controller
* The availability of "Signage 365 Care" service can differ by region, so please contact the LG sales representative in your region for further details.

PHYSICAL PARAMETER

  • Pixel Pitch
    2.5mm
    LED Type
    SMD 3-in-1
  • Resolution(WxH, per Unit Frame)
    96 x 72

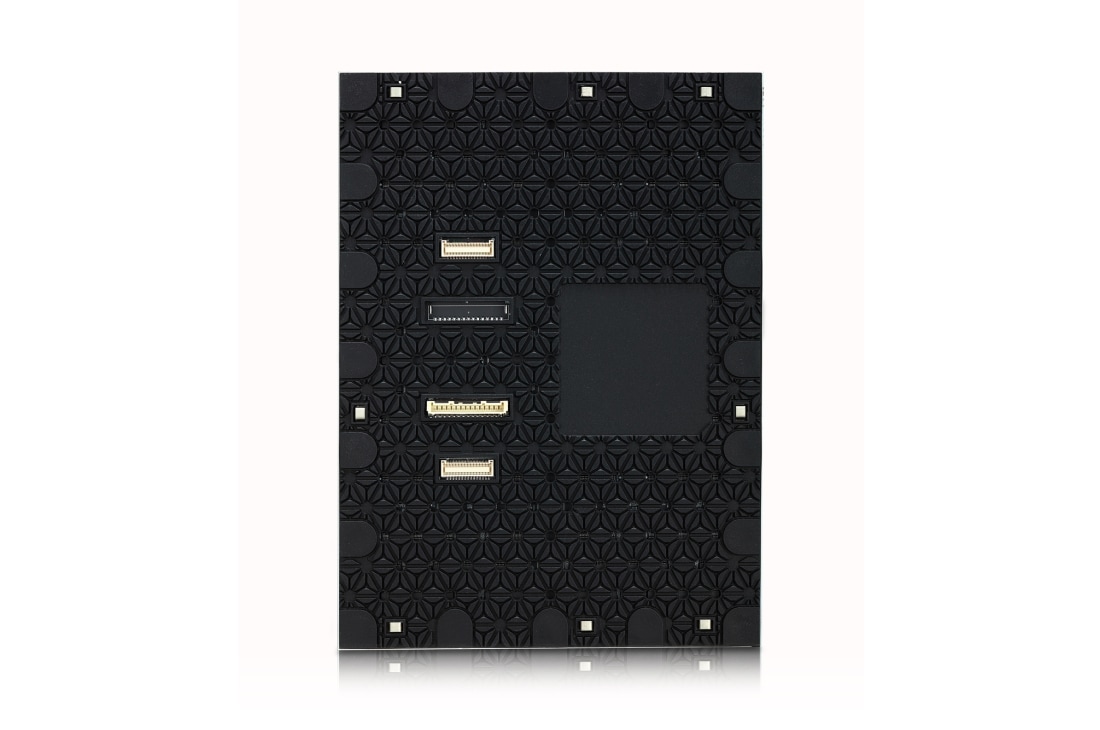

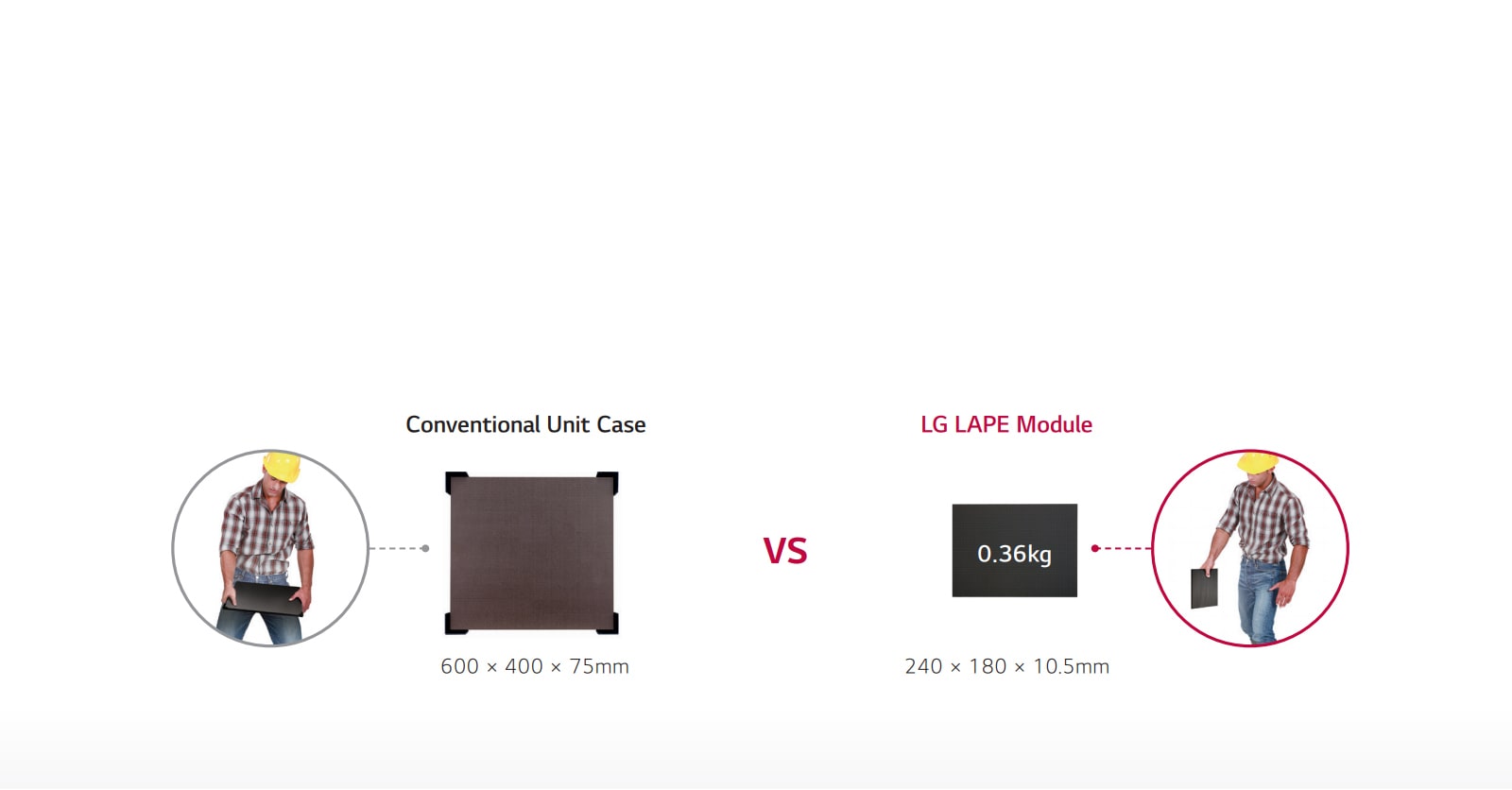

    Dimensions(WxHxD, per LDM)
    240 x 180 x 10.5 mm

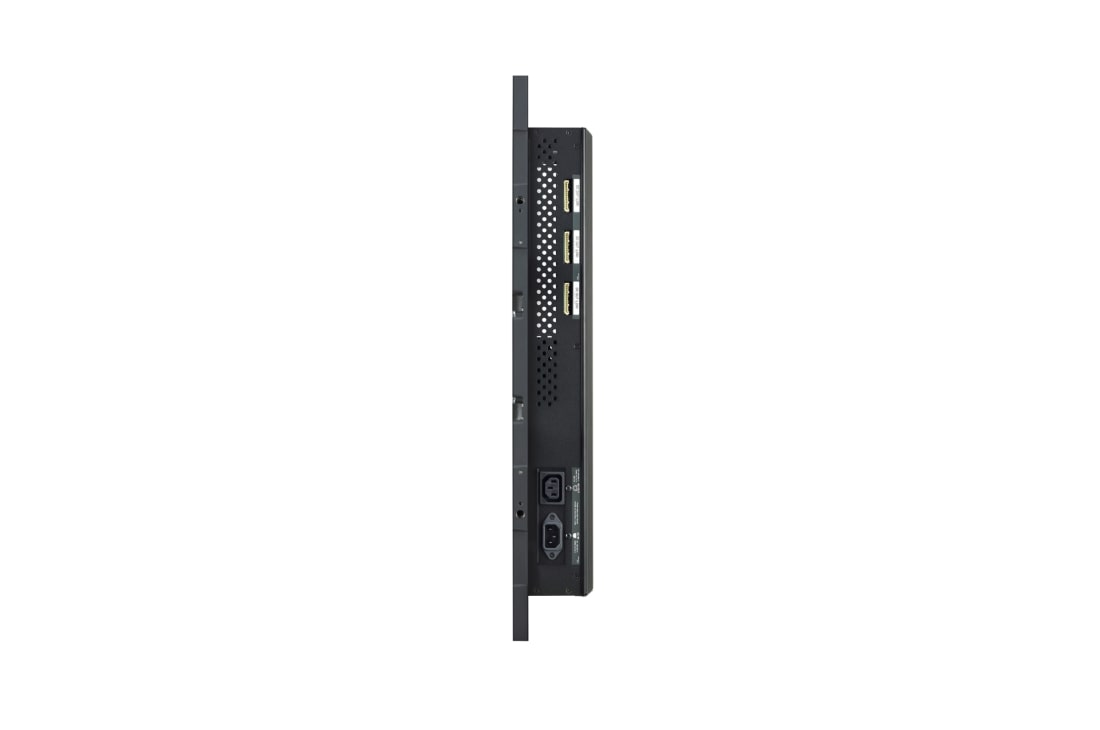

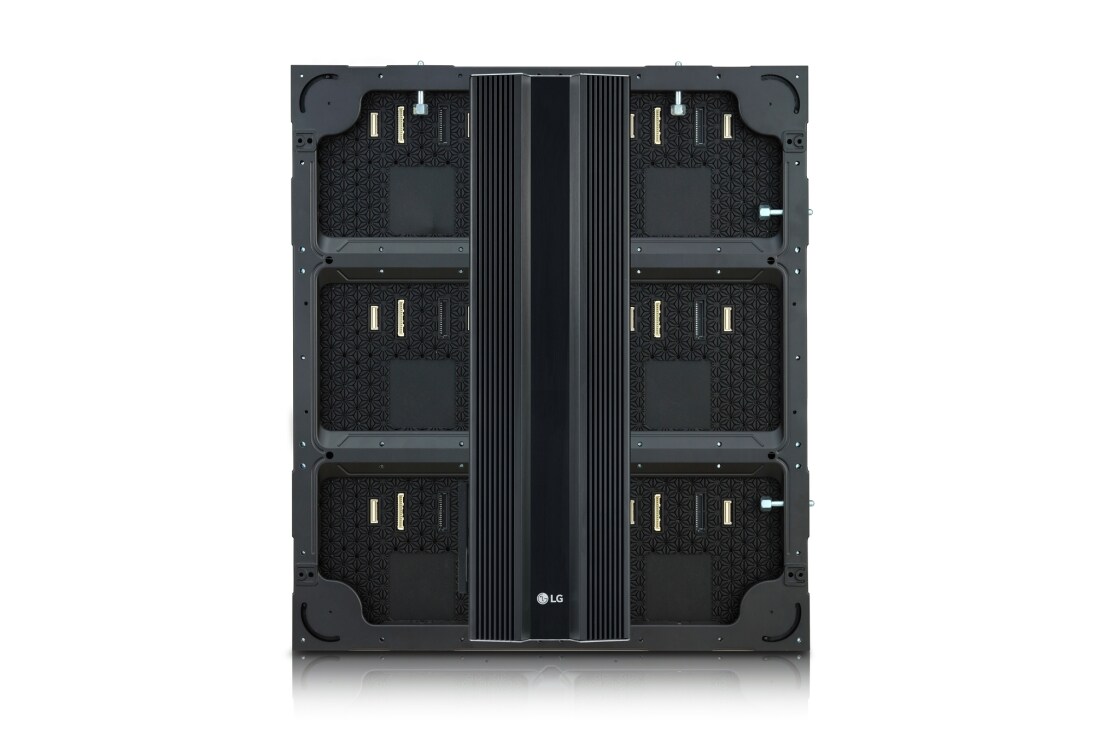

  • Dimensions(WxHxD, per Unit Frame)
    480 x 540 x 105mm2)
    Weight(per Unit Frame)1)
    9.3 kg2)
  • Weight(per SQM)2)
    35.9 kg2)
    IP Rating
    N/A
  • Unit Frame Material
    Die Casting Alluminum
    Unit Frame Color
    Black
  • Curvature
    H : Concave/Convex ±1,000R
    V : Concave/Convex ±6,000R
    Access
    Front and Rear

OPTICAL PARAMETER

  • Brightness(Max)
    700nit
    Contrast Ratio
    6,000:1
  • Viewing Angle(H x V)
    160 x 140

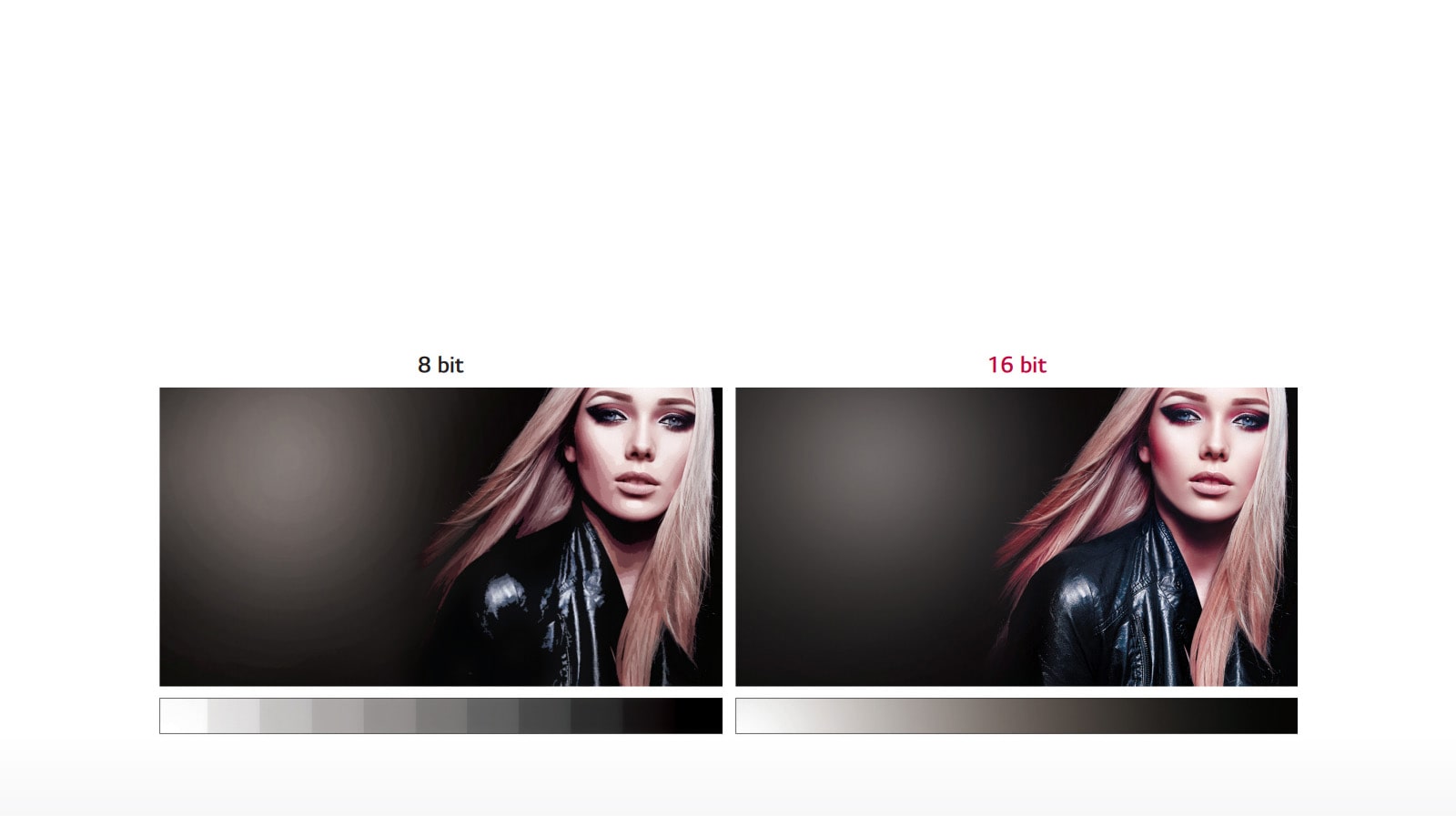

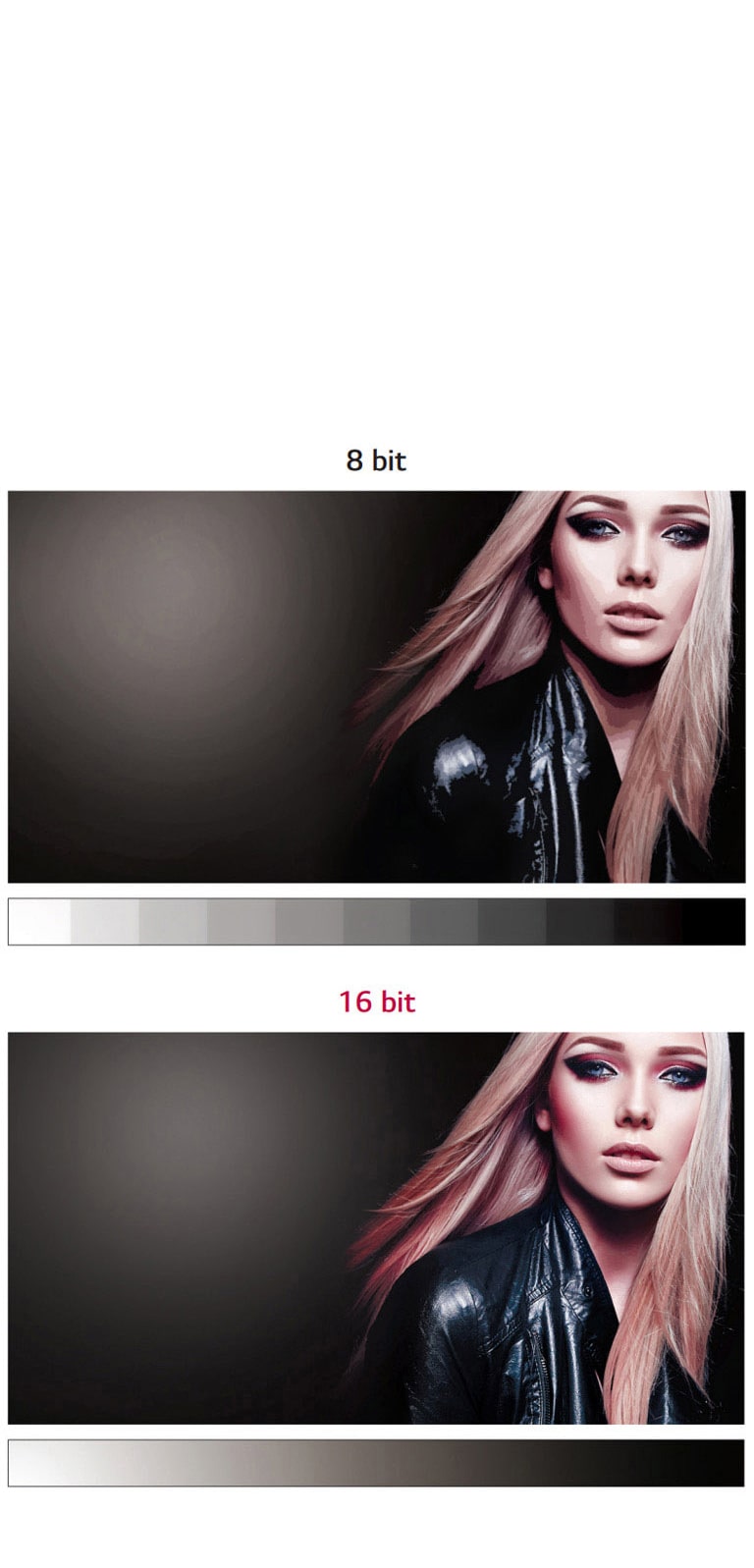

    Bit Depth(Bit Processing per Color)
    16bit
  • Brightness Uniformity
    ≥ 95%
    Color Uniformity
    ±0.015Cx, Cy
  • Color Gamut
    NTSC 100%, BT2020 94%
    Color temperature - Default
    6,500K
  • Color temperature - Adjustable
    3,200 - 9,300K
    Video Frame Rate
    50/60Hz

ELECTRICAL PARAMETER

  • Input Power Range
    100-240V~, 50/60Hz
    Power consumption - Max/Typ(per Unit Frame)
    180/90W
  • Power consumption - Max/Typ(per SQM)
    700/350W

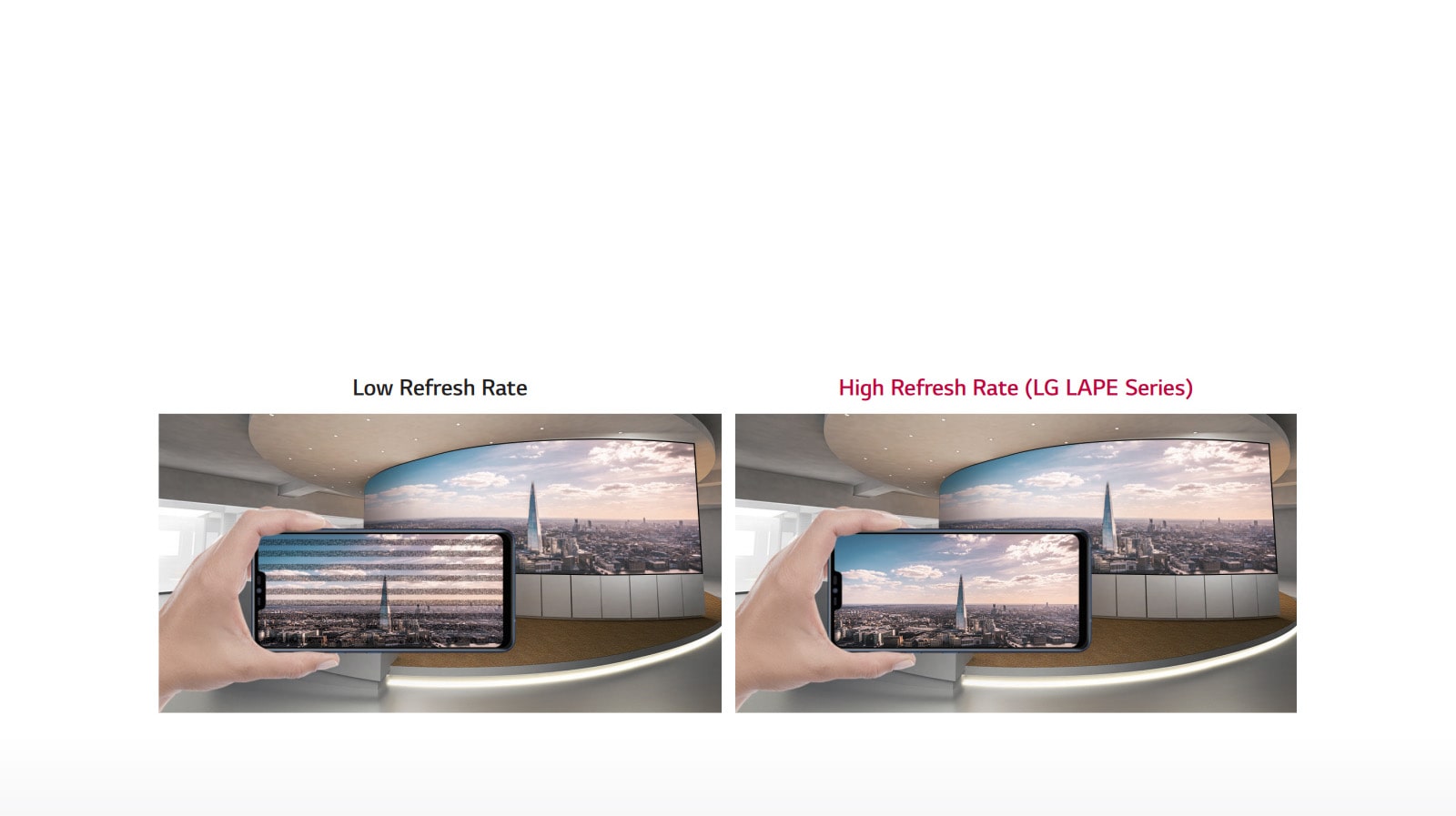

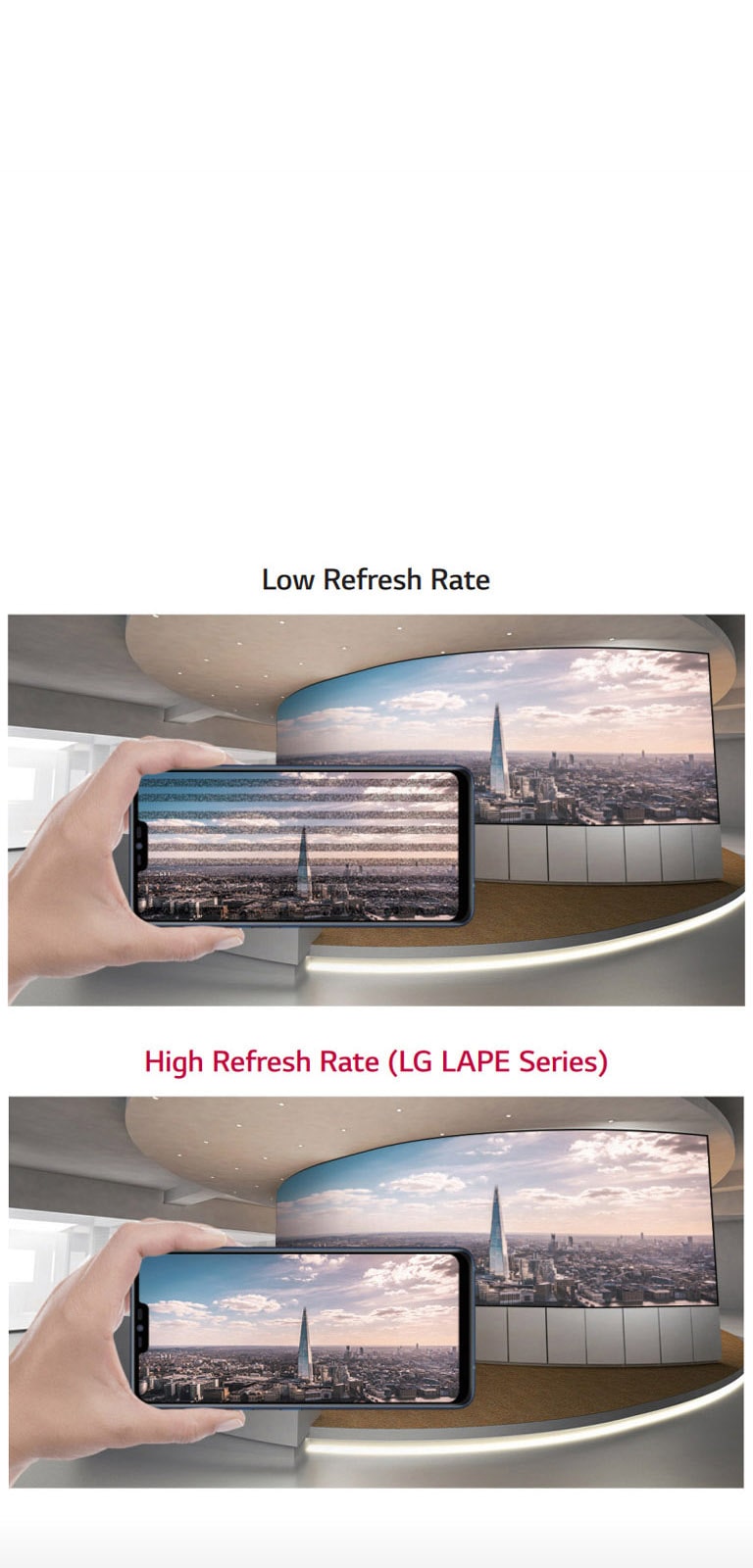

    Refresh rate
    3,840Hz(Max)
  • Redundancy
    Signal

CONNECTIVITY3)

  • Video Inputs
    HDMI In(1), DP In(1), OPS In(1), USB(1)
    Control
    RJ45 In(1), RS232C In(1)/Out(1)
  • Special Features
    Temperature Sensor, Power Detection,
    ADA Compliant4), PSU Hot Swappable4)

OPERATION CONDITIONS

  • Working Temperature/Huminity
    0 °C to 40 °C at 10 % to 80 %
    Storage Temperature/Huminity
    -20° to +60°C at 5 to 85%
  • LED Lifetime
    50,000hrs

CERTIFICATION

  • Safety
    N/A
    EMC
    FCC Class "A" / CE / KC
  • Environment
    RoHS

OPTIONAL ACCESSORY

  • Optional Accessory
    N/A
