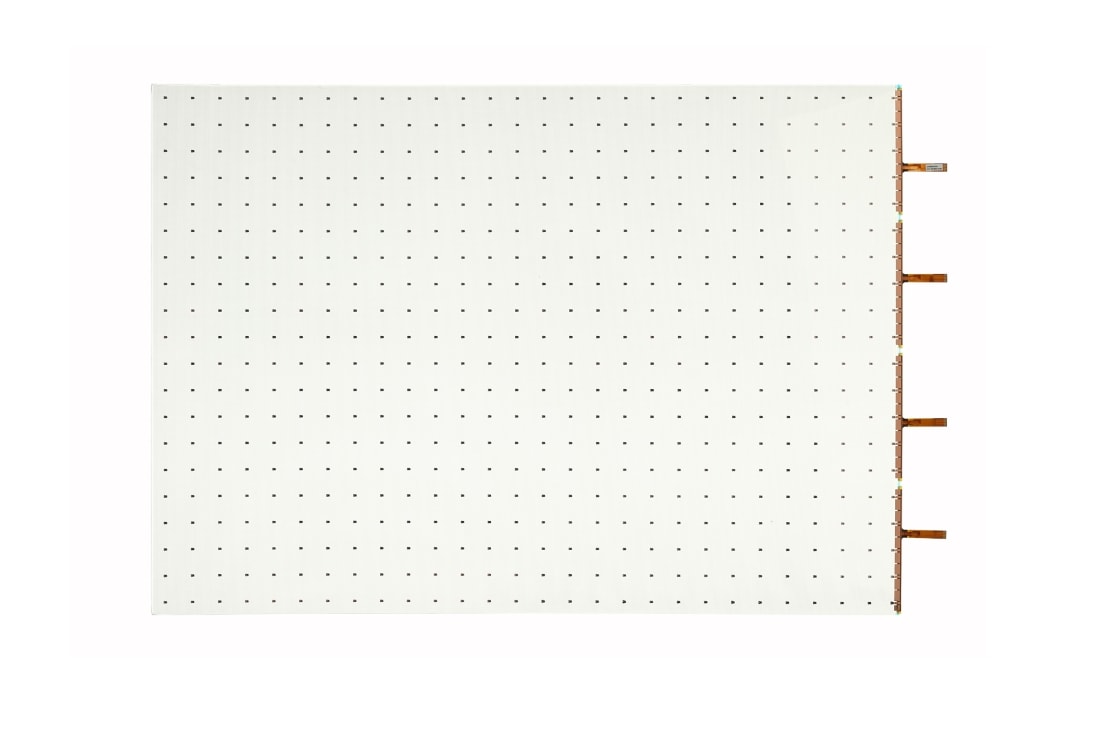

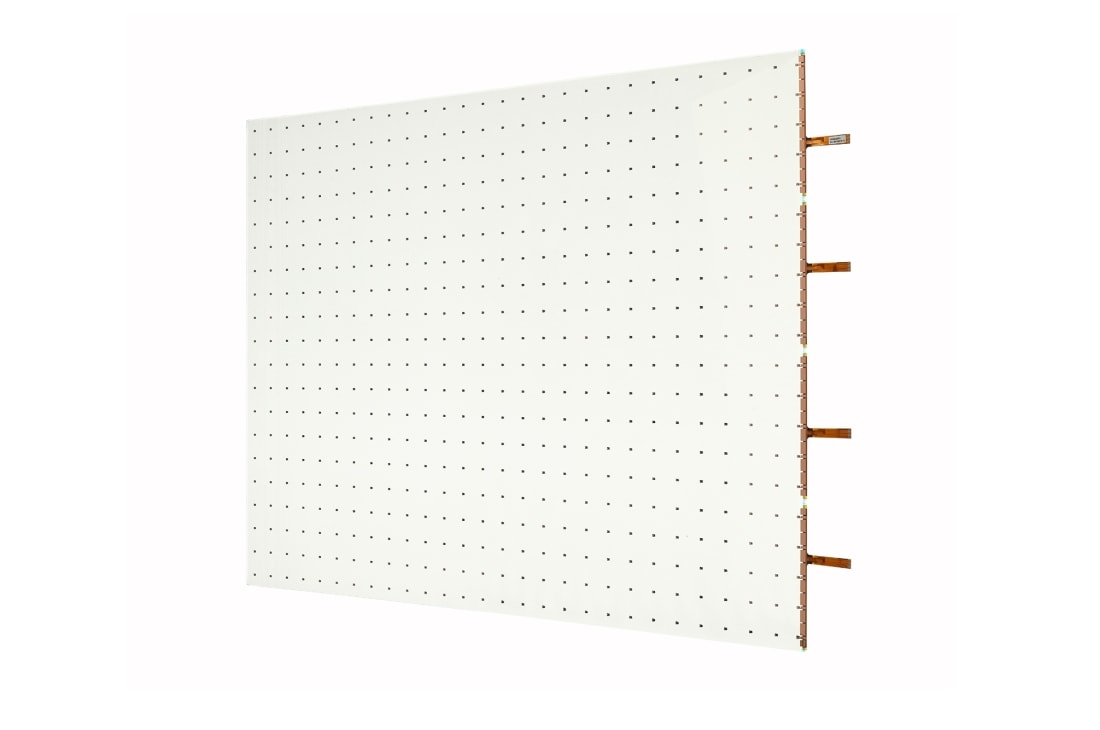

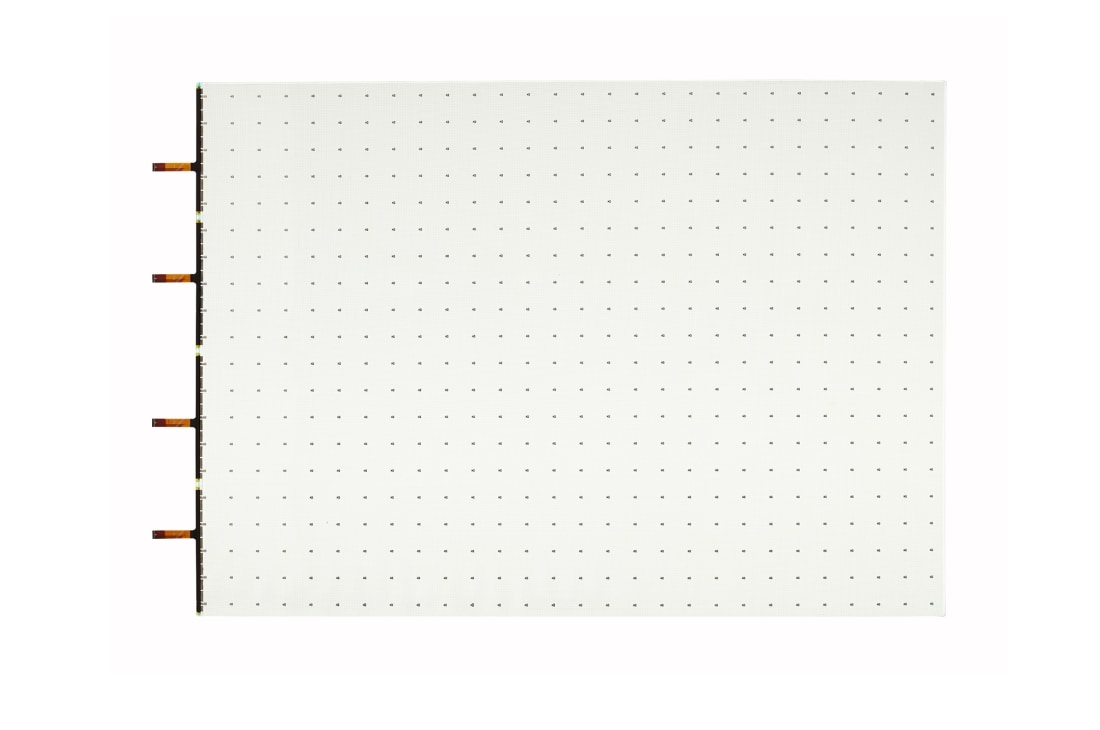

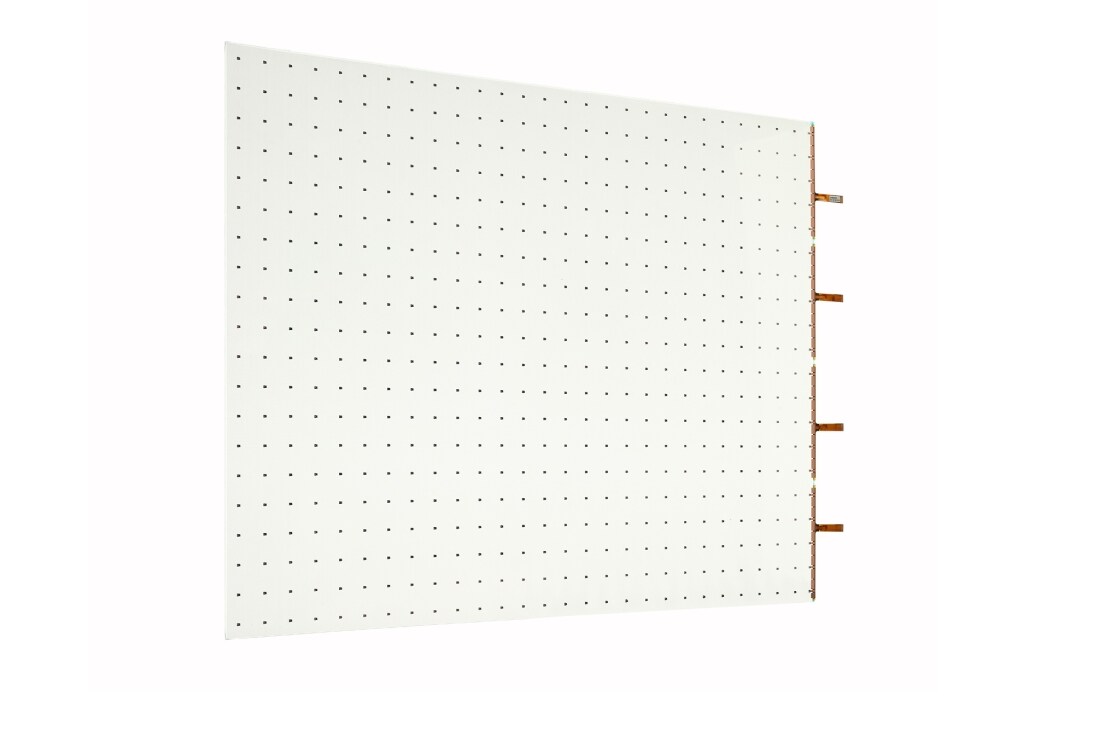

LAT240DT1
Color Transparent LED Film
  • Pitch: 24mm
  • LED Type: R,G,B 3in1 Color Package
  • Transmittance: 73%

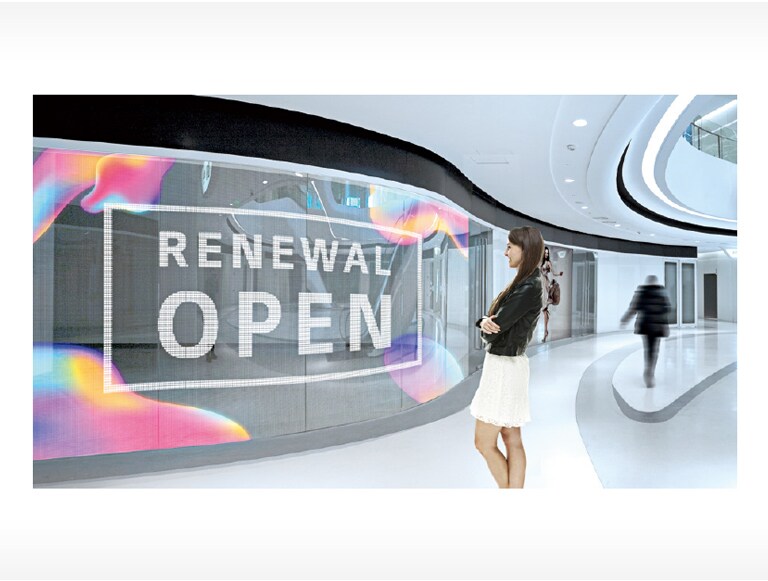

  • Curvature(Convex and Concave): 1,100R

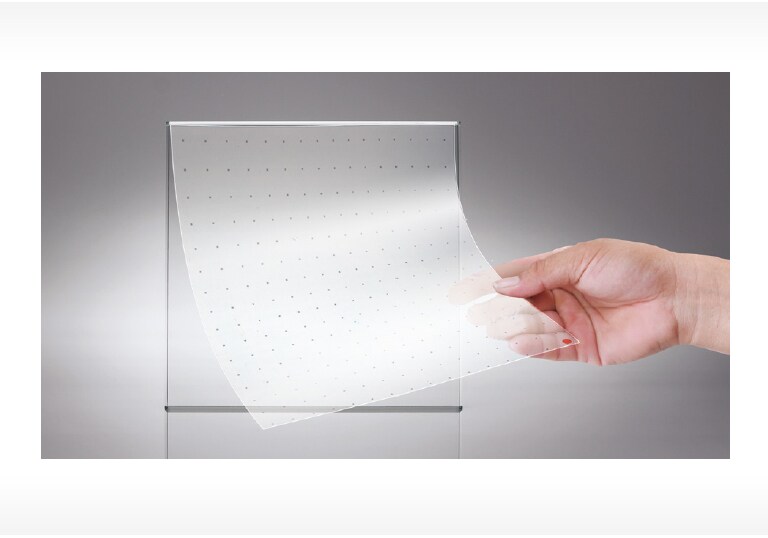

  • Self-adhesive Film
Color Transparent LED Film
MSRP AED

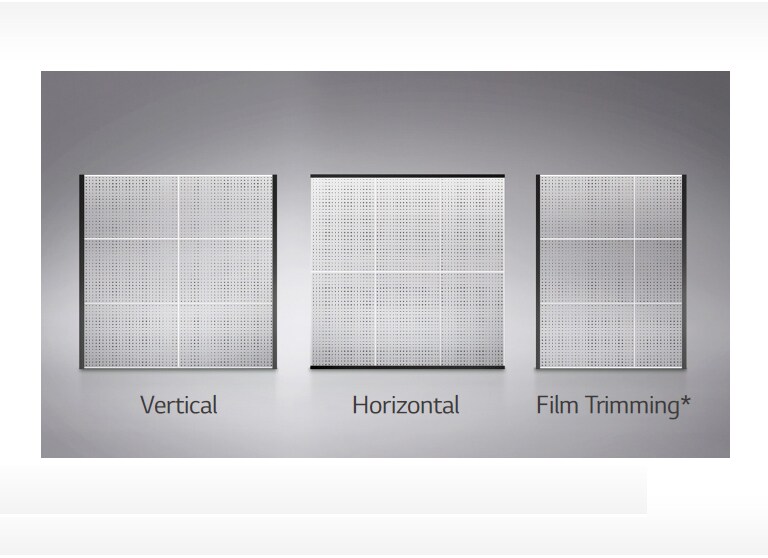

* The film must be cut in parallel with the bezel by 1 pixel.

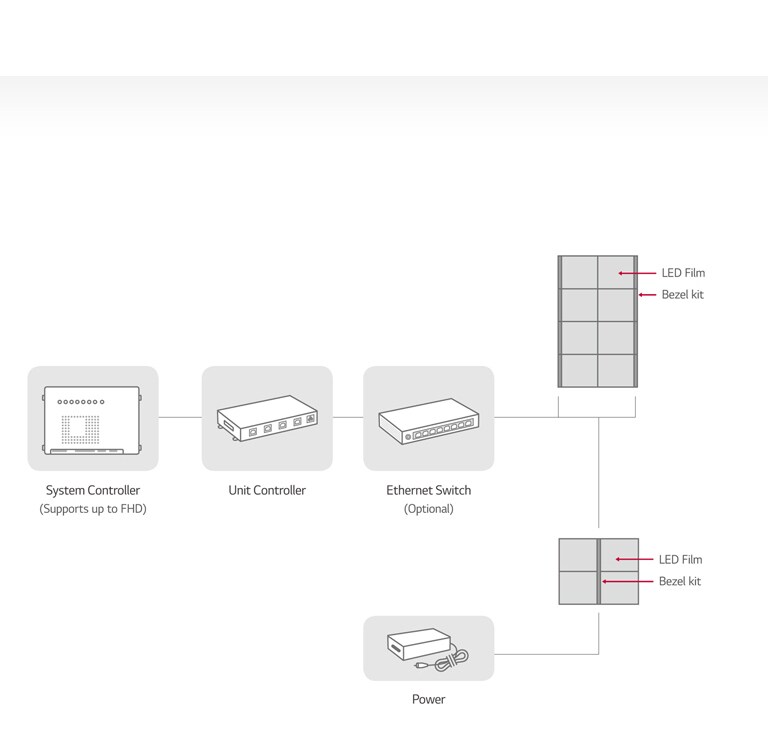

※ The actual system structure may be subject to change from the above example

LAT240DT1

  • Pitch
    24±0.2mm
    LED Type
    R, G, B 3in1 Color Package (SMD1818)
  • Resolution
    28 x 20
    Pixels per Panel
    560
  • Pixel Density [point/m²]
    1,736
    Brightness (After Calibration)
    >1,000nit
  • Contrast Ratio
    ≥ 100,000:1
    Luminance Uniformity
    ≥ 70%
  • Chromaticity Uniformity
    Δu’v’≤0.015
    Viewing Angle (H x V)
    120 x 120
  • Life Time (Brightness 50%)
    50,000 Hrs
    Daily Usage
    24h / 7days
  • Warranty
    2 Years
    Transparency
    73%
  • Operating Temperature
    0℃ ~ 45℃ (Indoor Glass Installation Only)
    Curved Installation
    1,100R (Convex and Concave)
  • Film Trimming
    Yes (Parallel to the Bezel Side Only)
    Film Surface Color Distortion
    No
  • Color Processing
    130/120/110 Level (R, G, B)
    Colors
    1,716,000 Colors
  • Color Chromaticity
    Cx: 0.28±0.03, Cy: 0.28±0.03
    Dimension (W x H x D)
    668 x 480 x 2.0 mm (with Front & Back Protection Film)
  • Weight
    0.73 kg
    Power Consumption
    37W (Transparent panel 1EA + Bezel kit 1EA)
  • Accessory
    ESG, Regulation book, Warranty Card

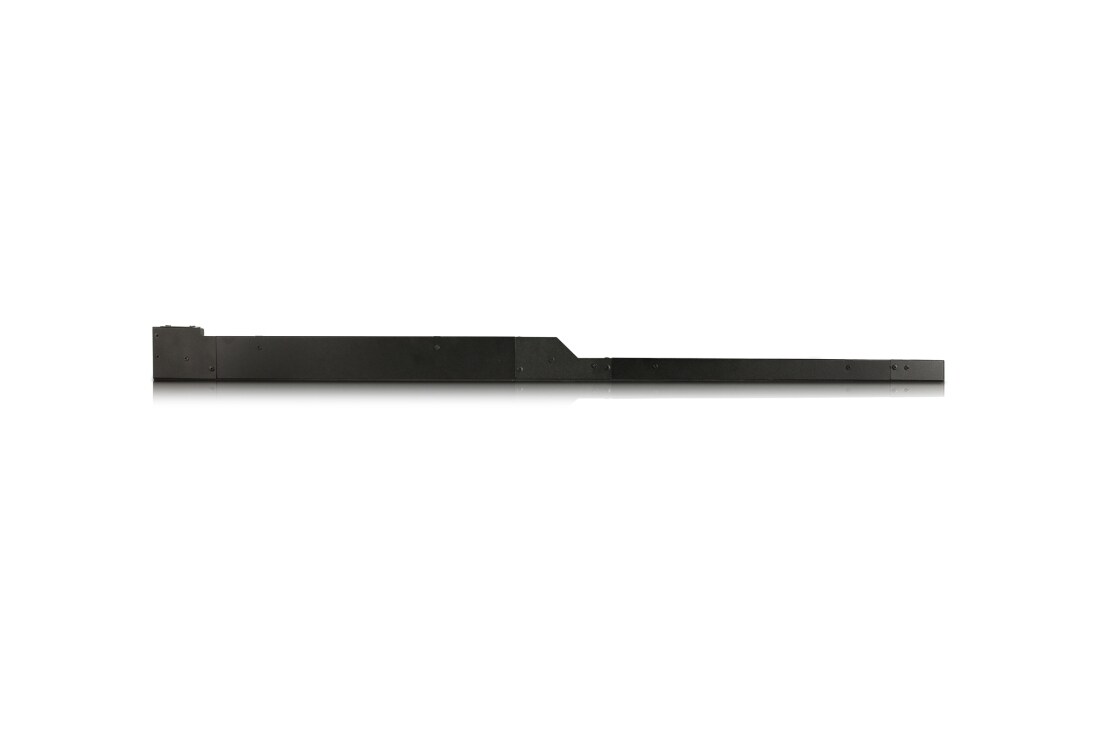

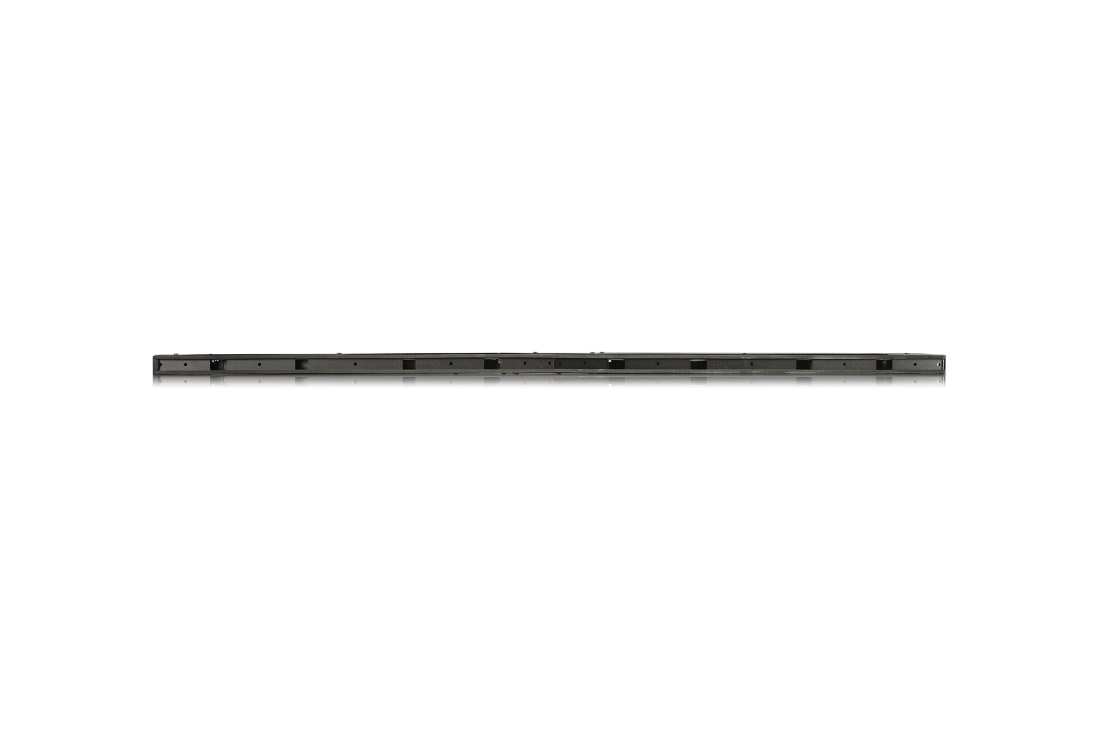

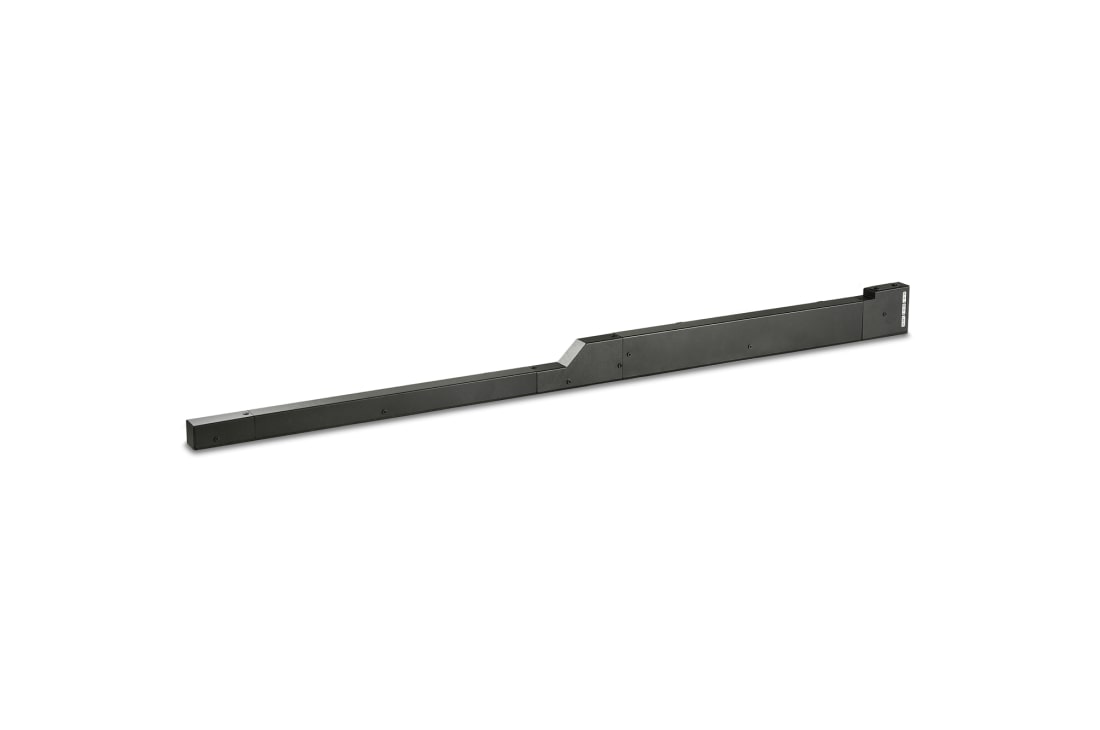

1ST BEZEL KIT

  • Dimension (W x H x D)
    547.3 x 63 x 24 mm
    Weight
    0.45 kg

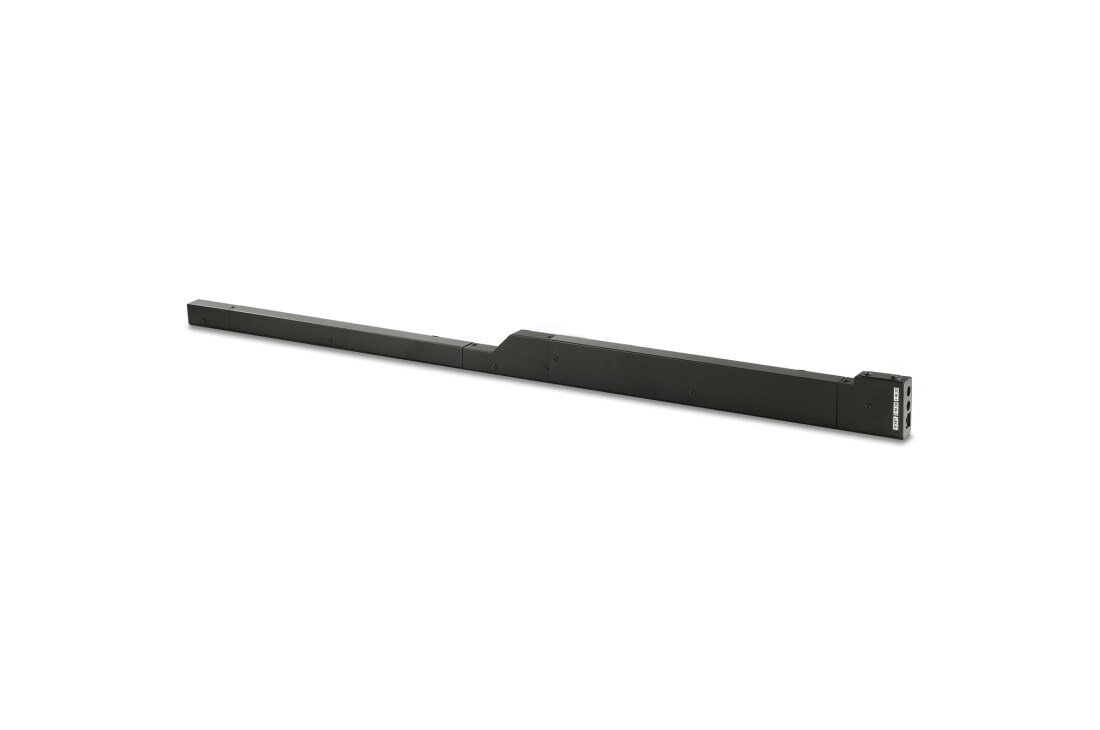

COMMON BEZEL KIT

  • Dimension (W x H x D)
    479.5 x 28.1 x 24 mm
    Weight
    0.26 kg

UNIT CONTROLLER

  • Resolution
    960 x 540 (4 Unit Controllers Needed for FHD)
    Interface
    Input : LVDS
    Output : RJ45 x4EA
  • Maximum Transmission Length
    100 m
    Dimension (W x H x D)
    293 x 37 x 188.7mm
  • Weight
    1.5 kg
    Temperature Sensor
    Yes
  • Power Consumption
    20 W

SYSTEM CONTROLLER

  • Video (Max. Input Resolution)
    DP: 3,840 x 2,160 @30Hz
    HDMI: 3,840 x 2,160 @30Hz
    DVI-D: 1,920 x 1,080 @60Hz
    Interface - Digital (w/ HDCP) - HDMI
    Input : 1EA
  • Interface - Digital (w/ HDCP) - DP
    Input : 1EA
    Output : 1EA
    Interface - Digital (w/ HDCP) - DVI-D
    Input : 1EA
  • Interface - Comm. Port - RS-232C
    Input : 1EA (Phone Jack Type)
    Output : 1EA (Phone Jack Type)
    Interface - Comm. Port - RJ-45
    Input : 1EA (without LED indicator)
    Output : 1EA (without LED indicator)
  • Interface - Comm. Port - IR Receiver (w/ Light Sensor)
    1EA (Phone Jack Type) : Used for installation
    Interface - USB3.0
    1EA
  • Interface - LVDS
    Output : 1EA
    Dimension (W x H x D mm)
    293 x 40.1 x 193.3mm
  • Weight (Head, Kg)
    1.6kg
    Temperature Sensor
    O
  • Light Sensor
    O
    Source Selection
    HDMI, DVI-D, DP
  • TPC (Temporal Peak luminance Control)
    Yes
    Motion Eye Care
    Yes
  • Power Consumption
    17W
    CMS S/W
    Yes
  • Accessory
    Power cord, IR+Bright Sensor (1.5m),
    4P Phone-to-RS232C Gender, ESG, Regulation book ,
    Warranty Card

POWER

  • Dimension (W x H x D)
    183 × 86 × 28 mm
    Weight
    0.769 kg
  • Input
    100~240V, 50~60Hz
    Output
    19.5V/10.8A (210W)
  • Color
    White
    DC Output Cable
    14AWG, 1.5m
  • Type
    L Type
