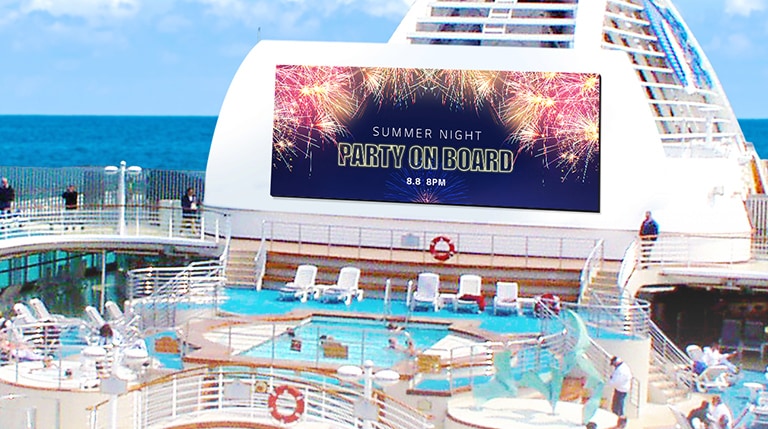

Outdoor LED Display for Cruise Ships

Key Features

Choose your Pitch

component-OBScountrySelectDesc

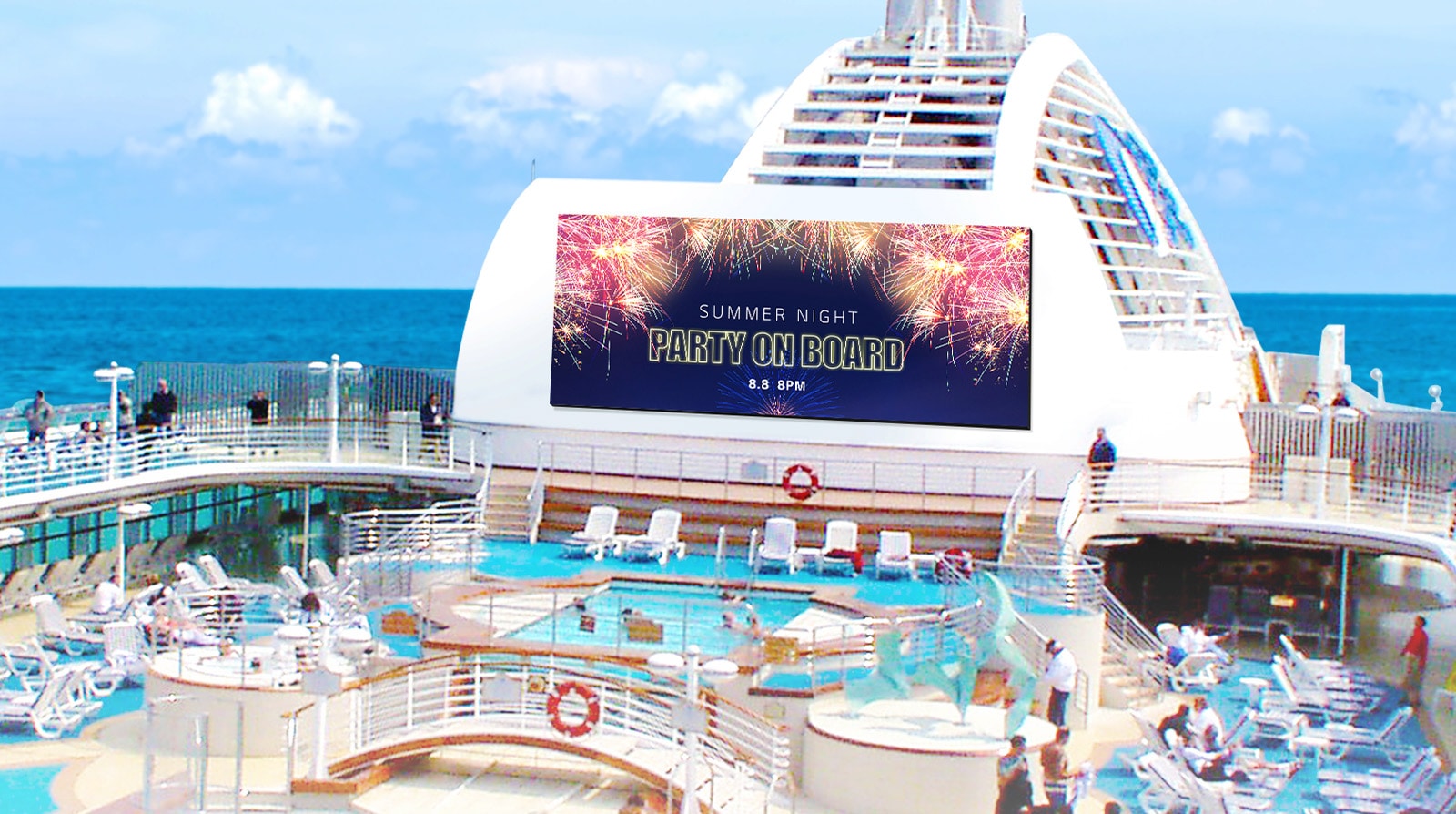

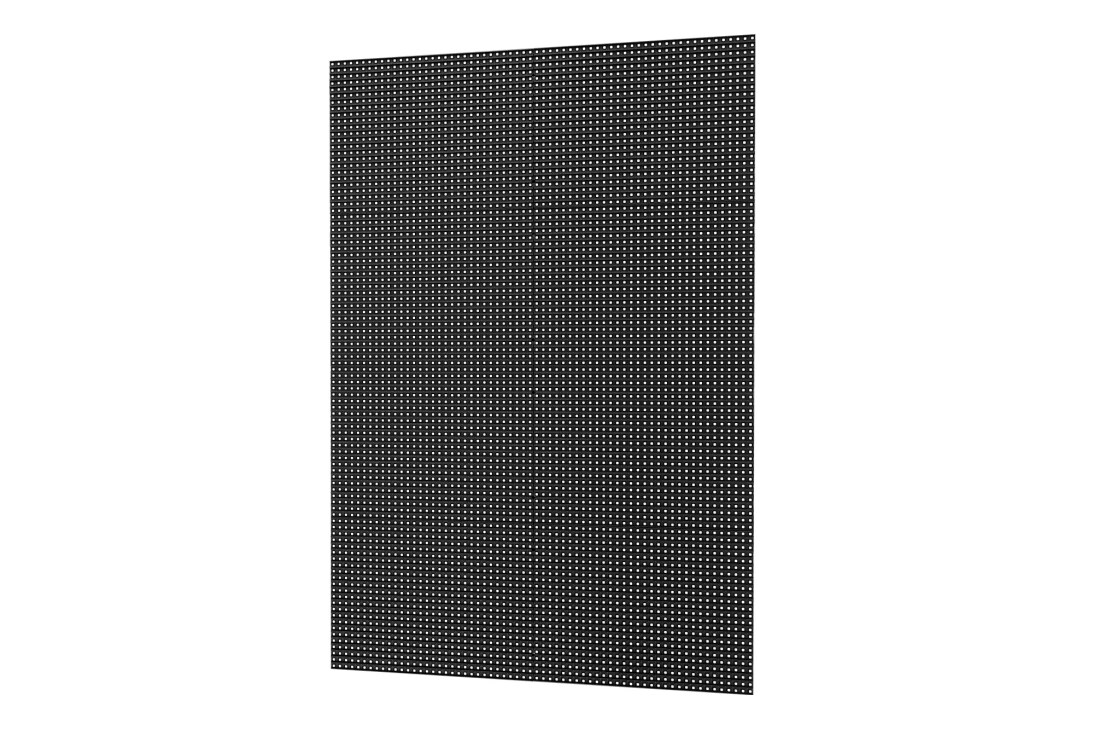

Outdoor LED Display for Cruise Ships
PHYSICAL PARAMETERS
  • Pitch Name
    P6.25
    Pixel Configuration
    Single SMD
  • Pixel Pitch(mm)
    6.25

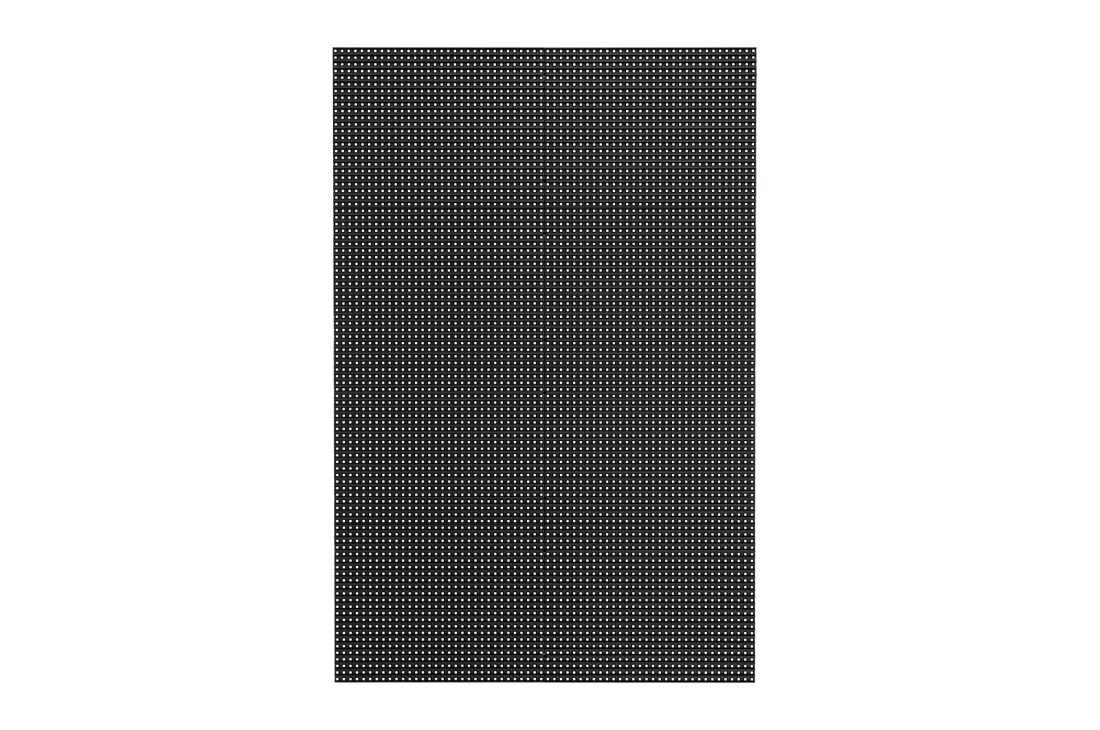

    Module Resolution (WxH)
    64x96

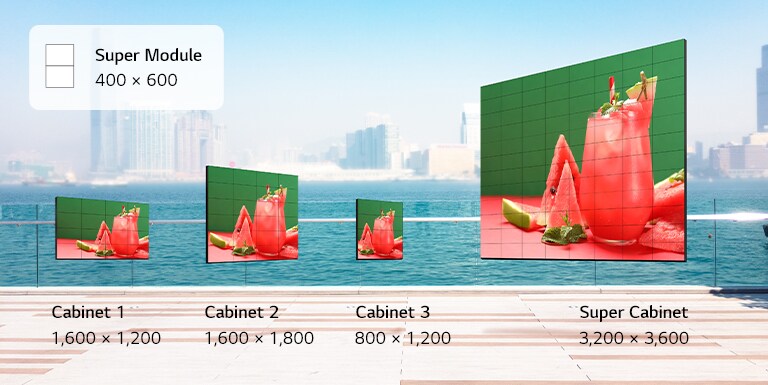

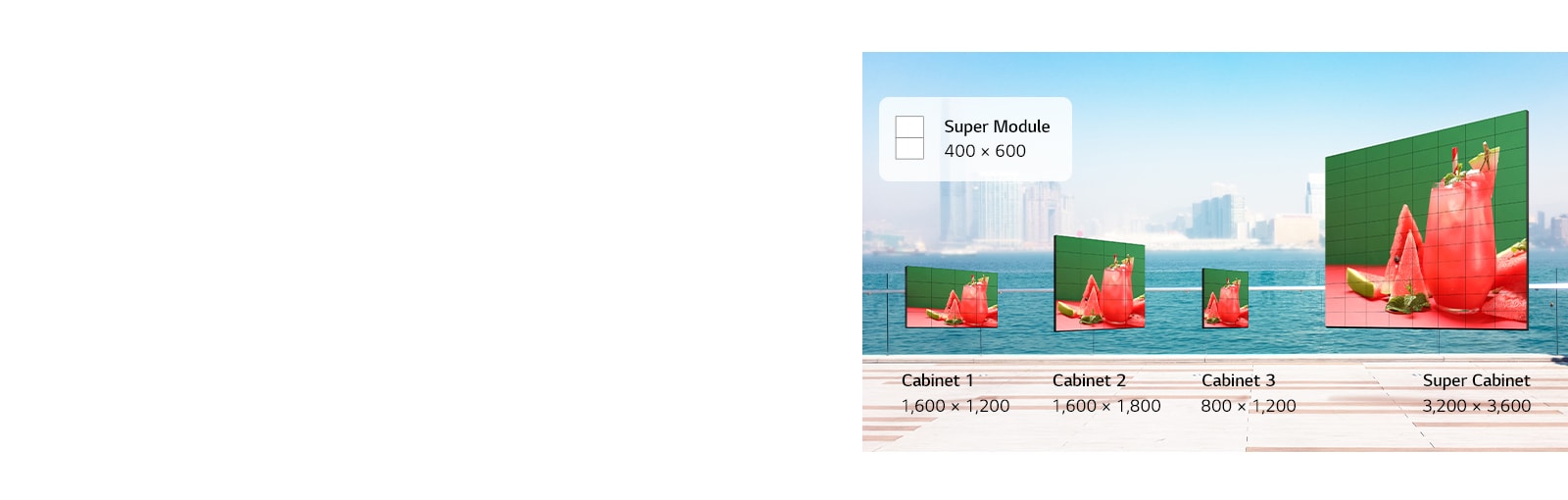

  • Module Dimensions(WxH,mm)
    400x600
    Weight per Module (kg)
    8.33
  • Weight per Square Meter (kg/m²)
    34.7
    Physical Pixel Density (pixels/m²)
    25,600
  • Flatness of Cabinet (mm)
    ±1.0
    Cabinet Material
    Al

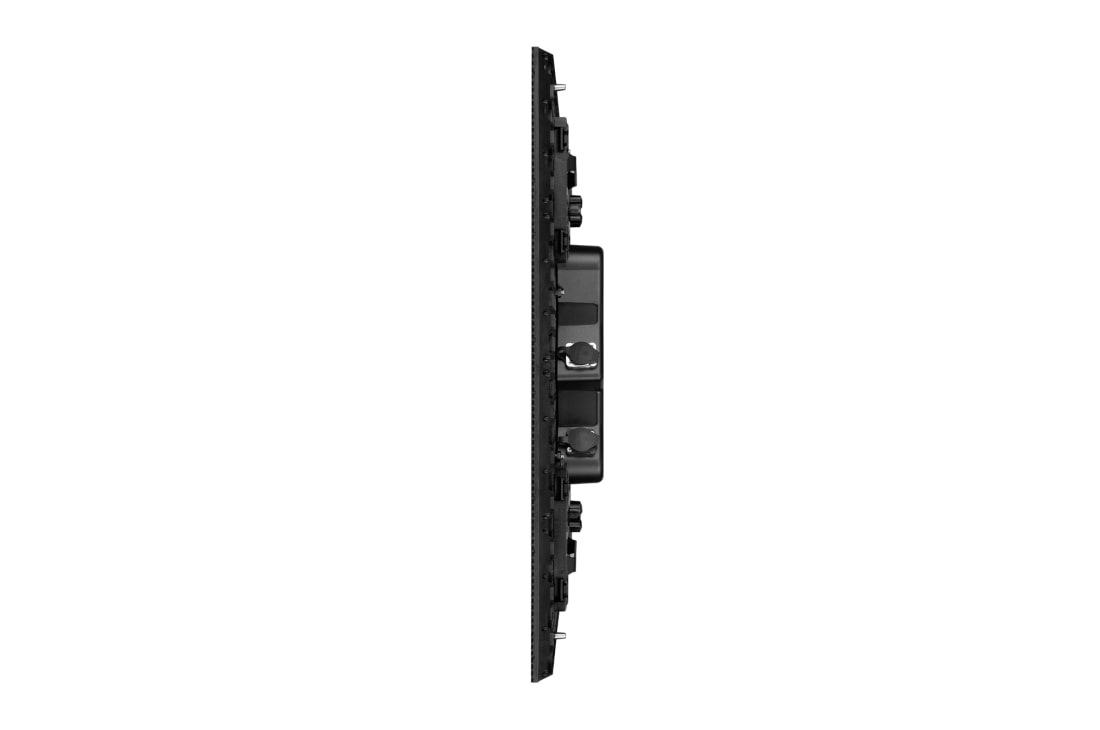

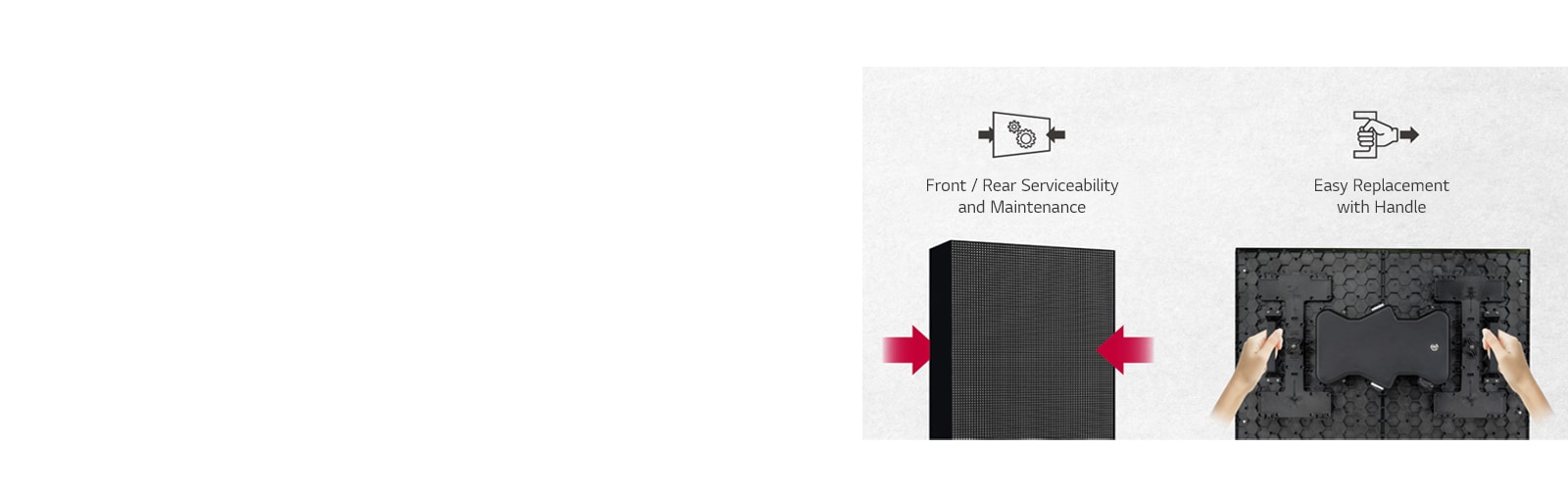

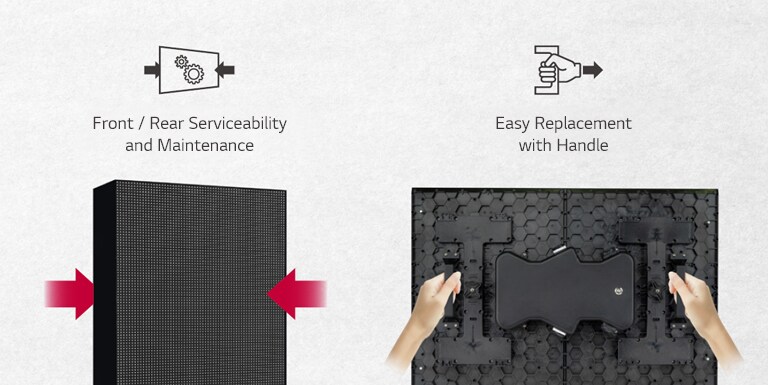

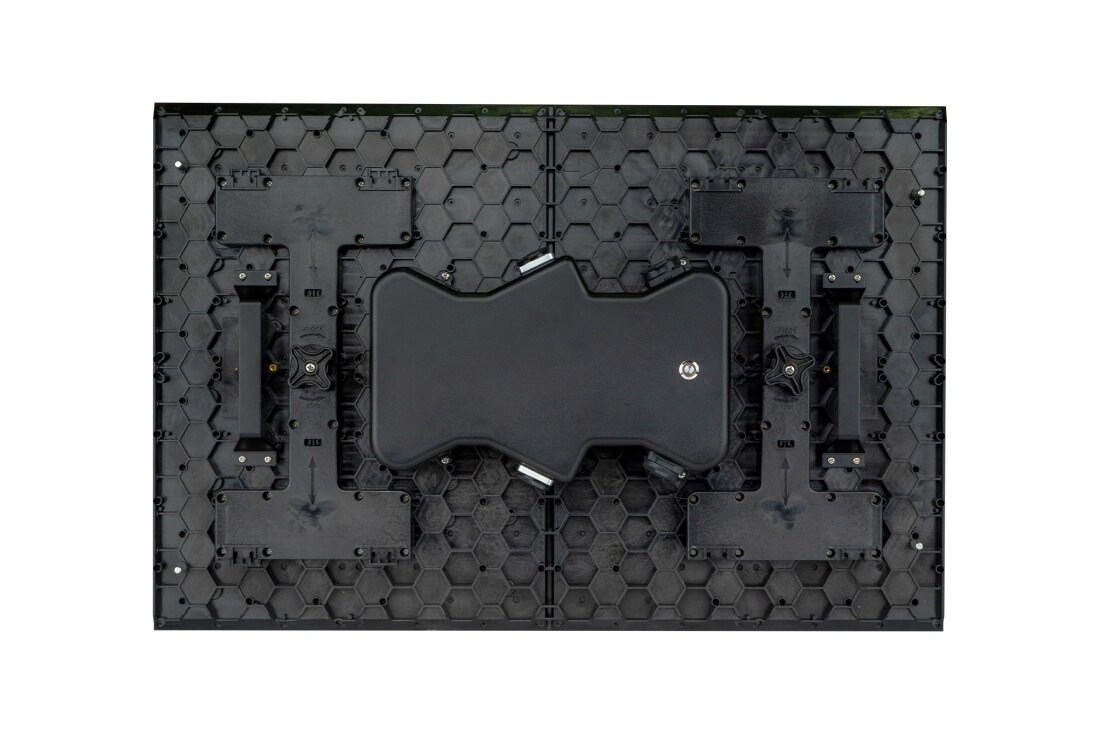

  • Service access
    Front or Rear (select one only)
OPTICAL SPECIFICATIONS
  • Max Brightness (After Calibration, nit)
    6,000
    Color Temperature (K)
    3,500~8,500
  • Visual Viewing Angle (Horizontal)
    140
    Visual Viewing Angle (Vertical)
    130
  • Brightness Uniformity
    97%
    Color Uniformity
    ±0.05Cx,Cy
  • Contrast Ratio
    5,000:1
    Processing Depth (bit)
    16 (HDR10, HDR10 Pro)
ELECTRICAL SPECIFICATIONS
  • Power Consumption (W/Cabinet, Max.)
    167
    Power Consumption (W/Cabinet, Avg.)
    67
  • Power Consumption (W/m², Max.)
    696
    Heat Dissipation (BTU/h/Cabinet, Max.)
    569
  • Heat Dissipation (BTU/h/Cabinet, Avg.)
    228
    Heat Dissipation (BTU/h/m², Max.)
    2,367
  • Power Supply (V)
    100 to 240
    Frame Rate (Hz)
    50 / 60
  • Refresh Rate (Hz)
    7,680
OPERATION SPECIFICATIONS
  • LED Lifetime (Half brightness)
    100,000
    Operating Temperature(℃)
    -30°C to +50°C
  • Operating Humidity
    0~90%RH

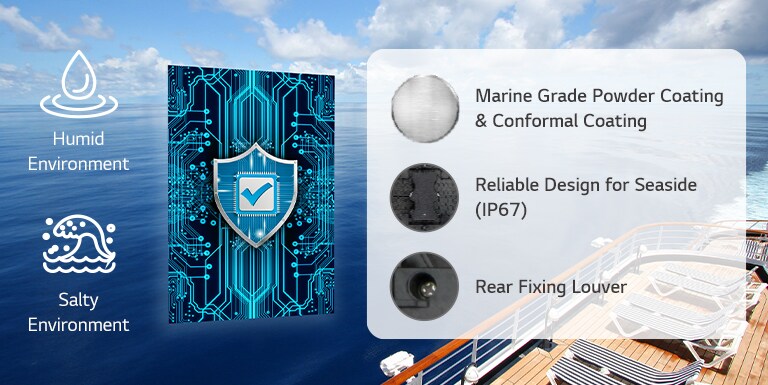

    IP rating Front
    IP67
  • IP rating Rear
    IP67
CERTIFICATION
  • Certification
    CE,FCC,ETL
Environment
  • Environment
    RoHS, REACH
CONTROLLER
  • Controller
    CVEA
90 degree corner cut
  • 90 degree corner cut
    Yes
COMPLIANCE INFORMATION
  • The safety information for accessories is included with the safety information for the product and is not provided separately.
