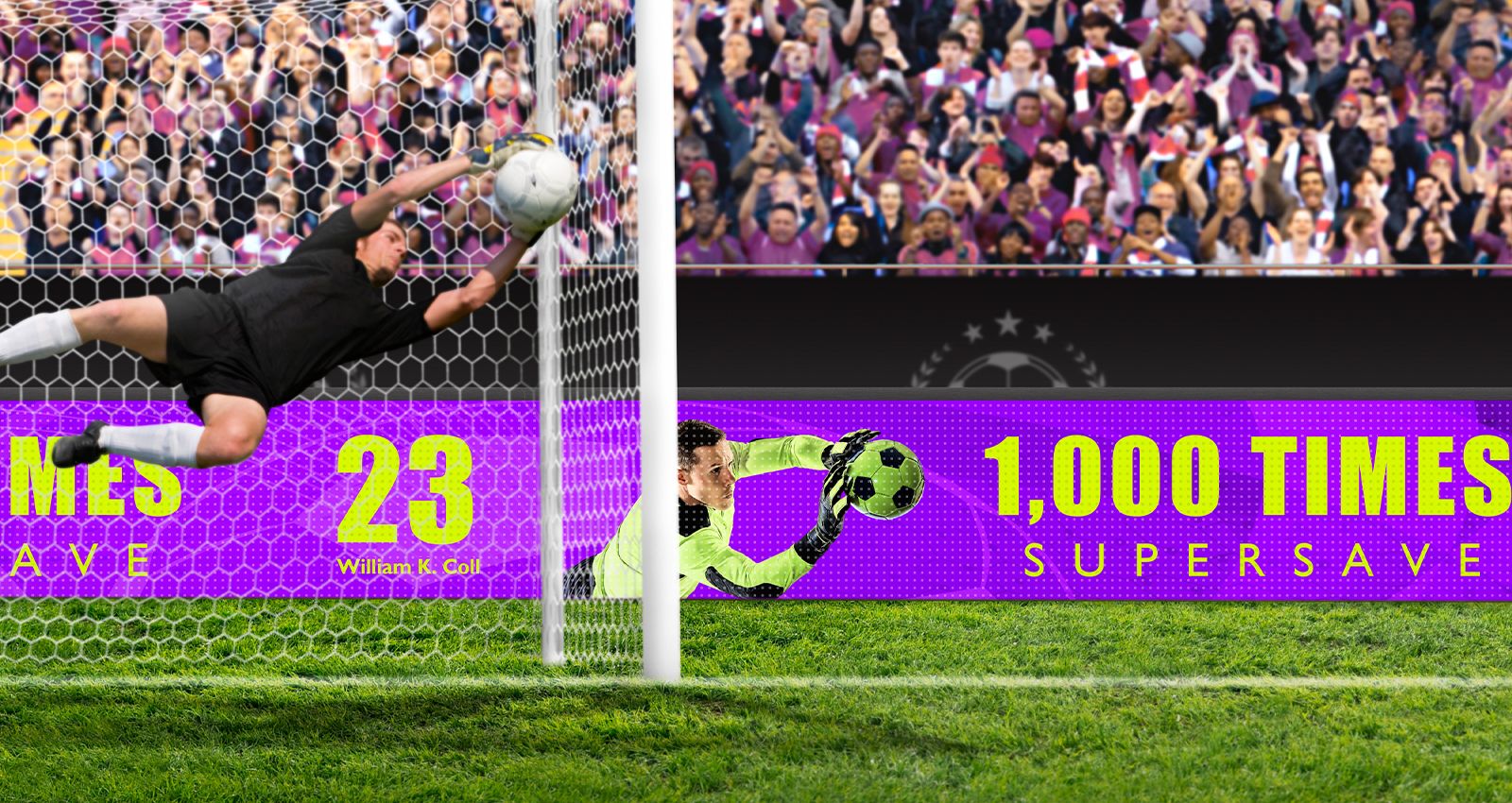

Outdoor LED for Stadium Perimeter

Key Features

Choose your Pitch

component-OBScountrySelectDesc

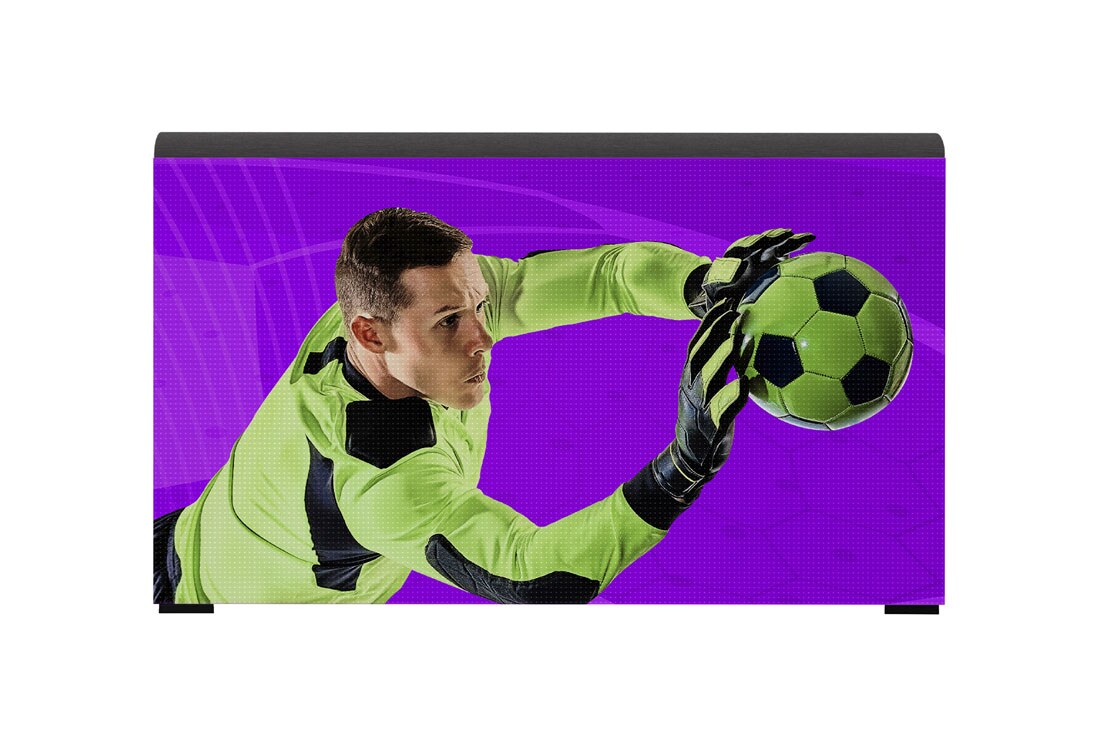

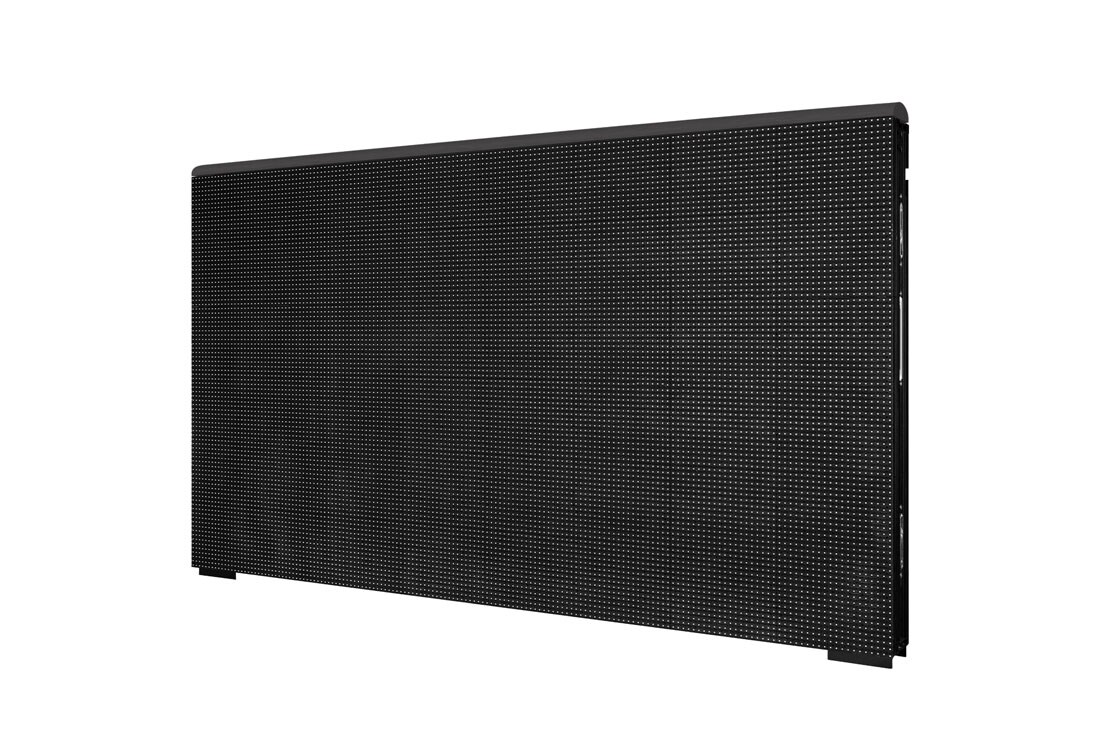

Outdoor LED for Stadium Perimeter
PHYSICAL PARAMETERS
  • Pixel Configuration
    Single SMD
    Pixel Pitch (mm)
    10.00
  • Module Resolution (W x H)
    40 × 30
    Module Dimensions (W x H, mm)
    400x300
  • Weight per Module (kg)
    1.65
    No. of Modules per Cabinet (W × H)
    4X3
  • Cabinet Resolution (W × H)
    160x90
    No. of Modules per Cabinet (WxH)
    8x1
  • Cabinet Resolution (WxH)
    8x80
    Cabinet Dimensions (W x H x D, mm)
    1,600x900x105
  • Cabinet Surface Area (m²)
    1.440
    Weight per Cabinet (kg/unit)
    55.0
  • Weight per Square Meter (kg/m²)
    38.2
    Physical Pixel Density (pixels/m²)
    14,400
  • Flatness of Cabinet (mm)
    ±1.0
    Cabinet Material
    Al

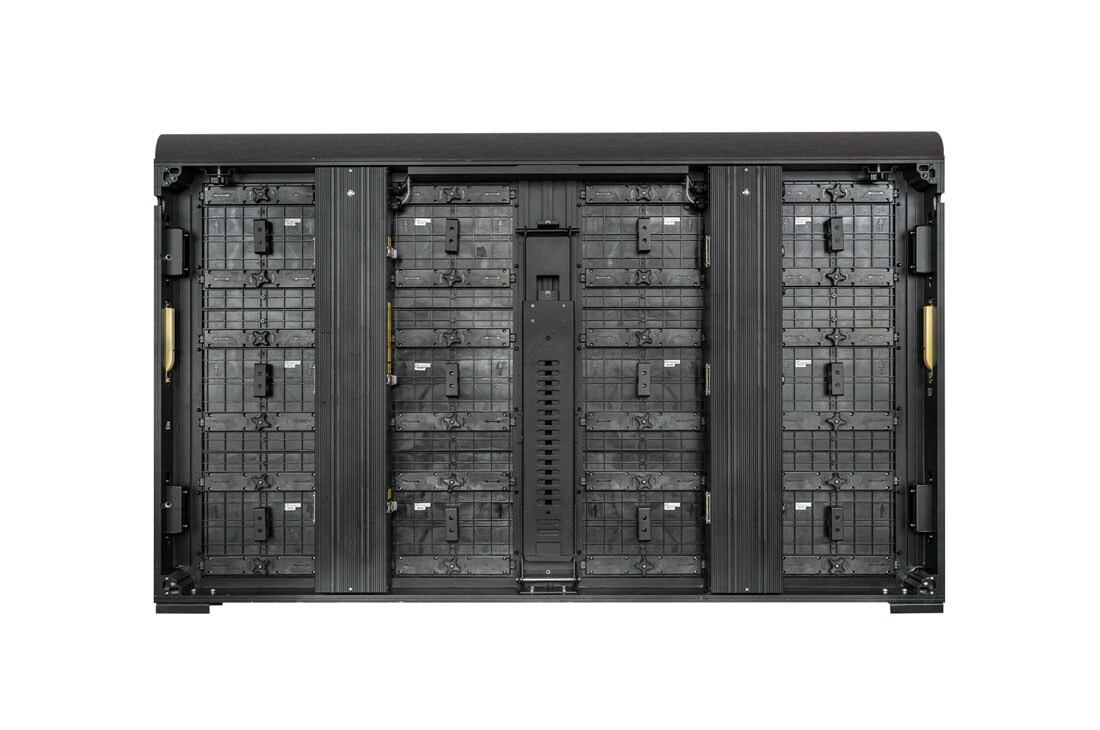

  • Service access
    Front and Rear
OPTICAL SPECIFICATIONS

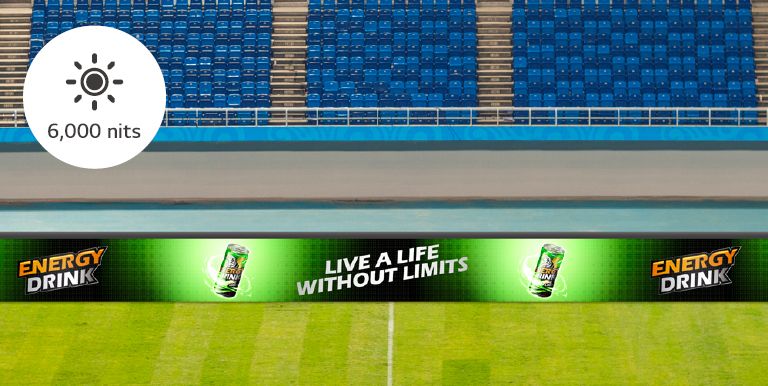

  • Max Brightness (After Calibration, nit)
    6,000
    Color Temperature (K)
    3,500~8,500
  • Visual Viewing Angle (Horizontal)
    160
    Visual Viewing Angle (Vertical)
    110
  • Brightness Uniformity
    97%
    Color Uniformity
    ±0.05Cx,Cy
  • Contrast Ratio
    7,000:1
    Processing Depth (bit)
    16 (HDR10, HDR10 Pro)
ELECTRICAL SPECIFICATIONS
  • Power Consumption (W/Cabinet, Max.)
    1,000
    Power Consumption (W/Cabinet, Avg.)
    400
  • Power Consumption (W/m², Max.)
    694
    Heat Dissipation (BTU/h/Cabinet, Max.)
    3,413
  • Heat Dissipation (BTU/h/Cabinet, Avg.)
    1,365
    Heat Dissipation (BTU/h/m², Max.)
    2,368
  • Power Supply (V)
    100 to 240
    Frame Rate (Hz)
    50 / 60
  • Refresh Rate (Hz)
    7,680
OPERATION SPECIFICATIONS
  • LED Lifetime (Half brightness)
    100,000
    Operating Temperature(℃)
    -30°C to +50°C
  • Operating Humidity
    0~90%RH
    IP rating Front
    IP65
  • IP rating Rear
    IP65
CERTIFICATION
  • Certification
    CE, FCC, ETL
Environment
  • Environment
    RoHS, REACH
CONTROLLER
  • Controller
    CVBA
