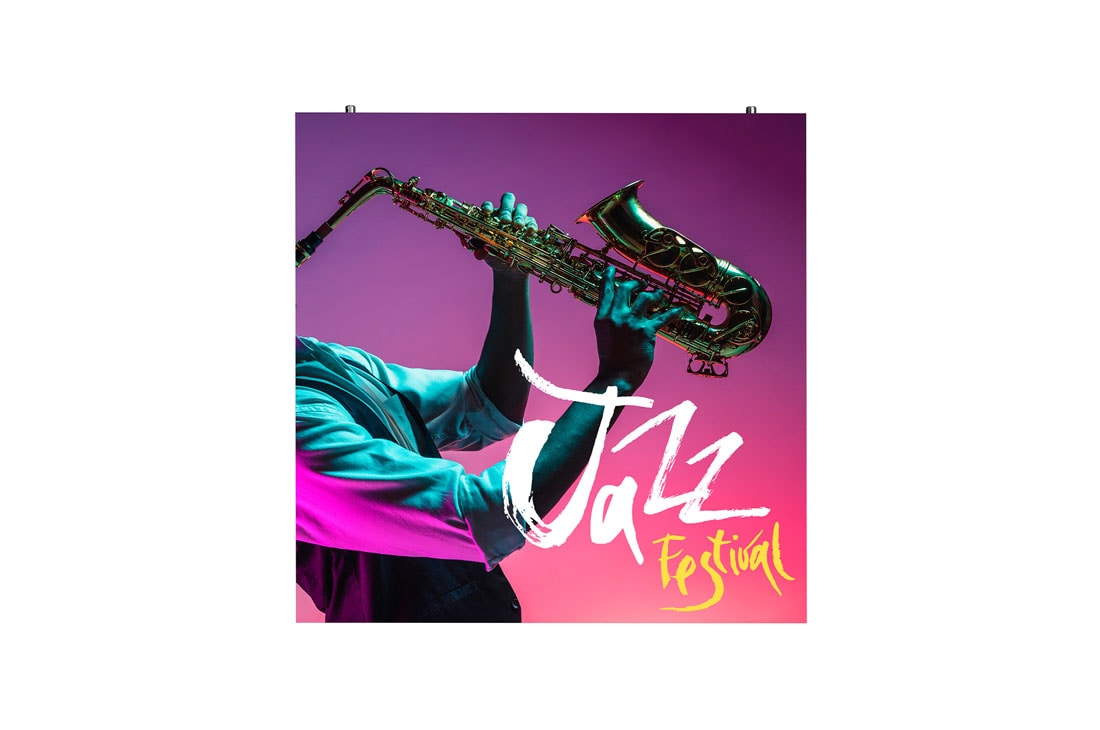

LG 10,000 nits Ultra High Brightness Outdoor Signage, Front view with infill image, GSEG100, thumbnail 1

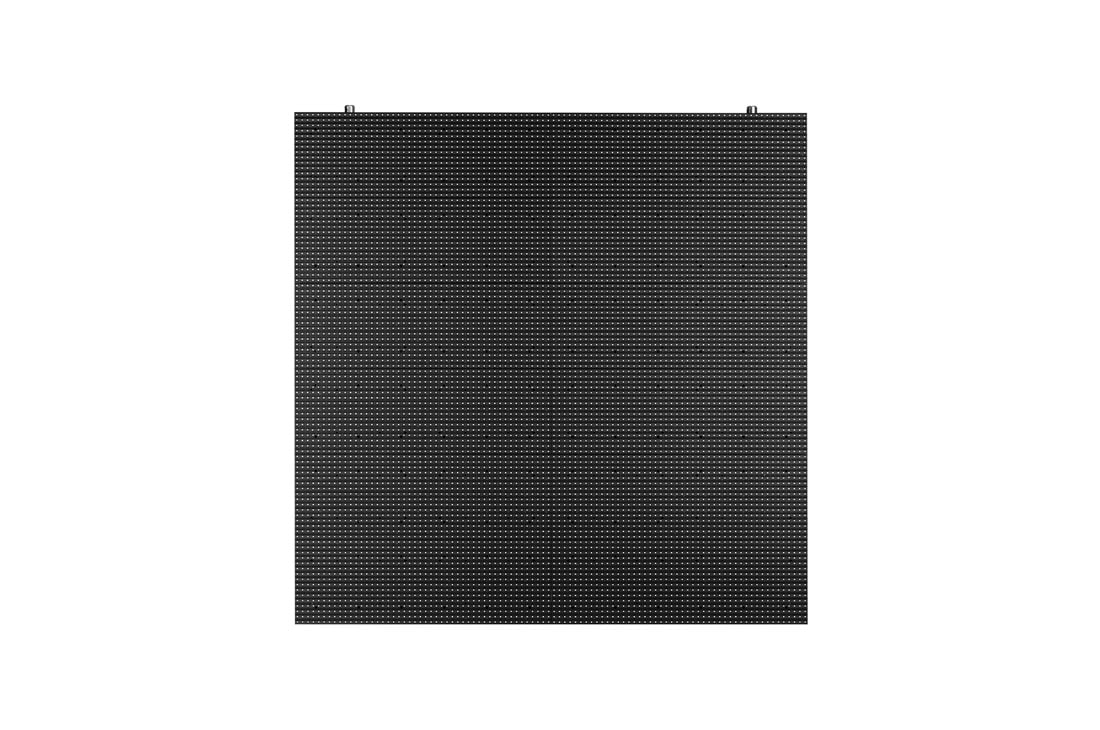

LG 10,000 nits Ultra High Brightness Outdoor Signage, Front view, GSEG100, thumbnail 2

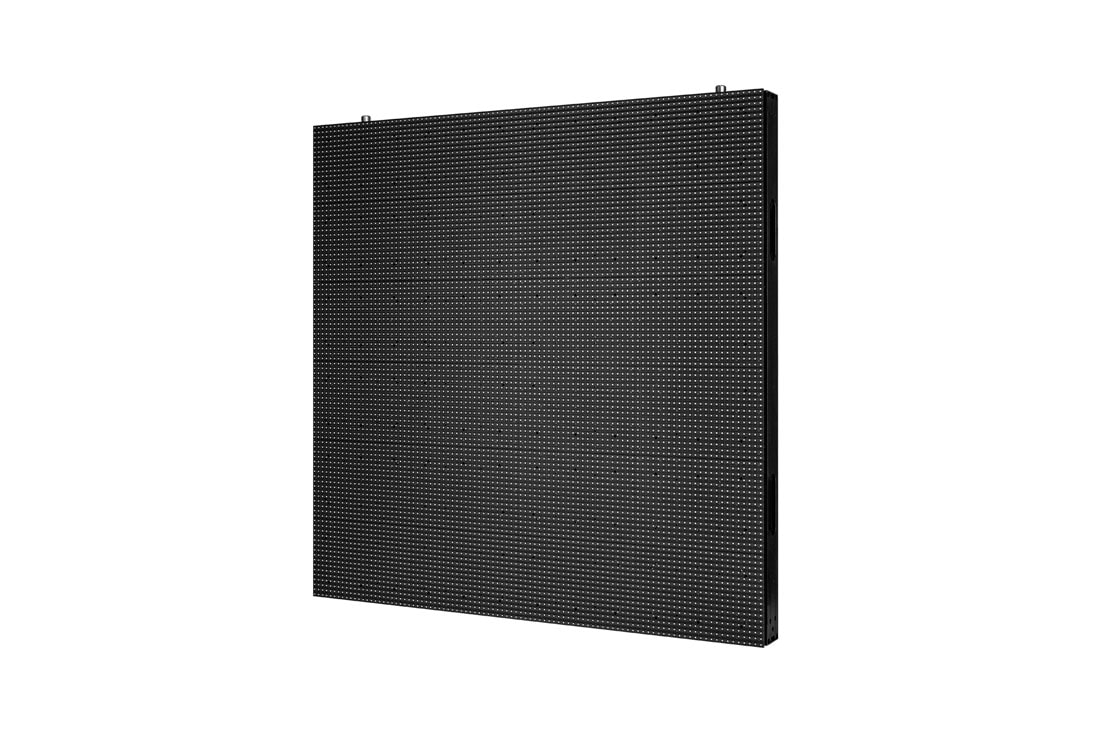

LG 10,000 nits Ultra High Brightness Outdoor Signage, -45 degree side view, GSEG100, thumbnail 3

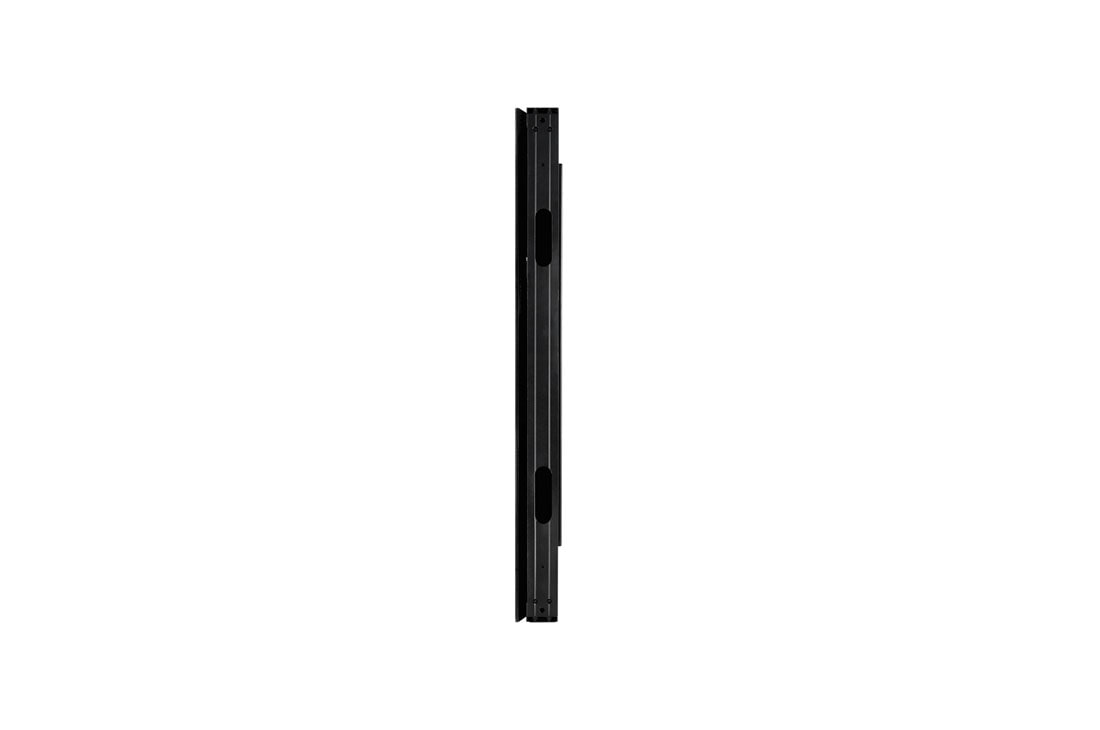

LG 10,000 nits Ultra High Brightness Outdoor Signage, -90 degree rear view, GSEG100, thumbnail 4

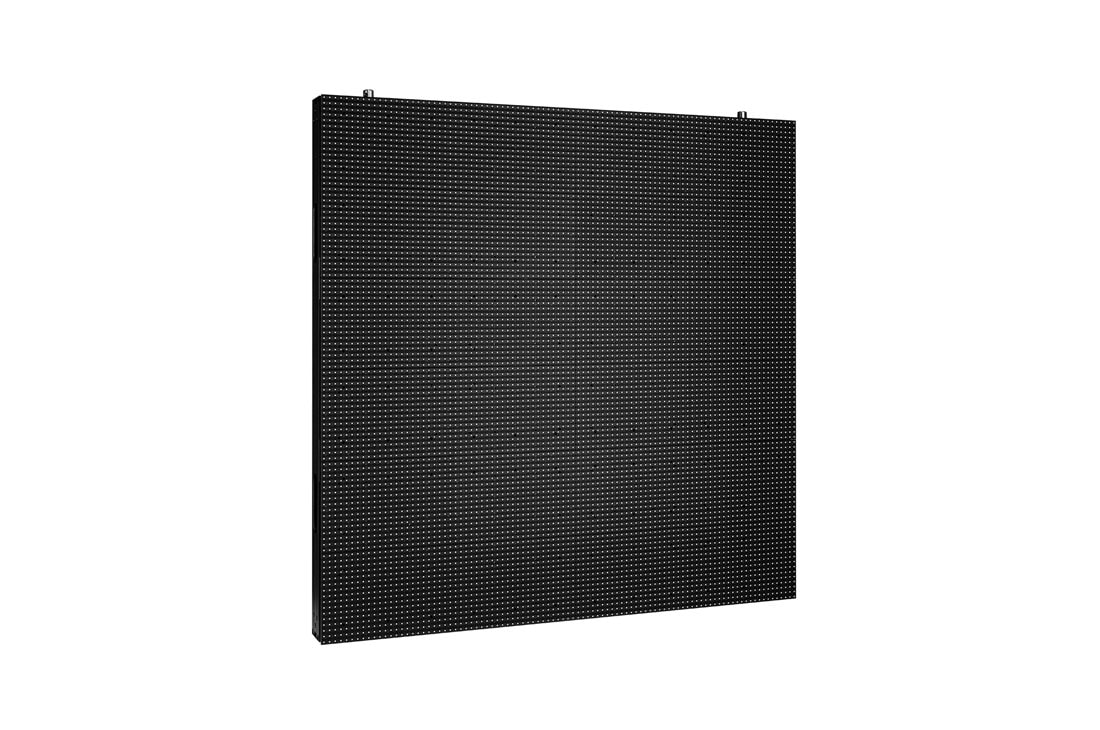

LG 10,000 nits Ultra High Brightness Outdoor Signage, +45 degree side view, GSEG100, thumbnail 5

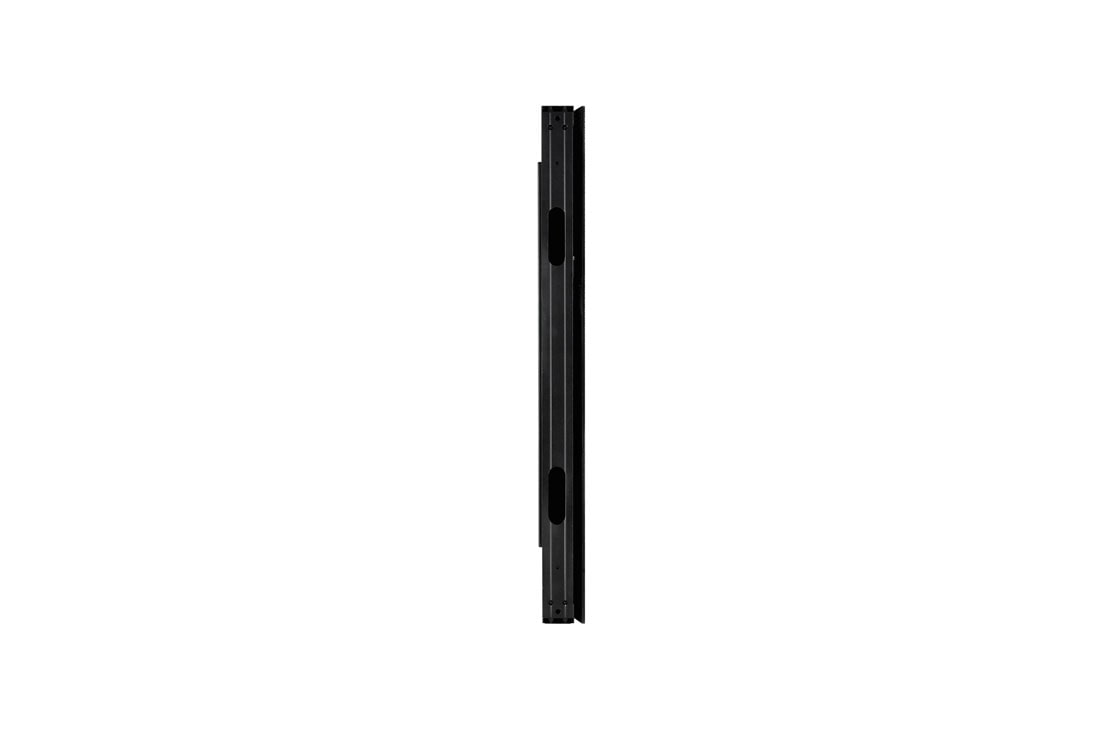

LG 10,000 nits Ultra High Brightness Outdoor Signage, +90 degree rear view, GSEG100, thumbnail 6

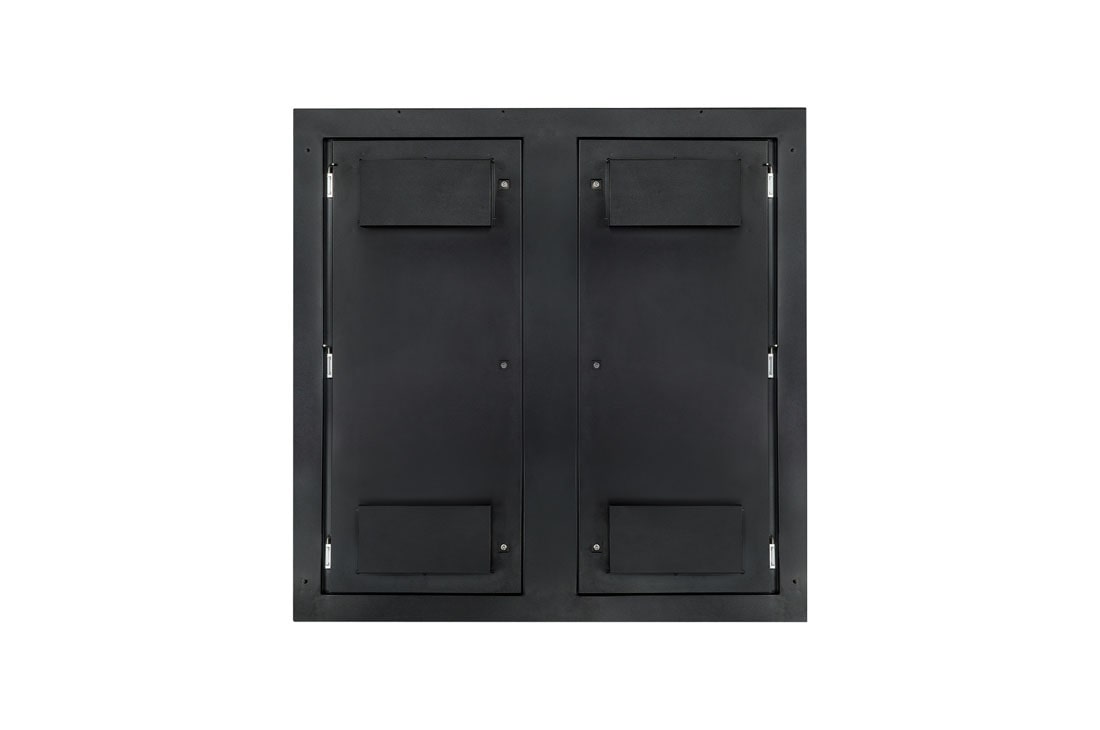

LG 10,000 nits Ultra High Brightness Outdoor Signage, Rear view, GSEG100, thumbnail 7

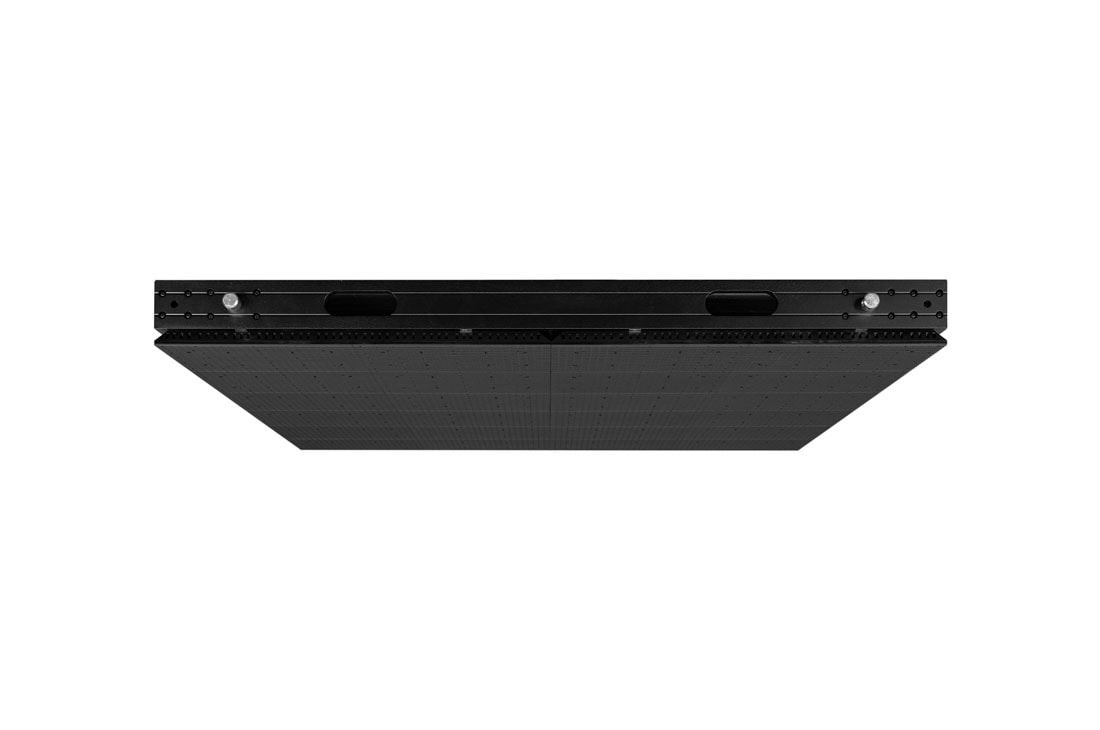

LG 10,000 nits Ultra High Brightness Outdoor Signage, Top view, GSEG100, thumbnail 8

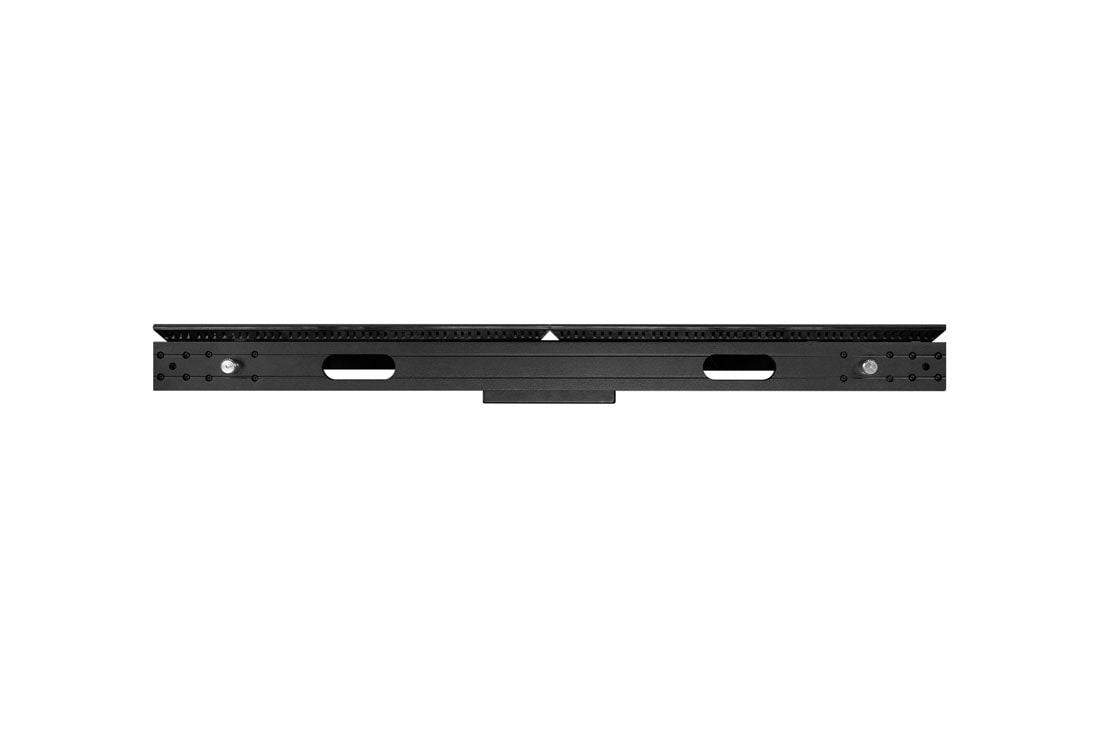

LG 10,000 nits Ultra High Brightness Outdoor Signage, Top view 2, GSEG100, thumbnail 9

ADD TO WISHLIST

Discontinued

GSEG100 component-copyModelName

10,000 nits Ultra High Brightness Outdoor Signage

Name: 10,000 nits Ultra High Brightness Outdoor Signage
Brand: LG UAE
SKU: GSEG100
Rating: 0 (0 reviews)

Key Features

Pixel Pitch : 10.42 mm
Brightness : 6,000 nit (-GN) / 7,000 nit (-GR) / 10,000 nit (-GS)
Service Access : Front and Rear
IP Rating : IP66
Available for Curved Screen
Easy Installation and Maintenance

Add to Compare

component-OBScountrySelectDesc

Key Features

Pixel Pitch : 10.42 mm
Brightness : 6,000 nit (-GN) / 7,000 nit (-GR) / 10,000 nit (-GS)
Service Access : Front and Rear
IP Rating : IP66
Available for Curved Screen
Easy Installation and Maintenance

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

10,000 nits Ultra High Brightness Outdoor Signage

Ultra High Brightness Series

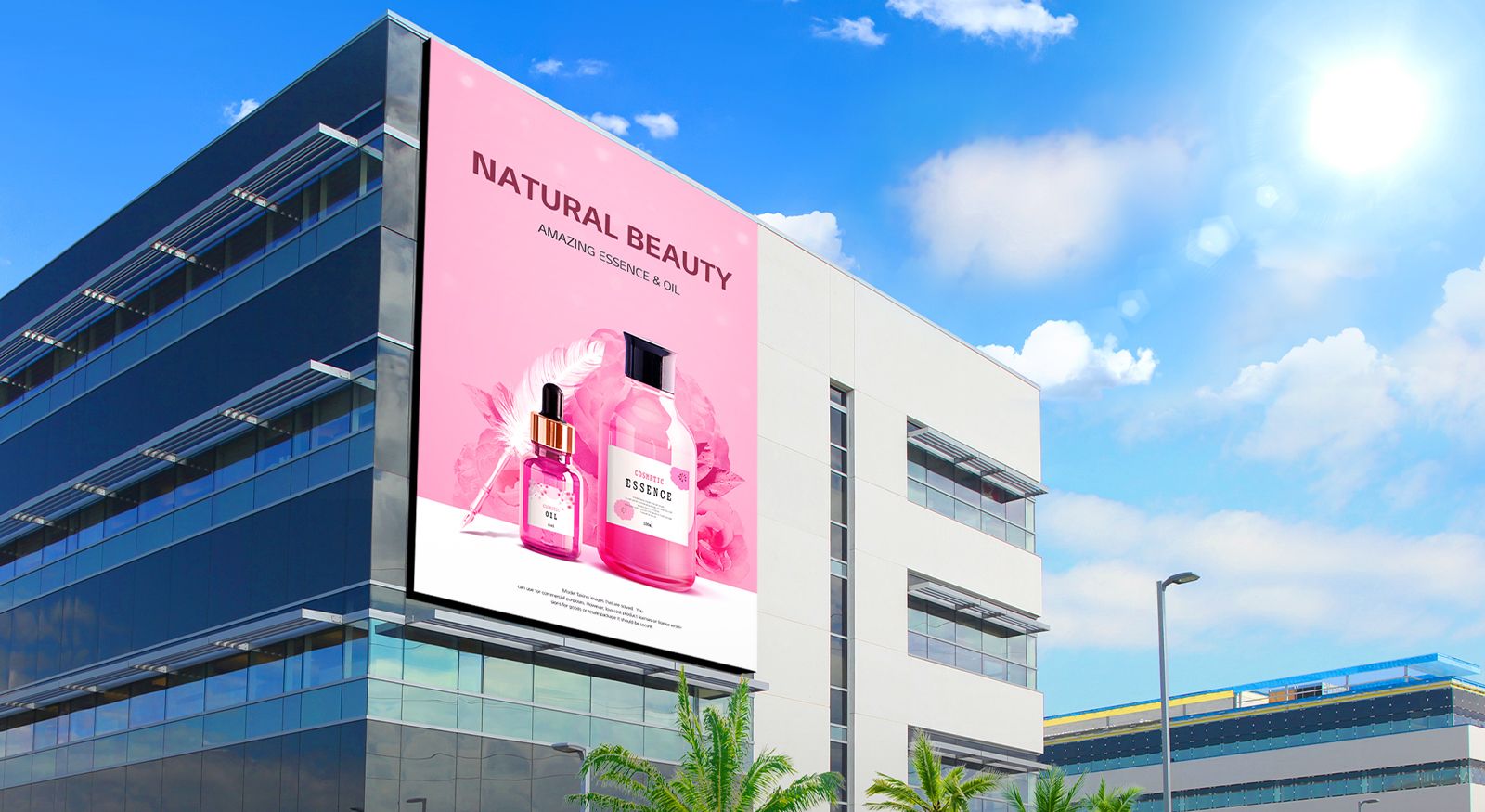

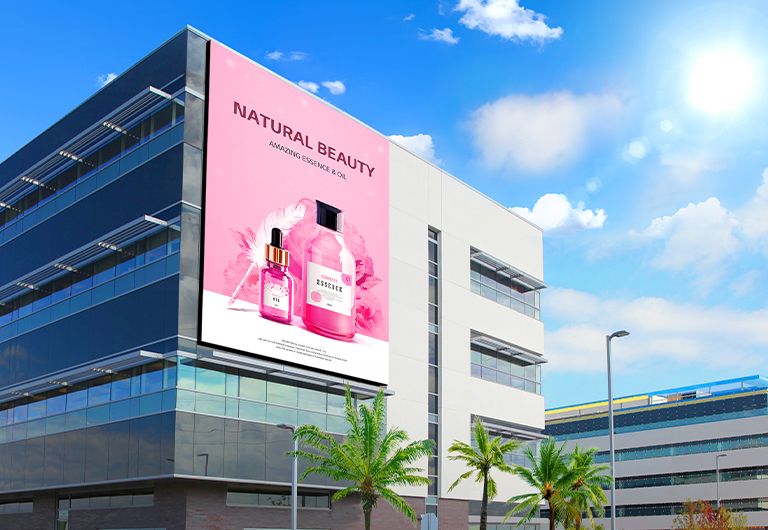

A large LED is installed on the building. The sun is shining brightly, but the LED screen’s advertisement is clearly visible.

* All images in this page are for illustrative purposes only.

High Brightness for Outdoor

Optionally, users can choose among the three models : GSEG-GN(6,000 nits), GSEG-GR(7,000 nits) and GSEG-GS(10,000 nits). It also can be optimized for screen time, region, regulations, and power consumption etc. depending on different environmental conditions.

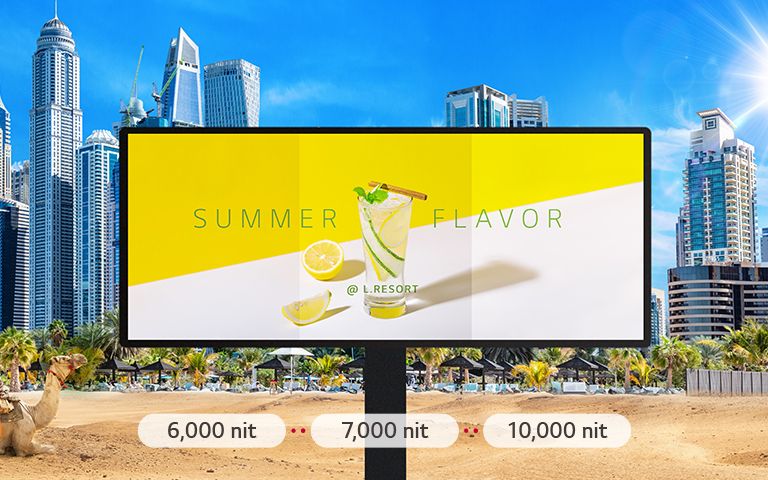

GSEG can be installed by selecting either 6,000 or 7,000 or 10,000 nits brightness for the surrounding environment.

* Brightness options are set before shipment from the factory, and cannot be changed after installation.

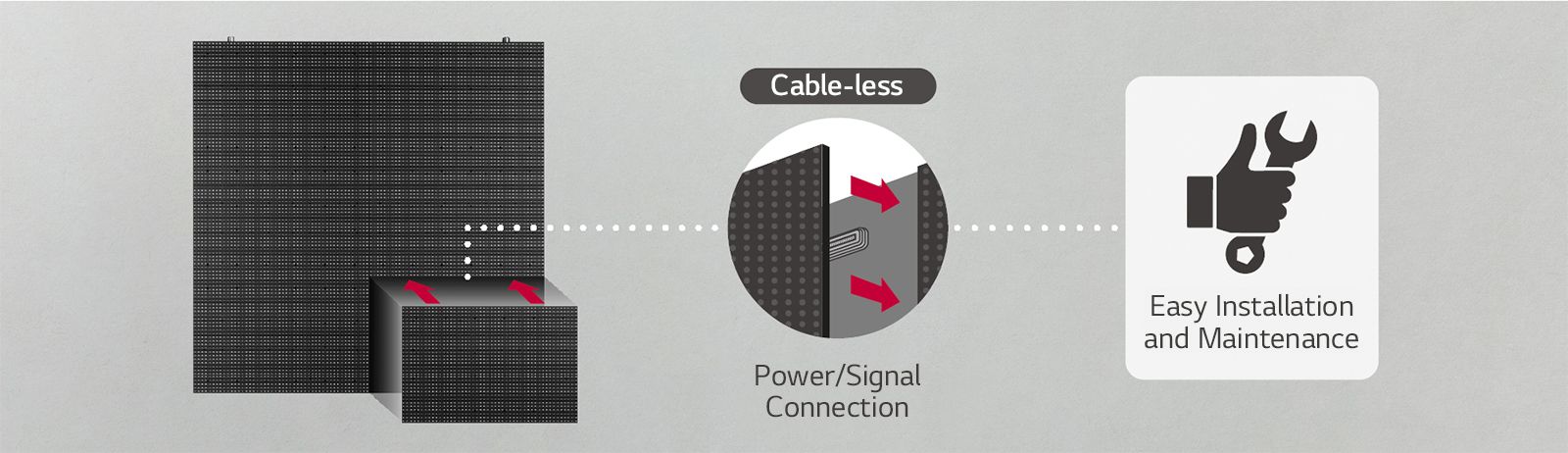

Easy Installation and Maintenance

It comes with a guide pin to make easy adjustment for the upper and lower side of cabinet. With optimum cable-less design, it connects the LED module and the system part of the cabinet with no cables, allowing simple power/signal connection to be automatically completed when LED module is installed. Fully enclosed connection improves its hardware reliability as well.

GSEG is a cable-less design allowing for simple power/signal connection and is easy to install and maintain.

Compatibility with LG Software Solutions

When connected with LG's CVEA system controller, the GSEG series is compatible with LG software solutions including SuperSign CMS, LED Assistant, and ConnectedCare, which help customers operate their own business properly.

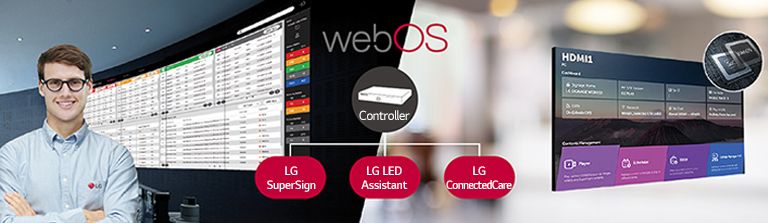

The LG employee is remotely monitoring the GSEG series installed in a different place by using a cloud-based LG monitoring solution. System controller with webOS enables GSEG series to be compatible with LG software solutions.

* The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details.
* The items that can be monitored by LG ConnectedCare : Main Board (Temp., Signal Status, FPGA Ver, Ethernet Connection Status), Receiving Card (Temp., LED Power)
* Actual GUI may vary in different webOS versions.
* LG Software solutions needs to be purchased separately.

PHYSICAL PARAMETERS

Pixel Configuration

Single SMD RS3535

Pixel Pitch(mm)

10.42
Module Resolution (W x H)

48x32

Module Dimensions (W x H, mm)

500x333.33
Weight per Module (kg)

2.05

No. of Modules per Cabinet (W × H)

2X3
Cabinet Resolution (W × H)

96x96

Cabinet Dimensions (W × H × D, mm)

1,000x1,000x105
Cabinet Surface Area (m²)

1.000

Weight per Cabinet (kg/unit)

25.0
Weight per Square Meter (kg/m²)

25.0

Physical Pixel Density (pixels/m²)

9,216
Flatness of Cabinet (mm)

±1.0

Cabinet Material

Al
Service access

Front and Rear

OPTICAL SPECIFICATIONS

Max Brightness (After Calibration, nit)

10,000

Color Temperature (K)

3,500~8,500
Visual Viewing Angle (Horizontal)

160

Visual Viewing Angle (Vertical)

130
Brightness Uniformity

97%

Color Uniformity

±0.05Cx,Cy
Contrast Ratio

14,000:1

Processing Depth (bit)

16 (HDR10, HDR10 Pro)

ELECTRICAL SPECIFICATIONS

Power Consumption (W/Cabinet, Max.)

800

Power Consumption (W/Cabinet, Avg.)

320
Power Consumption (W/㎡, Max.)

800

Heat Dissipation (BTU/h/Cabinet, Max.)

2,730
Heat Dissipation (BTU/h/Cabinet, Avg.)

1,092

Heat Dissipation (BTU/h/m², Max.)

2,730
Power Supply (V)

100 to 240

Frame Rate (Hz)

50 / 60
Refresh Rate (Hz)

7,680

OPERATION SPECIFICATIONS

LED Lifetime (Half brightness)

100,000

Operating Temperature(℃)

-30°C to +50°C
Operating Humidity

0~90%RH

IP rating Front

IP66
IP rating Rear

IP66

CERTIFICATION

Certification

CE, FCC, ETL

Environment

Environment

RoHS, REACH

CONTROLLER

Controller

CVEA

90 degree corner cut

90 degree corner cut

Yes
