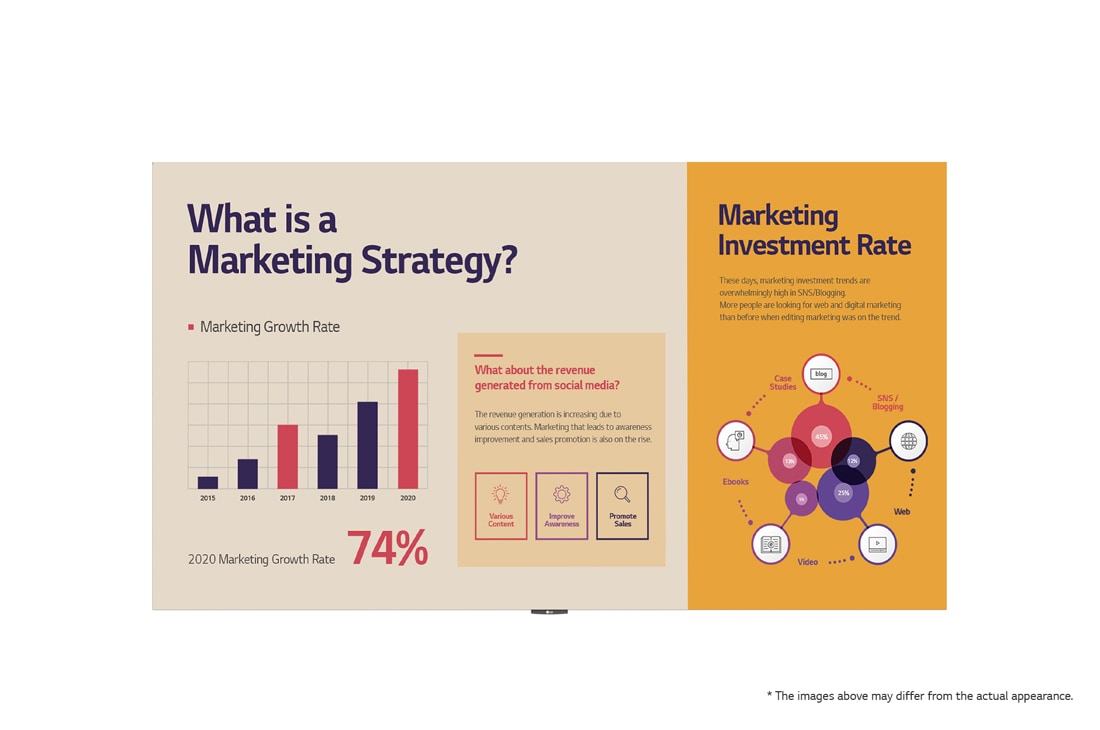

LG All-in-one Essential Series, Front view with infill image, * The images above may differ from the actual appearance., LAEB015, thumbnail 1

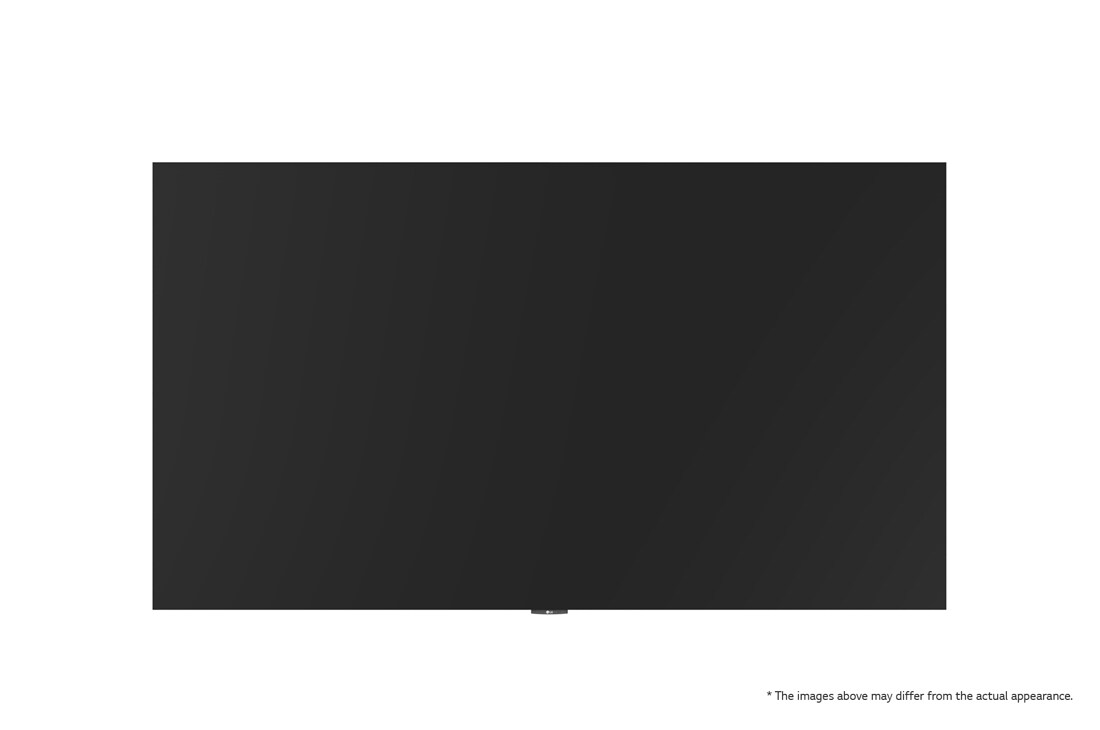

LG All-in-one Essential Series, Front view, * The images above may differ from the actual appearance., LAEB015, thumbnail 2

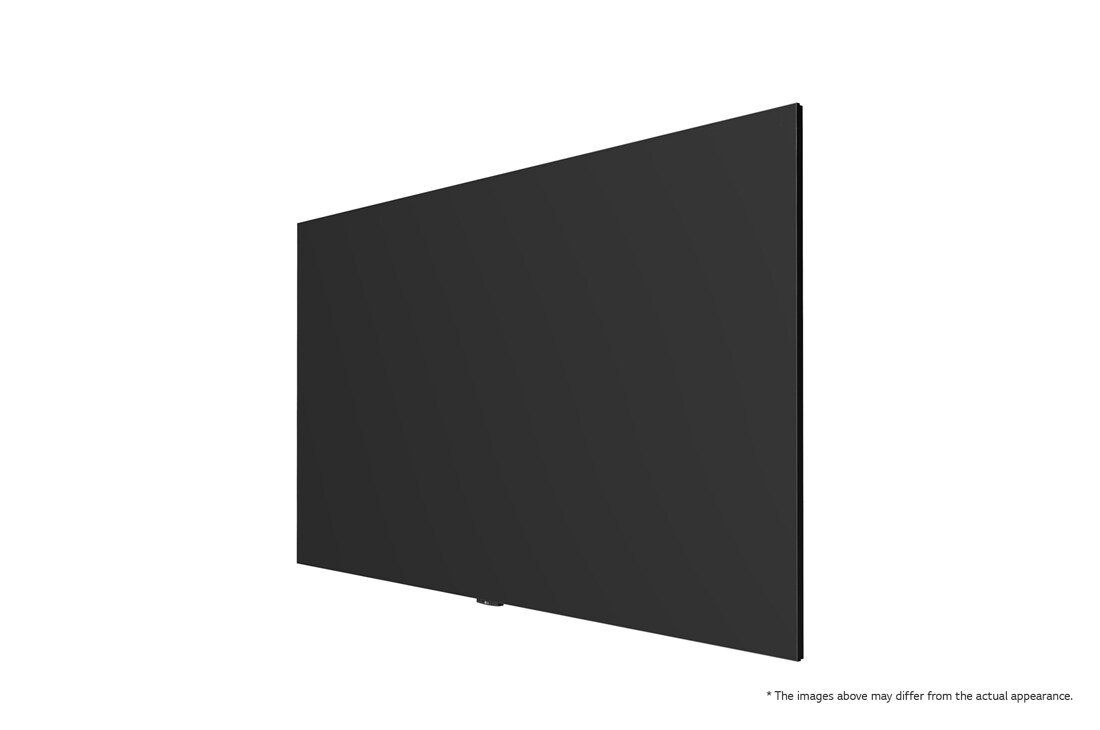

LG All-in-one Essential Series, -45 degree side view, * The images above may differ from the actual appearance., LAEB015, thumbnail 3

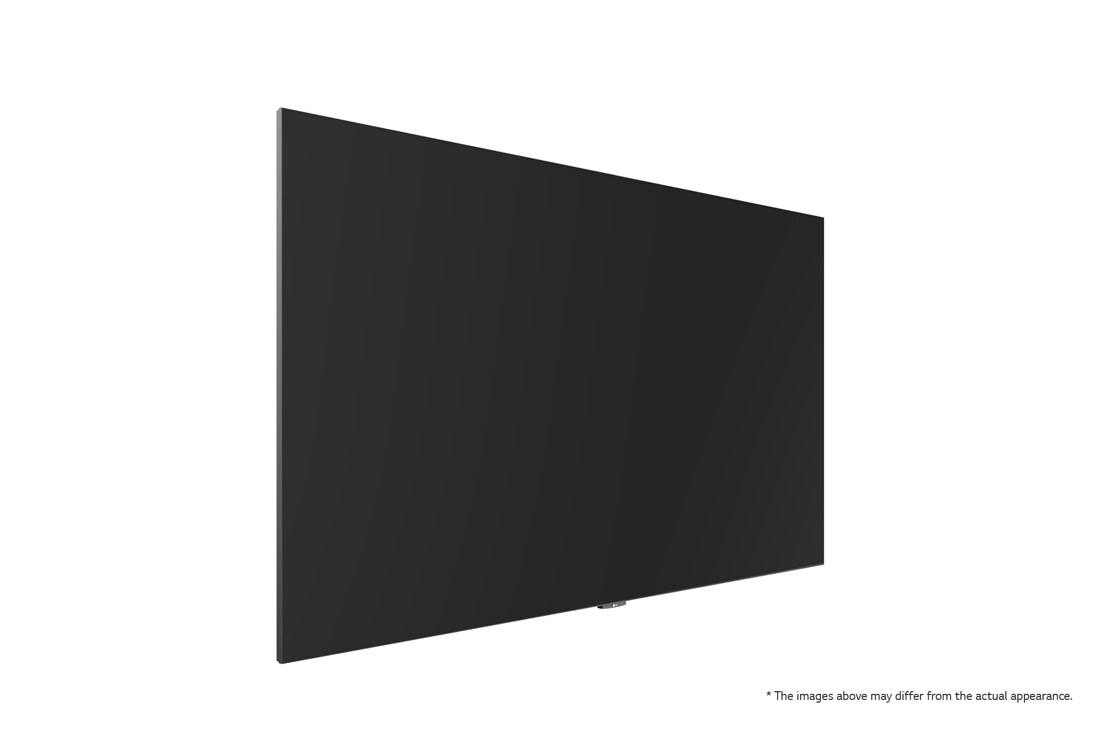

LG All-in-one Essential Series, +45 degree side view, * The images above may differ from the actual appearance., LAEB015, thumbnail 4

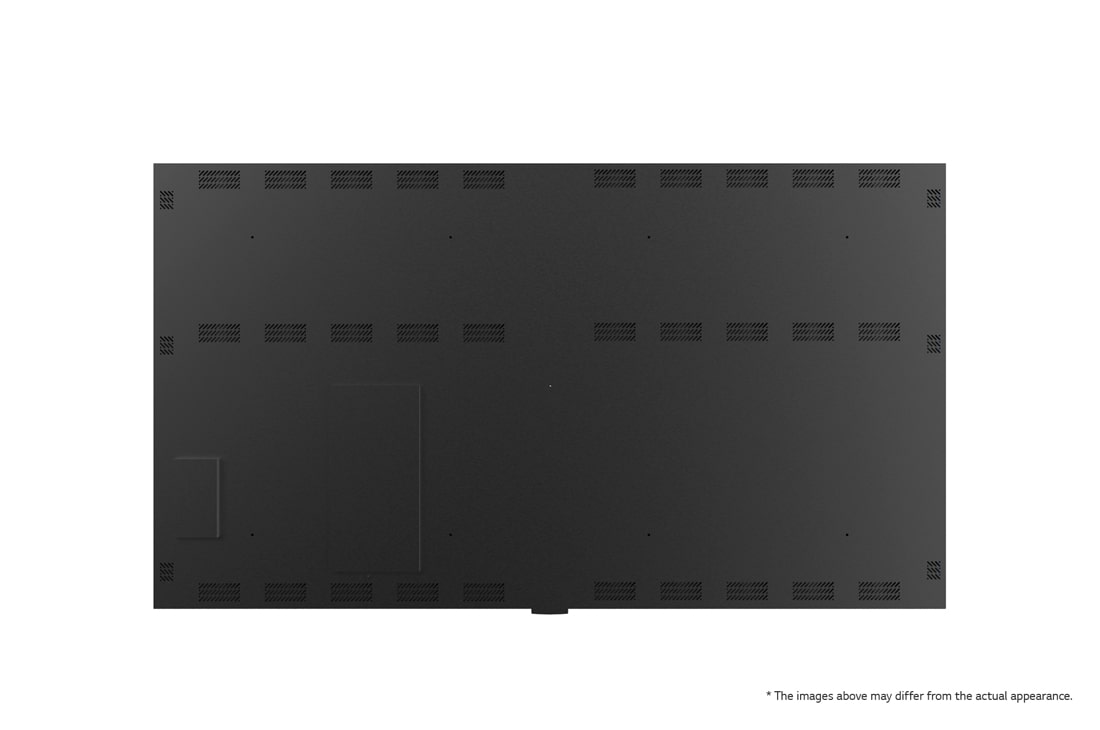

LG All-in-one Essential Series, Rear view, * The images above may differ from the actual appearance., LAEB015, thumbnail 5

ADD TO WISHLIST

Discontinued

LAEB015 component-copyModelName

All-in-one Essential Series

Name: All-in-one Essential Series
Brand: LG UAE
SKU: LAEB015
Rating: 0 (0 reviews)

Key Features

Pixel Pitch: 1.56 mm
Screen Size: 136" (Full HD)
Brightness: 800 cd/m²
Embedded System Controller
Dedicated Accessories : Wall Mount, Motorized Stand (Optional)

Find a Dealer

Add to Compare

component-OBScountrySelectDesc

Key Features

Pixel Pitch: 1.56 mm
Screen Size: 136" (Full HD)
Brightness: 800 cd/m²
Embedded System Controller
Dedicated Accessories : Wall Mount, Motorized Stand (Optional)

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

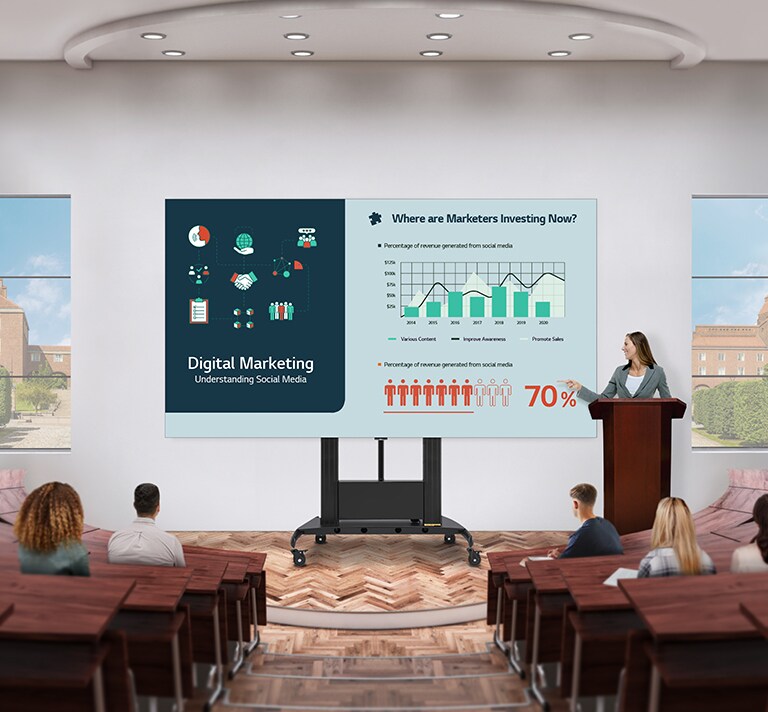

All-in-one Essential Series

* Semua gambar di halaman ini hanya untuk kepentingan ilustrasi.

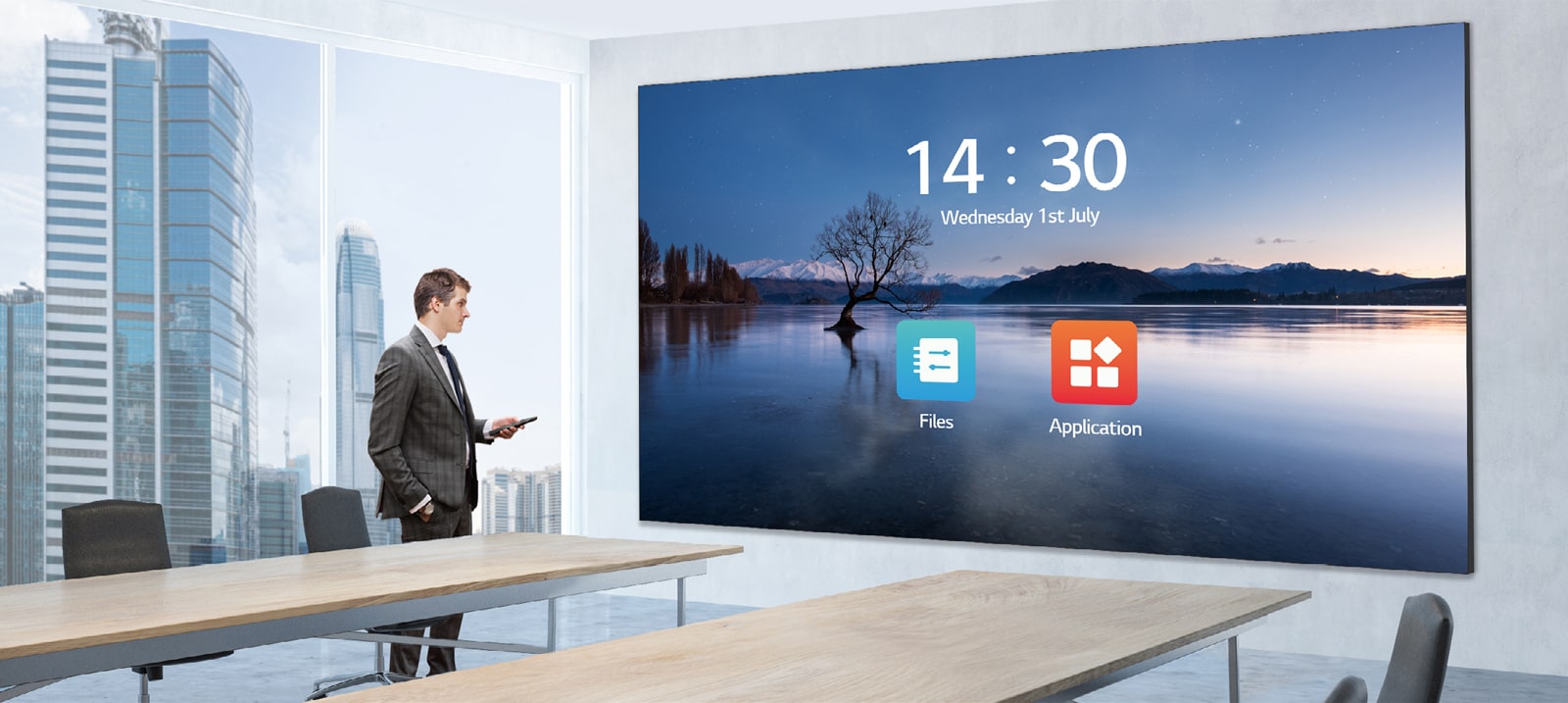

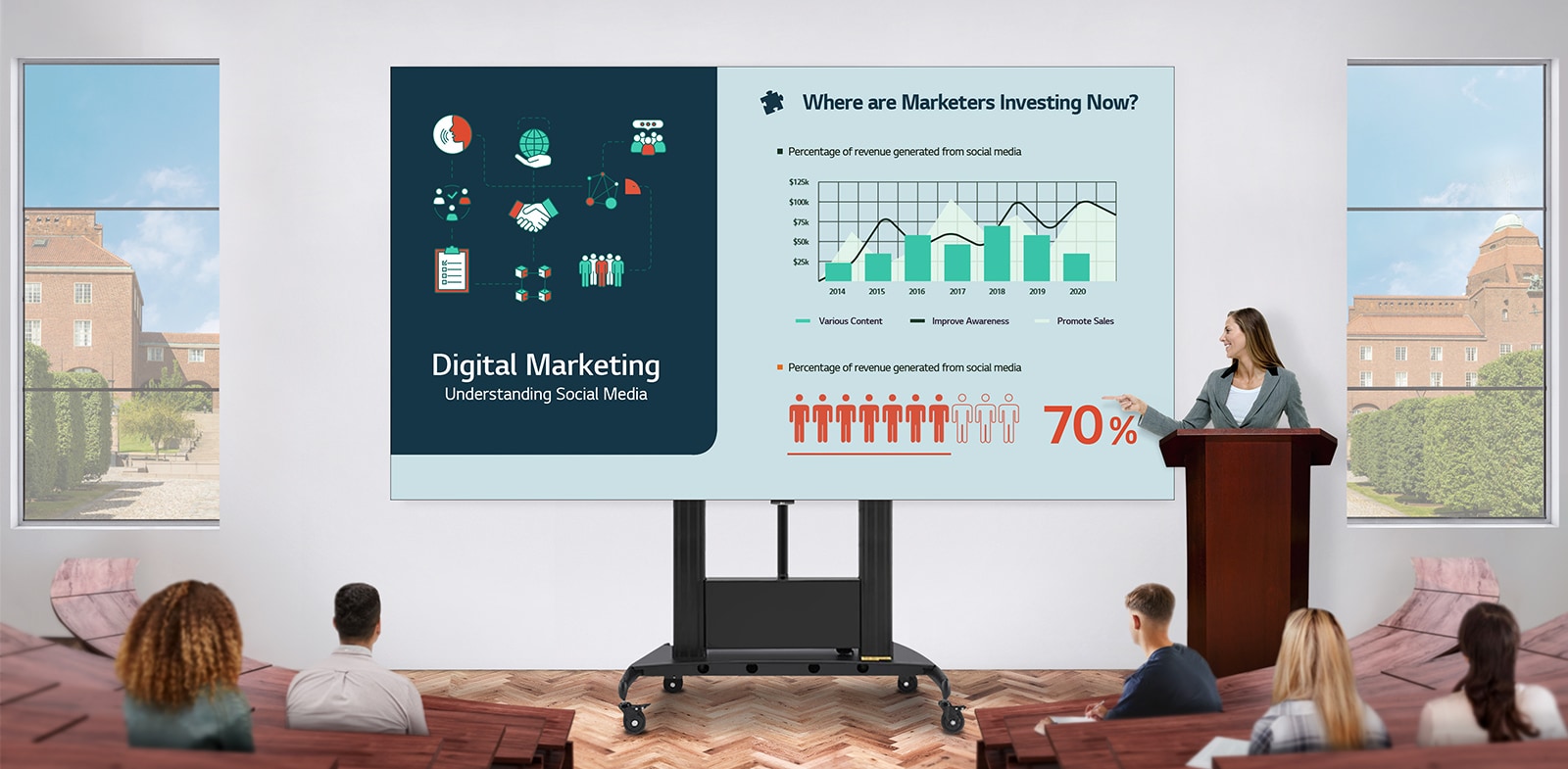

All-in-one LED Screen

LG's All-in-one Essential series is a 136-inch large screen which is offered as an All-in-one package including an embedded controller. Eliminating the prejudice that LED displays are difficult and complex to install, the All-in-one Essential series doesn't require controller connections or module configuration. After a simple installation process, all you need to do is to turn on the screen with a remote control like home TV.

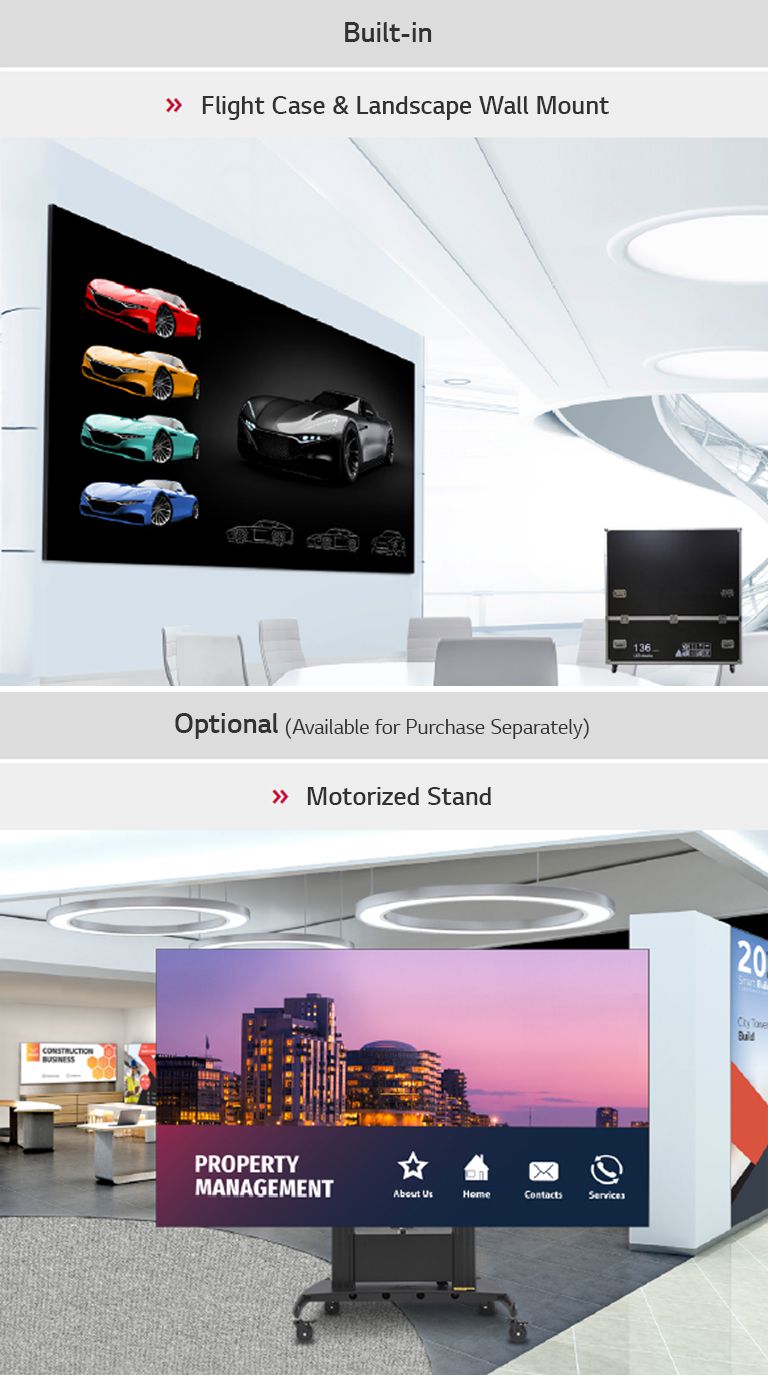

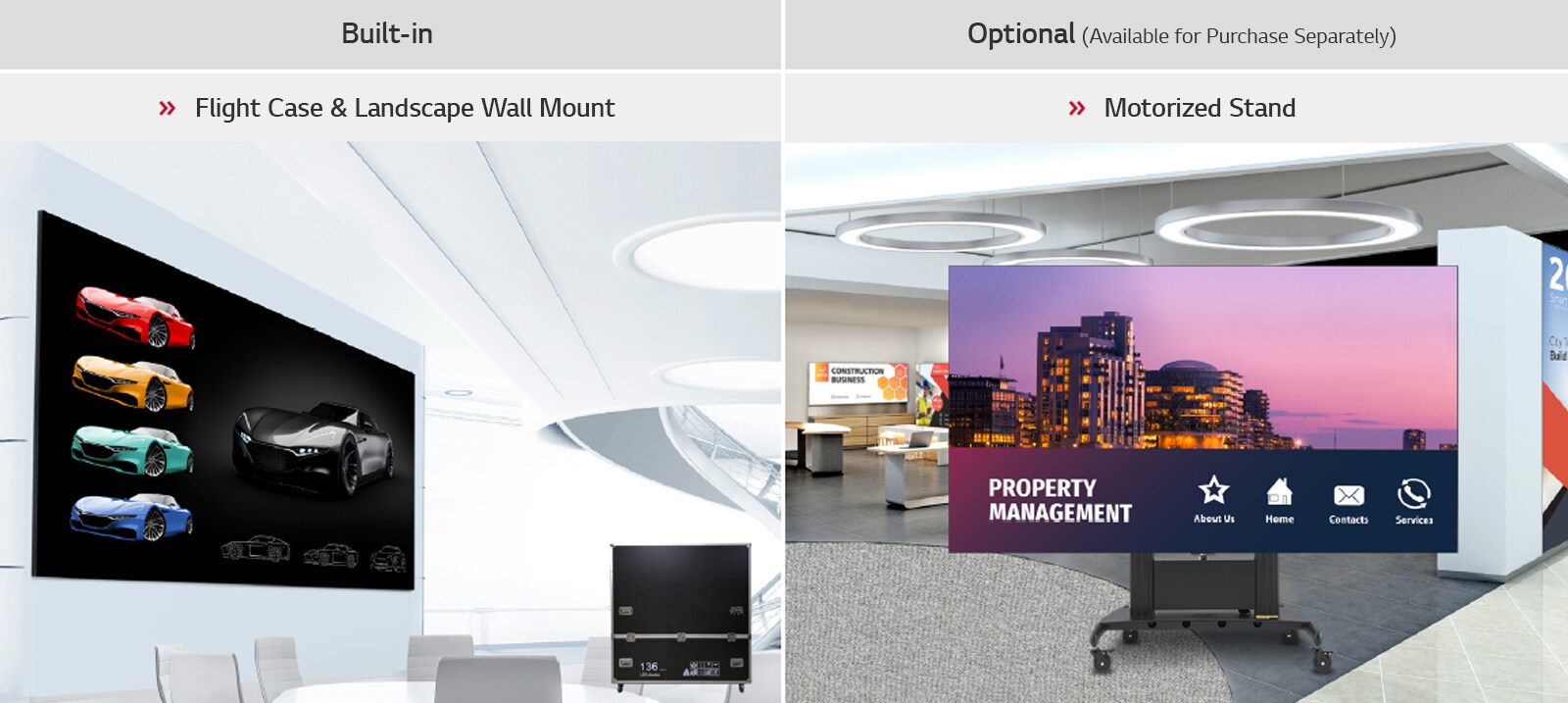

Dedicated Accessory Kits

The product is offered with the flight case which includes every necessary component including the landscape wall mount and tools for installation. The motorized stand is provided as an option, so that you can easily place it depending on your installation sites. With this stand, you can adjust a height of the screen including stand from 2.0 m to 2.5 m.

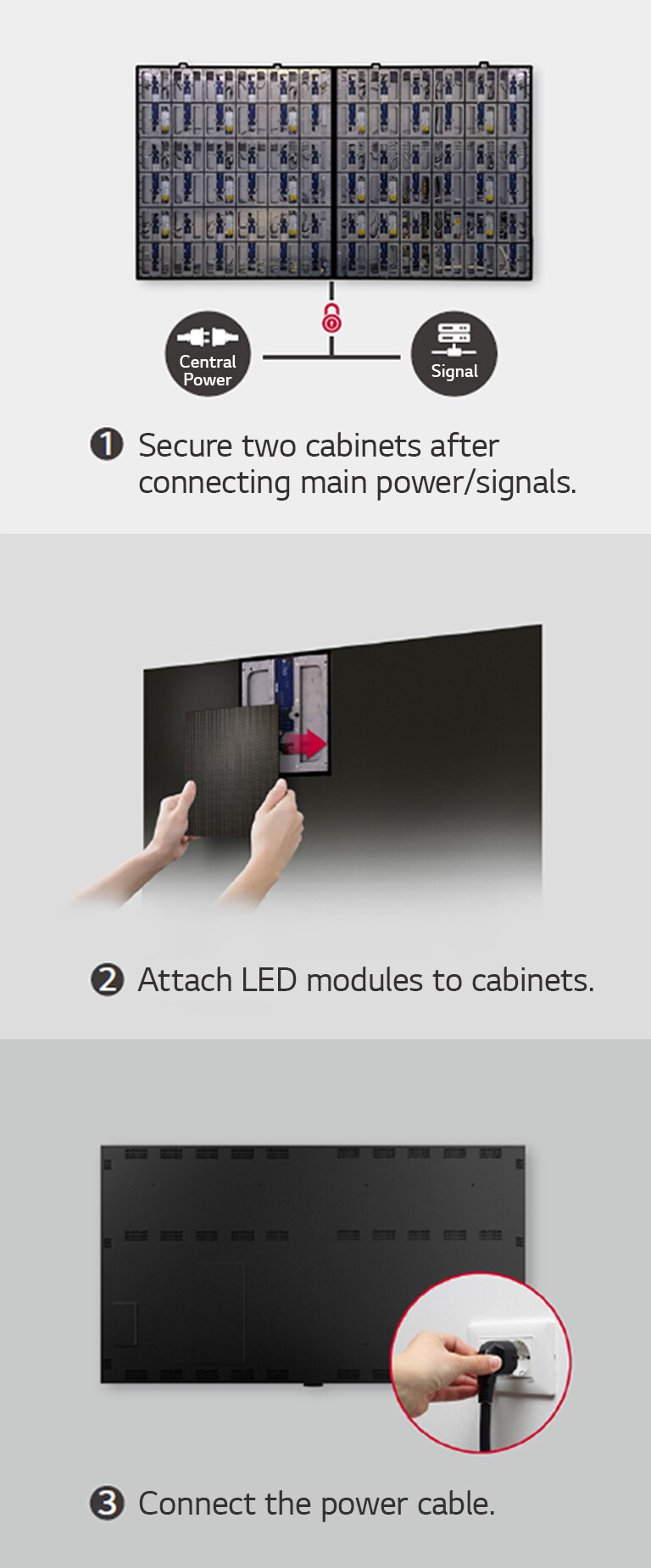

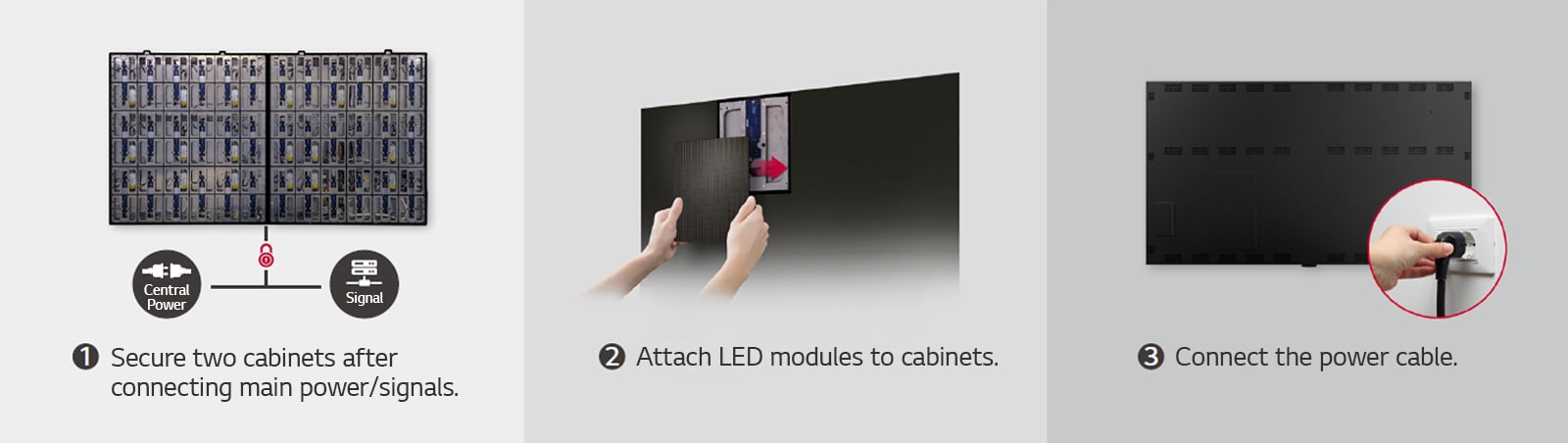

Easy Installation

The installation process of the All-in-one Essential series is very simple. After securing two cabinets which are included in the flight kit, attach each LED display module to them. Lastly, plug in the power cable. This hassle-free installation saves time and labor, thereby making users handle the LED screen with ease.

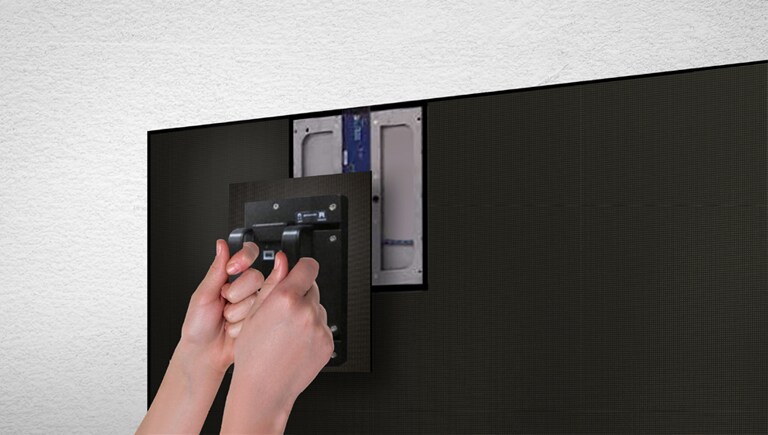

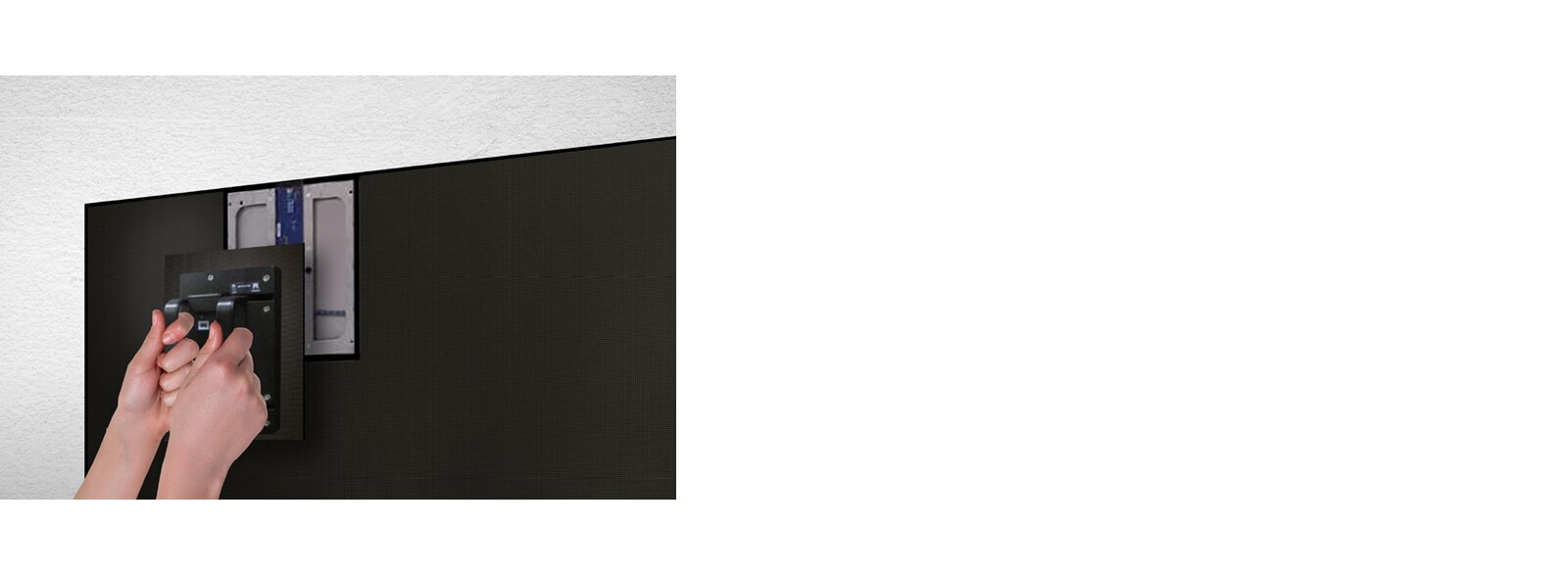

Quick Maintenance

In case of failure related to the LED module or the system board, it can be serviced from the front. The LED module can be simply detached by the provided magnetic tool and replaced quickly without cabling.

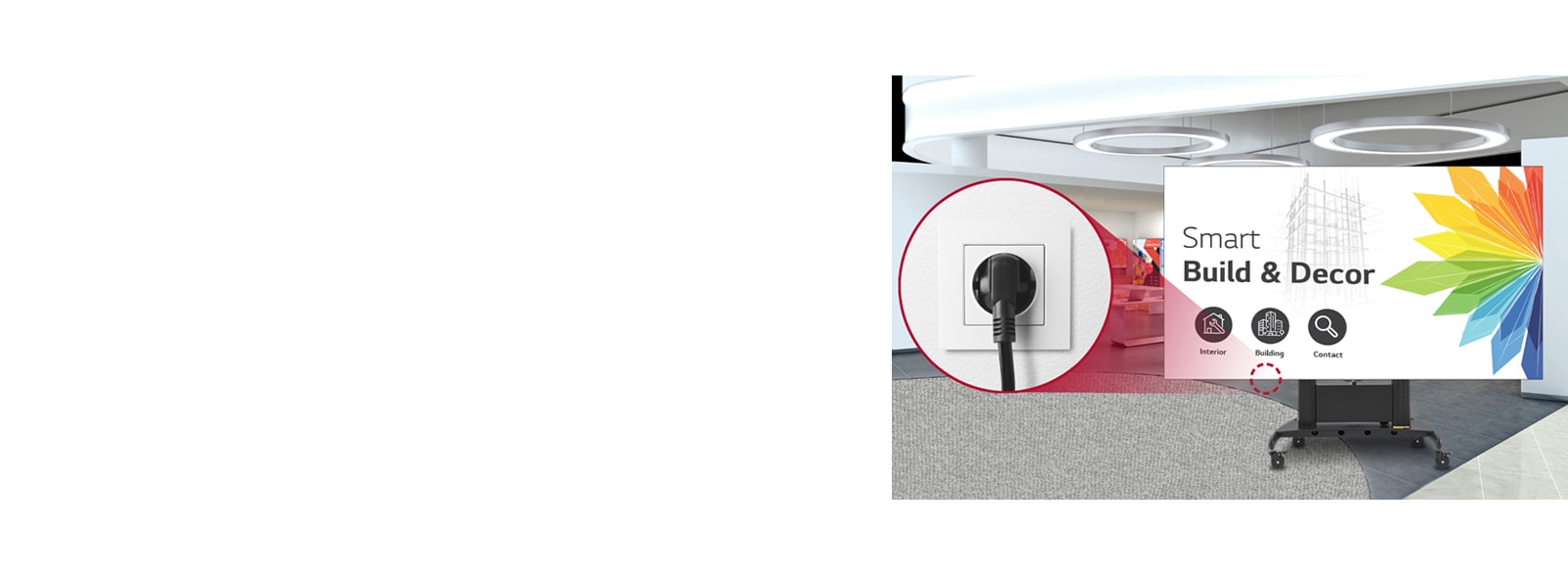

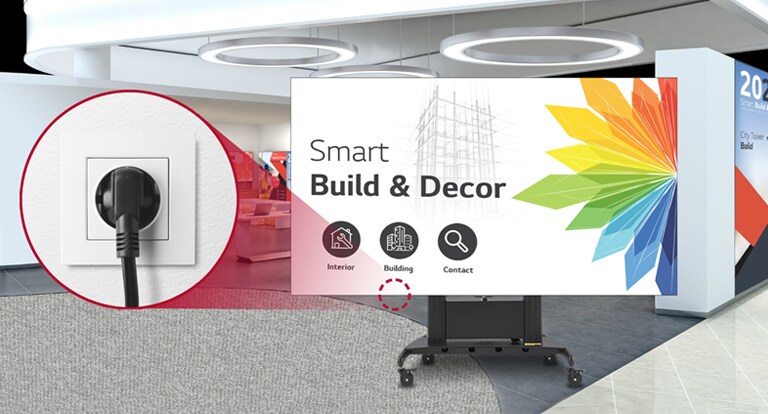

Simple Power Connection

The LAEB series is operated with a single or double AC cable* without the need for a complicated power connection and enables neat installation.

* Two AC cables are needed for 110V AC.

Operating in a Humid Environment

The All-in-one Essential series can be operated under 90% RH* environment.

* Without condensation

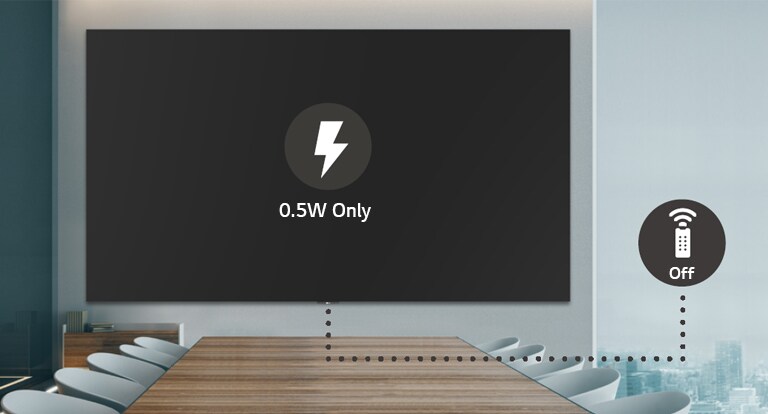

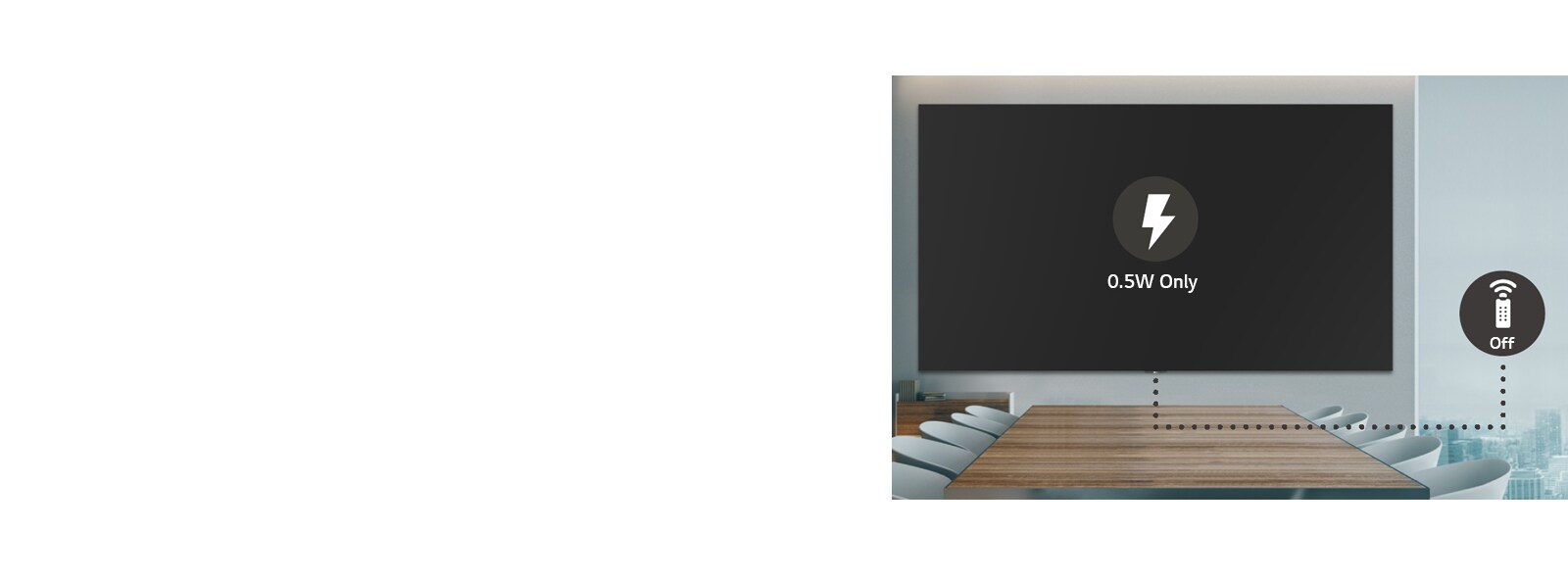

Power Saving Standby Mode

When there is no input with remote control for a period of time, the screen turns off and the main circuit parts inside the LED cabinet go to a standby mode. This leads to saving power consumption.

PHYSICAL PARAMETERS

Pixel Configuration

3 in 1 SMD

Pixel Pitch(mm)

1.56
Screen Resolution (WxH)

1,920x1,080

Module Dimensions(WxH,mm)

250 x 281.25
No. of Modules per Screen (WxH)

12x6 (Total 72)

Screen Dimensions (W x H x D, mm)

3,004.6 × 1,692.1 x 35.5
Screen Surface Area (㎡)

5.06

Screen Weight (kg)

131
Physical Pixel Density (pixels/㎡)

409,600

Flatness of Cabinet (mm)

±0.2
Cabinet Material

Aluminum

Service access

Front

OPTICAL SPECIFICATIONS

Brightness

800

Color Temperature

6,500
Visual Viewing Angle (H × V)

160 × 160

Brightness Uniformity

98%
Color Uniformity

±0.015Cx,Cy

Contrast Ratio

3,000
Processing Depth (bit)

16

ELECTRICAL SPECIFICATIONS

Power Consumption (W/Cabinet, Max.)

3,000

Power Consumption (W/Cabinet, Avg.)

1,200
Power Consumption (W/㎡, Max.)

593

Power Supply (V)

100 to 240
Frame Rate (Hz)

50 / 60

Refresh Rate (Hz)

≥2880

OPERATION SPECIFICATIONS

Lifetime (Hours to Half Brightness)

100,000

Operating Temperature(℃)

0℃ to +40℃
Operating Humidity

<90%RH(without condensation)

IP Rating Front / Rear

IP40 / IP20

CERTIFICATION

Certification

CE,FCC,ETL,CB

Environment

Environment

RoHS, REACH

CONTROLLER

Controller

Embedded

COMPLIANCE INFORMATION

More Compliance Information

The safety information for accessories is included with the safety information for the product and is not provided separately.
