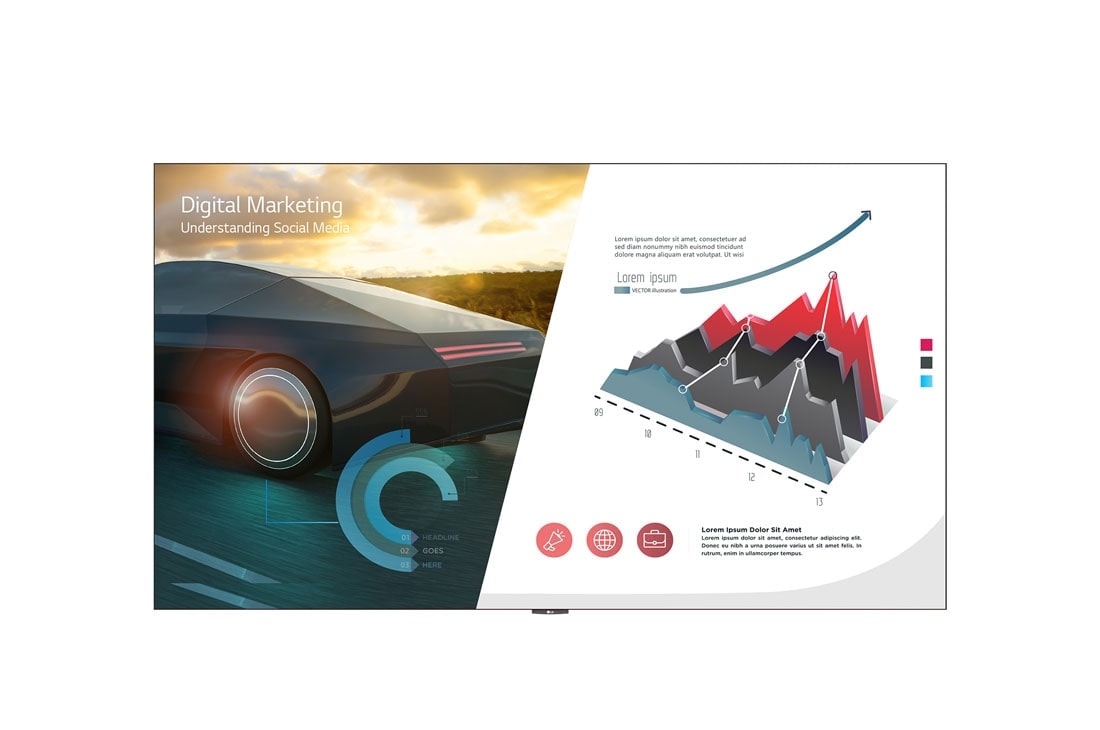

LG 2023 LG Smart All-in-One LED Display, 163inch, Front view with infill image, LAEC018-GN2, thumbnail 1

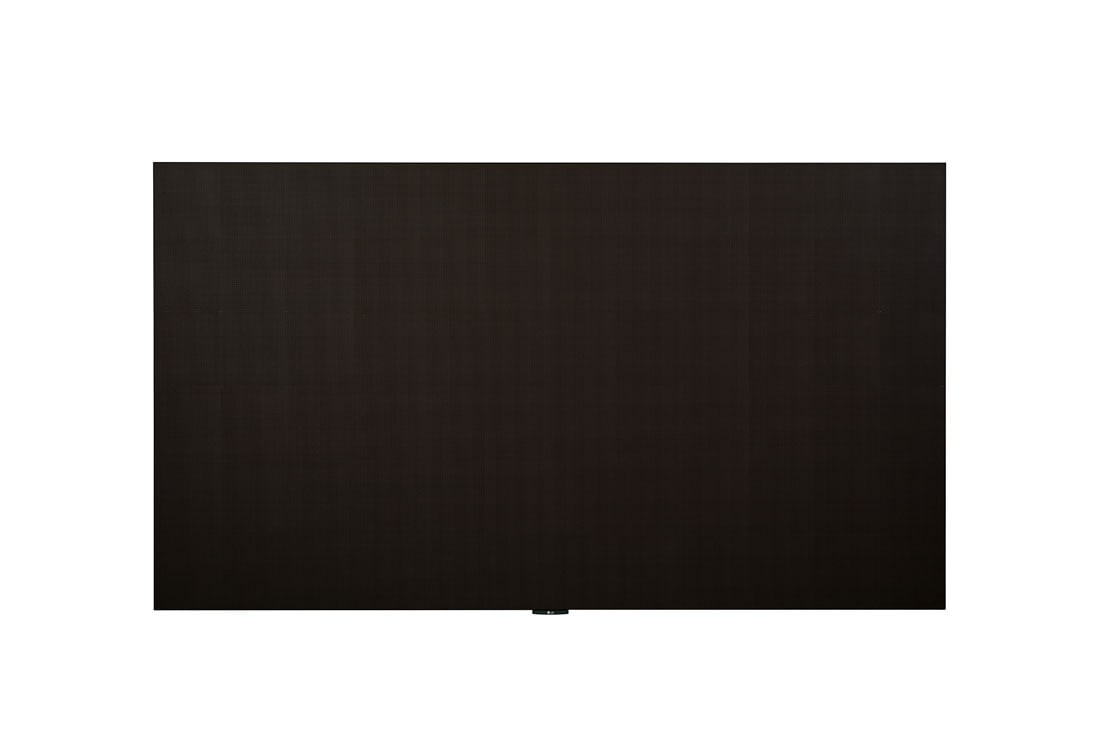

LG 2023 LG Smart All-in-One LED Display, 163inch, Front view, LAEC018-GN2, thumbnail 2

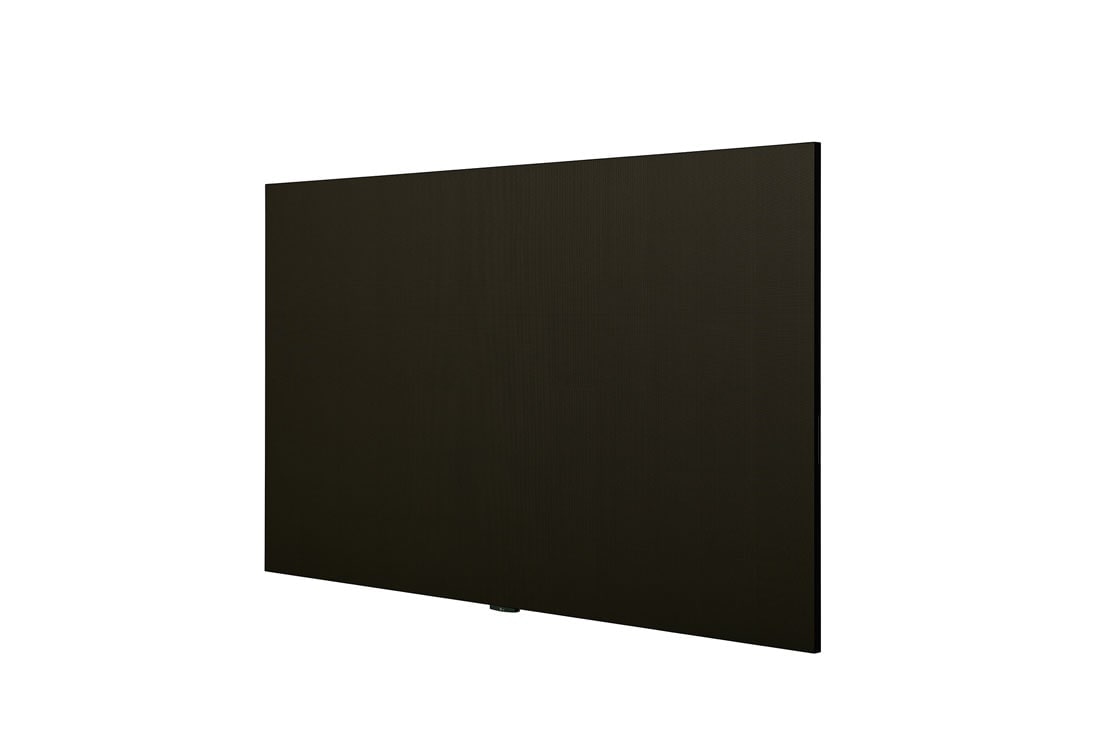

LG 2023 LG Smart All-in-One LED Display, 163inch, -45 degree side view, LAEC018-GN2, thumbnail 3

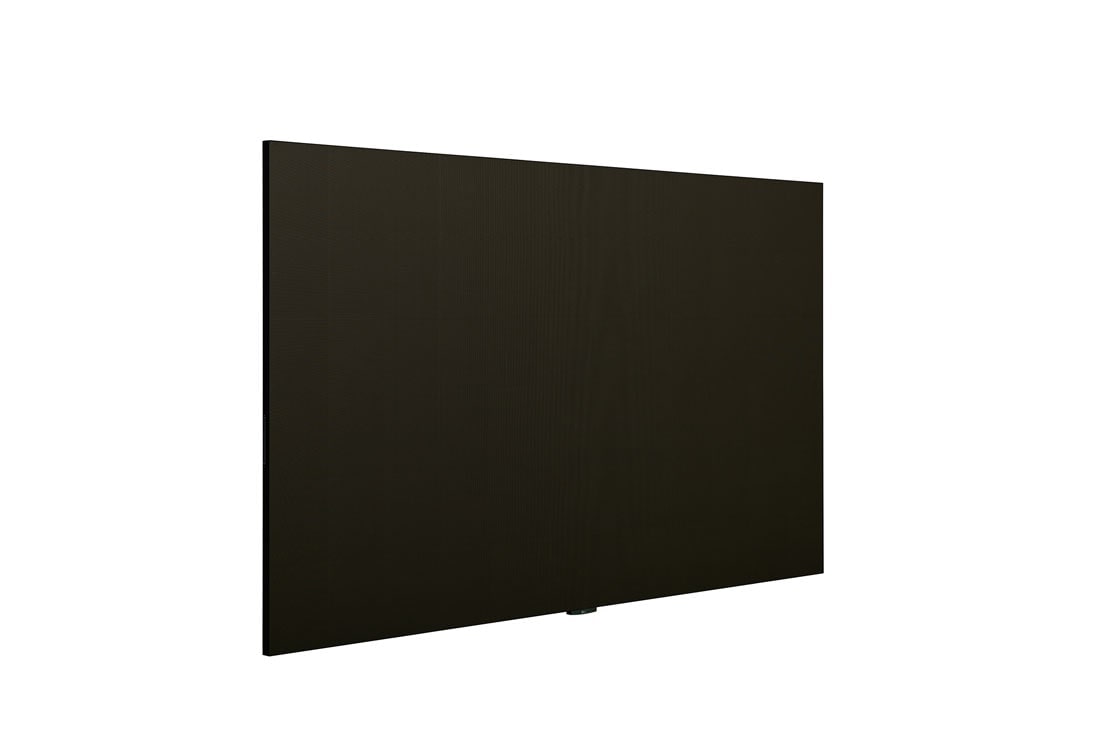

LG 2023 LG Smart All-in-One LED Display, 163inch, +45 degree side view, LAEC018-GN2, thumbnail 4

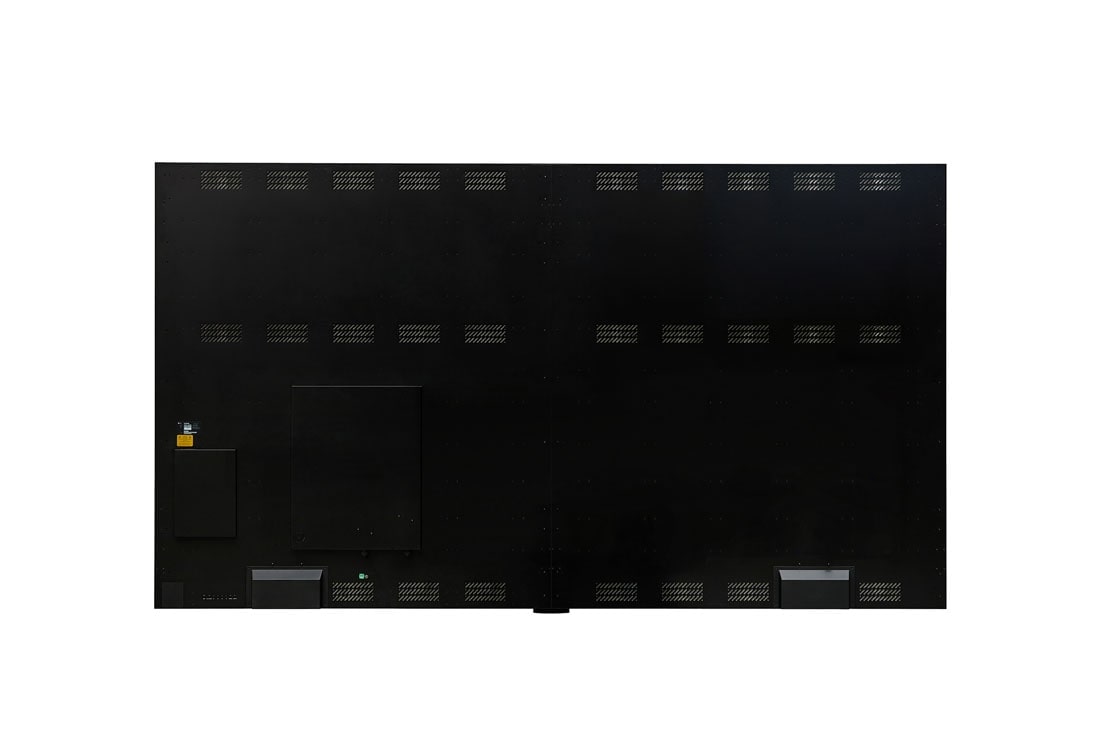

LG 2023 LG Smart All-in-One LED Display, 163inch, Rear view, LAEC018-GN2, thumbnail 5

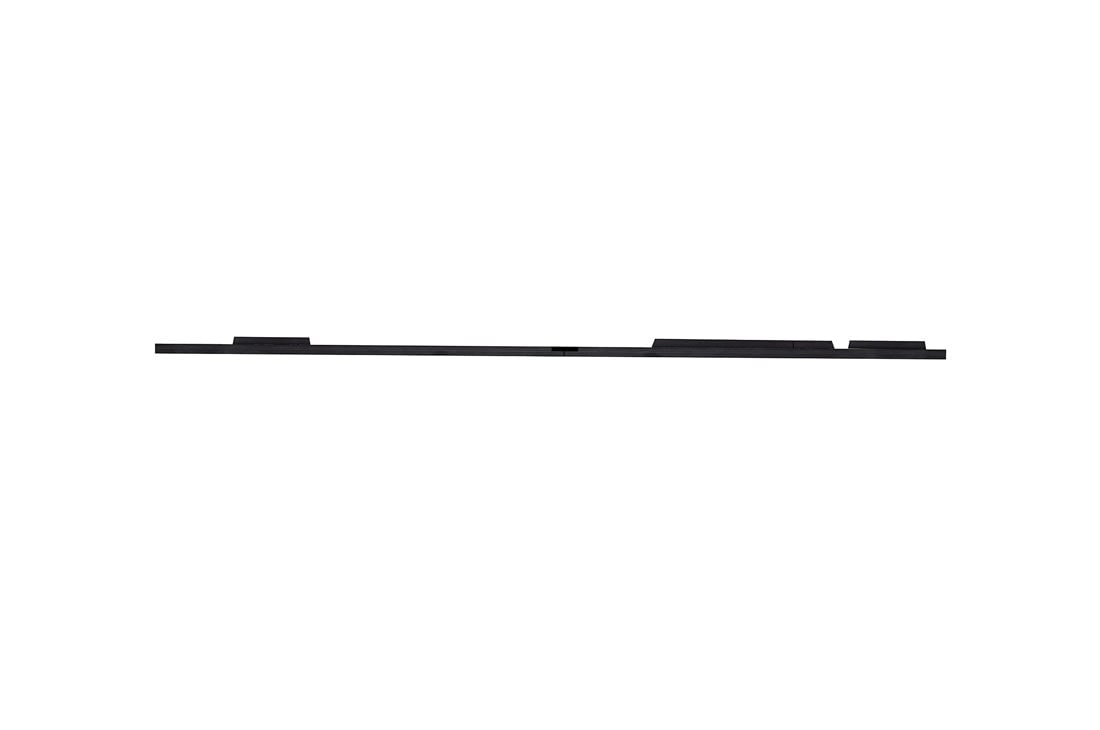

LG 2023 LG Smart All-in-One LED Display, 163inch, Top view, LAEC018-GN2, thumbnail 6

ADD TO WISHLIST

Discontinued

LAEC018-GN2 component-copyModelName

2023 LG Smart All-in-One LED Display, 163inch

Name: 2023 LG Smart All-in-One LED Display, 163inch
Brand: LG UAE
SKU: LAEC018-GN2
Rating: 0 (0 reviews)

Key Features

Pixel Pitch: 1.88 mm
Screen Size: 163” (Full HD)
Brightness: 500 nit (Max., after calibration)
Embedded System Controller
Built-in Speaker
Dedicated Accessories : Wall Mount, Dedicated Stand (Optional)

Choose your Pitch

P1.88

Add to Compare

component-OBScountrySelectDesc

Key Features

Pixel Pitch: 1.88 mm
Screen Size: 163” (Full HD)
Brightness: 500 nit (Max., after calibration)
Embedded System Controller
Built-in Speaker
Dedicated Accessories : Wall Mount, Dedicated Stand (Optional)

Choose your Pitch

P1.88

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

2023 LG Smart All-in-One LED Display, 163inch

All-in-One LED Display with webOS

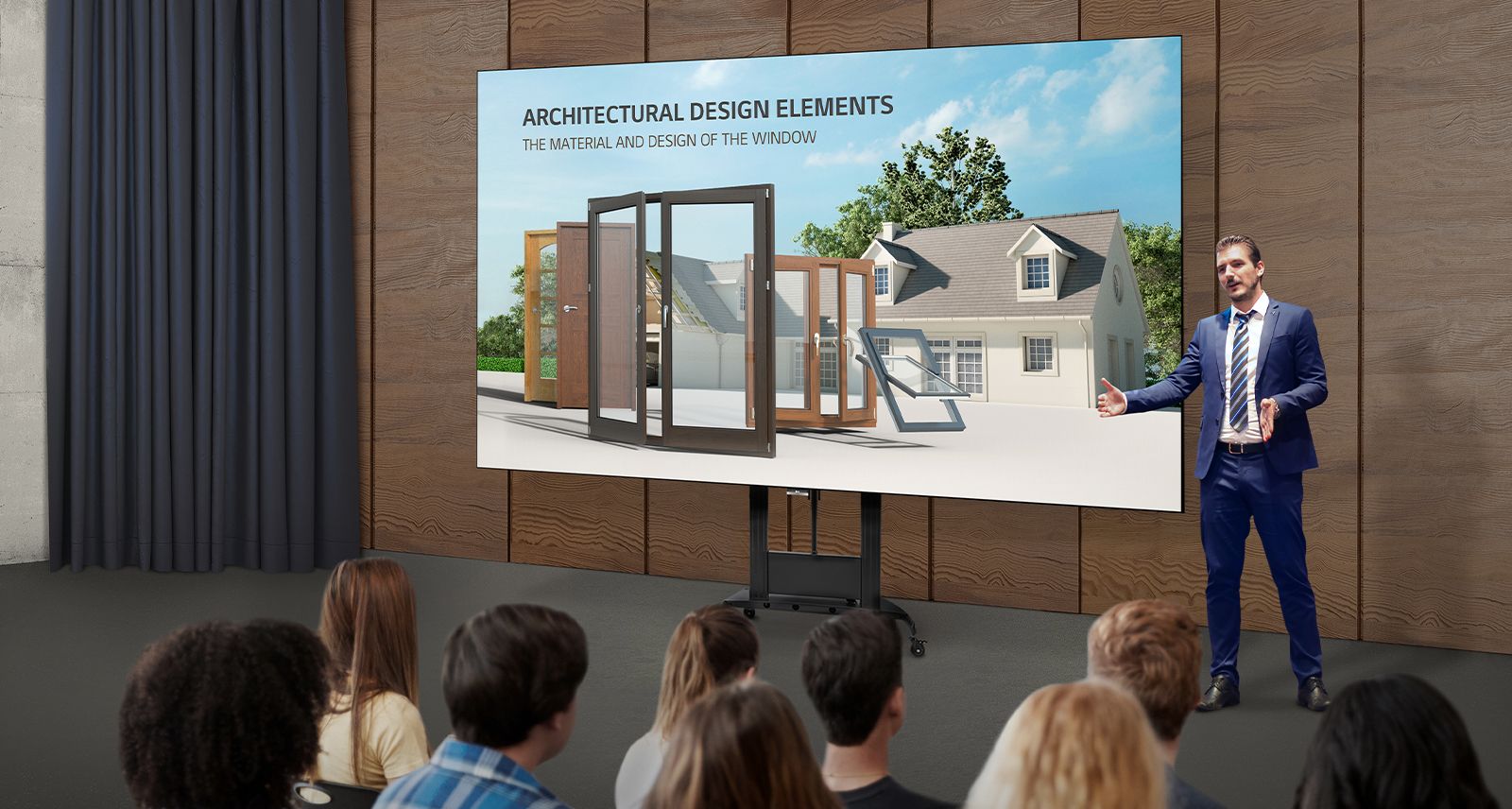

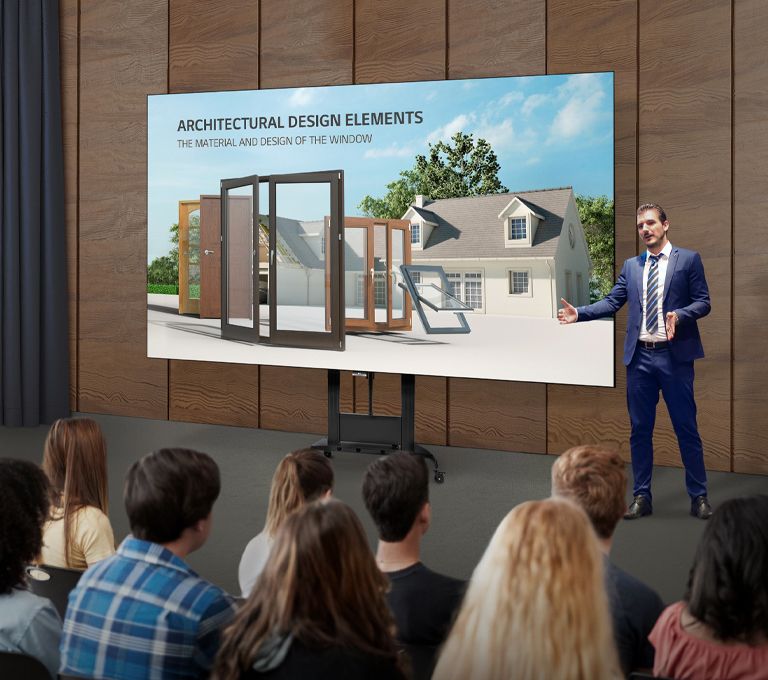

A man explains content on the screen of an LAEC installed with a dedicated stand in an auditorium.

* All images in this page are for illustrative purposes only and may differ from the actual product.
* Stand accessories differ by models, and need to be purchased separately.

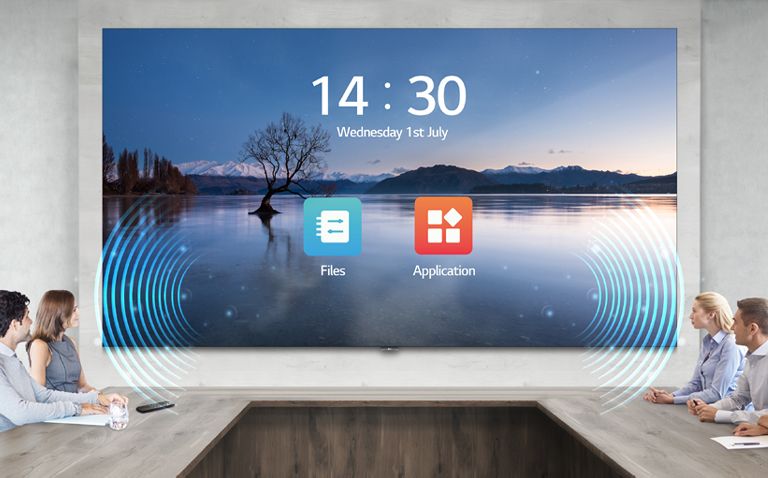

People have a meeting while watching the display and listening sound with the LAEC and its built-in speaker, installed in the meeting room.

All-in-One LED Screen with Built-in Speaker

LG’s LED All-in-One LAEC series has two size of screens; 136- inch and a 163-inch. The LAEC series is offered as an all-in-one package including an embedded controller and built-in speaker. Eliminating the prejudice that LED displays are difficult and complex to install, it doesn't require controller connections or module configuration. After a simple installation process, all you need to do is to turn on the screen with a remote control like home TV.

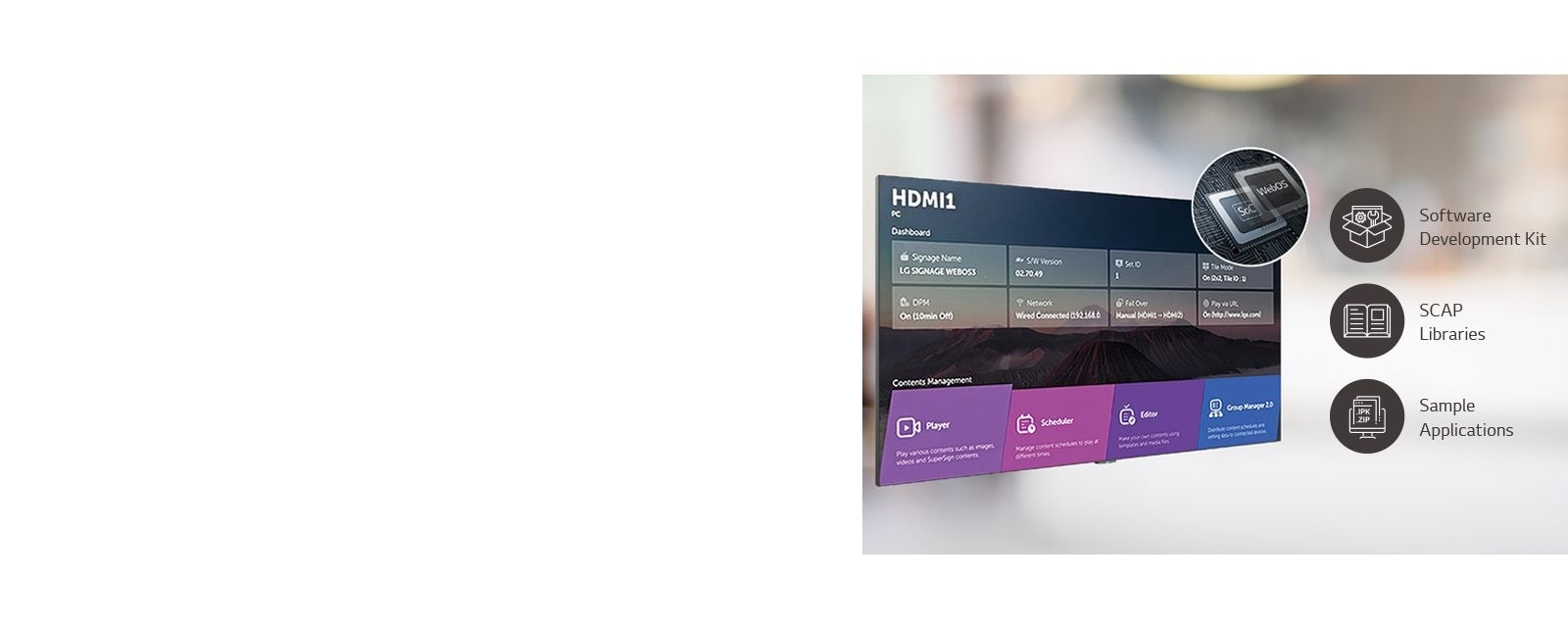

A number of tasks that can be done simultaneously are easily arranged through the webOS platform.

High Performance with webOS

Built-in Quad Core SoC (System on Chip) can execute several tasks at once for providing smooth content playback. Also, LG webOS Smart Platform enhances user convenience with intuitive GUI and provides to SI or/and developers simple app development tools* such as SDK (Software Development Kit), SCAP, sample applications.

* The webOS Signage Developer site (https://webossignage.developer.lge.com) provides SDK tools and documentation for creating apps on LG Digital Signage. This is only open to partners.

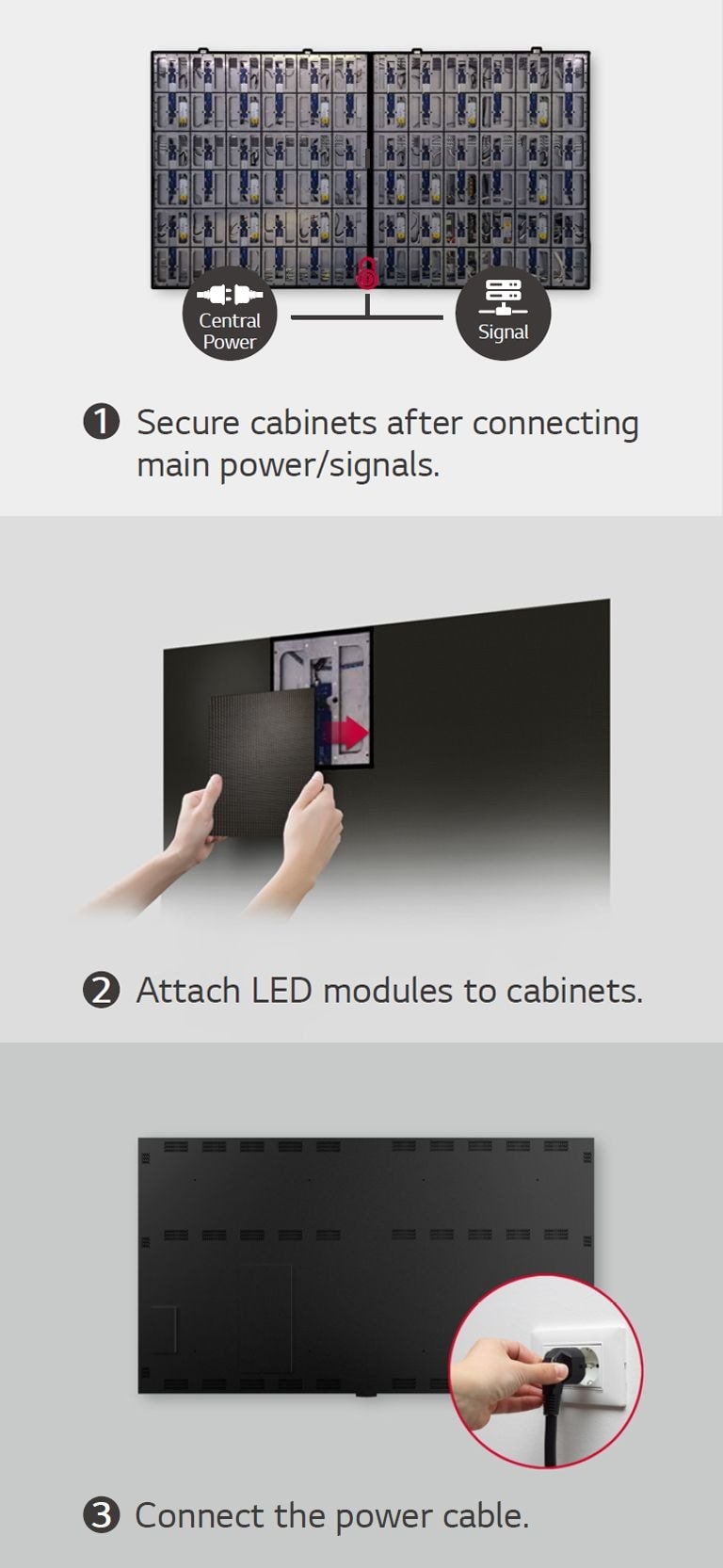

Easy Installation

The installation process of the All-in-One Smart series is very simple. After securing cabinets (two for LAEC015, three for LAEC018), attach each LED display module to them. Lastly, plug in the power cable. This simple installation saves time and labor, thereby making users handle the LED screen with ease.

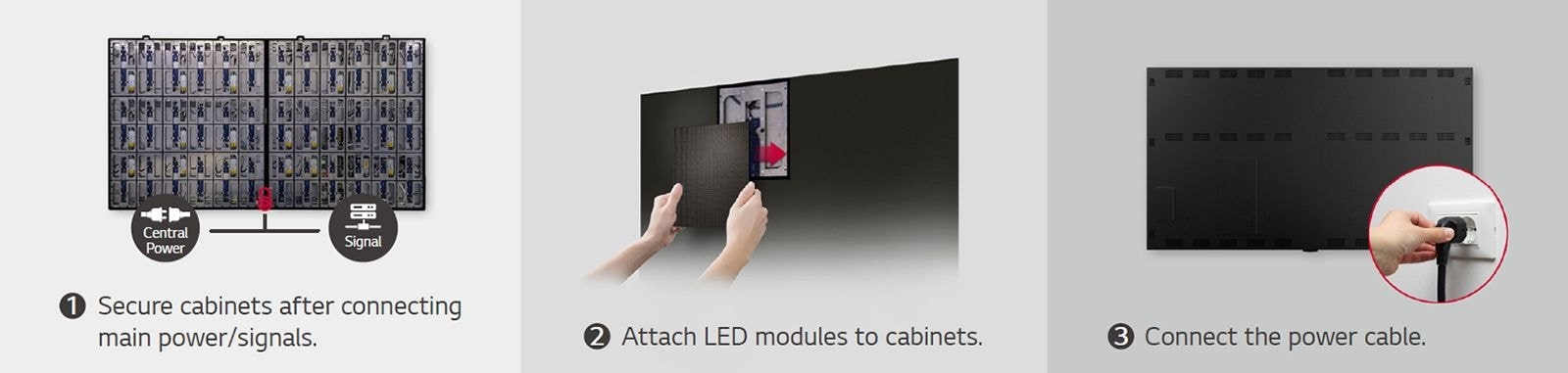

This consists of total 3 steps' images for securing cabinets, attaching LED modules, and connecting the power cable.

* Fixing screws or installing wall mount / accessories is needed additionally.
* The image is illustrated as an example of LAEC015 model.

Versatile Installation with Dedicated Accessories

The product is offered with the necessary component including the landscape wall mount and tools for installation. The dedicated stand* is provided as an option, so that you can easily place it depending on your installation sites. Also, the LAEC series can be installed side by side in the form of 1 × N or 2 × N, up to 14 screens, suitable for its installation site and its purposes.

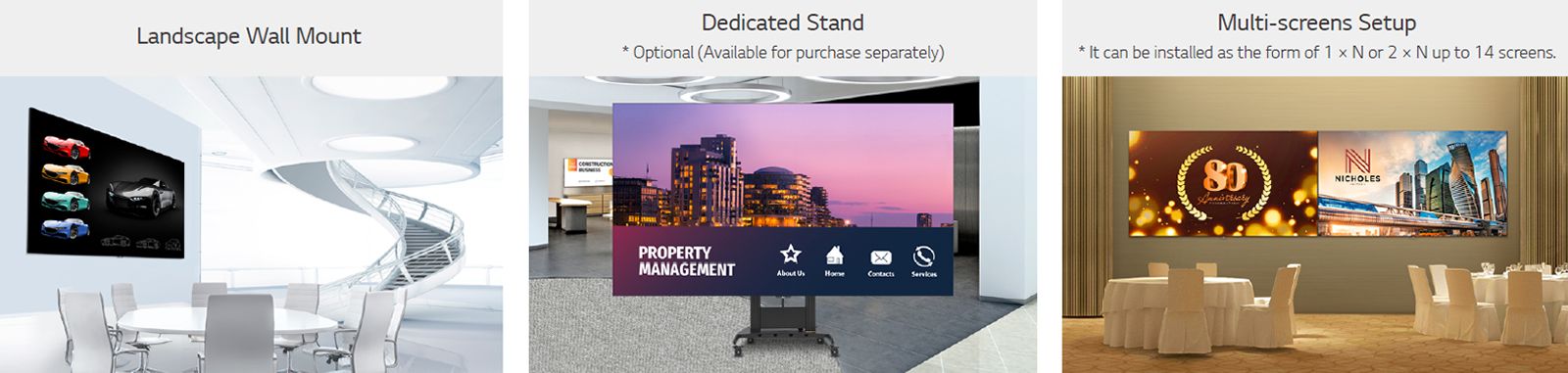

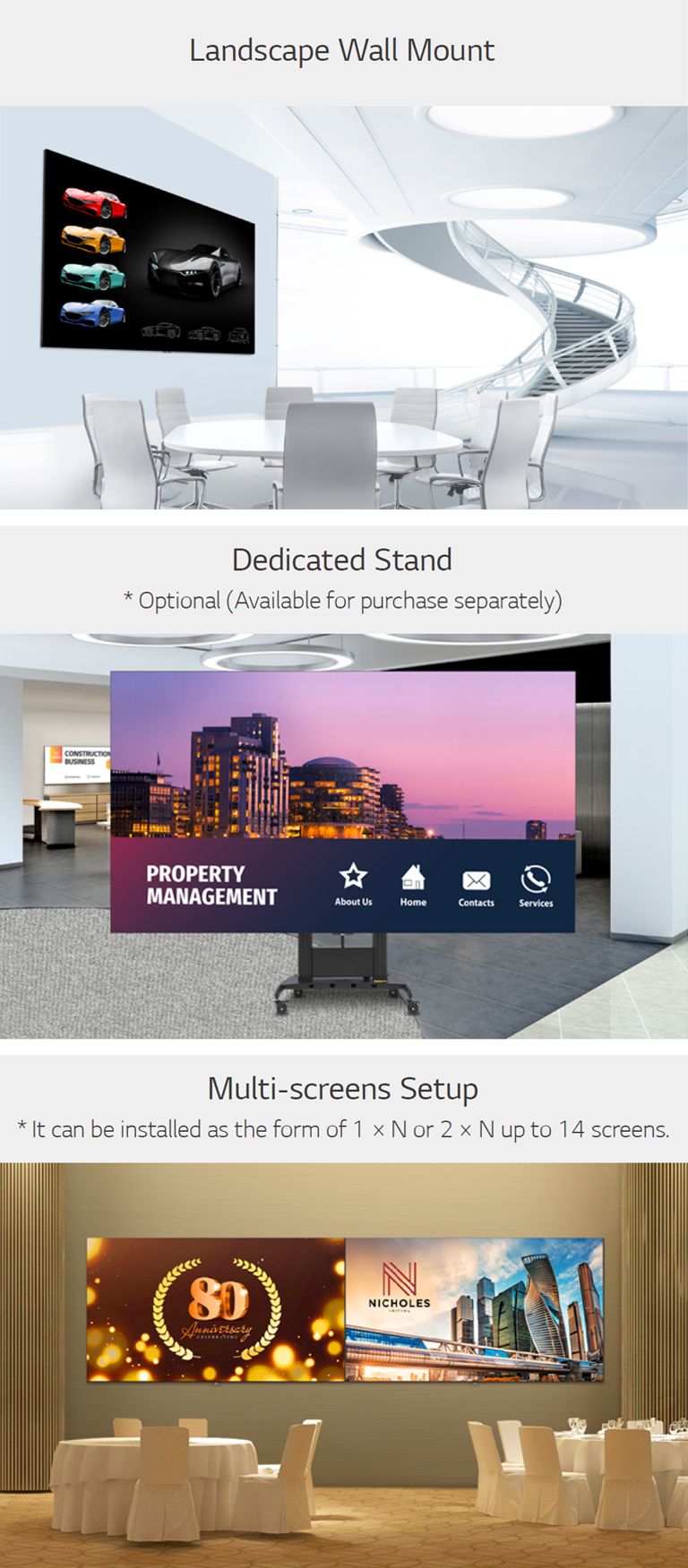

"The LAEC installed on the wall with wall mounted. The LAEC’s have been installed along with the optional dedicated stand in an event hall. Two LAECs are installed on a hotel's ballroom walls side by side"

* Stand accessories differ by models, and need to be purchased separately.

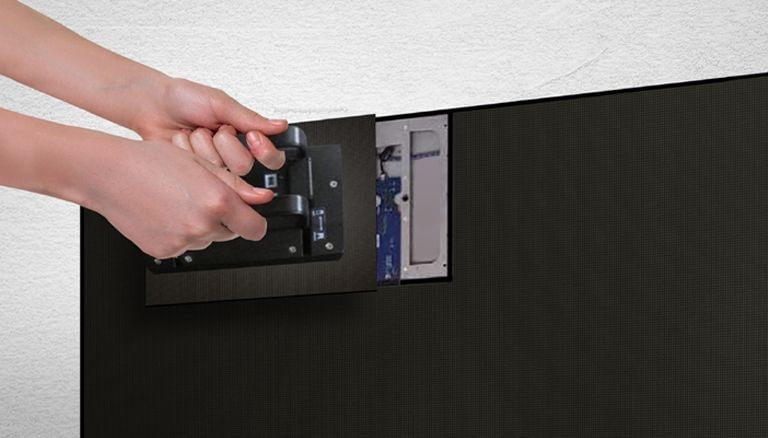

A person replaces one of the LED modules from the front by using the magnetic tool provided.

Quick Maintenance

In case of failure related to the LED module or the system board, it can be serviced from the front. The LED module can be simply detached by the provided magnetic tool and replaced quickly without cabling.

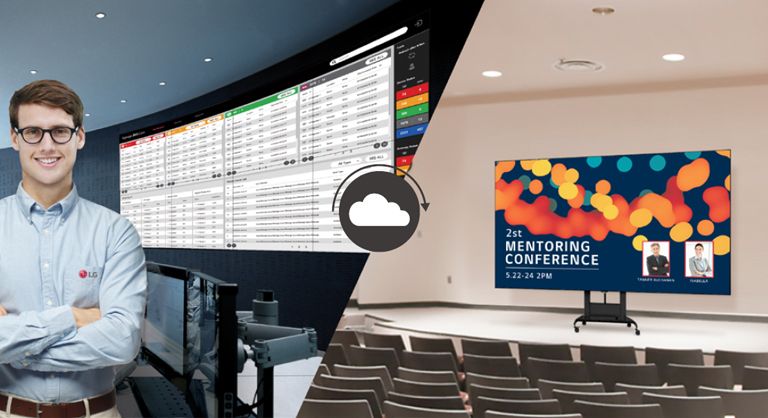

The LG employee is remotely monitoring the LAEC series installed in a different place by using cloud-based LG monitoring solution.

Real-time LG ConnectedCare

Maintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, enabling the stable operation of clients' businesses.

* The availability of LG ConnectedCare differs by region.
** Stand accessories differ by models, and need to be purchased separately.

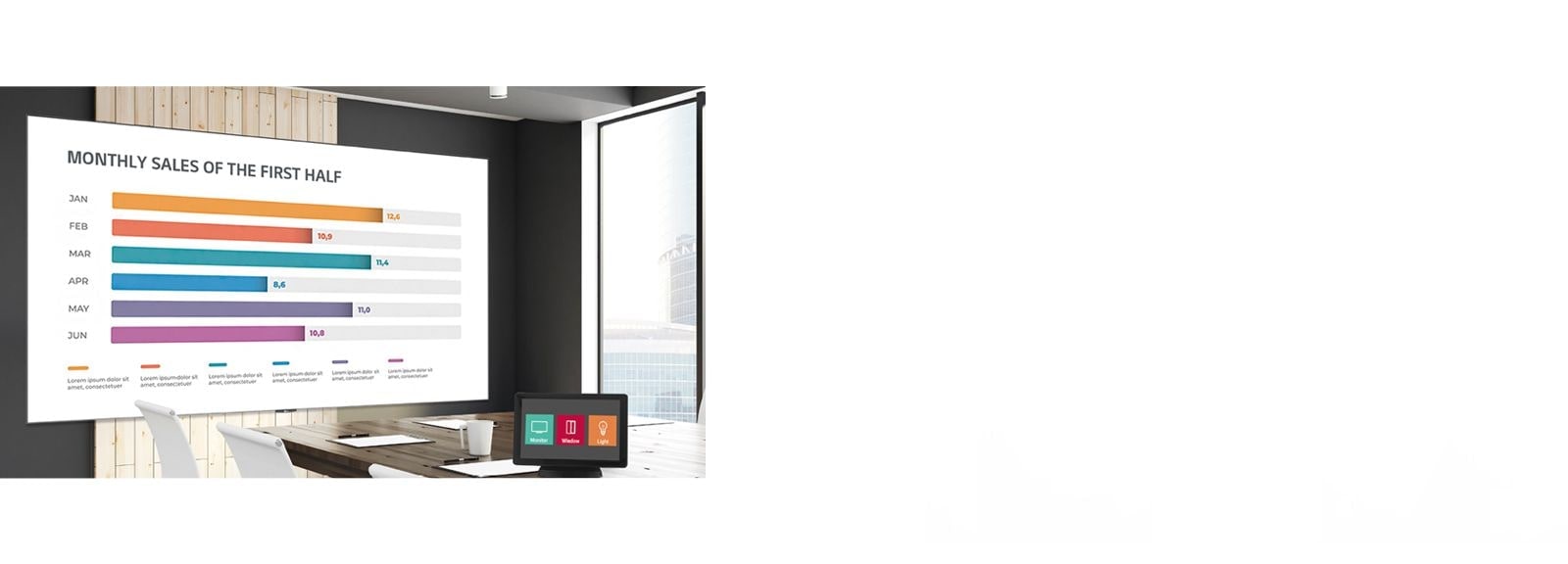

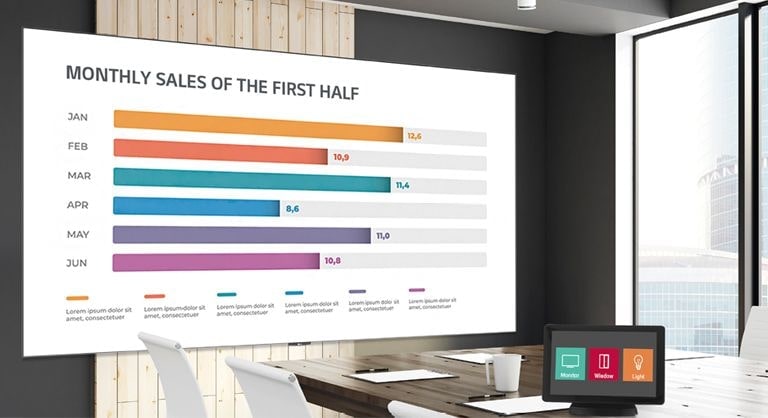

There are one in the meeting rooms with the signage and one of AV control system which helps users control the LAEC series.

Compatible with
AV Control Systems

The LAEC series supports Crestron Connected®* for high compatibility with professional AV controls to achieve seamless integration and automated control**, boosting business management efficiency.

* Initial setting from display is required for Crestron Connected® compatibility.
** Network based control

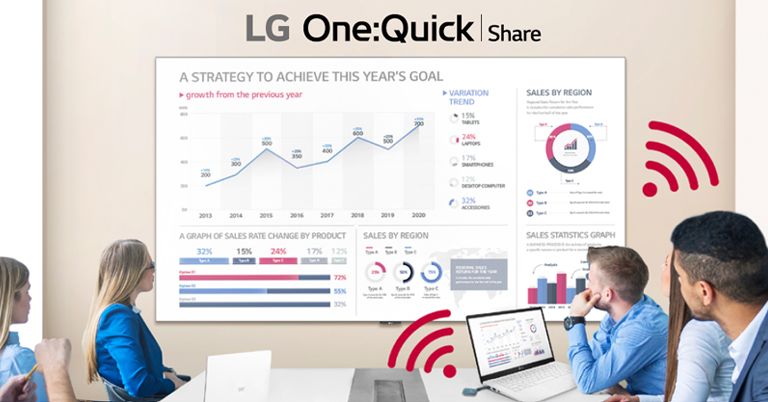

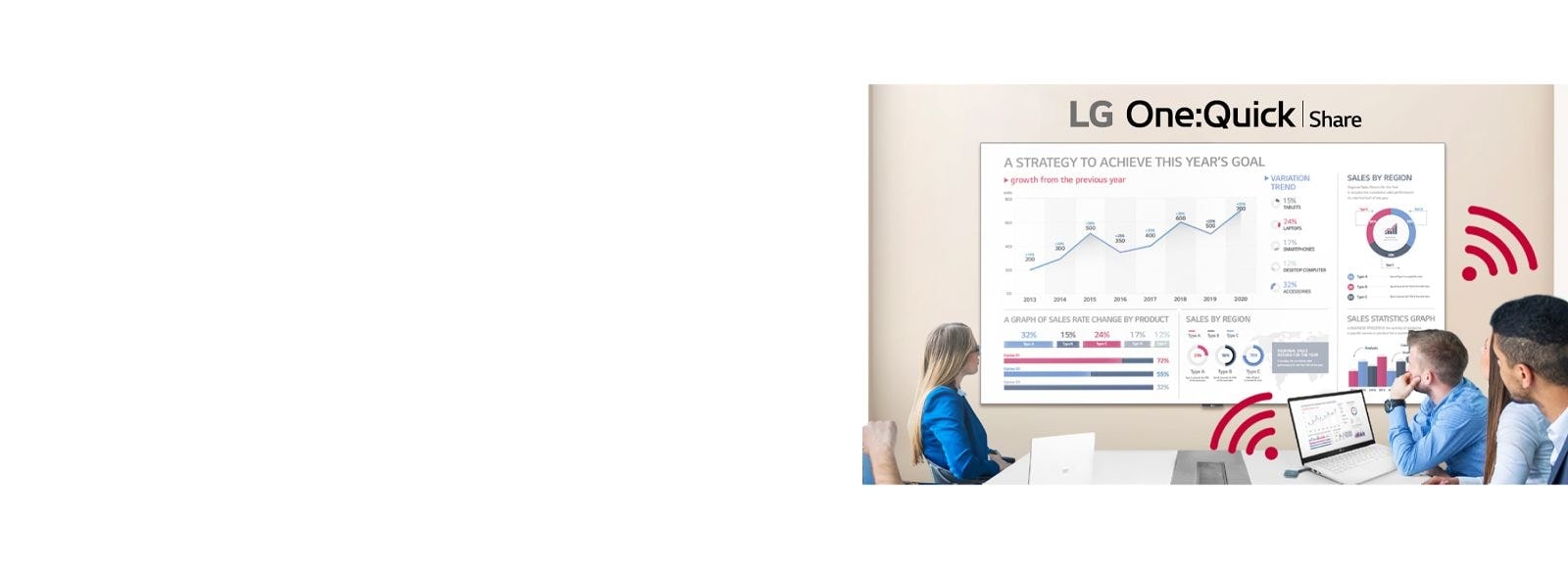

Wireless Screen Sharing

The LAEC series is compatible with LG One:Quick Share*, a wireless screen sharing solution. It helps to simply share one’s personal PC screen to the display with its button and embedded Wi-Fi**, and it can also adjust the basic setting values (volume, picture mode, auto bright, etc.) of the connected display without a remote control.

* LG One:Quick Share needs to be purchased separately.
** Users need to set up SoftAP enabled at Network Menu of the Signage.

Magic Remote for Easy of Use

With the LG Magic Remote, you can select and run the menu of the signage just like using a mouse and its cursor can be used as a laser pointer. In addition, through the newly added 'FREEZE' button on the remote control, users can temporarily freeze the screen while switching contents on the PC, so that users are able to have uninterrupted meetings without exposing its switching process.

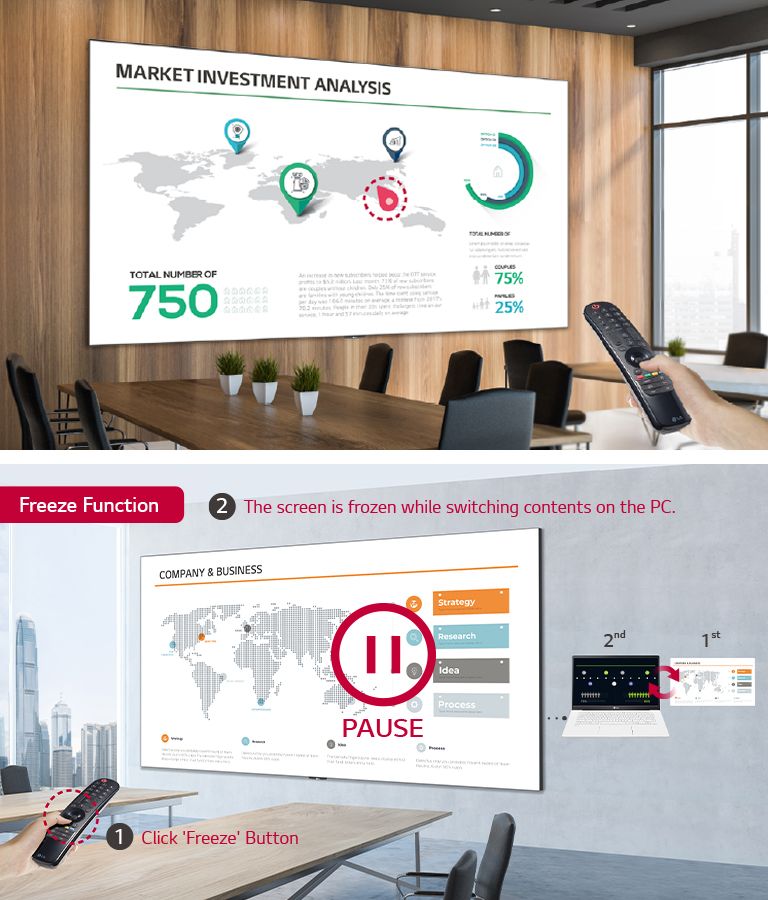

The functions of the LG Magic Remote are shown in two images. The left image show the Magic Remote’s function which allow it to be used as a laser pointer on the LAEC screen. The right image is the Freeze Function, and when the Freeze button on the Magic Remote is pressed, the LAEC screen installed on the conference room wall is paused.

* LG Magic Remote needs to be purchased separately.
** The FREEZE function is only available when the LAEC is connected to an external input signal.

PHYSICAL PARAMETERS

Pixel Configuration

Single SMD

Pixel Pitch (mm)

1.88
Screen Resolution (WxH)

1,920 x 1,080

Module Dimensions (W × H, mm)

300 × 168.75
No. of Modules per Screen (WxH)

12 × 12 (Total 144)

Screen Dimensions (W x H x D, mm)

3,604 × 2,029 × 45.5 (Thickest 81)
Screen Surface Area (㎡)

7.29

Screen Weight (kg)

190
Physical Pixel Density (pixels/m²)

284,444

Flatness of Cabinet (mm)

±0.2
Cabinet Material

Die-casting Aluminum

Service access

Front

OPTICAL SPECIFICATIONS

Max. Brightness (nit, after calibration)

500

Color Temperature (K)

3,200 - 9,300
Visual Viewing Angle (Horizontal)

160

Visual Viewing Angle (Vertical)

160
Brightness Uniformity

98%

Color Uniformity

±0.015 Cx, Cy
Contrast Ratio

3,000:1

Processing Depth (bit)

16 (HDR10, HDR10 Pro)

ELECTRICAL SPECIFICATIONS

Power Consumption (W/Screen, Max.)

2,200

Power Consumption (W/Screen, Avg.)

880
Power Consumption (W/m², Max.)

302

Power Consumption (BTU/h/Screen, Max.)

7,506
Power Consumption (BTU/h/Screen, Avg.)

3,004

Power Consumption (BTU/h/m², Max.)

1,030
Power Supply (V)

100 to 240

Frame Rate (Hz)

50 / 60
Refresh Rate (Hz)

3,000

OPERATION SPECIFICATIONS

Lifetime (Hours to Half Brightness)

100,000

Operating Temperature (°C)

0 to +40
Operating Humidity

10-80% RH

IP Rating (Front / Rear)

IP30 / IP20

SPEAKER

Speaker

Built-in(9W+9W)

CERTIFICATION

Certification

CE,FCC,ETL,CB

Environment

Environment

RoHS, REACH

CONTROLLER

Controller

Embedded

COMPLIANCE INFORMATION

The safety information for accessories is included with the safety information for the product and is not provided separately.
