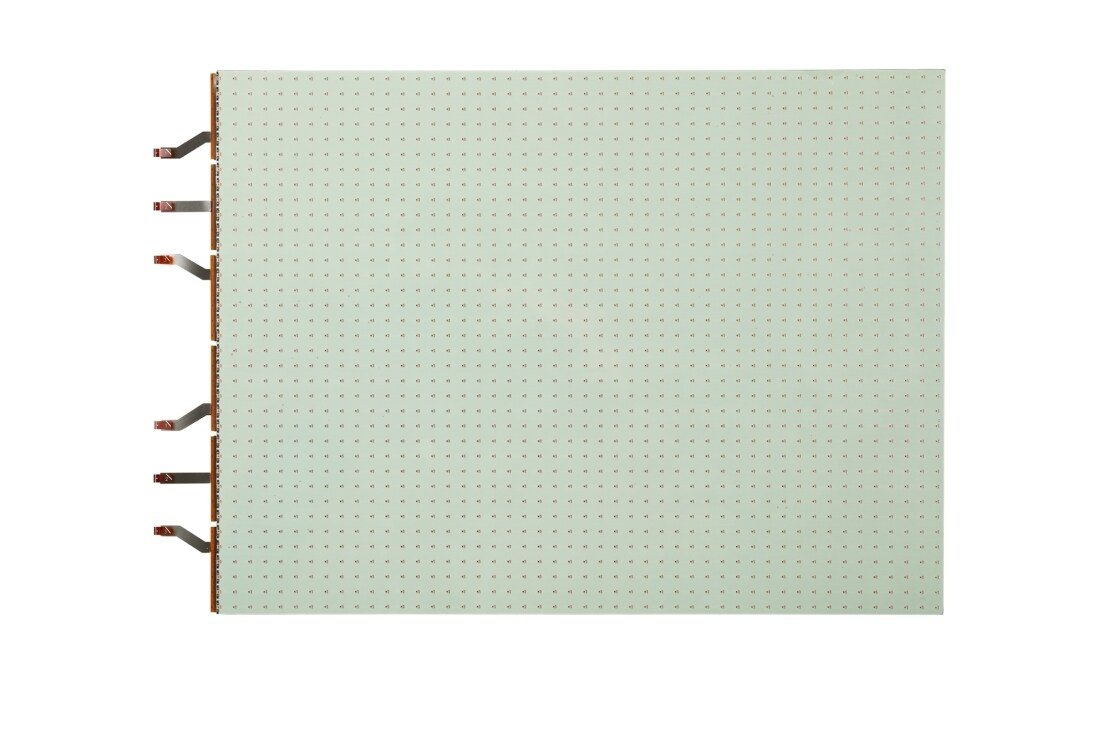

LG Transparent LED Film, front view, LAT140, thumbnail 1

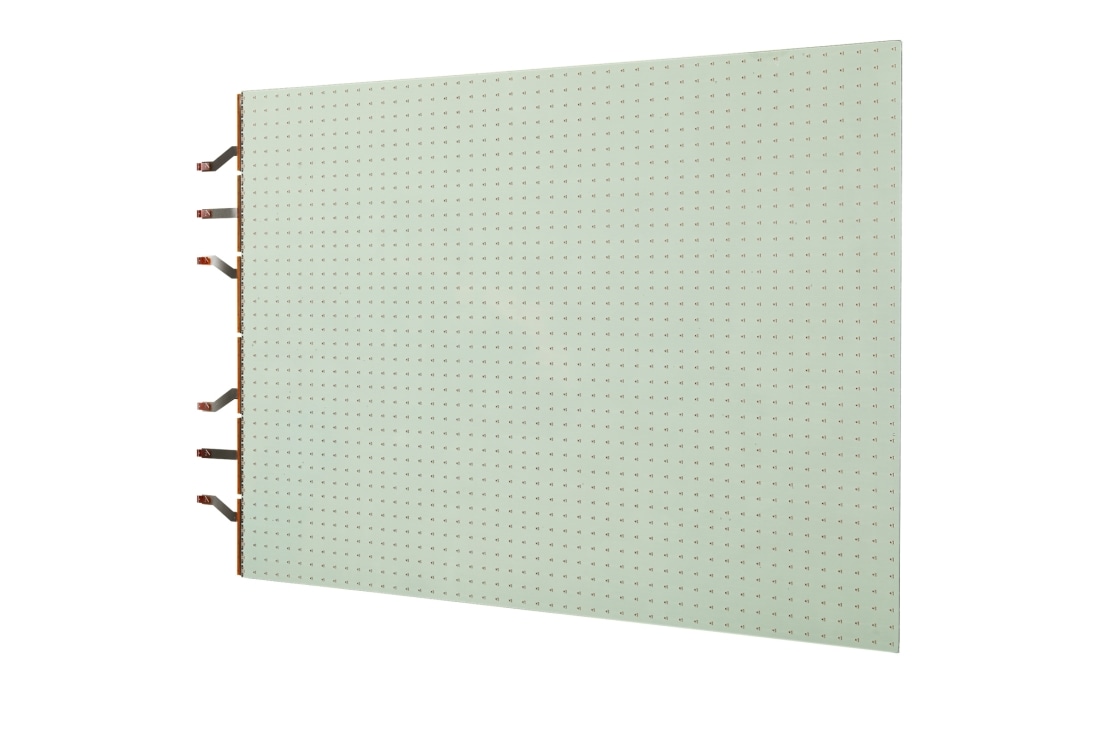

LG Transparent LED Film, -15 degree side view, LAT140, thumbnail 2

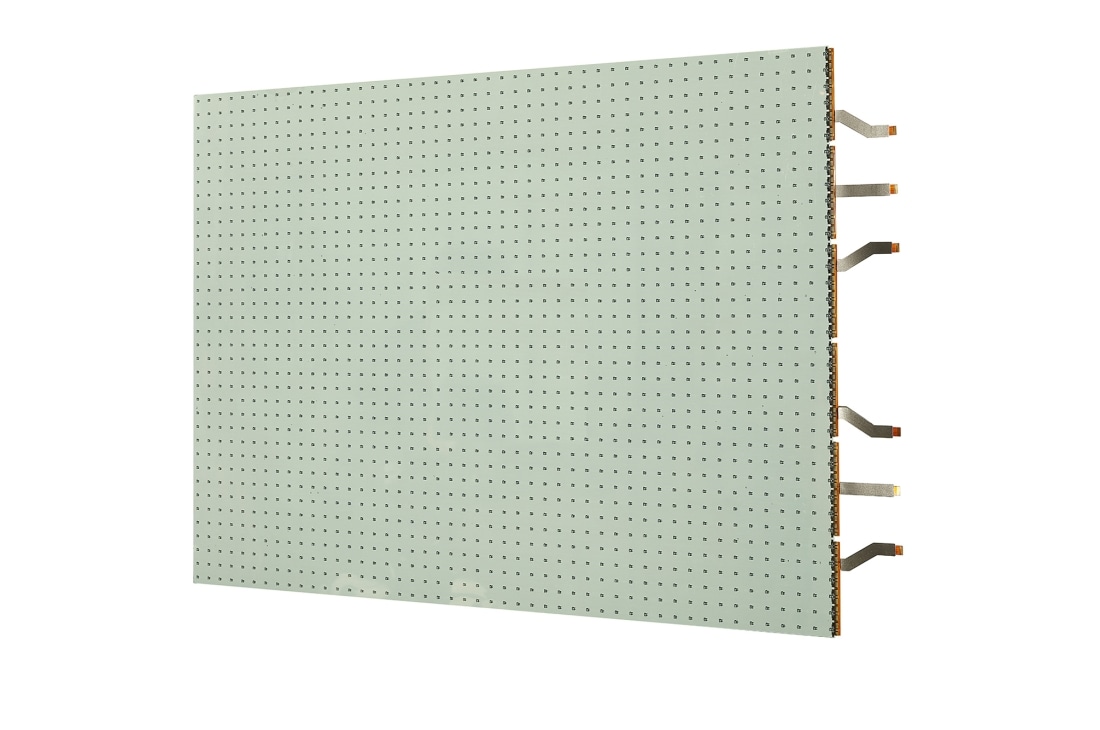

LG Transparent LED Film, -15 degree rear view, LAT140, thumbnail 3

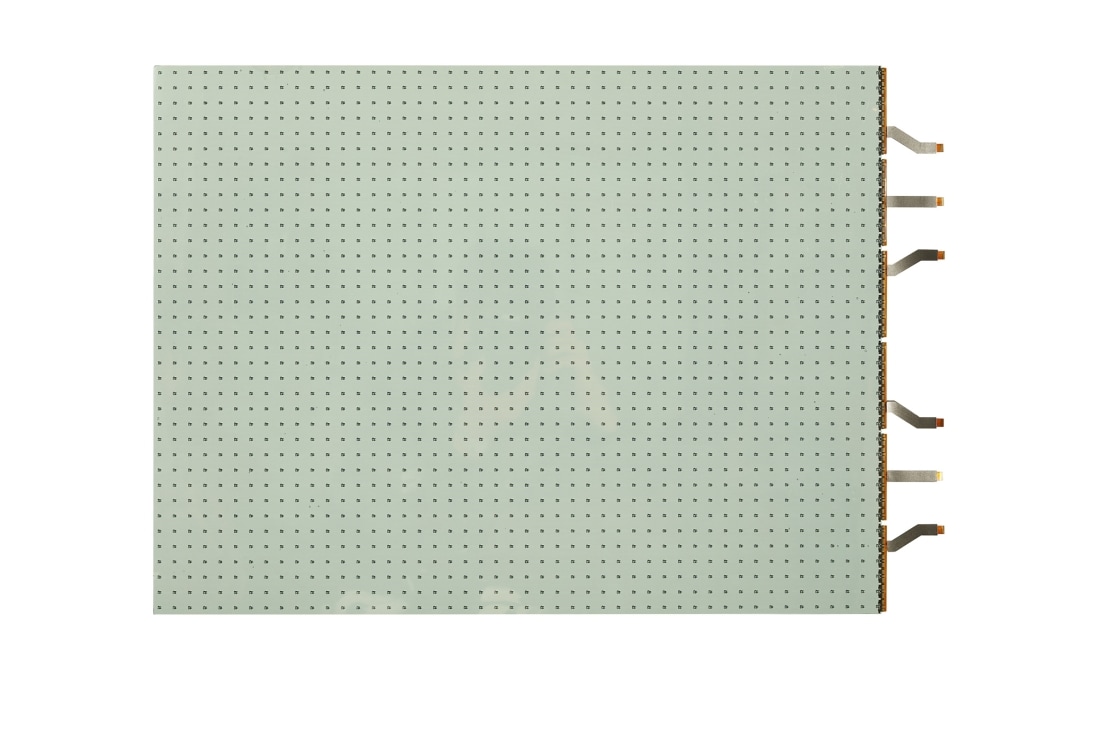

LG Transparent LED Film, rear view, LAT140, thumbnail 4

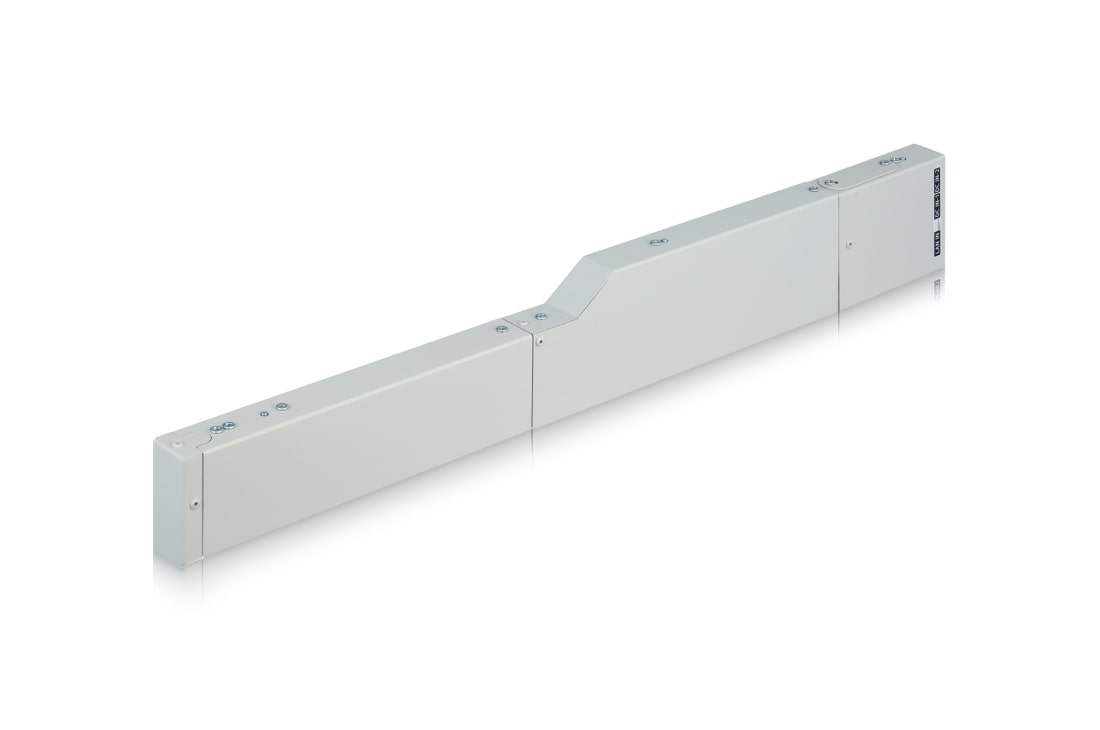

LG Transparent LED Film, +45 degree side view, 1st Bezel Kit, LAT140, thumbnail 5

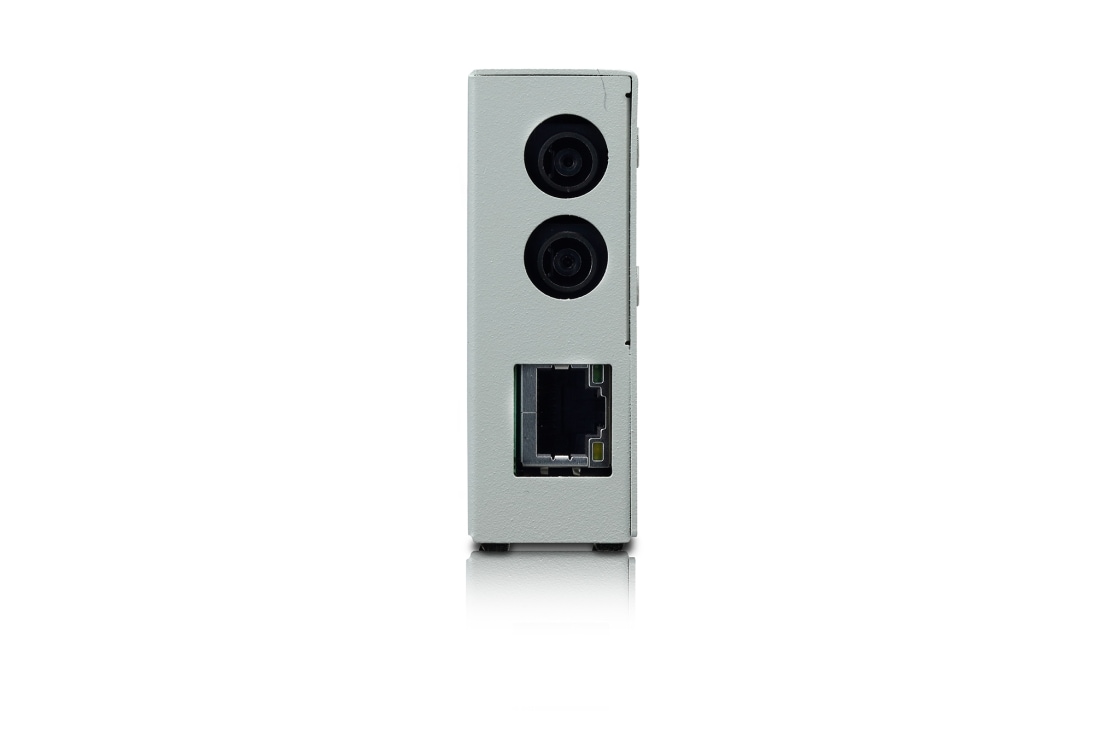

LG Transparent LED Film, rear view, 1st Bezel Kit, LAT140, thumbnail 6

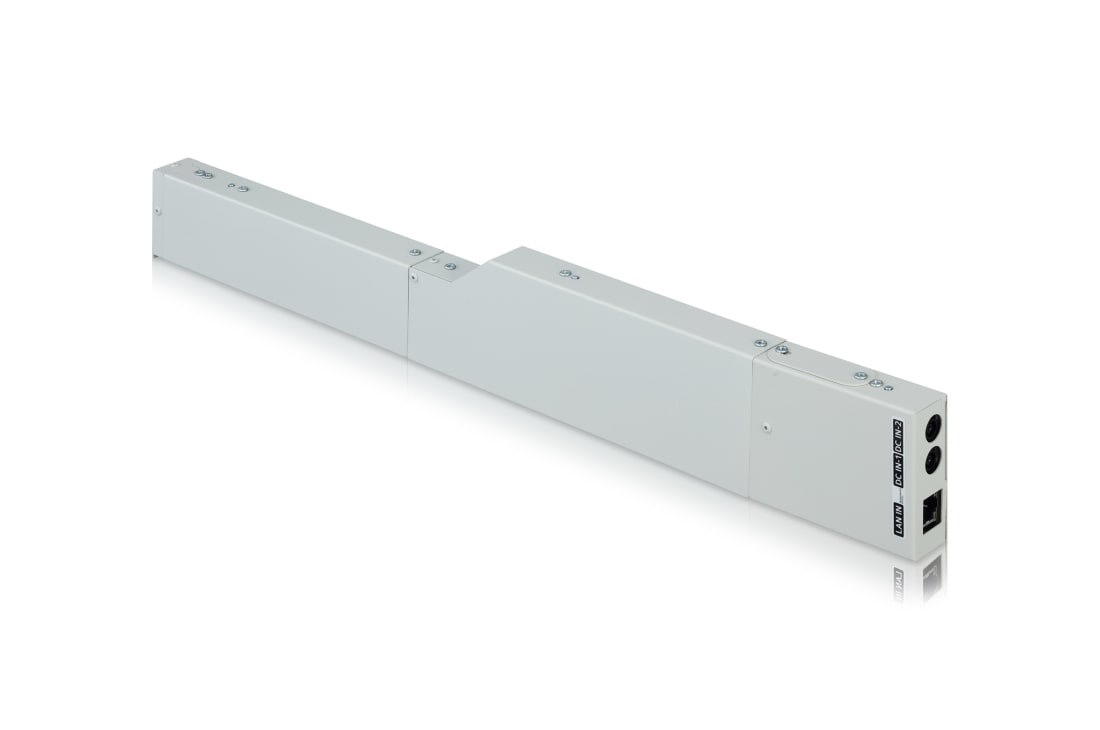

LG Transparent LED Film, -45 degree side view, 1st Bezel Kit, LAT140, thumbnail 7

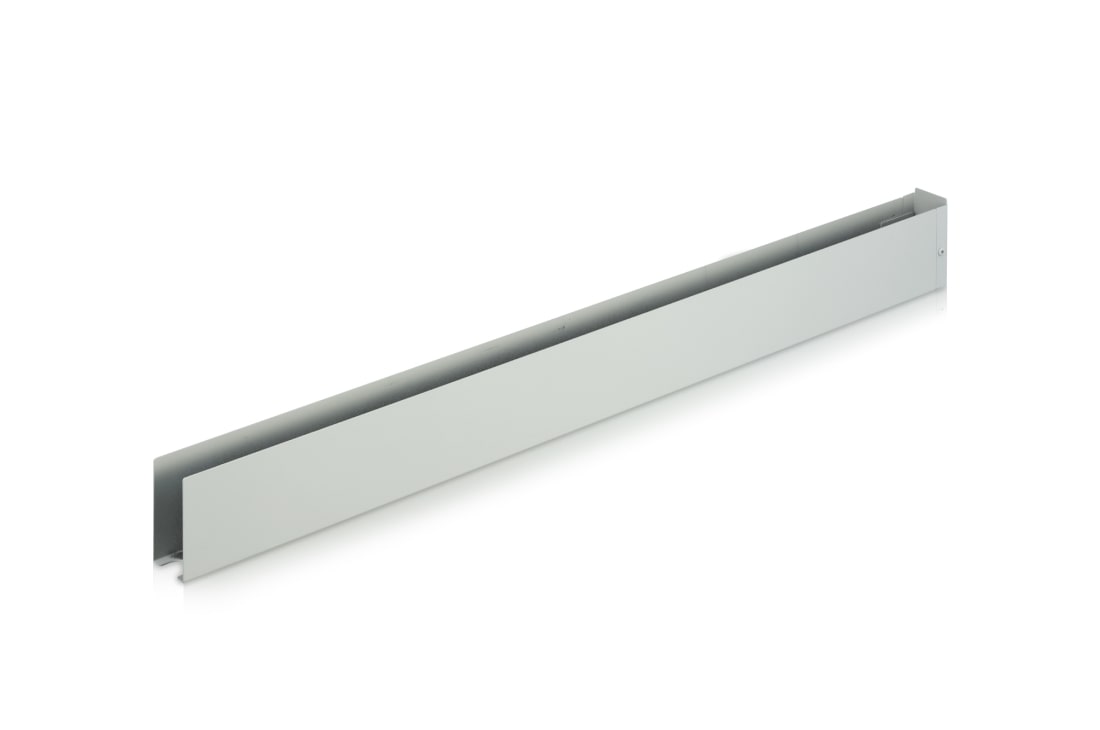

LG Transparent LED Film, +45 degree side view, Common Bezel, LAT140, thumbnail 8

ADD TO WISHLIST

Discontinued

LAT140 component-copyModelName

Transparent LED Film

Name: Transparent LED Film
Brand: LG UAE
SKU: LAT140
Rating: 0 (0 reviews)

Key Features

Pitch : 14mm
LED Type: R,G,B 3in1 SMD
Transmittance: 53%
Self-adhesive Film

Choose your Pitch

Find a Dealer

Add to Compare

component-OBScountrySelectDesc

Key Features

Pitch : 14mm
LED Type: R,G,B 3in1 SMD
Transmittance: 53%
Self-adhesive Film

Choose your Pitch

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

Transparent LED Film

*All images in this page are for illustrative purposes only and may differ from the actual product.

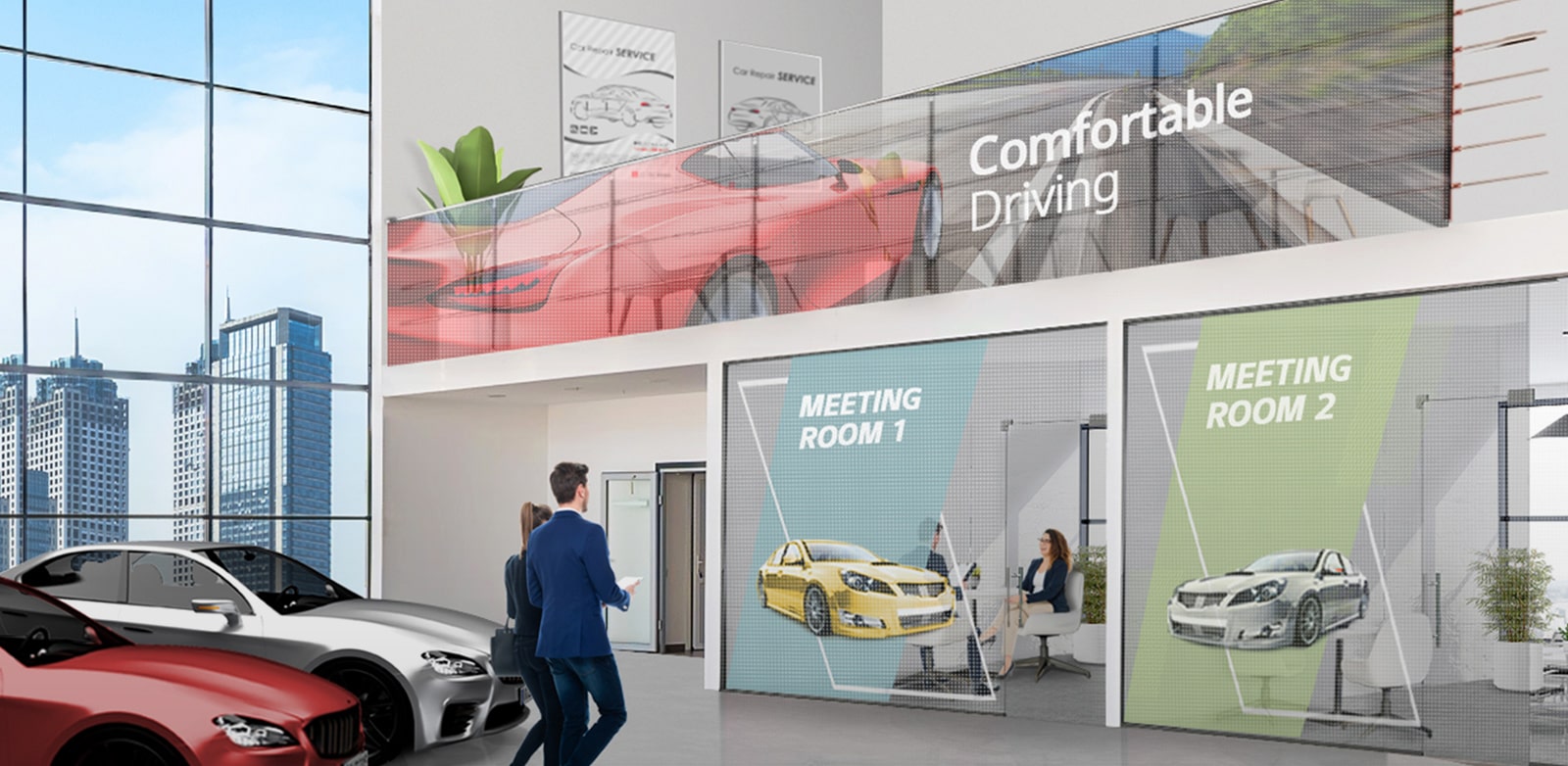

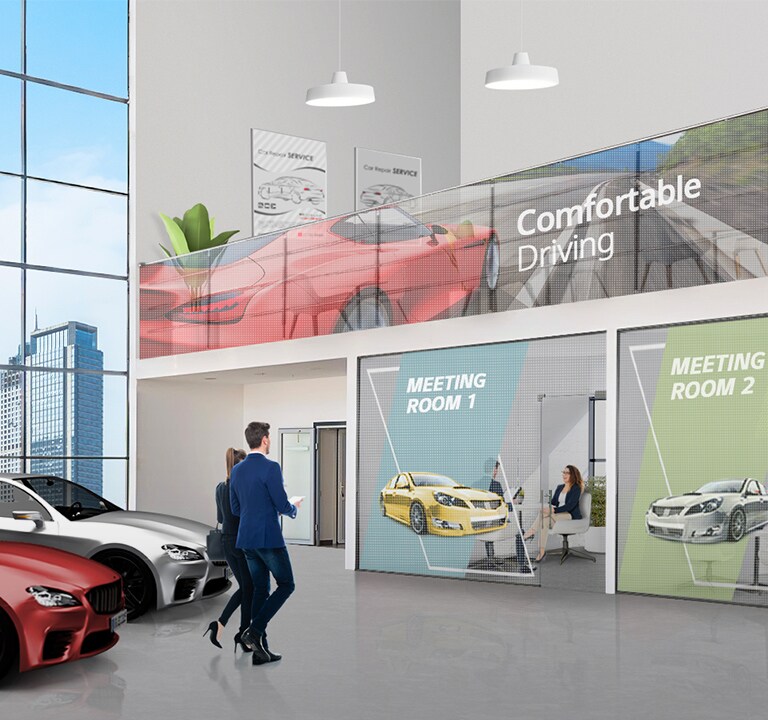

A NATURAL BLEND WITH SPACE

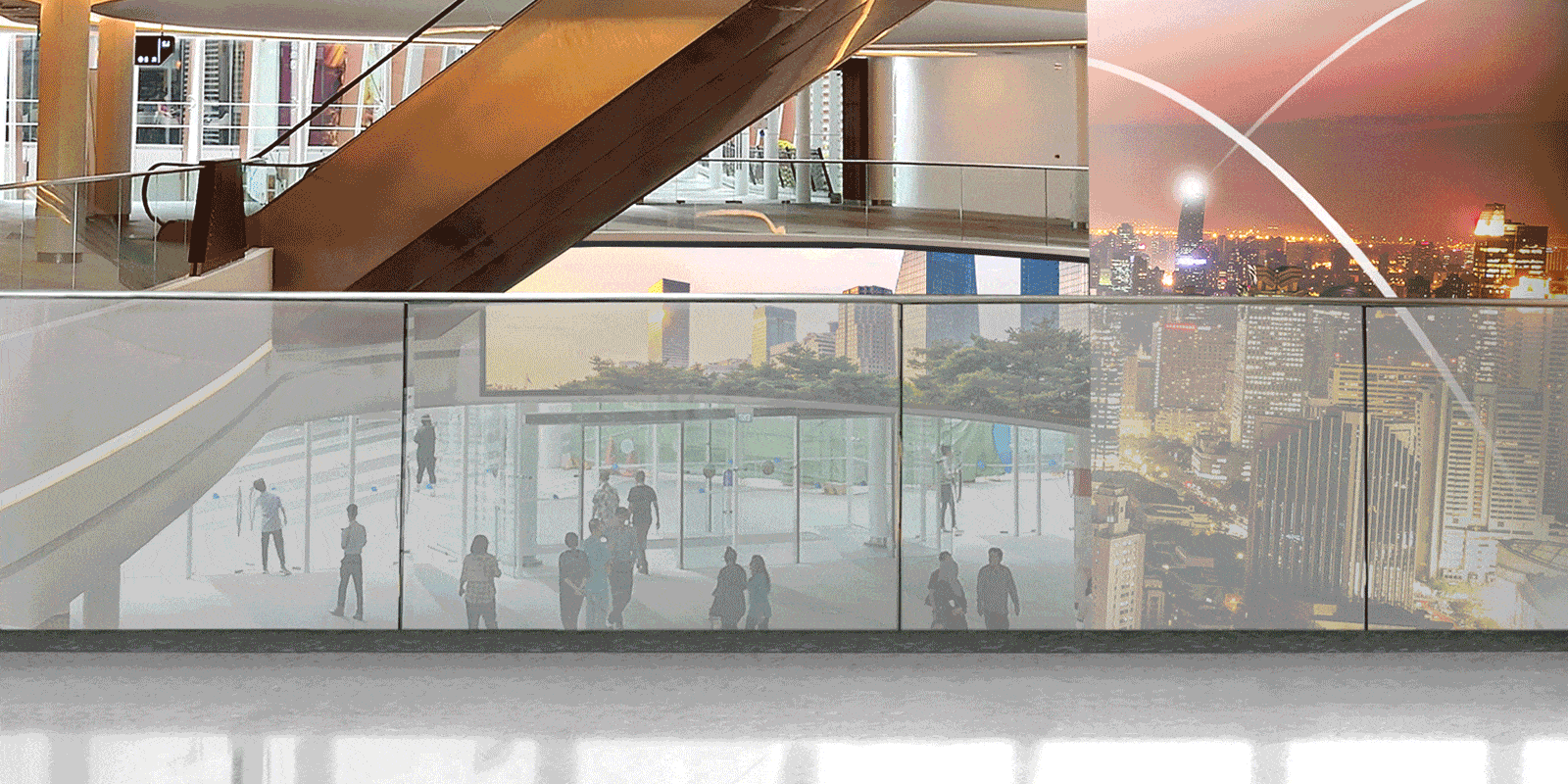

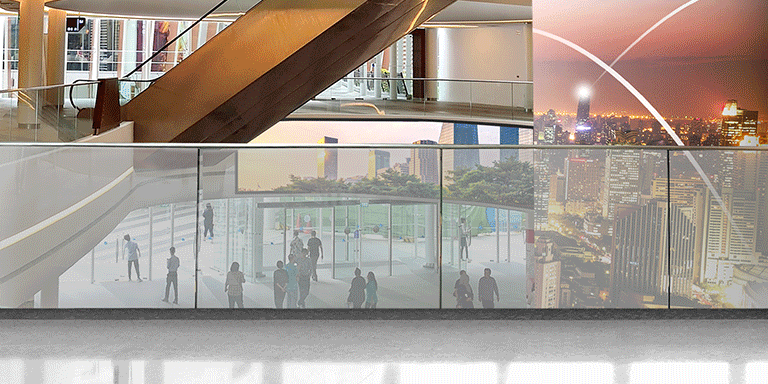

Superb Transparency

The LG Transparent LED film, which is a metal mesh type connecting each pixel with a thin metal mesh line, reflects the object behind the product even after the product is attached and turned off. This offers a wide-open view while blending into existing interior design smoothly and delivers various information effectively by attracting the attention of passersby.

EYECATCHING CONTENT DISPLAY

Enhanced Brightness and Control

The LED film with smaller pixel pitch, 14mm, and advanced brightness of up to 2,100cd/m²* attracts the attention of passersby while displaying a wide range of colors. Also, by using Control Manager solution, you can adjust and set brightness by timeline to deliver messages with optimal brightness.

*The examined brightness may differ from testing environments including a photometer.

EYECATCHING CONTENT DISPLAY

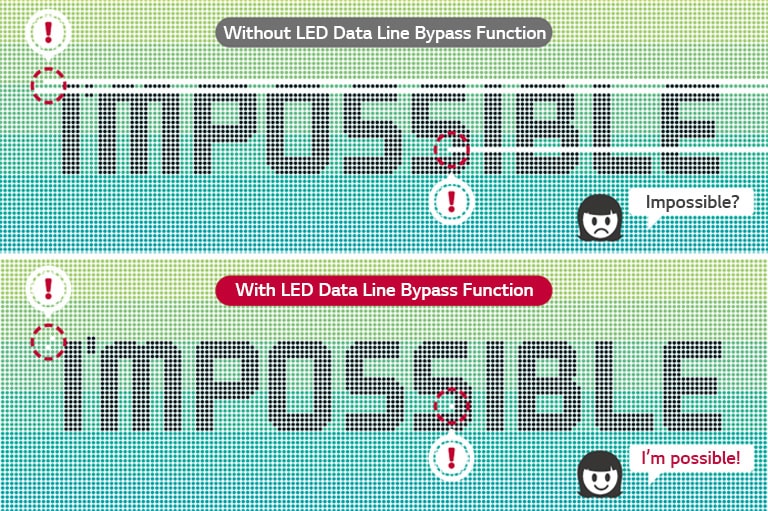

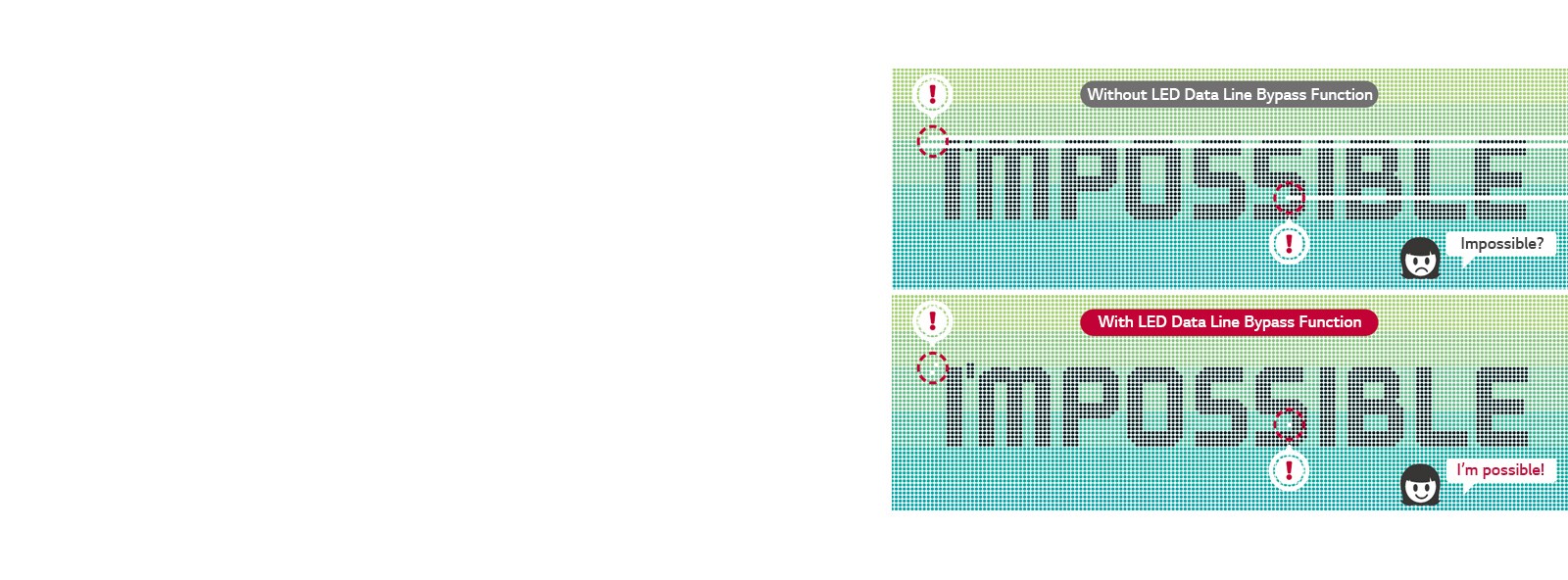

Data Lines with Bypass Function

The 14mm transparent LED film consists of LED chips connected by series and additional bypass data lines. So even if an error occurs with an LED chip, it reduces its impact on the other chips placed in the same row. This newly added function helps you show text, images, and videos as clearly as possible.

EASY SPACE INNOVATION

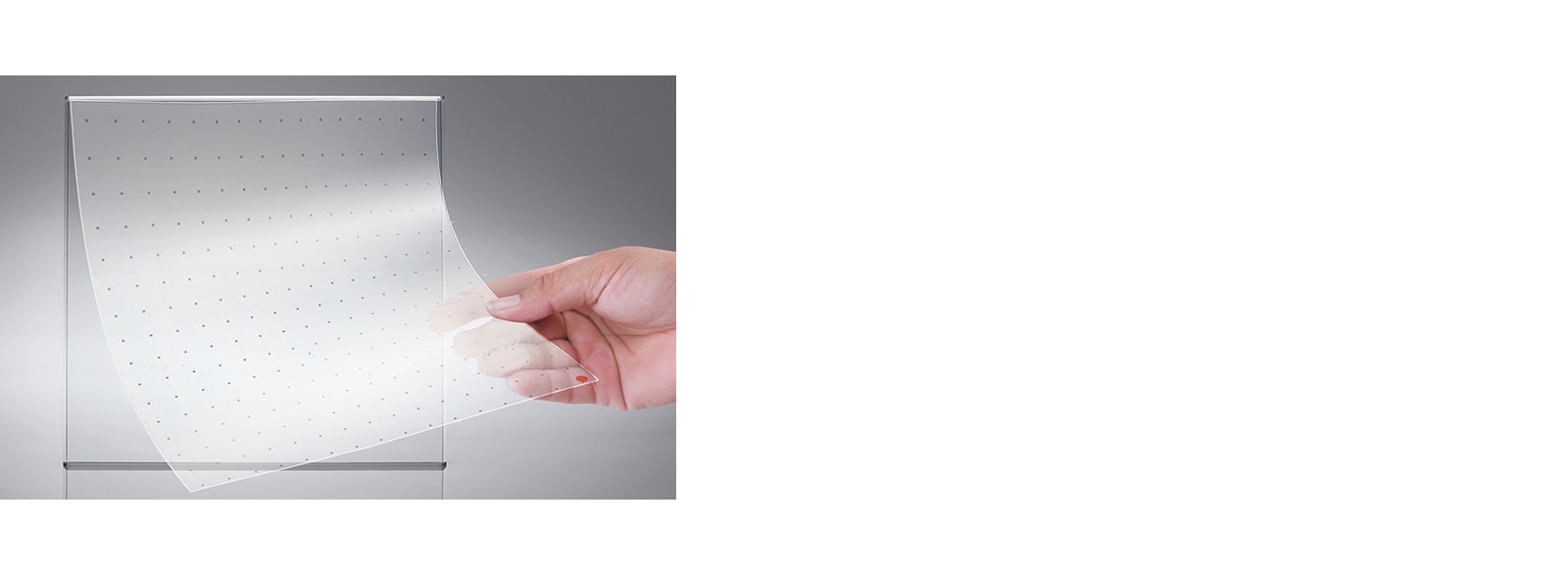

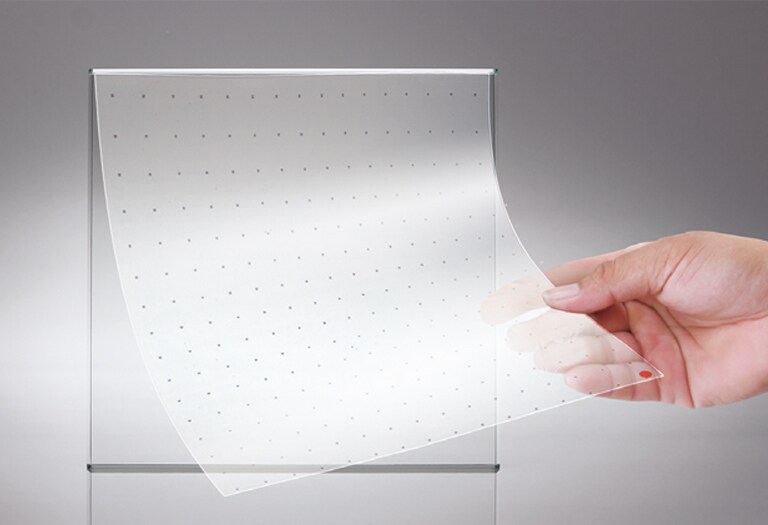

Self-adhesive Film

The LG Transparent LED film is self-adhesive, so it can be easily attached to the surfaces of existing window glass without the need for any complicated construction.

Outstanding Expandability and Flexibility

EASY SPACE INNOVATION

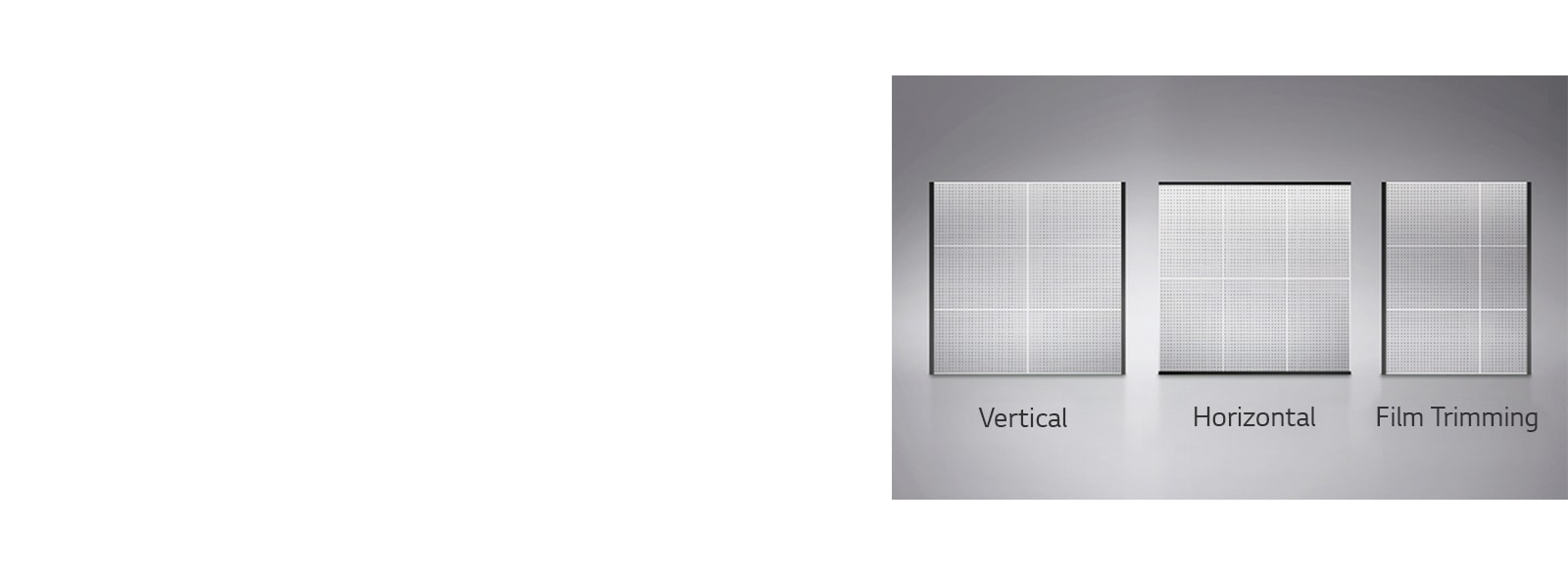

Outstanding Expandability and Flexibility

The size and layout of the film can be customized to fit into the installation area. It can be expanded by adding more films in a vertical or horizontal way, or cut in parallel with the bezel to meet size requirements.

RELIABLE PRODUCT QUALITY

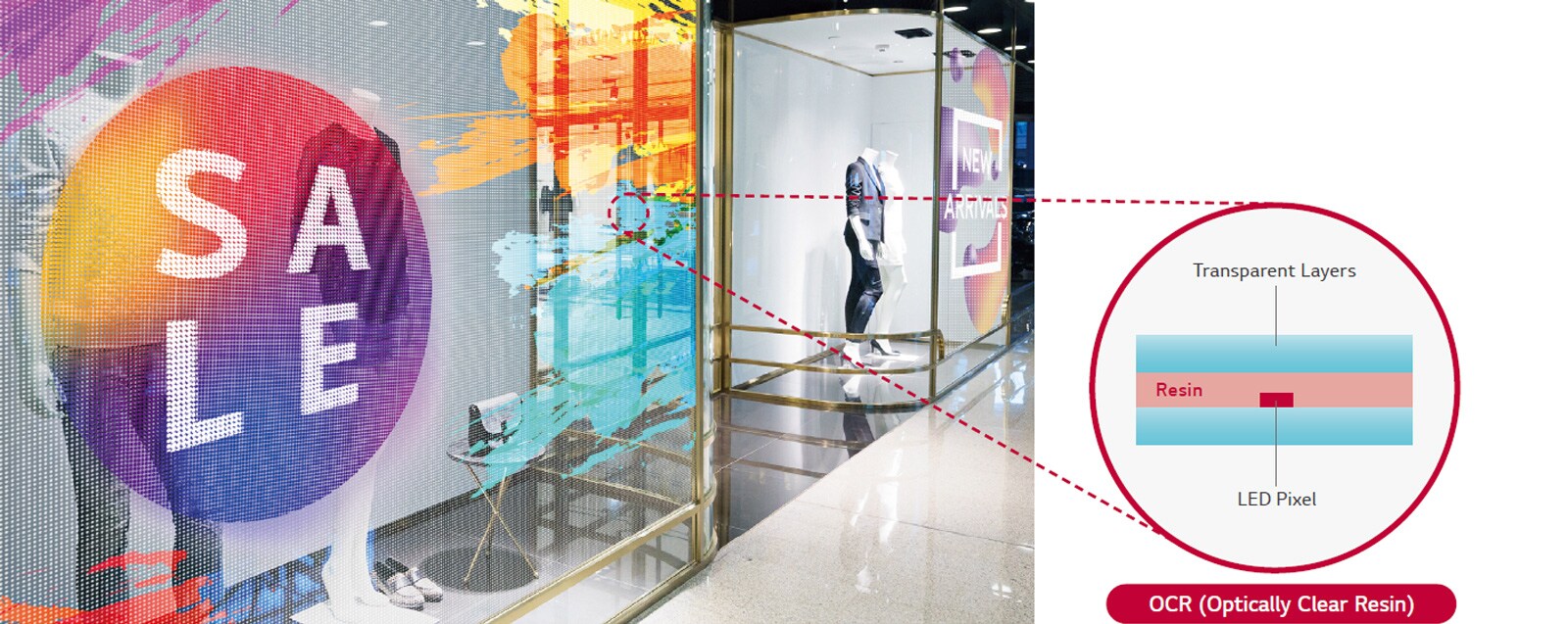

OCR (Optically Clear Resin) Direct Bonding

The LG Transparent LED film, which applied the OCR bonding method, protects LED pixels stably by fully filling the gap between transparent layers. Compared to OCA (Optically Clear Adhesive) method, which usually perforates the upper layer above each LED pixel to prevent uneven surface and scattered reflection, the LED film fully embraces and protects the pixels resulting in improved durability and flat surface*.

*This is based on the internal comparison test between OCR and OCA with perforations of the upper transparent layer under the condition of -10˚~ 45˚ temperature and 0 ~ 30% humidity.

SMART LED SIGNAGE

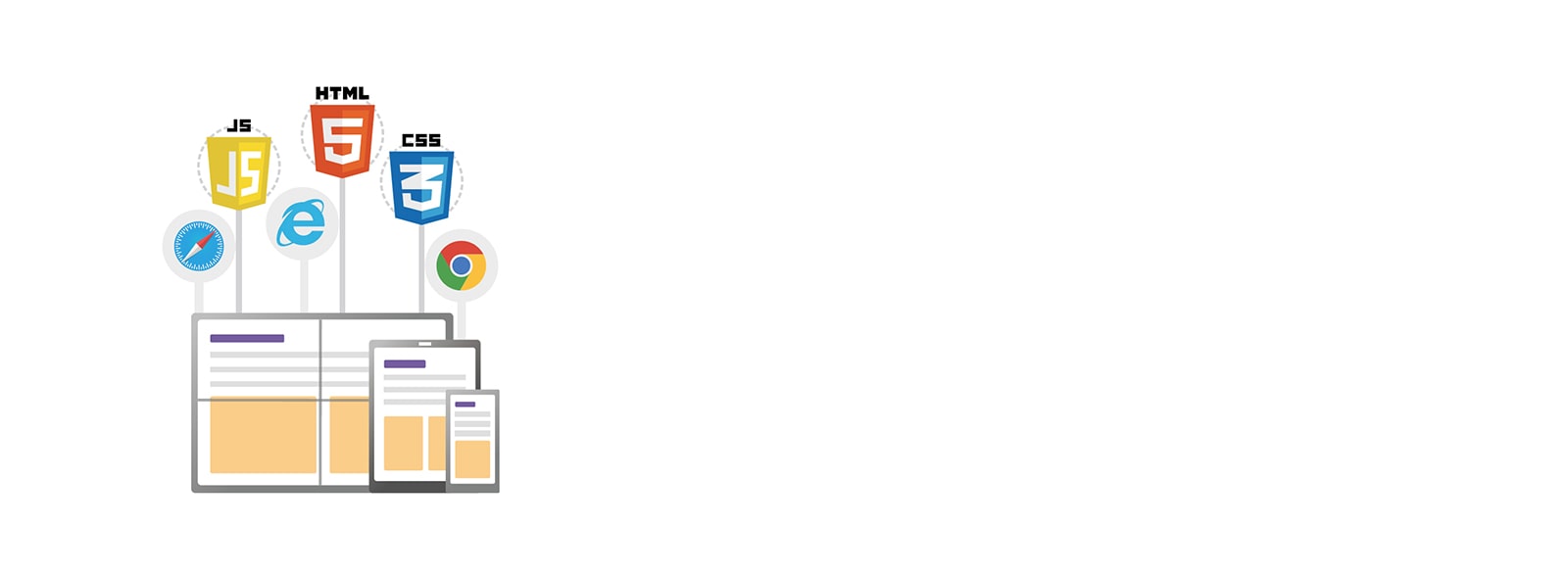

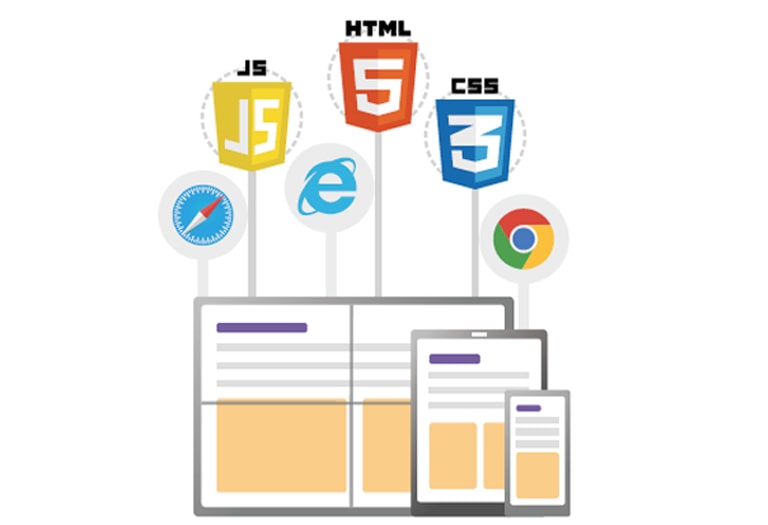

webOS Smart Platform

LG webOS is a web-centric platform, making it easier for SIs and developers to build web-based solutions according to various environments. By supporting SCAP and compatibility with HTML, CSS, and JavaScript, you can save time and labor costs.

*webOS API will be provided to authorized SIs and developers.

SMART LED SIGNAGE

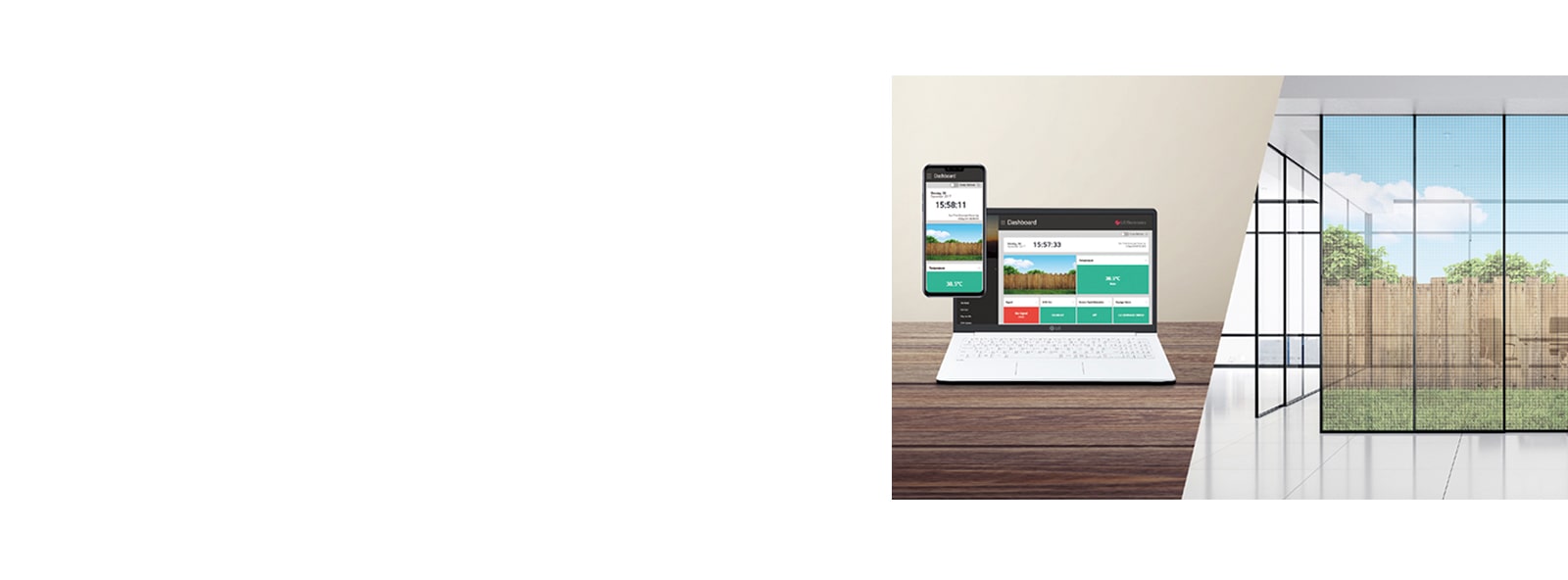

Control Manager

Through the Control Manager, available on internet-connected devices, you can set, control contents and monitor the status of multiple displays in different locations in real time. Especially for Transparent LED film installed on large area, the Control Manager helps you to play and check contents in easier way.

SMART LED SIGNAGE

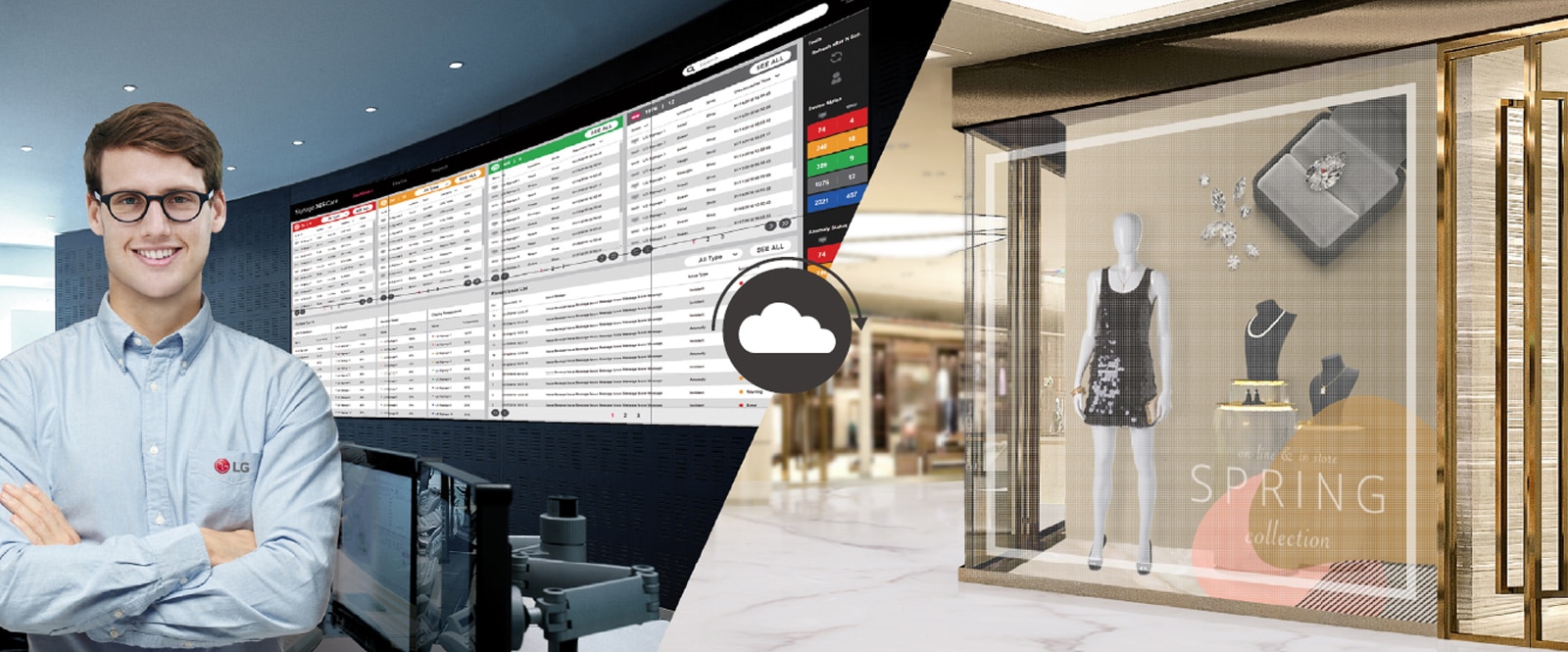

Real-time ConnectedCare Service

Maintenance is easy and fast with the optional ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, enabling the stable operation of clients' businesses.

*ConnectedCare is the brand name of LG Signage365Care Service. The availability differs by region.

LED Film
(LAT140GT81)

Pixel Pitch(mm)

13.7±0.2mm

LED Type

R, G, B 3in1 Color Package (SMD2020)
Resolution

48 x 36

Pixels per Panel

1,728
Pixel Density (point/㎡)

5,102

Brightness (cd/㎡)

Typ.2,100nit
Contrast Ratio

≥ 100,000:1

Luminance Uniformity

≥ 70%
Viewing Angle (H x V)

120 x 120

Life Time (Duration of Half Brightness in Hours)

50,000 Hrs
Daily Usage

24h / 7days

Warranty

2 years
Transparency

Typ 53%

Operating Temperature

0℃ ~ 45℃ (Indoor Glass Installation Only)
Curved Installation

1,100R (Convex and Concave, Only for Glass)

Film Trimming

Yes (Parallel to the Bezel Side Only)
Color Processing

(9bit) 500/500/500 Level (R, G, B)

Colors

125,000,000 Colors
Color Chromaticity

Cx: 0.25±0.03, Cy : 0.34±0.03

Dimension (W x H x D)

655 x 492 x 2.9mm
(with front & back protection film)
Weight

1kg

Power Consumption

37W(Transparent panel 1EA + Common Bezel kit 2EA)
Accessory

ESG, Regulation book, Warranty Card

1st Bezel
(ACC-14LATB1)

Dimension (W x H x D)

69.4 x 492 x 25mm (Cover)

Weight

0.4Kg

Common Bezel
(ACC-14LATB2)

Dimension (W x H x D)

51.4 x 492 x 25mm (Cover)

Weight

0.3Kg

Unit Controller
(LCLG140U)

Resolution

960x540 (1/4 FHD)

Interface

Input : LVDS
Output : RJ45 x4EA
Maximum Transmission Length

100m (Cable : CAT5E, CAT6)

Dimension (W x H x D)

293 x 188.7 x 37mm
Weight

1.5Kg

Temperature Sensor

Yes
Power Consumption

20 W

System Controller
(LCLG002)

Video (Max. Input Resolution)

DP : 1920x1080@60Hz
HDMI : 1920x1080@60Hz
DVI-D : 1920x1080@60Hz

Interface (Input)

HDMI, DP, DVI-D, RS-232C (Phone Jack Type), RJ45 (w/o LED Indicator), IR Receiver (Phone Jacke Type), USB 3.0,
Interface (Output)

DP, RS-232C (Phone Jack Type), RJ45 (w/o LED Indicator), LVDS

Dimension (W x H x D mm)

293 x193.3 x 40.1mm
Weight (Head, Kg)

1.6kg

Temperature Sensor

O
Light Sensor

O

Source Selection

HDMI, DVI-D, DP
Power Consumption

17W

CMS S/W

Yes (2.9)
Signage365care

Yes (2.7)

Accessory

Power cord, IR+Bright Sensor (1.5m), 4P Phone-to-RS232C Gender, ESG, Regulation book , Warranty Card

Power
(ACC-LATP1)

Dimension (W x H x D)

183 x 86 x 28mm

Weight

769g
Input

100~240V, 50~60Hz

Output

19.5V/10.8A (210W)
Color

White

DC output cable

14AWG, 1.5m
Type

L Type
