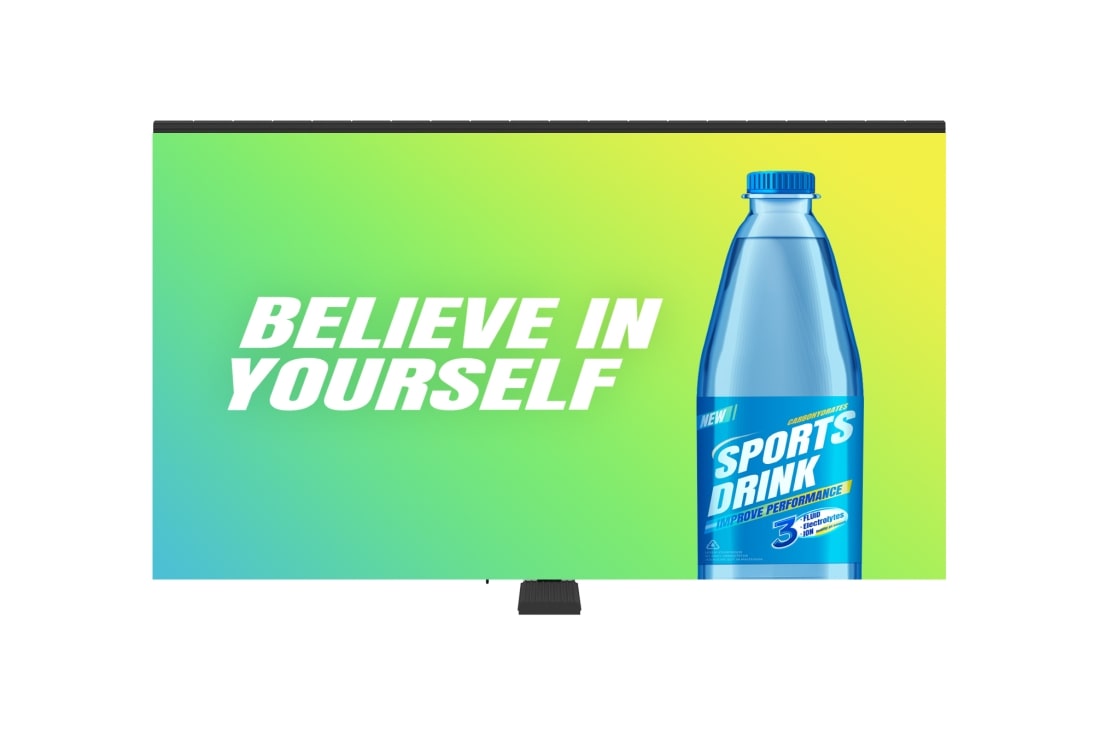

LG Stadium Series (Perimeter), front view with infill image, LBB100DD4, thumbnail 1

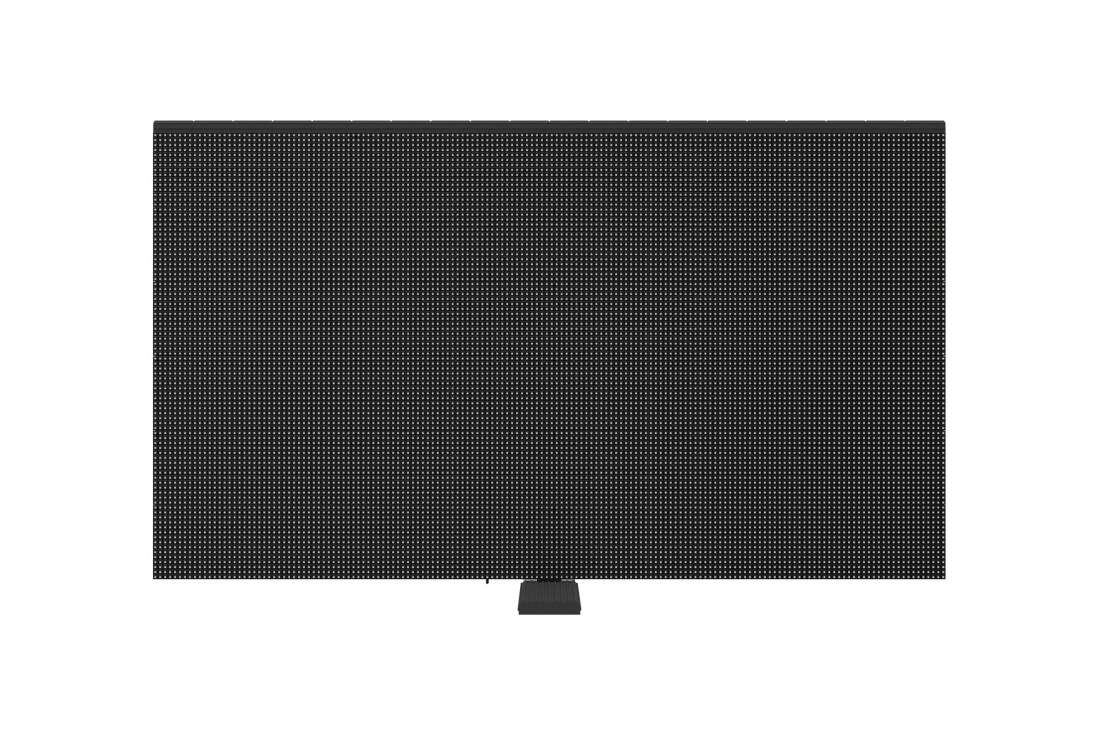

LG Stadium Series (Perimeter), front view, LBB100DD4, thumbnail 2

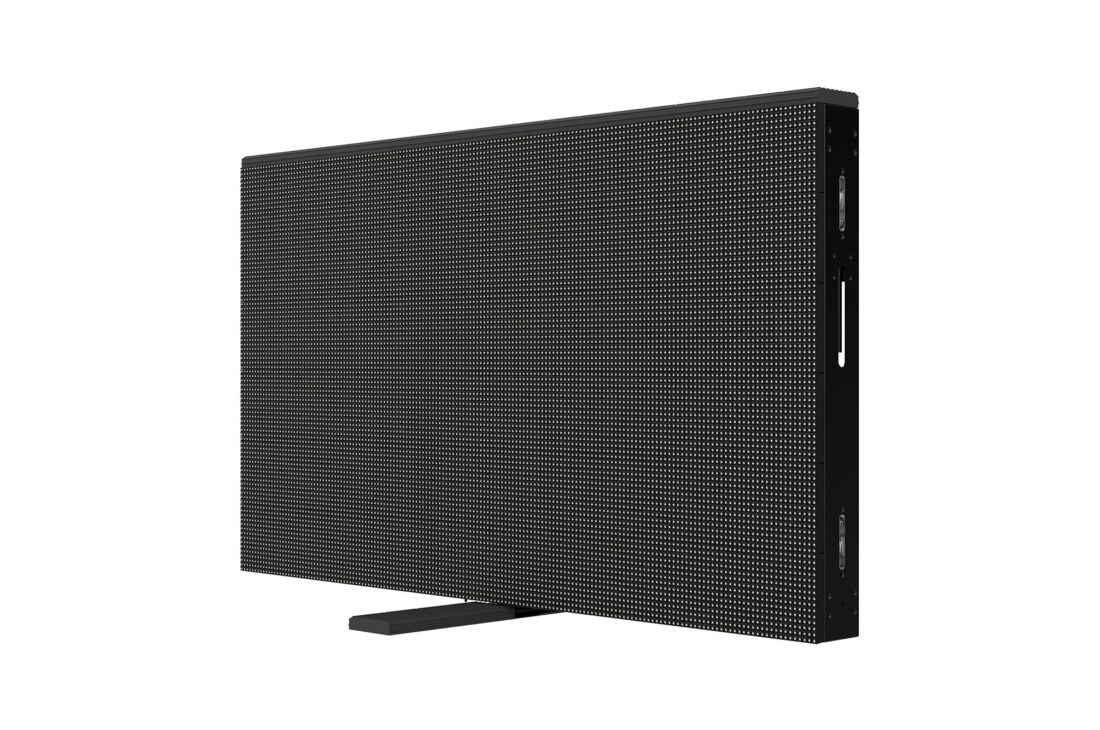

LG Stadium Series (Perimeter), left 45 degree side view, LBB100DD4, thumbnail 3

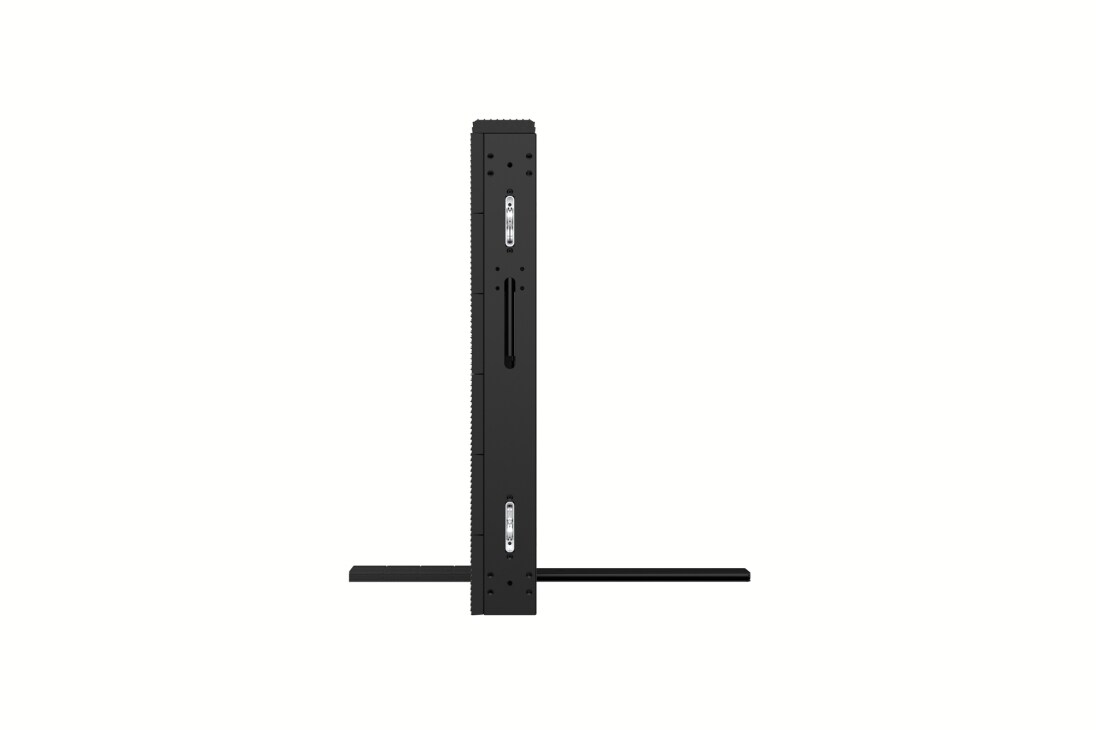

LG Stadium Series (Perimeter), left side view, LBB100DD4, thumbnail 4

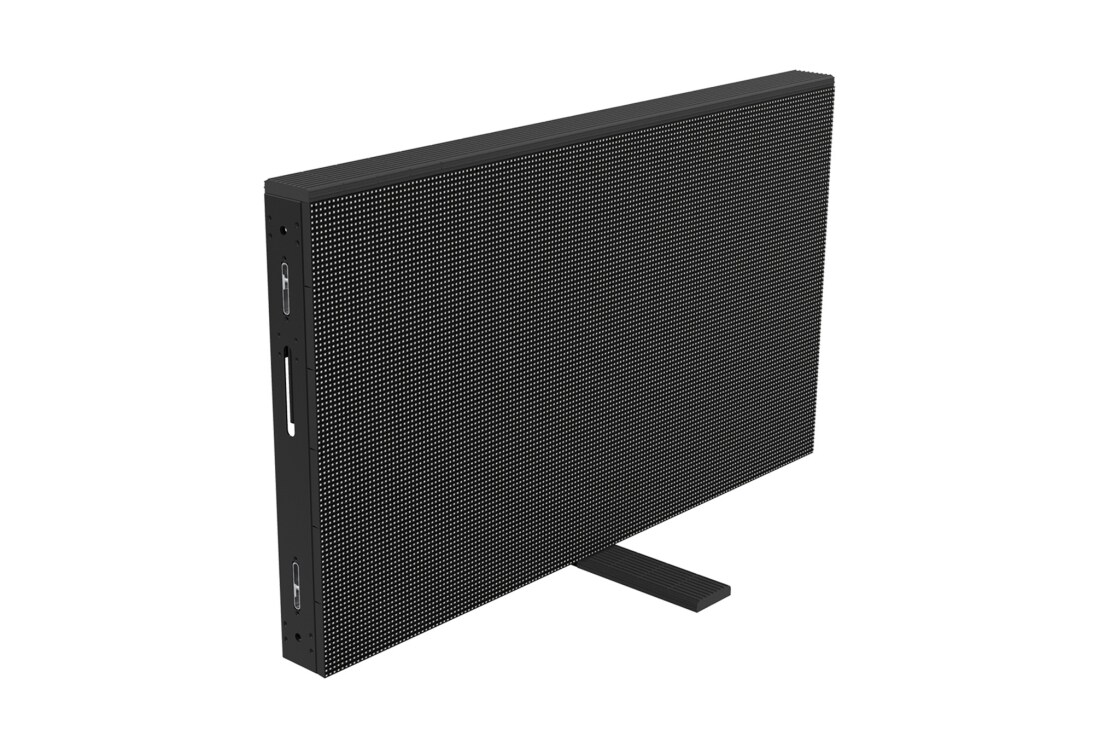

LG Stadium Series (Perimeter), right 45 degree side view, LBB100DD4, thumbnail 5

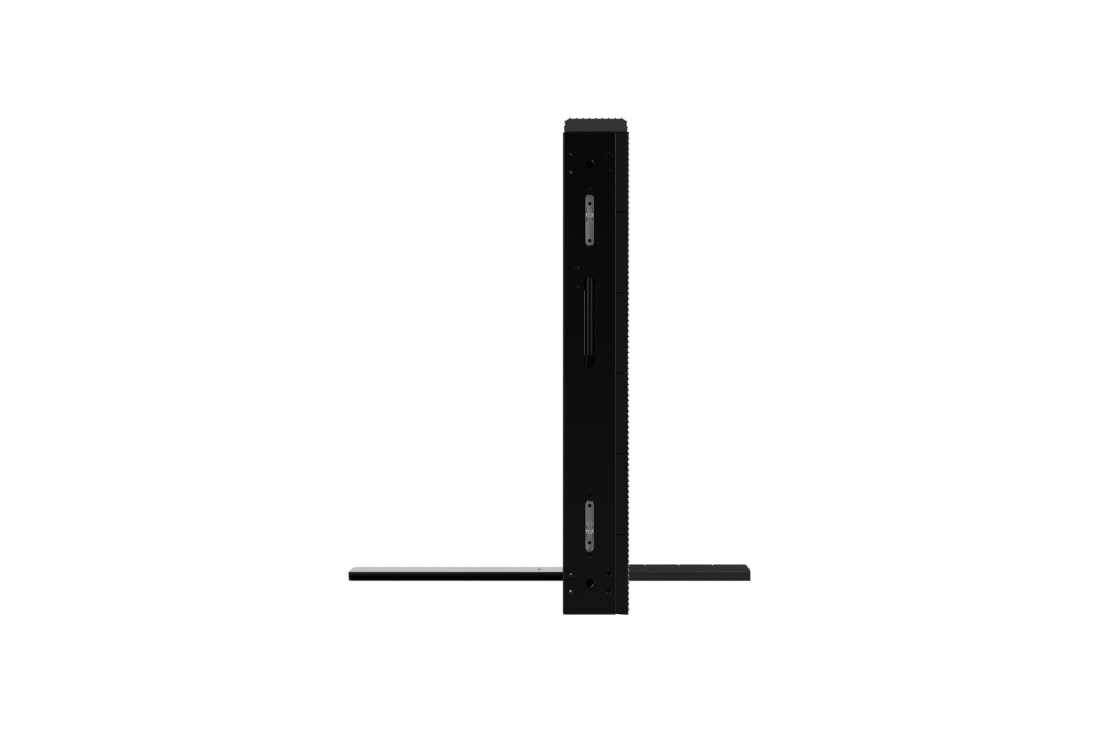

LG Stadium Series (Perimeter), right side view, LBB100DD4, thumbnail 6

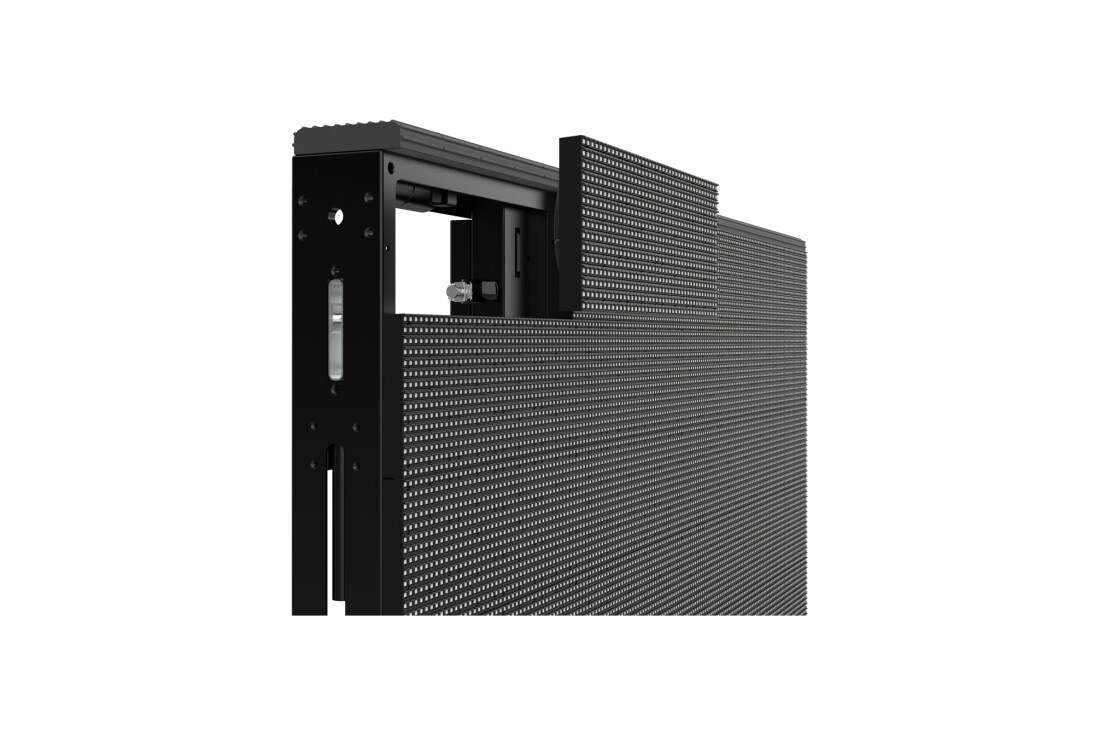

LG Stadium Series (Perimeter), close up top left view, LBB100DD4, thumbnail 7

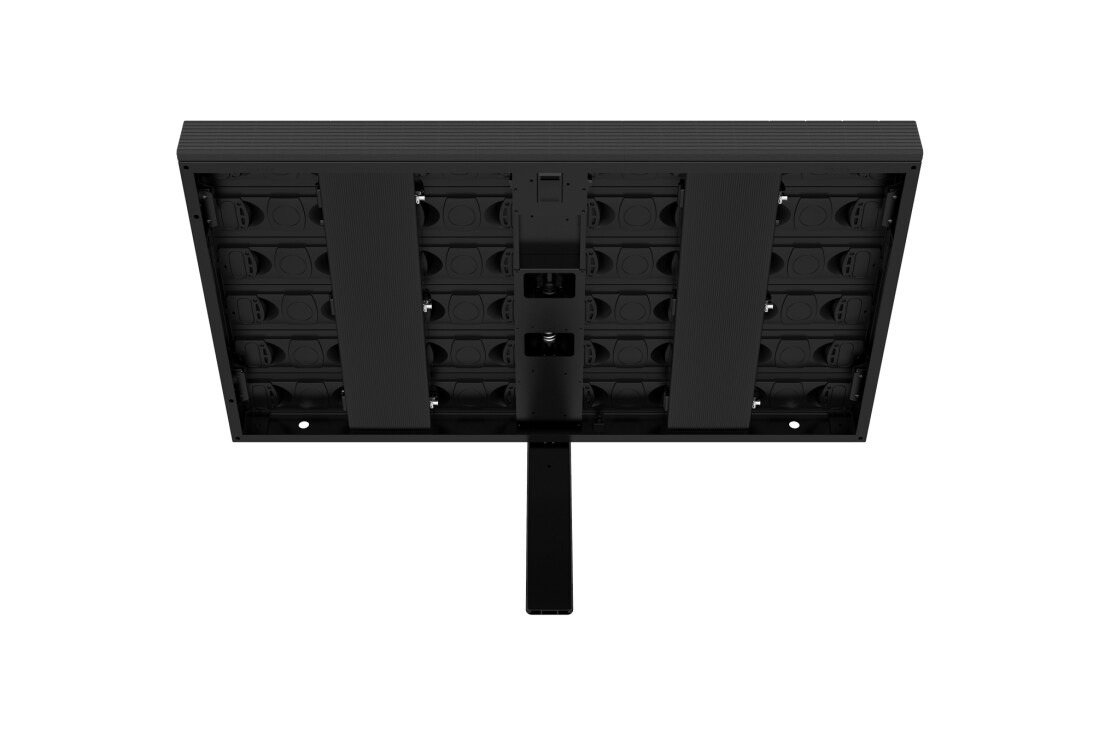

LG Stadium Series (Perimeter), rear view image taken from the top, LBB100DD4, thumbnail 8

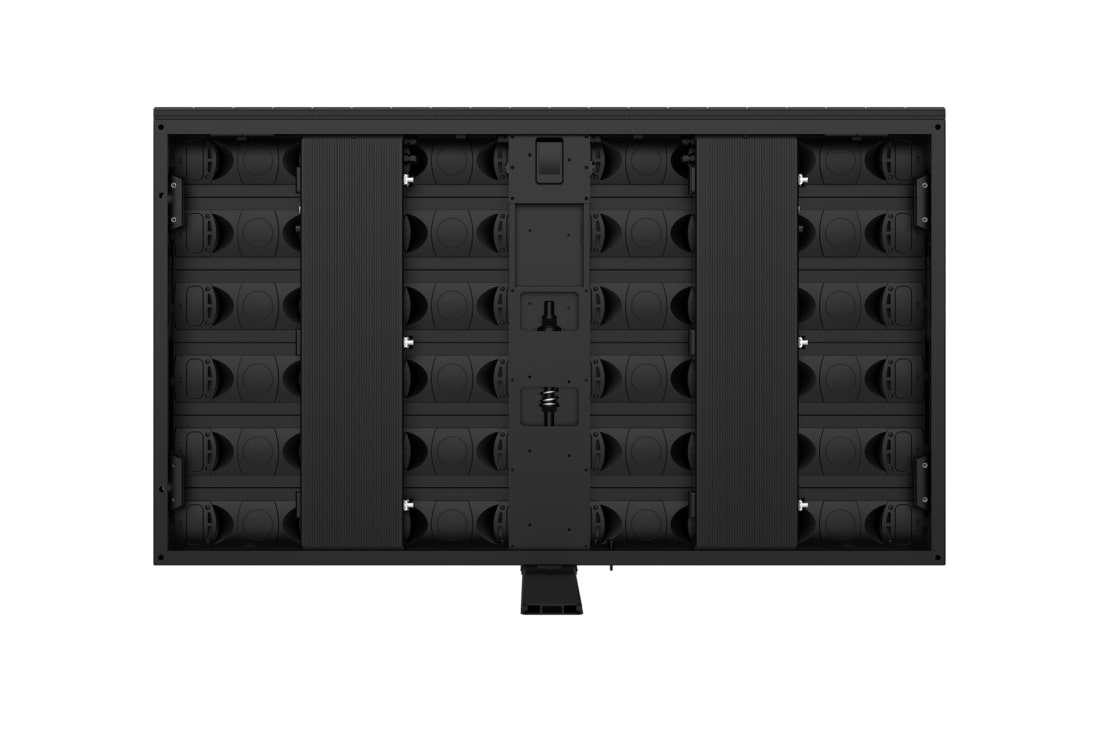

LG Stadium Series (Perimeter), rear view, LBB100DD4, thumbnail 9

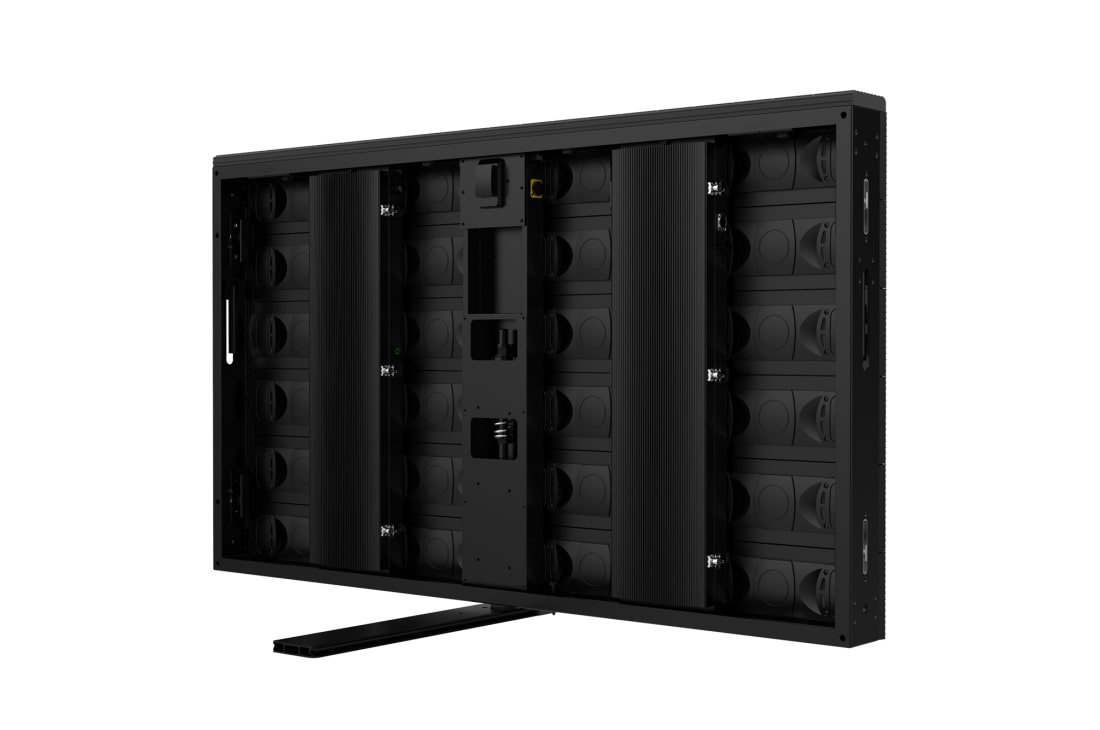

LG Stadium Series (Perimeter), left 45 degree rear view, LBB100DD4, thumbnail 10

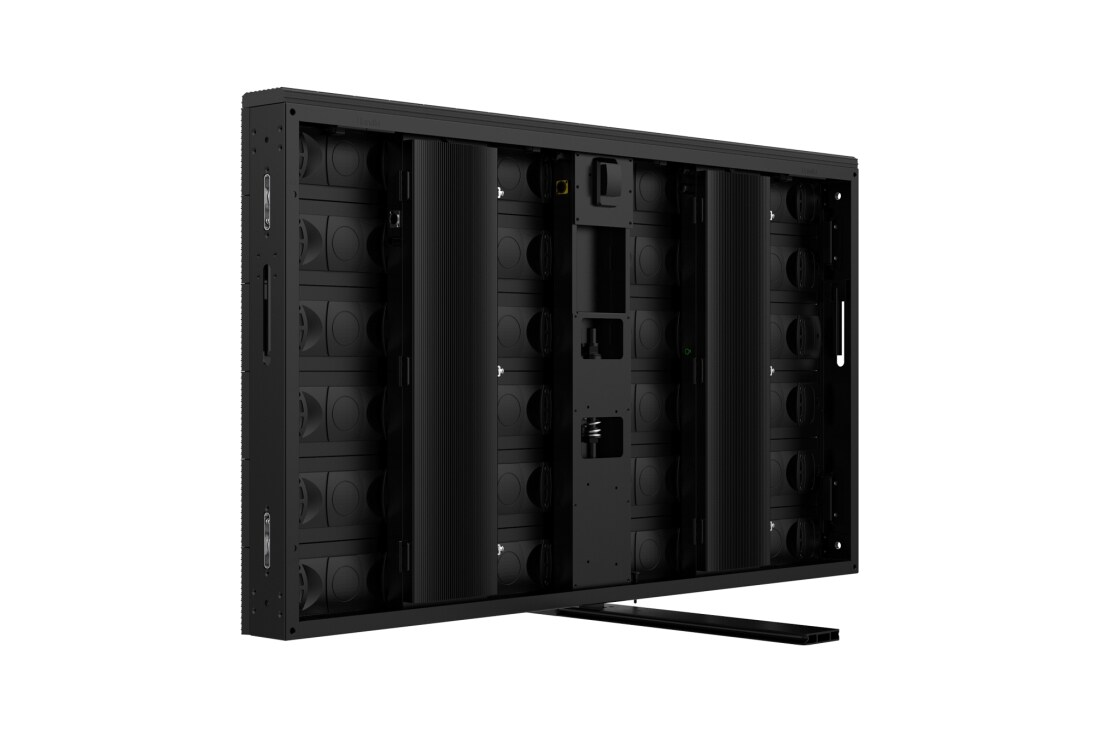

LG Stadium Series (Perimeter), right 45 degree rear view, LBB100DD4, thumbnail 11

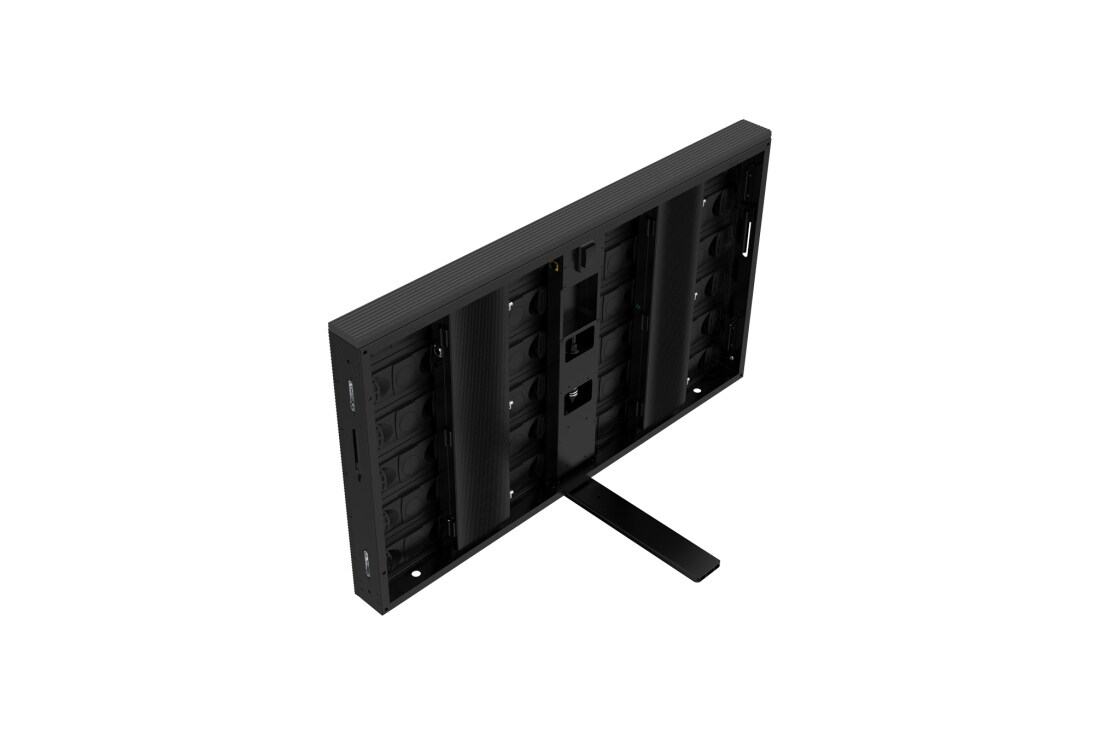

LG Stadium Series (Perimeter), rear view image taken from the top right, LBB100DD4, thumbnail 12

ADD TO WISHLIST

Discontinued

LBB100DD4 component-copyModelName

Stadium Series (Perimeter)

Name: Stadium Series (Perimeter)
Brand: LG UAE
SKU: LBB100DD4
Rating: 0 (0 reviews)

Key Features

Pixel Pitch: 10.00 mm
Brightness: 6,000 cd/m²
Qualified for UEFA Criteria
Quick Maintenance
IP65 Weatherproof Design

Choose your Pitch

P10.0

Add to Compare

component-OBScountrySelectDesc

Key Features

Pixel Pitch: 10.00 mm
Brightness: 6,000 cd/m²
Qualified for UEFA Criteria
Quick Maintenance
IP65 Weatherproof Design

Choose your Pitch

P10.0

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

Stadium Series (Perimeter)

Qualified for UEFA Criteria

The LBB series meets the LED technical specifications of UEFA (Union of European Football Associations) that a perimeter LED signage should follow when installed in UEFA’s stadiums.

* Full approval from UEFA can only be given once a system is checked on site.

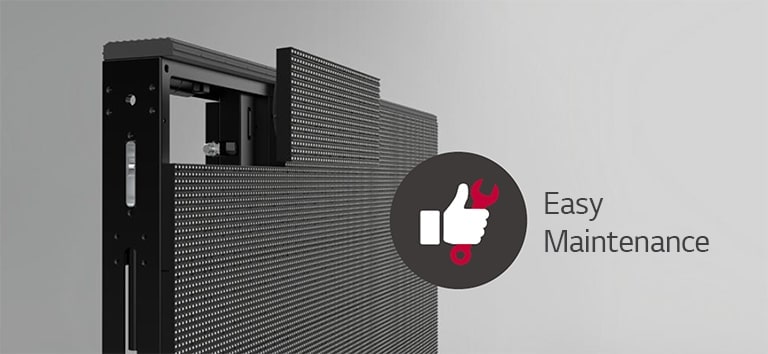

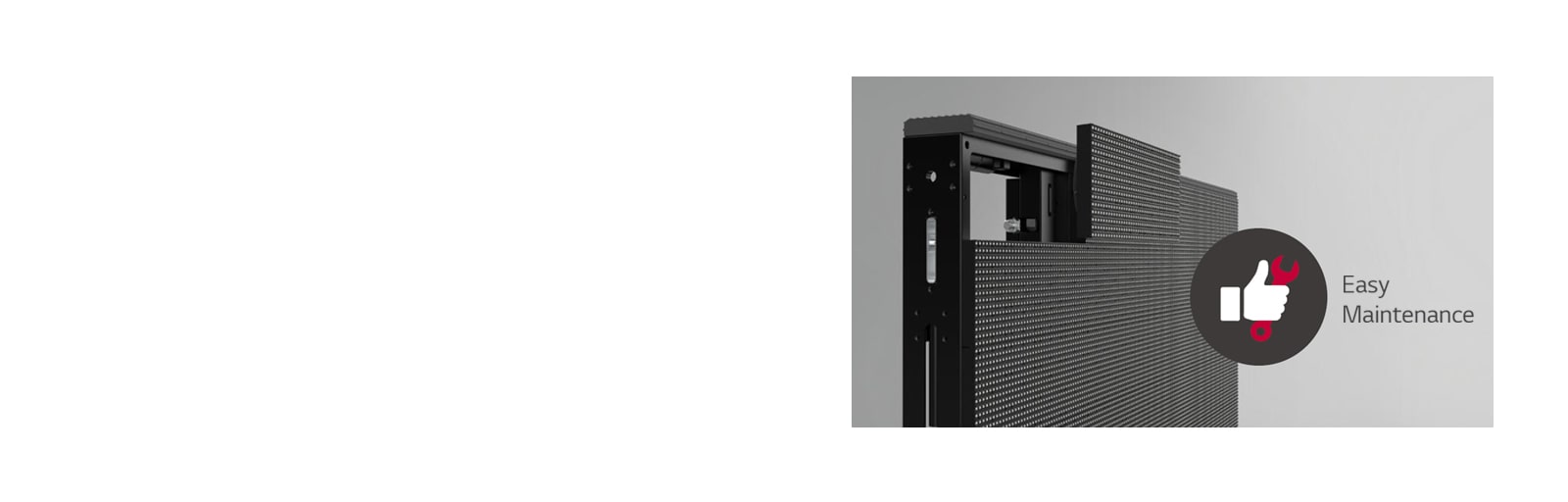

Quick and Simple Maintenance

The LED module can be replaced only in one minute from both front and rear sides, minimizing maintenance time and spatial constraints. Also, every electric component is easily serviced.

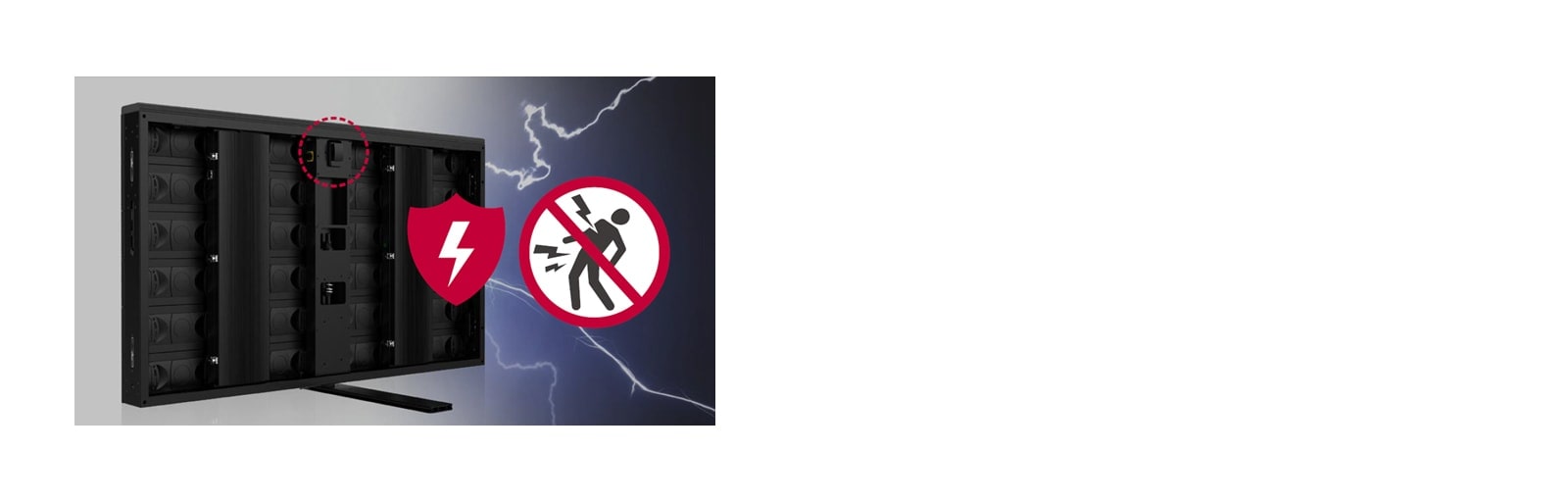

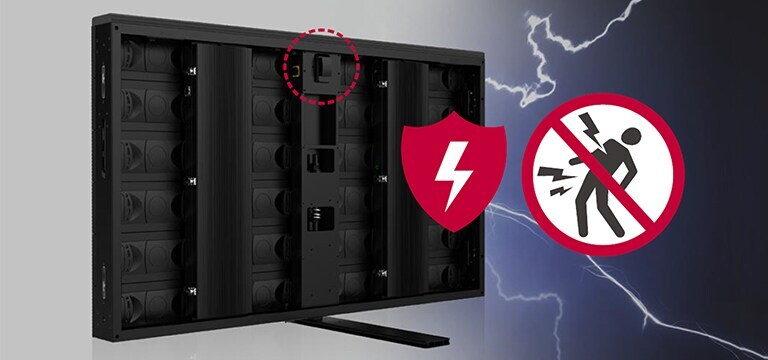

Electrical Safety

A circuit breaker is included in each cabinet not only to protect people from electric shock by current leakage causes, but also to provide security from an overcurrent.

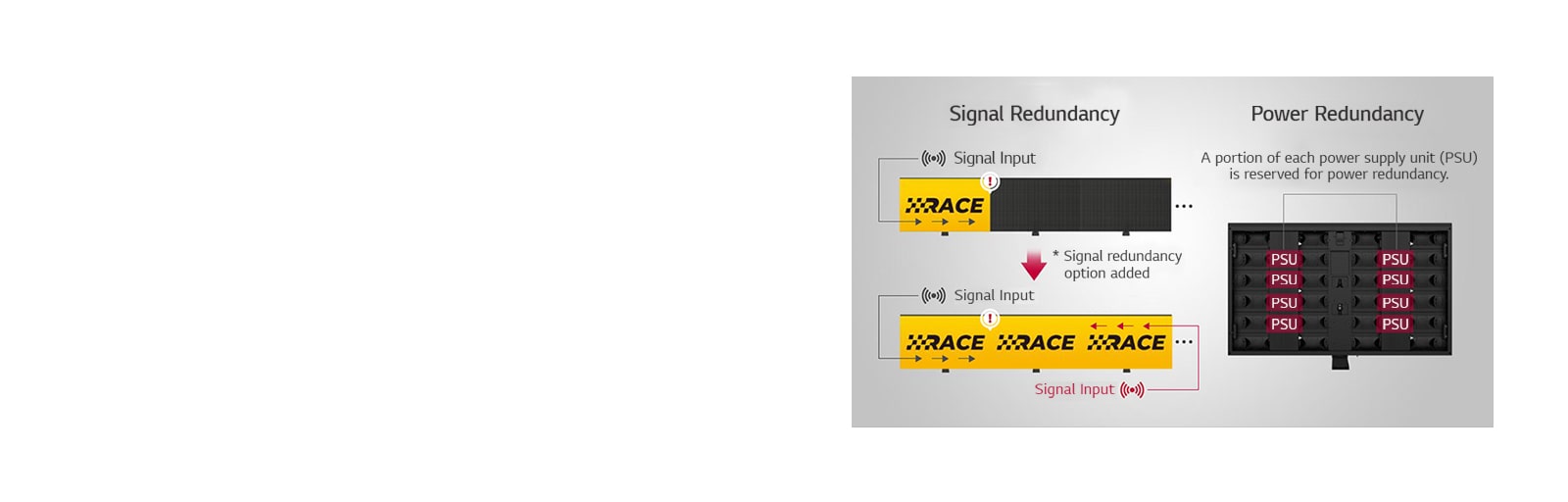

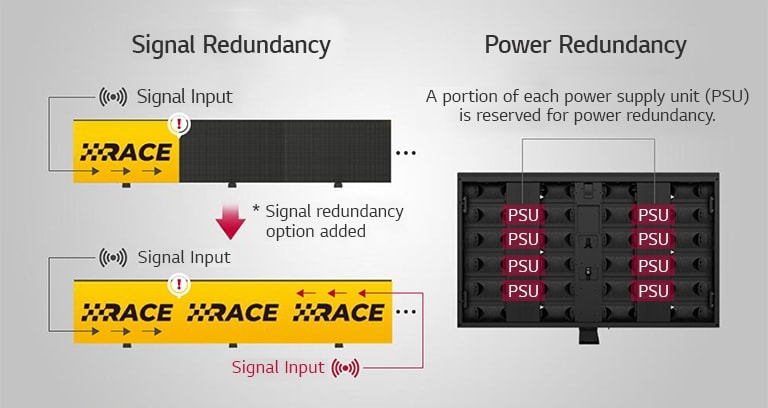

Redundancy Support

The LBB series supports both power and signal redundancy to reassure the operator and ensure the continuous operation even if there is power failure or no signal.

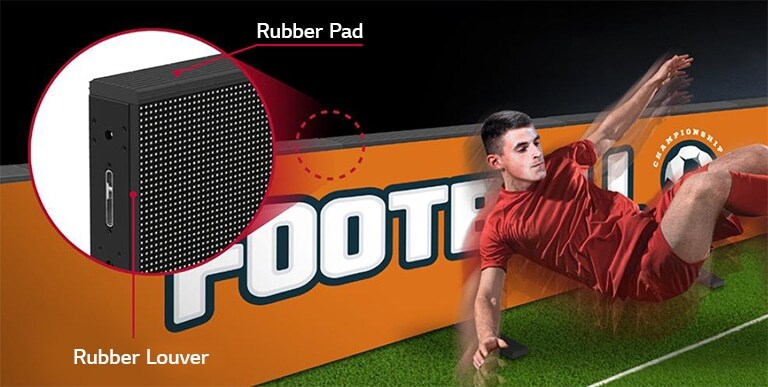

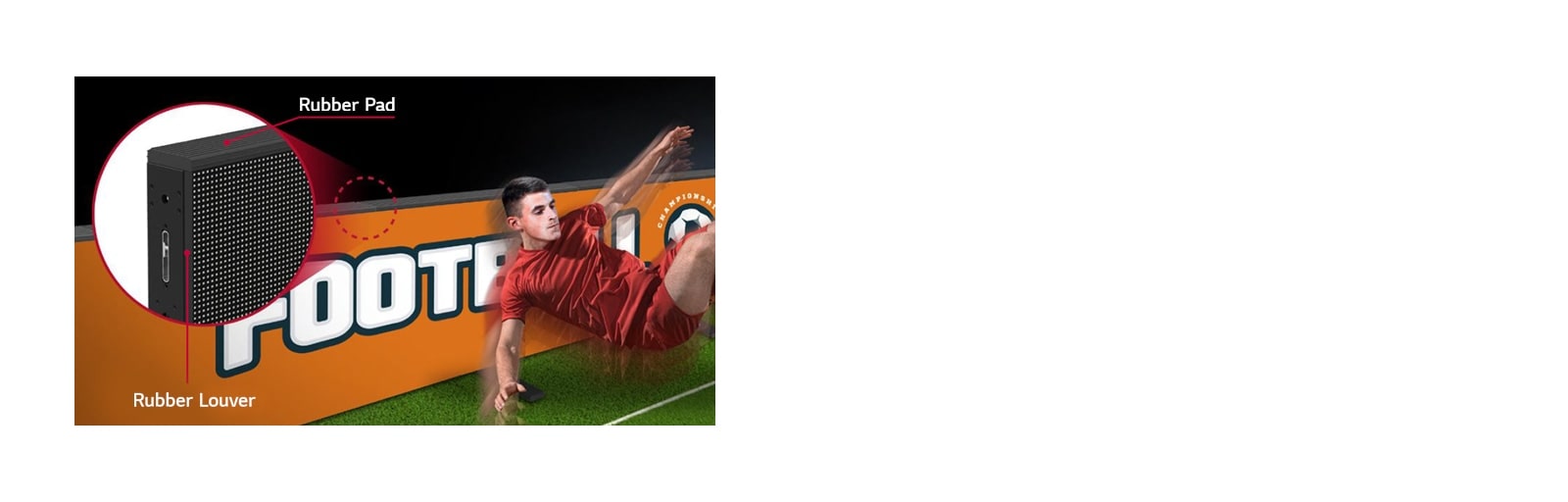

Design for Injury Prevention

In consideration of the safety of players and staffs, the front and top parts of a cabinet are designed with a rubber pad and a rubber louver to prevent serious injury caused by hitting it during a game.

Foldable Design

In case of an emergency, people in the stadium can escape quickly and easily by folding down the cabinets.

PHYSICAL PARAMETERS

Pixel Configuration

3 in 1 SMD

Pixel Pitch(mm)

10.00
Module Resolution (W x H)

40 × 15

Module Dimensions (W x H, mm)

400 × 150
Weight per Module (kg)

1.00

No. of Modules per Cabinet (W × H)

4 × 6
Cabinet Resolution (W × H)

160 × 90

Cabinet Dimensions (W × H × D)

1,600 × 900 × 124
Cabinet Surface Area (m²)

1.440

Weight per Cabinet (kg/Cabinet)

65.0
Weight per Square Meter (kg/m²)

45.1

Physical Pixel Density (pixels/m²)

10,000
Flatness of Cabinet

±0.5 mm

Cabinet Material

Aluminum Profile
Service access

Module : Front and Rear
PDU : Rear

OPTICAL PARAMETER

Min. Brightness (After Calibration)

6,000

Color Temperature

3,500 ~ 9,000
Visual Viewing Angle (Horizontal/Vertical)

160 × 120

Brightness Uniformity

97%
Color Uniformity

± 0.003 Cx,Cy

Contrast Ratio

12,000
Processing Depth (bit)

14

ELECTRICAL PARAMETER

Power Consumption (W/cabinet, Max.)

750

Power Consumption (W/cabinet, Avg.)

250
Power Consumption (W/m², Max.)

520

Heat Dissipation (BTU/h/Cabinet, Max.)

2,559
Heat Dissipation (BTU/h/Cabinet, Avg.)

853

Heat Dissipation (BTU/h/m², Max.)

1,774
Power Supply (V)

100 to 240

Frame Rate (Hz)

50 / 60
Refresh Rate (Hz)

3,840

OPERATION CONDITIONS

Lifetime (Hours to Half Brightness)

100,000

Operating Temperature (°C)

-20℃ to +45℃
Operating Humidity

10-99%RH

IP Rating Front

IP65
IP Rating Rear

IP65

CERTIFICATION

Certification

CE,FCC,ETL

Environment

Environment

RoHS

CONTROLLER

Controller

LCIN006
