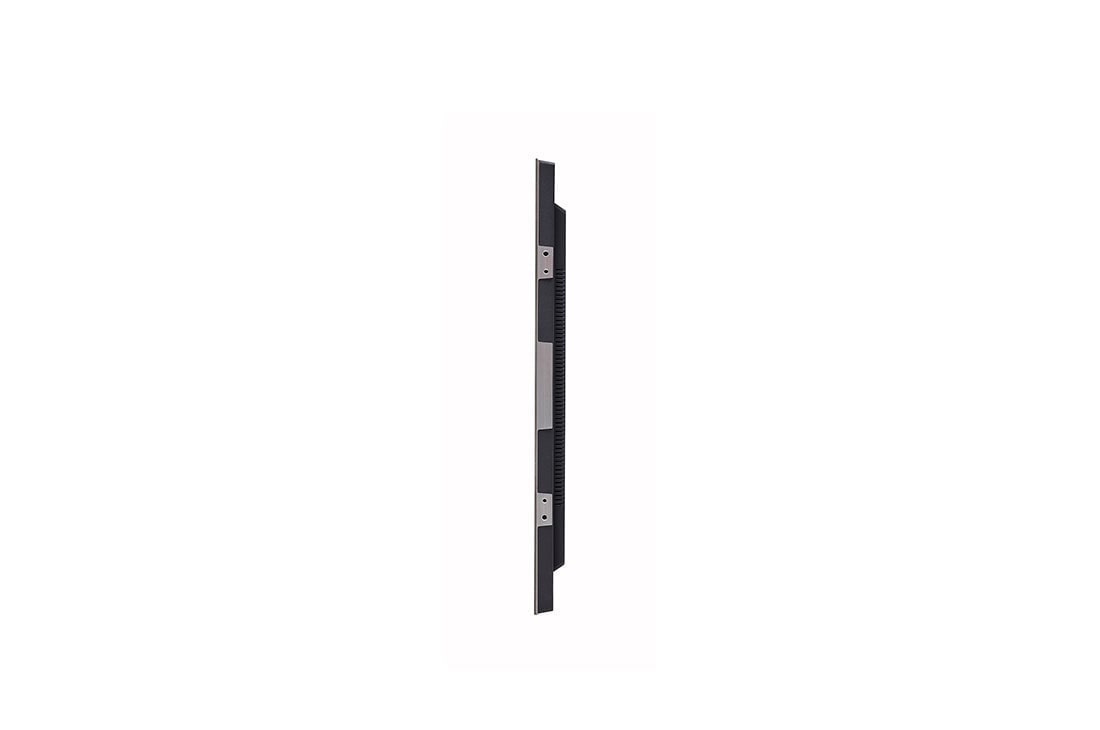

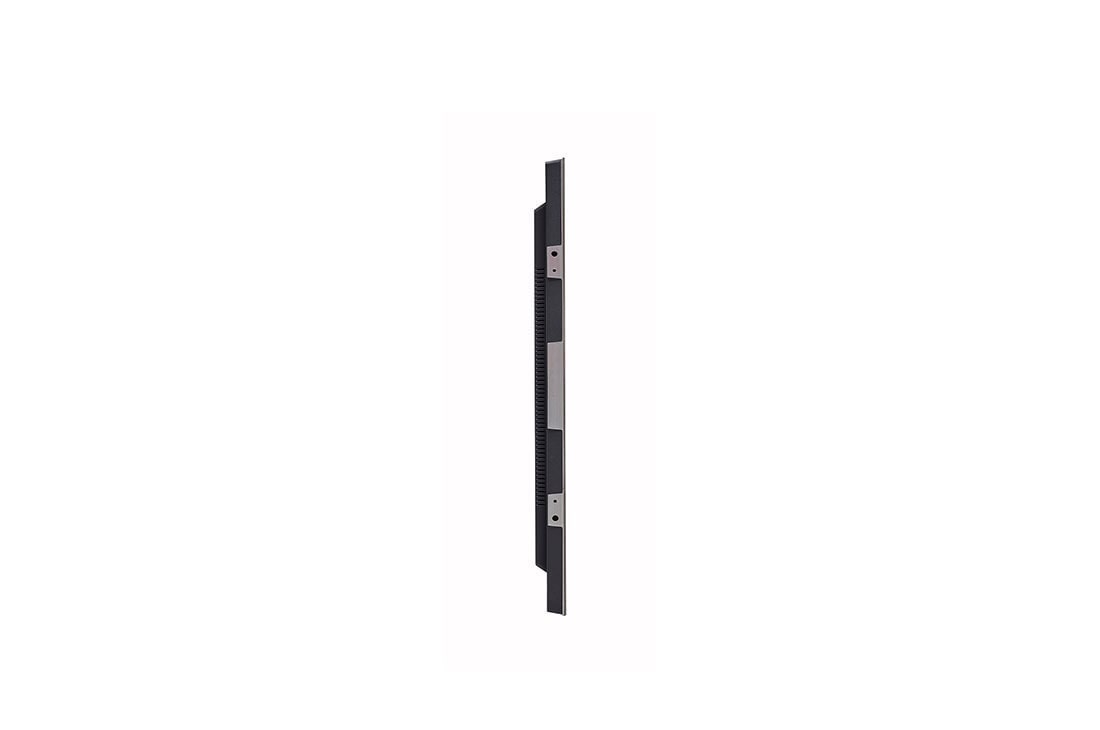

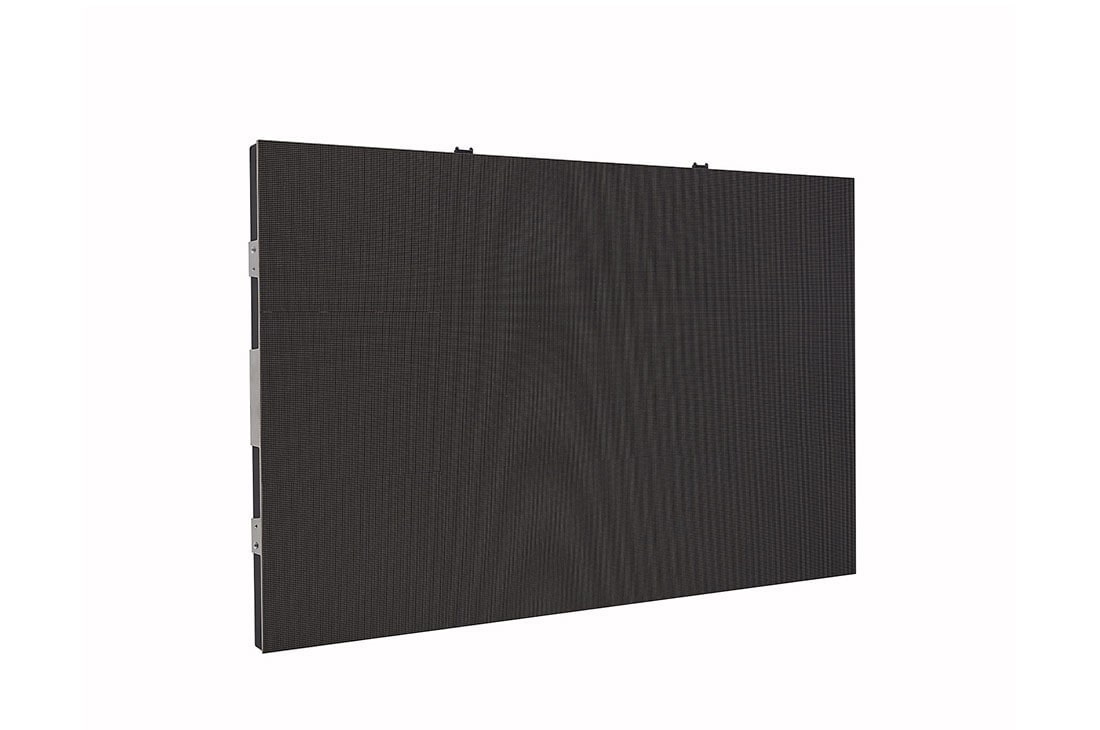

LG LED Bloc

Key Features

Choose your Pitch

component-OBScountrySelectDesc

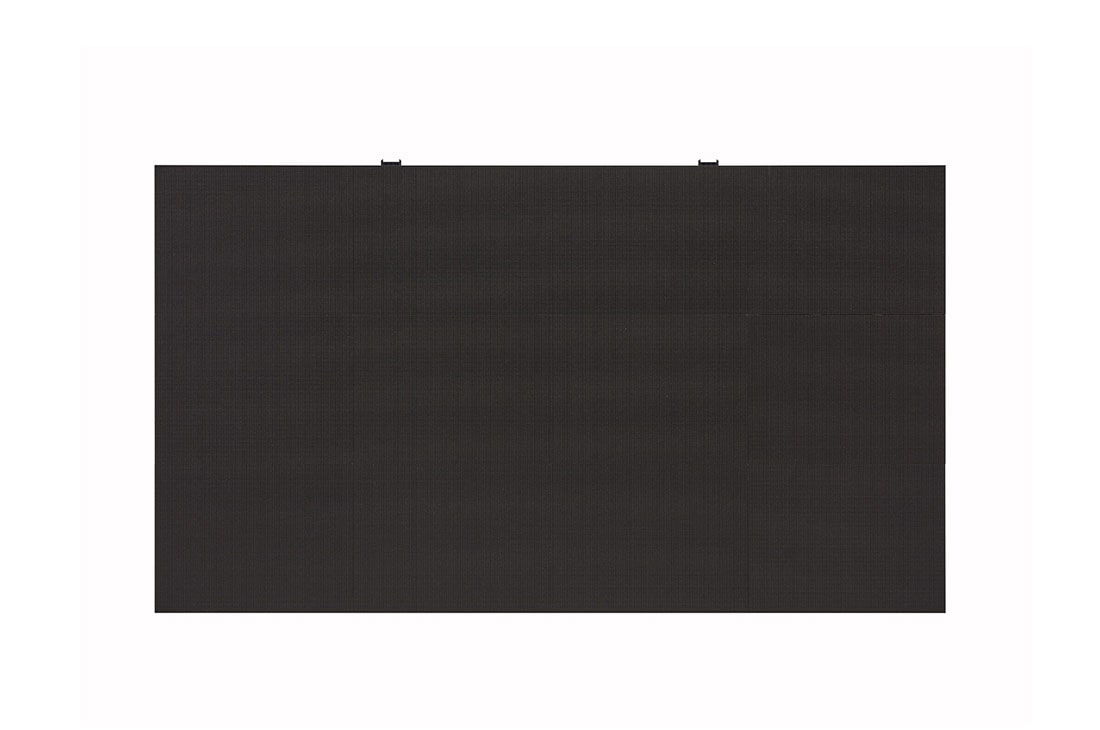

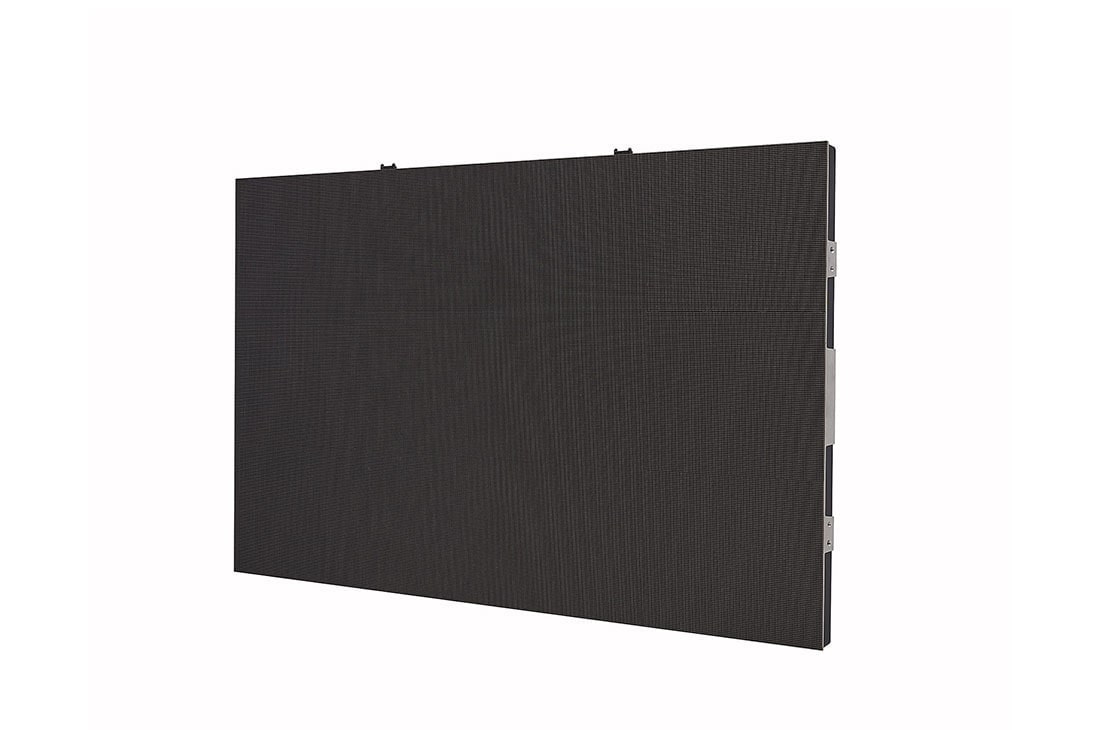

LG LED Bloc
PHYSICAL PARAMETERS
  • Pixel Configuration
    3 in 1 SMD
    Pixel Pitch(mm)
    2.50
  • Module Resolution (WxH)
    120x90
    Module Dimensions(WxH,mm)
    300x225
  • Weight per Module (kg)
    430g
    No. of Modules per Cabinet (WxH)
    4x3
  • Cabinet Resolution (WxH)
    480x270
    Cabinet Dimensions (W x H x D, mm)
    1200x675x51
  • Cabinet Surface Area (㎡)
    0.810
    Weight per Cabinet (kg/unit)
    22.5kg
  • Weight per Square Meter (kg/m²)
    27.8kg
    Physical Pixel Density (pixels/m²)
    160,000
  • Flatness of Cabinet (mm)
    ±0.5
    Cabinet Material
    Die-cast Aluminum
  • Service access
    Front
OPTICAL SPECIFICATIONS
  • Max Brightness (After Calibration, nit)
    Peak. 1,000nit / Max. 600nit
    Color Temperature (K)
    3,200~9,300K
  • Visual Viewing Angle (Horizontal)
    160
    Visual Viewing Angle (Vertical)
    160
  • Brightness Uniformity
    95%
    Color Uniformity
    ±0.015Cx,Cy
  • Contrast Ratio
    Peak. 9,000:1
    Typ. 5,000:1
    Processing Depth (bit)
    20 (HDR10, HDR10 Pro)
ELECTRICAL SPECIFICATIONS
  • Power Consumption (W/Cabinet, Max.)
    290
    Power Consumption (W/Cabinet, Avg.)
    190
  • Power Consumption (W/m², Max.)
    358
    Heat Dissipation (BTU/h/Cabinet, Max.)
    990
  • Heat Dissipation (BTU/h/Cabinet, Avg.)
    648
    Heat Dissipation (BTU/h/m², Max.)
    1,222
  • Power Supply (V)
    100 to 240
    Frame Rate (Hz)
    50 / 60
  • Refresh Rate (Hz)
    3,840
OPERATION SPECIFICATIONS
  • LED Lifetime (Half brightness)
    100,000
    Operating Temperature(℃)
    0∘to +40∘
  • Operating Humidity
    10-80%RH
    IP rating Front
    IP20
  • IP rating Rear
    IP20
CERTIFICATION
  • Certification
    Safety 60950-1,

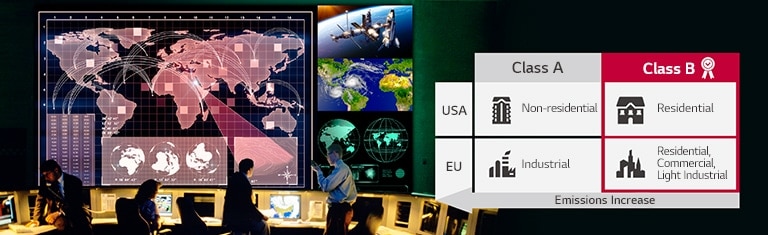

    EMC Class B,
    BS476 Part7 Class1
Environment
  • Environment
    RoHS
CONTROLLER
  • Controller
    CSAC-025K
COMPLIANCE INFORMATION
  • The safety information for accessories is included with the safety information for the product and is not provided separately.

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
